USER MANUAL RCIN-700-01 Royal Catering

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Induction deep fryer
Model	RCIN-700-01	RCIN-700-02
Supply voltage [V~] / frequency [Hz]	400/50
Rated power [W].	20000	10000
Temperature range[°C]	60 – 190
Total capacity [I]	2x30	30
Dimensions (width x depth x height) [mm]	900 x 800 x 980	900 x 400 x 1000
Weight [kg]	105.8	60

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MAYBEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

The product complies with applicable safety standards.

Read the manual before use.

Recyclable product.

CAUTION! or WARNING! or REMEMBER! A general warning sign that describes a given situation.

CAUTION! Warning of electric shock!

Caution! Hot surface can cause burns!

For indoor use only.

CAUTION! Non-ionizing electromagnetic radiation.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Induction deep fryer

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.
c) Do not touch the device with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.
f) Do not use the appliance if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) To avoid electric shock, do not immerse the cable, plug, or the appliance itself in water or other liquid. Do not use the appliance on wet surfaces.
h) CAUTION - DANGER TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.
i) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!
j) Do not connect the multicontact plugs, extension cables etc.
k) The electric connection should be made by a qualified electrician.

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust.
c) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
d) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
e) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
f) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
g) Use the product in a well-ventilated area.
h) Check the condition of the safety stickers regularly. Replace them if they are illegible.
i) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
j) Keep packaging components and small installation parts out of the reach of children.
k) Keep the device away from children and animals.
I) When using this product together with other devices, also follow the other instructions for use.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) Use caution and common sense when operating this device. A moment's inattention during operation may result in serious personal injury.
d) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
e) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
f) The product is not a toy. Children should be watched to ensure that they do not play with the appliance.

2.4. Safe use of the product

a) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) When transporting or moving the unit from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the unit is used.
i) Do not move, shift, or rotate the machine while in operation.
j) Do not leave the device switched on unattended.
k) Clean the device regularly to prevent permanent dirt build-up.
I) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
m) Do not tamper with the device to alter its performance or design.
n) Keep the unit away from sources of fire and heat.
o) Do not cover the vents of the device!
p) It is forbidden to heat up empty vessels on the device.
q) The device shall be used on a surface resistant to heat. Do not place the device on carpets, tablecloths, etc., so surfaces made of flammable, melting materials.
r) Do not place the device on metal surfaces.
s) CAUTION! The cooktop of the device remains hot for an extended period of time after switching off of the power supply. Touching a hot cooktop can cause skin burns.
t) Do not place metal utensils, cutlery, etc., in the area of the appliance's heating plate as they can become very hot and cause skin burns.
u) CAUTION! Rings, watches, chains and other metal objects can become hot when in close proximity to the switched-on device.
v) Aluminium foil, plastic cutlery and vessels should be kept away from the cooktop.
w) Do not use the device in the vicinity of devices susceptible to electromagnetic radiation, i.e. payment cards, TV receivers, etc.
x) CAUTION: The metal parts of the lid and the casing can be hot and cause burns to the skin.
y) Do not move the fryer with hot oil in it! The oil can maintain a high temperature for up to 6-7 hours.
z) It is forbidden to turn on the device if the bowl is not filled with oil.

aa) Do not put flammable objects into the unit.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

This induction fryer is designed for deep-fat frying only.

Never use the fryer to:

• Preheat products.
• Heat liquids containing sugar, sweetener, acids, alkalis or alcohol.
• Heat or warm up flammable, harmful, volatile or similar liquids or other substances.

The user is responsible for any damage resulting from misuse.

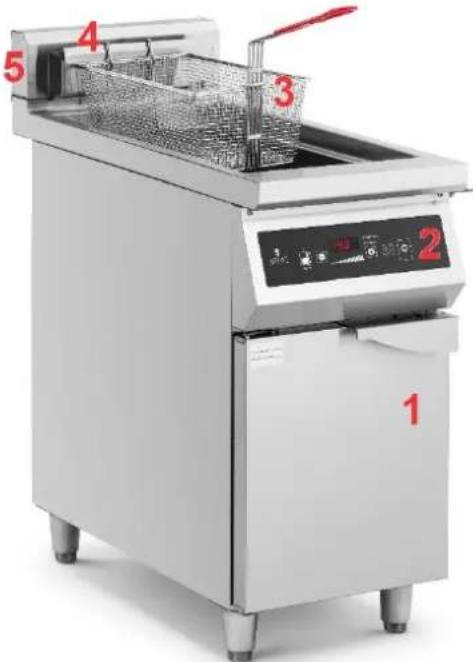

3.1. Product overview

1-door
2 - Control panel
3-Basket
4-Basketbracket
5 - Base of the basket support

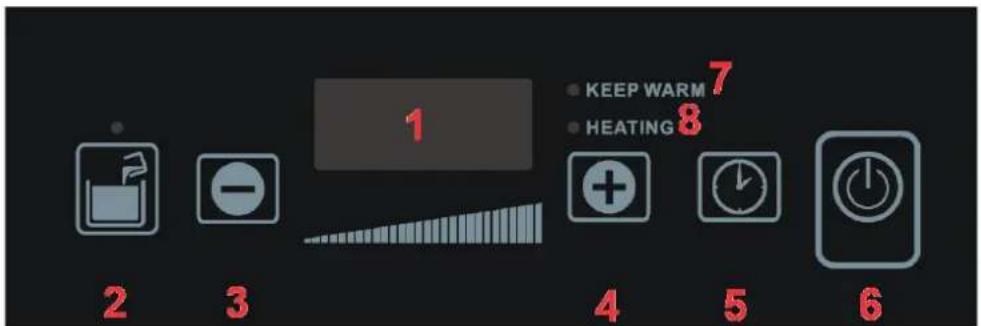

Control panel:

1 - Temperature/time display. The display shows the temperature set by the user (first the one set and then the actual temperature). If the TIMER has been set, the display will alternately show the temperature and the remaining time.
2-Oil fill button/indicator
3/4 - Buttons for decreasing/increasing the temperature/time
5-TIMER button
6-ON/OFF switch
7 - "KEEP WARM" light - keeping warm
8 - "HEATING" light - heating

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ and ambient humidity should not exceed 85% . Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof, and dry surface and out of the reach of children and persons with impaired mental, sensory, and intellectual functions. Place the unit in such a way that the main plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

Before using the unit for the first time, disassemble all parts and wash them as well as the entire unit.

3.3. Installation of the unit

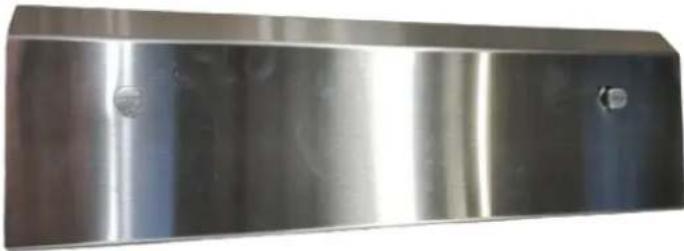

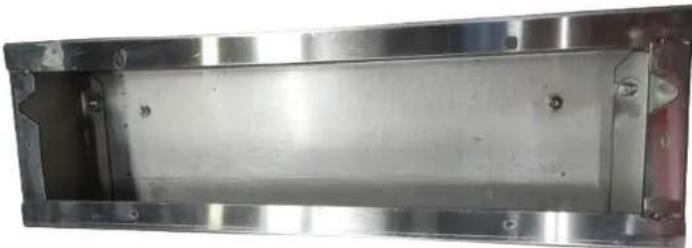

Attach the base of basket support (5):

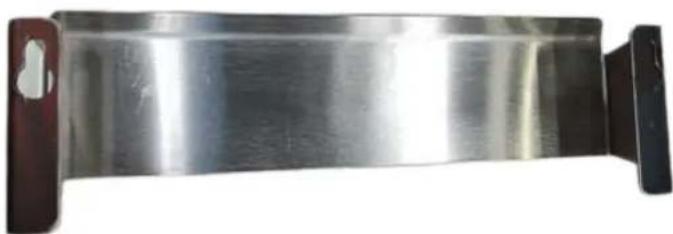

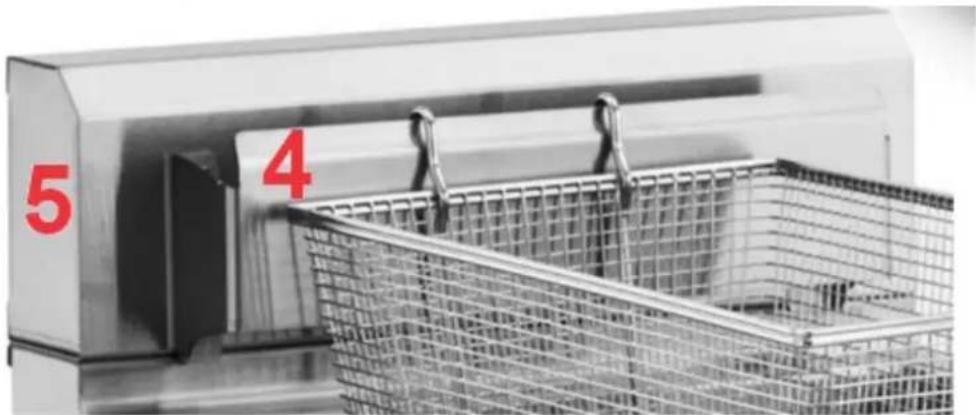

Attach the basket support (4):

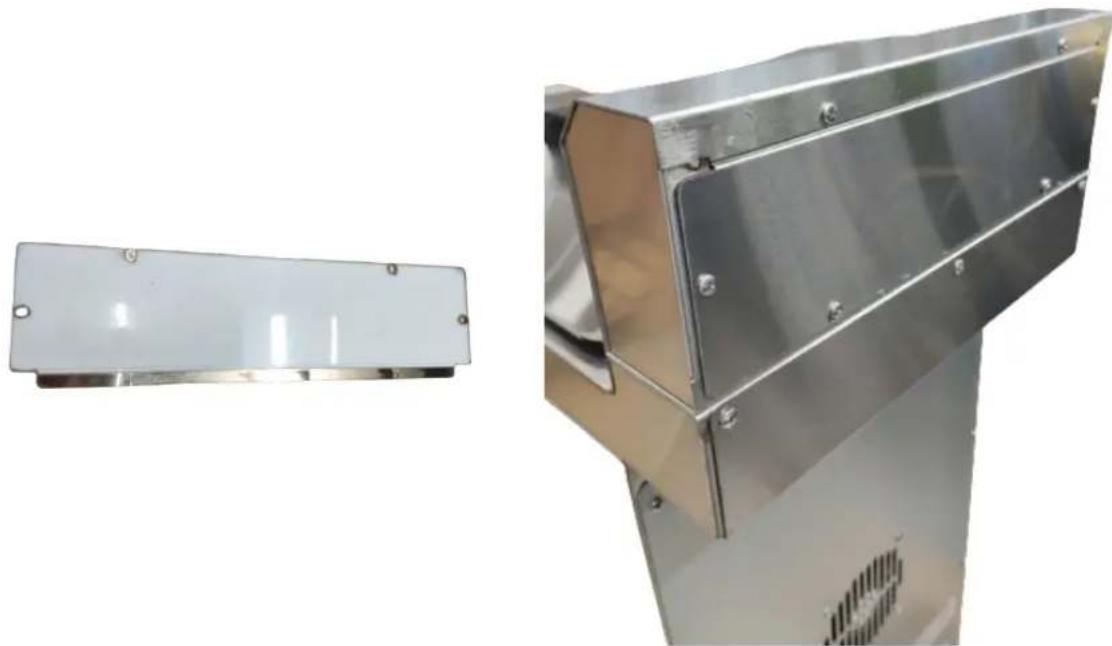

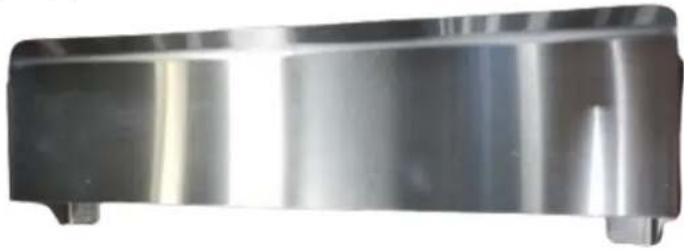

Attach the rear cover of the basket support base:

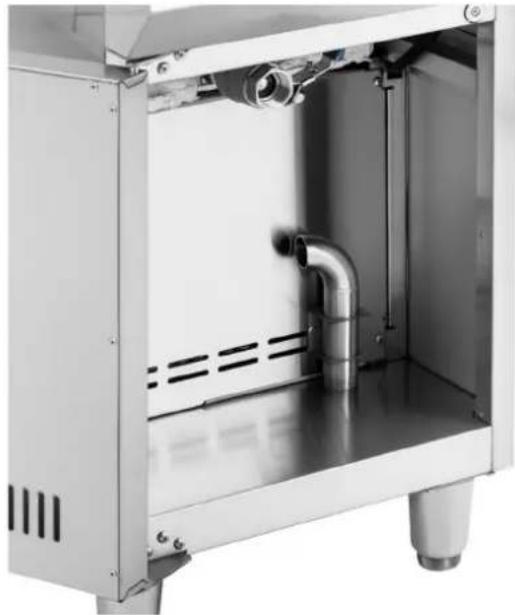

The oil drain tube is located in the cabinet under the unit. It should be installed when the used oil is to be drained off.

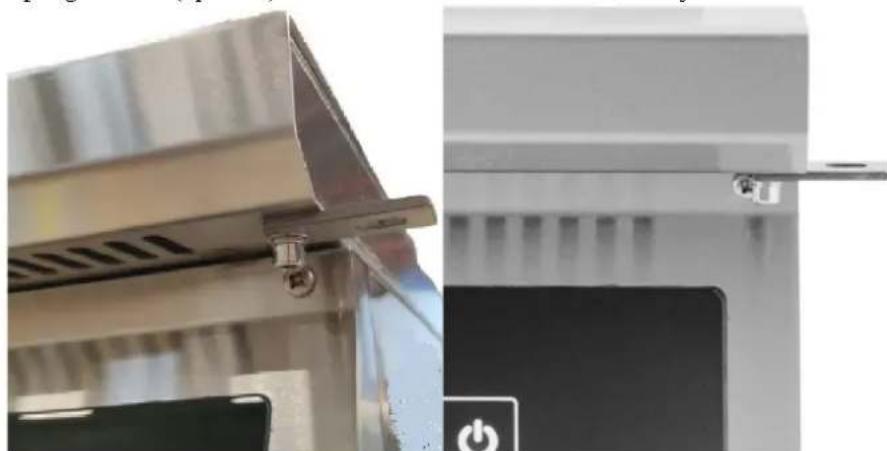

Install the coupling element (optional) to allow the installation of a second fryer:

3.4. Working with the device

1) Connect the device to the power supply - CAUTION! The appliance is delivered without a plug, you should obtain such a plug on your own and have it installed by a qualified electrician.
2) Make sure that the oil drain located inside the cabinet is closed.
3) Turn on the device by pressing the ON/OFF button (6). The unit will go into standby mode and the oil fill indicator (2) will light up. Fill the tank with oil intended for gastronomic use until the oil level is between the maximum and minimum markings, then press the oil fill button (2). Now the unit is ready for operation.

CAUTION! The device performs a self-test with each start-up. If there is no oil in the tank or it is not enough, the overheating protection will prevent further operation. The overheating protection will turn on the buzzer, light up the oil fill indicator and display the information about the lack of oil as "—" on the display.

IMPORTANT: The heat required to detect overheating is in itself sufficient to cause discoloration or deformation of the tank walls if the tank is not filled. Always make sure that there is enough oil in the tank.

4) Use the buttons (3) and (4) to set the desired operating temperature. The set temperature range is between 60^ and 190^ . When the actual oil temperature does not reach the set temperature, the heating indicator "HEATING" (8) will light up. When the actual temperature reaches the set temperature, the "KEEP WARM" (7) light will come on.
5) After switching on the "TIMER" (5) button, you can set the operating time of the fryer. Adjustments are made using buttons (3) and (4). After setting the regulator, the countdown will start, the display will show the remaining time. When the time is up, an acoustic signal will sound and the device will turn off.
6) After the oil heats up to the set temperature, the HEATING light (8) turns off and the KEEP WARM light (7) turns on.
7) You can start frying.
8) If TIMER has not been set, the unit will automatically turn off after 4 hours of inactivity.
9) After finishing work, turn off the machine with the main switch and wait until the oil has cooled down.
10) After the device has cooled down, drain it (drain the used oil from the device into a separate vessel using the drain tap) and clean it. This operation should be performed after each use to keep the device in a hygienically perfect condition at all times. When cleaning the unit further, protect the electronic components from moisture, in particular from water, to avoid short circuits and electric shocks. For a thorough cleaning of the device, if it is done regularly, an impregnated cloth is all you need!
11) If the device is not used or is stored for a long time, pay attention to the storage conditions. To prevent dust build-up inside the device, the air in the room where the device is stored should be dry and, if possible, also make sure to cover the device.
12) It is recommended to disconnect the device from the power supply when it is not in use.

3.5. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) Only mild detergents designed for cleaning food contact surfaces may be used to clean the unit.
d) After each cleaning, all parts should be thoroughly dried before the device is reused.
e) Store the unit in a dry and cool place protected from moisture and direct sunlight.
f) Do not spray the unit with a stream of water or immerse it in water.
g) Make sure that no water enters through the ventilation openings in the casing.
h) Clean the ventilation openings with a brush and compressed air.
i) Perform regular inspections of the unit checking technical fitness and any damages.
j) Use a soft, damp cloth for cleaning.
k) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) as they may damage the surface of the material from which the appliance is made.
I) Do not clean the unit with acidic substances, medical agents, thinners, fuel, oils, or other chemicals. It may cause damage to the device.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

APPARATETS PLACERING

Dette produit违法犯罪. Dette's male partner, a 30-year-old man who has been convicted for heroin and drug charges, is being investigated by the FBI. Dette's boyfriend, a 25-year-old woman who has been convicted for child molestation, is being investigated by the FBI.

For the disposal of the device please consider and act according to the national and local rules and regulations.
