Product type	Professional gas deep fryer with storage cabinet
Model	RCGF-40/700C20SG
Brand	Royal Catering
Dimensions (W x D x H)	400 x 870 x 930 mm
Net weight	52 kg
Fuel	Gas (G30 Butane, G31 Propane, G20 Methane) - adaptable according to country
Total heat output	15 kW
Number of burners	3 x 5 kW
Gas consumption	G30: 1,183 kg/h ; G31: 1,165 kg/h ; G20: 1,587 m³/h
Main material	Stainless steel
Temperature control	Adjustable thermostat with automatic regulation (shuts off at set temperature, reignites at -10°C)
Safety	Temperature limiter, shut-off switch, safety pilot light
Ignition	Piezoelectric with pilot light
Tank capacity	Approximately 15 L (estimate)
Main functions	Frying foods with oil or fat; integrated storage space in the cabinet
Maintenance and cleaning	Regular cleaning of the tank with water and cleaner at 40-50°C; avoid abrasives; change oil regularly
Spare parts and repairability	Injectors, nozzles, thermocouple, valves available from the manufacturer
Storage conditions	Well-ventilated place, away from corrosive air; do not store outdoors for long
Intended use	Intensive commercial use (restaurants, canteens)

Frequently Asked Questions - RCGF-40/700C20SG Royal Catering

How to turn on the RCGF-40/700C20SG deep fryer?

Turn the temperature knob to 0. Press and hold the ignition selector (B), then press the ignition switch (C) until the pilot light ignites. Release B, then set the desired temperature with selector A. Refer to the temperature table for recommended settings.

What to do if the pilot flame does not light?

Check the pilot nozzle connection, wiring condition, and gas pressure. Ensure the nozzle is not clogged and that the thermocouple is properly connected. If the problem persists, contact a professional.

How to clean the deep fryer?

After cooling, empty the used oil. Add water and a mild cleaner to the tank, heat to 40-50°C and scrub with a soft cloth. Do not use abrasive products or water directly on the machine body. Wipe with a cloth soaked in stainless steel cleaner.

How often should the frying oil be changed?

The oil must be replaced regularly because impurities lower its flash point. The frequency depends on usage, but it is recommended to change it as soon as it shows signs of degradation (odor, foam, dark color). Follow good hygiene practices.

What to do in case of an oil fire in the deep fryer?

Immediately cut off the gas supply and cover the fryer to smother the flames. Never use water. If the fire persists, use an appropriate extinguisher (class B). Evacuate the area if necessary.

What types of gas can I use with this deep fryer?

The fryer is compatible with G30 (butane), G31 (propane), and G20 (methane) depending on the configuration. The supply pressure varies: 28-30 mbar for butane, 37 mbar for propane, 30 mbar for both, 50 mbar for some countries, 20 mbar for methane. Adapt the injectors accordingly.

How to adjust the cooking temperature?

Use the temperature adjustment selector (A) to choose a value from the temperature table. The main burner turns off automatically at the set temperature and reignites when the temperature drops by 10°C, ensuring stable regulation.

Why does the main burner not ignite even though the pilot light is on?

Possible causes: insufficient gas pressure, clogged nozzle, malfunction of the gas switch or temperature regulator, poor thermocouple contact. Check these elements and clean if necessary.

How to store the deep fryer if not used for a long time?

Turn off the gas supply. Clean the stainless steel surface with a cloth soaked in cleaner. Store the appliance in a well-ventilated place, away from humidity and corrosive products. Do not store it upside down.

Can I fry foods without oil in this deep fryer?

No, this fryer is designed exclusively for frying with oil or fat. Do not use it without oil, as this would damage the appliance and pose a fire risk.

USER MANUAL RCGF-40/700C20SG Royal Catering

Abstract white line drawing of a mythical creature on a blue background (no text or symbols)

DE	Produktname	Gasfritteuse mit Schrank
EN	Product name	Gas fryer with cabinet
PL	Nazwa produktu	Frytkownica gazowa z szafką
CZ	Název výrobku	Plynová fritéza se skříňkou
FR	Nom du produit	Friteuse à gaz avec meuble
IT	Nome del prodotto	Friggitrice a gas con mobiletto
ES	Nombre del producto	Freidora a gas con mueble
HU	Termék neve	Gázsütő szekrénnyel
DA	Produktnavn	Gasfryser med kabinet
FI	Tuotteen nimi	Kaasukeitin kaapilla
NL	Productnaam	Gasfriteuse met kast
NO	Produktnavn	Gassfrityrkoker med skap
SE	Produktnamn	Gasfritös med skåp
PT	Nome do produto	Fritadeira a gás com armário
SK	Názov produktu	Plynová fritéza so skrinkou
BG	Име на продукта	Газов фритюрник с шкаф
EL	Όνομα προϊόντος	Фритеζα υγραερίου με ντουλάπι
HR	Naziv proizvoda	Plinska friteza s ormarićem
LT	Produkto pavadinimas	Dujinė gruzdintuvė su spintele
RO	Numele produsului	Friteuza pe gaz cu dulap
SL	Ime izdelka	Plinski cvrtnik z omarico
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtėlo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCGF-80/700C20DBRCGF-40/700C20SG
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference.

Technical data

Parameter description	Parameter value
Product name	Gas fryer with cabinet
Model	RCGF-80/700C20DB
Type of appliance	A_1
Appliance category	|3+(28-30)/37	|3B/P(30)	|3B/P (50)	|2H (20)
Gas and supply pressure [mbar]	G30 Butane 28~30; G31 propane 37	G30 butane and G31 propane 30	G30 butane and G31 propane 50	G20 methane 20
Country code	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, PT, SI TR	BG, CY, CZ, DK, EE, FI, GR, HR, HU, IT, LT, NL, NO, RO, SE, SI, PL	AT, DE, CH	AT, CH, CZ, DK, EE, ES, FI, GB, GR, HR, IE, IT, LT, LV, NO, PT, RO, SE, SI, SK, TR
Burner injector size [mm]	6 x ∅1.10	6 x ∅1.10	6 x ∅0.95	6 x ∅1.65
Pilot nozzle size [mm]	2 x ∅0.30	2 x ∅0.30	2 x ∅0.25	2 x ∅0.35
Burner [kW]	6x5
Total heat input power [kW]	30
Gas consumption [kg/h] / [m3/h]	G30: 2.366; G31:2.331 / G20: 3.175
Dimensions (Width x Length x Height) [mm]	800x730x930
Weight [kg]	93

Parameter description	Parameter value
Product name	Gas fryer with cabinet
Model	RCGF-40/700C20SG
Type of appliance	A_1
Appliance category	|3+(28-30)/37	|3B/P(30)	|3B/P (50)	|2H (20)
Gas and supply pressure [mbar]	G30 Butane 28~30; G31 propane 37	G30 butane and G31 propane 30	G30 butane and G31 propane 50	G20 methane 20
Country code	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, PT, SI TR	BG, CY, CZ, DK, EE, FI, GR, HR, HU, IT, LT, NL, NO, RO, SE, SI, PL	AT, DE, CH	AT, CH, CZ, DK, EE, ES, FI, GB, GR, HR, IE, IT, LT, LV, NO, PT, RO, SE, SI, SK, TR
Burner injector size [mm]	3 x ∅1.10	3 x ∅1.10	3 x ∅0.95	3 x ∅1.65
Pilot nozzle size [mm]	1 x ∅0.30	1 x ∅0.30	1 x ∅0.25	1 x ∅0.35
Burner [kW] 3x5
Total heat input power [kW]	15
Gas consumption [kg/h] / [m3/h]	G30: 1.183; G31: 1.165 / G20: 1.587
Dimensions (Width x Length x Height) [mm]	400x870x930
Weight [kg]	52

Purpose

The product is used to provide a commercial or industrial cooking appliance designed for deep frying food using gas as the heating source, while also offering integrated storage or utility space in the cabinet beneath the fryer.

Usage

Gas installation

• Ensure that all valves are closed before beginning the installation process.
  • If using LPG as the gas supply, the connection to the machine must be secure and reliable.
  • Do not use a high-pressure valve with this machine.

Operation

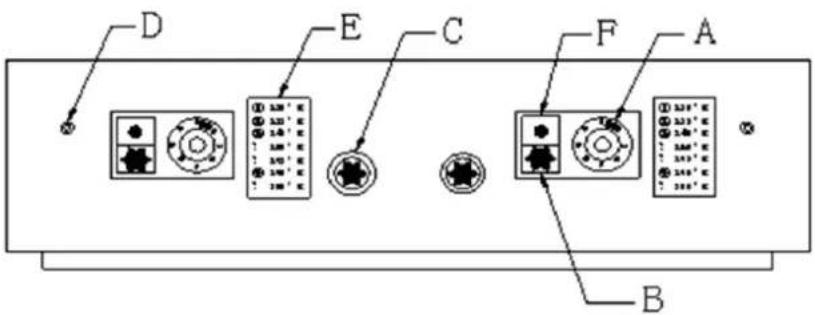

Sketch of control panel

A- Temperature control knob
B- Ignition switch
C- Strike fire
D- Temperature limiter
E- Temperature table
F- Flameout switch

Ignition

1. Turn the temperature knob to 0.

2. Press and hold the ignition switch B.

3. Press the ignition switch C until the pilot light ignites.
4. Release the ignition switch B.
5. Adjust the temperature control knob A to the desired temperature according to the reference table.

Temperature Control

1. When the temperature reaches the set point, the main burner will shut off automatically, cutting off the gas supply and maintaining the temperature.
2. When the temperature drops by 10^ C, the main burner will automatically reignite and start heating again.

Flameout

1. Press switch F to extinguish the flame.
2. Shut off the gas supply.

Maintenance

• This machine is designed specifically for frying food with oil or high-fat content and is not suitable for other types of frying.
• Do not use the machine if the food does not contain oil or fat.
  • Before using the machine, clean the entire fat content as follows:

a) Add water and a cleanser to the tank and heat to 40-50°C, then clean with a cloth.
b) Do not use abrasive materials to clean the surface.

• Do not use water to clean the machine's body directly, and never use corrosive substances for cleaning.
  • If using oil with a high melting point, please melt the oil before pouring it into the tank.
• Remove any fat residue from the tank after frying.

• After the machine cools to a normal temperature, you may clean the tank and discard the used oil.

- Ensure the oil level remains at or above the minimum required level.

• If the machine will not be used for an extended period, please follow these steps:

a) Shut off the gas supply.
b) Use a cloth with petrol to clean the stainless steel surface.

c) Store the machine in a well-ventilated area.

WARNING!

• The frying oil or fat should be replaced regularly, as impurities can lower its flash point.
- Avoid overloading the fryer with food, as it may cause hot oil to splash.
- If the oil catches fire, immediately cut off the gas supply and cover the fryer to extinguish the flames.

Troubleshooting (Reasons Analysis)

The pilot flame does not ignite:

• Incorrect installation or connection of the pilot nozzle.
• Damaged plugs or wiring of the pilot nozzle.
  • Insufficient gas pressure in the gas pipe.
• Nozzle clogging.
• Improper connection of the thermocouple or disconnected temperature controller wiring.
• Damaged thermocouple.
  • Malfunction of the gas temperature control valve.

The pilot flame ignites, but the main burner does not:

• Insufficient gas pressure in the gas pipe.
- Nozzle clogging.
- Malfunction of the gas switch.
- Malfunction of the temperature controller.
• Poor contact between the thermocouple and the valve.
• Damaged thermocouple.

Transportation & Storage

During transportation, handle this product with care to avoid strong vibrations. Generally, the packed product should not be stored outdoors for long periods. It should be kept in a well-ventilated warehouse free from corrosive air. Do not store the product upside down. If outdoor storage is necessary, take appropriate measures to protect it from rain.
