To ensure a long and failure-free operation of machines from Royal Catering, we recommend turning on the main switch only if the temperature control is set to 0. Using the main switch while the temperature control indicates any other value than 0 could limit the operating life of the main switch significantly.

UWAGA!

Labeled diagram of a food processing machine with numbered components for identification.

RCPKF 13DSH

1 2 3 4 5 10 9 11 7 12

RCPSF 26ETH, RCPSF 13ETH, RCPSF 18ETH, RCPSF 9ETH

1 2 3 4 5 10 9 7 8

Metallic stainless steel grating basket with black handle, no visible text or symbols

Two technical line drawings of a mechanical device, one showing a downward arrow and the other a right-hand extension (no text or symbols)

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.
	(general warning sign)
	ATTENTION! Electric shock warning!
	ATTENTION! Hot surface, risk of burns!
	Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

The original operation manual is written in German. Other language versions are translations from the German.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to .

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.

d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
h) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
i) Do not use in very humid environments or in the direct vicinity of water tanks.
j) Prevent the device from getting wet. Risk of electric shock!
k) The connection of devices requiring the 400V current should be done by a qualified electrician.
I) Adequate overload protection of the electrical installation must be provided.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust.
c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
e) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
f) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
g) Children or unauthorised persons are forbidden to enter a work station. (A distraction may result in loss of control over the device).
h) Use the device in a well-ventilated space.
i) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.

j) Keep packaging elements and small assembly parts in a place not available to children.
k) Keep the device away from children and animals.
I) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
f) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
g) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
h) Do not put your hands or other items inside the device while it is in use!
i) NOTE: During operation, some elements of the device become very hot – scalding hazard! Do not touch these elements with your bare hands! Take out cooked meals using tongs or other kitchenware.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.

b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.

c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.

d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.

e) Keep the device out of the reach of children.

f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.

g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.

h) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.

i) Do not move, adjust or rotate the device in the course of work.

j) Do not leave this appliance unattended while it is in use.

k) Clean the device regularly to prevent stubborn grime from accumulating.

I) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.

m) Do not run the device when empty.

n) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.

o) Keep the device away from sources of fire and heat.

p) Do not cover the ventilation openings!

q) It is forbidden to move the fryer with hot oil! The oil can maintain a high temperature even for 6-7h.

r) Do not turn the fryer "upside down", it may cause damage to it.

s) It is forbidden to switch the appliance on if the bowl is not filled with oil.

t) There is a risk of fire if the oil in the fryer is below the minimum level.

u) NOTE! Old oil has a lower flash point and is more prone to rapid boiling.

v) The device must be installed so that hot oil or food are not exposed to water.

w) Always check that the oil level is between the two marks on the side oft he tank.

x) During operation, the appliance reaches high temperatures. Do not place the appliance near flammable or easily melting surfaces or near flammable materials.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The fryer is exclusively designed to fry food.

Do not use the fryer to:

• heat other substances or objects;
• warm up liquids containing sugar, sweeteners, acids, bases or alcohols;
• warm or warm up flammable, noxious, particularly volatile, or any other toxic substances.

The device is intended for commercial use. It can be used in restaurants, hotels, canteens, etc. Do not use the device continuously in mass production of food.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

RCPBG 16H

RCPKF 26DSH

Labeled diagram of a food processing machine with numbered components for identification.

RCPKF 13DSH

1 2 3 4 5 10 9 11 7 12

RCPSF 26ETH, RCPSF 13ETH, RCPSF 18ETH, RCPSF 9ETH

1 2 3 4 5 10 9 7 8

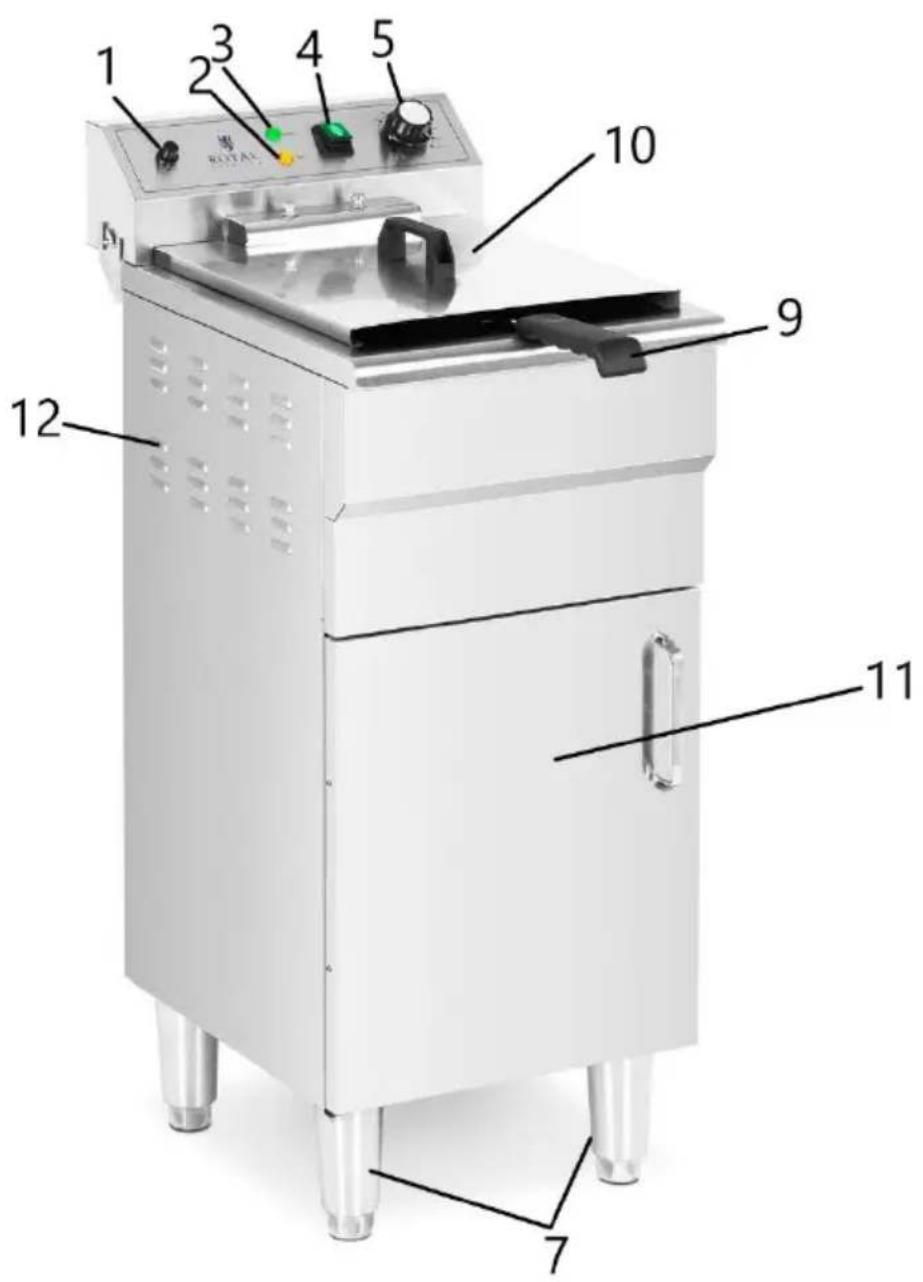

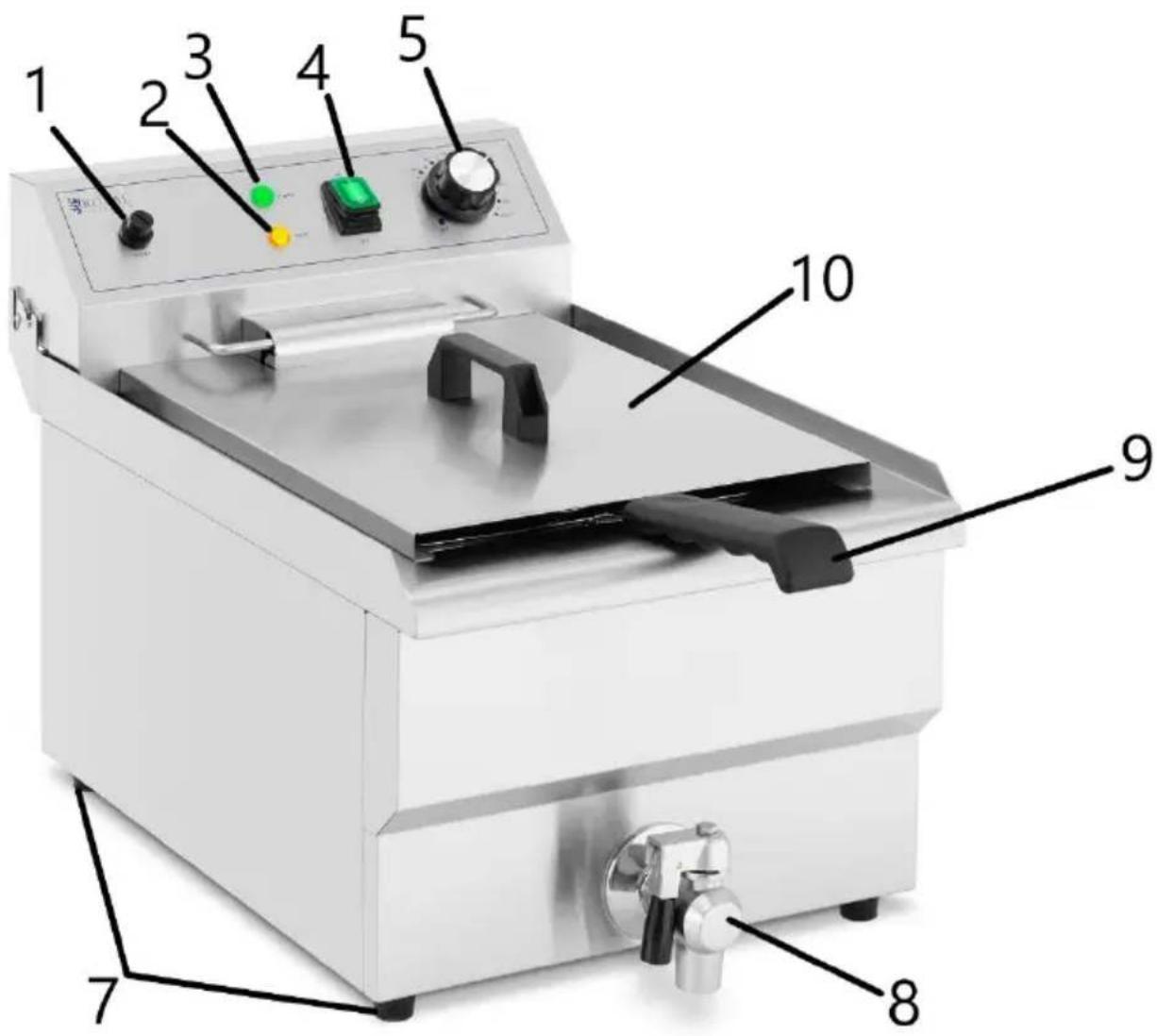

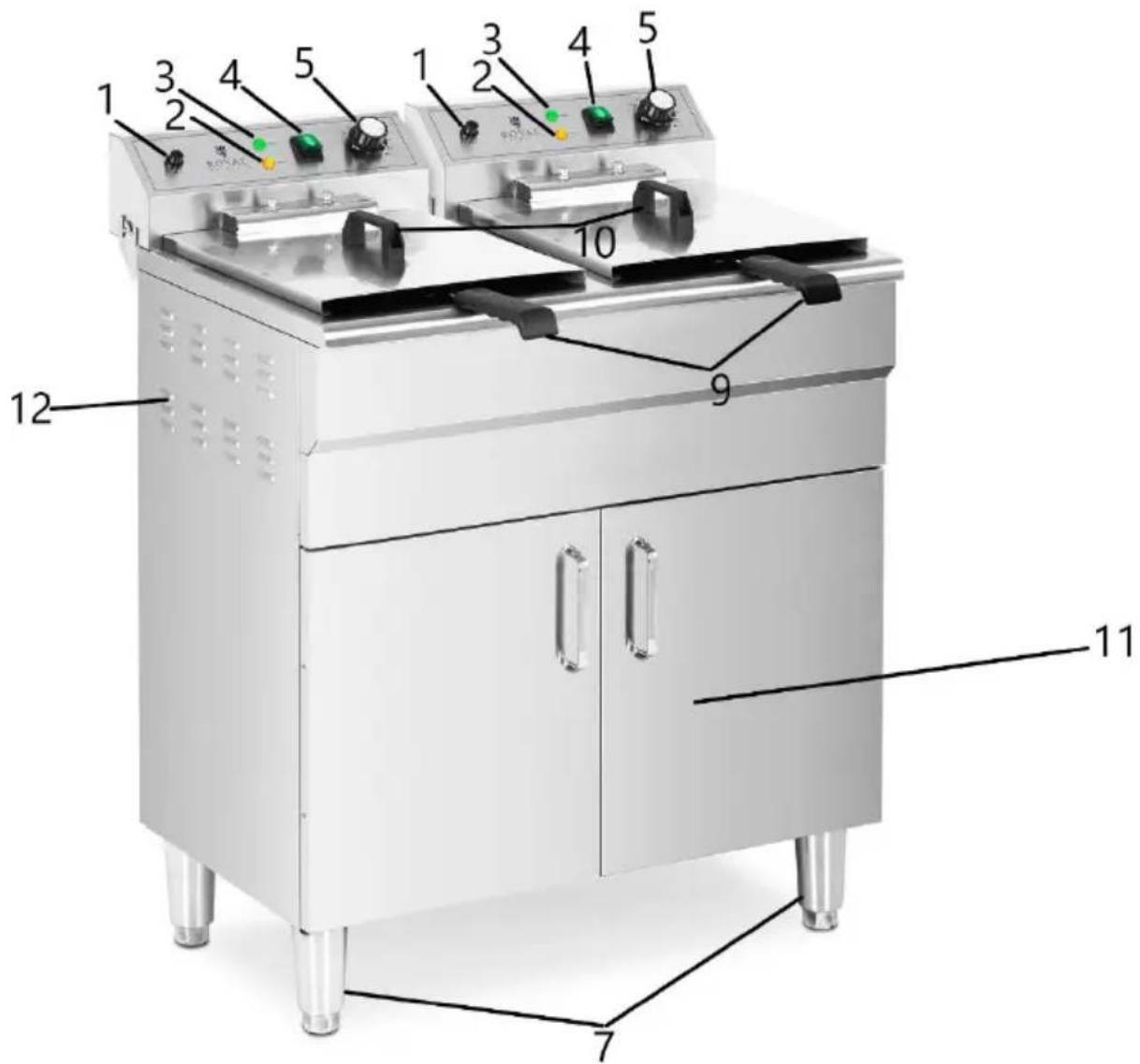

The figure above shows the RCPSF 13ETH and RCPSF 9ETH. The RCPSF 26ETH and RCPSF 18ETH are twin models. All buttons, knobs and functions are the same as on the single models.

1. RESET button
2. Heating LED
3. Power light
4. On/Off button
5. Temperature control knob
6. Control panel handle

7. Feet

8. Oil drain tap

9. Basket handle
10. Cover
11. Cabinet
12. Ventilation holes

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects.

Place the unit on a heat resistant basis!

The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Only use the device in a horizontal position. Do not shake the device.

Disassemble the device and all its components and clean them before the first use.

ASSEMBLING THE APPLIANCE

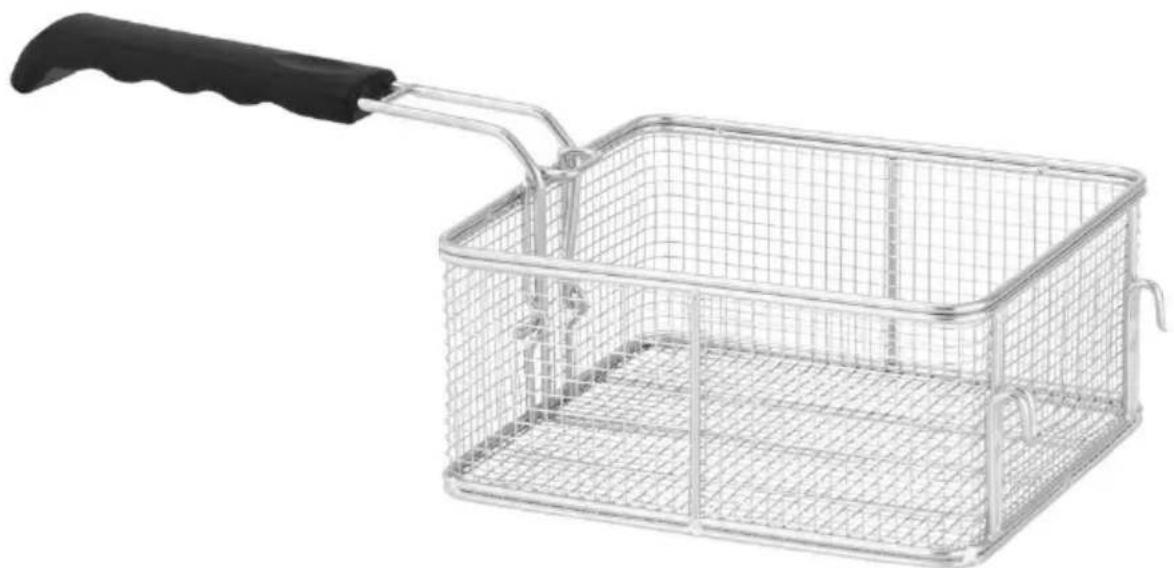

Before use, attach the handle to the basket. Install the holder as shown in the drawing below. (Attaching the handle does not apply to the RCPBG 16H model).

Metallic stainless steel grating basket with black handle, no text or symbols visible

Electrical connection

All models of the device, powered by a voltage of 400V, require an electrical connection. Connect the wires coming from the device (L1, L2, L3, PE and N) to the power plug. The connection should be made by a qualified electrician.

3.3. Device use

1. Ground the device housing, use the grounding terminal located on the back of the griddle.
2. Fill the tanks with oil so that level is between the marks of minimum and maximum level.
3. Before connecting the device to the power supply, always check that the temperature control knob is set to "0".
4. Connect the power cord to a power outlet.

5. Use the ON/OFF switch to turn the device on (twin models have separate switches, indicators and a temperature control knob for each module). The green light will come on. Then select the required temperature (in a clockwise direction); the orange light will come on and the heating element will begin heating up. Once the required temperature has been reached, the heating orange light will go off. The thermostat will maintain the required temperature by automatically switching the heating element on and off. This maintains the required temperature and saves electricity. You may begin frying.

6. For frying, use the provided baskets, attach the handles first (assembly does not apply to the RCPBG 16H model). Place food in the basket and immerse it into the oil. When the food is tried, hang the basket up on the nail to let the oil drop off. Always carry the basket using the handle.

7. The covers are designed to keep the content warm and t protect it from dirt. If you want to use the covers, make sure they are not wet.
8. When you finish work, set the temperature control knob to "0", and then turn the device off using the On/Off button.
9. Then arrange the heating elements as shown in the figure below. Move the panel by 90^ and place the heating elements vertically above the tank. This way, the rest of the oil will flow into the tank.

Simple line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Line drawing of a bathtub with a lamp and handle (no text or symbols)

1. Our fryers are equipped with a safety buton. When the heating element is tilted back, it turns automatically to prevent from accidents.
2. It is recommended to use only liquid oil or fat in the fryer to avoid damages of the temperature limiter. It is not recommended to put block fat in the fryer – block fat should be melted before putting it into the fryer.
3. ATTENTION! The device has a sensor to prevent it from overheating. If the device overheats when in use it will automatically switch off. Then it is necessary to wait until the device cools down and to reset the protection by pressing „RESET“. The device may be used again.
4. Drain the used oil from the tank into a separate container through the drain tap. In models with cabinets, the drain taps are located inside them. Dispose of the oil in accordance with local regulations.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.

d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Clean the vents with a brush and compressed air.
i) The device must be regularly inspected to check its technical efficiency and spot any damage.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

Dane techniczne

Labeled diagram of a food processing machine with numbered components for identification.

RCPKF 13DSH

1 2 3 4 5 10 9 11 7 12

RCPSF 26ETH, RCPSF 13ETH, RCPSF 18ETH, RCPSF 9ETH

Metallic stainless steel grating basket with black handle, no text or symbols visible

Simple line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Line drawing of a simple kitchen sink with a lamp and chimney (no text or symbols)

Labeled diagram of a food processing machine with numbered components for identification.

RCPKF 13DSH

1 2 3 4 5 10 9 11 7 12

RCPSF 26ETH, RCPSF 13ETH, RCPSF 18ETH, RCPSF 9ETH

1 2 3 4 5 10 9 7 8

Metallic stainless steel grating basket with black handle, no visible text or symbols

Two technical line drawings of a mechanical device, one showing a presser and the other a handle assembly (no text or symbols)

Labeled diagram of a laboratory or processing device with numbered components for identification.

RCPKF 26DSH

Labeled diagram of a food processing machine with numbered components for identification.

RCPKF 13DSH

1 2 3 4 5 10 9 11 7 12

RCPSF 26ETH, RCPSF 13ETH, RCPSF 18ETH, RCPSF 9ETH

1 2 3 4 5 10 9 7 8

Metallic stainless steel grating basket with black handle, no text or symbols visible

Two technical line drawings of a mechanical device, one showing a downward arrow and the other a right-hand extension (no text or symbols)

Labeled diagram of a food processing machine with numbered components for identification.

RCPKF 13DSH

1 2 3 4 5 10 9 11 7 12

RCPSF 26ETH, RCPSF 13ETH, RCPSF 18ETH, RCPSF 9ETH

1 2 3 4 5 10 9 7 8

Two technical line drawings of a mechanical device, one showing a lever mechanism and the other a handle assembly (no text or symbols)

Labeled diagram of a food processing machine with numbered components for identification.

RCPKF 13DSH

1 2 3 4 5 10 9 11 7 12

RCPSF 26ETH, RCPSF 13ETH, RCPSF 18ETH, RCPSF 9ETH

1 2 3 4 5 10 9 7 8

Metallic stainless steel grating basket with black handle, no text or symbols visible

Conexión eléctrica

Two technical line drawings of a mechanical device, one showing a piston and the other a handle assembly (no text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.
