USER MANUAL MFR-10M/WIFI MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM/appliances

Exterior view of a modern black and silver air fryer with digital display (no visible text or symbols)

NAVOD K OBSLUZE 3

Exploded view diagram of air fryer products with labeled parts including air fryer, air pan, and fan

100000000000 100000000000 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 1500 W 15,000 W 15,000 W 15,000 W 15,000 W 15,000 W 15,000 W 15,000 W 15,000 W 15,000 W 15,000 W 15,000 W 15,000 W 15,000 W

BEZPEČNOSTNÍ POKYNY PRO POUŽITÍ

QR code with central logo containing a stylized 'T' and Wi-Fi signal icon

TABULKA FUNKCÍ ZAŘÍZENÍ

Regulace teploty: 35 °C-200 °C v krocích po 5 °C Časová regulace: 1min. - 1hod. každou 1min.Čas se odpočitává od začátku operace "START".Po 5 minutách nečinnosti se fritéza vypne. Když je prístroj zapnutý, displej po vysunutí nádoby zhasne.	ROZSAH TEPLOTY A ČASU PRO AUTOMATICKÉ PROGRAMY - prizpůsobitelné 35 °C-200 °C, čas 1 min.-1 hod.
	Program Teplota Čas
	STEK 200°C 12 min.
	FRYTKI 200°C 20 min.
	UDKO 180°C 20 min.
	BOCZEK 180°C 25 min.
	RYBA 180°C 15 min.
	KREWETKI 160°C 10 min.
	CIASTO 150°C 30 min.
	ŽEBERKA 180°C 12 min.
	KURCZAK 200°C 25 min.
	TOST 160°C 25 min.

PŘED PRVNÍM POUŽITÍM

QR code image containing encoded data, no visible human-readable text

BEDIENFELD MIT DISPLAY

TEMPERATUR ZE 200C 00:15 WIFI TEMP TIME + LIGHT START STOP A F A D C G

QR code with central logo containing a stylized 't' and Wi-Fi signal icon

QR code image containing encoded data, no visible human-readable text

QR code with central logo, likely linking to a digital service or website

TABEL SEADME FUNKTSIOONIDE ÜLEVAATEGA

QR code image containing encoded data, no visible human-readable text

Read the instructions carefully before use.
Take special care when children are near the device.
Do not leave the device unattended during operation!

Do not use the device for purposes other than those for which it was intended.

Do not immerse the device, cable or charger in water or other liquids.

▶ Always remove the plug from the mains socket when the device is not in use or before cleaning.

Use of accessories not recommended by the manufacturer may cause damage to the device or personal injury.

If the device starts producing abnormal sounds or odour, or if smoke comes out of it, switch it off immediately and contact an authorized service to have it repaired.

Do not use the device outdoors.
Do not hang the mains cable on sharp edges or allow it to come into contact with hot surfaces.
Make sure the mains cable is not extending over the edge of the device's support surface. This will prevent the device from being accidentally pulled down.

Do not touch any hot surfaces. Use holders when moving this product.

- Store the device in cool, dark and dry place.

- Avoid deformation of plastic parts, do not wash the device and accessories with hot water or in a washing machine.

Do not put hands or any items inside the container during operation.

Before cleaning, disconnect the unit from the power supply first.

- Clean the device, in particular parts being in direct contact with food, before first use, immediately after finishing work and if the device has not been used for a long time. The procedure is described in details in the “CLEANING AND MAINTENANCE” section.

Do not place the device near other electric cookers, burners, ovens, etc.

Always ensure that all parts of the device are correctly fitted before starting work.

Wait for the device to cool down completely after frying before attaching or removing its elements, as well as cleaning the device.

During hot air frying, hot steam escapes through the air vents.

Keep your hands and face away from the escaping steam or air outlets. Pay attention to the steam and air when removing the bowl with the basket from the device.

Do not cover the air inlets and outlets when the device is operating.

Do not place the device near flammable materials such as curtains, tablecloths etc., because this may lead to a fire.

- Food intended for frying should always be placed into the basket.

Do not fill the bowl with oil as this may cause a fire.

Device is suitable for home use solely. To prevent deformation of the housing and lid, never use the device continuously for a long period of time.

Damaged plug or power cord must be replaced by the manufacturer, its service centre or another suitably qualified person in order to avoid any risk.

The surface temperature may increase during use.
The device should be connected to a mains socket outlet with a grounding pin! Before switching the device on, make sure the mains parameters match the values on the device's identification plate.

It is recommended to use protective gloves intended for handling this type of equipment.

This equipment may be used by children of at least 8 years of age and by persons of diminished physical, mental capacity and lack of experience and knowledge of the equipment if supervision or instruction is provided regarding the safe use of the equipment so that the hazards involved are understood. Cleaning and maintenance must not be performed by children, unless they are over 8 years old and supervised by an adult. Unsupervised children can not perform cleaning and maintenance of the product.

Children should be supervised to ensure that they do not play with the equipment/device.

The device has not been designed to operate with an external timer switch or a separate remote control system.

- Keep the device and its cord out of reach of children under 8 years of age.

Do not connect the plug to the power socket with wet hands.

Do not pull the plug out of the power socket by pulling the cord.

Use the device on a smooth and stable surface.

Do not place the device directly against a wall or other devices. Leave at least 10 cm of free space at the back and upper parts of the device, as well as on its both sides. Do not place any objects on the device.

For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).

WARNING! Do not allow children to play with the film. Danger of suffocation!

WARNING! Overheated fat may ignite. Be especially careful!

CAUTION! Hot surface!

DEVICE DESCRIPTION

ELEMENTS DESCRIPTION

1. Holder
2. Frying basket
3. Control panel with LED display:

A. automatic program selection buttons
B. ON/OFF/WiFi network configuration
C. TEMP/TIME switch
D. LIGHT

E. START/STOP
F. WiFi connection indicator light
G. +/- temperature/times control range buttons

1. Grate grill
2. Vent
3. Power cable
4. Baking tin with handle, capacity of 2.3 litres

Established connection with the network and launch of the device is signalled with a sound.

A multifunctional device for oil-less frying, grilling, stewing and baking thanks to its unique design. Fit - fryer can prepare dishes using hot air circulation, thanks to which the dishes are crispy on the outside and delicate on the inside. No need to add oil to most ingredients.

CONTROL PANEL WITH DISPLAY

TEMPERATURE TI 200C 00:15 A F WIFI A TEMP TIME + LIGHT D B C G START STOP

WIFI CONFIGURATION AND THE "TUYA" APPLICATION CONNECTION

The WiFi Router can be activated by pressing and holding the ON/OFF/WiFi network configuration button (B) for 3 seconds. Activation is always signalled by a quick pulsation of the WiFi indicator light (F). Once the network connection is established, the WiFi indicator light (F) glows steadily. The WiFi network allows to communicate and control the device via smartphone. To do this, the

"TUYA" application needs to be downloaded and installed. To obtain the app, simply scan the QR code below or find it in the Google Play Store (Android) or App Store (iOS). After the app is downloaded, the TUYA connect wizard will guide the user through the process of connecting their smartphone to the fryer. Handling this operation is very simple; firstly, create a new account or log in with an existing one, connect the fryer to home WiFi network (ensure the connection to a secure 2.4 GHz WiFi network is established). Then, search for the device in the app on the phone and connect your smartphone to the fryer.

QR code with central logo containing a stylized 't' and Wi-Fi symbol

CAUTION! In addition to the information displayed on the control panel, the device also communicates via acoustic signals.

TABLE CONTAINING THE DEVICE FEATURES OVERVIEW

Temperature control: 35-200°C every 5°C Time adjustment: 1 minute – 1 hour every 1 minuteThe time is counted from the moment of starting work, i.e. "START".After 5 minutes of idle state, the fryer turns off itself. The display turns off itself after the container is removed with the device turned on.	TEMPERATURE AND TIME RANGE FOR AUTOMATIC PROGRAMS – can be set at one's own discretion in the range of 35-200°C, time: 1 min. to 1 hour.
	Program: Temperature Time
	STEAK 200°C 12 min.
	FRIES 200°C 20 min.
	CHICKEN LEG 180°C 20 min.
	BACON 180°C 25 min.
	FISH 180°C 15 min.
	PRAWNS 160°C 10 min.
	DOUGH 150°C 30 min.
	RIBS 180°C 12 min.
	CHICKEN 200°C 25 min.
	TOAST 160°C 25 min.

BEFORE FIRST USE

1. Unpack the device from the packaging. Remove any bags, shipping locks, fillers and labels.
2. Make sure the device has not been damaged during its transportation. In case of suspected damage, do not start the device and consult the seller
3. Make sure the electrical mains parameters match the data on the device's name plate.
4. Wash the device following the instructions in the "CLEANING AND MAINTENANCE" section
5. Place the device on a hard, dry, stable, flat and horizontal surface.

USE

CAUTION! A small amount of smoke may come out of the device during the first use. This is normal.

CAUTION! After the work is finished, the fan will continue to work for a short time in order to remove hot fumes from the device.

CAUTION! This device turns into the sleep mode after 5 min. of inactivity. To restart it, press the START/STOP button (E).

1. Connect the device to the grounded mains.
2. Insert the frying basket with the grate grill mounted inside. Food can be placed onto the grill in advance.
3. Turn on the device by pressing the ON/OFF button (B).

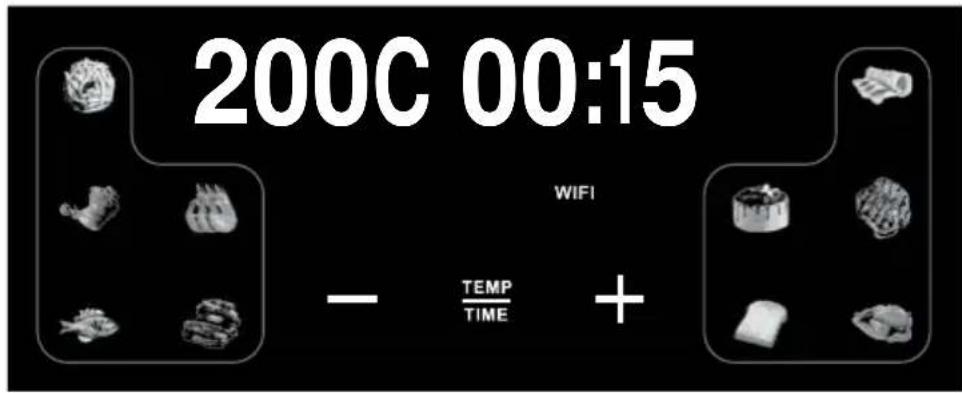

1. Select one of the automatic programs, the default temperature and duration of the automatic program appears on the display.

200C 00:15 WIFI - TEMP + TIME

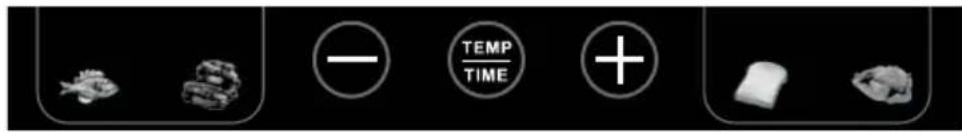

1. Optionally, adjust the time/temperature by pressing the TEMP/TIME button (C), then use the + and - (H) buttons in order to set the desired operating parameters.

— TEMP TIME +

1. Place the groceries insinde the basket and press the START/STOP button (E).

CAUTION! Maintain caution when removing/inserting the frying basket (2) because the working elements have reached hightemperatures and should not be touched; use the handle in ordertodoso (1). Caution! The device is equipped with a special protection responsible for turning off the device after removing the frying basket (2) – operation is resumed after re-inserting the basket (2) into the device.

1. Termination of device operation:

A. The device turns off automatically after the set time; such an action is always signalled by emission of a sound signal and displaying the "END" message
B. Press the START/STOP button (E) to stop baking. Then press the START/STOP button (E) if the selected program should continue. Pressing the ON/OFF button (B) twice cancels the continuation of the set program.

CAUTION! Maintain caution, as both the device and food items remain hot for a longer period of time after the appliance has stopped operating.

CAUTION! Restrain from using sharp metal objects (e.g. forks) as they may damage the coating of the frying basket.

CAUTION! Hot steam may be released after the basket is removed from the device.

CAUTION! Do not turn the basket upside down when removing products.

1. After the work is finished, turn off the device by pressing the ON/OFF button (B) and disconnect it from the power source.

FOOD PREPARATION - TIPS

Air fryers work similarly to ovens – thus, recipes dedicated to preparation in the oven can be also used. Optimal size of the prepared product is determined while using the device. Exceeding the optimal amount of food products may prevent proper air circulation in the device and significantly affect the final result – the top layer will be too baked, while the centre will remain raw.
Smaller portions usually require slightly less preparation time than their larger counterparts.
Stirring/tossing prepared foods halfway through cooking ensures even cooking.

To fry homemade fries, follow the steps below.

1. Peel the potatoes and cut them into sticks.
2. Soak the fries in a bowl for at least 30 minutes, remove and dry on a paper towel.
3. Pour 1/2 tablespoon of olive oil into a bowl, then put the fries in it and mix until they are coated with it.
4. Remove the fries with your fingers or a suitable kitchen utensil so that the excess oil remains in the bowl. Put potatoes into the basket.

CAUTION! Do not pour all the fries from the bowl into the basket at once, so that the oil does not flow to the bottom of the vessel.

1. Fry according to the instructions.

CLEANING AND MAINTENANCE

1. Before cleaning, remove the plug from the power socket and wait until the device cools down completely.
2. Pull out the bowl with the basket so that the device cools down faster. Allow the bowl to cool before removing the basket.

CAUTION! The bowl, the basket and the inside of the device are coated with a non-stick coating. Do not clean them with metal kitchen utensils or abrasive cleaners as this may damage the coating.

1. Wipe the housing of the device with a damp cloth. The housing should never neither be immersed in water or any other liquid nor washed in the dishwasher.
2. Wash the grate grill and basket with warm water with addition of mild detergent. Rinse and dry thoroughly. Do not use wire cloths or abrasive cleaners to clean the case. The basket can be washed in a dishwasher.
3. Clean the inside of the device with hot water and a delicate, non-abrasive sponge.
4. Clean the heating element with a cleaning brush to remove any dirt.
5. After cleaning and drying, the device should be folded and stored in a safe place.

If dirt is stuck to the basket or the bottom of the bowl, fill the bowl with hot water with a small amount of washing-up liquid. Put the basket in the bowl and leave it soaked for about 10 minutes.

PROBLEM SOLVING

The table below describes the most common problems that may be encountered when using the device.

Problem Possible cause Solution
The ingredients fry unevenly in the Fitfryer.	Some ingredients should be shaken halfway through the preparation time.	Ingredients placed on top of each other or across each other (e.g. French fries) should be shaken halfway through the preparation time.
Fried snacks are not fragile when removed from Fitfryer.	Snacks intended for preparation in a traditional deep fat frying device were used.	Use snacks to be prepared in Fitfryer or cover snacks with a thin layer of oil to ensure their tenderness.
The bowl cannot be inserted into the device correctly.	There are too many ingredients in the basket.	Do not fill the basket above the MAX level.
	The basket is not correctly positioned in the bowl.	Slide the basket into the bowl until a “click” can be heard.
	The handle of the baking tray locks the bowl.	Set the handle horizontally so that it does not protrude from the basket.
White smoke comes out of the device.	Fatty ingredients are being prepared.	Large amount of fat leaks into the bowl during frying fatty ingredients in Fitfryer. This fat emits white smoke and the bowl may heat up more than usual. This neither affect the appliance nor the final cooking result.
	The bowl contains fat from previous cooking.	Large amount of fat leaks into the bowl during frying fatty ingredients in Fitfryer. This fat emits white smoke and the bowl may heat up more than usual. This neither affect the appliance nor the final cooking result.
Fresh fries fry unevenly in Fitfryer.	The potato pieces were not properly soaked before frying.	Soak them in a bowl for at least 30 minutes, take them out and dry them on a paper towel.
	Wrong type of potatoes used. Use fresh potatoes and check that they do not “fall apart” during frying.
Fresh fries are not crispy after being prepared in Fitfryer.	The tenderness of the fries depends on the amount of oil and water in them.	Dry the prepared potato pieces thoroughly before adding the oil.
		Prepare smaller pieces of potatoes to make them crispier.
		Add a little more olive oil to make the fries crispier.

TECHNICAL DATA

Technical specifications are given on the product nameplate. Length of mains cable: 0.85 m

MPM AGD S.A. company hereby declares that the fryer, model MFR-10M/WiFi, meets the requirements and standards contained in European Union directives and national regulations. As a radio device, it conforms to the Directive 2014/53/EU of 16 April, 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC.

The full text of the Declaration is available at: https://mpm.pl/pl/kuchnia/3342-frytkownica-beztluszczowa-fitfryer-mfr-10mwifi-5903151040121.html

CAUTION! MPM agd S.A. reserves the right to technical changes.

QR code image containing encoded data, no visible human-readable text

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health. Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.

QR code with central logo containing a stylized 'T' and Wi-Fi symbol

QR code image containing encoded data, no visible human-readable text

QR code with central logo containing a stylized 'T' and Wi-Fi symbol

QR code image containing encoded data, no visible human-readable text

QR code with central logo of the Twitter app

QR code image containing encoded data, no visible human-readable text

QR code with central logo, likely linking to a digital service or website

TABELLA CON UNA PANORAMICA DELLE FUNZIONI DEL DISPOSITIVO

QR code image containing encoded data, no visible human-readable text

QR code with central logo containing a stylized 't' and Wi-Fi signal icon

LENTELĖ SU PRIETAISO FUNKCIJŲ APŽVALGA

QR code image containing encoded data, no visible human-readable text

DĖMESIO! MPM agd S.A. pasilieka teisę atlikti techninius pakeitimus.

QR code with central logo containing a stylized 't' and Wi-Fi signal icon

TABULA AR PĀRSKATU PAR IERĪCES FUNKCIJĀM

QR code image containing encoded data, no visible human-readable text

APPARAAT BESCHRIJVING

BESCHRIJVING VAN ELEMENTEN

CONFIGURATIE MET WIFI EN VERBINDING MET DE "TUYA" APPLICATIE

QR code with central logo, likely linking to a digital service or website

QR code image containing encoded data, no visible human-readable text

QR code with central logo, likely linking to a digital service or website

TABELA Z OMÓWIENIEM FUNKCJI URZĄDZENIA

QR code with central logo of the Twitter app, used for scanning to access a website or app.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code with central logo containing stylized 't' and Wi-Fi symbol

TABULKA S PREHLADOM FUNKCIÍ ZARIADENIA

Regulácia teploty: 35 °C - 200 °C v krokoch po 5 °C Časová regulácia: 1min. - 1 hod. každú 1 min.Čas sa odpočítava od začiatku operácie "START".Po 5 minútach nečinnosti sa fritéza vypne. Ked'je spotrebič zapnutý, displej po vysunutí nádoby zhasne.	TEPLOTNÝ A ČASOVÝ ROZSAH PRE AUTOMATICKÉ PROGRAMY -prispôsobitel'né 35 °C-200 °C, čas 1 min.-1 hod.
	Program Teplota	Čas
	STEK 200°C 12 min.
	FRITZENS 200°C 20 min.
	UDKO 180°C 20 min.
	STRANA 180°C 25 min.
	RYBY 180°C 15 min.
	CROWDS 160°C 10 min.
	CIASTO 150°C 30 min.
	RIBS 180°C 12 min.
	CHURCH 200°C 25 min.
	TOST 160°C 25 min.

PRED PRVÝM POUŽITÍM

QR code image containing encoded data, no visible human-readable text

QR code with central logo, likely linking to a digital service or website

QR code image containing encoded data, no visible human-readable text
