MFR-08 - Deep fryer MPM - Free user manual and instructions

Product Type	Deep fryer
Brand	MPM
Model	MFR-08
Oil Capacity	2.0 L (min) to 2.5 L (max)
Maximum Temperature	190°C
Timer	Up to 30 minutes with audible signal
Power Cord Length	1.0 m
Basket	Removable with cool-touch handle, lock button, and foldable handle
Lid	With viewing window, release button, and aluminum mesh filter
Oil Container	Removable with side handles and non-slip feet
Indicator Lights	Thermostat indicator light
Safety Features	Auto shut-off via timer, cool-touch casing, safety lock on basket handle, anti-slip feet
Cleaning	Basket and lid are dishwasher-safe; housing wipe with damp cloth; do not immerse
Usage	Household use only; not for continuous extended periods

Frequently Asked Questions - MFR-08 MPM

What type of oil should I use in the MPM MFR-08 deep fryer?

Use only reliable quality vegetable oil or dedicated deep fry oil. Avoid butter, margarine, olive oil, or animal fat as they have lower evaporation temperatures and may cause excessive foaming or smoking.

How do I clean the deep fryer?

Unplug and let cool completely. Remove the oil container and basket. Wash the basket and lid in warm detergent water (basket and lid are dishwasher-safe). Wipe the housing with a damp cloth. Never immerse the housing in water or use abrasive cleaners.

Can I reuse the frying oil?

Yes, you can reuse oil. Strain it through a fine sieve or cheesecloth to remove food residues. Store in a sealed container away from heat and sunlight. Replace the oil if it becomes dark, smokes when heated, or foams excessively.

Why does the viewing window steam up during frying?

It is normal for the viewing window to steam up during the first few minutes of frying. The steam will disappear as cooking progresses, provided the window is clean.

How do I lower and raise the basket safely?

To lower the basket, release the lock button on the handle and gently lower it into the oil. To raise, lift the handle until it locks in the upright position. Always use the handle – do not touch the basket directly.

What should I do if the oil starts smoking?

Immediately turn off the fryer and unplug it. Do not add water to the oil. Allow the oil to cool down before handling. Smoking oil indicates it is overheating or has degraded; replace it if necessary.

Can I fry frozen food directly?

Yes, but ensure excess ice or water is removed to prevent splattering. Do not put wet food into hot oil. Refer to the frying timetable in the manual for recommended temperatures and times for frozen items.

What is the maximum oil level?

The maximum oil level is 2.5 L (indicated as MAX inside the container). Do not exceed this to avoid overflow. The minimum level is 2.0 L (MIN).

Is the deep fryer safe to leave unattended?

No, never leave the operating appliance unattended. Always monitor frying, especially with hot oil. The timer can help control cooking time, but you should stay nearby.

How do I set the timer for continuous operation?

Rotate the timer knob counter-clockwise to the ON position. This will allow the appliance to operate without a time limit. To set a specific time, turn clockwise to the desired minutes (up to 30).

USER MANUAL MFR-08 MPM

White MPM 300 kitchen toaster with orange control knobs and a side panel (no visible text or symbols on the device itself)

FRYTOWNICA MFR-08

Deep fryer/Фритюрница/Friteuse

PL INSTRUKCJA OBSŁUGI....3

GB USER MANUAL 11

RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ.... 18

Before operating this appliance, please read the Manual carefully.

Use special caution when operating near children.
▶ Never leave the operating appliance unattended!
Do not use this appliance for other than intended use.

Do not immerse this appliance, its cord or plug in water or any other liquids.

Unplug the appliance from the power outlet when not in use and before cleaning.

Do not operate the appliance when damaged, with a damaged cord or plug. In such a case, return the appliance to an authorised service centre for repair.

The use of accessories not recommended by the manufacturer may result in damaging the appliance or cause injury.

In case you notice unusual sounds, odours or smoke from the appliance, turn it off immediately and contact an authorised service centre for repair.

Do not use outdoors.
Do not touch with wet hands.
Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.

Do not let the cord hang over the edge of a countertop the appliance is placed on. This prevents the appliance from being pulled off accidentally.

Do not touch hot surfaces! Use the handles.
- Store the appliance in a cool, shaded and dry place.

Avoid deformation of plastic elements, do not clean the appliance with hot water or in a dishwasher.

Do not put hands or any objects into the container when operating.

Unplug the appliance from the power outlet before cleaning!
Do not place the appliance near other electric devices, burners, cookers, ovens, etc.

To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc
Do not place the appliance directly by walls or other equipment. Leave at least 10 cm of free space on appliance sides, behind and above it. Do not place any objects on the appliance.

Before operating always make sure all the parts of the appliance are properly assembled.

- Allow the appliance to cool after you have finished frying before putting on or taking off its parts, and before the cleaning.

The use of additional accessories not recommended by the manufacturer may result in damaging the appliance or cause injury.

Do not move the fryer if it contains hot oil or other hot liquids.

▶ Use according to its intended purpose.

The appliance is intended for household use only. Do not use continuously for extended periods of time to prevent deforming the casing or the lid.

If a power cord is damaged, it must be replaced by the manufacturer or a service centre, or by another properly qualified serviceman to prevent any risk.

The surface temperature can increase while in use.

▶ Never add water to the oil! Risk of flash fire/explosion!

This appliance should be plugged into the power outlet with an earthing pin!

Before turning on the appliance, make sure that the mains voltage matches the parameters on the appliance nameplate.

Using appropriate protective gloves is recommended while operating the appliance.

Do not use the device without oil or fat. Fire hazard!

Dils and fats may burn when overheated. Please be careful! Do not forget to switch the device off after use! Always turn the switch to the "OFF" position and unplug the device from the mains

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

- Store the appliance and its cord out of reach of children under 8 years of age.

Make sure children do not play with the appliance.

The appliance is not intended to operate with an external timer or other remote control systems.

Do not plug the power cord with wet hands.

Do not unplug by pulling the cord.

▶ Use on a flat, stable surface.

Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

WARNING! Never let children play with plastic film or bags. Choking/asphyxiation hazard!

WARNING! Oils and fats may burn when overheated. Please be careful!

CAUTION! Do not use different types of oils and/or fats together. Hazard of boiling and spilling!

CAUTION! Keep hands and face away from air vents to prevent scalding.

'arning! Hot surface!

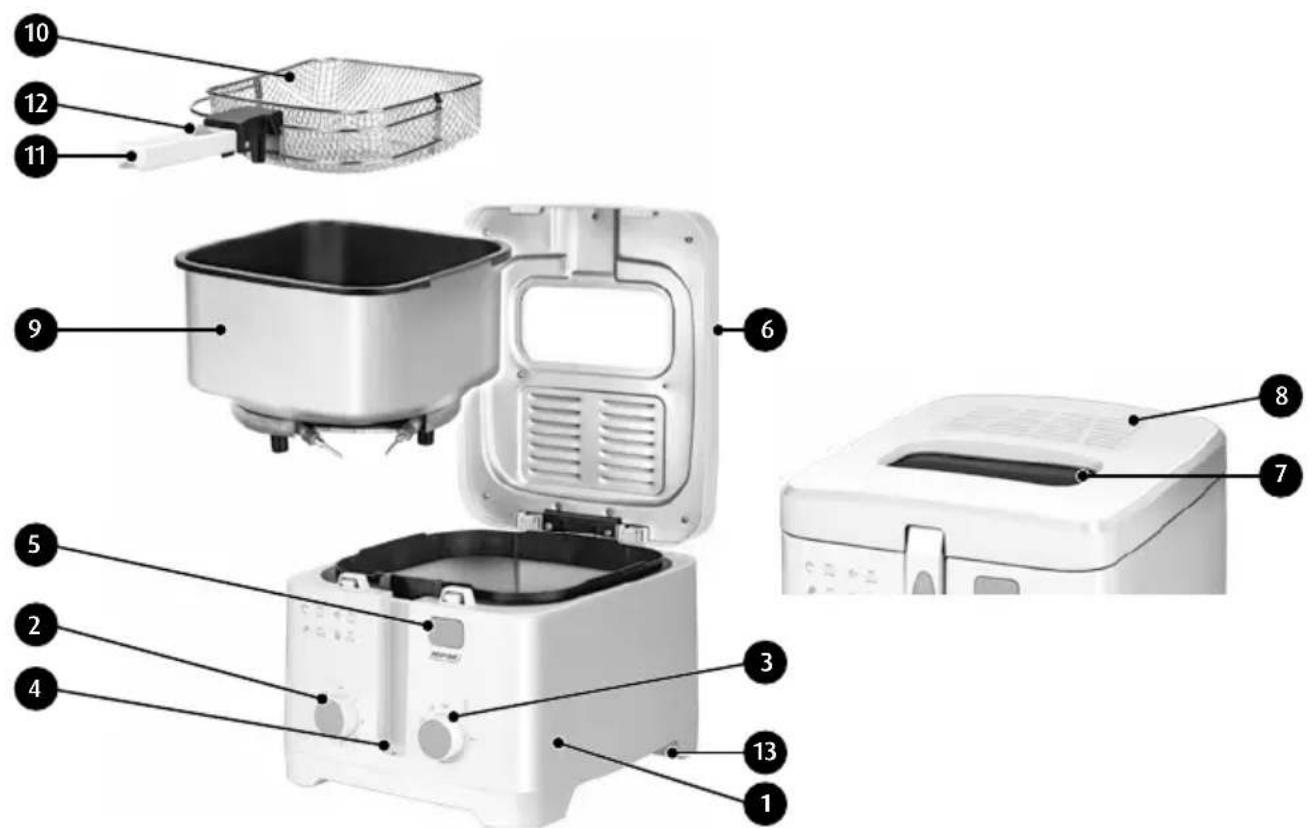

APPLIANCE DESCRIPTION

1. Fryer casing
2. ON/OFF knob Timer with sound signal at the operation cycle end
3. Temperature control (to 190°C)
4. Signal light
5. Lid release button
6. Lid

7. Viewing window

8. Aluminum filter cover

9. Removable oil container (min./max. 2 L/2,5 L)
10. Frying basket with comfortable cool touch handle
11. Basket handle
12. Basket handle lock button
13. Non-slip feet

FRYER PREPARATION FOR USE

1. Wipe the fryer lid ⑥ and casing ① with a damp cloth. Never immerse the fryer casing in water. Never clean the lid elements or the fryer base in a dishwasher.
2. Open the fryer lid ⑥ by pressing the release button ⑤.

3. Prise the folding handle of the basket 11 away from its seat in the housing front 1 and bring it upward to latch. The handle can be folded back in place by moving its latch 12 down.

4. Remove the basket 10 from the tank 9 and follow by removing the tank 9 by its side handles from the deep fryer.

5. Wash the basket 10 and the tank 9 in warm water with some detergent, rinse clean and leave to dry.
6. Reinstall the tank 9 back in the deep fryer.

CAUTION! Insert the tank into the deep fryer by locating the tank bottom feet in the respective seats inside the appliance.

FRYING GUIDELINES

1. Use the appliance only on dry, stable and heat-resistant surfaces away from its edges.
2. Do not use in cabinets. Steam that escapes through cover vents may cause damage. Never use without the container 9.
3. Never use with no oil or with insufficient amount of oil. Never exceed the maximum level of oil! Minimal (MIN) and maximum (MAX) levels are indicated inside the container 9.
4. Use only reliable quality vegetable oil or deep fry oil. Frying with butter, margarine, olive oil or animal fat is not recommended due to their lower evaporation temperature.
5. Before frying remove excess water from foodstuffs to prevent excessive foaming and splattering. Do not put wet food products into hot oil! Even small amount of water results in splattering!
6. Always unplug the cord from the power outlet after using. Always allow the fryer to completely cool before pouring the oil away or cleaning! The appliance should be cleaned after each use!

HOW TO USE

1. Lift the lid 6.
2. Remove the basket 10 from the container 9 and set it aside.
3. Fill the container 9 with oil or shortening up to the MAX oil level line, but not beneath the MIN level line.
4. Close the lid 6 and plug the unit to the power outlet. Set the desired temperature using the temperature controller 3. After setting the knob 2, the thermostat indicator 4 will light up. When the unit reaches the desired temperature, the thermostat indicator lights up. The recommended setting in most cases is 190^ . The preheat time is approx. 20 minutes.
5. While oil is preheating prepare food for cooking.

Caution! To prevent the risk of severe personal injury or property damage, use special caution when frying with hot oil.

1. Fill the basket 10 up to 2/3 with foodstuffs.

With oil heated press the lid release button 5 to open it.

Caution! The appliance has a special cool touch casing – the fryer inside is very hot – do not touch it!

1. Slowly lift the lid 6 with special caution taken not to touch hot surfaces. Place the filled basket 10 into the container so the handle is positioned in the slot on the appliance front part edge.

2. Tighten and close the lid 6.

3. Release the lock button 12 and lower the handle 11. The basket 10 will be automatically lowered into oil.

4. It is normal for the viewing window 7 to get steamy for the first several minutes. Steam will disappear while frying provided the viewing window is clean.

Caution! It is normal for steam to escape through cover vents while frying. To avoid steam burns, keep hands and face away from the cover vents.

1. When frying time has elapsed, lift the basket handle 11 until it locks in upright position – this will automatically lift the basket 10 to draining position.
2. Press the release button 5 to open the lid 6. Allow all steam to escape, then cautiously lift the lid 6 to the upright position not touching hot surfaces. Check if the food is well fried. If more cooking time is needed, close the lid and lower the basket back according to point 4-6.
3. Once the food is fried, lift the basket 10 up from the fryer and take the food out on a plate. Season to taste.

Caution! Do not release the lock button while removing the basket from the fryer!

Timer

The timer 2 can be set to max. 30 min. To do so, turn the knob clockwise to the desired value. Sound signal indicates the end of set time and turning the appliance off. Rotating the timer 2 counter-clockwise to the ON position will set the appliance to operate with no time limit.

CLEANING AND MAINTENANCE

1. Unplug the power cord from the mains and leave the deep fryer to cool down completely before opening the lid 6.
2. Now, remove the tank by its side handles 9 from the deep fryer.
3. If you want to reuse the fat/oil, pass it through a sieve to remove all solid residues from prior frying. Keep the reused fat/oil in a sealed container away from heat and direct sunlight.
4. Wash the tank 9 and the basket 10 in warm water with some detergent, rinse clean and leave to dry. Do not clean the tank 9 and the housing 1 with wire scourers or any abrasive. The basket 10 is dishwasher-safe.
5. Never immerse the appliance housing ① in water or any liquid. The housing is not dishwasher-safe. Wipe it with a damp cloth to clean.
6. Remove the lid ⑥ before cleaning, by lifting it upward and pulling up. Wash the lid in warm water with some detergent. Thoroughly clean the grille underneath which the aluminium mesh filter is. Rinse the lid thoroughly and leave it to dry after washing. The aluminium mesh filter is not replaceable. When dry, reinstall the lid back in the appliance. The lid is dishwasher-safe.

USEFUL TIPS

When using the fryer for the first time a slight odour or light smoking can occur. This is normal during initial use.
It is recommended to fry products of similar size and thickness so they fry more equally in the same time.
Fill the basket no more than 2/3 full. If more products are fried, they will not be crisp.

▶ Fish, vegetables and meat should be coated before frying.
Use only metal cutlery. Plastic or rubber cutlery will be damaged in hot oil! Do not leave cutlery in the fryer!

After each use, strain oil through a double thickness of cheesecloth/ fine sieve to remove the accumulated residue.

The number of times the frying oil can be reused will depend on the food that is fried in it. It will need to be replaced more often if coated fish or meat is fried.

It is time to replace the frying oil if any of the following occur: the oil is dark in colour, smokes when it is heated, or foams excessively during frying.

FRYING TIMETABLE

The following times are approximate and based on the maximum recommended amounts of food. Fill the basket no more than 2/3 full.

Food: Amount:	Temperature:		Time (in minutes):
Cheese: Frozen, in pieces	about 400 g 190	0	2 – 4
Chicken: Frozen, in pieces Raw, portioned about 500 g 150	about 500 g 190	00	4 – 513 – 18
Doughnuts 3 – 4 pcs. 190		0	2 – 3
Rolls, frozen 3 – 4 pcs. 190		0	5 – 6
Fish: Frozen Raw about 300 g 180	about 300 g 190	00	7 – 83 – 4
Onion rings: Frozen Raw about 400 g 180	about 400 g 190	00	7 – 83 – 4
Potatoes: Frozen fries: Thin French fires: about 400 g 170 Raw fries:	about 400 g 190	00	8 – 106 – 710 – 12
Shrimps: Frozen Raw, smashed	about 400 g 190about 400 g 170	00	7 – 83 – 5
Vegetables, raw	about 500 g	170^0	1 – 3

Technical parameters are indicated on the product nameplate.

Power cord length: 1.0 m

Caution! MPM agd S.A. reserves its right to introduce technical changes.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of

Environmental Protection. Do not dispose the device with other municipal waste

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
