USER MANUAL ECJ-12-02 MSW

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Abb. 2

LZ 320 RMF 32010-78F 51140

Abb.3

Close-up of a car's rear suspension system with visible tire and wiring (no text or symbols)

Abb. 4

Close-up of a black handheld device with two circular buttons and a checkmark (no visible text or symbols)

SICHERUNG ERSETZEN

Close-up of a black handheld electronic device with metallic connectors (no visible text or symbols)

FEHLERSUCHE

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Electric car jack
Model	MSW-ECJ-12-02
Rated voltage [V~]	12
Max current [A]	15
Max lifting capacity [T]	3
Lifting range [mm]	120-420
Dimensions [width x depth x height; cm]	43 x 28 x 13
Weight [kg]	4.96

Package includes:

1. Electric car jack x 1
2. Battery clip x 1
3. Cigarette lighter power line x 1
4. Fuse x 3 (15A)
5. Hand crank x 1

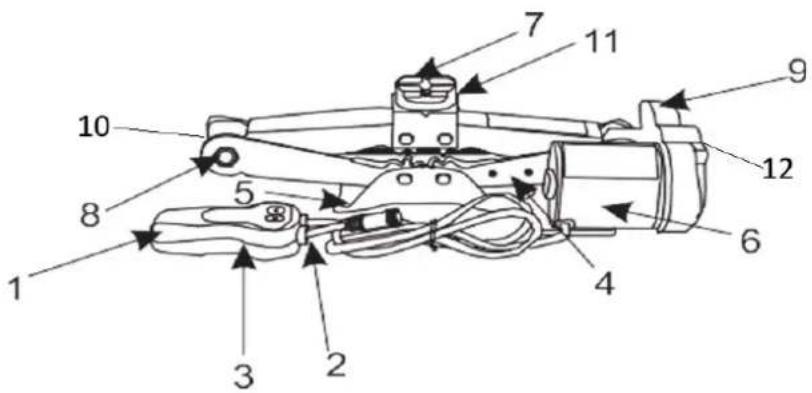

Technical diagram of a mechanical device with numbered components for identification

1. Remote control
2. LED light
3. Lead limit switch
4. Base
5. Support stand
6. Motor

7. Support points

8. Nut

9. Gear case
10. Screw arbor
11. U-shaped nose
12. Hand crank attachment

INSTRUCTION:

Emergency Tyre Replacement Steps

STEP 1: Prepare the Vehicle

1. Activate the hazard lights to alert other drivers.
2. Park the vehicle on a level surface, ensuring it is no more than a 6-degree incline.
3. Put the transmission into 1. Gear (manual transmission) or into "Park" (automatic transmission).
4. Engage the parking brake.
5. Use tyre stoppers or other anti-skid materials to stabilize the vehicle, ensuring the safety of everyone involved.
6. Loose the nuts/bolts in the wheel that has to be removed - do not fully unscrew them now!

STEP 2: Connect to 12V Power Supply

• Cigarette Lighter Connection:
o Connect one end of the cigarette lighter power line to the vehicle's cigarette lighter.
o Plug the other end into the remote-control socket of the device.
o Attention: Ensure the rated current of the cigarette lighter fuse is less than 12A as shown in Fig.1.

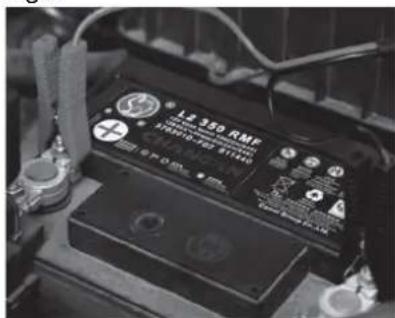

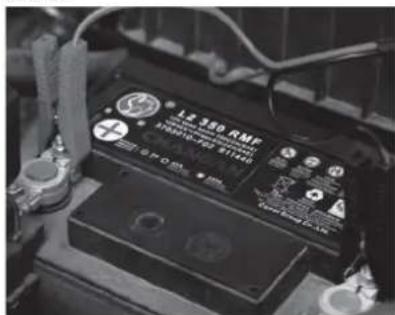

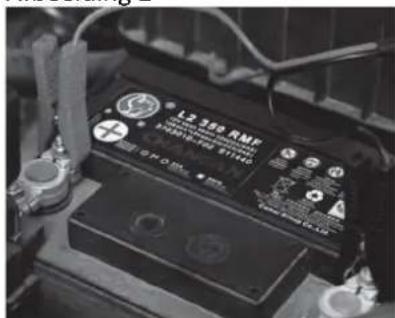

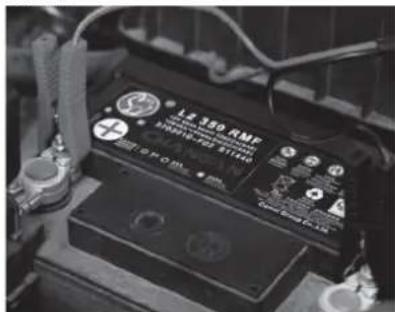

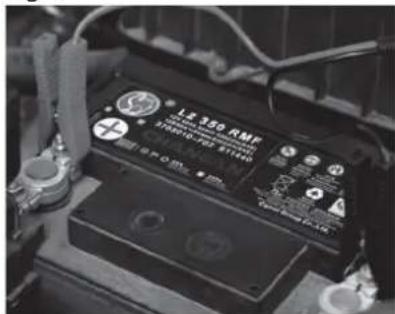

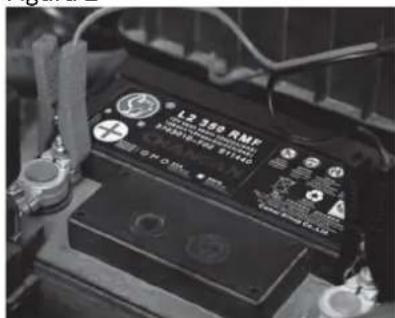

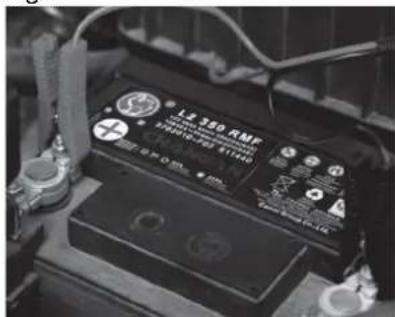

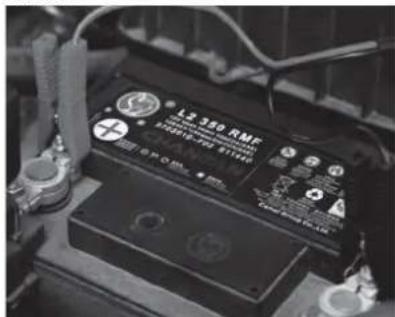

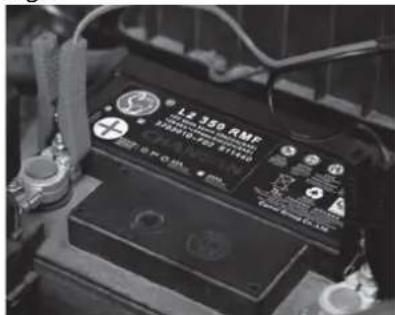

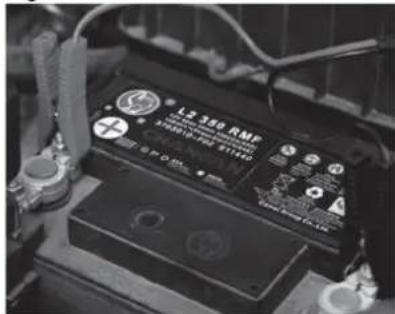

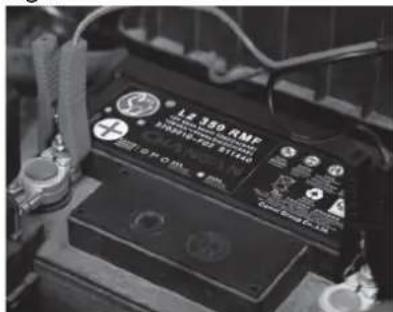

• Vehicle Battery Direct Connection (recommended):
o If the cigarette lighter fuse current is greater than 12A, connect the 12V cigarette lighter to the vehicle battery:
o Connect the red wire to the positive "+" terminal.
o Connect the black wire to the negative "-" terminal.
o Attach the other end to the remote control handle socket as shown in Fig.2.

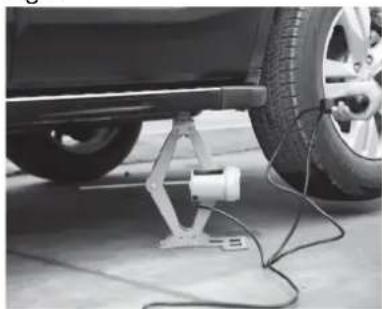

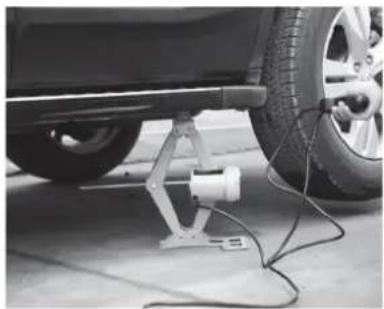

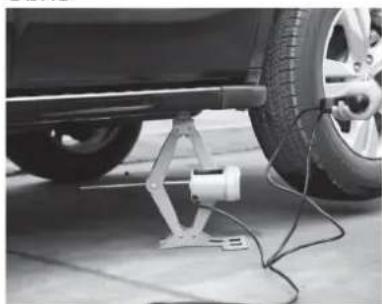

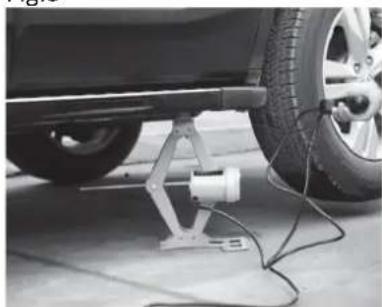

STEP 3: Position the Car Jack

• Identify the appropriate car jack support points on your vehicle (see vehicle owner's manual or call the manufacturer authorised service centre).
• Choose the suitable support point and screw it into the designated round hole in the device.

STEP 4: Align the Jack

• Refer to the vehicle's owner's manual for instructions on aligning the jack.
• Ensure the top of the jack is properly aligned with the vehicle's designated support points, usually marked on the vehicle's underside.

STEP 5: Lift the Vehicle

Press the "^" (up) button on the remote control to lift the vehicle until the tyre is off the ground.

NOTE: do not move or sit in the car while lifting!

STEP 6: Lower the Vehicle

After completing the repair or tire change, press the "V" (down) button on the remote control to lower the vehicle gently back to the ground as shown in Fig.4

Tighten securely previously screwed in the lug nuts or wheel bolts (in cross-pattern) when the vehicle stands on the ground on its own on all wheels.

Fig.1

Close-up of a hand using a handheld device to press or install a mechanical component (no visible text or symbols)

Fig.2

Close-up of a black automotive battery with visible model number L2 320 RMF and charging port (no readable text beyond branding)

Fig.3

Close-up of a car's wheel and suspension system with hoses, no visible text or symbols

Fig.4

Close-up of a black electrical plug with two circular buttons and a checkmark (no text or symbols visible)

FUSE REPLACE

Replacing a Blown Cigarette Lighter Fuse

If the cigarette lighter plug fuse burns due to overload, follow these steps to replace it:

Step 1: Remove the Front Metal Part

- Unscrew the front metal part of the cigarette lighter in an anti-clockwise direction.

Step 2: Replace the Fuse

• Carefully remove the blown fuse.
• Replace it with a new fuse that has the same specifications as the original.

Step 3: Reassemble

- Screw the front metal part of the cigarette lighter back on in a clockwise direction to secure it in place.

Close-up of a black handheld electronic device with metallic connectors and a metallic connector attached (no visible text or symbols)

TROUBLE SHOOTING

PROBLEM	POSSIBLE REASON	POSSIBLE SOLUTION
Electric car jack cannot lift.	Inspect the fuse in the cigarette lighter plug to see if it is not blown.	Replace it with a new fuse that matches the original specifications if necessary.
	Ensure that the cigarette lighter is providing current output.	Reconnect the interface.
	Check for overload.	Reduce the load.
	Check the battery voltage.	Charge or replace the battery.
	Check the battery clip connection.	Reconnect with correct power supply.

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand operating a black handheld device into a car dashboard (no visible text or symbols)

Rys.2

LZ 320 RMF EPO

Ryc.3

Close-up of a car's wheel and suspension system with visible wiring (no text or symbols)

Ryc.4

Close-up of a black electrical plug with two circular buttons and two leads (no text or symbols visible)

WYMIANA BEZPIECZNIKA

Close-up of a black handheld electronic device with metallic connectors (no visible text or symbols)

ROZWIĄZYWANIE PROBLEMÓW

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a handheld device to adjust a circular component (no visible text or symbols)

Obr.2

LZ 320 RMF PHOEN S1746

Obr.3

Close-up of a car's wheel and suspension system with hoses, no visible text or symbols

Obr.4

Close-up of a black electrical plug with two circular buttons and two white checkmark symbols (no text or labels visible)

VÝMĚNA POJISTKY

Close-up of a black electrical fuse with metallic connectors (no visible text or symbols)

ODSTRAŇOVÁNÍ PROBLÉMŮ

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a black tool to press a circular component (no visible text or symbols)

Fig.2

Close-up of a black automotive battery with visible model number L2 320 RMF and charging port (no readable text beyond branding)

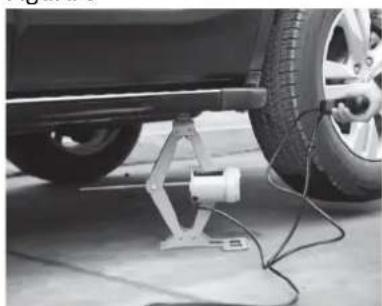

Fig.3

Close-up of a car's wheel and suspension system with visible wiring (no text or symbols)

Fig.4

Close-up of a black handheld device with two circular buttons and a checkmark (no visible text or symbols)

REEMPLACEMENT DU FUSIBLE

Close-up of a black handheld electronic device with metallic connectors (no visible text or symbols)

DÉPANNAGE

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a black tool to press a circular component (no visible text or symbols)

Figura 2

LZ 320 RMF 750V/10-76P STI40 ECHO

Figura 3

Close-up of a car tire mounted on a lift with hoses and cables, no visible text or symbols

Figura 4

Close-up of a black electrical plug with two circular buttons and a checkmark (no text or symbols visible)

SOSTITUZIONE FUSIBILE

Close-up of a black electrical fuse with metallic connectors (no visible text or symbols)

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand operating a black tool on a circular device (no visible text or symbols)

Figura 2

Close-up of a car battery with visible model number L2 328 RMF and charging port (no readable text beyond branding)

Figura 3

Close-up of a car tire mounted on a lift with a mechanical clamp, showing wiring and a small component (no visible text or symbols)

Figura 4

Close-up of a black electrical plug with two circular buttons and a checkmark (no text or symbols visible)

REEMPLAZO DE FUSIBLES

Close-up of a black electronic device with metallic connectors and a small metallic connector (no visible text or symbols)

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a black tool to press a circular component (no visible text or symbols)

1. ábra

L2 350 RMF 4786P10-09E S11440 SPG

1. ábra

Close-up of a car's lower leg and wheel assembly with visible wiring (no text or symbols)

1. ábra

Close-up of a black electrical plug with two circular buttons and a checkmark (no text or symbols visible)

BIZTOSÍTÉK CSERÉJE

Close-up of a black electronic device with metallic connectors and a small metallic connector (no visible text or symbols)

HIBAELHÁRÍTÁS

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a black tool to press a small mechanical component (no visible text or symbols)

Fig. 2

LZ 320 RMF 570470-758 571140 SPOR: 20

Fig. 3

Close-up of a car's wheel and suspension system with hoses, no visible text or symbols

Fig. 4

Close-up of a black electrical plug with two circular buttons and a checkmark (no text or symbols visible)

UDSKIFTNING AF SIKRING

Close-up of a black handheld electronic device with metallic connectors and a small metallic connector attached (no visible text or symbols)

FEJLFINDING

Close-up of a hand using a handheld device to press a circular button (no visible text or symbols)

Kuva 2

L2 350 RMF 370401-162 511410

Kuva 3

Close-up of a car tire mounted on a lift with hoses and cables, no visible text or symbols

Kuva 4

Close-up of a black electrical plug with two circular buttons and two leads (no visible text or symbols)

SULAKE VAIHDA

Close-up of a black electronic device with metallic connectors and a small metallic connector (no visible text or symbols)

VIANETSINTÄ

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand operating a black tool on a circular device (no visible text or symbols)

Afbeelding 2

Close-up of a car battery with visible model number L2 328 RMF and charging port (no readable text beyond branding)

Figuur 3

Close-up of a car tire mounted on a lift with a mechanical clamp, showing wiring and a small component (no visible text or symbols)

Afbeelding 4

Close-up of a black electrical plug with two circular buttons and two white checkmark symbols (no text or labels visible)

ZEKERING VERVANGEN

Close-up of a black electrical fuse with metallic connectors (no visible text or symbols)

PROBLEMEN OPLOSSEN

Close-up of a hand using a black tool to press a small mechanical component on a surface (no visible text or symbols)

Fig.2

LZ 320 RMF 920410-768 91140

Fig.3

Close-up of a car's lower suspension system with visible wiring and tire, no text or symbols present

Fig.4

Close-up of a black electrical plug with two circular buttons and two leads (no text or symbols visible)

BYTTE SIKRING

Close-up of a black electrical fuse with metallic connectors (no visible text or symbols)

FEILS∅KING

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a black tool to press a small mechanical component on a textured surface (no visible text or symbols)

Fig.2

LZ 320 RMF 100V-700V 51740 SPOR

Fig.3

Close-up of a car's wheel and suspension system with hoses, no visible text or symbols

Fig.4

Close-up of a black electrical plug with two circular buttons and two leads (no text or symbols visible)

BYTA SÄKRING

Close-up of a black electrical fuse with metallic connectors (no visible text or symbols)

FELSÖKNING

Technical diagram of a mechanical device with numbered components for identification

Close-up of a black electrical plug with two circular buttons and two leads (no text or symbols visible)

Close-up of a black electrical fuse with metallic connectors (no visible text or symbols)

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a black tool to press a circular component (no visible text or symbols)

Obr.2

Close-up of a car battery with visible model number 12-320 RMF and charging port (no readable text beyond branding)

Obr.3

Close-up of a car's wheel and suspension system with hoses and a tire, no visible text or symbols

Obr.4

Close-up of a black electrical plug with two circular buttons and a checkmark (no text or symbols visible)

VÝMENA POISTKY

Close-up of a black electrical fuse with metallic connectors (no visible text or symbols)

RIEŠENIE PROBLÉMOV

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand holding a black tool, interacting with a circular mechanical component (no visible text or symbols)

Фиг.2

LZ 320 RMF SPORI

Фиг.3

Close-up of a car's wheel and suspension system with hoses, no visible text or symbols

Фиг.4

Close-up of a black handheld device with two circular buttons and two leads (no visible text or symbols)

СМЯНА НА ПРЕДПАЗИТЕЛ

Close-up of a black handheld electronic device with a metallic connector and threaded tip (no visible text or symbols)

ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Technical diagram of a mechanical device with numbered components for identification

Close-up of a car's rear suspension system with visible tire and wiring (no text or symbols)

Elk.4

Close-up of a black electrical plug with two circular buttons and a checkmark (no text or symbols visible)

Close-up of a black handheld electronic device with metallic connector and metallic shaft (no visible text or symbols)

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

sl.2

LZ 320 RMF PHOEN S1746 EPO

sl.3

Close-up of a car's rear suspension system with visible wiring and tire, no text or symbols present

sl.4

Close-up of a black electrical plug with two circular buttons and a checkmark (no text or symbols visible)

ZAMJENA OSIGURAČA

Close-up of a black electrical fuse with metallic connectors (no visible text or symbols)

RJEŠAVANJE PROBLEMA

Technical diagram of a mechanical device with numbered components for identification

1. Nuotolinio valdymo pultas
2. LED lemputé
3. Švino ribinis jungiklis
4. Bazé
5. Atraminis stovas
6. Variklis
7. Palaikymo taškai

8. Riešutas

9. Pavaros déklas

10. Sraigtiné pavésiné
11. U formos nosis
12. Rankinis švaistiklio tvirtinimas

INSTRUKCIJA:

Close-up of a hand using a black tool to press a circular component (no visible text or symbols)

2 pav

Close-up of a car battery with visible model number 12-320 RMF and charging port (no readable text beyond branding)

3 pav

Close-up of a car tire mounted on a lift with visible wiring and a small component, no text or symbols present.

4 pav

Close-up of a black electrical plug with two circular buttons and a checkmark (no text or symbols visible)

PAKEISTI SAUGIKLJ

Close-up of a black electrical fuse with metallic connectors (no visible text or symbols)

TRIKČIŲ ŠALINIMAS

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Fig.2

12 350 RMF PHO®-708 51146

Fig.3

Close-up of a car's rear suspension system with visible wiring and tire, no text or symbols present

Fig.4

Close-up of a black electrical plug with two circular buttons and a checkmark (no text or symbols visible)

ÎNLOCUIRE SIGURANTĂ

Close-up of a black electronic device with metallic connectors and a small metallic connector (no visible text or symbols)

DEPANARE

Technical diagram of a mechanical device with numbered components for identification

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Slika 2

LZ 320 RMF PHOEN S1746

Slika 3

Close-up of a car's rear suspension system with visible wiring and tire, no text or symbols present

Slika 4

ZAMENJAVA VAROVALKE

Zamenjava pregorele varovalke vžigalnika

Če varovalka vtikača cigarettenega vžigalnika pregori zaradi preobremenitve, sledite tem korakom, da jo zamenjate:

1. korak: Odstranite sprednji kovinski del

- Odvijte sprednji kovinski del vžigalnika v nasprotni smeri urinega kazalca.

2. korak: zamenjajte varovalko

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
