HFCV-50-C - Power tool MSW - Free user manual and instructions

Product type	High frequency concrete vibrator
Model	MSW-HFCV-50-C
Brand	MSW
Rated voltage	230 V ~ 50 Hz
Rated power	1500 W
Vibrator head size	50 mm
Protection rating vibrator head	IPX8
Protection rating converter	IPX5
Weight	17.26 kg
Power cable length	Approx. 5 m (estimate)
Converter type	Integrated, with RCD plug
Motor	Permanent magnet motor integrated in head
Main functions	Concrete vibration, anti-locking protection, thermal protection
Power supply	Single-phase, compatible with standard socket
Maintenance and cleaning	Clean after use, check cable and hose, store dry
Safety	RCD plug (residual current circuit breaker), emergency stop via switch
Spare parts and repairability	Have repairs carried out by a qualified professional, use identical parts
General information	Use only for vibrating cement slurry, high temperature after use, do not immerse converter

Frequently Asked Questions - HFCV-50-C MSW

What precautions should be taken before using the MSW-HFCV-50-C vibrator?

Before each use, check that the voltage and frequency of the power supply match the rated values (230 V / 50 Hz). Ensure the RCD plug works by pressing the 'Test' button then 'Reset'. Inspect the power cable and hose for any damage. Never use if the cable is damaged.

How to perform a function test before immersing the head in concrete?

Lift the vibrator head by the hose to avoid contact with the ground or objects. Press the ON/OFF switch on the converter. The head will start at low frequency and reach its maximum frequency in about 5 seconds. Check proper operation, then turn off before immersing in cement slurry.

What is the maximum no-load operation time?

Never operate the vibrator for more than 3 minutes when the head is not immersed in cement slurry. Prolonged no-load operation can cause overheating and damage the motor.

What to do if the vibrator head does not start?

First check the power supply: the socket must be live and the RCD plug correctly connected. Ensure the 'Reset' button on the RCD plug is pressed and the indicator light is on. If the problem persists, contact a qualified professional.

Is it possible to use an extension cord with the vibrator?

Yes, but the cross-section of the extension cable must be at least 1.5 mm² and it must be equipped with a grounding connection. Make sure the extension socket matches the vibrator plug and the cable is not damaged.

How to avoid burns after use?

Never touch the vibrator head or the heat sink part of the converter immediately after stopping. These parts become very hot. Wait for them to cool down before handling.

Can I use this vibrator for applications other than concrete?

No, this vibrator is designed only for vibrating cement slurry. Any other use is prohibited and may create dangerous situations.

How to clean and maintain the vibrator after use?

After each use, turn off the device and unplug it. Clean the vibrator head with clean water to remove concrete residues. Inspect the cable and hose for any cracks or damage. Store the device in a dry and dust-free place.

What to do if the RCD plug indicator does not light up after pressing 'Reset'?

If the indicator does not light up, it means the RCD plug has detected a fault or the power is off. Check the main circuit breaker. If the problem persists, do not use the device and have the electrical installation checked by an electrician.

What protections are integrated in the HFCV-50-C vibrator?

The device has anti-locking protection that prevents the head from jamming, and thermal protection that prevents motor overheating during no-load operation. Additionally, the RCD plug provides protection against current faults.

USER MANUAL HFCV-50-C MSW

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

1. Technical data

Parameter description	Parameter value
Product name	High Frequency Concrete Vibrator
Model	MSW-HFCV-60	MSW-HFCV-32	MSW-HFCV-40
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	2000	1000	1200
Head size [mm]	60	32	40
Protection rating IP for Vibrating Head	IPX8
Protection rating IP for Converter	IPX5
Weight [kg]	19.46	10.35	12.81
Product name	High Frequency Concrete Vibrator
Model	MSW-HFCV-50	MSW-HFCV-60-C	MSW-HFCV-40-C
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	1500	2000	2000
Head size [mm]	50	60	40
Protection rating IP for Vibrating Head	IPX8
Protection rating IP for Converter	IPX5
Weight [kg]	16.25	20.55	20.55
Product name	High Frequency Concrete Vibrator
Model	MSW-HFCV-50-C
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	1500
Head size [mm]	50
Protection rating IP for Vibrating Head	IPX8
Protection rating IP for Converter	IPX5
Weight [kg]	17.26

2. Operations

▲ 1 . WARNINGS:

1. Power Supply Check: Ensure that the power supply for the concrete vibrator matches the rated power supply indicated on the vibrator. Also, confirm that the power socket is compatible with the vibrator's plug.
2. Extension Cable Use: If an extension cable is required, ensure the cable's cross-sectional area is not smaller than 1.5mm^2 . The extension cable must have an earth connection. The socket on the extension cable must match the vibrator's plug. Ensure the extension cable is undamaged.
3. Heat Warning: Do NOT touch the vibrating head or the heat radiation part of the converter immediately after the vibrator stops running, as they may cause burns.
4. Running Time: Never operate the vibrator for more than 3 minutes when the vibrating head is not submerged in cement mud.
5. Cable and Hose Safety: If the power cable or hose is severely damaged, stop using the vibrator immediately. Have it repaired by a qualified professional before using it again.
6. Handling the Vibrator: Never move, lift, or pull the vibrator by yanking its power cable or RCD plug.
7. No Modifications: Do NOT modify the vibrator, such as replacing the RCD plug with another type of plug.

EN

1. Power Disconnection: Do NOT disconnect the power supply while the vibrating head is submerged in cement mud.

2. Proper Use: This vibrator is intended solely for vibrating cement mud. Do NOT use it for any other applications.

Operation Steps:

1. Power Connection:

- Connect the vibrator's plug to the appropriate socket.

- Press the "Test" button on the RCD plug first, then press "RESET" on the RCD plug to check if the indicator light turns on. The power connection is confirmed when the indicator light is on after pressing the "RESET" button.

2. Trial Run:

- Lift the vibrating head by the hose to prevent it from touching any objects or the ground.

- Perform a trial run by pressing the ON/OFF switch on the converter. The vibrating head will start at a lower frequency and reach its highest frequency within about 5 seconds.

- After the trial run, switch off the vibrator using the ON/OFF switch on the converter.

3. During Operation:

- After the trial run, the vibrator is ready for use. Slowly and gently submerge the vibrating head into the cement mud during operation.

- After completing the job, slowly pull the vibrating head out of the cement mud.

4. Post-Operation:

• Switch off the vibrator and disconnect it from the power supply.
• Thoroughly inspect the vibrator for any damage before storing or using it again.

▲ ! . WARNING!

Before operating your Concrete Vibrator, please read this manual carefully and follow all safety guidelines. Retain this manual for future reference.

3. General Safety Precautions and Warnings

Work Area Safety:

• Clean and Well-Lit Area: Keep the work area clean and well-lit to prevent accidents.
• Avoid Explosive Atmospheres: Do not operate power tools in explosive environments, such as in the presence of flammable liquids, gases, or dust.
• Keep Children and Bystanders Away: Ensure that children and bystanders are at a safe distance while operating the power tool.

Dress Properly:

• Avoid Loose Clothing and Jewelry: Do not wear loose clothing or jewelry that could get caught in moving parts.
• Wear Protective Gloves: Use leather gloves when handling the vibrator hose to protect your hands.

Electrical Safety:

• Proper Plug Use: Power tool plugs must match the outlet. Never modify the plug in any way, and do not use adapter plugs with grounded (earthed) power tools.
• Avoid Grounded Surfaces: Avoid contact with grounded surfaces, such as pipes, radiators, ranges, or refrigerators, to reduce the risk of electric shock.
• Protect the Power Cord: Never use the cord for carrying, pulling, or unplugging the tool. Keep the cord away from heat, oil, sharp edges, and moving parts to prevent damage.
• Use Suitable Extension Cords: When operating a power tool outdoors, use an extension cord rated for outdoor use to reduce the risk of electric shock.

Personal Safety:

• Stay Alert: Always remain attentive, use common sense, and do not operate the power tool if you are tired or under the influence of drugs, alcohol, or medication.
• Wear Personal Protective Equipment: Always wear eye protection and consider using other protective equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection, depending on the situation.
• Prevent Unintentional Starting: Ensure the switch is in the off position before connecting to a power source or battery pack, or when picking up or carrying the tool.
• Remove Adjusting Tools: Remove any adjusting keys or wrenches before turning on the power tool.
• Maintain Balance: Always keep proper footing and balance to avoid falls.

Power Tool Use and Care:

- Check Switch Functionality: Do not use the power tool if the switch does not turn it on and off properly.

• Disconnect Power When Not in Use: Unplug the tool or remove the battery pack before adjusting, changing accessories, or storing the power tool.
• Store Safely: Keep idle power tools out of the reach of children, and do not allow untrained persons to operate them.
• Maintain the Tool: If the power cable or its protective sleeves are damaged, stop using the tool immediately and have it repaired by a qualified person.
• Follow Manufacturer Instructions: Use the tool, accessories, and bits according to the manufacturer's instructions, taking into account the working conditions and the task at hand. Using the tool for unintended purposes can create hazardous situations.

Service:

- Qualified Service: Have your power tool serviced by a qualified repair person using only identical replacement parts.

▲ ! . WARNING!

The safety precautions and instructions provided in this manual cannot cover all possible situations that may arise. It is the operator's responsibility to apply common sense and caution during operation, as these factors cannot be built into the manual but must be exercised by the operator.

4. Product General Features

1. Motor integrated into the Vibrating Head. No extra external motor is necessary, much easier and safe for the operators.
2. Powerful Permanent Magnetic Motor is used for higher efficiency.
3. High frequency and excited force lead to excellent vibration performance.

4. It can be connected to single-phase power directly.

5. There is no rotation shaft inside the hose. Therefore, the feeling to operator's arms and hands are much more comfortable.

6. Protection is built to prevent the vibrating head from being jammed during operation.
7. Thermal Protection is built to prevent the motor from being overheated during no-load running.
8. Longer life span and lower noise level.

5. Product Structure

MSW-HFCV-60

MSW-HFCV-32

MSW-HFCV-40

MSW-HFCV-50

MSW-HFCV-60-C

MSW-HFCV-40-C

MSW-HFCV-50-C

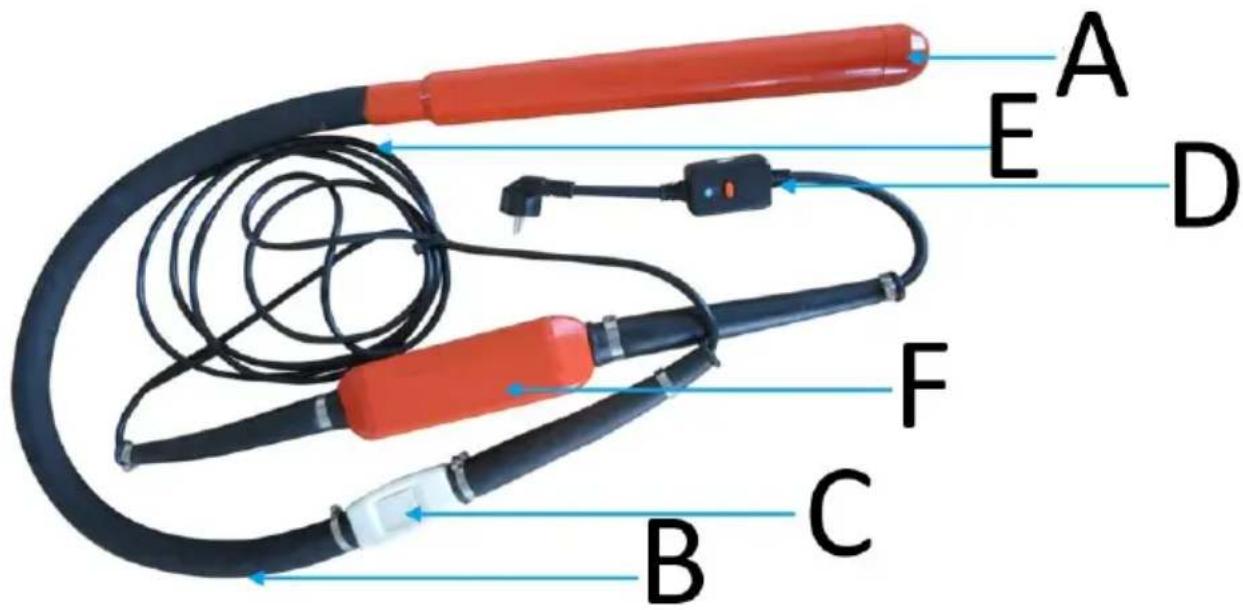

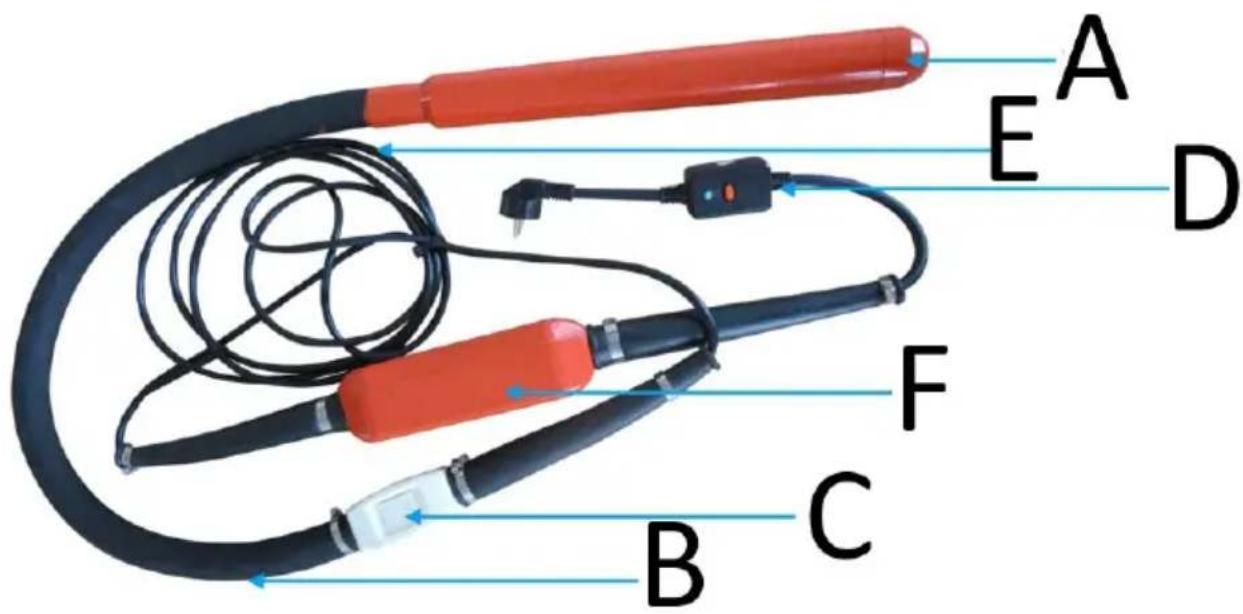

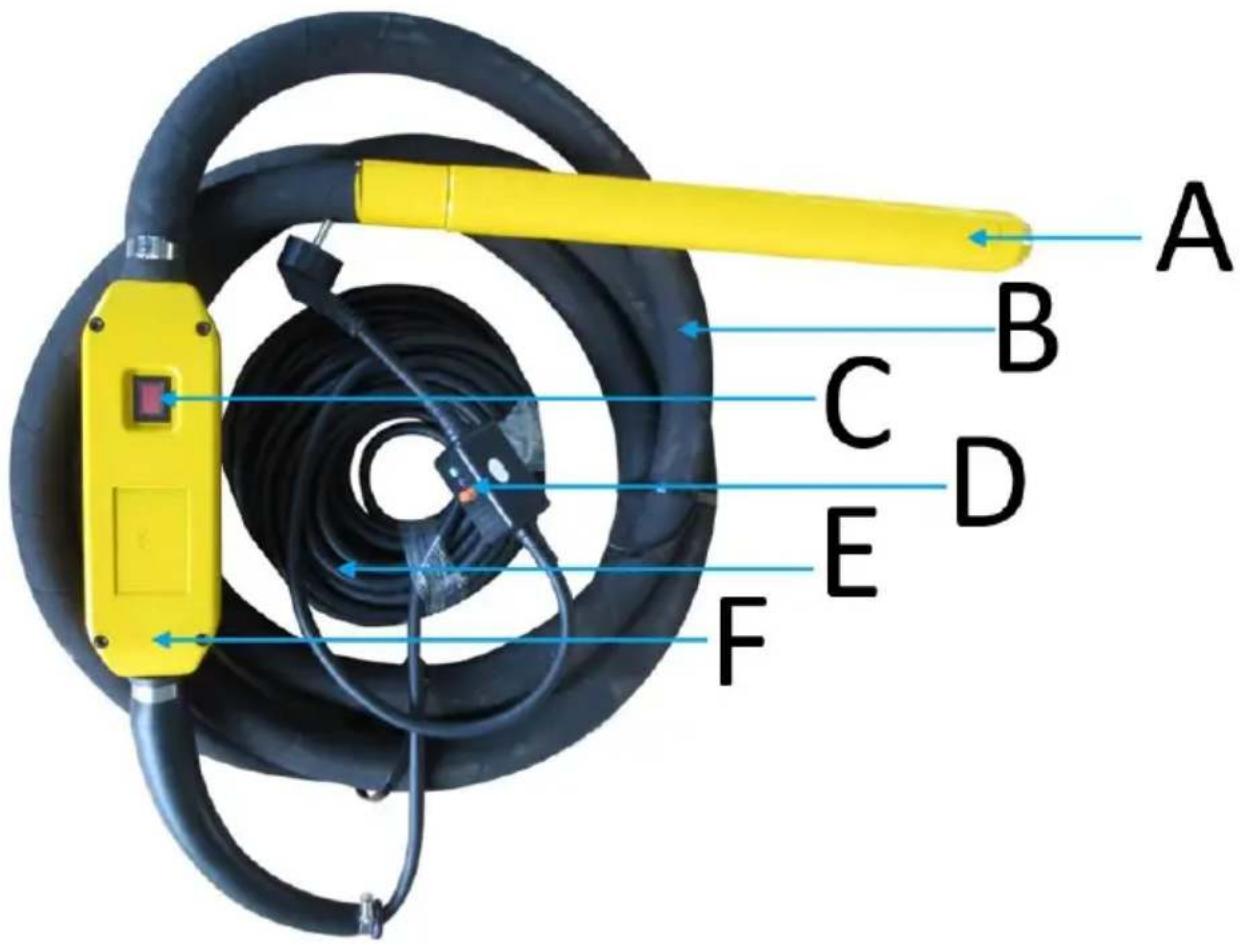

A Vibrating Head

B Hose

C ON/OFF

D RCD Plug

E Power cable

F Converter

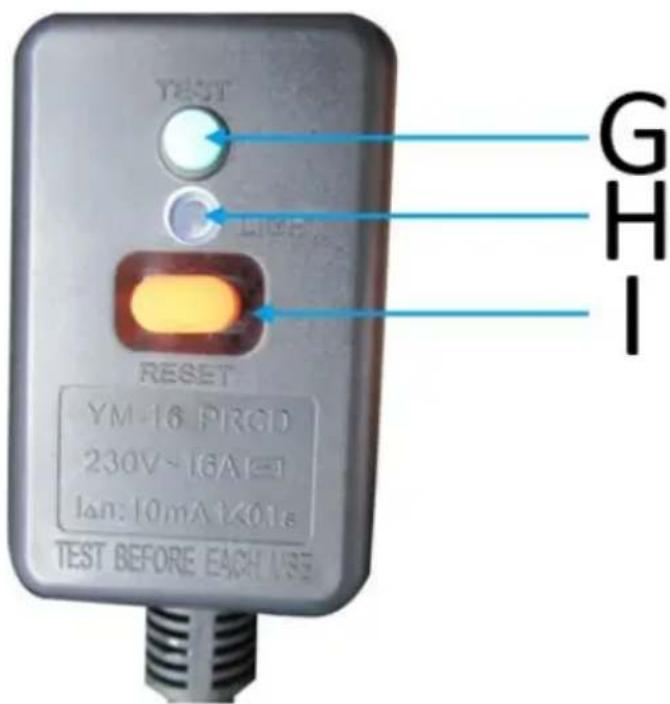

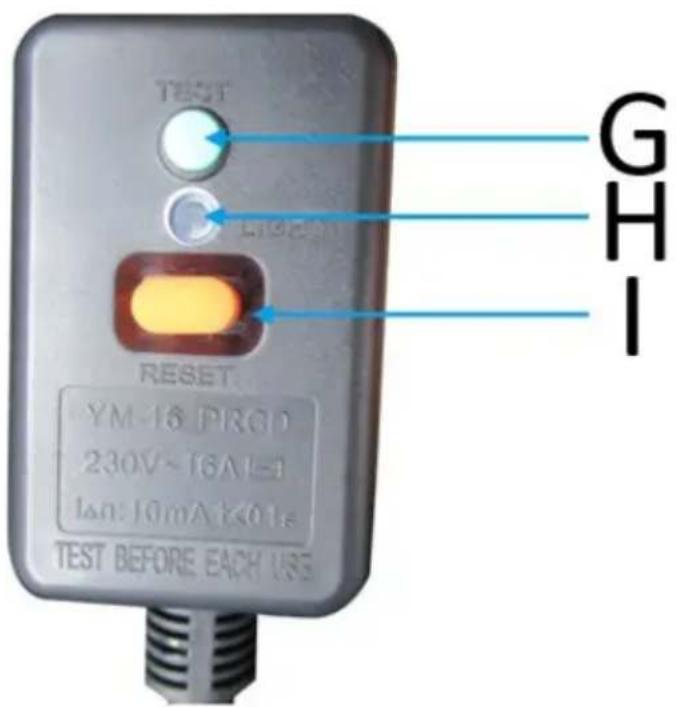

G Test

H Indicator

I Reset

(RSU)- municipales HFCV-40-C

(RSU)- municipales HFCV-50-C

(RSU)-

A Cabezal vibratorio

A Vibruojanti galva

B Žarna

C IJUNGTA/IŠJUNGTA

D RCD kištukas

E Maitinimo kabelis

F Konverteris

G Testas

H Rodiklis

For the disposal of the device please consider and act according to the national and local rules and regulations.
