USER MANUAL LMM-01 MSW

Labeled diagram of a mechanical device with numbered components including rollers, tools, and a rack mechanism.

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

1. Technical data

Table 1: Technical data of the product

Parameter description	Parameter value
Product name	LABELLING MACHINE
Model	MSW-LMM-01
Diameter of labelled bottle [mm]	15-100
Label width [mm]	26-165
Label length [mm]	25-260
Dimensions [mm]	470x280x265
Weight [kg]	6,5

2. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement.

2.1. Legend

Icon Description
	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

THE DRAWINGS IN THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY AND IN SOME DETAILS MAY DIFFER FROM THE ACTUAL MACHINE.

3. Usage safety

ATTENTION! READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN AN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY OR EVEN DEATH.

The terms "device" or "product" are used in the warnings and instructions to refer to LABELLING MACHINE.

3.1. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
c) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
d) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
e) Keep packaging elements and small assembly parts in a place not available to children.
f) Keep the device away from children and animals.

3.2. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.

d) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
f) Do not put your hands or other items inside the device while it is in use!

3.3. Safe device use

a) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
b) Keep the device out of the reach of children.
c) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
d) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
e) Clean the device regularly to prevent stubborn grime from accumulating.
f) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
g) Keep the device away from sources of fire and heat.
h) Do not overload the device.
i) The device is designed only for round bottles.

4. Use guidelines

The device is designed to stick labels on round bottles.

The user is liable for any damage resulting from unintended use of the device.

4.1. Preparing for use

4.1.1. Appliance location

Keep the product away from hot surfaces. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions.

4.1.2. Assembling the device

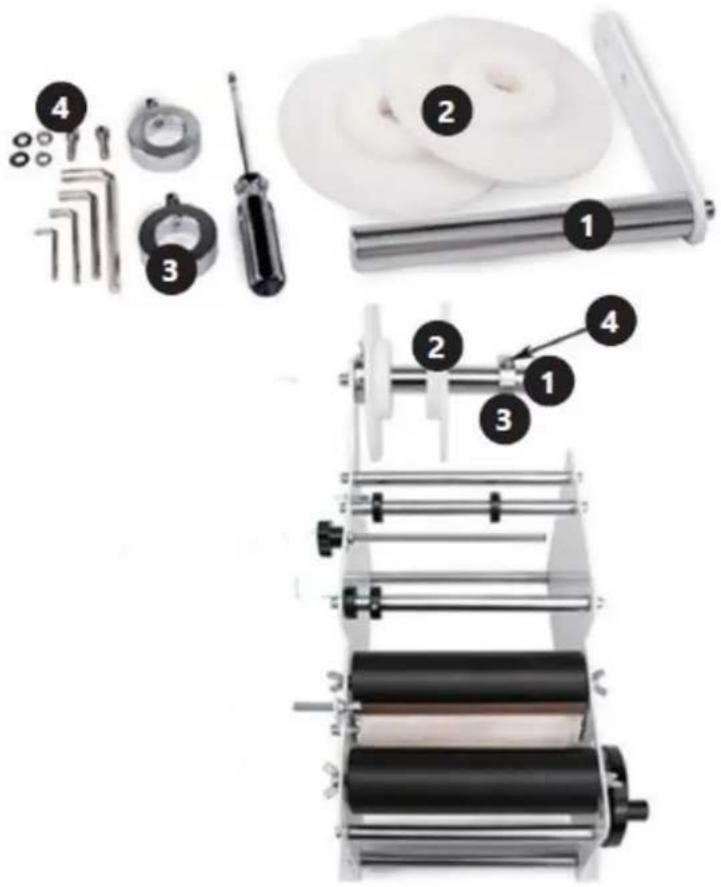

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

1. Roller
2. Plastic shield
3. Clamps
4. Screws

Put the label roll on the roller [1]. Place the plastic shield [2]. Secure the roll against slipping with the clamps [3]. Fasten the clamps [3] with the screws [4].

4.1.3. Device use

B A C

A. Label adjustment
B. Label roller
C. Bottle location

4.1.4. Cleaning and maintenance

• Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
• Use a soft, damp cloth for cleaning.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

1. Rolka
2. Ostona plastikowa
3. Zaciski
4. Šruby

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical assembly with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

1. Rol
2. Kunststof beschermkap
3. Klemmen
4. Schroeven

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

1. Rulle
2. Plastskjerm
3. Klemmer
4. Skruer

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

1. Rolo
2. Protetor de plástico
3. Grampos
4. Parafusos

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

1. Valec
2. Plastový kryt
3. Svorky
4. Skrutky

Nasad'te rolku s etiketami na valček [1]. Umiestnite plastový kryt [2]. Zaistite rolku proti skíznutiu pomocou svoriek [3]. Upevnite svorky [3] pomocou skrutiek [4].

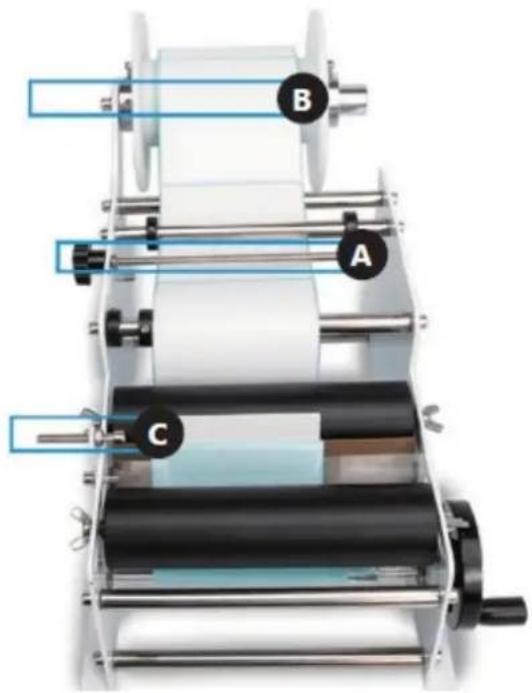

4.1.3. Používanie zariadenia

B A C

A. Nastavenie etikety
B. Valček na etikety
C. Umiestnenie fl'aše

4.1.4. Čistenie a údržba

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

1. Valjak
2. Plastični štitnik
3. Stezaljke
4. Vijci

Stavite rolu etiketa na valjak [1]. Postavite plastični štitnik [2]. Osigurajte rolu od klizanja stezaljkama [3]. Pričvrstite stezaljke [3] vijcima [4].

4.1.3. Korištenje uređaja

B A C

A. Podešavanje etiketa
B. Valjak etiketa
C. Položaj boce

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

1. Volelis
2. Plastikinis skydas
3. Spaustukai
4. Varžtai

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

Labeled diagram of a mechanical device with numbered components including tools, gauges, rollers, and a paper roller.

For the disposal of the device please consider and act according to the national and local rules and regulations.
