USER MANUAL AD 1349 ADLER

Two ADLER water heaters displayed side by side, one white and one black, with digital temperature scales and control buttons (no visible text or symbols on the devices themselves)

AD 1349

EN	User Manual	3	PL	Instrukcja obsługi	93
DE	Bedienungsanleitung	8	IT	Manuale d'uso	99
FR	Mode d'emploi	14	SV	Bruksanvisning	105
ES	Manual de usuario	20	BG	Ръководство за употреба	110
PT	Manual de Instruções	26	DA	Brugsanvisning	116
LT	Naudojimo instrukcija	31	SK	Používatel'ská príručka	121
LV	Lietošanas instrukcija	37	BS	Korisnički priručnik	127
ET	Kasutusjuhend	42	MK	Упатство за употреба	132
HU	Használati útmutató	47	HR	Korisnički priručnik	138
RO	Manual de utilizare	53	UK	Керівництво користувача	143
CS	Návod k použití	58	SR	Упутство за употребу	150
RU	Руководство пользователя	64	AR	دليل المستخدم	155
EL	Εγχειρίδιο χρήσης	70	AZ	İstifadəçi təlimatı	159
NL	Gebruikershandleiding	76	SQ	Manuali i përdorimit	165
SL	Navodila za uporabo	82	KA	☐ блู# ó# #DOS	170
FI	Käyttöohje	87

ADLER A B C D 5 6 2 3 MODE MUTE PRESS FOR 35 KEEP WARM °F/°C PRESS FOR 35 388°C HOLD SET 88:88°C START/CANCEL PRESS FOR 35 OFF 10 7 4 12 9 8 13 11 1

User Manual (EN)

GENERAL SAFETY CONDITIONS IMPORTANT SAFETY INSTRUCTIONS FOR USE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the instruction manual and follow the instructions contained therein. The manufacturer is not responsible for damage caused by using the device contrary to its intended use or improper operation.
2. The device is for domestic use only. Do not use for other purposes, incompatible with its purpose.
3. Connect the device only to a grounded outlet 220-240V \~ 50-60Hz.

In order to increase the safety of use, multiple electrical appliances should not be plugged into a single circuit at the same time.

1. To provide additional protection, it is advisable to install in an electrical circuit, a residual current device (RCD) with a rated residual current of not more than 30 mA. In this regard, consult a specialist electrician.

2. Take special care when using the device when children are around. Do not allow children to play with the device do not allow children or anyone unfamiliar with the device to use it.

3. WARNING: This equipment may be used by children over 8 years of age and persons with limited physical, sensory or mental ability, or persons without experience or familiarity with the equipment, if this is done under the supervision of a person responsible for their safety or they have been given instructions on the safe use of the equipment and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the equipment should not

be performed by children unless they are over 8 years of age and these activities are performed under supervision.

1. WARNING: Do not use the device if its housing is cracked.

2. WARNING: Do not open the lid if the water is boiling.

3. WARNING: Do not leave the appliance plugged into an outlet unattended.

4. WARNING: Keep the device out of the reach of children.

5. WARNING: Improper use of the device, may result in injuries such as cuts, abrasions or electric shock, among others.

6. WARNING: Always remove the plug from the power outlet after use by holding the outlet with your hand. DO NOT pull on the power cord.

7. WARNING: Do not move the unit while it is in use.

8. Do not immerse the cord, plug or entire unit in water or other liquid. Do not expose the unit to weather conditions (rain, sun, etc.) or use in high humidity conditions (bathrooms, humid motor homes).

9. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialized repair facility to avoid danger.

10. Do not use the device with a damaged power cord or if it has been dropped or damaged in any other way or is not working properly. Do not repair the device yourself, as there is a risk of electrocution. Return a damaged device to a competent service center for inspection or repair. All repairs may be made only by authorized service centers. Improper repair may cause serious danger

11. Place the appliance on a cool stable, level surface, away from hot kitchen appliances such as: electric stove, gas burner, etc....

12. Do not use the device near flammable materials.

13. The power cord must not hang over the edge of the table or touch hot surfaces.

14. If the kettle is overfilled, boiling water may gush out of it.

15. NOTE: The kettle may only be used with the supplied stand.

16. NOTE: Before lifting the kettle from the stand, make sure that the kettle is turned off.
17. This equipment is designed to boil clean water for domestic and similar use, such as: staff kitchen areas in stores, offices and other working environments, farm rooms, by customers in hotels, motels and other residential environments of this type, in sleeping and breakfast rooms.
18. Always take special care when boiling water in a kettle. Do not touch the kettle housing or lid. Do not open the lid of the kettle while it is boiling or immediately after the water boils, the escaping steam may cause burns.
19. Carry the kettle only by holding the handle.
20. Do not fill the kettle above the MAX or below the MIN level, as this may cause burns or damage to the kettle.
21. Do not turn on the kettle without water, as this may cause damage to the kettle.
22. Do not use the kettle without a filter or with the lid open, as the circuit breaker will not work then.
23. Periodically, the kettle should be decalcified using means designed for this purpose. Using a kettle with a calcified heater will damage it and void the warranty.
24. To wash the housing of the kettle, do not use aggressive detergents that can damage the kettle or remove the markings on it.
25. The device is not designed to operate with external timers or a separate remote control system.
26. Do not wash the base of the kettle directly in water, only wipe with a dry cloth.
27. Children from 3 to under 8 years of age may turn the appliance on and off only when it is in its normal operating position, is supervised or has been instructed on safe use and understands the resulting risks. Children between the ages of 3 and under 8 must not connect, operate, clean or maintain the appliance themselves.

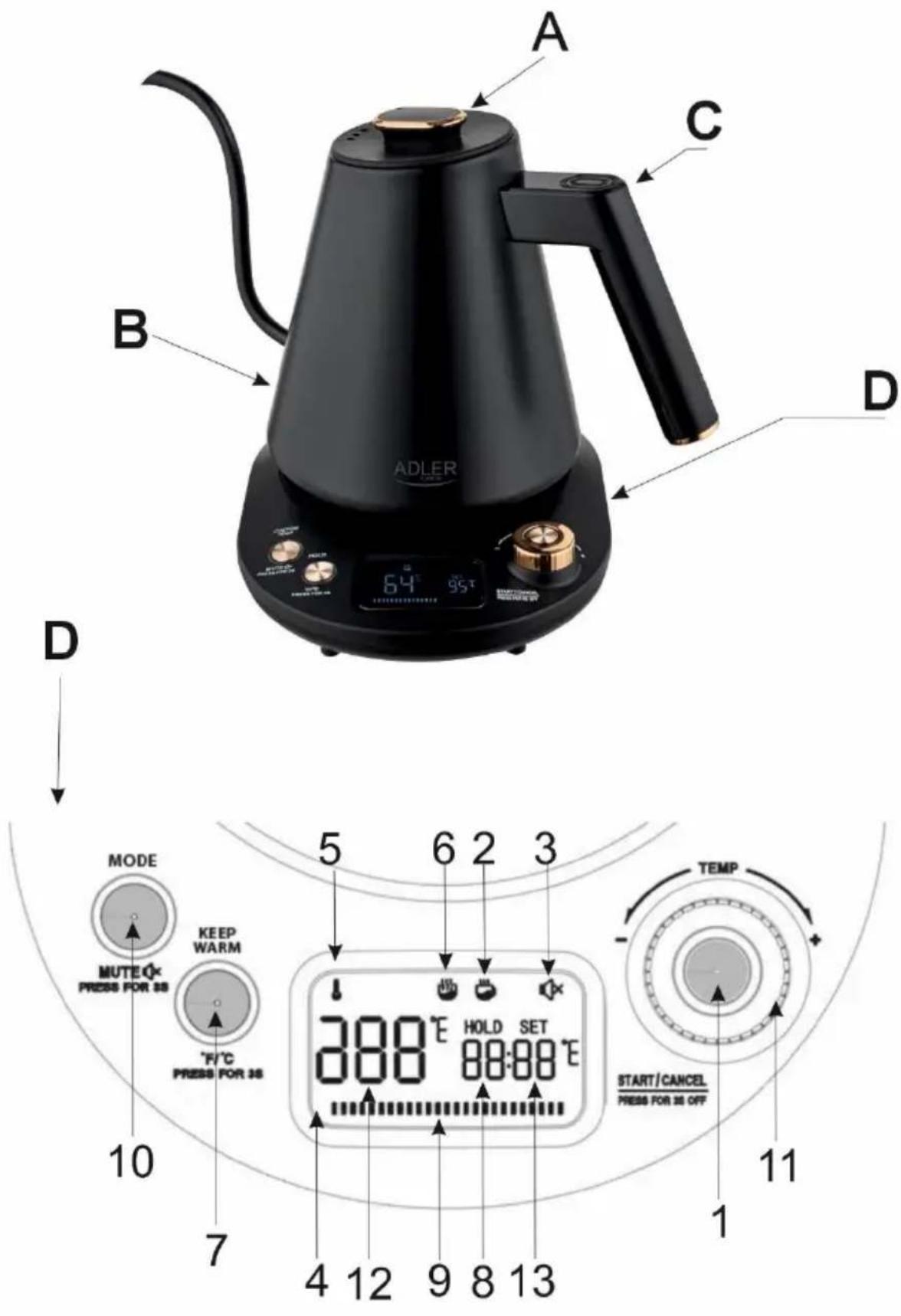

APPLIANCE DESCRIPTION ELECTRIC KETTLE: AD1349

A. Lid
B. Housing
C. Handle
D. Base

1. On/off button

2. Water heating indicator for coffee: 91°C, 93°C, 96°C

3. Sound mute indicator

4. LCD display

5. Temperature hold indicator

6. Water heating indicator for other beverages in the range: 40°C -100°C

7. Temperature hold button

8. Temperature hold timer

9. Progress bar

10. Cooking mode button:

- for coffee 91°C, 93°C, 96°C

- for other beverages in the range: 40°C -100°C

1. Dial
2. Indicator of the current water temperature
3. Indicator of the set water temperature "SET"

BEFORE FIRST USE

Fill the kettle three times with water to the maximum level boil and pour out. To remove any factory odor (looks at the point: basic operation)

*Holding down the button (10) for 3 seconds, the sound of the kettle will be turned off, the display will show a crossed-out speaker icon (3).
*To change the temperature from °F to °C, hold the button (7) for 3 seconds.

BASIC OPERATION - Boil water between 40 °C and 100 °C

1. Set the base (D) on a stable, flat and heat-resistant surface.
2. Fill the kettle with water so that the water level is between the maximum and minimum levels on the water level indicator in the center of the kettle.
3. Remember to close the kettle with the lid (A) after filling, otherwise the kettle will not turn off automatically when the water boils.
4. Plug the power cord into a 220-240V\~50/60Hz grounded power outlet.
5. Place the kettle on the base (D).
6. Press the button on the knob (1), the light on the knob will flash, the LCD display (4) will show the current water temperature (12), the "SET" indicator (13) will show the set temperature, and the cooking indicator (6) will light up. By default, the kettle is set to 100^ C.
7. By turning the knob (11) to the left or right, it is possible to set the temperature from 40^ to 100^ in 5^ increments.
8. After setting the desired temperature, press the button on the knob (1) the lamp on the knob will stop flashing, the indicator (6) will start flashing and then the heater will start heating water, the LCD display (4) will show the current water temperature (12). The water temperature will rise to the previously set temperature, the "SET" indicator (13).
9. When the preset water temperature is reached, the kettle will automatically turn off, you will hear a "di-di" sound twice, (possibility to only sound by holding the button (10) for 3 seconds) The light in the dial (1) will start flashing. The LCD display (12) will indicate the set temperature, then after 5 minutes the kettle will turn off automatically. The kettle will be turned on again by pressing the button on the knob (1).
10. If you want to turn off the kettle before the water has finished boiling, lift it from the base (D) or press the button on the knob (1).
11. The kettle can be turned on again approximately 2 minutes after the last use.

ADVANCED OPERATION: HEATING WATER FOR COFFEE FOR TEMPERATURE:

91^ or 93^ or 96^

To set the kettle to heat water to 91^ C or 93^ C or 96^ C, press the button (10) "MODE", the indicator (2) will light up. By turning the knob (11) to the left or right, it is possible to set the temperature in one of the possible options: 91^ C or 93^ C or 96^ C.

After setting the desired temperature, press the button on the knob (1) the lamp on the knob will stop flashing, the

indicator (6) will start flashing and then the heater will start heating the water, the LCD display (4) will show the current water temperature (12). The water temperature will rise to the previously set "SET" temperature (13).

When the preset water temperature is reached, the kettle will automatically turn off, you will hear "di-di" sound twice, (possibility to only sound by holding the button (10) for 3 s.)

The LCD display (12) will indicate the set temperature, then after 5 minutes the kettle will automatically turn off. The kettle will be switched on again by pressing the button on the knob (1).

If you want to turn off the kettle before the water has finished boiling, lift it from the base (D) or press the button on the knob (1).

The kettle can be turned on again approximately 2 minutes after the last use.

TEMPERATURE HOLD FUNCTION

After setting the appropriate temperature (see section: basic / advanced operation), press the button (7) "keep warm" the "HOLD" lamp on the button will light up, and the LCD display (4) will show the clock (8), to set the time, turn the knob (11) to the left or right, the time can be set from 10 minutes to 2 hours, in 10-minute increments.

After setting the time, press the button on the dial (1) to turn on the kettle.

When the kettle reaches the set temperature, it will enter the temperature holding mode, the LCD display (4) will light up the indicator (5) and the timer will start counting down the early set time. The kettle will cyclically heat water, up to the preset temperature for the predetermined time.

To interrupt the temperature hold function, remove the kettle from the base (D) or press the button (7) the lamp will turn off.

SAFETY FEATURES

The appliance is equipped with an automatic overheat fuse, the fuse will activate when used with insufficient water. Always make sure that the amount of water in the appliance is above the minimum level. If the fuse activates, turn off the kettle by pressing the button (1) for 3 seconds, then remove the plug from the power socket and let the kettle cool down for 5-10 minutes. Then fill the kettle with water and turn on the device, which will operate normally.

Turning on an empty kettle or one filled with insufficient water will automatically turn off the device. In this case, wait several minutes, and then pour the appropriate amount of water and turn the kettle on again.

Do not leave the kettle on unattended.

The kettle is an electrical appliance not designed to hold water or any other liquids. After boiling the water, pour it immediately into another vessel. Water after boiling in the kettle must not remain in it for more than 10 minutes.

Before each use, fill the kettle with fresh water above the minimum level and below the maximum level.

CLEANING AND MAINTENANCE

Limescale deposited inside the kettle should be removed regularly. This activity is not subject to warranty service. Failure to decalcify regularly will lead to damage to the kettle and void the warranty. To decalcify, use specially designed preparations for this purpose in accordance with the instructions for use of the decalcifying agent. After decalcification, rinse the kettle very thoroughly three times.

Caution hot surface:

The temperature of the accessible surfaces of the running appliance may be high. Do not touch the hot surfaces of the appliance

TECHNICAL DATA

Capacity max: 1.0L min: 0.2L

Standby power consumption 0.2W

For the sake of the environment. Information about waste electrical and electronic equipment In accordance with Article 13(1) and (2) of the Law of September 11, 2015 on Waste Electrical and Electronic Equipment, we inform you about the proper handling of waste electrical and electronic equipment:

1. It is forbidden to place waste electrical and electronic equipment together with other waste - this is confirmed by marking in the form of a "crossed out basket", ordering selective collection of this type of waste.

2. Electrical and electronic equipment may contain hazardous substances, mixtures and components that, when released into the environment, can cause serious danger to the health and life of humans and living organisms. They can lead to numerous health ailments, such as vision, hearing and speech disorders, and can also damage the kidneys, liver and heart, and cause skin diseases. Harmful substances, can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on contaminated soils, and products made from them, can risk the aforementioned health effects.

3. Waste electrical and electronic equipment should be handed over only to authorized collection points, a list of which should be included on each Municipality's website.

4. The household plays an important role, in contributing to the reuse and recovery, including recycling, of waste equipment. It also plays a key role in the waste electrical and electronic equipment management system due to the possibility of direct delivery to authorized collection points and the elimination of undesirable social habits resulting in leaving waste equipment in places not intended for it.

In addition, Donate waste electrical and electronic equipment at the point of delivery. A distributor, when supplying equipment intended for households to a purchaser, is obliged to take back used household equipment free of charge at the place of delivery of such equipment, provided the used equipment is of the same type and performed the same functions as the supplied equipment.

Cardboard packaging and polyethylene (PE) bags should be placed in the appropriate containers for separate collection of municipal waste according to their description. If there are batteries in the equipment, remove them and separately dispose of them at a collection and storage facility.

Do not dispose of the device in the municipal waste container!!!

Service If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt.
