USER MANUAL RX1000 RAPID

WARNING!! Read all safety warnings and all instructions.

Failure to follow all instructions listed below may in electric shock, fire and/ orious personal injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
e) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves

away from the front nose.

4) POWER TOOL USE AND CARE

a) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
b) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
c) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
d) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
e) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE.

a) Make sure to follow the battery manufacturer's instructions.
b) Only use the battery types recommended in the "Technical specifi cation" section below.
c) Do not open the battery.
d) Be careful not to short-circuit batteries.
e) Do not throw batteries into fire.
f) Do not leave any used batteries in the device. These can corrode, releasing chemicals that harm your health and the device.
g) When not in use for a long time, remove the batteries from the device to prevent them from leaking.

6) CHARGER TOOL USE AND CARE

a) Only use the charger types recommended in the "Technical specifi cation" section below.
b) Only charge Bosch Li-ion batteries with a capacity of 1,5 Ah or more (4 battery cells or more). The battery voltage must match the battery charging voltage of the charger. Do not charge any non-rechargeable batteries. Otherwise there is a risk of fire and explosion.
c) Keep the charger away from dirt and moisture.
d) Always check the charger, cable and plug before use. Stop using the charger if you discover any damage. Do not open the charger yourself, and have it repaired only by a qualifi ed specialist using

only original replacement parts. Damaged chargers, cables and plugs increase the risk of electric shock.

e) Do not operate the charger on an easily ignited surface (e.g. paper, textiles, etc.) or in a flammable environment. There is a risk of fire due to the charger heating up during operation.

f) Rechargeable batteries are to be removed from the appliance before being charged.

7) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers.

HOT AIR TOOL SAFETY

WARNING: This tool must be placed on its stand when not in use.

A fire may result if the appliance is not used with care, therefore

• be careful when using the appliance in places where there are combustible materials;
• do not apply to the same place for a long time;
• do not use in presence of an explosive atmosphere;
• be aware that heat may be conducted to combustible materials that are out of sight;
• place the appliance on its stand after use and allow it to cool down before storage;
• do not leave the appliance unattended when it is switched on.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

TECHNICAL SPECIFICATION

Tool Weight (bare-tool) 620 grams
Dimensions (bare-tool) 169 x 71 x 208 L*W*H (mm)
Voltage 18V

	Setting 1 Setting 2
Temperature min 30°C 30°C
Temperature max 440°C 550°C
Airflow	medium	high

Recommended Battery type	Power for all 4.0 Ah, 6.0 Ah
Recommended Charger type	Power for all AL1810CV, AL1830CV, AL18V-20

	Permitted ambient temperature
During charge	0°C to +35°C
During usage	0°C to +50°C
During storage	-20°C to +50°C

FEATURES

Power switch, fi g 1A

Nozzle cap, fi g 1B

Handle, Fig 1C

Accessories can be removed by rotating the nozzle cap clockwise. Fig 2

Display, fig 3

Display, fig 3D, shows the actual temperature

Temperature can be adjusted by pressing + / - button in 10^ increments. Fig 3E

Temperature will flash some seconds when target temperature is reached

Maximum temperature vary from setting 1 and 2.

Setting 1: medium airflow, maximum temperature 440^

Setting 2 : high airflow, maximum temperature 550^ C

Battery power indicator, fi g 3F

LCD screen shows battery power indicator. The Battery cells is divided in 5 slots. 5 slots means the level of charge is at its maximum. This is an indication of approximate levels of charge remaining in the battery pack. Each slot will disappear time by time once the level of charge is decreasing. Once the battery is fully discharged, display will show a blinking empty battery symbol.

BATTERY ERROR INDICATIONS

If an error in the battery is detected, the battery indicator on the display (Figure 3.F) will instead of residual capacity show the following indications, and the tool will not operate.

Battery Error Indications
Error type	Battery indicator (Figure 3.F)		Solution
Battery is too warm or too cold	All slots are flashing for 5sec		Allow the battery to reach normal temperature prior use
Battery not recognized	First and last slots are flashing for 5sec		Use a recommended battery in section "Technical specification"

Power/Air flow LED indicator, fig 3G

	The Arrows show level of airflow
	Setting 1:2 arrows, medium airflow
	Setting 2:3 arrows, high airflow

Stand for vertical operation with free hands or storage. Fig 4H

Battery Charging

Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The lithium-ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)".

When the battery is empty, the machine is switched

off by means of a protective circuit: The inserted tool no longer rotates.

Do not continue to press the On/Off switch after the machine has been automatically switched off. The battery can be damaged.

Observe the notes for disposal.

Removing the battery

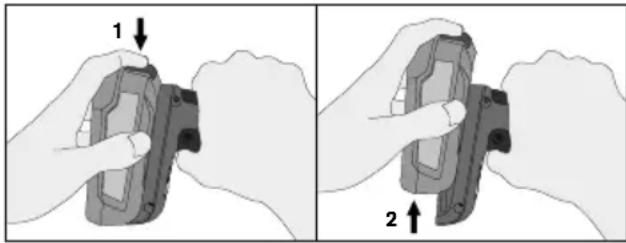

To remove the battery, press the battery release button and pull the battery to the rear and out of the power tool. Do not use force to do this.

Battery Information
Battery type	Approx. Operating time (min)
	Setting 1 Setting	2
4.0 Ah >25 >14
6.0 Ah >30 >22

USAGE

Ensure the power switch is in the OFF position before inserting the battery.

Set the power switch/temperature control to the desired speed and temperature. Let the tool run until it reaches operating temperature.

With the stand the tool can be used in a vertical position with both hands free for work.

Keep hands away from the immediate nozzle area, it is hot.

PAINT AND VARNISH REMOVAL

Never use the heat gun in combination with chemical strippers.

WARNING! LEAD PAINT FUMES ARE VERY HARMFUL. ALWAYS PROVIDE ADEQUATE VENTILATION WHILE WORKING INDOORS.

Removal of paint and varnish requires some practice but some simple working techniques are described here. Test on a small area of paint before moving on to larger areas.

Turn on the tool and allow it to reach working temperature. Hold the nozzle 70 to 100mm from the paint to be removed. After a short time the paint will soften and begin to bubble. Do not overheat the paint, as this will cause burning and make the paint more difficult to remove.

Begin scraping the paint off. Use accessory scrapers. Scrape with smooth, even strokes, warming the surface in front of the scraper by moving the tool slightly from side to side. If paint is warmed properly, even thick layers can be removed in a single pass. Scrape the paint as soon as it softens since it will quickly harden again. Figure 5

Clean the edge of scraper blade often.

Shaped or profi led surface can be stripped with a wire brush after softening with the hot air tool.

Protect surfaces NOT to be heated with non flamma

ble material, Figure 6. Never concentrate tool's heat on a window panel or other glass surface.

Note: The heat gun is designed to remove both oil and latex-based paints and varnishes. It will not remove stain or primer coat that have impregnated the surface of wood.

OTHER JOBS FOR THE HOT AIR TOOL

• Removing self-adhesive stickers and trim.
• Thawing frozen pipes, frozen door locks, padlocks, etc. Figure 7.

WARNING: Be very careful when trying to thaw plastic pipes! Pipes may melt.

• Highlighting the natural wood grain of wooden surfaces.
• Fast drying of paints and varnishes.
• Softening old putty before removal and replacement.
• Shrinking shrink wrap sheeting for packaging protection.
  Applying ski wax.
• Shrinking shrink tubes on wire joints.
• Tin soldering of wire joints etc.
• Desoldering of wire joints, components etc.
• Barbecue light up, Figure 8.

MAINTENANCE

• Remove the battery before any maintenance
• Keep the air intake and outlet free from dust and dirt
• Clean the tool by a dry or damp cloth. NEVER use any solvent.
  DO NOT oil or grease any parts.
• Be sure the tool is not damaged. Replace or repair prior to use.

WARNING!

DO NOT alter or parts on this tool or attach

special fixtures. This can lead to personal injury. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARRANTY

Warranty period: This product is guaranteed for 2 years from the date of purchase (original sales receipt acting as proof).

Warranty conditions: All points mentioned in this document must have been fully adhered to.

In the event of a claim under the warranty:

1 Return the product in its original packaging to the shop or outlet that supplied you with this product,
2 Accompany the returned product with the original dated receipt.

Any breach of one of these points would prevent consideration by RAPID under the manufacturer's warranty.

BATTERY DISPOSAL

Exhausted batteries are to be removed from the appliance and safely disposed of.

Batteries may not be disposed of with the usual

domestic waste, they may contain toxic heavy metals and are subject to hazardous waste regulations. For this reason, dispose of used batteries at a local collection point.

2012/19/EU

Waste Electrical and Electronic Equipment (WEEE)

Electrical and electronic devices contain materials and substances that can have damaging effects on human health and the environment. This symbol indicates that this device must not be treated as

unsorted municipal waste but must be collected separately. Dispose of the device via a collection point for the recycling of waste electrical and electronic equipment within the EU, UK and in other European countries that operate separate collection systems for waste electrical and electronic equipment. By disposing of the device in the proper manner, you help to avoid possible hazards for the environment and public health that could otherwise be caused by improper treatment of waste equipment. The recycling of materials contributes to the conservation of natural resources.

BATTERY ERROR INDICATIONS
