Product type	Submersible pump for dirty water
Brand	Parkside
Model	PPTPS 1100 A1
Connected power	1100 W
Supply voltage	230 V~, 50 Hz
Max. flow rate	20 000 l/h
Max. pumping head	9 m
Max. pressure	0.9 bar
Max. immersion depth	7 m
Max. water temperature	35 °C
Max. foreign bodies	35 mm
Min. water level for suction	Approx. 95 mm
Hose connection	1", 1¼", 25 mm, 33 mm
Cable length	10 m (H05RN-F3G 0.75 mm²)
Weight (with accessories)	5.9 kg
Protection class	I
Protection type	IPX8
Housing material	Stainless steel
Operating mode	Automatic (height sensor) or manual
Adjustable activation heights	Approx. 95 mm, 137 mm, 185 mm
Motor protection	Thermal circuit breaker
Maintenance and cleaning	Clean with clear water after use; regular cleaning of foot; disconnect before maintenance
Safety	Use with residual current device ≤30 mA; do not use if people are in the water; unplug before maintenance
Spare parts and repairability	Connector set (ref. 91110180) and nylon cord (ref. 91110181) available; repairs by customer service
Warranty	5 years (France and Belgium)

Frequently Asked Questions - PPTPS 1100 A1 PARKSIDE

What is the power of the Parkside PPTPS 1100 A1 pump?

The connected power is 1100 W at 230 V~, 50 Hz.

What is the maximum flow rate of this pump?

The maximum flow rate is 20,000 l/h (without accessories). With the angled adapter, performance is reduced.

Can I use the pump for water containing sand?

No, the pump is not suitable for water containing large amounts of sand (see warning symbol). Use it only for clean or waste water with particles ≤35 mm.

What is the maximum temperature of the pumped water?

The water temperature must not exceed 35 °C. A higher temperature may trigger the motor's thermal protection.

How to adjust the automatic activation height?

Press the push-button (3) to switch between the three heights: approximately 95 mm, 137 mm and 185 mm. The LEDs indicate the selected height.

What to do if the pump does not start?

First check the power supply (socket, cable, extension cord). Ensure the water level corresponds to the set activation height. If the problem persists, the sensor may be defective: contact customer service.

How to clean the pump after use?

Always disconnect the pump before cleaning. Rinse it with clear water, especially the suction foot, to remove residues. Clean the pit regularly to prevent mud buildup.

Can I use the pump continuously?

No, the pump is not designed for continuous operation (e.g., in a pond or stream). Use it intermittently and monitor its operation.

What accessories are supplied with the pump?

The delivery includes: the pump, a Quick-Connect adapter, an angled adapter, a reducing connector, 8 m of nylon rope, and the instruction manual. Hose clamps and saw are not supplied.

Where to find spare parts?

Spare parts, such as the connector set (ref. 91110180) or the rope (ref. 91110181), are available on the website www.grizzlytools.shop or via customer service (tel. [phone] for France).

USER MANUAL PPTPS 1100 A1 PARKSIDE

Black and white industrial water purifier with 'PARKSIDE' branding on its side (no other text or symbols visible)

Translation of the original instructions

NL BE

Vuil waterdompelpomp

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Close-up of a bundle of white fibers tied with a ring, labeled '11' at the bottom (no other text or symbols)

GB / MT Translation of the original instructions Page

Service-Center....16

Importeur ......16

Special instructions

for safe operating....18

Areas of application....19

General description......19

Scope of delivery....19

Functional description....19

Overview....20

Technical data....20

Performance data....20

Notes on safety......20

Symbols in the manual....20

Symbols on the equipment .....21

General notes on safety 21

Initial operation ......23

Operational start-up 23

Positioning/hanging 23

Mains connection....23

Connecting the pressure line....23

Switching on and off 24

Automatic operation 24

Manual mode....24

Cleaning/maintenance/storage..25

General cleaning instructions......25

Clean foot part 25

Storage....25

Waste disposal/

environmental protection .....25

Guarantee 26

Repair service 27

Service-Center......27

Importer 27

Replacement parts/accessories...28

Troubleshooting 28

Translation of the original

EC declaration of conformity ....199

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Special instructions for safe operating

- The equipment is not to be operated if there are people in the water. There is a risk of electric shock.

- Connect the equipment only to a socket with a RCD (Residual Current Device) with a rated current of not more than 30 mA; minimum fuse 6 amperes.

- If the mains cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualified person in order to avoid hazards.

• The device must not be used by children. The device can be used by individuals with reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the resulting hazards.
  • Always disconnect the device from the power supply before assembling, disassembling or cleaning.
• Cleaning and user maintenance must not be carried out by children.
  • Children must never play with the device.
• The device must not be used at altitudes over 2000 m.
• Contamination of the liquid can occur when the lubricant leaks out.
• See further information in the section on "Maintenance and cleaning".

Areas of application

The dirty water submersible pump is a drainage pump and designed for transporting water and sewage water (max. particle size 35 mm) up to a temperature of max. 35 °C. It is suitable e.g. for pumping around and pumping out basins and containers, for pumping out flooded cellars, and for extracting water from wells and shafts. This equipment is not suitable for industrial use. Industrial use will invalidate the guarantee. Any other use, not expressly authorised in these instructions, may cause damage to the equipment and represent a serious risk for the user. The pump is not designed for continuous operation, for which we do not assume any guarantee. The operator or user is responsible for accidents or damage to other people or their property.

The manufacturer shall not be liable for damages caused by use other than for which the equipment is intended or by incorrect operation.

General description

The diagram of the most important functional elements can be found on the foldout side.

Scope of delivery

Carefully unpack the appliance and check that it is complete. Dispose of the packaging material correctly.

• Submersible dirty water pump
• Quick-connect adapter
• Angle adapter
• Reducer
• 8 m nylon cord
• Instruction Manual

You need a hose clamp and a saw when connecting the hose (see under "Connecting the line"). The tool is not included.

Functional description

The dirty water submersible pump has a stainless steel casing, a stable suction foot and a non-corrosive motor shaft. The submersible sewage pump features an activation/deactivation level sensor. This automatically switches the pump on or off depending on the water level. The motor is protected from overload by a thermal safety switch.

Please refer to the following descriptions for the function of the operating parts.

Overview

1 Handle 2 Power cord 3 Button 4 Activation and deactivation level sensor (not visible)

5 Foot part 6 Pump outlet 7 Pump housing 8 Quick-connect adapter 8a Release button on the quick-connect adapter

9 Angle adapter with quick-connect connector 10 Reducer

11 8 m nylon cord

B 4.1 Activation level approx. 95 mm
B 4.2 Activation level approx. 137 mm
B 4.3 Activation level approx. 185 mm

Technical data

Submersible Dirty Water Pump....PPTPS 1100 A1 Rated voltage (U)....230 V\~, 50 Hz Rated power input (P)/

Power consumption .... 1100 W Max. discharge rate (Q max) .. 20000 l/h Max. pressure....0.9 bar Max. discharge head (H max) .... 9 m Max. depth of immersion....7 m Max. water temperature (T max) .... 35 °C Hose connection .... 1", 1¼" (25 mm, 33 mm)

Max. foreign body size....35 mm Minimum water level while suctioning....approx. 95 mm Mains cable....10 m (H05RN-F3G 0.75mm²)

Weight (incl. accessories)....5.9 kg Safety class....I Degree of protection....IPX8

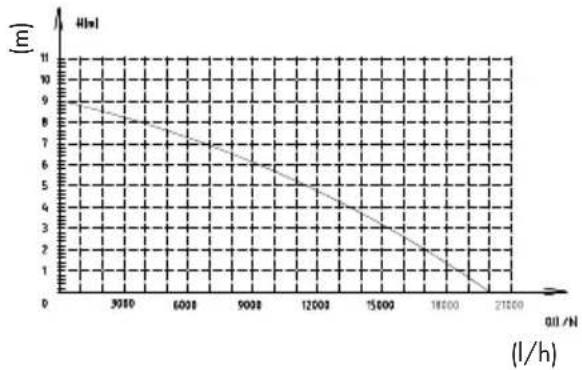

Performance data

The maximum performance is measured with a straight, direct outlet flow. The angle adapter reduces the output.

Notes on safety

This section deals with the general safety regulations for working with the equipment.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols with information on preventing damage.

Pull out the mains plug.

Help symbols with information on improving tool handling.

Symbols on the equipment

Caution! Not suitable for water with a high sand content!

Before beginning work, familiarise yourself thoroughly with all the operating elements, particularly with how they function and operate.

Ask a specialist if necessary. Read and follow the operating instructions provided for the device!

Attention: Remove the plug from the socket as soon as the power lead is damaged or cut.

Greatest possible operating immersion depth.

Control panel for activation level

Electric appliances should not be disposed of in the domestic garbage.

General notes on safety

Working with the equipment:

Caution: to avoid accidents and injuries:

- People who are unfamiliar with the operating instructions are not permitted to use the equipment. Local regulations or bylaws may determine the minimum age for using the device.

- Wear sturdy footwear to protect against electric shock.

• Take appropriate measures to keep children away from the equipment whilst it is running. There is a risk of injury!

- Do not use the equipment in the vicinity of flammable liquids or gases. Non-observance will result in a risk of fire or explosion.

- Store the equipment in a dry place and out of reach of children.

Caution! To avoid damage to the equipment and any possible person injury resulting from this:

- The transportation of aggressive, abrasive (grinding effect, e.g. sandwater), corrosive, combustible (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted. The temperature of the liquid being transported must not exceed 35°C. Non-observance can lead to device damage and create a risk for the user.

- Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial operation, have a specialist check that the required electrical protection measures are in place.

- Monitor the equipment during operation, in order to detect automatic switching off or dry running of the pumps in time. Non-observance will invalidate all guarantee and liability claims.

GBMT

• Please note that the pump is not suitable for continuous operation (e.g. for watercourses in garden ponds). Check the equipment regularly for correct functioning.
• Note that the lubricants used in the equipment may cause damage or contamination if they escape. Do not use the pump in garden ponds with fish stocks or valuable plants.
• Do not carry or fix the equipment by the cable or pressure line.
• Protect the equipment from frost and from running dry.
• Use only original accessories and do not carry out conversion work on the equipment.
• Please read the notes in the operating instructions on the topic of "Cleaning/Maintenance/Storage". Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

Electrical safety:

Caution: to avoid accidents and injuries from electric shocks:

• After erection, the mains plug must be freely accessible when the equipment is in operation.
- Before putting your new pump into operation, have it checked professionally if you are unsure about something:

- The earthing, the protective multiple earthing; the

residual current circuit breaking must be compliant with the safety regulations of the energy supply company and function without fault, - The protection of the electrical plug connections from the wet.

- If there is a risk of flooding, fix the plug connections in an area that is safe from flooding. There is a risk of electric shock.

- Ensure that the mains voltage matches the specifications on the rating plate.

- If the power cord of this device is damaged, it must be replaced by the manufacturer or their customer service, or by a similarly qualified person in order to avoid hazards.

- Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.

- Do not carry or fix the equipment by the cable.

- Use only extension cables that are protected from spray water and designed for outdoor use. Always fully unroll a cable drum before use. Check the cable for damage.

- Disconnect the mains plug from the socket before all work on the equipment, in case of leaks in the water system, during work breaks, and when not in use.

- Extension cables must not have a cross-section that is smaller than those of rubber hoses with the designation H05RN-F. The cord length must be at least 10 m. The wire cross section of the extension cable must be at least 2.5 mm ^2 .

- Perform the electrical installation in accordance with national regulations.

Initial operation

Operational start-up

- Check that the pump is standing firmly on the bottom of the shaft or hung up safely.

- Place the pump on a brick and not on a shaft floor, if applicable. This prevents damage to the pump if the shaft floor is soiled.

- Check that the line has been attached properly.

- Check that the electrical connection is 230 V\~ 50 Hz

- Check the proper status of the electrical plug socket and make sure that the plug socket is sufficiently fused (at least 6 A, RCD switch). Insert the pump plug into the plug socket and the pump is ready for operation.

• Make sure that moisture or water never come in contact with the mains connection. There is a risk of electrocution.

- If you are unsure, have the pump checked by a professional.

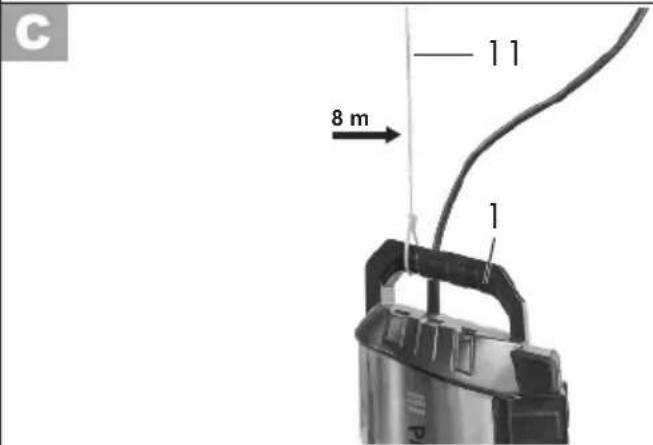

Positioning/hanging

The device can be suspended from the handle (1) or placed on the bottom of the shaft. The pump can be suspended and/or removed using the nylon cord (11) provided. To ensure it is suspended securely, thread the cord (11) through the handle (1) as depicted in Figure C.

Ensure that the equipment is not hung up or held by the mains cable. There is a risk of electric shock from damaged mains cables.

Note that, over time, dirt and sand may collect on the bottom of the shaft, which could damage the pump. We recommend standing the pump on a brick. If the water level is too low, the silt in the shaft can quickly dry out and impede the pump when warming up.

Mains connection

The pump you have purchases is already fitted with an earthed plug. The equipment is designed for connection to an earthed wall socket with a RCD (Residual Current Device) at 230 V\~50 Hz.

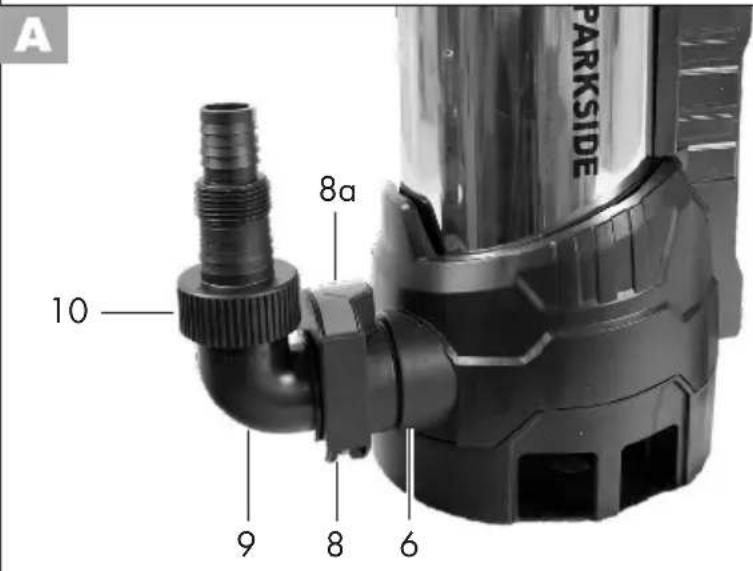

Connecting the pressure line

The pump is installed

- either with a fixed pipeline

- or with a flexible hose line.

1. Screw the quick-connect adapter (8) onto the pump outlet (6).
2. Press the release button on the quick-connect adapter (8a) and slide the angle adapter with quick-connect connector (9) into the quick-connect adapter (8). Let go of the release button on the quick-connect adapter (8a) again.
3. Fit the hose over the reducer (10) and secure it with a hose clamp.
   Or use the screw connection on the angle adapter with quick-connect connector (9) or on the previously screwed-on reducer piece (10).

GBMT

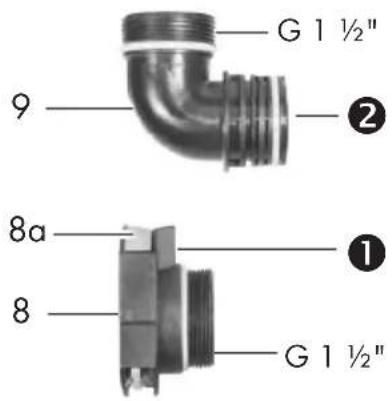

1 Pump outlet (6) with 1½" female thread for connection of the quick-connect adapter (8) or for direct connection of a hose with 1½" male thread;
② Outlet with 1½"-external thread at the bracket adapter (9) for connection of the reducer (10) or a 1½"-screw connection;
3 Outlet on the reducer piece (10) for connecting a 1¼" hose as a clamping connection (fastening with hose clamp);
4 Outlet with 1"-external thread at the reducer (10) for connection of a 1"-screw connection;
5 Outlet with 1"-thread at the reducer (10) for connection of a 1"-hose as clamp connection (fixing with a hose clamp).

For the use of a 1¼" hose, cut off the respective connection above and then put the hose over the corresponding connection (fastening with hose clamp).

Note that the particle size may be max. 18 mm if the reducer ⑤ (Outlet with 1") is used, otherwise the reducer and hose can become blocked.

Switching on and off

The pump is fitted with a sensor. The pump starts immediately once it is in the water and the mains plug is plugged into the power outlet.

1. Switching on: Plug the mains plug into the power outlet.
2. Switching off: Remove the mains plug from the power outlet. The pump switches off.

B

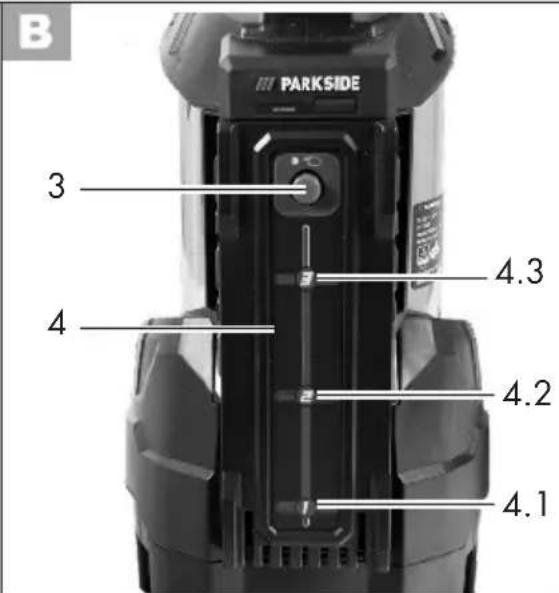

Automatic operation

In automatic operation, the activation level sensors (4.1, 4.2, 4.3) automatically switch on the submersible sewage pump. If the water level is too low (<95 mm), an activation/deactivation level sensor (4) will automatically switch off the submersible sewage pump after a delay of 30 seconds.

The activation point can be set to 3 levels.

Vary the activation point by pressing the button (3).

The set activation level can be recognised by the illuminated LED on the activation level sensors (4.1, 4.2, 4.3).

Activation level 4.1 - approx. 95 mm Activation level 4.2 - approx. 137 mm Activation level 4.3 - approx. 185 mm

Manual mode

Monitor the pump constantly when in manual mode. Switch the pump off immediately (disconnect from the mains) if no more water is being pumped. There is a risk of damage if the pump runs dry and overheats.

Never touch an overheated pump! There is a risk of burns!

1. Press the button (3) for 5 seconds. The pump is in manual operation.
2. To end manual operation, press the button (3) or pull out the mains plug.

Cleaning/maintenance/storage

Clean and maintain your equipment regularly. This will guarantee its performance and long durability.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts. This will prevent damage to the equipment and any resulting personal injury.

Pull out the power plug before every maintenance operation. There is a risk of electrocution or of injury from moving parts.

General cleaning instructions

• In case of transport for utilization in different locations, the pump must be cleaned with clear water after every use.
• Remove any fluff and fibrous particles that may have become trapped on the pump housing with a water jet.
• Regularly remove sludge from the pit base and also clean the shaft walls.
• If you do not use the pump for a longer period of time, the pump must be cleaned thoroughly after the last use and before new use, since difficulties in start-up can arise due to precipitation and residues.

Clean foot part

Always remove the mains plug before working on the device.

Moving parts create the risk of elec- trocution or injury.

Dirt on the bottom of the pump can be washed down with clear water.

Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

Storage

• Clean the device and store it in a dry and frost-proof place, out of reach of children.
• If you do not use the pump for a longer period of time, it must be cleaned thoroughly after the last use and before new use. Otherwise, start-up difficulties may occur due to deposits and residues.
• Wrap the power cord (2) around the pump housing (7).

Waste disposal/environmental protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

The crossed out waste bin symbol means that this device must not be disposed of with household waste after its service life.

Directive 2012/19/EU on waste electrical and electronic equipment: Used electrical devices must be collected separately for disposal and recycled in an environmentally sound manner.

Depending on implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an official collection point,
• Return to the manufacturer/distributor.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Guarantee

Dear Customer,

This equipment is provided with a 5-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within five years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the five-year period with a brief written description of what constitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee period and statutory claims for defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. connector set) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

In the case of pumping water containing sand or aggressive liquids or other incorrect, non-design-appropriate use, as well as in case of non-observance of the operating manual, application of force in use or inappropriate or insufficient maintenance, no guarantee claim exists, since seals, impeller wheel, motor or other parts are damaged by this. Also, sewage water pumps are not suitable for the pumping of abrasive materials (sand, stone).

Note: submersible pumps are drainage pumps. This kind of pump is constructed with the purpose of transporting or removing a certain volume of water – depending on its output category – as quickly as possible. Submersible pumps are not intended

as irrigation (for example, in garden irrigation systems) or as constant water-flow pumps (such as in artificial streams or ornamental fountains). Inappropriate use will invalidate the warranty.

In particular, the guarantee is likewise void in the case of employment of the sewage water pumps without base plate or (this applies for all pumps) in case of damages which are caused by supporting on or suspending from the mains cable. The pumps must not be run dry or exposed to frost.

Processing in case of guarantee

To ensure efficient handling of your query, please follow the directions below:

- Please have the receipt and identification number (IAN 422498_2210) ready as proof of purchase for all enquiries.

- Please find the item number on the rating plate.

- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 422498_2210

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN 422498_2210

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Replacement parts/accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 27).

Item

Description Product No.

8/9/10 Connector set 91110180

11 8 m nylon cord 91110181

Troubleshooting

Faults Causes Remedies
Pump does not start	Mains voltage is not applied Check mains voltage
	Water level does not correspond to the preset water level	Check preset water level (see “Automatic operation”)
	Sensor defective	Repair must be carried out by Customer Service.
Pumps has no discharge	Buckled pressure hose	Repair point at which the line is bent
	Trapped air in the pump casing	Tip the pump underwater until the air escapes
Pump does not switch off	Dirty activation and deactivation level sensor (4)	Inspection must be carried out by Customer Service
Flow rate insufficient	Reduces pump performance, through severely contaminated water and additions in the water which produce a grinding effect	Clean pump
Pump switches off after a short period	Motor contactor disconnects the pumps because of water pollution that is too severe.	Pull out power plug and clean the pump as well as shaft
	Water temperature too high, motor contactor breaks	Note maximum water temperature of 35 °C!

Sommaire

Introduction ......29

Service Réparations ....41

Service-Center......41

Importeur ....41

Service-Center....53

Importeur ....53

Reserveonderdelen/accessoires..54

Foutopsporing....54

De pomp is in handbediening.

Service-Center......66

Importer 66

8 Adapter Quick-Connect

Service-Center....78

Importador....78

Service-Center......89

Importør 89

Reservedele/Tilbehør ......90

Fejlsøgning 90

Service-Center......112

Dovozce....112

Service-Center....123

Dovozca....123

8 Quick-Connect adapter

Pooblaščeni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

Service-Center......157

Proizvođač......157

Rezervni dijelovi/pribor .....158

8 Quick-Connect-adapter

8a Tipka za deblokadu na Quick-Connect adapteru

9 Kutni adapter s Quick-Connect-priključkom

Service-Center......169

Importer 170

Identificare defectiuni....170

Traducerea Declaratiei

Originale de Conformitate CE ...211

Introducere

8 Adaptor Quick-Connect

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
