USER MANUAL Myti HHP-65 HOMEDICS

Black T-shaped massage tool with a spherical head and label 'Homedics' on the side (no other text or symbols visible)

Four black plastic mechanical components with different shapes and mounting holes, arranged in a row (no text or symbols visible)

3 YEAR GUARANTEE

HHP-65

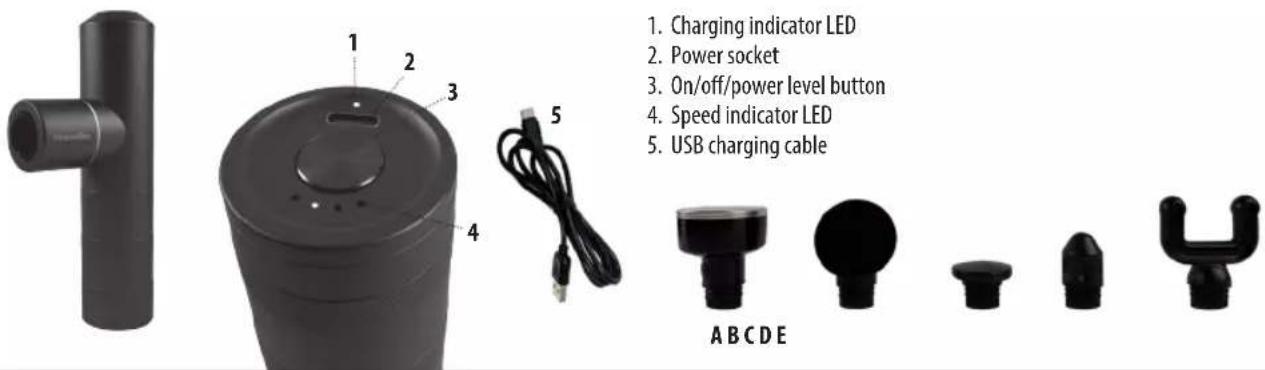

PRODUCT FEATURES:

1. Charging indicator LED
2. Power socket
3. On/off/power level button
4. Speed indicator LED
5. USB charging cable

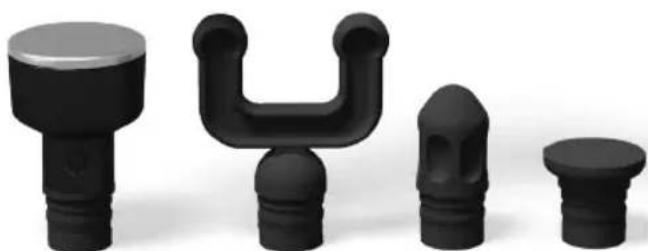

A. Heated flat massage head helps soothe sore muscles.
B. Round massage head suitable for massaging arms, waist, back, buttocks, thighs and other large muscle groups.

C. Flat massage head

for muscle areas that need recovery following heavy exercise, such as deep muscle tissue.

D. Bullet massage head

suitable for targeting trigger points and small specific areas such as feet.

E. U-shaped massage head

suitable for trapezius muscles, areas around the achilles tendon muscle, ankle muscle and calf muscles.

Close-up of a mechanical component with a circular top and a separate black connector (no text or symbols visible)

Close-up of a black circular electronic device with a small rectangular port and two small holes (no text or symbols visible)

Close-up of a black mechanical component with a small metallic tip inserted (no visible text or symbols)

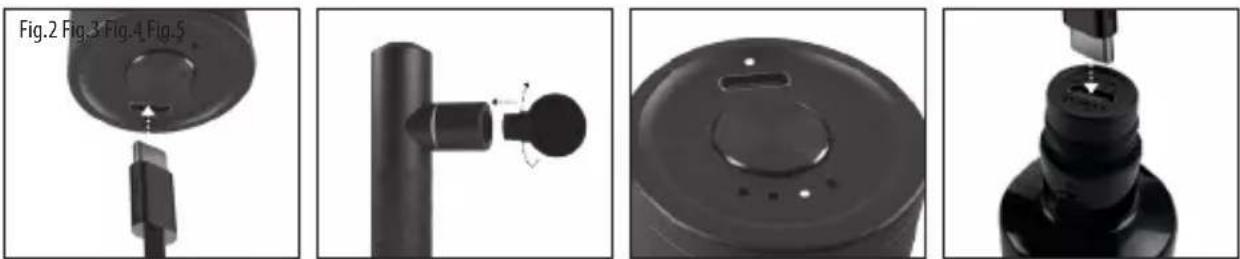

INSTRUCTIONS FOR USE:

Charging your device

1. To charge the product, plug the charging cable into a USB socket and connect the cable to the charging socket on the bottom of the handle (fig.2).
2. Once the charging cable is connected, the charging indicator LED will illuminate and blink red. As soon as the device is fully charged the LED indicator will change to green.
3. Once the product is fully charged, disconnect it from the power supply.
4. The product requires 2.5 hours of charging for a full charge and will last for approximately 2-3 hours of use.

Using your device

1. Select the desired massage head and fasten it into the socket on the front of the massager by lightly pushing into place and turning clockwise to tighten (fig.3). It should be finger tight only as overtightening may cause damage to the product.

2. Press and hold the power on/off/power level button for 2 seconds to turn the device on.

3. Pressing the on/off/power button again will cycle through the 4 power levels from low to high (fig.4). Pressing the button again will repeat this sequence.
4. Gently move the massage head over the part of the body you wish to massage at first, then gently apply more pressure as desired. If you are a first time user it is recommended that you start on power level 1 and press gently.
5. A long press on the on/off/power button for 1 second will turn the massager off.
6. Remove the massage head by turning anti-clockwise to loosen, then pull.
7. The product cannot be used while charging.

Using the heated flat massage head

The heated flat massage head heats up in just 15 seconds, ideal to help soothe sore muscles.

1. To charge the heated flat massage head, plug the charging cable into a USB socket and connect the cable to the charging socket on the bottom of the attachment (fig.5).
2. The charging indicator LED will illuminate and blink red. As soon as the device is fully charged the LED indicator will change to green.
3. Fit the heated flat massage head to the massager. Press the power button on the head to switch on the heat, the indicator light will illuminate green.
4. Press and hold the power on/off/power level button for 2 seconds to turn the massager on.
5. When you have finished using the head, press the power button to switch off and remove as described in 'Using your device'.

Cleaning your device

• Make sure the device is unplugged from any power supply and allow to cool before cleaning. Clean only with a soft, slightly damp sponge.
• Never allow water or any other liquid to come into contact with the appliance.
• Do not immerse in any liquid to clean.
• Never use abrasive cleaners, brushes, glass/furniture polish, paint thinner, etc to clean.

READ ALL INSTRUCTIONS BEFORE USE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

• The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance
• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not place or store appliance where it can fall or be pulled into a bath or sink. Do not place in or drop into water or other liquid.
• DO NOT reach for an appliance that has fallen in water or other liquids. Keep dry – DO NOT operate in wet or moist conditions.
• NEVER insert pins, metallic fasteners or objects into the appliance or any opening.
• Use this appliance for the intended use as described in this booklet. DO NOT use attachments not recommended by HoMedics.

• NEVER operate the appliance if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to the HoMedics Service Centre for examination and repair.

• DO NOT attempt to repair the appliance. There are no user serviceable parts. All servicing of this appliance must be performed at an authorised HoMedics Service Centre.

• Please ensure that all hair, clothing and jewellery are kept clear of moving parts of the product at all times.
• If you have any concerns regarding your health, consult a doctor before using this appliance.
• Use of this product should be pleasant and comfortable. Should pain or discomfort result, discontinue use and consult your GP.
• Pregnant women, diabetics and individuals with pacemakers should consult a doctor before using this appliance. Not recommended for use by individuals with sensory deficiencies including diabetic neuropathy.
• DO NOT use on an infant, invalid or on a sleeping or unconscious person. DO NOT use on insensitive skin or on a person with poor blood circulation.
• This appliance should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls.
• Do not use for longer than the recommended time.

• Only gentle force should be exerted against the mechanism in order to eliminate risk of injury.

• Use this product only on the body's soft tissue as desired without producing pain or discomfort. Do not use on the head or any hard or bony area of the body.

• Bruising can occur regardless of control setting or pressure applied. Check treatment areas frequently and immediately stop at the first sign of pain or discomfort.
• Failure to follow the above may result in the risk of fire or injury.
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
• This appliance contains batteries that are only replaceable by skilled persons.
• This appliance contains batteries that are non-replaceable.
• The battery must be removed from the appliance before it is scrapped;
• The appliance must be disconnected from the supply mains when removing the battery;
  • The battery is to be disposed of safely.

3 YEAR GUARANTEE

FKA Brands Ltd guarantees this product from defect in material and workmanship for a period of 3 years from the date of purchase, except as noted below. This FKA Brands Ltd product guarantee does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorised accessory; alteration to the product; or any other conditions whatsoever that are beyond the control of FKA Brands Ltd. This guarantee is effective only if the product is purchased and operated in the UK / EU. A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and / or authorised, or repair of products damaged by these modifications is not covered under this guarantee. FKA Brands Ltd shall not be responsible for any type of incidental, consequential or special damages.

To obtain guarantee service on your product, return the product post-paid to your local service centre along with your dated sales receipt (as proof of purchase). Upon receipt, FKA Brands Ltd will repair or replace, as appropriate, your product and return it to you, post-paid. Guarantee is solely through HoMedics Service Centre. Service of this product by anyone other than the HoMedics Service Centre voids the guarantee. This guarantee does not affect your statutory rights.

For your local HoMedics Service Centre, go to

www.homedics.co.uk/servicecentres

Battery replacement

Your product includes a rechargeable battery designed to last the lifetime of the product. In the unlikely event that you should require a replacement battery, please contact Customer Services, who will supply details of the warranty and out-of-warranty replacement battery service.

Battery directive

This symbol indicates that batteries must not be disposed of in the domestic waste as they contain substances which can be damaging to the environment and health. Please dispose of batteries in designated collection points.

WEEE explanation

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

CARATTERISTICHE DEL PRODOTTO:

Close-up of a mechanical component with a circular top and a separate black connector (no text or symbols visible)

Close-up of a black circular electronic device with a small rectangular port and two small holes (no text or symbols visible)

Close-up of a black mechanical component with a small metallic tip inserted (no visible text or symbols)

ISTRUZIONI PER L'USO:

Close-up of a mechanical component with a metallic connector and a circular top (no visible text or symbols)

Close-up of a black circular electronic device with a small rectangular port and two small holes (no text or symbols visible)

Close-up of a black mechanical component with a small metallic tip inserted (no visible text or symbols)

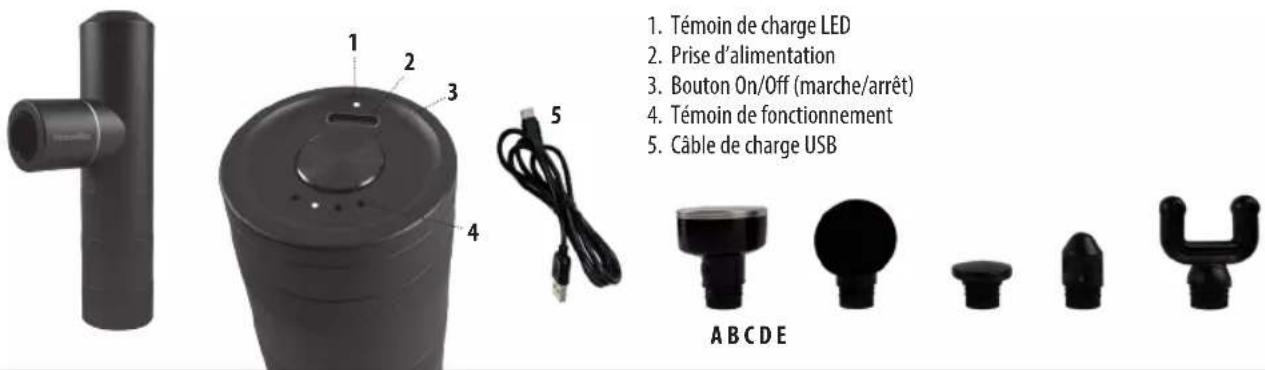

FONCTIONS DU PRODUIT :

Close-up of a mechanical component with a cylindrical top and a rectangular base (no visible text or symbols)

Mechanical component diagram showing a T-shaped shaft connected to a circular head with rotation arrow (no text or symbols)

Close-up of a black cylindrical electronic device with a circular top and small port (no visible text or symbols)

Close-up of a black mechanical component with a pointed tip and internal cavity (no visible text or symbols)

MODE D'EMPLOI :

Close-up of a mechanical component with a circular top and a separate black connector (no text or symbols visible)

Close-up of a black circular electronic device with a small rectangular port and two small holes (no text or symbols visible)

Close-up of a black mechanical component with a small metallic tip inserted (no visible text or symbols)

INSTRUCCIONES DE USO:

Carga del aparato

Close-up of a mechanical component with a circular top and a separate black connector (no text or symbols visible)

Close-up of a black circular electronic device with a small rectangular port and two small holes (no text or symbols visible)

Close-up of a black mechanical component with a small metallic tip inserted (no visible text or symbols)

GEBRUIKSAANWIJZING:

Close-up of a mechanical component with a circular top and a separate black bracket (no text or symbols visible)

Close-up of a black cylindrical object with a circular top and small protrusions (no visible text or symbols)

Close-up of a black mechanical component with a pointed tip and a small hole, no visible text or symbols.

Mechanical component diagram showing a shaft with a knob and a dial indicator (no text or symbols)

Close-up of a black cylindrical electronic device with a circular top and small indicator light (no visible text or symbols)

Close-up of a black mechanical component with a small metallic tip inserted, showing internal structure (no text or symbols visible)

INSTRUKCJA OBSŁUGI:

Close-up of a black cylindrical electronic device with a circular top and small port (no visible text or symbols)

Close-up of a black mechanical component with a small metallic tip inserted (no visible text or symbols)

HASZNÁLATI UTASÍTÁS:

Az eszköz töltése

Mechanical diagram showing a black cylindrical component with a circular end, connected by a curved arrow indicating rotation (no text or symbols)

Close-up of a black circular object with a small rectangular cutout and two small holes, resembling a speaker or sensor (no text or symbols visible)

Close-up of a black mechanical component with a small metallic clip inserted, no visible text or symbols

NÁVOD K POUŽITÍ:

Nabíjení přístroje

Mechanical diagram showing a black cylindrical component with a curved arrow indicating rotation or motion (no text or symbols)

Close-up of a black cylindrical electronic device with a circular top and small port (no visible text or symbols)

Close-up of a black mechanical component with a small metallic clip inserted, no visible text or symbols

POKYNY NA POUŽÍVANIE:

Nabíjanie zariadenia

Close-up of a mechanical component with a metallic connector and a circular top (no visible text or symbols)

Close-up of a black circular object with a small protrusion and two small dots, resembling a speaker or sensor (no text or symbols visible)

Close-up of a black mechanical component with a small metallic tip inserted, showing internal structure (no text or symbols visible)

KULLANIM TALİMATLARI:

Close-up of a black plastic component with a circular top and a separate rectangular base (no visible text or symbols)

Close-up of a black cylindrical electronic device with a circular top and small port (no visible text or symbols)

Close-up of a black mechanical component with a small protruding rod (no visible text or symbols)

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ:

Mechanical diagram showing a black cylindrical component with a curved arrow indicating motion or force direction (no text or symbols)

Close-up of a black cylindrical object with a circular top and small protrusions (no visible text or symbols)

Close-up of a black mechanical component with a small metallic tip inserted, no visible text or symbols.

Close-up of a mechanical component with a cylindrical body and a separate rectangular component (no text or symbols visible)

Close-up of a black circular electronic device with a small rectangular port and two small holes (no text or symbols visible)

Close-up of a black mechanical component with a small metallic tip inserted (no visible text or symbols)

BRUGSANVISNING:

www.homedics.co.uk/servicecentres

Close-up of a black circular object with a small protrusion and a separate black rectangular component attached (no text or symbols visible)

Close-up of a black cylindrical electronic device with a circular top and small slot, no visible text or symbols.

Close-up of a black mechanical component with a metallic tool inserted (no visible text or symbols)

BRUKSANVISNING:

Ladda din enhet

Close-up of a mechanical component with a circular top and a separate black connector (no text or symbols visible)

Close-up of a black circular electronic device with a small rectangular port and two small holes (no text or symbols visible)

Close-up of a black mechanical component with a small metallic tip inserted (no visible text or symbols)

BRUKERVEILEDNING:

Lade apparatet

1. For å lade produktet, stikk ladekabelen inn i en USB-kontakt og koble kabelen til ladekontakten på bunnen av håndtaket (fig. 2).
2. Når ladekabelen er tilkoblet, vil ladeindikator-LED-en tennes og blinke rødt. Så snart apparatet er fulladet vil LED-indikatoren skifte til grønn.
3. Når produktet er fulladet, koble det fra strømforsyningen.
4. Produktet krever 2.5 timers lading for full lading, og vil gi omtrent 2-3 timers bruk.

Using your device

For å finne ditt lokale HoMedics servicesenter, se www.homedics.co.uk/servicecentres

Skifte batteri

Produktet enheten din har et oppladbart batteri som er konstruert for å vare like lenge som produktet. Skulle det uforutsette skje at du trenger et nytt batteri, ta kontakt med kundetjenesten som vil gi deg informasjon om garantien og utskifting-service for batteri när garantien har utgått.

Batteridirektiv

Close-up of a black electronic component with a metallic connector and a circular top (no visible text or symbols)

Close-up of a black circular electronic device with a small port and two small dots on the surface (no text or symbols visible)

Close-up of a black mechanical component with a small metallic tip inserted (no visible text or symbols)

KÄYTTÖOHJEET:

Laitteen lataaminen

Battery Capacity (Massager) 12V/1100mAh

Charging voltage (Massager) 5V USB 1A or 2A

Battery Capacity (Heated Head) 3.7V 500mAh

Charging voltage (Heated Head) 5V 1A

Amplitude 6mm

Decibel Rating 55db at top speed

1st mode Speed 1500 Rpm 25 Hz

2nd mode Speed 2000 Rpm 33.3 Hz

3rd mode Speed 2500 Rpm 41.7 Hz

4th mode Speed 3000 Rpm 50 Hz

Charging Time (1A / 2A) 4 hours / 2.5 hours

Work for when full charge 2 - 3 hours

Auto Timer 15 minutes

Weight only the massager 349 gms / 0.77 lbs

Overall size of massager 7.6 x 3.5 x 14.5 cm

Homedics

Distributed in the UK by

FKA Brands Ltd, Somerhill Business Park, Tonbridge, Kent TN11 0GP, UK

EU Importer

FKA Brands Ltd, 29 Earlsfort Terrace, Dublin 2, Ireland

Customer Support: [phone] | [e-mail]

IB-HHP65-0722-01

CE UK CA

Homedics

MYTI

Black fitness T-shirt with a spherical head and brand logo (no text or symbols on body)

Four black plastic mechanical components with different shapes and bases, arranged in a row (no text or symbols visible)

3 YEAR GUARANTEE

HHP-65

PRODUCT FEATURES:

A. Heated flat massage head helps soothe sore muscles.
B. Round massage head suitable for massaging arms, waist, back, buttocks, thighs and other large muscle groups.

C. Flat massage head

for muscle areas that need recovery following heavy exercise, such as deep muscle tissue.

D. Bullet massage head

suitable for targeting trigger points and small specific areas such as feet.

E. U-shaped massage head

suitable for trapezius muscles, areas around the achilles tendon muscle, ankle muscle and calf muscles.

Four-panel technical illustration showing a mechanical component with labeled parts (Fig.2, Fig.3, Fig.4, Fig.5), no readable text or symbols present.

INSTRUCTIONS FOR USE:

Charging your device

1. To charge the product, plug the charging cable into a USB socket and connect the cable to the charging socket on the bottom of the handle (fig.2).
2. Once the charging cable is connected, the charging indicator LED will illuminate and blink red. As soon as the device is fully charged the LED indicator will change to green.
3. Once the product is fully charged, disconnect it from the power supply.
4. The product requires 2.5 hours of charging for a full charge and will last for approximately 2-3 hours of use.

Using your device

1. Select the desired massage head and fasten it into the socket on the front of the massager by lightly pushing into place and turning clockwise to tighten (fig.3). It should be finger tight only as overtightening may cause damage to the product.

2. Press and hold the power on/off/power level button for 2 seconds to turn the device on.

3. Pressing the on/off/power button again will cycle through the 4 power levels from low to high (fig.4). Pressing the button again will repeat this sequence.
4. Gently move the massage head over the part of the body you wish to massage at first, then gently apply more pressure as desired. If you are a first time user it is recommended that you start on power level 1 and press gently.
5. A long press on the on/off/power button for 1 second will turn the massager off.
6. Remove the massage head by turning anti-clockwise to loosen, then pull.
7. The product cannot be used while charging.

Using the heated flat massage head

The heated flat massage head heats up in just 15 seconds, ideal to help soothe sore muscles.

1. To charge the heated flat massage head, plug the charging cable into a USB socket and connect the cable to the charging socket on the bottom of the attachment (fig.5).
2. The charging indicator LED will illuminate and blink red. As soon as the device is fully charged the LED indicator will change to green.
3. Fit the heated flat massage head to the massager. Press the power button on the head to switch on the heat, the indicator light will illuminate green.
4. Press and hold the power on/off/power level button for 2 seconds to turn the massager on.
5. When you finished using the head, press the power button to switch off and remove as described in 'Using your device'.

Cleaning your device

• Make sure the device is unplugged from any power supply and allow to cool before cleaning. Clean only with a soft, slightly damp sponge.
• Never allow water or any other liquid to come into contact with the appliance.
• Do not immerse in any liquid to clean.
• Never use abrasive cleaners, brushes, glass/furniture polish, paint thinner, etc to clean.

READ ALL INSTRUCTIONS BEFORE USE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

• The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance
• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not place or store appliance where it can fall or be pulled into a bath or sink. Do not place in or drop into water or other liquid.
• DO NOT reach for an appliance that has fallen in water or other liquids. Keep dry – DO NOT operate in wet or moist conditions.
• NEVER insert pins, metallic fasteners or objects into the appliance or any opening.
• Use this appliance for the intended use as described in this booklet. DO NOT use attachments not recommended by HoMedics.

• NEVER operate the appliance if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to the HoMedics Service Centre for examination and repair.

• DO NOT attempt to repair the appliance. There are no user serviceable parts. All servicing of this appliance must be performed at an authorised HoMedics Service Centre.

• Please ensure that all hair, clothing and jewellery are kept clear of moving parts of the product at all times.
• If you have any concerns regarding your health, consult a doctor before using this appliance.
• Use of this product should be pleasant and comfortable. Should pain or discomfort result, discontinue use and consult your GP.
• Pregnant women, diabetics and individuals with pacemakers should consult a doctor before using this appliance. Not recommended for use by individuals with sensory deficiencies including diabetic neuropathy.
• DO NOT use on an infant, invalid or on a sleeping or unconscious person. DO NOT use on insensitive skin or on a person with poor blood circulation.
• This appliance should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls.
• Do not use for longer than the recommended time.

• Only gentle force should be exerted against the mechanism in order to eliminate risk of injury.

• Use this product only on the body's soft tissue as desired without producing pain or discomfort. Do not use on the head or any hard or bony area of the body.

• Bruising can occur regardless of control setting or pressure applied. Check treatment areas frequently and immediately stop at the first sign of pain or discomfort.
• Failure to follow the above may result in the risk of fire or injury.
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
• This appliance contains batteries that are only replaceable by skilled persons.
• This appliance contains batteries that are non-replaceable.
• The battery must be removed from the appliance before it is scrapped;
• The appliance must be disconnected from the supply mains when removing the battery;
  • The battery is to be disposed of safely.

3 YEAR GUARANTEE

FKA Brands Ltd guarantees this product from defect in material and workmanship for a period of 3 years from the date of purchase, except as noted below. This FKA Brands Ltd product guarantee does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorised accessory; alteration to the product; or any other conditions whatsoever that are beyond the control of FKA Brands Ltd. This guarantee is effective only if the product is purchased and operated in the UK / EU. A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and / or authorised, or repair of products damaged by these modifications is not covered under this guarantee. FKA Brands Ltd shall not be responsible for any type of incidental, consequential or special damages.

To obtain guarantee service on your product, return the product post-paid to your local service centre along with your dated sales receipt (as proof of purchase). Upon receipt, FKA Brands Ltd will repair or replace, as appropriate, your product and return it to you, post-paid. Guarantee is solely through HoMedics Service Centre. Service of this product by anyone other than the HoMedics Service Centre voids the guarantee. This guarantee does not affect your statutory rights.

For your local HoMedics Service Centre, go to

www.homedics.co.uk/servicecentres

Battery replacement

Your product includes a rechargeable battery designed to last the lifetime of the product. In the unlikely event that you should require a replacement battery, please contact Customer Services, who will supply details of the warranty and out-of-warranty replacement battery service.

Battery directive

This symbol indicates that batteries must not be disposed of in the domestic waste as they contain substances which can be damaging to the environment and health. Please dispose of batteries in designated collection points.

WEEE explanation

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

CARATTERISTICHE DEL PRODOTTO:

Four-panel technical illustration showing a mechanical component with labeled parts (Fig.2, Fig.3, Fig.4, Fig.5), no readable text or symbols present.

ISTRUZIONI PER L'USO:

Pure mechanical diagram of a vertical rod with a circular component, no text or symbols present

Close-up of a black circular object with a central knob and a slot, resembling a speaker or fan (no text or symbols visible)

Close-up of a black mechanical component with a pointed tip and a circular base (no visible text or symbols)

FONCTIONS DU PRODUIT :

Four-panel technical illustration showing mechanical components with no visible text or symbols

MODE D'EMPLOI :

Four-panel technical illustration showing a mechanical component with labeled parts (Fig.2, Fig.3, Fig.4, Fig.5), no readable text or symbols present.

INSTRUCCIONES DE USO:

Carga del aparato

Close-up of a mechanical component with a metallic clip and a small protrusion, labeled Fig.2, Fig.3, Fig.4, Fig.5 (no text or symbols on the object itself)

Pure mechanical diagram of a vertical rod with a circular component, no text or symbols present

Close-up of a black circular object with a central knob and a slot, resembling a speaker or fan (no text or symbols visible)

Close-up of a black mechanical component with a pointed tip and a circular base (no visible text or symbols)

GEBRUIKSAANWIJZING:

Four-panel technical illustration showing a mechanical component with labeled parts (Fig.2, Fig.3, Fig.4, Fig.5), no readable text or symbols present.

Pure mechanical diagram showing a lever and pulley assembly without any text or symbols

Close-up of a black circular object with a central knob and a slot, no visible text or symbols.

Close-up of a mechanical component with a pointed tip and a circular base (no visible text or symbols)

INSTRUKCJA OBSŁUGI:

Mechanical diagram showing a lever mechanism with a rotating head and motion arrow (no text or symbols)

Close-up of a black cylindrical object with a circular top and small protrusions (no visible text or symbols)

Close-up of a mechanical component with a metallic tool inserted into a cylindrical opening (no visible text or symbols)

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ:

Pure mechanical diagram showing a lever and pulley assembly without any text or symbols

Close-up of a black circular object with a central knob and a slot, resembling a speaker or button (no text or symbols visible)

Close-up of a mechanical component with a pointed tip and threaded base (no visible text or symbols)

Close-up of a mechanical component with a metallic clip and a small protrusion, labeled Fig.2, Fig.3, Fig.4, Fig.5 (no text or symbols on the object itself)

Pure mechanical diagram of a vertical rod with a circular component, no text or symbols present

Close-up of a black circular object with a central knob and a slot, resembling a speaker or fan (no text or symbols visible)

Close-up of a black mechanical component with a pointed tip and circular base (no visible text or symbols)

BRUGSANVISNING:

Four-panel technical illustration showing mechanical components and assembly (Fig.2, Fig.3, Fig.4, Fig.5), no text or symbols present.

BRUKSANVISNING:

Ladda din enhet

Close-up of a mechanical component with a metallic clip and a small protrusion, labeled Fig.2, Fig.3, Fig.4, Fig.5 (no text or symbols on the object itself)

Pure mechanical diagram of a vertical rod with a circular component, no text or symbols present

Close-up of a black circular object with a central knob and a slot, resembling a speaker or fan (no text or symbols visible)

Close-up of a black mechanical component with a pointed tip and a small circular feature, no visible text or symbols.

BRUKERVEILEDNING:

Lade apparatet

1. For å lade produktet, stikk ladekabelen inn i en USB-kontakt og koble kabelen til ladekontakten på bunnen av håndtaket (fig. 2).
2. Når ladekabelen er tilkoblet, vil ladeindikator-LED-en tennes og blinke rødt. Så snart apparatet er fulladet vil LED-indikatoren skifte til grønn.
3. Når produktet er fulladet, koble det fra strømforsyningen.
4. Produktet krever 2.5 timers lading for full lading, og vil gi omtrent 2-3 timers bruk.

Using your device

For å finne ditt lokale HoMedics servicesenter, se www.homedics.co.uk/servicecentres

Skifte batteri

Produktet enheten din har et oppladbart batteri som er konstruert for å vare like lenge som produktet. Skulle det uforutsette skje at du trenger et nytt batteri, ta kontakt med kundetjenesten som vil gi deg informasjon om garantien og utskifting-service for batteri når garantien har utgått.

Batteridirektiv

Pure mechanical diagram of a vertical rod with a circular component, no text or symbols present

Close-up of a black circular object with a central circular feature and small protrusions (no text or symbols visible)

Close-up of a mechanical component with a pointed tip and circular base (no visible text or symbols)

KÄYTTÖOHJEET:

Laitteen lataaminen

Battery Capacity (Massager) 12V/1100mAh

Charging voltage (Massager) 5V USB 1A or 2A

Battery Capacity (Heated Head) 3.7V 500mAh

Charging voltage (Heated Head) 5V 1A

Amplitude 6mm

Decibel Rating 55db at top speed

1st mode Speed 1500 Rpm 25 Hz

2nd mode Speed 2000 Rpm 33.3 Hz

3rd mode Speed 2500 Rpm 41.7 Hz

4th mode Speed 3000 Rpm 50 Hz

Charging Time (1A / 2A) 4 hours / 2.5 hours

Work for when full charge 2 - 3 hours

Auto Timer 15 minutes

Weight only the massager 349 gms / 0.77 lbs

Overall size of massager 7.6 x 3.5 x 14.5 cm

Homedics

Distributed in the UK by

FKA Brands Ltd, Somerhill Business Park, Tonbridge, Kent TN11 0GP, UK

EU Importer

FKA Brands Ltd, 29 Earlsfort Terrace, Dublin 2, Ireland

Customer Support: [phone] | [e-mail]

IB-HHP65-1022-02
