Product type	Multi-position stroller
Brand	Kindercraft
Model	PRIME LITE
Recommended age (seat)	From 6 months to 4 years (up to 22 kg)
Recommended age (carrycot)	From birth to 9 kg
Maximum child weight (seat)	22 kg
Maximum child weight (carrycot)	9 kg
Stroller weight	Approximately 10 kg
Folded dimensions	Approximately 85 x 60 x 40 cm
Backrest positions	4: reclined, 2 semi-reclined, upright
Handlebar	Height adjustable
Footrest	Adjustable
Brake	Pedal brake
Front wheels	Swivel with lock
Safety harness	5-point
Basket capacity	3 kg max
Parent bag capacity	2 kg max
Included accessories	Rain cover, mosquito net, 2in1 leg cover
Car seat compatibility	Adapters for Maxi-Cosi, Cybex, Kinderkraft MINK
Care	Hand wash, wash at 30°C max
Warranty	24 months, extendable up to 120 months

Frequently Asked Questions - PRIME LITE Kindercraft

How to unfold the stroller?

Loosen the locking element, hold the handle and lift the frame until you hear a locking click.

How to install the carrycot?

Mount the carrycot facing the rear: insert the carrycot joints into the frame sockets until you hear a click. To remove, press the levers on both sides and pull upwards.

How to adjust the seat backrest?

Use the backrest adjustment lever (drawing 18) to choose from 4 positions: reclined, semi-reclined (2) and upright.

How to use the brake?

Press the brake pedal with your foot until it clicks to lock. To unlock, lift the lock.

How to fasten the safety harness?

Press the central button of the buckle to open it, insert the strap clips into the central buckle until they engage.

Is the stroller compatible with a car seat?

Yes, thanks to the provided adapters, it is compatible with Kinderkraft MINK, Maxi-Cosi and Cybex car seats (models listed in the manual).

How to clean the stroller?

Wash textiles at a maximum of 30°C on a gentle cycle. Do not use bleach, tumble dry, or dry clean. The frame can be cleaned with a damp cloth and mild detergent.

What to do if the wheels squeak?

Lubricate the axle with a thin layer of silicone. Do not use oil or grease as they attract dirt.

What is the warranty?

The warranty is 24 months, extendable up to 120 months (10 years) after registration on the WWW.KINDERKRAFT.COM website.

Can I use the stroller for jogging?

No, this product is not suitable for jogging or rollerblading.

USER MANUAL PRIME LITE Kindercraft

10 YEARS WARRANTY register now at www.kinderkraft.com

WATCH MANUAL VIDEO

Line drawing of a baby crib with a canopy and handle (no text or symbols)

Line drawing of a baby stroller with four wheels and adjustable arms (no text or symbols)

kinderkraft.com

/kinderkraftofficial

kinderkraft

@kinderkraftofficial

(AR) عربة آطقال

(CZ) Kočárek

(DE) Buggy

(EN) Stroller

(ES) Silla de paseo

(FR) Pousette

(HU) Babakocsi

(IT) Passeggino

MODEL: PRIME LITE

دليل الاستخدام

NÁVÓD K OBSLUZE

BEDIENUNGSANLEITUNG

USER MANUAL

MANUAL DE USARIO

GUIDE D'UTILISATION

HASZNÁLATI UTASÍTÁS

ISTRUZIONI PER UTENTE

(NL) Kinderwagen

(PL) Wózek

(PT) Carrinho de bebé

(RO) Cărucior

MANUAL DE INSTRUÇÕES

MANUAL DE UTILIZARE

ВО ПО ЭКСПЛУАТАЦИИ

NÁVOD NA POUŽÍVANIE

ANVÄNDARMANUAL

REV: 1.1

AR....17

CZ 21

DE....24

EN....28

ES....31

FR 35

HU 38

IT 42

NL 45

PL....49

PT 53

RO....56

RU....59

SK 63

SV 66

EN Important: Keep these instructions for future reference

Technical diagram of a bicycle seat assembly with numbered parts for identification

2.

Technical diagram of a lathe or towel device with numbered components and internal cross-sections for assembly or repair.

3.

Mechanical assembly diagram showing a bracket with labeled parts and an inset detail view (no text or symbols present)

Illustration of a robotic device with hands operating it, showing mechanical components and motion direction (no text or symbols)

5.

CLICK

6.

Illustration of hands holding a bicycle steering wheel with arrows indicating motion (no text or symbols)

7.

Line drawing of a two-wheel bicycle with wheels and seat, showing no text or symbols

8.

Simple line drawing of a mug with handle and arrow indicating direction (no text or symbols)

Line drawing of a bicycle seat with two wheels and labeled points A and B (no text or symbols beyond labels)

A B

1.

Mechanical assembly diagram showing a motor and gear assembly (no text or labels)

Line drawing of a hand using a mechanical tool to adjust a wheel rim (no text or symbols present)

10.

Mechanical diagram showing a wheel assembly with rotating components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or labels)

11.

Technical line drawing of a vehicle's lower body frame with labeled component A (no text or symbols beyond label)

12.1

Diagram of a vehicle's rear suspension system with labeled component B (no text or symbols beyond label)

12.2

Line drawing of a baby stroller with no text or symbols

13.1

Circular diagram showing a car seatbelt with labeled points A and B, no text or symbols present.

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

13.2

Mechanical assembly diagram showing a belt and clamping mechanism (no text or labels)

14.1

Line drawing of a stroller with wheels and hand positioning arrows (no text or symbols)

14.2

Illustration of a robotic arm gripping a mechanical component (no text or symbols visible)

15.1

Mechanical assembly diagram showing a motor with attached wires and levers (no text or symbols)

15.2

Mechanical assembly diagram showing hands adjusting a component with arrows indicating motion (no text or symbols)

16.1

Mechanical assembly diagram showing a belt drive mechanism with arrows indicating motion (no text or symbols)

16.2

Diagram illustrating seatbelt usage with upward arrows and a central circular component labeled '安全垫' (safety belt)

17.1

Diagram showing two vertical bars with downward arrows indicating force or movement, connected to a belt buckle and belt (no text or symbols)

17.2

Mechanical assembly diagram showing a hand adjusting a component with a tool, labeled 'A' (no text or symbols on the diagram itself)

18.1

Mechanical assembly diagram showing a hand operating a component with a directional arrow (no text or symbols)

18.2

Mechanical diagram showing a rotating component with curved arrows indicating motion (no text or symbols)

19.

Line drawing of a mechanical assembly with rotating components (no text or symbols)

20.1

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

20.2

Technical diagram showing five different stroller designs with numbered instructions for assembly or maintenance.

21.

Line drawing of a baby crib with a curved seat and handle (no text or symbols)

1.

Technical diagram showing a mechanical component with labeled parts A and B, including cross-sectional views.

24.

26.

Diagram illustrating the step-by-step assembly of a stroller, showing how part is replaced by using a lock mechanism.

27.

AR

السادة العملاء،

حلاً مثالي

Thank you for purchasing a Kinderkraft product. Our products have been designed for your child's safety and comfort. The buggy is an ideal solution for those who value quality, modernity and functionality. Please read the manual carefully and follow its recommendations.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

A. Safety and care notes

WARNING!

• Never leave the child unattended.
• Ensure that all the locking devices are engaged before use.
• To avoid injury ensure that the child is kept away when unfolding and folding this product.

- Do not let the child play with this product.

- Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

- This product is not suitable for running or skating.

• The product is designed to transport one child at a time.
• Maximum basket load 3 kg. Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
• The maximum permissible weight of a parent's bag suspended on the buggy's handles is 2 kg.
• Lift the front suspension when going up a curb or step.
• The brakes should be locked when the child is placed in or taken out of the buggy.
• Use only parts and accessories supplied or recommended by the manufacturer. Do not use other parts or accessories.
• Do not place the product near open flame or other heat sources.
• Do not use with an additional platform.

The following applies to the Pram body:

This product, in the form of a Pram body, is designed for children who cannot sit unaided, fall over or crawl using hands and knees. Maximum child weight – up to 9 kg.

WARNING: This product is only suitable for a child who cannot sit up unaided. Only use on a firm, horizontal level and dry surface.

Do not let other children play unattended near the carry cot. Do not use if any part of the carry cot is broken, torn or missing.

Before carrying or lifting the base shall be adjusted in the lowest position.

The head of the child in the carry cot should never be lower than the body of the child.

The Pram body must not be used as a child carrier. The Pram body handle is only designed for assembly and disassembly of the buggy frame. Do not insert an extra mattress apart from that supplied with the product.

The following applies to the pushchair:

WARNING! This seat unit is not suitable for children under 6 months. Always use the restraint system.

The product is intended for children from 6 months old to 22 kg or 4 years whichever come first.

Applies to the Kinderkraft MINK car seat: The Kinderkraft PRIME buggy can be offered in a set with a compatible Kinderkraft MINK car seat. The product is intended for children from birth to 13 kg. If the seat is used together with the buggy, it does not replace a cradle or crib. For sleep, place the child in the Pram body, cradle or crib. Use only parts and accessories supplied or recommended by the manufacturer.

I Buggy frame components (FIG. 1)

1. Handle
2. Buttons to adjust the handle
3. a) Release buton b) Folding level
4. Frame slot
   a) Car seat adapters
5. Folded frame locking element
6. Brake
7. Rear wheels
8. Front wheel release buton
9. Front wheels
10. Swivel wheels lock
11. Back wheel release button

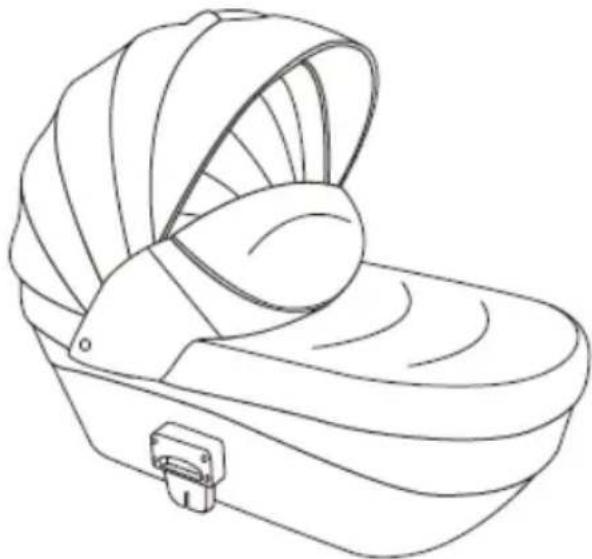

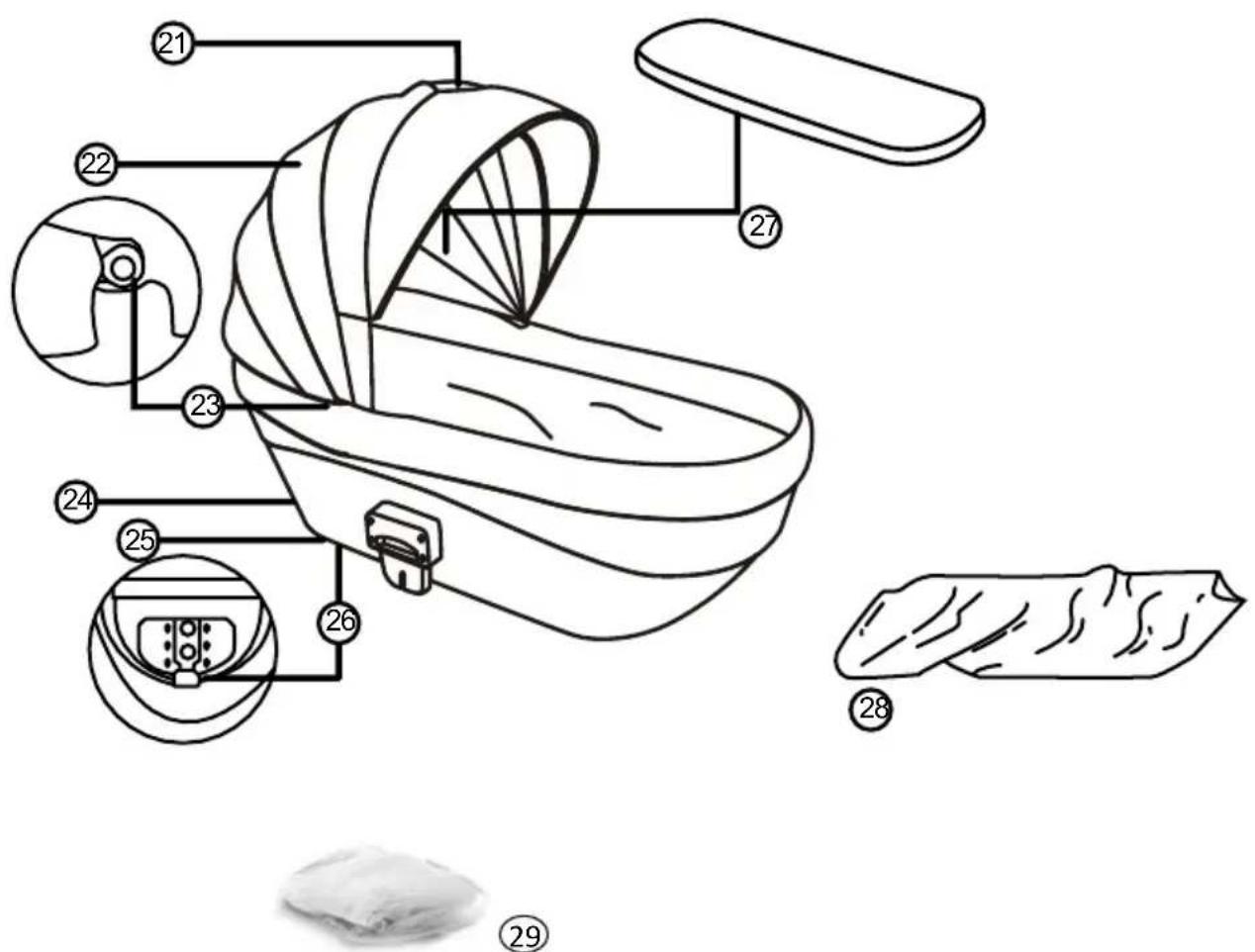

III Pram body elements (FIG. 3)

1. Pram body carrying handle
2. Pram body hood
3. Pram body hood folding/unfolding buton
4. Lever for releasing the Pram body from the frame
5. Pram body and buggy frame connector

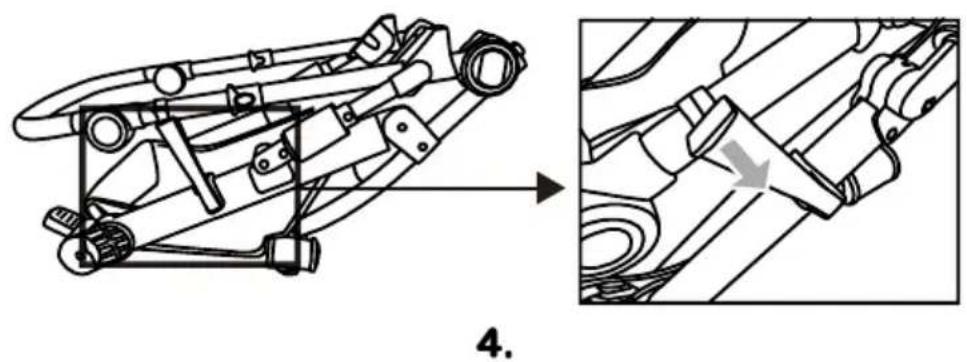

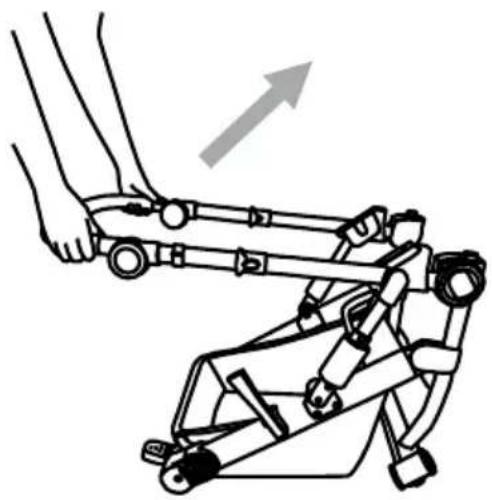

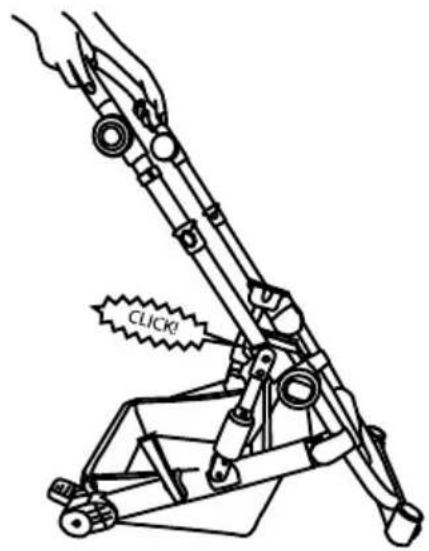

IV UNFOLDING BUGGY FRAME In order to unfold the frame, release the locking element (FIG. 4). Holding the handle, lift the frame (FIG. 5) until you hear a locking sound (FIG. 6)

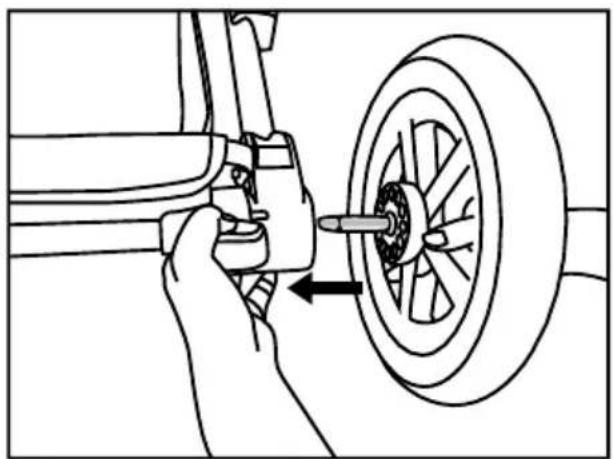

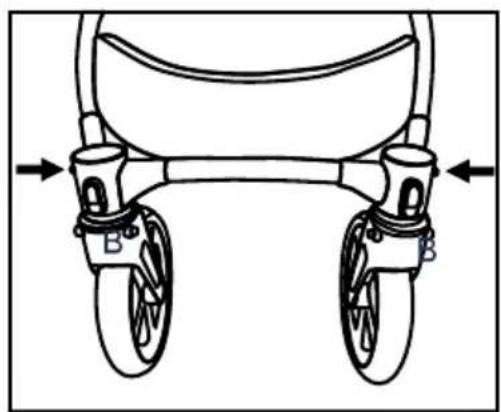

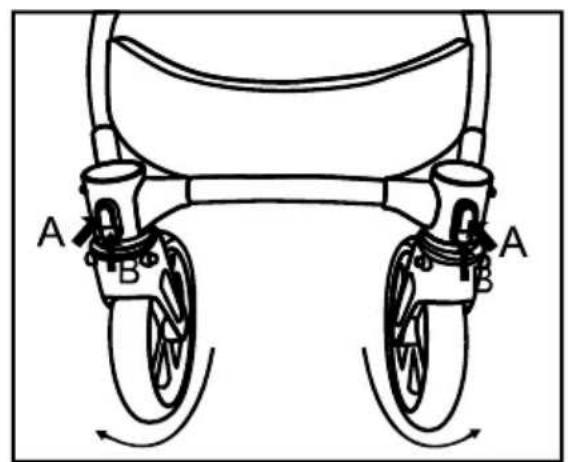

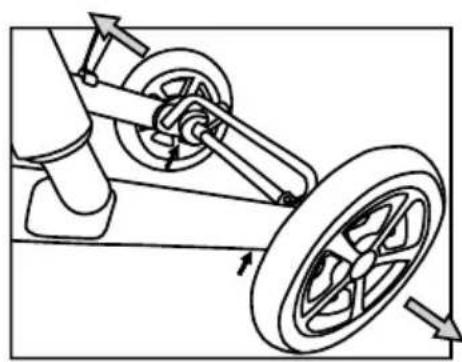

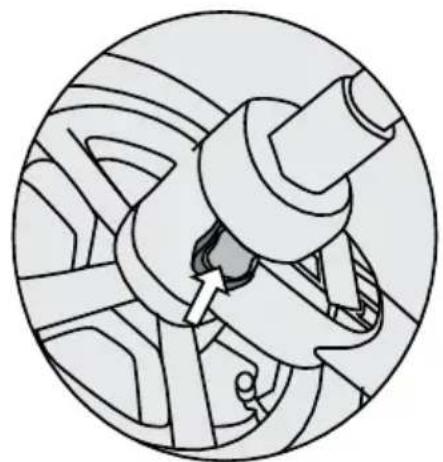

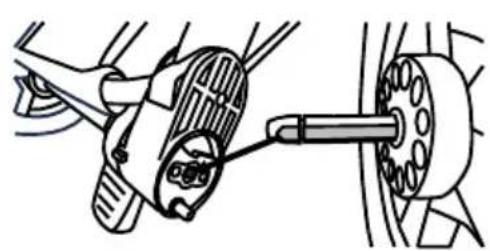

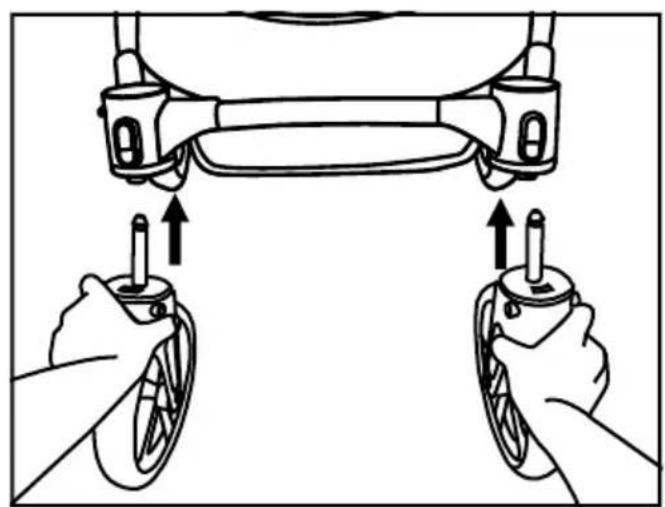

V WHEEL ASSEMBLY/DISASSEMBLY Insert the front wheels in the slots on the front of the frame until you hear the locking sound (FIG. 7A). In order to remove the wheels, press the front wheel release button as shown in Figure 8. The buggy has a system of swivel front wheels with a possibility of locking for straight movement. To lock the wheel for straight movement, press the upper part of the lock (FIG. 9, movement A). In order to unlock, move the lock up (FIG. 9, movement B). Insert the rear wheels into the slots in the rear part of the frame until they lock, making sure that the flat surfaces of the axis of the slot have been set correctly (FIG. 10). To remove the rear wheel, press the release button (FIG. 11).

NOTE! Before using the buggy make sure that all the wheels are properly installed.

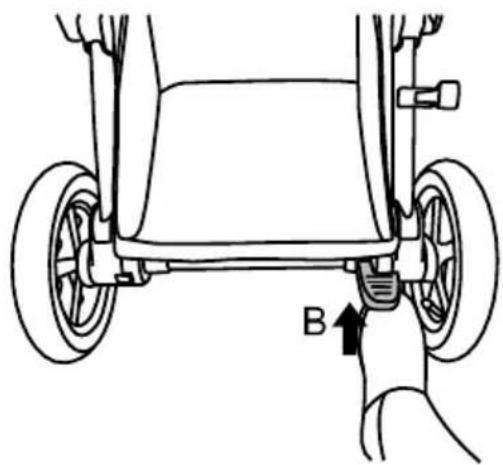

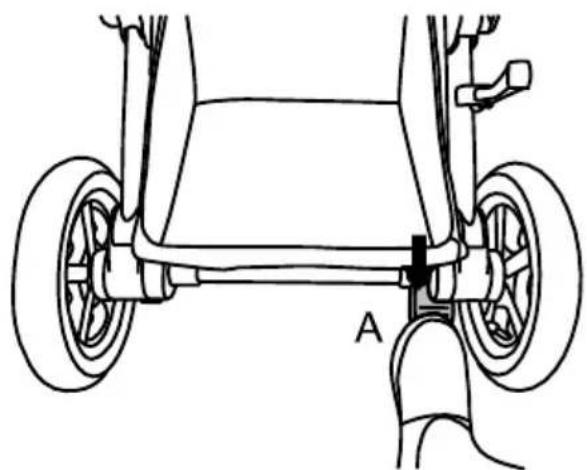

VI USE OF BRAKE The buggy is equipped with a foot parking brake. Press the brake with your foot (FIG. 12.1). The brake is activated after you hear the sound of the lock. The brake is unlocked after moving the brake lock up (FIG. 12.2).

VII ASSEMBLY/DISASSEMBLY

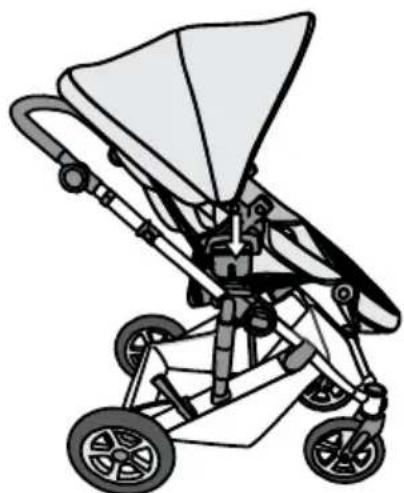

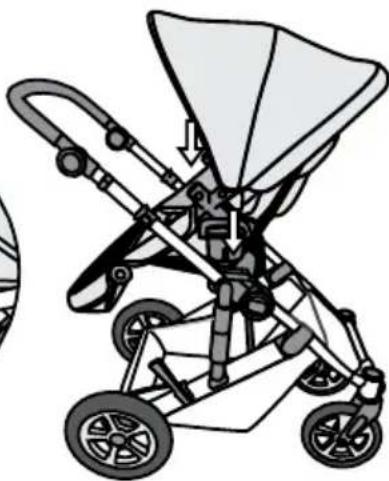

VII.I SEAT When installing the seat on the buggy frame, stick the seat connector (A) in to the frame slot (B) (one on each side of the buggy) until you hear a click (FIG. 13.1). The seat may be mounted forward or rearward (FIG. 13.2). When removing the seat, press the lever for releasing the seat from the frame on the both sides (FIG. 14.1) and pull it up (FIG.

14.2). Baby stroller is equipped with a footrest cover that can be mounted on both the seat and the carrycot. Leg cover should be mounted using the press studs on the outside of the canopy hinges.

NOTE! Do not fold the buggy frame when the Pram body or the seat in its rear position is installed on it.

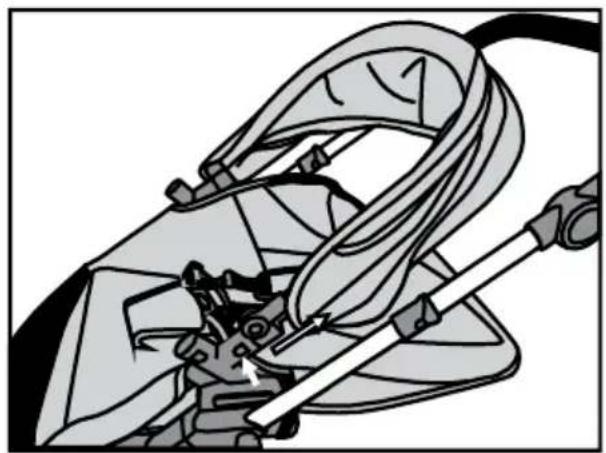

VII.II CANOPY

NOTE! INSTALL THE CANOPY BEFORE USING THE BUGGY

Place the canopy in the guide in the buggy frame and make sure it is properly installed (FIG. 15.1). When removing the canopy, press the button on either side of the seat and remove the canopy (FIG. 15.2). When installing and removing the canopy remember about Velcro fasteners on the sides and the zip on the back of the backrest.

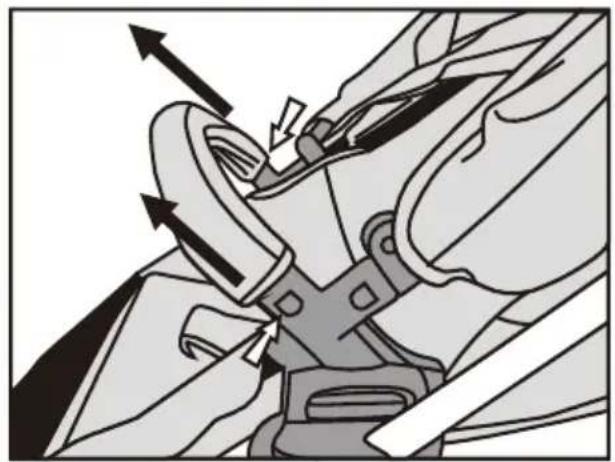

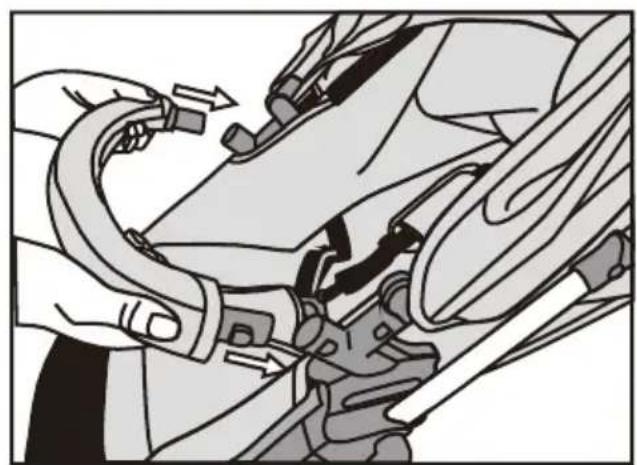

VII.III SAFETY BAR When installing the safety bar, insert it in the appropriate guides in the seat frame until it clicks (FIG. 16.1). To remove the part, press the bar release buttons on either side of the guide and remove the safety bar (FIG. 16.2).

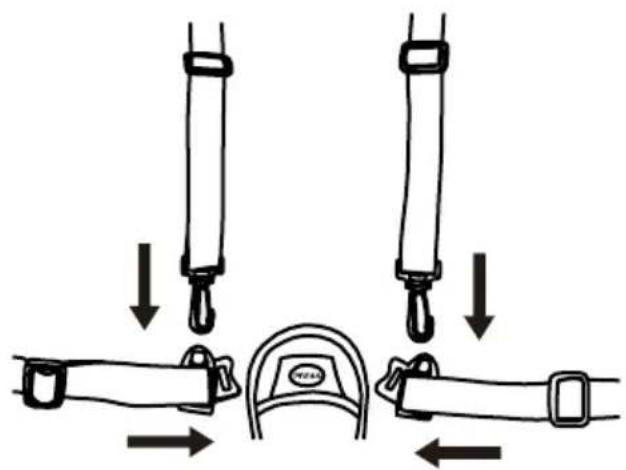

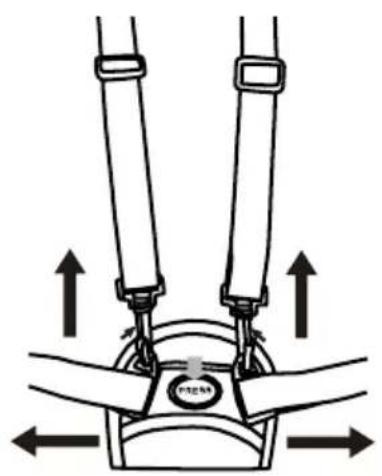

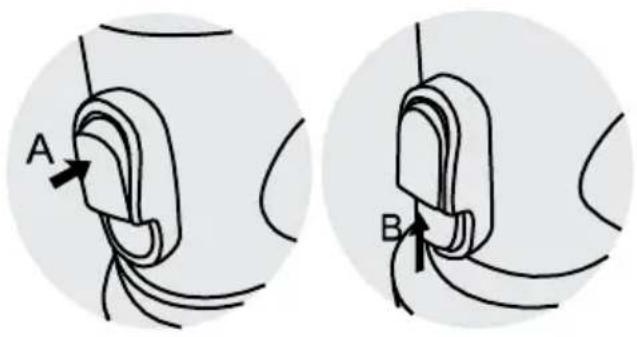

VIII SAFETY BELTS Press the button to open the clasp (FIG. 17.1). To secure the child, connect the latches of the hip and shoulder straps and then insert them into the middle clasp (FIG. 17.2) until it engages.

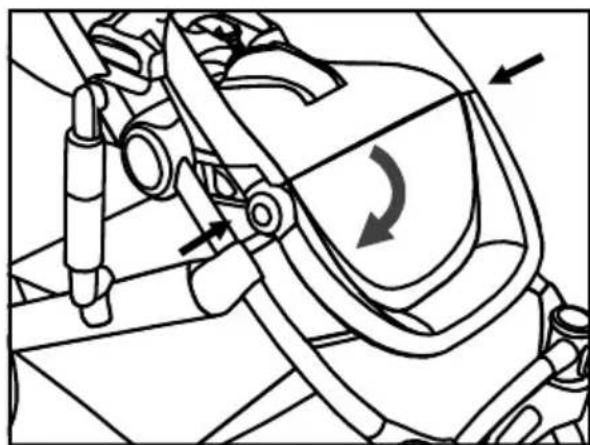

IX SEAT POSITIONS The seat has 4 positions: lying, 2 x reclining and sitting, adjusted with backrest adjustment lever (FIG. 18.1 and 18.2).

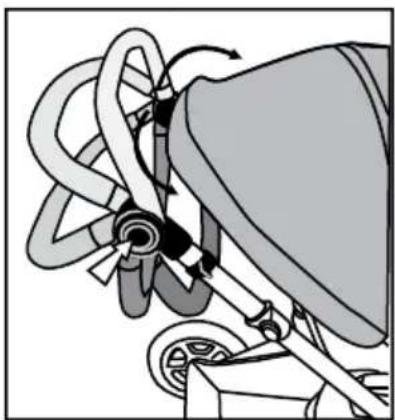

X PARENT HANDLE ADJUSTMENT To adjust the bar, press the handle adjustment buttons on both sides and set it in the desired position (FIG. 19).

XI FOOTREST ADJUSTMENT The position is changed by lifting the footrest (FIG. 20.1). In order to lower the footrest, press the footrest adjustment buttons on both sides (FIG. 20.2).

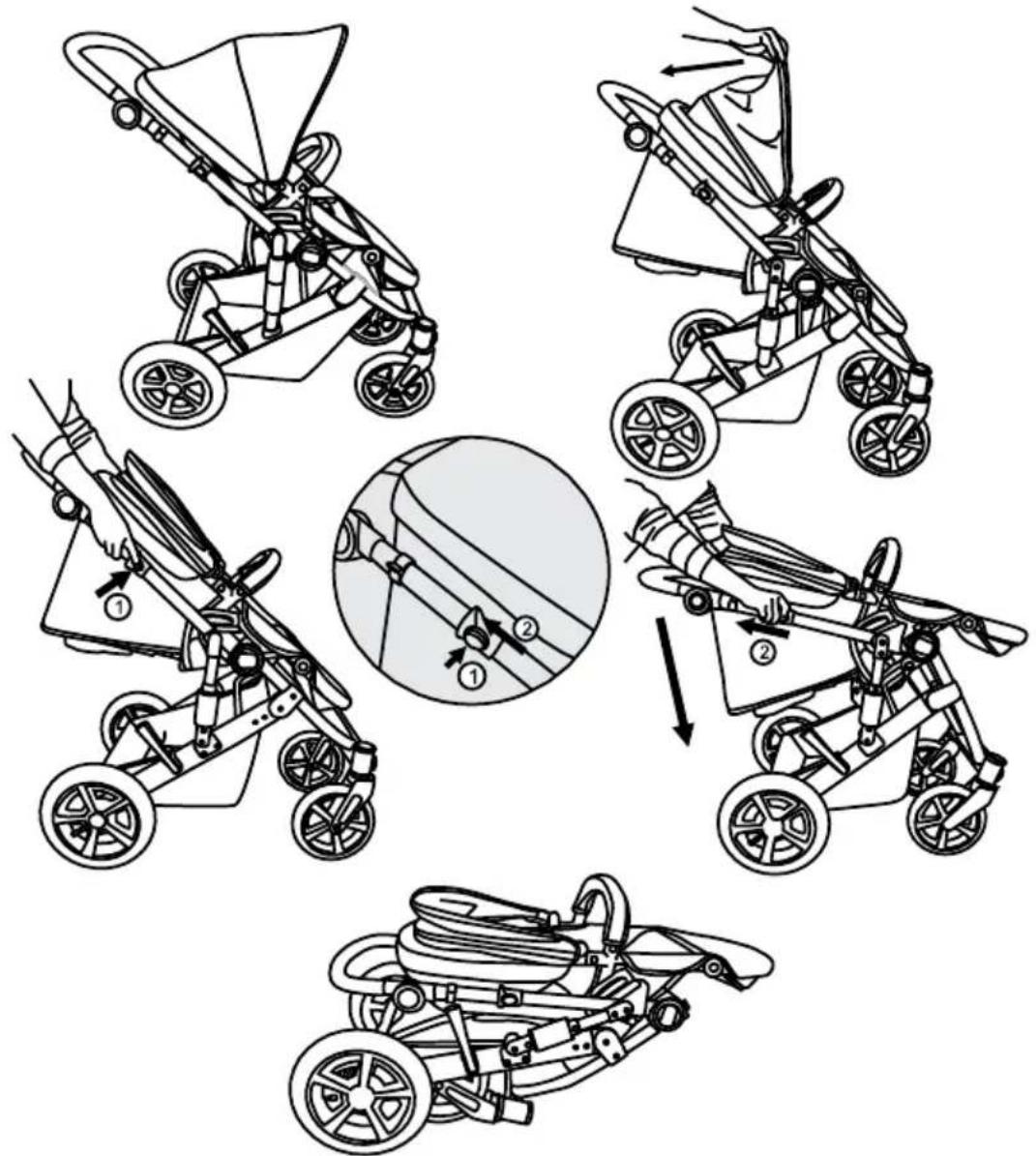

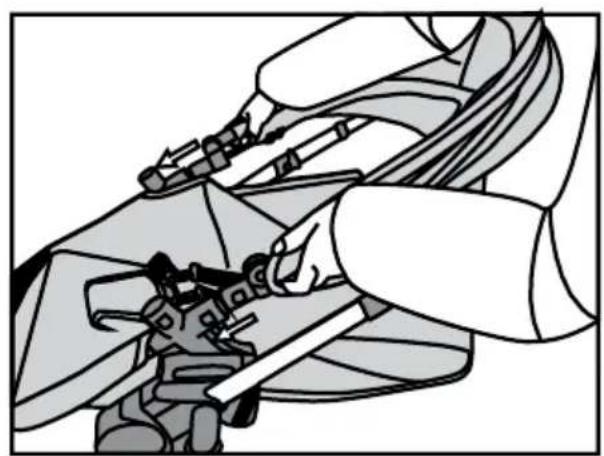

XII FOLDING THE BUGGY (FIG. 21) Make sure that the seat is positioned facing the direction of travel before folding the buggy. Fold the canopy. Simultaneously press the release button and pull both folding levers to yourself to fold the buggy. When the buggy is completely folded, the locking element will lock itself. In order to minimize the folded buggy dimensions, lower the footrest. In addition, set the backrest in the top position to facilitate frame folding.

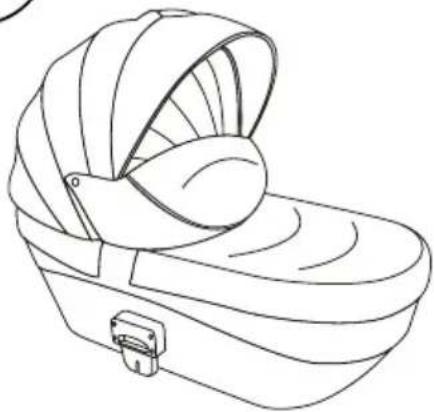

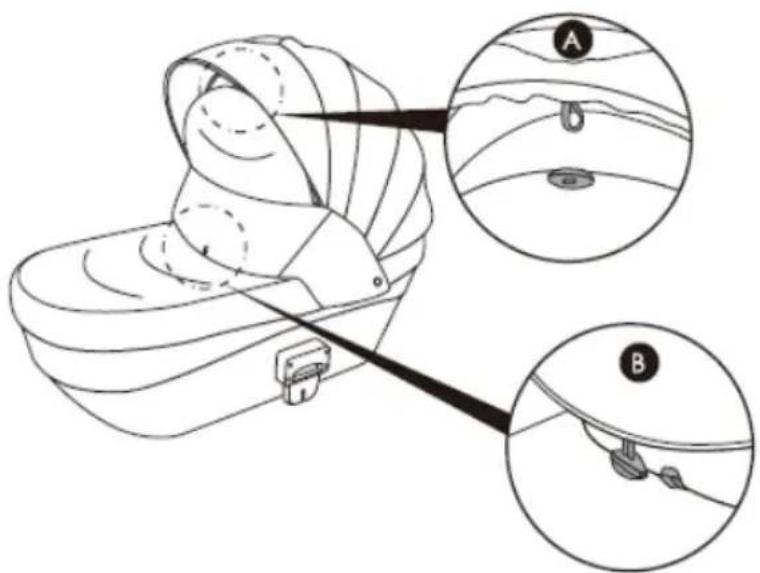

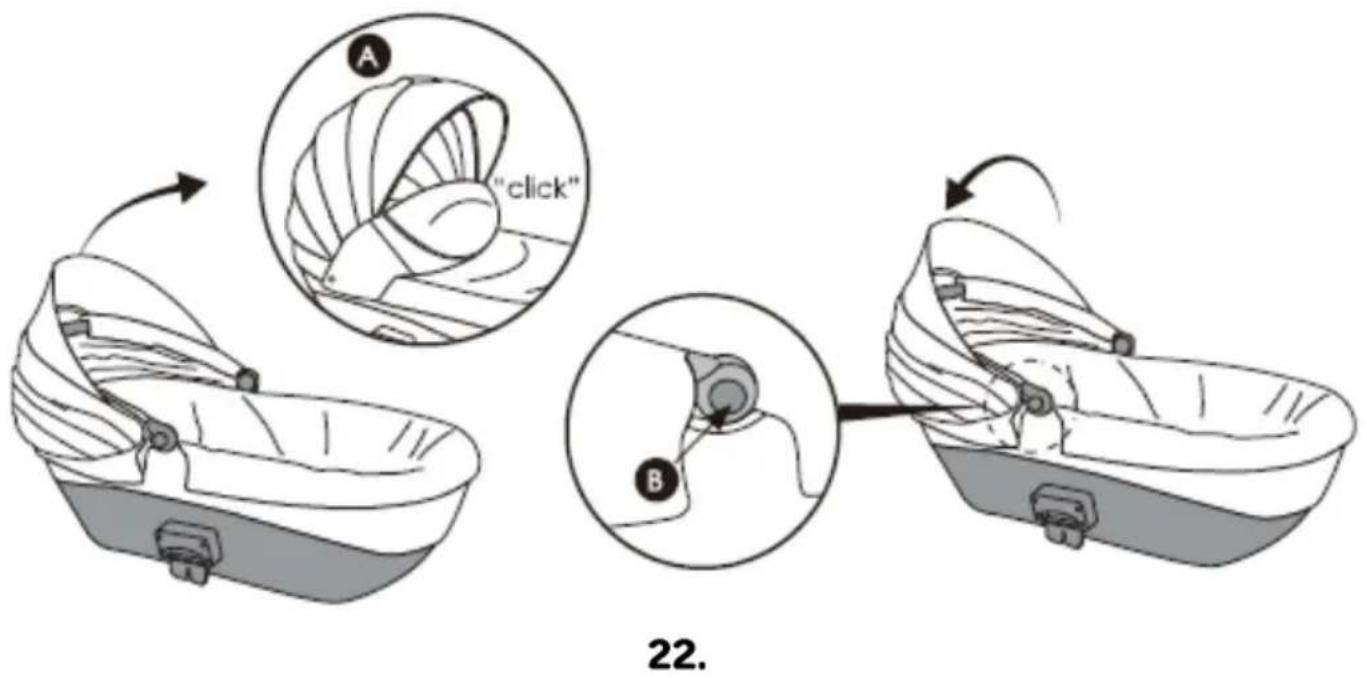

XIII BUGGY PRAM BODY After removing the Pram body from the packaging, set the hood (FIG. 22A). The hood can be folded using the Pram body hood folding and unfolding buttons on both sides of the Pram body (FIG. 22B). Place the foot cover and attach it to the Pram body hood using the press studs (FIG. 23). The foot cover is equipped with an additional panel protecting from the wind. When the wind blows, it can be attached using a clamp (FIG. 24A). After folding, it must be fixed using clamp B (FIG. 24B). To adjust the Pram body backrest, move the backrest adjustment lever (RYS. 25) located under the Pram body and lock in the correct position. The Pram body backrest has 4 levels of adjustment.

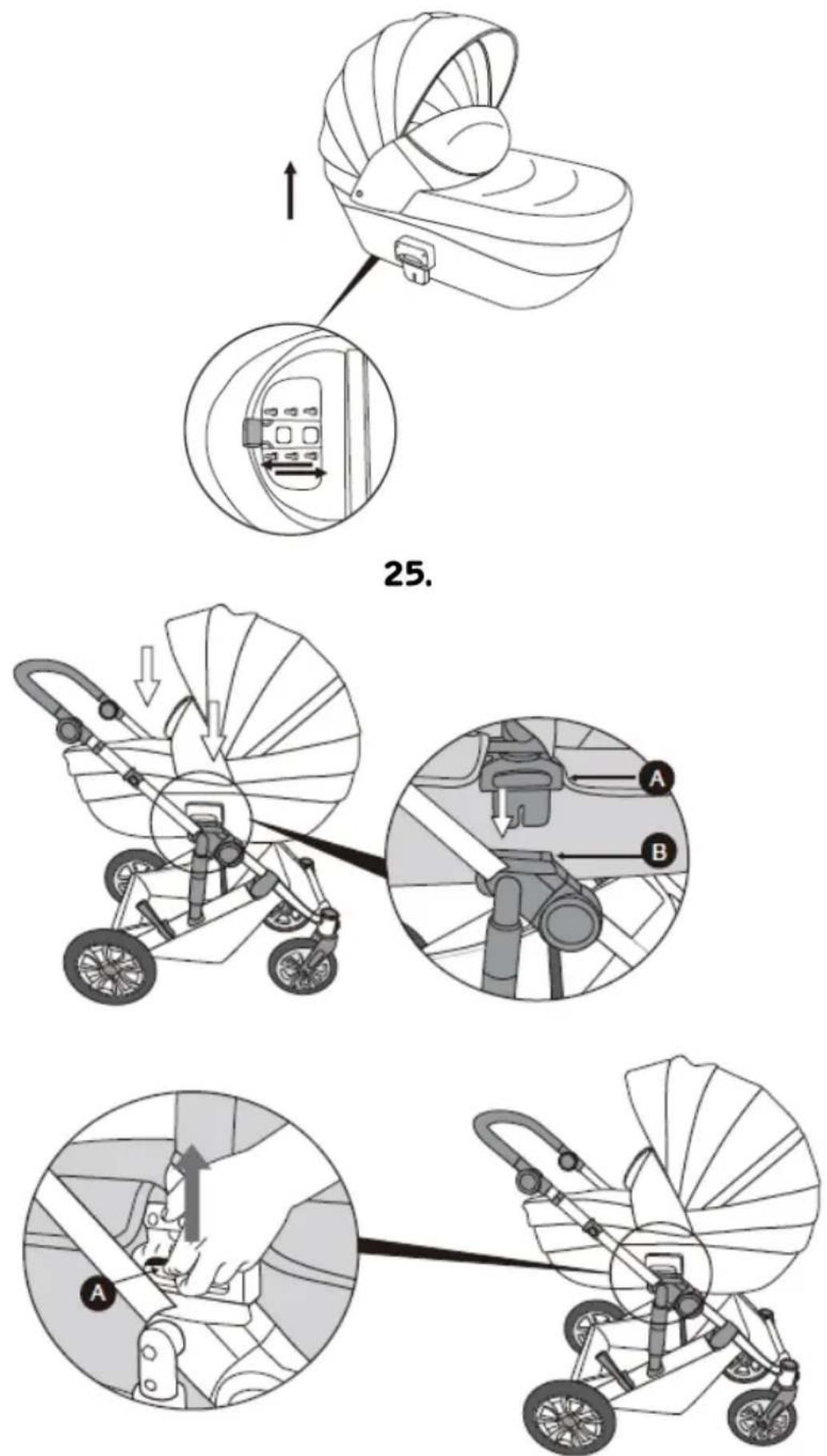

XIV ATTACHING THE PRAM BODY TO THE BUGGY FRAME

NOTE! THE PRAM BODY CAN ONLY BE MOUNTED FACING

BACKWARDS (the child faces the person pushing the buggy).

When installing the Pram body on the buggy frame, stick the Pram body connector (A) in to the frame slots (B) (FIG. 26), one on each side of the buggy, until you hear a click. When removing the Pram body, press the lever for releasing the Pram body from the buggy frame (A) on both sides and pull up (FIG. 26).

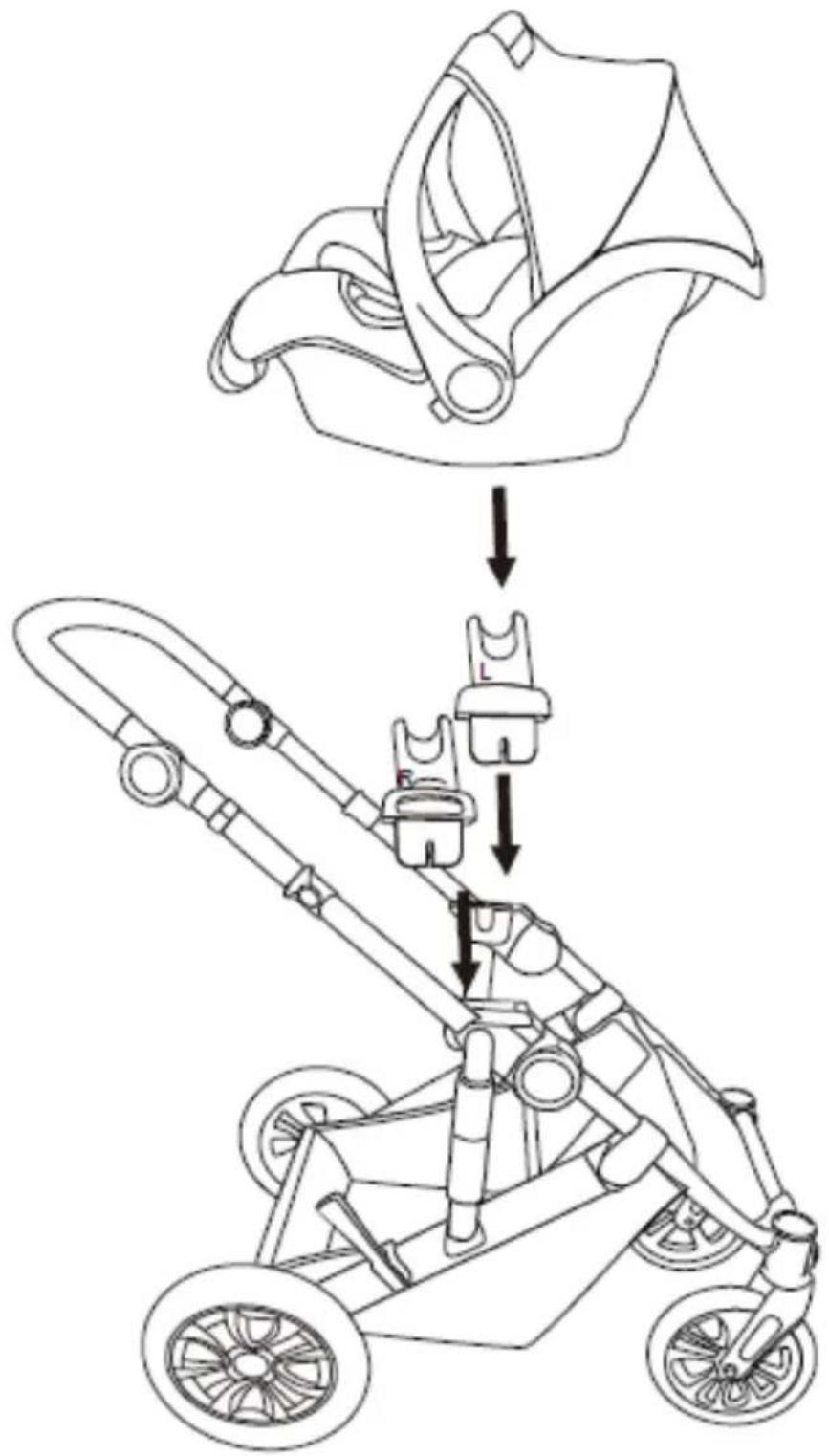

XV CAR SEAT ASSEMBLY ON BUGGY FRAME The supplied adapters are compatible with the following car seats: Kinderkraft (MINK), Maxi Cosi ^® , Cybex ^® and they are suitable for the following models: Cybex Aton, Aton 2, Aton Q i Maxi Cosi Mico, Mico AP, Mico NXT, Mico Max 30, Citi, Cabrio, and CabrioFix. Place the adapters on both d=side of the seat (FIG. 27) When installing the car seat on the buggy frame, stick them in the designed slots, one on each side of the buggy until you hear a distinctive clock. Removing the seat press the buttons on both sides and pull up.

The car seat must always be fitted in such a way that the child should face the carer.

XVI CARE AND MAINTENANCE The buyer is responsible for proper installation of all functional elements as well as for carrying out all required maintenance and adjustments in order to keep the buggy in good technical condition. The buggy must be periodically checked for potential problems. Significant measures to be applied to ensure the child's safety and prevent shortening of the product life have been presented below:

• Check the strength and safety of all rivets and connections.
• Check all wheel locking equipment and tyres. If necessary, replace or repair.
• Check if all safety devices work properly, particularly the main and additional fasteners that should move freely at any time. Please stop using the buggy if there are doubts as to its proper use or a suspicion of any danger. Use only the spare parts supplied or recommended by the manufacturer. If the wheels squeak, apply a thin layer of silicone. Do not use oil or grease based products as they attract dirt, which makes it difficult for the wheels to move.

XVII CLEANING If the elements of the buggy chassis have been exposed to saltwater, rinse with tap water as soon as possible.

	Wash at max. 30°C, gentle process.		Do not wash. Clean the product gently with a damp cloth and a mild detergent.
	Do not bleach		Do not iron
	Do not dry in a tumble dryer		Do not dry clean

Do not fold or store the product when it is wet and never store it in wet conditions as it can lead to mould growth.

XVIII Warranty

1. All Kinderkraft products are covered by a 24-month warranty. The warranty period begins on the date of releasing the product to the Buyer.
2. The warranty is valid for products sold in the following countries: France, Spain, Germany, Poland, United Kingdom, Italy.
3. In countries not listed above warranty terms and conditions are determined by the Seller.
4. It is possible to extend the warranty period to 120 months (10 years). Full text of the terms and conditions and warranty extension registration form are available at WWW.KINDERKRAFT.COM
5. The warranty is valid only in the country where the purchase was made.
6. Complaints should be submitted by completing the form available at WWW.RMA.KINDERKRAFT.COM
7. The warranty shall not cover:

a. claims arising from product specifications, as long as they comply with those specified by the manufacturer in the instruction manual or other documents of a legislative nature;
b. product damage caused by improper maintenance or use of inadequate chemicals;
c. colour change (discolouration) when the product has been exposed to direct sunlight against the instructions provided in the instruction manual;
d. tear, wear, crack of fabric/plastic that is the fault of the Customer;

e. reduction in the quality of the product and consumables due to normal wear and tear;

f. products which have not been used according to specifications;

1. The warranty period for accessories attached to the device is 6 months from the date of sale, with the exception of mechanical damage.

2. These guarantee terms and conditions are complementary to the Customer's rights in relation to 4KRAFT sp. z o.o. The warranty shall not exclude, limit or suspend the rights of the Customer arising from the provisions on the warranty for defects in the goods sold.

3. Full text of Warranty Terms and Conditions is available at WWW.KINDERKRAFT.COM

All rights to the present document belong entirely to 4Kraft Sp. z o.o. Any unauthorized use of them against their purpose, including in particular: using, copying, reproducing, making available - in whole or in part, without the consent of 4Kraft Sp. z o.o. may result in legal consequences.
