XV253QX - Monitor ACER - Free user manual and instructions

Product Type	LCD Monitor
Brand	Acer
Model	XV253QX
Screen Size	24.5 inches (62 cm)
Panel Type	IPS
Native Resolution	1920 x 1080 at 240 Hz
Brightness	400 cd/m² (native and HDR400)
Contrast Ratio	100 000 000:1 max (ACM)
Response Time	1 ms (gray to gray) / 0.5 ms (min)
Viewing Angle	178° (H) / 178° (V) (CR=10)
Display Colors	16.7 million
Input Connectors	HDMI, DP (depending on model)
Speakers	2 x 2 W (optional)
USB	USB 3.0 x 4 (optional)
Power Supply	100-240 V, 50/60 Hz
Power Consumption (On)	17.4 W typical
Power Consumption (Standby)	0.45 W typical
Power Consumption (Off)	0.25 W typical
Energy Class	A
Dimensions (WxHxD)	557.79 x 397.84~512.84 x 236.27 mm
Weight (Net)	5.30 kg
Ergonomic Adjustments	Tilt -5° to +25°, swivel -20° to +20°, height 0-115 mm, pivot -90° to +90°
Removable Stand	Yes
Main Functions	Brightness, Contrast, ACM, HDR, Over Drive, Adaptive-Sync, VRR, Aim Point
Care and Cleaning	Soft cloth, no liquid directly, no ammonia or alcohol
Safety	Unplug if cable frayed, water spillage or damaged housing
Repairability	Do not remove the housing, service by authorized technician

Frequently Asked Questions - XV253QX ACER

How to clean the screen of the Acer XV253QX monitor?

Turn off the monitor and unplug the power cord. Use a soft cloth slightly dampened with a solvent-free cleaning solution. Never spray liquid directly on the screen. Avoid products containing ammonia or alcohol.

What to do if the screen does not turn on?

Check that the power cable is properly plugged in and the outlet is powered. Make sure the power button is pressed. If the LED is orange, the monitor is in standby. Try unplugging and replugging the video cable. If the problem persists, contact an authorized technician.

How to adjust the height and tilt of the monitor?

The monitor has a height adjustment of 0 to 115 mm. Tilt the screen between -5° and +25° by applying gentle pressure on the frame. For swivel and pivot, gently rotate the screen within the indicated range. Do not force movements beyond the limits.

What are the available input sources?

The monitor accepts signals via HDMI and DisplayPort (depending on the model). Use the Input button on the control panel to switch between sources. Cables must be properly connected to the computer.

How to enable HDR mode on the XV253QX?

Access the on-screen display (OSD) via the navigation button. Navigate to the HDR option and enable it. Make sure your source sends a compatible HDR signal. Native brightness is 400 cd/m² in HDR400 mode.

Is the monitor compatible with Adaptive-Sync (VRR)?

Yes, the XV253QX supports Adaptive-Sync and VRR (Variable Refresh Rate). This reduces screen tearing and improves smoothness in games. Enable the option in the OSD menu under 'Adaptive-Sync' or 'VRR'.

How to change the button shortcuts?

Press the Menu button to open the OSD. Go to 'Shortcut Assignment' and select the desired function for Shortcut 1 and 2 buttons. You can assign actions like Input toggle, Quick settings, etc.

What do the monitor LED indicators mean?

A blue LED indicates the monitor is on and working normally. An orange LED means the monitor is in standby or power saving mode. If the LED is off, check the power.

How to save energy with this monitor?

Use standby mode by turning off the monitor via the power button. Standby consumption is 0.45 W typical. Enable the power saving mode in the OSD or reduce brightness. Unplug completely for zero consumption.

What to do in case of connectivity problem (no signal)?

Check that the video cable is securely plugged in on both sides. Make sure the correct input source is selected (HDMI or DP). Restart the computer. If the problem persists, test with another cable or another device. Shielded cables are recommended to avoid interference.

USER MANUAL XV253QX ACER

Line drawing of a modern flat-screen monitor with three legs and a base (no text or symbols)

LCD Monitor NITRO XV3 Series/XV253Q

USER GUIDE

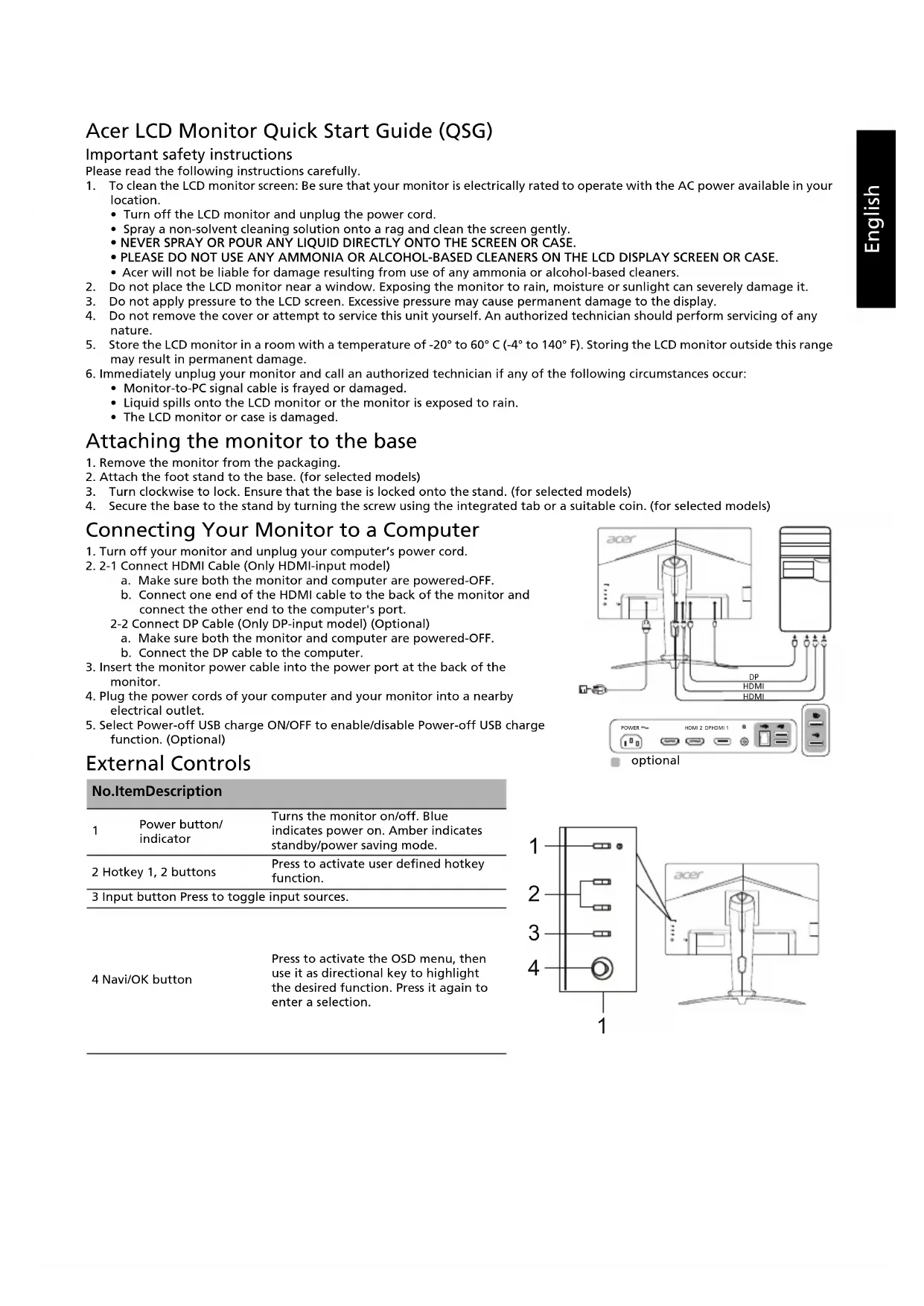

Acer LCD Monitor Quick Start Guide (QSG)

Important safety instructions

Please read the following instructions carefully.

1. To clean the LCD monitor screen: Be sure that your monitor is electrically rated to operate with the AC power available in your location.

2. Turn off the LCD monitor and unplug the power cord.

3. Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
4. NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.
5. PLEASE DO NOT USE ANY AMMONIA OR ALCOHOL-BASED CLEANERS ON THE LCD DISPLAY SCREEN OR CASE.

6. Acer will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

7. Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage it.

8. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
9. Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of any nature.
10. Store the LCD monitor in a room with a temperature of -20^ to 60^ C ( -4^ to 140^ F). Storing the LCD monitor outside this range may result in permanent damage.
11. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:

• Monitor-to-PC signal cable is frayed or damaged.

- Liquid spills onto the LCD monitor or the monitor is exposed to rain.

• The LCD monitor or case is damaged.

Attaching the monitor to the base

1. Remove the monitor from the packaging.
2. Attach the foot stand to the base. (for selected models)
3. Turn clockwise to lock. Ensure that the base is locked onto the stand. (for selected models)
4. Secure the base to the stand by turning the screw using the integrated tab or a suitable coin. (for selected models)

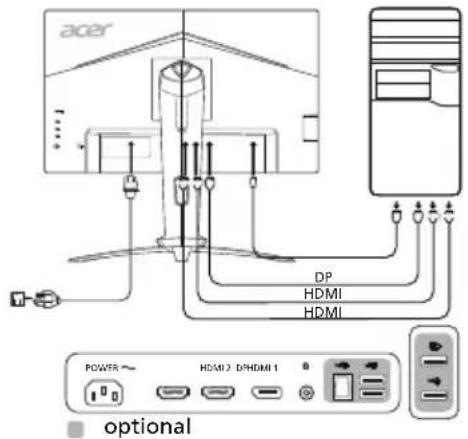

Connecting Your Monitor to a Computer

1. Turn off your monitor and unplug your computer's power cord.
2. 2-1 Connect HDMI Cable (Only HDMI-input model)

a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer's port.

2-2 Connect DP Cable (Only DP-input model) (Optional)

a. Make sure both the monitor and computer are powered-OFF.
b. Connect the DP cable to the computer.

1. Insert the monitor power cable into the power port at the back of the monitor.
2. Plug the power cords of your computer and your monitor into a nearby electrical outlet.
3. Select Power-off USB charge ON/OFF to enable/disable Power-off USB charge function. (Optional)

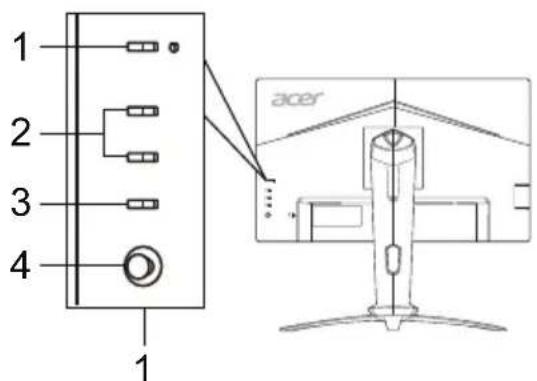

External Controls

No.ItemDescription
1	Power button/indicator	Turns the monitor on/off. Blue indicates power on. Amber indicates standby/power saving mode.
2	Hotkey 1, 2 buttons	Press to activate user defined hotkey function.
3	Input button Press to toggle input sources.

4 Navi/OK button

Press to activate the OSD menu, then use it as directional key to highlight the desired function. Press it again to enter a selection.

acer DP HDMI HDMI POWER HDMI 2 DP/HDMI 1 optional

1 2 3 4 1 acer

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

CE declaration of Conformity

Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Notice:

In order to prevent damage to the monitor, do not lift the monitor by its base.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with EMC regulations.

Notice:

Acer monitor is purposed for video and visual display of information obtained from electronic devices.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user authority, which is granted by the Federal Communications Commission, to operate this product.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

SPECIFICATION

LCD Panel	Driving System TFT Color LCD
	Size 24.5"W (62 cm)
	Pixel Pitch 0.283 mm (H) x 0.280 mm (V)
	Brightness	Native: 400 cd/m^2 ; HDR400 mode: 400 cd/m^2
	Contrast 100000000:1 Max (ACM)
	Viewable Angle 178° (H) 178° (V) (CR=10)
	Response Time 1 ms (G to G) / 0.5 ms (G to G, min)
	Panel Type In-Plane Switching
	H-Frequency	HDMI: 31 - 255 kHzDP: 255 - 255 kHz
	V-Frequency	HDMI: 56 - 240 HzDP: 48 - 240 Hz
Display Colors 16.7 Million
Dot Clock 600 MHz
Maximum Resolution 1920 x 1080 @ 240 Hz
Plug & Play VESA DDCCI/DDC2B
Energy Efficiency Class A
*Annual Energy Consumption 31 (kWh) (for HDMI-Input Model)
Power Consumption (at 200 nits)	On Mode 17.4 W (Typical)
	Sleep Mode 0.45 W (Typical)
	Off Mode	0.25 W (Typical)
Input Connector		HDMI (Only HDMI-Input Model)DP (Only DP-Input Model)
Input Video Signal		HDMI (Only HDMI-Input Model) (Optional)DP (Only DP-Input Model) (Optional)
Speakers		2 W x 2 (Only Audio-Input Model) (Optional)
USB		USB 3.0 x 4 (Optional)
Maximum Screen Size		Horizontal: 543.744 mmVertical: 302.616 mm
Power Source		100-240 V, 50/60 Hz
Environmental Considerations		Operating Temp: 0° to 40°CStorage Temp: -20° to 60°COperating Humidity: 20% to 80%
Dimensions		557.79 (W) x 397.84 ~ 512.84 (H) x 236.27 (D) mm
Weight (N. W.)		5.30 kg (net)
Mechanism Specifications		Tilt: -5° to +25° (Only at the highest point can 25 degrees of recline be offered for the angle of elevation)Swivel: -20° to 20°Height adjustment: 0 mm to 115 mmPivot: -90° to 90°Detachable foot stand: Yes
External Controls	Switch/Buttons	Power Button InputHotkey 1 Menu/Navi/OKHotkey 2
	Functions	Brightness VRBContrast Ultra-Low LatencyBlue Light Aim PointBlack Boost LanguageACM OSD TimeoutHDR TransparencySuper Sharpness OSD LockGamma InputColor Temperature Auto SourceModes DP FormatColor Space Hot Key AssignmentGrayscale Mode Wide Mode6-axis Hue DDC/CI6-axis Saturate HDMI Black LevelVolume Quick Start ModeMute Power-Off USB ChargeOver Drive Display InformationAdaptive-Sync Reset All SettingsRefresh Rate Num Exit
All specifications are subject to change without notice.

Find manuals and other documents for your Acer product on the official Acer support website.
*Annual energy consumption is calculated using the typical power consumption 4 hours per day, 365 days per year.

Panduan Praktis Monitor LCD Acer (QSG)

Snelstartgids Acer lcd-monitor

Olulised ohutusalased juhised

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l.

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN55032:2012/AC:2013 Class B

EN 55024:2010

EN55032:2015/AC:2016 Class B

EN61000-3-3:2013

☒ EN61000-3-2:2014 Class D

LVD Directive: 2014/35/EU

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013

RoHS Directive: 2011/65/EU

EN 50581:2012

☒ ErP Directive: 2009/125/EC

☒ Regulation (EC) No. 1275/2008; EN 50564:2011

Year to begin affixing CE marking: 2019.

RU Jan / Sr. Manager

Acer Incorporated (Taipei, Taiwan)

Sep. 30, 2019

Date

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Und

Acer Italy s.r.l.

RU Jan / leitender Manager Acer Incorporated (Taipeh, Taiwan)

Sep. 30, 2019

Datum

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwán

Y,

Acer Italy s.r.l.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Et,

Acer Italy s.r.l.

RU Jan / Sr. Manager

Date

Acer Incorporated (Taipei, Taiwan)

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

E,

Acer Italy s.r.l.

RU Jan / Senior Manager

Acer Incorporated (Taipei, Taiwan)

Sep. 30, 2019

Data

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

En,

Acer Italy s.r.l.

RU Jan / Sr. Manager

Date

Acer Incorporated (Taipei, Taiwan)

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

E,

Acer Italy s.r.l.

RU Jan / Sr. Manager

Acer Incorporated (Taipé, Taiwan)

Regulatory Compliance

R43002 RoHS

acer

barcode

MC.TH411.003

Model No.: XV253Q

Part No.: MC.TH411.003

Recycle Paper
