USER MANUAL 274156 Hendi

ENGLISH Dear Customer, Thank you for purchasing this HENDI appliance. Read this user manual carefully, paying particular attention to the safety regulations outlined below, before installing and us- ing this appliance for the first time. Safety instructions

• Only use the appliance for the intended purpose it was de- signed for, as described in this manual.

• The manufacturer is not liable for any damage caused by incorrect operation and improper use.

• DANGER! RISK OF ELECTRIC SHOCK! Do not at- tempt to repair the appliance by yourself. Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.

• NEVER USE A DAMAGED APPLIANCE! Check the electrical connections and cord regularly for any damage. When dam- aged, disconnect the appliance from the power supply. Any repairs should only be carried out by a supplier or qualified person to avoid danger or injury.

• WARNING! When positioning the appliance, route the power cable safely if necessary to avoid unintentional pulling, be- ing damaged, coming into contact with the heating surface, or causing a tripping hazard.

• WARNING! As long as the plug is in the socket the appliance is connected to the power supply.

• WARNING! ALWAYS switch off the appliance before discon- necting from the power supply, cleaning, maintenance or storage.

• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Do not touch the plug/electrical connections with wet or damp hands.

• Keep the appliance and electrical plug/connections away from water and other liquids. If the appliance falls into wa- ter, remove the power supply connections immediately. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.

• Connect the power supply into an easily accessible electrical outlet so you can disconnect the appliance immediately in case of emergency.

• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.

• Never carry the appliance by its cord.

• Never try to open the housing of the appliance yourself.

• Do not insert objects into the housing of the appliance.

• Never leave the appliance unattended during use.

• This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.

• This appliance should not be operated by persons with re- duced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.

• Keep the appliance and its electrical connections out of reach of children.

• Never use accessories or any extra devices other than those supplied with the appliance or recommended by the manu- facturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• Do not operate this appliance by means of an external timer or remote-control system.

• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.).

• Do not cover the appliance in operation.

• Do not place any objects on top of the appliance.

• Do not use the appliance near any open flames, explosive or flammable materials. Always operate the appliance on a horizontal, stable, clean, heat-resistant and dry surface.

• The appliance is not suitable for installation in an area where a water jet could be used.

• Leave a space of at least 20 cm around the appliance for ventilation during use.

• WARNING! Keep all ventilation openings on the appliance free from obstruction. Special safety instructions

• This appliance is intended for commercial use.

• CAUTION! RISK OF BURNS! HOT SURFACES! The temperature of the accessible surfaces are very high during use. Touch only the control panel, handles, switches, timer control knobs or temperature control knobs.

• CAUTION! ALWAYS switch the machine off and disconnect the power supply before touching any motoring parts.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified per- sons in order to avoid a hazard.

WARNING! Never remove or open the lid while the appliance is operating. The steam may come out and cause burns.

• Never use this appliance without water.

• DANGEROUS! RISK OF INJURY! There are moving parts inside the bowl, which may cause injury. Switch off the machine and disconnect it from the power supply before doing any operations.

• Avoid boiling dry. This appliance is secured against boiling dry by an overheating protection.

• This overheating protection turns off the appliance auto- matically. In that case, let the appliance cool down com- pletely before using it again. Adding water to a hot kettle is dangerous because sudden steam can arise. Intended use

• This appliance is intended to be used in household and sim- ilar applications such as: -staff kitchen areas in shops, offices and others working environment; -farm houses; -by clients in hotels, motels and other residential type en- vironment; -bed and breakfast type environment.

• The appliance is designed only for heating a variety of choc- olate directly. Any other use may lead to damage of the ap- pliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely lia- ble for improper use of the device.8

Grounding installation This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord with grounding plug or electrical connections with grounding wire. The connec- tions must be properly installed and grounded. Main parts of the product (Fig.1 on page 3)

Remark: The content of this manual applies for all listed items unless specified otherwise. The appearance may vary from the shown illustrations. Preparation before use

• Remove all protective packaging and wrapping.

• Check that the device is in good condition and with all acces- sories. In case of incomplete or damaged delivery, please contact the supplier immediately. In this case, do not use the device.

• Clean the accessories and the appliance before use (See ==> Cleaning & Maintenance).

• Make sure the appliance is completely dry.

• Place the appliance on a horizontal, stable and heat resist- ant surface that is safe against water splashes.

• Keep the packaging if you intend to store your appliance in the future.

• Keep the user manual for future reference. NOTE! Due to manufacturing residues, the appliance may emit a light odor during the first few uses. This is normal and does not indicate any defect or hazard. Make sure the appli- ance is well ventilated. Installation / Assembly & Disassembly

• Place the seal ring on the top of round edge of the base unit.

• Screw in the chocolate pool on the base unit by clockwise.

• Place the auger on the motor axle of the base unit.

• Place the fountain pipe over and cover the auger and screw in the fountain pipe on the base unit by anti-clockwise.

• Place the pipe holder on the top of fountain pipe and line up the center hole with the top of auger.

• The chocolate fountain is now ready for use. REPLACE the thermal cut-out

• Please note that a FUSE housing, which covered with a pro- tective cap, is located on the right side of heater / motor switch of the appliance(Fig.2 on page 3).

• Unplug the appliance from the electrical outlet first.

• Allow the appliance to completely cool down.

• Unscrew the black protective cap of the FUSE housing by anti-clockwise.

• Press and screw back the protective cap of FUSE housing by clockwise after thermal cut-out(included) is replaced. Operating instructions

• Switch position: Left is for the heater, Right is for the motor.

• Turn on the heating element and switch to 80°C to preheat the chocolate fountain around 3 - 5mins.

• Prepare 6000 grams (274156) / 8000 grams (274163) of chocolate as follows: - Put the chocolate in a heat-resistant bowl. - Put the bowl in a pot with warm water (60°C). NOTE! Don’t let the water boil. - Stir the chocolate until is has melted completely. Do not add water to or spil water into the chocolate. - The chocolate has to be fluid (like yoghurt). If that is not the case, add some tasteless vegetable oil (sun flower) to it.

• Turn on the motor and pour the chocolate into the lower bowl.

• The auger moves the chocolate up.

• Only use fruit that is sufficiently cooled and has a dry sur- face. The low temperature of the fruit helps the chocolate to solidify and the dry surface helps the chocolate to attach easier to the fruit. Too much moist/water will deteriorate the consistancy of the chocolate. NOTE! Air bubbles in the fountain pipe disrupt the evenly flow of chocolate. In which case you must turn off the motor and wait for the air bubbles to escape from the fountain pipe (this may take a few minutes). It is normal for air to escape at the bottom of the fountain pipe during this procedure. Switch the motor on again if the fountain pipe is free of air bubbles. NOTE! Be careful of temperature adjuster. Too high tempera- ture will be turning chocolate into bad quality quickly. Cleaning & maintenance

• ATTENTION! Always disconnect the appliance from the power supply and cool down before storage, cleaning & maintenance.

• Do not use water jet or steam cleaner for cleaning and do not push the appliance under the water as the parts will get wet and electric shock might be resulted.

• If the appliance is not kept in a good state of cleanliness, this can adversely affect the life of the appliance and result in a dangerous situation.

• Food residues should be regularly cleaned and removed from the appliance. If the appliance is not cleaned proper- ly, it will reduce its lifespan and may result in a dangerous condition during use.9

• Clean the cooled exterior surface with a cloth or sponge slightly dampened with a mild soap solution.

• For reasons of hygiene, the appliance should be cleaned before and after use.

• Avoid water contacting the electrical components.

• Clean the inside of container with a non-abrasive detergent and rinse with clean water.

• Never immerse the appliance in water or other liquids.

• Never use aggressive cleaning agents, abrasive sponges, or cleaning agents containing chlorine. Do not use steel wool, metallic utensils, or any sharp or pointed objects for clean- ing. Do not use petrol or solvents!

• No parts are dishwasher safe. Maintenance

• Check the operation of the appliance regularly to prevent serious accidents.

• If you see that the appliance is not working properly or that there is a problem, stop using it, switch it off and contact the supplier.

• All maintenance, installation and repair work must be car- ried out by specialised and authorised technicians, or rec- ommended by the manufacturer. Transportation and Storage

• Before storage, always make sure that the appliance has been disconnected from the power supply and completely cooled down.

• Store the appliance in a cool, clean and dry place.

• Never place heavy objects on the appliance as this could damage it.

• Do not move the appliance while it is under operation. Dis- connect the appliance from power supply when moving and hold it at the bottom. Replacement of silica gel ring & air-proof ring

When the silica gel ring or air-proof ring was broken. Please follow below procedures to replace. They shall be replaced every sixth months if the product is operating for 12h per day.

1) Screw out chocolate pool from the base unit.

2) Take out and discard the used silica gel ring and air-proof

ring from the motor axle (Fig.3 on page 4).

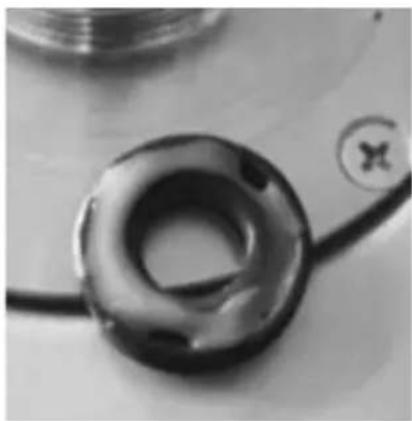

3) Take out the new air-proof ring and add lubrication oil(high

temperature resistance) into the concave area(Fig.4 on page 4).

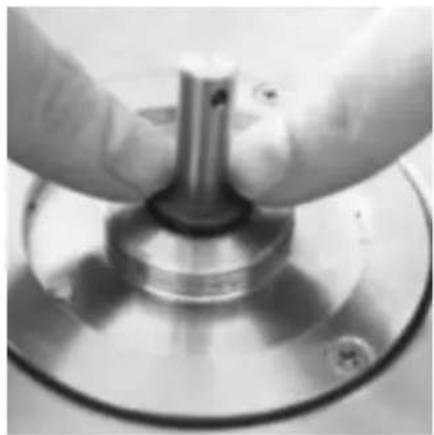

4) Insert the new air-proof ring (lubrication oil face down)

back to the motor axle (Make sure it is fully inserted)(Fig.5 on page 4).

5) Clean the remaining lubrication oil with a damp cloth and

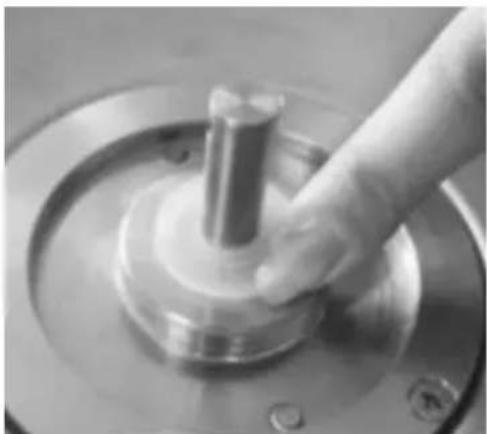

6) Insert the new silica gel ring back to the motor axle and fix

it firmly(Fig.6 on page 4).

7) Screw in chocolate pool back to the base unit.

NOTE! DON’T SCRATCH THE MOTOR AXLE WHEN TAKE OUT THE AIR-PROOF RING. Troubleshooting If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider. Problem Possible cause Possible solution Chocolate drips and doesn’t flow evenly down the fountain pipe. The chocolate is too thick. Add some vegetable oil to the chocolate. Do not mix water into the chocolate! The appliance is not level, but is slanted. Adjust the level of the appliance with the adjustable feet of the motor unit. Not enough choc- olate. Add some melted chocolate. The flow of choco- late is obstructed by pieces of food. Turn off the appliance and remove the pieces of fruit. The flow of chocolate is inter- rupted. Blockages in the flow of chocolate might be caused by pieces of food.

• Turn off the motor and clear the block- age.

Check if the motor is switched on and running.

Check the level of chocolate, add melted chocolate if necessary. The flow of chocolate is slow and doesn’t reach the top of the fountain pipe. There is air in the column, as a result of which the choc- olate cannot flow constantly.

Turn off the appliance and wait for a few minutes, until all the chocolate in the basin flows back. You will see bubbles escaping from beneath the fountain pipe.

Check chocolate level and add melted choc- olate if necessary. Warranty Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be re- paired by free repair or replacement provided the appliance has been used and maintained in accordance with the instruc- tions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt). In line with our policy of continuous product development we reserve the right to change the product, packaging and docu- mentation specifications without notice. Discarding & Environment When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibil- ity to dispose to your waste equipment by hand- ing it over to a designated collection point. Fail- ure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate col- lection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste10
