USER MANUAL SCA 16 FESTOOL

EU Declaration of Conformity. We declare under sole responsibility that this product complies with all the relevant requirments in the following EU Directi- ves, and following standards or normative documents were applied:

(T-Nr.) TCL 6 10021781 TCL 6 DUO 10451082 SCA 16 10425151 We as the manufacturer declare under our sole responsibility that the product(s) fulfill(s) all the relevant provisions of the following UK Regulations and are manufactured in accordance with the following desig- nated standards: S.I. 2016/1101 Electrical Equipment (Safety) Regulations 2016 S.I. 2016/1091 Electromagnetic Compatibility Regulations 2016 S.I. 2012/3032 Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 BS EN 60335-1:2012 + A2:2019 BS EN 60335-2-29:2004 + A11:2018 BS EN 55014-1:2017 + A11:2020 BS EN 55014-2:2015

Signed on behalf of and in name of

• 7 Operation p. 13
• 8 Service and maintenance p. 14
• 9 Environment p. 14

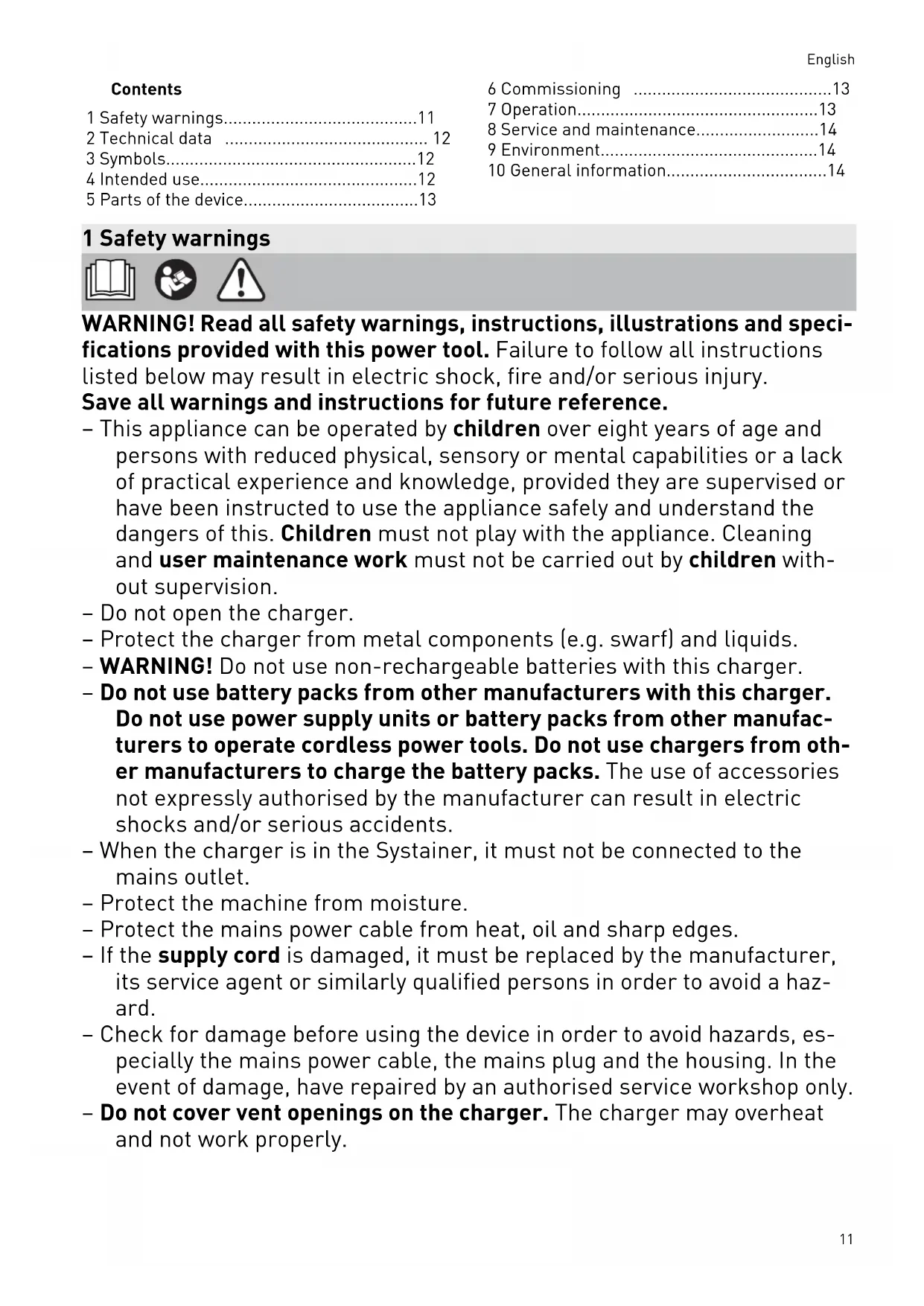

• 10 General information 1 Safety warnings WARNING! Read all safety warnings, instructions, illustrations and speci fications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. – This appliance can be operated by children over eight years of age and persons with reduced physical, sensory or mental capabilities or a lack of practical experience and knowledge, provided they are supervised or have been instructed to use the appliance safely and understand the dangers of this. Children must not play with the appliance. Cleaning and user maintenance work must not be carried out by children with out supervision. – Do not open the charger. – Protect the charger from metal components (e.g. swarf) and liquids. – WARNING! Do not use non-rechargeable batteries with this charger. – Do not use battery packs from other manufacturers with this charger. Do not use power supply units or battery packs from other manufac turers to operate cordless power tools. Do not use chargers from oth er manufacturers to charge the battery packs. The use of accessories not expressly authorised by the manufacturer can result in electric shocks and/or serious accidents. – When the charger is in the Systainer, it must not be connected to the mains outlet. – Protect the machine from moisture. – Protect the mains power cable from heat, oil and sharp edges. – If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a haz ard. – Check for damage before using the device in order to avoid hazards, es pecially the mains power cable, the mains plug and the housing. In the event of damage, have repaired by an authorised service workshop only. – Do not cover vent openings on the charger. The charger may overheat and not work properly. English 11– There is a risk of vapours being released if the battery pack is dam aged or not used correctly. The vapours may irritate your airways. Seek fresh air and consult a doctor if you feel unwell. – Only for AS/NZS: The tool shall always be supplied via residual current device with a rated residual current of 30 mA or less. 2 Technical data Charger SCA 16 TCL 6 TCL 6 DUO Power supply (input) 220 - 240 V~ 220 - 240 V~ 220 - 240 V~ Mains frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz Charging voltage (out put) p. 14

Output2: 10.8 - 18 V Charging current Max. 16 A Max. 6 A Output1: Max. 6 A Output2: Max. 6 A Charging times for BP and BPC battery packs, approx.

Permitted charging temperature range of the battery pack -5 °C to +55 °C Temperature monitoring via NTC resistor 3 Symbols Warning of general danger Warning of electric shock Read the operating instructions and safety instructions. Read the operating manual and safety warnings. For indoor use only

Fuse with specification of current value Safety transformers Safety class II Do not dispose of it with domestic waste. Do not dispose of it with domestic waste. Handling instruction UKCA marking: The United Kingdom Conformity Assessed symbol is a marking for products being placed on the market in the United Kingdom. It is a manufacturers indication that the product is in conformance with the rel evant regulations in the UK. 4 Intended use Chargers suitable – For internal use only. English 12– For charging Festool Li-ion battery packs BP, BPS and BPC with the following rated voltages and capacities:

10.8 V (3S1P) 1.3 Ah, 1.5 Ah, 2.5 Ah

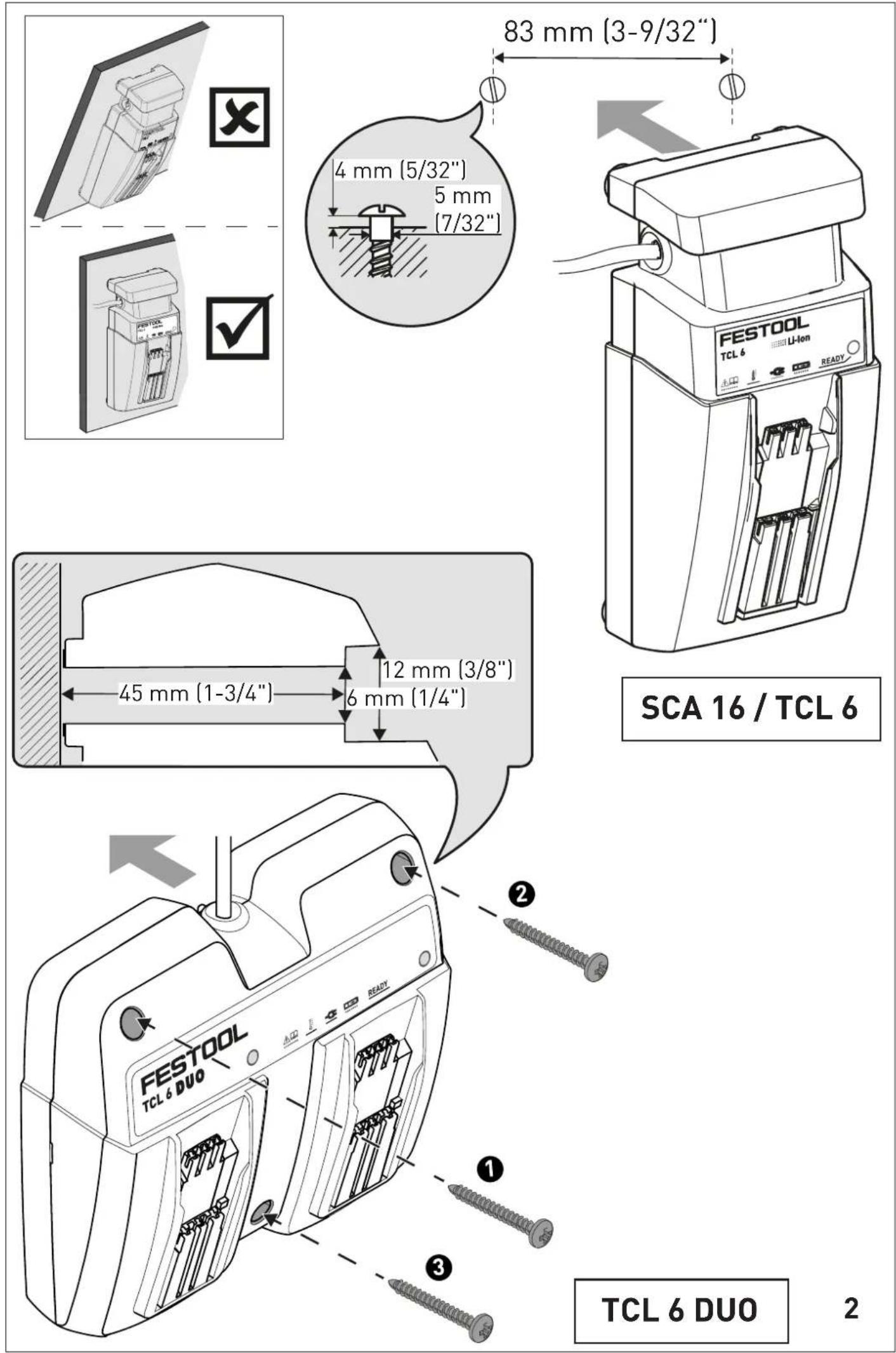

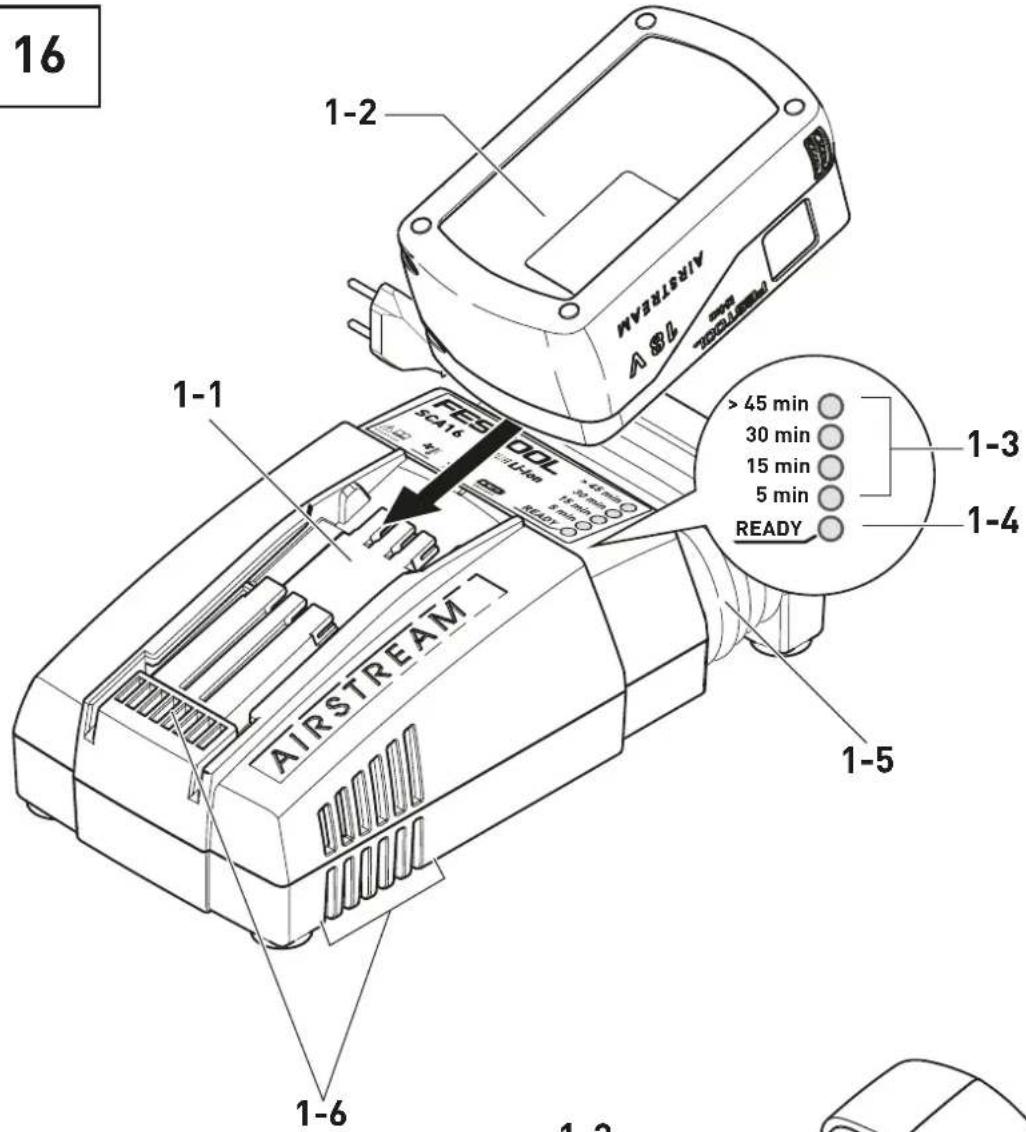

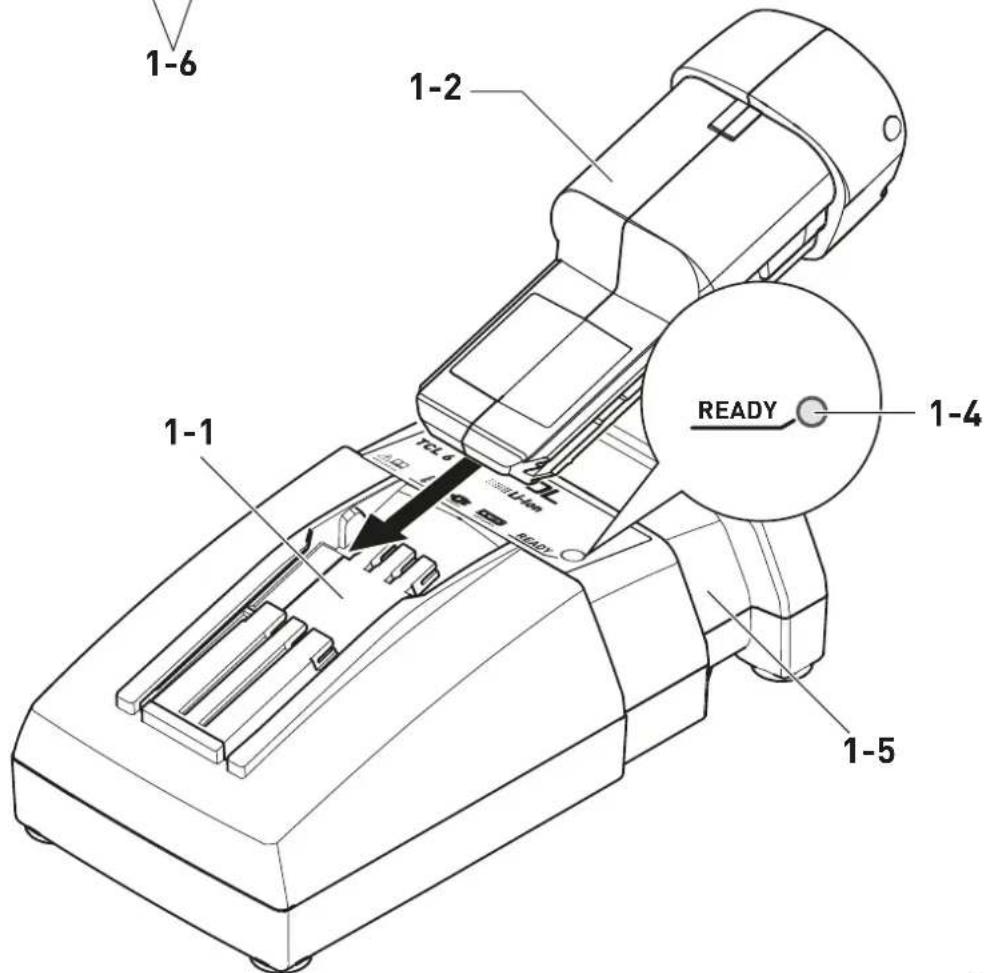

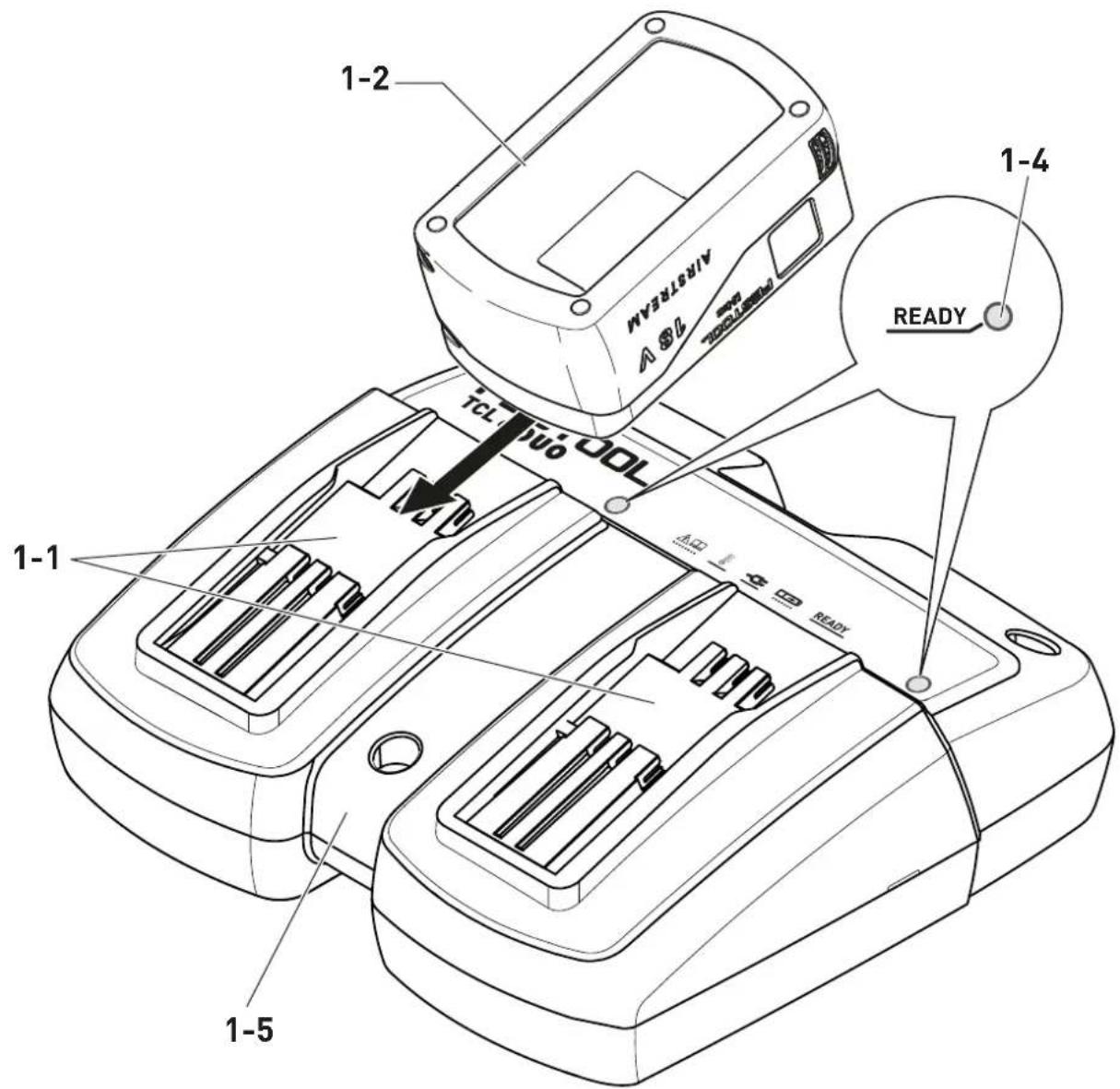

• Rapid charging battery packs The user is liable for improper or non-in tended use. 5 Parts of the device [1-1] Charging station [1-2] Battery pack [1-3] Remaining charge time display (SCA 16 only) [1-4] Charge status display [1-5] Mains power cable rewind [1-6] Vents (SCA 16 only) [2] Wall mount for charger The specified illustrations appear at the begin ning of the Operating Instructions. 6 Commissioning WARNING Unauthorised voltage or frequency. Risk of accidents ► The mains voltage and the frequency of the power source must correspond to the specifications on the name plate. ► In North America, only Festool machines with the voltage specifications 120 V / 60 Hz may be used.

WARNING! Before commissioning, completely unwind the mains power cable from the cut- out [1-5]. ► Insert the charger's mains plug in the sock et. ► Push the battery pack [1-2] into the charg ing station [1-1].

7.1 Meaning of the LEDs

After commissioning the charger, the LED of the charge status display [1-4] switches to yel low. SCA 16 self-check Before the LED of the charge status display switches to yellow, all LEDs [1-3] and [1-4] as well as fans [1-6] switch on for approx. 1 s. Operating statuses of the charger: LED yellow – steady light Charger is ready to use. LED green – flashing Battery pack is charging. LED green – steady light – READY The battery pack is > 80% charged and ready for use. In the background, the battery pack will continue to be charged up to 100%. READY LED red – flashing General fault indicator, e.g. not in full contact, short circuit, faulty battery pack, etc. LED red – steady light Battery temperature is outside the per mitted range. As soon as the permitted temper ature is reached, the charger automatically switches to charging. Remaining charge time (SCA 16 only) Display of anticipated remaining charge time: > 45 min30 mi 15 min 5 min ► Insert the battery pack. The charge status display [1-4] flashes several times. Anticipated remaining charge time is displayed by the corresponding LED [1-3] flashing.

7.2 Working instructions

Continuous or several consecutive charging cy cles can cause the charger to heat up. However, this does not do any harm and does not indicate a technical fault. When kept in the charger, battery packs remain fully charged. Only charge battery packs in a well-ventilated area. English 13AIRSTREAM (SCA 16 only) The SCA 16 charger is fitted with a fan and ac tively supports cooling of the BP 18...AS/I bat tery packs. 8 Service and maintenance Customer service and repairs must only be carried out by the manufac turer or service workshops. Find the nearest address at: www.festool.co.uk/service Always use original Festool spare parts. Order no. at: www.festool.co.uk/service EKAT

8.1 Observe the following information:

– Clean the charger with a soft, dry cloth to prevent damage. Do not use solvents. – Keep the connecting contacts on the charg er clean. – Do not cover the vents [1-6] on the SCA 16 charger. 9 Environment Do not dispose of the device in the household waste! Recycle devices, ac cessories and packaging. Observe appli cable national regulations. EU only: In accordance with the European Di rective on waste electrical and electronic equipment and implementation in national law, used power tools must be collected separately and handed in for environmentally friendly re cycling. Information about collection points for correct disposal is available at www.festool.co.uk/recy cling . Information on REACH: www.festool.co.uk/ reach 10 General information Imported into the UK by Festool UK Ltd 1 Anglo Saxon Way Bury St Edmunds IP30 9XH Great Britain English 14Sommaire 1 Consignes de sécurité
