| Brand | Metabo |
| Model | SBE 800-2 |
| Product type | Impact drill |
| Input power (P1) | 800 W |
| Output power (P2) | 450 W |
| No-load speed (1st gear) | 0 - 1200 rpm |
| No-load speed (2nd gear) | 0 - 2800 rpm |
| Max. impact rate | 44800 bpm |
| Max. drilling capacity (concrete) | 18 mm |
| Max. drilling capacity (steel) | 13 mm |
| Max. drilling capacity (wood) | 40 mm |
| Chuck capacity (max.) | 13 mm |
| Spindle thread | ½" - 20 UNF |
| Weight (without cable) | 2.1 kg |
| Protection class | II (double insulation) |
| Power supply | 230 V ~ 50 Hz |
| Main functions | Drilling with/without percussion, screwdriving, tapping |
| Rotation direction | Left / Right |
| Speed variator | Electronic (preset thumbwheel) |
| Safety clutch | Metabo S-automatic |
| Maintenance and cleaning | Clean the self-tightening chuck regularly; use a jaw cleaning spray |
| Safety | Additional handle, safety switch, protection against unintentional start-ups |
| Spare parts and repairability | Repairs by electrician; spare parts via Metabo after-sales service |
| General information | Manual available in multiple languages; recycling according to WEEE |
Frequently Asked Questions - SBE 800-2 METABO
User questions about SBE 800-2 METABO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual SBE 800-2 - METABO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SBE 800-2 by METABO.
USER MANUAL SBE 800-2 METABO
| ømm | |||||
| 4 | F | F | F | F | |
| 6 | B | F | F | F | |
| 8 | C | E | F | F | |
| 10 | B | D | F | F | |
| 13 | A | F | F | F | |
| 16 | F | F | |||
| 20 | F | ||||
| 30 | F | ||||
| 40 | F |
| A | B | C | D | E | F |  | |
| 1 | 900 | 960 | 1020 | 108 | |||
| 2 | 2300 | 2450 | 2600 | 2750 | 2900 | 3200 .../min | |
| ±40 | ±30 | ±25 | ±25 | ±20 | ±10 | % |
C

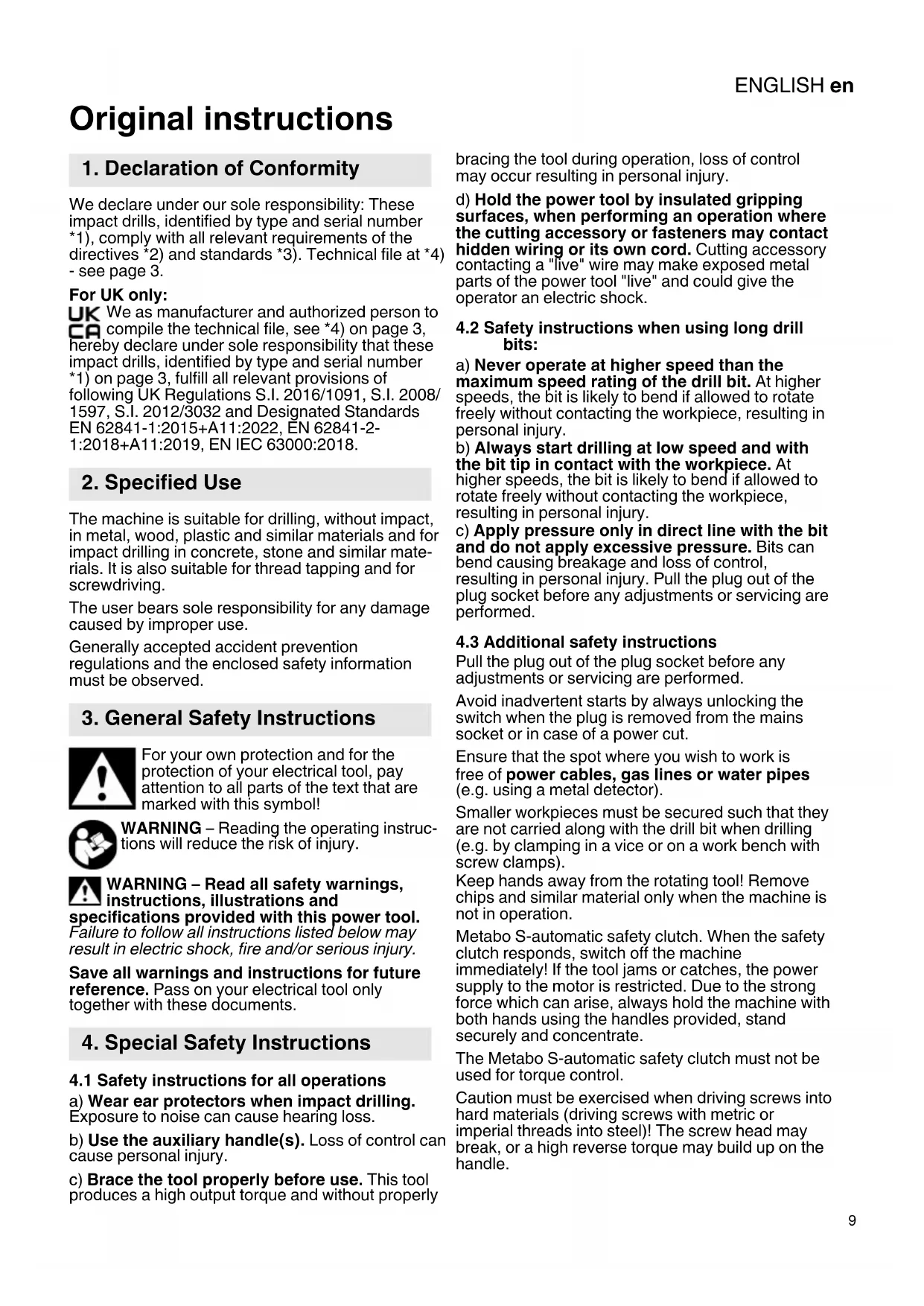

Original instructions
1. Declaration of Conformity
We declare under our sole responsibility: These impact drills, identified by type and serial number *1), comply with all relevant requirements of the directives *2) and standards *3). Technical file at *4) - see page 3.
For UK only:
UK CA We as manufacturer and authorized person to compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these impact drills, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2008/1597, S.I. 2012/3032 and Designated Standards EN 62841-1:2015+A11:2022, EN 62841-2-1:2018+A11:2019, EN IEC 63000:2018.
2. Specified Use
The machine is suitable for drilling, without impact, in metal, wood, plastic and similar materials and for impact drilling in concrete, stone and similar materials. It is also suitable for thread tapping and for screwdriving.
The user bears sole responsibility for any damage caused by improper use.
Generally accepted accident prevention regulations and the enclosed safety information must be observed.
3. General Safety Instructions
For your own protection and for the protection of your electrical tool, pay attention to all parts of the text that are marked with this symbol!
WARNING – Reading the operating instructions will reduce the risk of injury.
WARNING – Read all safety warnings, instructions, illustrations and
specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. Pass on your electrical tool only together with these documents.
4. Special Safety Instructions
4.1 Safety instructions for all operations
a) Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
b) Use the auxiliary handle(s). Loss of control can cause personal injury.
c) Brace the tool properly before use. This tool produces a high output torque and without properly
bracing the tool during operation, loss of control may occur resulting in personal injury.
d) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
4.2 Safety instructions when using long drill bits:
a) Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
b) Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
c) Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage and loss of control, resulting in personal injury. Pull the plug out of the plug socket before any adjustments or servicing are performed.
4.3 Additional safety instructions
Pull the plug out of the plug socket before any adjustments or servicing are performed.
Avoid inadvertent starts by always unlocking the switch when the plug is removed from the mains socket or in case of a power cut.
Ensure that the spot where you wish to work is free of power cables, gas lines or water pipes (e.g. using a metal detector).
Smaller workpieces must be secured such that they are not carried along with the drill bit when drilling (e.g. by clamping in a vice or on a work bench with screw clamps).
Keep hands away from the rotating tool! Remove chips and similar material only when the machine is not in operation.
Metabo S-automatic safety clutch. When the safety clutch responds, switch off the machine immediately! If the tool jams or catches, the power supply to the motor is restricted. Due to the strong force which can arise, always hold the machine with both hands using the handles provided, stand securely and concentrate.
The Metabo S-automatic safety clutch must not be used for torque control.
Caution must be exercised when driving screws into hard materials (driving screws with metric or imperial threads into steel)! The screw head may break, or a high reverse torque may build up on the handle.
ENGLISHen
Reducing dust exposure:
WARNING - Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
- Lead from lead-based paints,
- Crystalline silica from bricks and cement and other masonry products, and
- Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
This also applies to dust from other materials such as some timber types (like oak or beech dust), metals, asbestos. Other known diseases are e.g. allergic reactions, respiratory diseases. Do not let dust enter the body.
Observe the relevant guidelines and national regulations for your material, staff, application and place of application (e.g. occupational health and safety regulations, disposal).
Collect the particles generated at the source, avoid deposits in the surrounding area.
Use suitable accessories for special work. In this way, fewer particles enter the environment in an uncontrolled manner.
Use a suitable extraction unit.
Reduce dust exposure with the following measures:
- do not direct the escaping particles and the exhaust air stream at yourself or nearby persons or on dust deposits,
- use an extraction unit and/or air purifiers,
- ensure good ventilation of the workplace and keep clean using a vacuum cleaner. Sweeping or blowing stirs up dust.
- Vacuum or wash the protective clothing. Do not blow, beat or brush.
5. Overview
See page 2.
1 Thumbwheel for gear selection
2 Additional handle
3 Geared chuck*
4 Keyless chuck *
5 Depth stop
6 Sliding switch for normal drilling/impact drilling
7 Speed preselection wheel *
8 Rotation selector switch
9 Handle (gripping surface)
10 Locking button for continuous activation
11 Trigger switch
* depending on equipment
6. Initial Operation
Before plugging in, check that the rated mains voltage and mains frequency, as stated on the g label, match with your power supply.
Australia: Always use a residual current device (RCD) protected supply with a rated residual nt of 30mA or less.

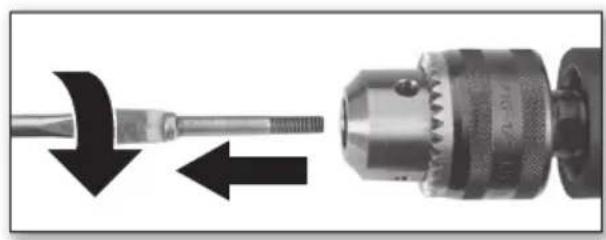

To ensure that the drill chuck is securely fitted: After initial drilling (clockwise), use a
screwdriver to firmly tighten the safety screw inside the drill chuck (if applicable / model-specific).
Caution left-handed thread!
(see Section 7.9.)
6.1 Assembly of additional handle (2)
For safety reasons, always use the additional handle supplied.
Open the clamping ring by turning the additional handle (2) counter-clockwise. Push the additional handle onto the collar of the machine. Slide the additional handle far enough forward so that it can be turned. At the desired angle, pull it back and tighten firmly.
7. Use
7.1 Adjusting the Depth Stop
Loosen the additional handle (2). Set depth stop (5) to the desired drilling depth and retighten additional handle.
7.2 Setting direction of rotation, transport lock (switch-on lock)
Do not activate the rotation selector switch (8) unless the motor has completely stopped.
See page 2.
R = Clockwise setting
L = Counter-clockwise setting
The drill chuck must be firmly screwed onto the spindle and the safety screw inside the drill kit (if applicable / model-specific) must be firmlyened with a screwdriver. (Caution, left-handed and!) If rotated counterclockwise (e.g. when swing) it could otherwise become loose.
7.3 Selecting a gear
Select the desired gear by turning the thumbwheel (1).
Change speed only when the machine is in the process of running down (briefly switch it on and off).
1st gear (low speed, high torque) e.g. for screwdriving, drilling
2nd gear (high speed) e.g. for drilling
7.4 Switching Between Normal Drilling/Impact Drilling
Select the desired operating mode by pushing the sliding switch (6).
Drilling
Impact drilling
Work with high speed settings when impact drilling.
Impact drilling and normal drilling only in a clockwise direction.
7.5 Preselect speed
Use the setting wheel (5) to preselect the maximum speed. See page 4 for recommended drilling speeds.
7.6 Switching on/off, changing speed
Switching on, speed: press the trigger (11).
The speed can be changed by pressing in the trigger.
Release the trigger to switch off.
Continuous activation: While pressing on the trigger (11), press in the locking button (10) and then release the trigger. To switch off, press and release the trigger (11) again.
In continuous operation, the machine continues running if it is forced out of your
hands. Therefore, always hold the machine with both hands using the handles provided, stand in a safe position and concentrate.
7.7 Tool change with (4) chuck
See illustrations A on page 2.
Opening the drill chuck:
Grip the retaining ring and, using the other hand, rotate the sleeve in the direction of the arrow -1-.
The grating sound (depending on function) which may be heard after opening the drill chuck is stopped by turning the sleeve in the opposite direction.
If the chuck is very tightly secured, disconnect from mains. Hold the chuck using an open-end spanner at the flats on its head, and turn the sleeve vigourously in the direction of the arrow -1-.
Clamping the tool
- Insert the tool -2- as far as it will go.
- Grip the retaining ring and, using the other hand, rotate the sleeve in the direction of the arrow -3- until the mechanical resistance which can be felt is overcome.
- Caution! The tool is not yet fully clamped!
Keep turning the sleeve (it must "click" when turning) until it cannot be turned any further - only now is the tool securely clamped.
In the case of a soft tool shank, retightening may be required after a short period of drilling.
7.8 Tool change with a geared chuck (3)
See illustrations B on page 2.
Opening the chuck: Opening a geared chuck with the chuck key -1-.
Clamping the tool: Insert tool -2- as far as it will go and tighten equally in all 3 bores using the chuck key -3-.

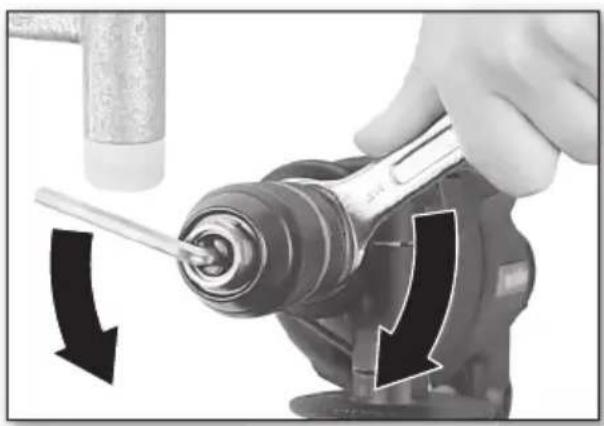

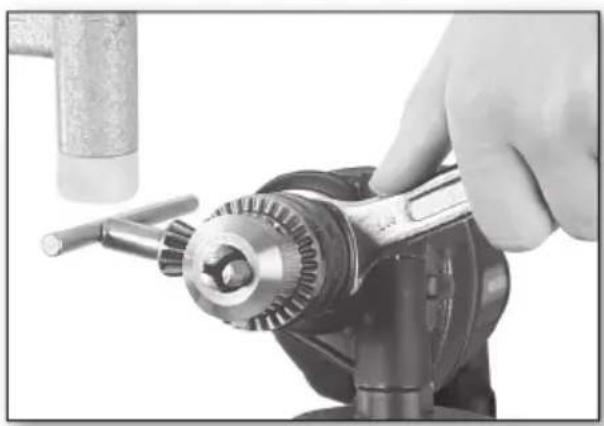

7.9 Unscrew the chuck (when driving screws without the chuck or for use with attachments)
See illustrations A, B, on page 3.
Note for Fig. A, B: Release by tapping lightly with a rubber hammer, as shown, and unscrew.
Note: If a bit clamping bush (order no. 6.31281) is attached, the screwdriver bit inserted in the hexagon socket of the spindle is held in place.
8. Cleaning, Maintenance
Cleaning the keyless chuck:
After prolonged use hold the chuck vertically, with the opening facing down, and fully open and close it several times. The dust collected falls from the opening. Regular use of cleaning spray on the jaws and jaw openings is recommended.
9. Accessories
Use only genuine Metabo accessories.
Use only accessories which fulfil the requirements and specifications listed in these operating instructions.
Fit accessories securely. Secure the machine if it is operated in a bracket. Loss of control can cause personal injury.
For a complete range of accessories, see www.metabo.com or the main catalogue.
10. Repairs
Repairs to electrical tools must be carried out by qualified electricians ONLY!
A defective mains cable must only be replaced with a special, original mains cable from metabo, which is available only from the Metabo service.
If you have Metabo electrical tools that require repairs, please contact your Metabo service centre. For addresses see www.metabo.com.
You can download spare parts lists from www.metabo.com.
11. Environmental Protection
Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.
Packaging materials must be disposed of according to their labelling in accordance with municipal guidelines. Further information can be found at www.metabo.com in the “Service” section.
Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Guideline 2012/
19/EU on used electronic and electric equipment and its implementation in national legal systems,
ENGLISHen
used power tools must be collected separately and handed in for environmentally compatible recycling.
12. Technical Specifications
Explanatory notes on the information on page 3. Changes due to technological progress reserved.
P_1 =Rated input
P_2 =Power output
n_1^*=No-load speed
n_2^* = Load speed
max = Max. drill diameter
s max =Max. impact rate
b =Chuck capacity
G = Drill spindle thread
H = Drill spindle with hexagon socket
m = Weight
D = Collar diameter
Measured values determined in conformity with EN 62841.
□ Machine in protection class II
\~ Alternating current
The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).
* Energy-rich, high-frequency interference can cause fluctuations in speed. The fluctuations disappear, however, as soon as the interference fades away.
Emission values
Using these values, you can estimate the emissions from this power tool and compare these with the values emitted by other power tools. The actual values may be higher or lower, depending on the particular application and the condition of the tool or power tool. In estimating the values, you should also include work breaks and periods of low use. Based on the estimated emission values, specify protective measures for the user - for example, any organisational steps that must be put in place.
Vibration total value (vector sum of three directions) determined in accordance with EN 62841:
$$ \begin{array}{l} a _ {h, I D} = \text { Vibration emission value } \ (i m p a c t d r i l l i n g i n t o c o n c r e t e) \ \mathbf {a} _ {\mathrm{h}, \mathrm{D}} = \text { Vibration emission value } \ (d r i l l i n g \text { into metal }) \ K _ {h, I D / D} = \text { Uncertainty (vibration) } \ \end{array} $$
Typical A-effective perceived sound levels:
L_pA = Sound pressure level
L_WA^' = Acoustic power level
K_pA, K_WA = Uncertainty
Wear ear protectors!
Notice originale
Perçage sans percussion
K_n, ID/D = Incertitude (vibration)
a_h,D = trillingsemissiewaarde (boren in metaal)
K_h,ID/D = onzekerheid (trilling)
$$ \begin{array}{r l} a _ {h, D} & = \text { Vibrationsemissionsvärde (borrning i } \ & \text { metall) } \end{array} $$
$$ K _ {n, I D / D} = \text { onoggrannhet (vibrationer) } $$
Normal, A-viktad ljudnivå:
$$ L _ {p A} = L j u d t r y c k s n i v \text { a } $$
$$ L _ {W A} ^ {\text { i n }} = \text { l j u d e f f e k t n i v } \mathrm{a} $$
$$ K _ {p A}, K _ {W A} = O s \text { a k e r h e t } $$
Använd hörselskydd!
L_pA =äänenpainetaso
L_WA =äänentehotaso
6 Skyvebryter (boring/slagboring)
6 Skydekontakt (boring/slagboring)
a_h, ID =Vibrationsemission (slagboring i beton)
a_h,D =Vibrationsemission (boring i metal)
K_h, ID/D = Usikkerhed (vibration)
Metabo-Allee 1
72622 Nuertingen
Germany
www.metabo.com
metabo®
PROFESSIONAL POWER TOOL SOLUTIONS
