HSA 1930 - Vacuum Cleaner Herkules - Free user manual and instructions
Find the device manual for free HSA 1930 Herkules in PDF.
| Product type | Wet and dry vacuum cleaner |
| Brand | Herkules |
| Model | HSA 1930 |
| Category | Vacuum cleaner |
| Supply voltage | 230 V ~ 50 Hz |
| Power consumption | 1500 W |
| Max. tool outlet power | 2000 W |
| Max. total power | 3500 W |
| Container volume | 30 liters |
| Weight | 6.3 kg |
| Operating mode | Dry vacuuming, wet vacuuming, blowing |
| Filter for dry vacuuming | Pleated filter |
| Filter for wet vacuuming | Foam filter |
| Float safety valve | Yes, automatic shut-off at max. level |
| Automatic tool outlet | Yes, AUTO mode |
| Hose connections | Vacuuming and blowing |
| Included accessories | Flexible hose, 3-part tube, combination brush, flat nozzle, 2 wheels, 2 casters, handle, intermediate piece, screws, washers |
| Filter cleaning | Recommended after each use: tap pleated filter, wash foam filter with soapy water |
| Container maintenance | Clean with soapy water |
| Storage | Dry, dark, frost-free place between 5 and 30 °C |
| Warranty period | 5 years on the device (according to conditions) |
Frequently Asked Questions - HSA 1930 Herkules
User questions about HSA 1930 Herkules
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual HSA 1930 - Herkules and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HSA 1930 by Herkules.
USER MANUAL HSA 1930 Herkules
GBR Original operating instructions Wet and dry vacuum cleaner

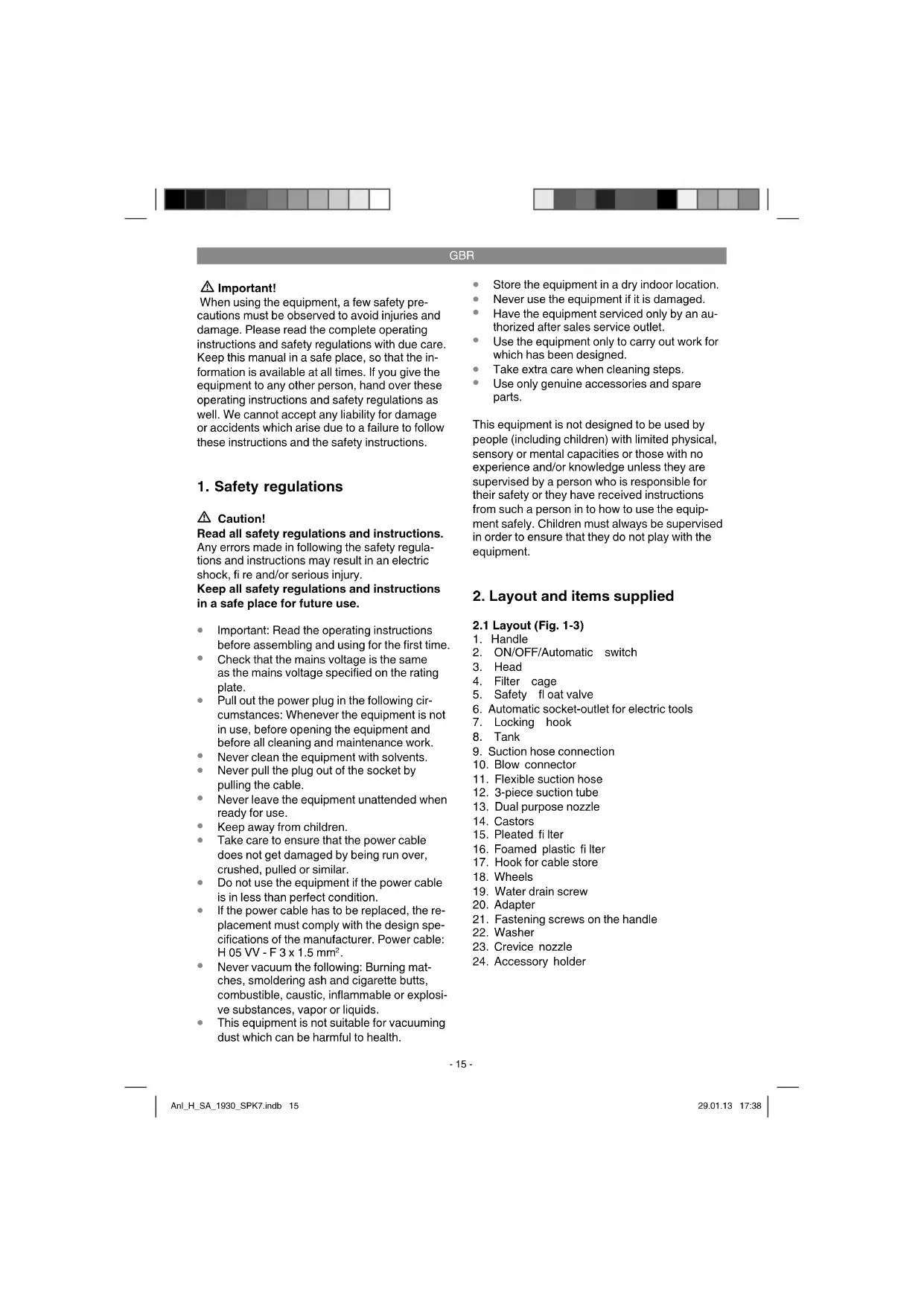

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
Caution!
Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.
- Important: Read the operating instructions before assembling and using for the first time.
- Check that the mains voltage is the same as the mains voltage specified on the rating plate.
- Pull out the power plug in the following circumstances: Whenever the equipment is not in use, before opening the equipment and before all cleaning and maintenance work.
• Never clean the equipment with solvents. - Never pull the plug out of the socket by pulling the cable.
- Never leave the equipment unattended when ready for use.
- Keep away from children.
- Take care to ensure that the power cable does not get damaged by being run over, crushed, pulled or similar.
- Do not use the equipment if the power cable is in less than perfect condition.
- If the power cable has to be replaced, the replacement must comply with the design specifications of the manufacturer. Power cable: H 05 VV - F 3 x 1.5 mm ^2 .
- Never vacuum the following: Burning matches, smoldering ash and cigarette butts, combustible, caustic, inflammable or explosive substances, vapor or liquids.
- This equipment is not suitable for vacuuming dust which can be harmful to health.
• Store the equipment in a dry indoor location.
• Never use the equipment if it is damaged.
- Have the equipment serviced only by an authorized after sales service outlet.
• Use the equipment only to carry out work for which has been designed.
• Take extra care when cleaning steps.
- Use only genuine accessories and spare parts.
This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in to how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.
2. Layout and items supplied
2.1 Layout (Fig. 1-3)
- Handle
- ON/OFF/Automatic switch
- Head
- Filter cage
- Safety float valve
- Automatic socket-outlet for electric tools
-
Locking hook
-
Tank
-
Suction hose connection
-
Blow connector
-
Flexible suction hose
-
3-piece suction tube
-
Dual purpose nozzle
-
Castors
-
Pleated filter
-
Foamed plastic filter
-
Hook for cable store
-
Wheels
-
Water drain screw
-
Adapter
-
Fastening screws on the handle
-
Washer
-
Crevice nozzle
-
Accessory holder
GBR
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.
Important!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!
- Handle
- Suction hose
• 3-piece suction tube
• Dual purpose nozzle - Castor (2x)
• Pleated filter with cover
• Foamed plastic filter - Wheel (2x)
Adapter
• Fastening screw for handle (2x) - Washer (2x)
- Crevice nozzle
• Original operating instructions
The equipment comes with a chain (z) on the tank bottom. The chain helps to prevent static charging during use.
3. Proper use
The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropriate filter. The equipment is not suitable for the vacuuming of combustible, explosive or harmful substances.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Mains voltage....230V \~ 50 Hz
Power consumption: 1500 W
Max. power consumption
Automatic socket-outlet: 2000 W
Max. total power consumption: 3500 W
Tank volume: 30 l
Weight: 6.3 kg
5. Before starting the equipment
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
The equipment may be connected only to a shock-proof socket-outlet.
5.1 Assembling the equipment
Fitting the equipment head (Fig. 6)
The equipment head (3) is fastened to the tank (8) by the locking hook (7). To remove the equipment head (3), open the locking hook (7) and take off the equipment head (3). When fitting the equipment head (3), make sure that the locking hook (7) locks into place correctly.
Fitting the wheels (Fig. 5)
Fit the wheels in accordance with Fig. 5.
GBR
Fitting the handle (Fig. 4)
Use a screwdriver to fit the handle (1).
5.2 Fitting the fi Iters
Caution!
Never use the wet and dry vacuum cleaner without a filter.
Always ensure that the filters are securely seated.
Fitting the foam fi Iter (Fig. 7)
For wet vacuuming, slip the supplied foam fi lter (16) over the fi lter basket (Fig. 2/4). The pleated filter (15) already fitted upon delivery is not suitable for wet vacuuming.
Fitting the pleated fi Iter (Fig. 8)
For dry-vacuuming, slip the pleated filter (Fig. 15) over the filter basket (Fig. 2/4). The pleated filter (15) is suitable for dry-vacuuming only.
Fitting the dirt bag
(not supplied)
For vacuuming fi ne, dry dirt it is recommended that you also fi t the dirt bag. This will ensure that the pleated fi iter (15) does not clog up so quickly and help maintain the vacuuming power. It also makes it easier to dispose of the dust. Slip the dirt bag over the vacuuming hole. The dirt bag is suitable for dry-vacuuming only.
5.3 Fitting the suction hose (Fig. 9-12)
Connect the suction hose (11) to the corresponding connector on the wet and dry vacuum cleaner, depending on the application required.
Vacuuming
Connect the suction hose (11) to the suction hose connector (9).
Blowing
Connect the suction hose (11) to the blow connector (10).
To extend the suction hose (11) you can attach one or more of the elements which make up the 3-part suction tube (12) to the suction hose (11).
5.4 Suction nozzles
Combination nozzle (13)
The dual-purpose nozzle (13) is for vacuuming solids and liquids over medium to large areas.
6. Operation
6.1 ON/OFF switch (Fig. 2/2)
Switch position 0: Off
Switch position I: Normal mode
Switch position AUTO: Automatic mode
6.2 Dry vacuuming
For dry-vacuuming, use the pleated filter (15). In addition, you can also fit the dirt bag. (See point 5.2)
Always ensure that the filters are securely seated.
6.3 Wet vacuuming
For wet-vacuuming, use the foam filter (16) (see point 5.2).
Check that the filter is securely seated at all times.
Water drain screw (Fig. 1)
To make the tank (8) easier to empty after wet vacuuming, it is fitted with a water drain screw (19). Open the water drain screw (19) by turning it anticlockwise and drain the liquid.
Caution!
When wet vacuuming, the floating safety switch (5) closes when the maximum tank level is reached. At the same time, the suction noise of the equipment will change and become louder. You must then switch off the equipment and empty the tank.
Caution!
The wet and dry vacuum cleaner is not suitable for the vacuuming of combustible liquids. For wet vacuuming, use only the supplied foam filter.
6.4 Automatic mode
Connect the power cable of your electric tool to the automatic socket-outlet (6) and connect the suction hose (11) to the vacuuming connector of your electric tool. Check that the connections are secure and air-tight.
Set the switch (2) on the wet and dry vacuum cleaner to position „AUTO“ (automatic mode).
The moment you switch on the electric tool, the wet and dry vacuum cleaner switches on as well. When you switch off the electric tool, the wet and dry vacuum cleaner switches off as well after a pre-set delay.
GBR
6.5 Blowing
Connect the suction hose (11) to the blow connector (10) on the wet and dry vacuum cleaner.
7. Cleaning, maintenance and ordering of spare parts
Always pull out the mains power plug before starting any cleaning work.
7.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.
• We recommend that you clean the equipment immediately after you use it.
7.2 Cleaning the equipment head (3)
Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment.
7.3 Cleaning the tank (8)
The tank can be cleaned with a damp cloth and some soft soap or under running water, depending on the amount of dirt.
7.4 Cleaning the fi Iters
Cleaning the pleated fi Iter (15)
Clean the pleated filter (15) regularly by carefully patting it and cleaning it with a fine brush or hand brush.
Cleaning the foam fi Iter (16)
Clean the foam filter (16) with a little soft soap under running water and allow it to air-dry.
7.5 Maintenance
At regular intervals and before each use, check that the fi Iters in the wet and dry vacuum cleaner are securely fitted.
7.6 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info
8. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
9. Storage
Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.
GBR
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
GBR
Warranty provisions
iSC GmbH or the DIY store where you made you purchase guarantees the repair of defects or replacement of the equipment in accordance with the overview below. Statutory guarantee claims are unaffected.
| Category Example Warranty | ||
| Defect with regard to material or construction | 24 months | |
| Wear parts* Combination nozzle, | crevice nozzle, upholstery nozzle, electric tool adapter, etc. | 6 months |
| Consumables* | Pleated filter, foam filter, dirt bag, additional fi lter, etc. | Warranty only in case of an immediate defect (24 hours after purchase / date on the bill) |
| Missing parts 5 work days | ||
* Not necessarily included in the scope of delivery!
For consumables, wear parts and missing parts iSC GmbH guarantees the correction of defects or a new delivery only if the defect is reported within 24 hours (consumables), 5 work days (missing parts) or 6 months (wear parts) after purchase and the purchase date is verified with the bill.
In case of defects concerning the material or construction, we kindly request you to submit the equipment together with the fully completed warranty card supplied with the equipment. It is important that you enter an exact description of the defect.
To do so, answer the following questions:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
GBR
Warranty certifi cate
Dear Customer,
In the unlikely event that your device develops a fault, we are truly sorry for this, and suggest that you please contact our service department at the address shown on this guarantee card, or contact the nearest authorised DIY store. Please note the following terms, under which guarantee claims can be made:
- These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
- Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rendered null and void if any attempt is made to tamper with the device.
- The guarantee is valid for a period of 5 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
- In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.
Also refer to the restrictions of this warranty concerning wear parts/consumables and missing parts as set forth in the warranty conditions in these operating instructions.
FRA
Attention!
Position I: Normal drift
Position AUTO: Automatisk drift
6.2 Tørsugning
2006/42/EC
Annex IV
Notified Body:
Notified Body No.:
Reg. No.
□2000/14/EC_2005/88/EC
□ Annex V
Annex VI
P = KW: L/∅ = cm
Notified Body:
2004/26/EC
Emission No.:
Noise: measured L_=dB(A) ; guaranteed L_=dB(A)
Standard references: EN 60335-1; EN 60335-2-2; EN 62233; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Yu Feng Quing/Product-Management/Weichselgartner/General-Manager
First CE: 13
Art.-No.: 23.421.85 I.-No.: 11013
Subject to change without notice
Archive-File/Record: NAPR007892
Documents registrar: Siegfried Roider
Wiesenweg 22, D-94405 Landau/Isar
EH 01/2013 (01)
