| Product type | Wet and dry vacuum cleaner |
| Brand | Herkules |
| Model | HNT 1820 Inox |
| Supply voltage | 230 V ~ 50 Hz |
| Power consumption | 1250 W |
| Tank volume | 20 L |
| Weight | 5.0 kg |
| Protection class | II (double insulation) |
| Suction type | Dry and wet |
| Blower function | Yes |
| Filter for dry vacuuming | Additional filter + dirt collection bag |
| Filter for water vacuuming | Foam filter |
| Automatic safety shut-off | Yes (float valve) |
| Included accessories | Flexible hose, 3-piece tube, combination nozzle, flat nozzle, intermediate piece, 4 wheels, collection bag |
| Tank material | Stainless steel |
| Power cable length | Approx. 5 m |
| Warranty | 60 months |
| Recommended storage temperature | 5 to 30 °C |
| Filter maintenance | Clean foam filter with soapy water, tank washable |
Frequently Asked Questions - HNT 1820 Inox Herkules
User questions about HNT 1820 Inox Herkules
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual HNT 1820 Inox - Herkules and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HNT 1820 Inox by Herkules.
USER MANUAL HNT 1820 Inox Herkules
GB Original operating instructions Wet and dry vacuum cleaner
DE
Gefahr!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

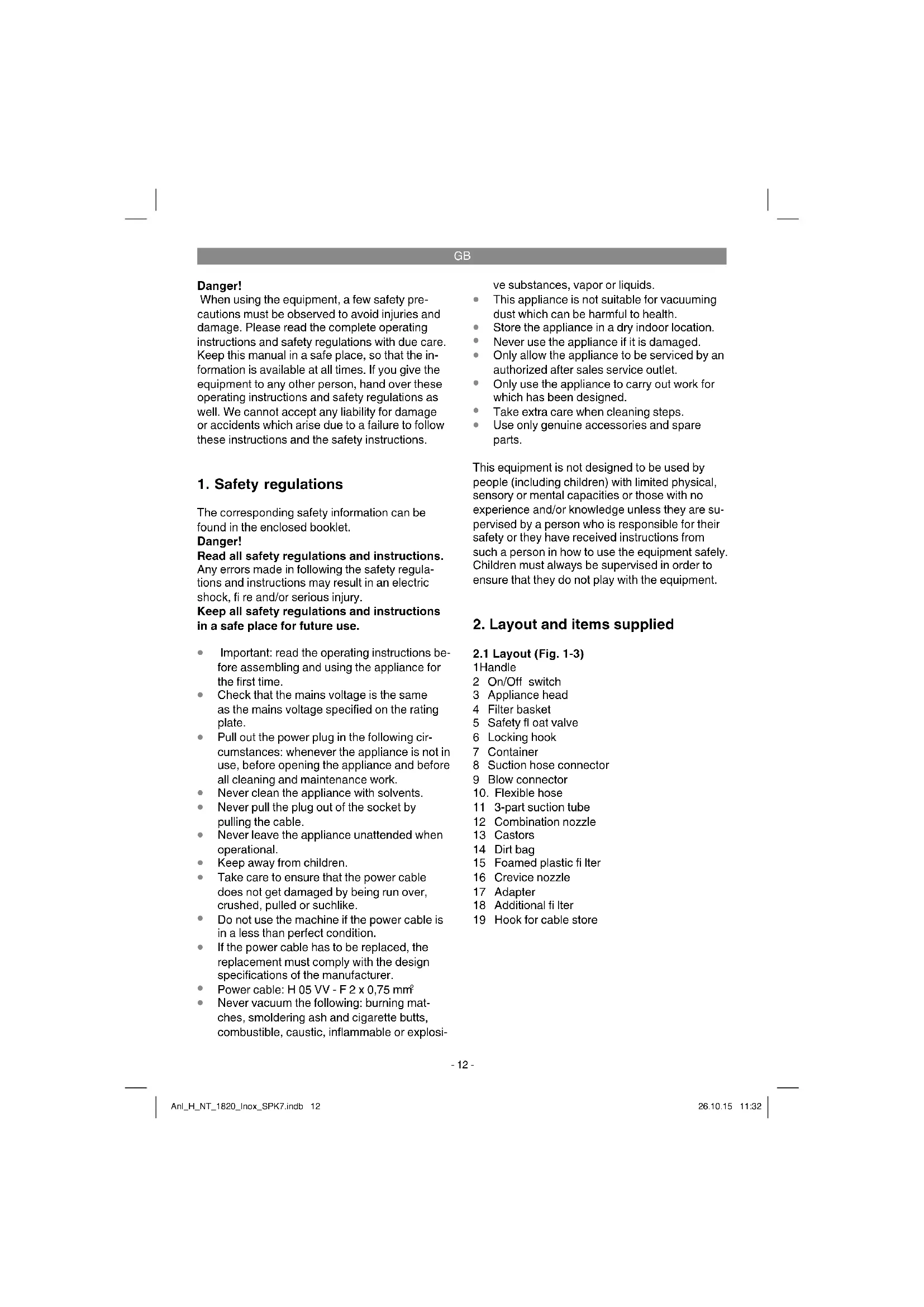

1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Danger!
Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.
- Important: read the operating instructions before assembling and using the appliance for the first time.
- Check that the mains voltage is the same as the mains voltage specified on the rating plate.
- Pull out the power plug in the following circumstances: whenever the appliance is not in use, before opening the appliance and before all cleaning and maintenance work.
• Never clean the appliance with solvents. - Never pull the plug out of the socket by pulling the cable.
- Never leave the appliance unattended when operational.
- Keep away from children.
• Take care to ensure that the power cable does not get damaged by being run over, crushed, pulled or suchlike. - Do not use the machine if the power cable is in a less than perfect condition.
- If the power cable has to be replaced, the replacement must comply with the design specifications of the manufacturer.
• Power cable: H 05 VV - F 2 x 0,75 mm² - Never vacuum the following: burning matches, smoldering ash and cigarette butts, combustible, caustic, inflammable or explosi-
ve substances, vapor or liquids.
- This appliance is not suitable for vacuuming dust which can be harmful to health.
• Store the appliance in a dry indoor location.
• Never use the appliance if it is damaged.
- Only allow the appliance to be serviced by an authorized after sales service outlet.
- Only use the appliance to carry out work for which has been designed.
• Take extra care when cleaning steps.
- Use only genuine accessories and spare parts.
This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.
2. Layout and items supplied
2.1 Layout (Fig. 1-3)
1Handle
2 On/Off switch
3 Appliance head
4 Filter basket
5 Safety float valve
6 Locking hook
7 Container
8 Suction hose connector
9 Blow connector
10. Flexible hose
11 3-part suction tube
12 Combination nozzle
13 Castors
14 Dirt bag
15 Foamed plastic filter
16 Crevice nozzle
17 Adapter
18 Additional fi Iter
19 Hook for cable store
GB
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.
Important!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!
• Flexible suction hose
• 3-piece suction tube
• Dual purpose nozzle
4x wheels
- Dirt bag
- Foam filter
- Crevice nozzle
Adapter
• Additional filter
• Original operating instructions
The equipment comes with a chain (z) on the tank bottom. The chain helps to prevent static charging during use.
3. Proper use
The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropriate fi lter. The appliance is not suitable for the vacuuming of combustible, explosive or harmful substances.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Mains voltage: 230 V \~ 50 Hz
Power input: 1.250 W
Container volume: 20 l
Weight: 5.0 kg
Protection class: ......II/回
5. Before starting the equipment
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
The equipment may be connected only to a shock-proof socket-outlet.
Warning!
Always pull the power plug before making adjustments to the equipment.
5.1 Appliance assembly
Fitting the appliance head (Fig. 4)
The appliance head (3) is fastened to the container (7) by the locking hook (6). To remove the appliance head (3), open the locking hook (6) and remove the appliance head (3). When fi tting the appliance head (3), make sure that the locking hook (6) locks into place correctly.
GB
Fitting the castors (Fig. 5)
Fit the castors (13) in accordance with Fig. 5.
Fitting the handle (Fig. 8)
Use a screwdriver to fit the handle (1).

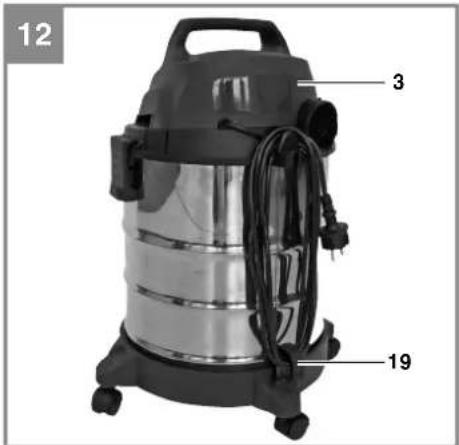

Mounting the hook for the cable store (Fig. 12)
Press the hook for the cable store (19) into the mount. After use, the power cable can be wound up onto the hook (19) and the head (3).
5.2 Fitting the fi Iter
Important!
Never use the wet and dry vacuum cleaner without a filter!
Always ensure that the filters are perfectly secure!
Fitting the foam fi Iter (Fig. 6)
For wet-vacuuming, slip the supplied foamed plastic filter (15) over the filter basket.
Fitting the additional fi Iter (Fig. 7)
For dry vacuum cleaning always use the supplied additional filter (18). Mount the additional filter, so that no air is sucked through the filter cage (4) without being filtered.
Assembling the dirt bag (Fig. 9)
For vacuuming fi ne, dry dirt it is recommended that you fi t the dirt bag (14). Slip the dirt bag (14) over the vacuuming hole. The dirt bag (14) is suitable for dry-vacuuming only. The dirt bag makes it easier to dispose of the sucked-in dust.

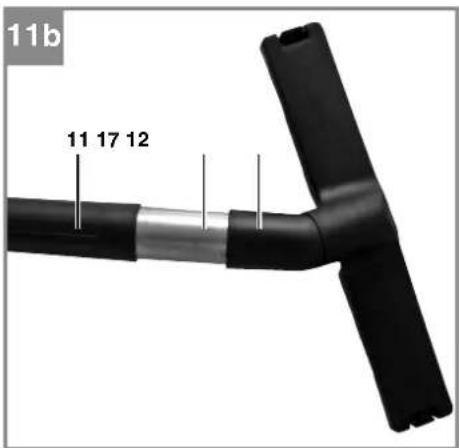

5.3 Fitting the suction hose (Fig. 3, 10, 11)
Connect the suction hose (10) to the corresponding connector on the wet and dry vacuum cleaner, depending on the application required.
Vacuuming
Connect the suction hose (10) to the suction hose connector (8)
Blowing
Connect the suction hose (10) to the blow connector (9)
One or more of the elements which make up the 3-part suction tube (11) can be attached to the suction hose (10) to extend it. The adapter (17) must be inserted between the suction tube (10) and the combination nozzle (12) or crevice nozzle (16).
5.4 Suction nozzles
The combination nozzle (12) with attachments is for vacuuming solids and liquids over medium to large areas. The crevice nozzle (16) is specially designed for cleaning cervices and edges.
6. Operation
Important!
Switch off the equipment if liquid or foam is emitted with the exhaust air when wet vacuum cleaning.
6.1 On/Off switch (Fig. 1)
Switch position 0: Off
Switch position I: On
6.2 Dry vacuuming
Use the dirt bag (14) and the additional filter (18) for dry vacuuming (see point 5.2).
Always ensure that the filters are perfectly secure.
6.3 Wet vacuuming
For wet-vacuuming, use the foam filter (15) (see point 5.2).
Check that the filter is securely fitted at all times.
Important!
When wet vacuuming, the floating safety switch (5) turns off the wet and dry vacuum cleaner automatically when the maximum level is reached.
Important!
The wet and dry vacuum cleaner is not suitable for the vacuuming of combustible liquids.
For wet vacuuming, use only the supplied foam filter.
6.4 Blowing
Connect the suction hose (10) to the blow connector (9) on the wet and dry vacuum cleaner.
GB
7. Cleaning, maintenance and ordering of spare parts
Important!
Always pull out the mains power plug before starting any cleaning work.
7.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.
• We recommend that you clean the equipment immediately after you use it.
7.2 Cleaning the appliance head (3)
Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance.
7.3 Cleaning the container (7)
The container can be cleaned with a damp cloth and some soft soap or under running water, depending on the amount of dirt.
7.4 Cleaning the foam fi Iter (15)
Clean the foam filter (15) with a little soft soap under running water and allow it to air-dry.
7.5 Servicing
At regular intervals and before each use, check that the fi Iters in the wet and dry vacuum cleaner are securely fitted.
7.6. Ordering spare parts
Please provide the following information on all orders for spare parts:
• Model/type of the equipment
• Article number of the equipment
• ID number of the equipment
• Part number of the required spare part
For our latest prices and information please go to www.isc-gmbh.info
8. Replacing the power cable
Danger!
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
9. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
10. Storage
Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
GB
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
GB
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
| Category Example | |
| Wear parts* Combination nozzle, crevice nozzle, upholstery nozzle, electric tool adapter, etc. | |
| Consumables* | Pleated filter, foam filter, dirt bag, additional filter, etc. |
| Missing parts | |
* Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
GB
Warranty certifi cate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:
-
These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
-
The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer.
Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.
- The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.
-
The guarantee is valid for a period of 60 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.
-
Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
FR
Danger!
□ 2006/42/EC
Annex IV
Notified Body:
Notified Body No.:
Reg. No.
□ 2000/14/EC_2005/88/EC
□ Annex V
Annex VI
P = KW; L/∅ = cm
Notified Body:
□2004/26/EC
Emission No.:
Noise: measured L_ = dB(A) ; guaranteed L_ = dB(A)
Standard references: EN 60335-1; EN 60335-2-2; EN 62233; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
