Product type	Wet and dry vacuum cleaner
Brand	Herkules
Model	HNT 50 Inox
Tank volume	50 liters
Power consumption	1600 W
Max. tool outlet power	1850 W
Max. total power	3450 W
Mains voltage	220-240 V ~ 50/60 Hz
Weight	14.2 kg
Filter types	Pleated filter (dry), foam filter (wet), pre-filter
Main functions	Dry vacuuming, liquid vacuuming, blowing, automatic mode
Filter cleaning system	Impulse cleaning (button on the device)
Safety	Float valve, automatic shut-off when tank full
Included accessories	Flexible hose, telescopic tube, combination brush, flat nozzle, fabric brush, power tool adapter, collection bag
Warranty	60 months (5 years)
Maintenance	Clean filters with soapy water, washable tank
Country of origin	Not specified (German brand)

Frequently Asked Questions - HNT 50 Inox Herkules

How to mount the vacuum cleaner wheels?

Insert a safety pin into the axle, slide on a washer, the wheel, then another washer. Attach the axle under the tank, add the second wheel and secure with pins. Push the covers onto the wheels to lock them.

Which filter to use for vacuuming water?

To vacuum water, use the foam filter (supplied). Place it on the filter cage. Never use the pleated filter for water.

How to vacuum dry?

Use the pleated filter mounted on the filter cage. You can add the dirt collection bag for large debris. The pre-filter is recommended for large amounts of fine dust.

How to empty the tank after vacuuming water?

Open the water drain cap by turning it left to drain the liquid. For complete emptying, activate the wheel brake and tilt the tank. The float valve automatically cuts off suction when the tank is full.

How to use automatic mode?

Plug your power tool into the automatic outlet of the vacuum cleaner. Connect the suction hose to the tool with the supplied adapter. Set the switch to AUTO. The vacuum cleaner will start and stop automatically with your tool.

How to clean the pre-filter?

Clean the pre-filter under running water with a little black soap. Let it air dry completely before reassembling.

What to do if suction power decreases?

Activate the filter cleaning system: press the cleaning button 6 times with the end of the hose, holding each press for 4 seconds. This cleans the clogged pre-filter. Make sure the appliance is running and the hose is not bent.

How to maintain the vacuum cleaner?

Regularly clean the appliance head with a damp cloth and a little soap. The tank can be washed with water. The filters should be cleaned according to their type (see questions above). No internal parts require maintenance.

Where to store the vacuum cleaner?

Store the appliance in a dark, dry, frost-free place, out of reach of children. The ideal temperature is between 5 and 30 °C. Keep it in its original packaging if possible.

What is the warranty period?

The warranty is 60 months (5 years) from the purchase date. It covers manufacturing and material defects. To assert your rights, register the defect on www.isc-gmbh.info with proof of purchase.

USER MANUAL HNT 50 Inox Herkules

GB Original operating instructions Wet and dry vacuum cleaner

7 30 33 31, 30, 13 10

8 13 33 30

9 30 13 33

10 30 33 31

13 32

12a 12b 12 10

12 10-

13 35 36

Close-up of a hand pressing a component with an arrow indicating motion (no text or symbols visible)

15 5 18 15

Close-up of a mechanical component with textured surface and labeled dimension (25), no readable text or symbols beyond measurement markers

17 2. 24 1.

18 27 9 8

19a 19b 10 10 16

Close-up of a hand placing a dark cylindrical object onto a metal container, with no visible text or symbols.

20a 20b 1 10 AUTO

Close-up of a hand holding a flexible hose next to a vacuum cleaner's lid, with no visible text or symbols.

DE

Danger! - Read the operating instructions to reduce the risk of injury

Cleaning the coarse filter

-17-

GB

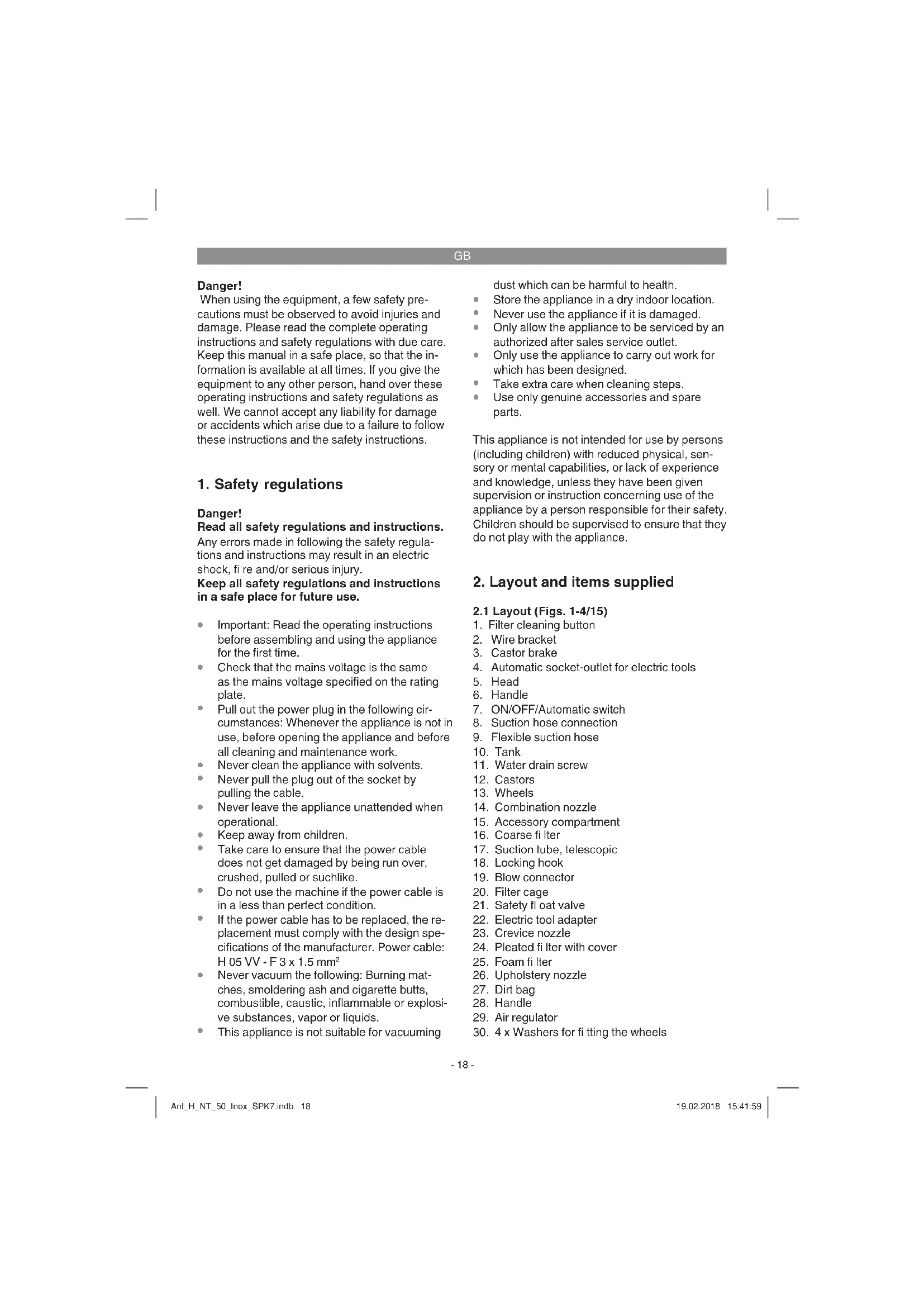

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

Danger!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

• Important: Read the operating instructions before assembling and using the appliance for the first time.
• Check that the mains voltage is the same as the mains voltage specified on the rating plate.
• Pull out the power plug in the following circumstances: Whenever the appliance is not in use, before opening the appliance and before all cleaning and maintenance work.
  • Never clean the appliance with solvents.
• Never pull the plug out of the socket by pulling the cable.
• Never leave the appliance unattended when operational.
• Keep away from children.
  Take care to ensure that the power cable does not get damaged by being run over, crushed, pulled or suchlike.
• Do not use the machine if the power cable is in a less than perfect condition.
• If the power cable has to be replaced, the replacement must comply with the design specifications of the manufacturer. Power cable: H 05 VV - F 3 x 1.5 mm ^2
• Never vacuum the following: Burning matches, smoldering ash and cigarette butts, combustible, caustic, inflammable or explosive substances, vapor or liquids.
  • This appliance is not suitable for vacuuming

dust which can be harmful to health.
• Store the appliance in a dry indoor location.
• Never use the appliance if it is damaged.
- Only allow the appliance to be serviced by an authorized after sales service outlet.
- Only use the appliance to carry out work for which has been designed.
• Take extra care when cleaning steps.
- Use only genuine accessories and spare parts.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. Layout and items supplied

2.1 Layout (Figs. 1-4/15)

1. Filter cleaning button
2. Wire bracket
3. Castor brake
4. Automatic socket-outlet for electric tools
5. Head
6. Handle
7. ON/OFF/Automatic switch
8. Suction hose connection

9. Flexible suction hose

10. Tank

11. Water drain screw

12. Castors

13. Wheels

14. Combination nozzle

15. Accessory compartment

16. Coarse filter

17. Suction tube, telescopic

18. Locking hook

19. Blow connector

20. Filter cage

21. Safety float valve

22. Electric tool adapter

23. Crevice nozzle

24. Pleated fi Iter with cover

25. Foam fi Iter

26. Upholstery nozzle

27. Dirt bag

28. Handle

29. Air regulator

30. 4 x Washers for fi tting the wheels

GB

1. 2 x Split pins for fitting the wheels
2. 2 x Covers for fitting the wheels
3. Axle for fitting the wheels
4. 8 x Screws for fitting the castors
5. Push bar
6. Push bar bracket
7. Sealing ring
8. Hook for cable store

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Flexible suction hose
Electric tool adapter
- Dirt bag
- Foam filter
• Upholstery nozzle
• Crevice nozzle
• Combination nozzle
- Handle
- Pleated filter with cover
• Suction tube, telescopic
• Covers for fitting the wheels (2x)
• Axle for fitting the wheels
• 4 x Washers for fitting the wheels
• 2 x Split pins for fitting the wheels
- 2 x Wheels
• 8 x Screws for fitting the castors
2 x Castors
- Coarse filter
- Push bar

Sealing ring
• Original operating instructions

3. Proper use

The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropriate fi Iter. The appliance is not suitable for the vacuuming of combustible, explosive or harmful substances.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains voltage: 220-240 V \~ 50/60 Hz
Power consumption: 1600 W
Max. power consumption
Automatic socket-outlet: 1850 W
Max. total power consumption: 3450 W
Tank volume: 50 l
Weight: approx. 14.2 kg

5. Before starting the equipment

Warning!

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

5.1 Assembling the equipment

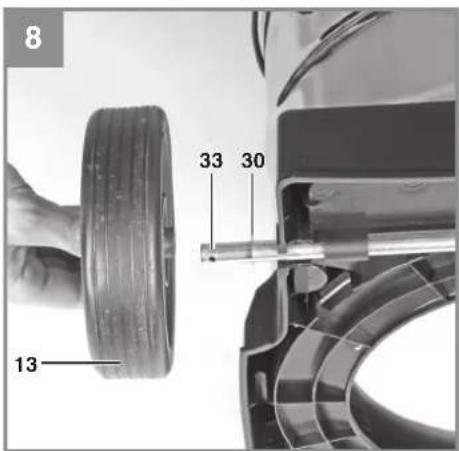

Fitting the wheels (Fig. 4-11/13)

Place a split pin for fi tting the wheels (31) through the appropriate hole in the axle (33) and fi t a washer (30), a wheel (13) and a washer to the axle (33) (Fig. 5-6). Now slide the axle (33) through the guides provided for it on the underside of the tank (10) (Fig. 7). Fit a washer and the second wheel (13) to the empty end of the axle (33) and secure it with the other washer (30) and

GB

the split pin (31) (Fig. 8-10). Push the covers (32) on to the outside of the wheels (13) so that the detents engage on the covers (32) for the wheel (13). (Fig. 11)

Fitting the castors (Fig. 12a-12b)

Fit the castors (12) into the appropriate mountings on the underside of the tank (10). Secure the castors with the supplied screws as shown in Fig. 12b.

Fitting the push bar (Fig. 13)

Insert the push bar (35) into the provided push bar brackets (36) until you feel them latch into position.

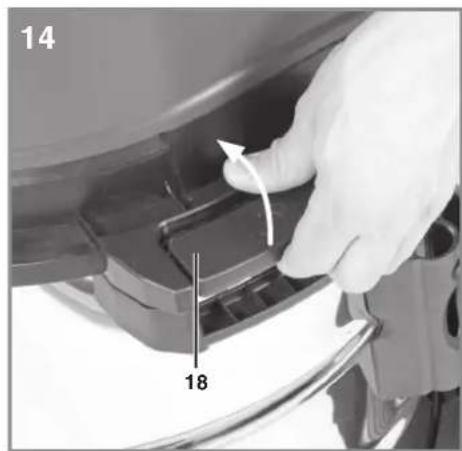

Fitting the appliance head (Fig. 14-15/5)

The appliance head (5) is fastened to the container (10) by the locking hook (18). To remove the appliance head (5), open the locking hook (18) and remove the appliance head (5). When fi tting the appliance head (5), make sure that the locking hook (18) locks into place correctly.

5.2 Fitting the fi Iter

Notice!

Never use the wet and dry vacuum cleaner without a filter.

Check that the filter is securely fitted at all times.

Fitting the foam fi Iter (Fig. 16/25)

For wet vacuuming, slip the supplied foam fi lter (25) over the fi lter basket (Fig. 2/20). The pleated filter (Fig.3/24) already fitted upon delivery is not suitable for wet vacuuming.

Fitting the pleated fi Iter (Fig. 17/24)

For dry-vacuuming, slip the pleated fi lter (Fig. 3/24) over the fi lter basket (Fig. 2/20). The pleated fi lter (Fig. 3/24) is suitable for dry-vacuuming only.

Fitting the coarse fi Iter (Fig. 19a)

The coarse fi lter (16) can be used for suctioning large amounts of fi ne dust (with or without a dirt collector bag).

Important! The coarse filter is not suitable for wet vacuuming!

Place the coarse filter (16) on the rim of the container (10) as shown in Fig. 19a. Ensure that the coarse filter is fitted completely on the rim of the container.

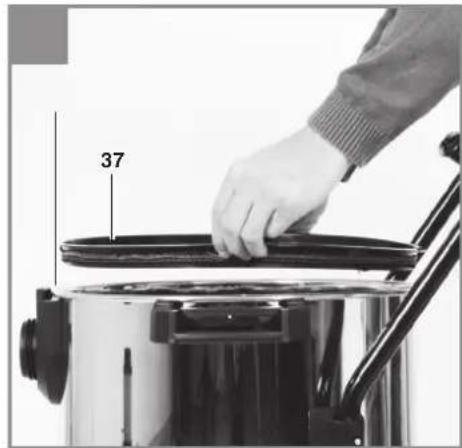

Fitting the sealing ring (Fig. 19b)

The sealing ring (37) must fitted for wet suctioning and whenever the coarse filter is not used.

Place the sealing ring (37) on the rim of the container (10) as shown in Fig. 19b. Ensure that the sealing ring is fitted completely on the rim of the container.

5.3 Fitting the tank bag (Fig. 18)

Fit the dirt bag (Fig. 3/27) as shown in Figure 18.

5.4 Fitting the suction hose (Fig. 1-3/18)

Connect the suction hose (9) to the corresponding connector on the wet and dry vacuum cleaner, depending on the application required.

Vacuuming

Connect the suction hose (9) to the suction hose connector (8).

Blowing

Connect the suction hose (9) to the blow connector (19).

Air regulator (Fig. 3/29)

The air regulator (29) can be fitted between the suction hose (9) and the suction tube (17). The suction power of the nozzle can be infinitely adjusted using the air regulator (29).

When wet vacuuming, make selective use of the air regulator to suck in air as well as liquids. This will help to take some strain off the equipment when vacuuming liquids.

5.5 Suction nozzles

Dual-purpose nozzle (Fig. 3)

The dual-purpose nozzle (14) is for vacuuming solids and liquids over medium to large areas. Various attachments can be fitted to the combination nozzle depending on what you sort of work you wish to carry out:

Crevice nozzle (Fig. 3)

The crevice nozzle (23) is designed for vacuuming solids and liquids in corners, edges and other areas that are difficult to access.

Upholstery nozzle (Fig. 3)

The upholstery nozzle (26) is specially designed for vacuuming solids on upholstery and carpets.

GB

6. Operation

6.1 ON/OFF switch (Fig. 1/7)

Switch position 0: Off

Switch position I: Normal operation

Switch position AUTO: Automatic mode

6.2 Dry vacuuming

Use the pleated fi lter (24) for dry vacuuming (see point 5.2). The dirt bag (27) can be fitted in addition when removing particularly stubborn dirt (see point 5.3).

If you want to suction large amounts of fi ne dust, you can use the coarse fi Iter (16) (see section 5.2 Fitting the coarse fi Iter).

Always ensure that the filters are perfectly secure.

6.3 Wet vacuuming

For wet-vacuuming, use the foam filter (25) (see point 5.2).

For wet suctioning, fi t the sealing ring (37) (see section 5.2 Fitting the sealing ring).

Check that the filter is securely fitted at all times.

Water drain screw (Fig. 1/11)

To make the tank (10) easier to empty after wet vacuuming, it is fitted with a water drain screw (11). Open the water drain screw (11) by turning it anti-clockwise and drain the liquid.

To empty the container completely and easily, apply the castor brake (3) and tilt the container.

When wet vacuuming, the floating safety switch (Fig. 2/21) closes when the maximum tank level is reached. In doing so, the suction noise of the equipment will change and become louder.

You must then switch off the equipment and empty the tank.

Danger!

The wet and dry vacuum cleaner is not suitable for the vacuuming of combustible liquids.

For wet vacuuming, use only the supplied foam fi Iter.

6.4 Automatic mode (Fig. 1)

Connect the power cable on your electric tool to the automatic socket-outlet (4) and connect the suction hose (9) to the extractor connector on your electric tool. Check that the connections are secure and air-tight.

You can use the supplied electric tool adaptor (Fig. 3/22) to connect the suction hose (9) to the electric tool. To do so, fit it between the suction hose and the extractor port on the electric tool.

Set the switch (7) on the wet and dry vacuum cleaner to position AUTO, automatic mode. The moment you switch on the electric tool, the wet and dry vacuum cleaner switches on as well.

When you switch off the electric tool, the wet and dry vacuum cleaner switches off as well after a pre-set delay.

6.5 Blowing

Connect the suction hose (Fig. 1/9) to the blow connector (Fig. 2/19) on the wet and dry vacuum cleaner.

6.6 Filter cleaning system (Fig. 20a-20b)

The equipment has a fi iter cleaning system which enables large amounts of fi ne dust to be suctioned without fi tting the dirt collector bag.

Important! The filter cleaning system is only allowed to be activated if the coarse filter is fitted!

Important! The filter cleaning system can only be activated if the equipment is in operation!

If there is a drop in suction performance, the filter cleaning system can be activated at the touch of a button in order to clean the dirty coarse filter and increase the suction performance again.

Actuate the cleaning button (1) six times while the equipment is in operation with the end of the suction hose. Keep the button pressed down for 4 seconds each time you actuate it. Ensure that the suction hose does not become kinked when you do so.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

GB

8. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.
  • We recommend that you clean the appliance immediately after you use it.

8.2 Cleaning the appliance head (Fig. 1/5)

Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance.

8.3 Cleaning the container (Fig. 1/10)

The container can be cleaned with a damp cloth and some soft soap or under running water, depending on the amount of dirt.

8.4 Cleaning the fi Iters

Cleaning the pleated fi Iter (Fig. 3/24)

Clean the pleated filter (24) regularly by carefully patting it and cleaning it with a fine brush or hand brush.

Cleaning the foam fi Iter (Fig. 3/25)

Clean the foam filter (25) with a little soft soap under running water and allow it to air-dry.

Cleaning the coarse fi Iter (Fig. 3)

Clean the coarse filter (16) with a little soft soap under running water and allow it to air-dry.

8.5 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.6 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

• Type of unit
  • Article number of the unit
  • ID number of the unit
• Spare part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Combination nozzle, crevice nozzle, upholstery nozzle, electric tool adapter, etc.
Consumables*	Pleated filter, foam filter, dirt bag, additional filter, etc.
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 60 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

FR

Regulator zraka (sl. 3/29)

Position I: Normal drift

Position AUTO: Automatisk drift

6.2 Tørsugning

Subject to change without notice

Archive-File/Record: NAPR011758

Documents registrar: Sergey Hirsekorn

Wiesenweg 22, D-94405 Landau/Isar

DE

EH 02/2018 (01)
