Brand	Braun
Model	Series 3 3070cc
Product type	Electric shaver with Clean&Charge self-cleaning system
Power supply	Rechargeable, power adapter with special cord (very low voltage)
Charging time	4 hours for a full charge (first charge or after prolonged inactivity)
Runtime	Up to 45 minutes of cordless shaving
Quick charge	5 minutes is enough for one shave
Indicators	Green charge level lights, red low battery light, yellow cleaning light
Shaving system	Foil and cutter block, long hair trimmer, precision mode position
Cleaning	Manual under running water (liquid soap possible) or automatic via Clean&Charge station
Automatic cleaning cycle duration	Approximately 2 minutes cleaning + minimum 4 hours drying
Cleaning cartridge capacity	Approximately 30 cleaning cycles (about 4 weeks with daily use)
Recommended charging temperature	5 °C to 35 °C
Recommended shaving temperature	15 °C to 35 °C
Replacement of shaving elements	Every 18 months or when the replacement light turns on
Spare parts	Foil and cutter block: 32S/32B; Cleaning cartridge: CCR
Warranty	2 years (extension possible depending on country)
Weight (estimated)	Approximately 200 g (shaver only)
Included accessories	Clean&Charge station, special cord, travel case (depending on model)
Water use	Yes, can be cleaned under running water after removing the base

Frequently Asked Questions - Series 3 3070cc BRAUN

How to charge the Braun Series 3 3070cc shaver for the first time?

For the first charge or after several months of non-use, leave the shaver connected to the special cord for a continuous 4 hours. A full charge provides up to 45 minutes of cordless shaving.

Can I use the shaver while it is plugged in?

Yes, you can shave by plugging the shaver into an electrical outlet using the special cable, even if the battery is empty.

How to clean the shaver manually?

Turn on the shaver cordlessly and rinse the shaving head under hot water. You can use a non-abrasive liquid soap. Rinse thoroughly and let the shaver run for a few seconds, then turn it off, remove the foil and cutter block, and let it dry.

What does the yellow cleaning light mean?

The yellow light (7) lights up continuously when the shaver needs to be cleaned in the Clean&Charge station. It flashes during the cleaning process and turns off once completed.

How to use the long hair trimmer?

Slide the long hair trimmer (2) upward to trim sideburns, mustache, or beard. For precision mode (under the nose), slide the button (3) to the appropriate position: a foil lowers.

When to replace the foil and cutter block?

Replace the foil and cutter block cassette (1) when the replacement indicator (8) lights up, usually after 18 months of use, or if damaged. After replacement, press the on/off button for 5 seconds to reset the counter.

Can the Clean&Charge station be tilted or transported with a cartridge?

No, to avoid any leakage of cleaning liquid, place the station on a flat and stable surface. Do not tilt it or transport it with a cartridge installed.

How long does a cleaning cartridge last?

One cartridge is usually sufficient for approximately 30 cleaning cycles (about 4 weeks with daily use). When the level indicator reaches the mark, about 5 cycles remain. Replace the cartridge after 8 weeks even if not used daily.

What are the tips for a perfect shave?

Braun recommends shaving before washing your face, always holding the shaver at a right angle (90°) to the skin, and shaving against the direction of beard growth while stretching the skin.

How to preserve the shaver's battery?

Every 6 months, fully discharge the shaver by using it normally, then recharge it to full capacity. This maintains the optimal capacity of the rechargeable battery.

USER MANUAL Series 3 3070cc BRAUN

Illustration of a black Braun electric shaver with a blue accent stripe (no text or symbols on the device itself)

Type 5411, 5412

www.braun.com

3090cc

3070cc

3050cc

Deutsch 6

English 12

Français 17

Español 23

Português 29

Italiano 35

Nederlands 41

Dansk 47

Norsk 52

Svenska 57

Suomi 62

Polski 67

Český 73

Slovenský 78

Magyar 83

Hrvatski 90

Slovenščina 96

Türkçe 101

Română (RO/MD) 108

Ελληνικά 114

Български 120

Русский 126

Українська 133

Braun GmbH

(Customer Service Center)

Deutsch

Clean&Charge Station

Clean&Charge Station (C)

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

This appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water.

This appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance.

If the appliance is marked D-492-C, you can use it with any Braun power supply coded 492-XXXX.

Do not shave with a damaged foil or cord.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years and supervised.

Clean&Charge Station

To prevent the cleaning fluid from leaking, ensure that the Clean&Charge Station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor place it on a polished or lacquered surface.

The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not expose to direct sunlight and cigarette smoking nor store it over a radiator.

Do not refill the cartridge and use only original Braun refill cartridges.

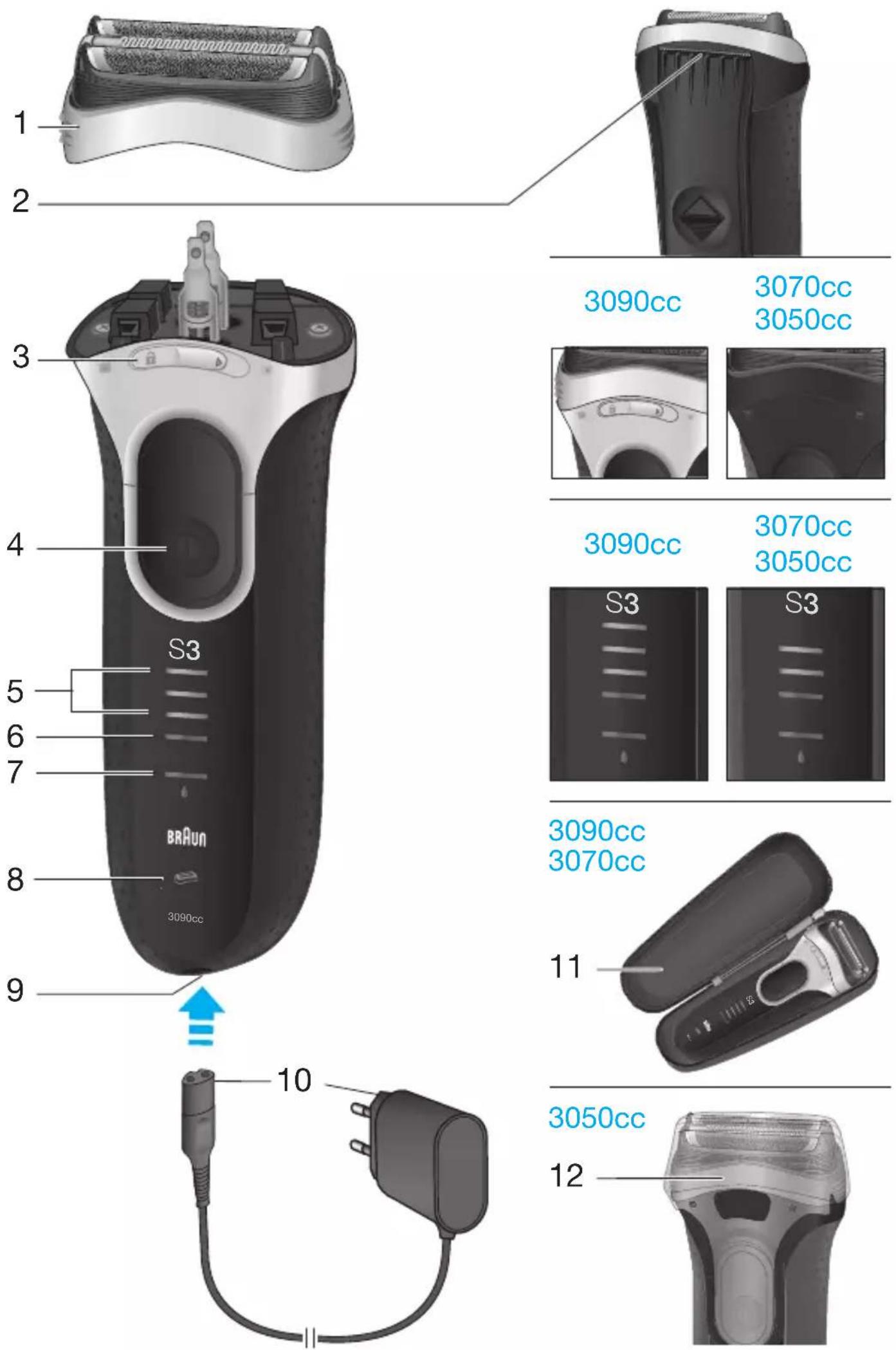

Description

1 Foil & Cutter cassette
2 Long hair trimmer
3 Precision mode switch*
4 On/off switch
5 Charging lights (green)
6 Low-charge light (red)
7 Cleaning light (yellow)
8 Replacement light for shaving parts
9 Shaver power socket
10 Special cord set (design can differ)
11 Travel pouch*
12 Protection cap*

* not with all models

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 15 °C to 35 °C. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time.

• Using the special cord set (10), connect the shaver to an electrical outlet with the motor switched off.
• When charging for the first time or when the shaver is not used for a few months, leave the shaver to charge continuously for 4 hours.
• A full charge provides up to 45 minutes of cordless shaving time depending on your beard growth. Maximum battery capacity will only be reached after several charging/discharging cycles.
• 5-minute quick charge is sufficient for a cordless shave. You can also shave by connecting the shaver to an electrical outlet via the special cord set.

Charging lights (5)

The green charging lights show the charge status of the batteries. The green charging light blinks when the shaver is being charged or switched on.

When the battery is fully charged, all green charging lights shine permanently, provided the shaver is connected to an electrical outlet.

Low-charge light (6)

The red low-charge light flashes when the battery is running low. You should be able to finish your shave.

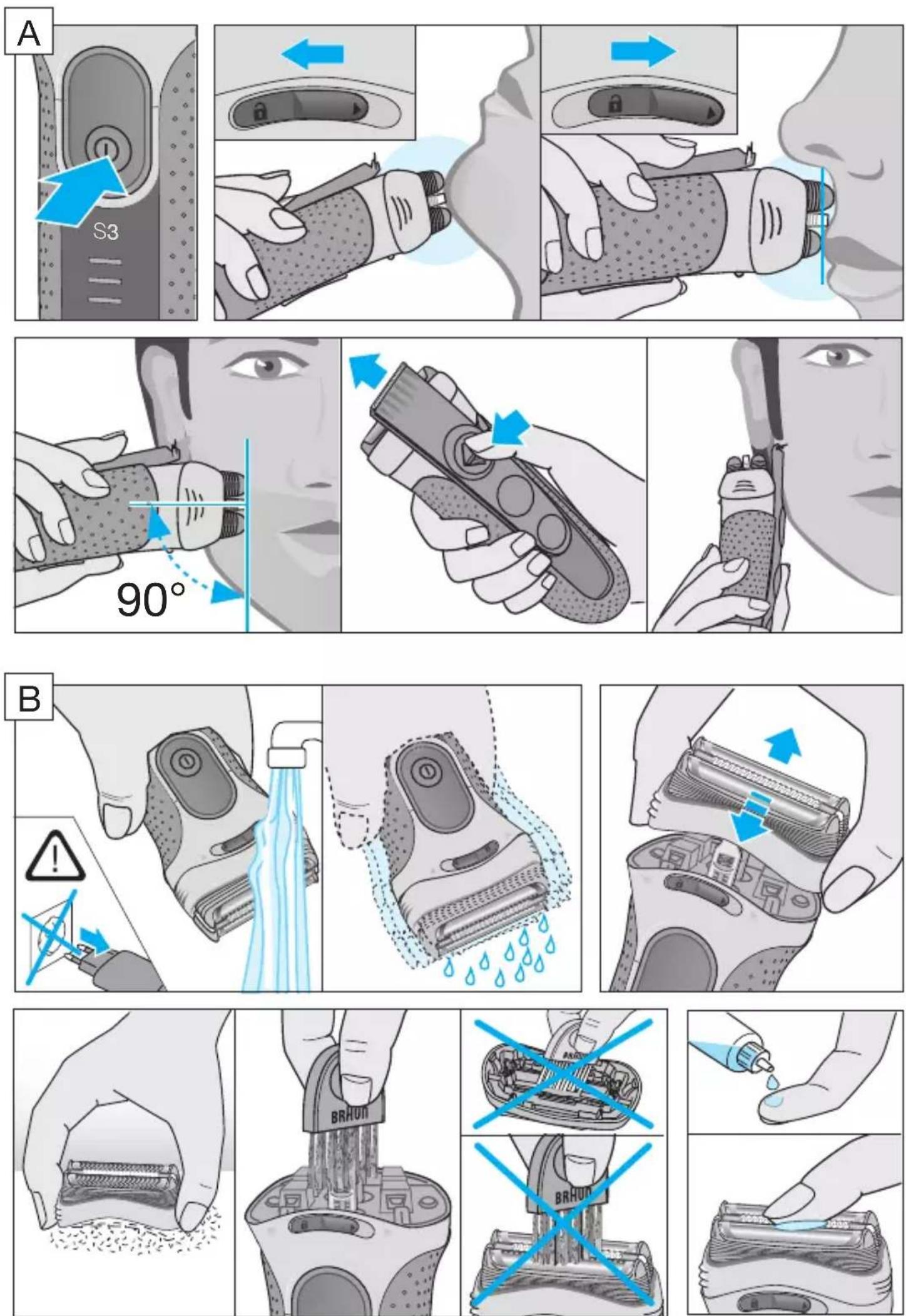

Shaving (A)

Press the on/off switch (4) to operate the shaver.

Long hair trimmer (2)

To trim sideburns, moustache or beard, slide the long hair trimmer upwards.

Precision mode switch (3)

For precise handling in hard to shave areas (e.g. under the nose) slide the switch (3) to the right position. One foil will be lowered.

Tips for a perfect dry shave

For best results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

Cleaning (B)

Regular cleaning ensures better shaving performance.

Cleaning indicator

The latest when the yellow cleaning light (7) shines constantly the shaver should be cleaned in the Clean&Charge Station. During the cleaning process the yellow light will flash. It will go off when cleaning is finished. If automatic cleaning is not done, the yellow light will go off after some time. It will be reset as manual cleaning is assumed.

Automatic cleaning

Once the shaver is put into the Clean&Charge Station, it is cleaned automatically (see «Clean&Charge Station (C)»).

Manual cleaning

Cleaning under running water:

• Switch the shaver on (cordless). Rinse the shaver head and the precision mode switch under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, remove the Foil & Cutter cassette (1) and let it dry.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil (not included) onto the long hair trimmer (2) and Foil & Cutter cassette (1).

Cleaning with a brush:

• Switch off the shaver. Remove the Foil & Cutter cassette and tap it out on a flat surface.
• Using a brush, clean the inner area of the shaver head. However, do not clean the Foil & Cutter cassette with a brush as this may damage it.

Keeping your shaver in top shape

Replacement light for shaving parts / Reset

• To maintain 100% shaving performance, replace the Foil & Cutter cassette (1), when the replacement light for shaving parts (8) comes on after about 18 months or when worn.
• The replacement light will remind you during the next 7 shaves to replace the Foil & Cutter cassette. Then the shaver will automatically reset.
• After you have replaced the Foil & Cutter cassette (1), press the on/off switch (4) for at least 5 seconds to reset the counter. While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time.

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged by shaving every 6 months approximately. Then recharge the shaver to full capacity.

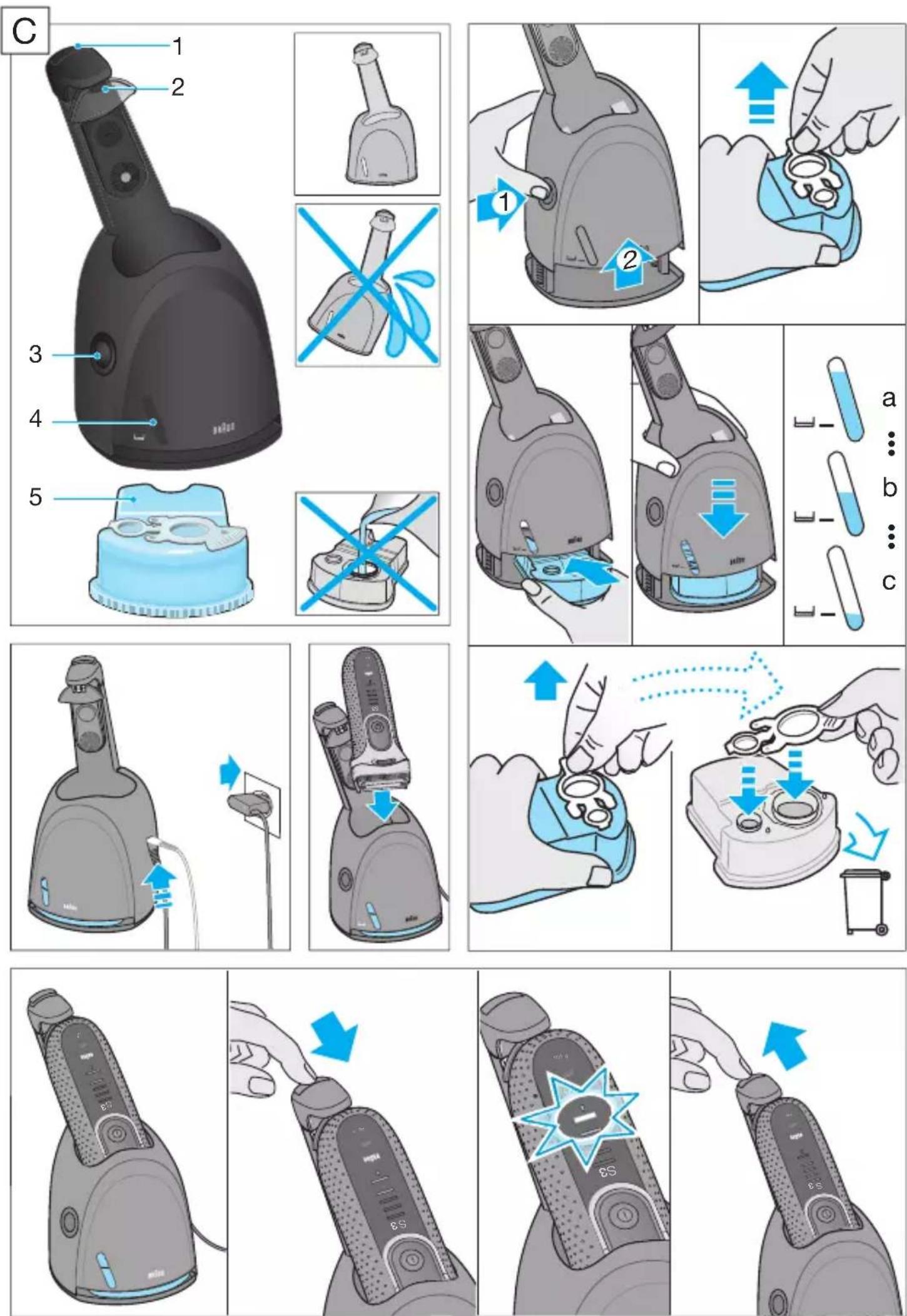

Clean&Charge Station (C)

The Clean&Charge Station has been developed for cleaning, charging, lubricating, drying and storing your Braun shaver.

Description

1 Start/release button
2 Contact bow
3 Lift button for cartridge exchange
4 Level indicator
5 Cleaning cartridge

Before using the Clean&Charge Station

Installing the cartridge

• Press the lift button (3) to open the housing.
• Hold the cartridge down on a flat, stable surface (e.g. table). Carefully remove the lid from the cartridge. Slide the cartridge into the base as far as it will go.
• Slowly close the housing by pushing it down until it locks.

Replacing the cartridge

• After having pressed the lift button to open the housing, wait for a few seconds before removing the used cartridge.
• Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution.
• The used cartridge can be disposed of in the household waste.

Operating your Clean&Charge Station

- Connect your Clean&Charge Station with the cord set to the mains electricity supply. The special socket at the back is adjustable to save space. After each shave, switch the shaver off and put it into the Clean&Charge Station, upside down and with the front showing. Important: The shaver needs to be dry and free from any foam or soap residue!

- Push the start/release button (1) to lock and connect the shaver. The cleaning process will start. The yellow light on the shaver will flash during the complete process (approx. 2 minutes cleaning, min. 4 hours drying).

• Do not interrupt the cleaning process, as it leaves the shaver wet and not fit for use. If interruption is needed nonetheless, press the start/release button (1).
• When cleaning is finished, the yellow light will go off. To release the shaver, push the start/release button.
• A cleaning cartridge should be sufficient for about 30 cleaning cycles. When the level indicator (4) has reached the «mark, the remaining fluid in the cartridge is sufficient

for about 5 more cleaning cycles. Then the cartridge should be replaced (when used daily approx. every 4 weeks).

- The cleaning cartridge contains ethanol or isopropanol (specification see cartridge), which once opened will naturally evaporate slowly. Each cartridge, if not used daily, should be replaced after approximately 8 weeks.

- The cleaning cartridge also contains lubricants for the shaving system, which may leave residual marks on the outer foil frame and the cleaning chamber of the Clean&Charge Station. These marks can be removed easily by wiping gently with a damp cloth.

Accessories

Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette: 32S/32B
• Cleaning cartridge Clean&Charge Station: CCR

Environmental notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2-year guarantee on the product commencing on the date of purchase.

Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Base Clean&Charge (C)

Clean&Charge station

Clean&Charge station (C)

Clean&Charge-station

Clean&Charge-station (C)

Clean&Charge-station

Clean&Charge-station (C)

Clean&Charge-asema (C)

Stanice Clean&Charge

Stanice Clean&Charge (C)

Stanica Clean&Charge

Stanica Clean&Charge (C)

Čistiaca a nabíjacia stanica je vyvinutá za účelom čistenia, dobíjania, mazania, sušenia a ukladania holiaceho strojčeka Braun.

Popis

Jedinica Clean&Charge

Kako biste izbjegli curenje tekućine za čišćenje, jedinicu Clean&Charge postavite na ravnu, stabilnu površinu. Nemojte ni na koji način naginjati, naglo pomicati ili premještati jedinicu ako je uložena patrona sa sredstvom za čišćenje jer bi moglo doći do prolijevanja tekućine. Nemojte spremati jedinicu u toaletni ormarić niti na polirane ili lakirane površine.

Patrona za čišćenje sadrži visoko zapaljivu tekućinu pa je nemojte držati u blizini zapaljivih tvari ili izvora zapaljenja. Nemojte je izravno izlagati sunčevoj svjetlosti ili zapaljenim cigaretama i nemojte je spremati iznad radijatora.

Nemojte sami puniti patrone i koristite samo originalne Braunove patrone.

Opis

Jedinica Clean&Charge (C)

Jedinica Clean&Charge osmišljena je za čišćenje, punjenje, podmazivanje, sušenje i spremanje vašeg Braunovog aparata za brijanje.

Opis

1 Prekidač za pokretanje/otpuštanje
2 Kontaktni svod
3 Prekidač za zamjenu patrona
4 Indikator statusa patrone
5 Patrona sa sredstvom za čišćenje

Prije korištenja jedinice Clean&Charge

Postavljanje patrone

• Pritisnite prekidač za zamjenu patrona (3) i otvorite kućište.
• Patronu držite na ravnoj i stabilnoj površini (npr. na stolu). Pažljivo skinite poklopac s patrone. Uložite patronu u bazu jedinice tako da sjedne na svoje mjesto.
• Polako zatvorite kućište pritiskom prema dolje tako da se lijepo zatvori.

Zamjena patrone

ELMIN, Đurđevac 48 350,

R. Boškovića 20, Tel. [phone], [e-mail]

BKS d.o.o., Slavonski Brod 35 000,

J. J. Strossmayera 29, Tel. [phone], [e-mail]

FRUK d.o.o., Virovitica 33 000,

J. J. Strossmayera 23, Tel. [phone], [e-mail]

MARKOVIĆ OBRT ZA EL.USLUGE, Varaždin 42 000,

Krešimira Filića 9, Tel. [phone], [e-mail]

RADAN ELEKTRONIK CENTAR d.o.o., Dubrovnik 20 000,

Ob. Pape I. Pavlall. 17, Tel. [phone], [e-mail]

Tehno -Jelčić d.o.o., Šibenik 22 000,

VIII Dalmatinske Udarne Brigade 71, Tel. [phone]

SINGULI D.O.O., 21000 SPLIT-KAMEN

UL. 4. Gardijske brigade 43, Tel. [phone]

(u sklopu poslovnog prostora ROBOT COMMERCE d.o.o. (TTTS)),

[e-mail], ili nazovite Call centar singuli: 072 700 707

Slovenščina

Country of origin: Germany

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture.

Example: "427" – The product was manufactured in week 27 of 2014.
