SS5660 - Coffee machine Sogo - Free user manual and instructions

Product type	Drip coffee maker
Brand	Sogo
Model	SS5660
Supply voltage	220-240 V ~
Frequency	50-60 Hz
Power	800 W
Tank capacity	1 L (10 cups)
Filter type	Reusable permanent filter (compatible with paper filters)
Carafe	Glass with lid and handle
Warming plate	Yes (keep warm)
Control	On/off switch with indicator light
Anti-drip function	Yes (anti-drip valve)
Automatic shutdown	No (manual shutdown)
Recommended descaling	Every 2 months (at least twice a year)
Use	Indoor household use
Safety	Grounded plug; protection against burns and electric shock
Included accessories	Carafe, permanent filter, funnel
Housing material	Plastic
Country of manufacture	China
Importer	Sanysan Appliances S.L, Valencia, Spain
After-sales service	www.sogosat.com / [e-mail] / 902 222 161

Frequently Asked Questions - SS5660 Sogo

How to descale the coffee machine?

Mix three cups of vinegar and nine cups of cold water in the tank. Run a brewing cycle for one minute, then turn off and wait half an hour. Run a full cycle to flush out the solution. Then, run two cycles with fresh water to rinse. It is recommended to descale every two months.

What to do if the machine does not work?

Check that the voltage matches the mains supply (220-240V) and that the appliance is plugged in and turned on. If the problem persists, contact after-sales service.

Why is water leaking from the appliance?

Check that the water tank is not filled above the MAX level. Excess water may cause leaks during brewing.

Why is the coffee not hot enough?

Make sure the carafe is properly placed on the warming plate. If you brew a small amount, the coffee cools faster. Brew a sufficient amount for better heat retention.

Why does the coffee taste bad?

Do not leave the carafe on the warming plate too long, especially with little coffee. The coffee can burn and become bitter. Use fresh coffee and follow the recommended dosages (one heaping tablespoon per cup).

How to clean the machine?

Unplug it and let it cool. Wash the carafe, filter, and funnel with warm soapy water. Wipe the exterior with a damp cloth. Never immerse the appliance body in water.

What is the capacity of the machine?

The tank has a capacity of 1 liter, allowing you to brew up to 10 cups of coffee.

Can I use store-bought ground coffee?

Yes, use ground coffee for filter. The machine is equipped with a reusable permanent filter, but you can also use a standard paper filter.

Does the machine shut off automatically?

No, the machine does not have automatic shut-off. Brewing stops when the tank is empty, but the warming plate remains on. You must manually turn off the switch and unplug the appliance after use.

What to do if the coffee takes too long to drip?

This usually indicates that the machine needs descaling. Follow the descaling procedure described in the manual. Also check that the filter is not clogged.

USER MANUAL SS5660 Sogo

Black and silver SOGO coffee maker with clear lid and control panel (no visible text or symbols)

Descarga tu manual
Download your manual
Téléchargez votre manuel
Baixe seu manual
Laden Sie Ihr Handbuch herunter
Scarica il tuo manuale
Stáhněte si manuál
Download din manual
Prenesite svoj priročnik
Preuzmite svoj priručnik
Pobierz swoją instrukcję
Descârcați manualul dvs
Завантажте посібник
Descàrrega el teu manual

CAFETERA DE GOTEO

DRIP COFFEE MAKER

CAFETIERE FILTRE

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

#ety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical

equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat an even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the name-plate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

- Avoid spillage on the connector

Restrictions on use to avoid personal injury

• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Neither immerse the housing, which contains electrical components and the heating elements in water, nor rinse it under the tap.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.
• Be careful, while handling electrical appliances, as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may damage the appliance.
• Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.
• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
  • In case of appliance malfunction, or if it has been damaged in any

manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not allow the children to use the appliance without supervision.

Restrictions on use when using the appliance

- The appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

- Be careful to not to get burned by the steam.

- WARNING: Potential injury from misuse.

- WARNING: high risk to get burn! Do not touch the hot parts of coffee maker.

- The coffee-maker shall not be placed in a close cabinet.

- Do not touch or move the coffee maker while in use.

• Always remove the plug from the socket in case of any malfunction, before filling or after use, or before cleaning.

- Be careful not to get burnt by the steam evaporating from the filter.

- Never use your coffee maker without water in it. Only use fresh and cold water to brew coffee.

- Never fill the water tank beyond the Max. Level. Do not use your coffee maker in case of overflowing.

- Never put the coffee maker in an oven (including microwave oven) to warm up the coffee.

- Do not forget that the temperature of the coffee prepared is high, handle with care the jug to avoid scalding.

- Always set any control to "off" before unplugging from the socket.

- Make sure the ambient temperature is above 0^ , otherwise the

appliance does not function properly.

- Always descale the appliance regularly to ensure optimum performance and prevent malfunction. (at least two times a year).

- Make sure to cool down, before cleaning or storing the appliance.

- The appliance may give off some smoke and smell when you use it initially. it will disappear after a few times uses.

- Do not use this coffee make continuously, use it by giving proper pauses to cool down.

- It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.

- Make sure the appliance is unplugged before inserting, removing or cleaning its accessories. It is absolutely necessary to remove the accessories before cleaning them.

- Unwind the cord to avoid the superheating of the appliance.

- WARNING: Never touch the hot parts of the appliance (be careful, also the warm plate and the appliance is a hot part!). Only Handle the coffee maker by its handle.

- To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.

- A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:

- The marked electrical rating of the cord must be at least as great as that of the product.

- Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

- Be careful to avoid any spillage on the connector

- WARNING: Do not touch hot surfaces.

- WARNING: This appliance must be used with CAUTION as this electrical appliance contains a heating function. The surface of this appliance is also different from other functional surfaces that can produce high temperatures. Since temperatures are perceived differently by different people. The appliance may only be touched on the handles and gripping surfaces provided for this purpose with the aid of heat protection such as gloves or similar clothing. Otherwise, allow it to cool down for a sufficient period of time before touching hot surfaces.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

3. TECHNICAL SPECIFICATIONS

Voltage Frequency Power	Volume Capacity
AC 220-240V 50-60Hz 800W	1L 10 Cups Max.

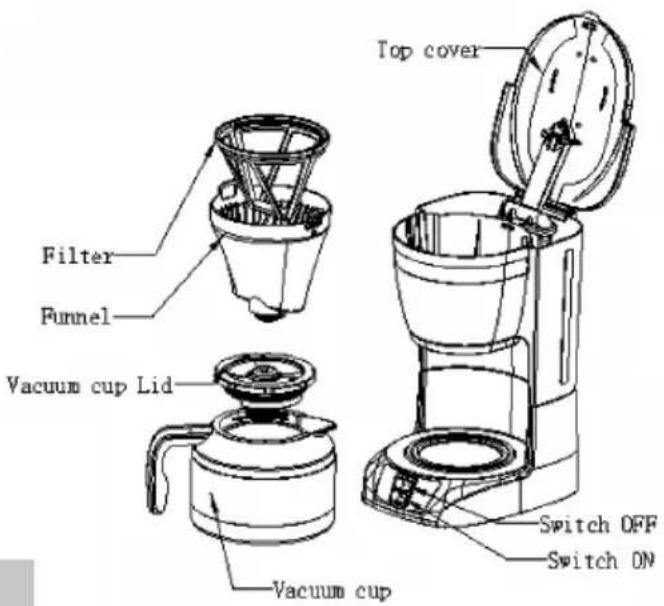

4. PARTS DESCRIPTION

1. Top Cover
2. Filter
3. Funnel
4. Coffee Jar Lid
5. Coffee Jar
6. On / Off Switch

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

5. INSTRUCTIONS OF USE

1. Before first use, clean the carafe, the reusable mesh filter and filter basket in warm soapy water, rinse thoroughly.
2. Before making coffee, you should use the coffee maker 2 – 3 times with only water only.
3. Remove the water reservoir cover and fill with fresh cold water up to Max. marking
4. Close the water reservoir cover.
5. Swing out the filter holder, put adequate quantity of coffee powders into the permanent filter (or paper filter) inside the filter holder, place back it to original position, make sure it is fixed properly.
6. Place the carafe on the plate.
7. Switch on the appliance by pressing the On / Off switch, the indicator light will light up and now the appliance starts to work.
   Note: Caution: Do not open the reservoir lid during the brewing coffee, as scalding may occur.
8. The appliance will brew until the water tank is emptied.
9. Unplug from the socket.
   WARNING: Before brewing another carafe of coffee, wait for few minutes to allow the Coffeemaker cool completely.

6. CLEANING AND MAINTENANCE

1. Do not forget to remove the plug from the socket before cleaning the appliance.
2. Make sure that the appliance and especially the carafe are cool down before cleaning.
3. Clean the inside of the carafe with a soft brush in warm soapy water. Rinse with fresh water and dry it before next use.
   Note: When washed in a dishwasher, the parts may appear to fade. Restore by polishing them with a soft, dry cloth.
4. Wipe outside with soft, moist cloth when appliance is cold down completely, never use metal polish.
5. Never immerse the cord, plug, or appliance itself in water.

DESCALING

1. The appliance has to be descaled regularly (minimum twice a year)
2. Operate two or three more brewing cycles with fresh, cold water to remove all descale solution residues. Throw out the obtained hot water.
3. The frequency depends on the water hardness. Generally, the descaling should be done every two months.

Operational process of descaling:

• Place the carafe onto the Base.
• Mix three cups of vinegar and nine cups of cold water and fill the water tank up to the Max level with prepared solution.
• Switch on the appliance during one minute. Switch off then, and wait one half an hour.
• Press the Start Button. Allow all of the cleaning solution to drip into the carafe, throw out the cleaning solution and clean the carafe.

• Operate two more brewing cycles with fresh, cold water to remove all descaler solution residues.

• TROUBLESHOOTING

PROBLEM Solutions
The appliance does not work.	Make sure the voltage indicated on the appliance corresponds to the local mains voltage. Make sure the appliance has been plugged in & switched on.
Water leaks out of the appliance.	Check if the water tank is filled beyond the MAX level.
The appliance produces a lot of noise and steam during brewing.	Make sure the water tank is not filled with hot water. The appliance needs to be de-scaled (see ‘Descaling’ section).
Ground coffee enter into the jug.	Check if the filter holder has overflowed because there is too much ground coffee in the filter, or the jug has not been placed correctly under the filter holder, or you have removed the jug for more than 30 seconds during brewing. Check if the filter is torn or you use the wrong size of paper filter
Brewing coffee takes longer than usual.	The appliance needs to be descaled (see ‘Descaling’ section).
The coffee maker switches off before the water tank is empty.	The appliance needs to be descaled (see ‘Descaling’ section). Attempting to start another brewing cycle before the Coffeemaker cools (3 minutes) may result in an incomplete cycle.
The coffee is not strong enough.	Check if used ground coffee is not enough. It should be one heaped measuring spoon of ground coffee for each cup. Check if you use ground coffee with mild flavour.
The coffee is too strong.	Check if used too much ground coffee. It should be one heaped measuring spoon of ground coffee for each cup. Check if you have used ground coffee with strong flavour.
The coffee does not taste good.	Check if you leave the thermos jug with coffee on the plate too long, especially if it only contains a small amount of coffee.
The coffee is not hot enough.	Check if the brewed coffee is too little. The coffee will warm longer if you brew more. Make sure you place the thermos jug properly on the plate.
The jug is difficult to place in the appli-ance or remove from the appliance.	Make sure the lid of the jug & filter basket are in right position. Tilt the jug a little of angle to place or remove it. Be careful not to spill the hot coffee for avoiding scalding.
There is less coffee in the jug than ex-pected.	Check if you have not placed the jug properly on the warm plate, so that the anti-drip valve prevents the coffee from flowing out of the filter. The appliance needs to be descaled (see ‘Descaling’ section).

PORTANT:

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

5. MODE D'EMPLOI

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

5. NÁVOD K POUŽITÍ

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

5. BRUGSANVISNING

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

5. NAVODILA ZA UPORABO

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

5. UPUTE ZA UPORABU

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

5. INSTRUKCJE UŻYTKOWANIA

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

5. INSTRUCTIUNI DE UTILIZARE

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

Top cover Filter Funnel Vacuum cup Lid Vacuum cup Switch OFF Switch ON

5. INSTRUCCIONS D'ÚS

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
