USER MANUAL SS-17330 Sogo

Close-up of a black handheld electronic device with a vertical line extending from its tip (no visible text or symbols)

QR code image containing encoded data, no visible human-readable text

ESPUMADOR DE LECHE

MILK FROTHER

MOUSSEUR À LAIT

BATEDOR DE LEITE

MILCHSCHÄUMER

MONTALATTE RICARICABILE

MLÉČNÝ NÁDOBKA

MAELKESKUMMER

MEŠALEC ZA MLJEKO

PJENILO MLIJEKA

SPIENIACZ DO MLEKA

SPUMATOR DE LAPTE

Download your manual

QR code image containing encoded data, no visible human-readable text

1. AVISO IMPORTANTE

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. SAFETY INSTRUCTIONS FOR THE USER

I. Restrictions

• Children or individuals with limited physical or mental abilities should not use this product without supervision.
- Keep hair, fingers, and other objects away from the spinning whisk during operation.
- Do not attempt to disassemble the product (except for the whisk and battery compartment).
- Never use the appliance near flammable gases, stoves, or heating elements.
- Do not drop, hit, or use the appliance if damaged.
- Do not use the appliance for solid food or substances not intended for frothing.
- Do not use continuously for more than 2 minutes. The device will automatically stop after 2 minutes of operation.
- Allow the device to cool down between uses to prolong its service life.

II. Precautions while using this device

• Charge the device for 1 hour before first use.
• Do not operate while charging.
• Charge every 3 months if not in regular use.
• Avoid overcharging (max recommended: 2 hours per cycle).
• If any dirt residue remains on the whisk, you can clean it with a cloth or washing up brush.
• The frothing whisk can be removed to clean it. To do so, pull the whisk out of the device.
  • Always clean the whisk immediately after use with warm water.
• Do not use abrasive cleaners or sharp utensils to clean this appliance.
• Never immerse the motor body in water.
• Store in a cool, dry place.
• Do not place upside down if the whisk is wet, to avoid water entering the motor.

3. TECHNICAL SPECIFICATIONS

Charging cable: Type C

Adaptor: 5V, 1A (Not included)

4. PRODUCT SPECIFICATIONS

Box contents:

1- Rechargeable milk frother
2- Whisk attachment
3- USB Type-C charging cable

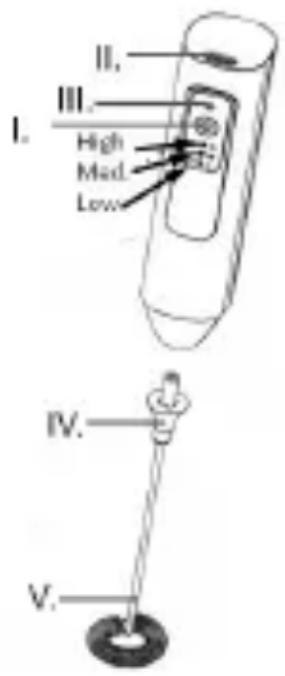

5. PRODUCT PARTS DETAILS

I. On/Off Button – To power on/off and controls the 3-speed settings
II. USB Charging Port – Type-C charging input
III. Indicator Lights – Displays low/medium/high speed
IV. Stirring Rod – Whisk component for frothing
V. Mixing Head – Attaches the whisk to the motor

II. III. I. High Med. Low IV. V.

6. HOW TO USE THE DEVICE:

Charging the Device

• Insert the charging cable interface into Type-C charging port on the product.
• A green light will indicate charging; the light will turn off once fully charged.

Note: The device cannot be used while charging. Unplug to operate.

Milk Frother

1. Attach the whisk into the motor head by inserting firmly until it clicks.
2. Place the whisk in the milk before powering on.
3. Press the On/Off button:

• 1 press = low speed

• 2 presses = medium speed

- 3 presses = high speed

1. Press and hold the button for 2 seconds to stop operation

manually.

1. The device will auto shut-off after 2 minutes.
2. Use fresh whole milk for better froth. Do not fill the container too much to avoid overflow.

7. TROUBLE SHOOTING

If you encounter any problems, try the following:

- Whisk does not spin:

Make sure the device is fully charged (charge for 2 hours). Also ensure the whisk is properly inserted into the bayonet.

- No foam is produced:

Use fresh whole milk and ensure the whisk is fully submerged in the milk during operation.

- Milk overflows:

Reduce the quantity of milk. The milk will expand during frothing.

• Device not working while charging:

This is normal. Unplug the charger to activate the device. If the above solutions do not resolve the issue, please contact your local vendor or service center. Do not attempt to open or repair the product yourself.

1. AVIS IMPORTANT

5. DETALHES DAS PARTES DO PRODUTO

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with Electromagnetic Compatibility Directive 2014/35/CE, and the Directive 2015/863 UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

CE RoHS ✓

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner

and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards

Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain

Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
