Product Type	Wireless charging station / Battery charger
Model	EPP5400 (EP-P5400)
Brand	Samsung
Compatibility	Qi-compatible smartphones, Galaxy Buds, Galaxy Watch (depending on model)
Power supply	USB mains adapter (9 V / 2.77 A recommended for 15 W fast charging)
Charging port	USB Type-C
Maximum charging power	15 W (Wireless fast charging 2.0)
Charging zones	2 zones: mobile device / Galaxy Buds + Galaxy Watch / Galaxy Buds (depending on model)
Indicator light	Multi-color LED (red, green, orange) indicating charging status
Dimensions (approximate)	150 x 80 x 20 mm
Weight (approximate)	100 g
Ventilation	Internal fan for cooling
Box contents	Charging station, USB adapter, USB cable, quick start guide
Main features	Fast wireless charging, simultaneous multi-device charging, foreign object detection
Safety	Overheating, overcurrent, metal object, and overcharge protection
Care and cleaning	Clean with a soft, dry cloth. Do not use liquid or abrasive products.
Spare parts and repairability	No user-serviceable parts. Contact an authorized Samsung service center.
Power consumption	Varies depending on devices being charged; unplug when not in use to save energy
Warranty	Standard manufacturer warranty (see terms)
General information	Read the manual carefully before use. Only use Samsung-approved accessories.

Frequently Asked Questions - EPP5400 SAMSUNG

Which devices can be charged with the Samsung EPP5400?

The EPP5400 wireless charger is compatible with smartphones and accessories that support the Qi standard, including Galaxy S, Note, Galaxy Buds and Galaxy Watch (depending on model). Check that your device supports wireless charging.

How to get 15 W wireless fast charging?

To benefit from Fast Charging 2.0 (15 W), use the supplied mains adapter (9 V / 2.77 A) or a SFC/PD charger of at least 25 W. An AFC or PD charger under 25 W will limit charging to 7.5 W.

What do the indicator light colors mean?

Red-green-orange sequence when plugged in. Steady red = charging. Steady green = charging complete. Flashing red = general error. Flashing orange = unapproved charger. Off = no device or station unplugged.

Can I charge multiple devices at the same time?

Yes, the EPP5400 allows simultaneous charging of a smartphone and Galaxy Buds, or a Galaxy Watch and Buds. However, charging speed may decrease when multiple devices are charged at the same time.

What to do if my device is not charging?

Check that the device is centered on the charging area. Remove any thick case or metal object. Ensure the adapter is properly connected. If the light flashes red, unplug and replug the charger. If the problem persists, contact Samsung support.

The fan is noisy, is this normal?

Yes, the internal fan may emit noise during fast charging or when charging multiple devices. To reduce noise, disable wireless fast charging in your smartphone's settings.

Can I use a thick case on my phone while charging?

It is recommended to remove thick or magnetic cases, as they can interfere with wireless charging and reduce efficiency. Use a thin Qi-compatible case.

How to clean the charging station?

Unplug the station before cleaning. Use a soft, dry cloth to wipe the surface. Do not use chemicals, liquids, or abrasive materials.

Which cable and adapter are included?

The box includes a USB mains adapter (9 V / 2.77 A) and a USB Type-C cable. Exclusively use these accessories or Samsung-approved accessories to ensure safety and performance.

Is the charger compatible with magnetic protective cases?

Cases containing magnets or conductive materials can interfere with charging and cause overheating or damage. Remove such cases before placing the device on the charger.

USER MANUAL EPP5400 SAMSUNG

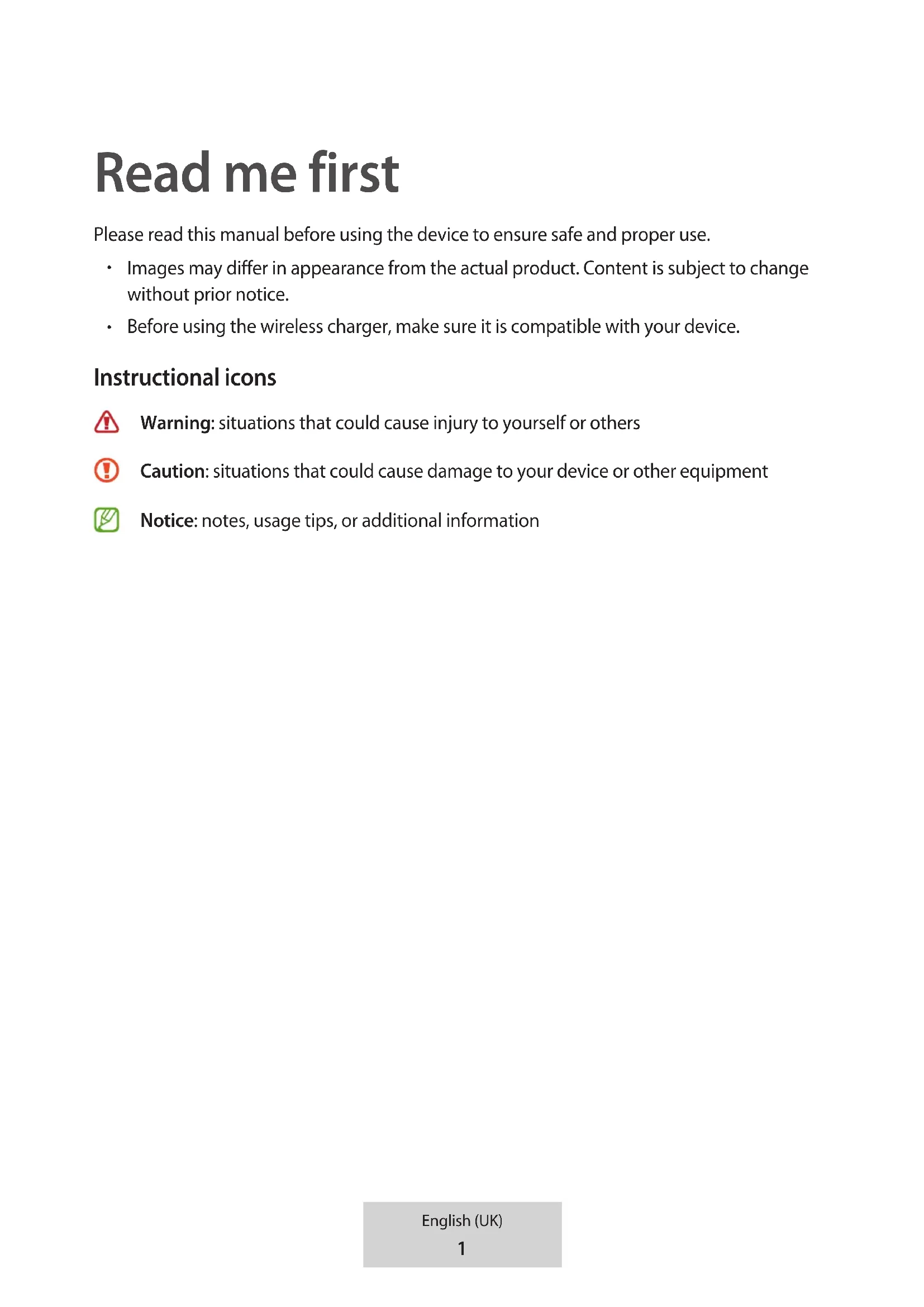

Please read this manual before using the device to ensure safe and proper use.

- Images may differ in appearance from the actual product. Content is subject to change without prior notice.

• Before using the wireless charger, make sure it is compatible with your device.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: notes, usage tips, or additional information

Getting started

Package contents

Check the product box for the following items:

• Wireless charger
• USB power adaptor
• USB cable
• Quick start guide

• Wireless charging covers are sold separately.
• The items supplied with the device and any available accessories may vary depending on the region or service provider.
• The supplied items are designed only for this device and may not be compatible with other devices.
• Appearances and specifications are subject to change without prior notice.
• You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.
• Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.
• Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

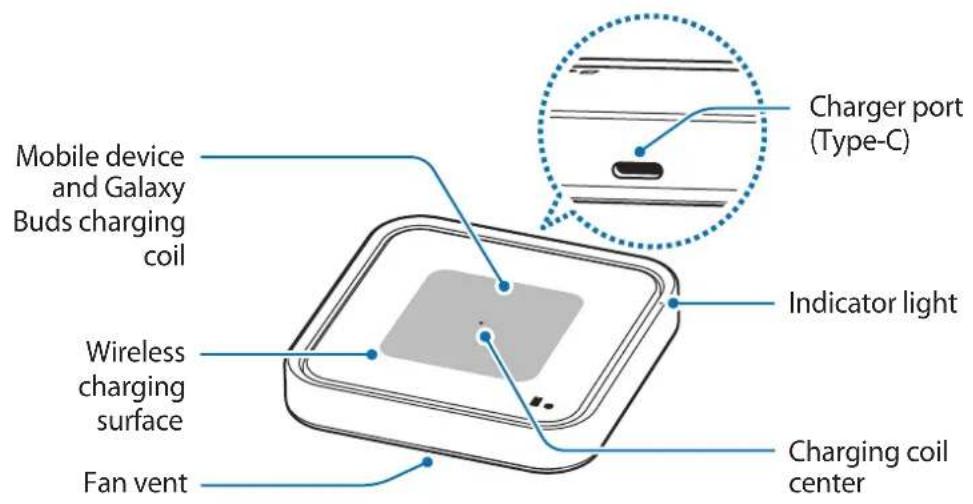

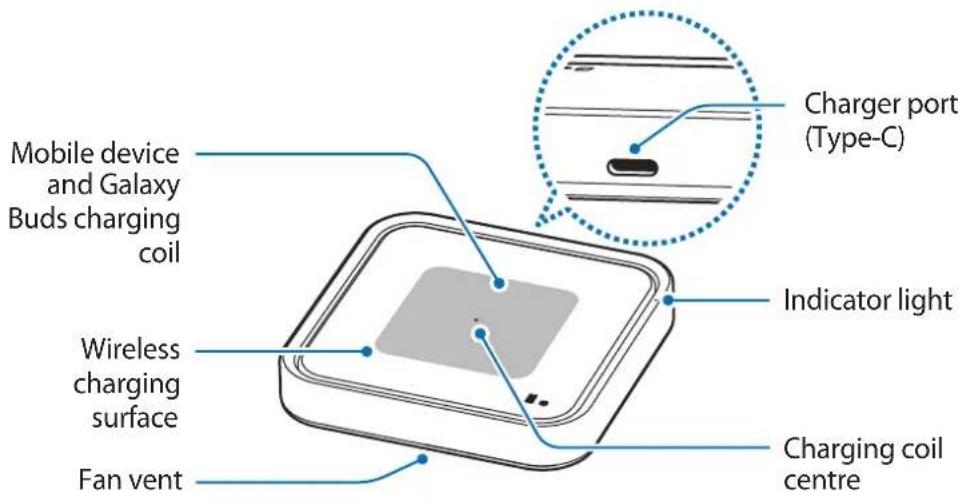

Device layout

▶ EP-P2400:

Mobile device and Galaxy Buds charging coil Wireless charging surface Fan vent Charger port (Type-C) Indicator light Charging coil centre

▶ EP-P5400:

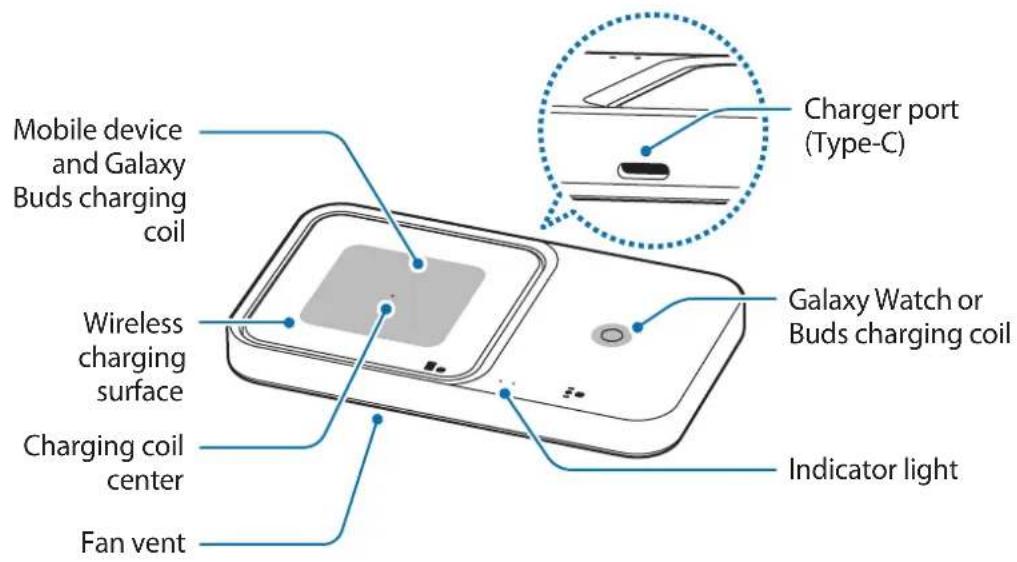

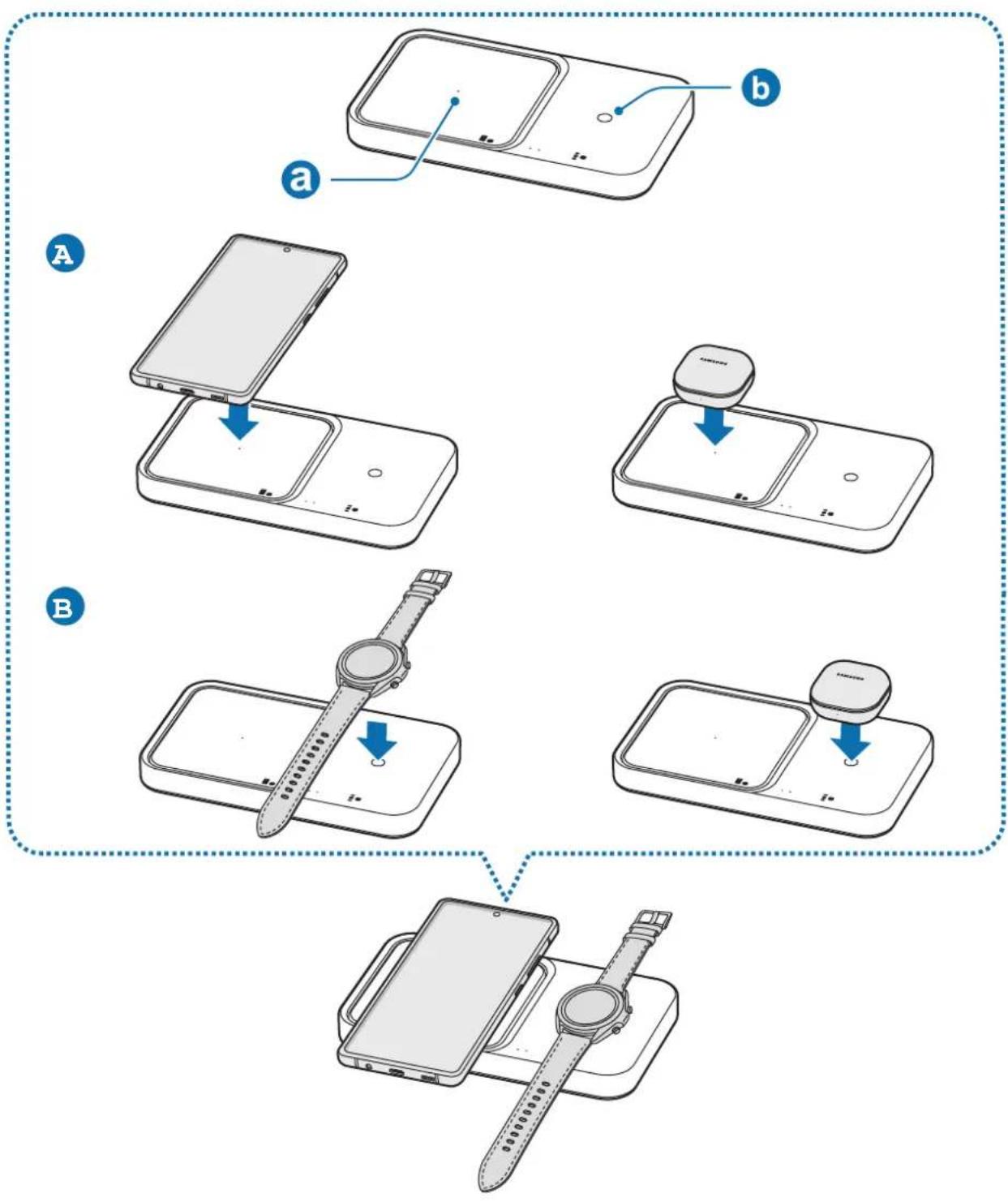

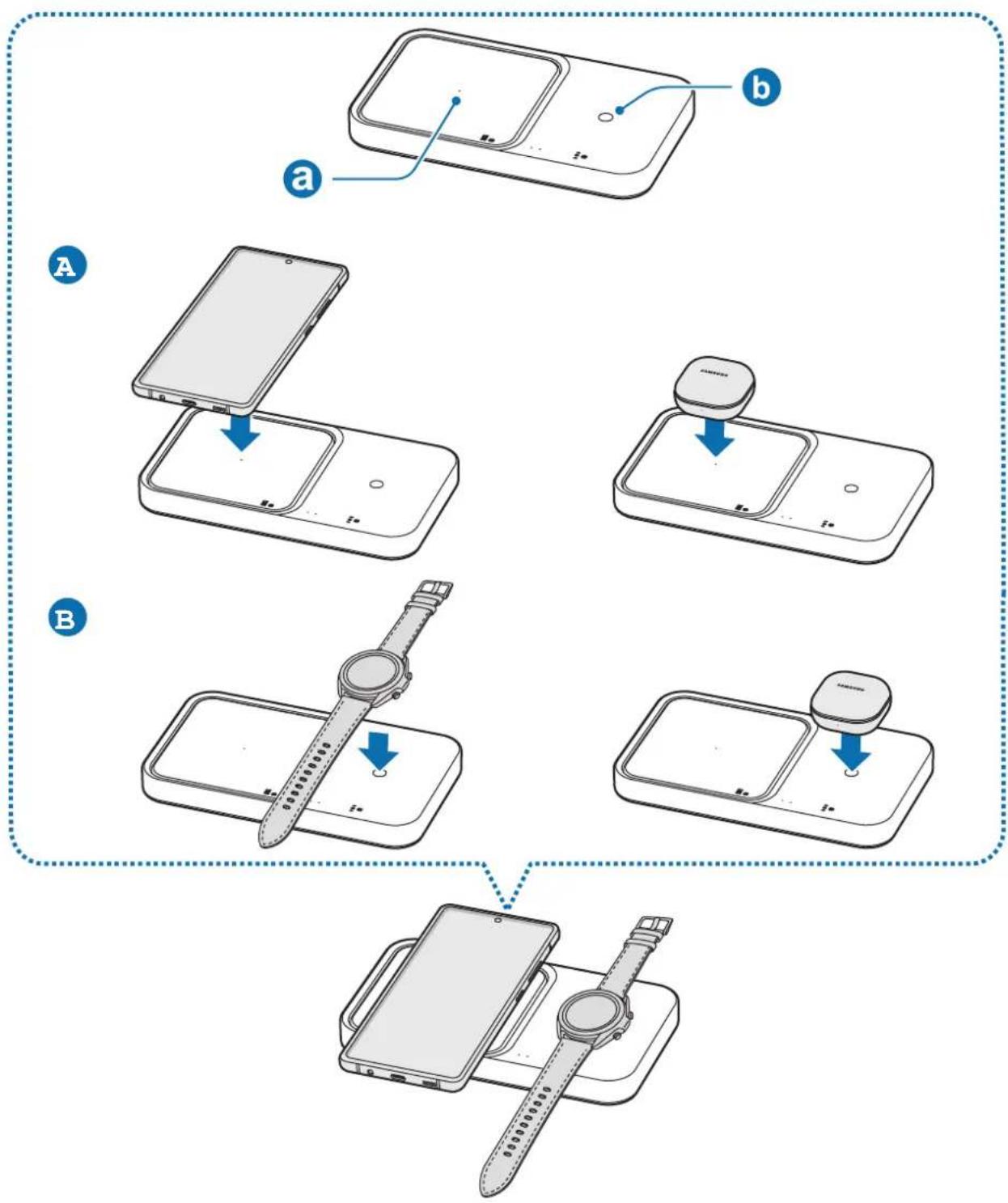

Mobile device and Galaxy Buds charging coil Wireless charging surface Charging coil centre Fan vent Charger port (Type-C) Galaxy Watch or Buds charging coil Indicator light

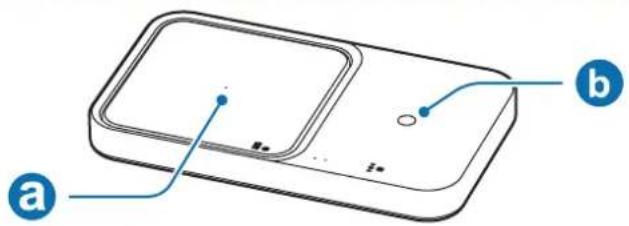

The Wireless charger can charge one device on the mobile device and Galaxy Buds charging coil and watch or buds charging coil.

Using the wireless charger

Charging the device

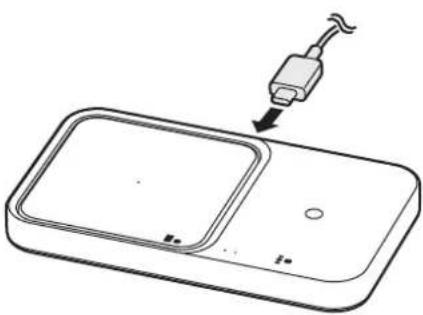

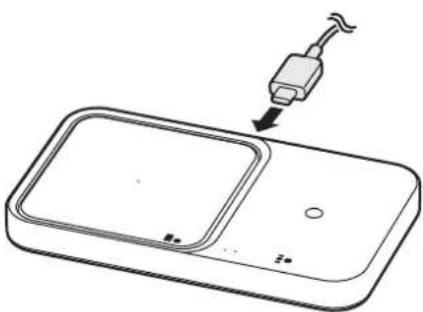

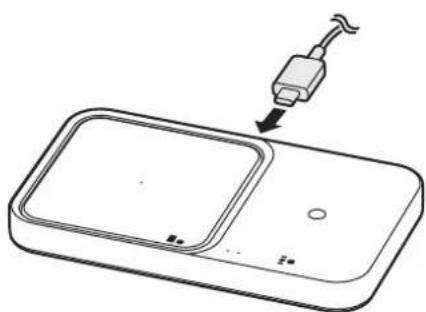

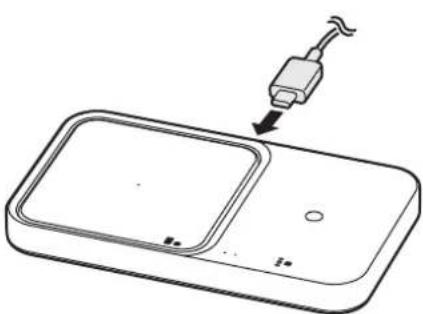

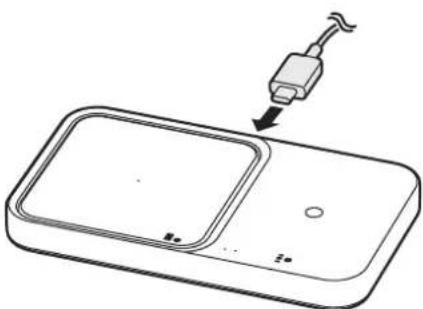

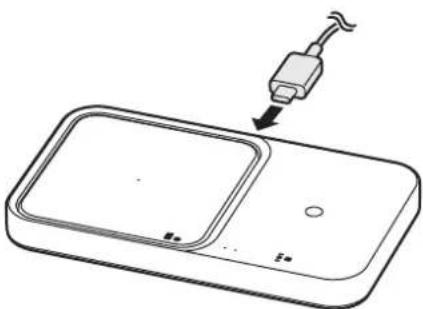

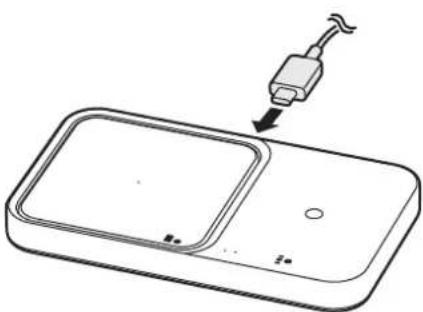

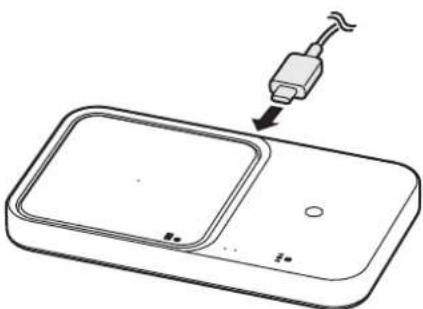

1 Connect the charger to the wireless charger.

When the charger is correctly connected to the wireless charger, the indicator light flashes red, green, and orange, and then turns off.

The wireless charger is not compatible with chargers that do not support AFC (Adaptive Fast Charging) and SFC (Super Fast Charging). To use the 15W fast wireless charging 2.0 feature, use the charger (9.0V/2.77A) supplied with the device, an SFC charger, or a PD (Power Delivery) charger (25W and higher). If a PD charger (less than 25W) or an AFC charger is used, the 7.5W fast wireless charging 1.0 feature may work.

▶ EP-P2400:

Simple line drawing of a square electronic device with a plug inserted, no text or symbols present

▶ EP-P5400:

Line drawing of a handheld device with a cable inserted, showing a screen and tray (no text or symbols)

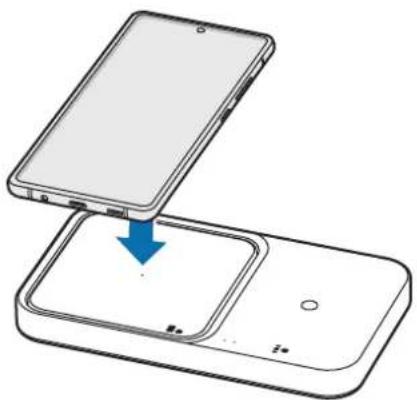

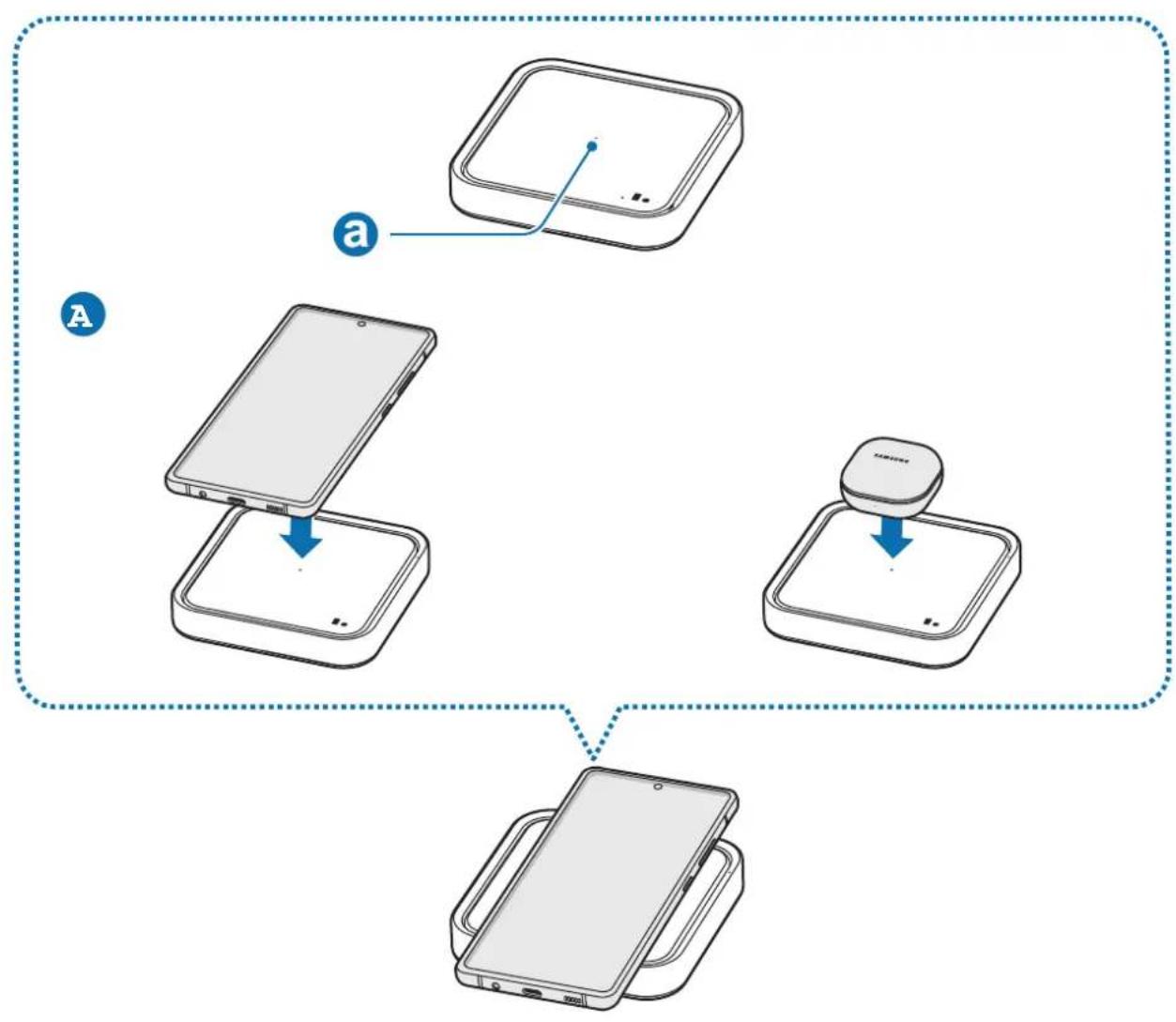

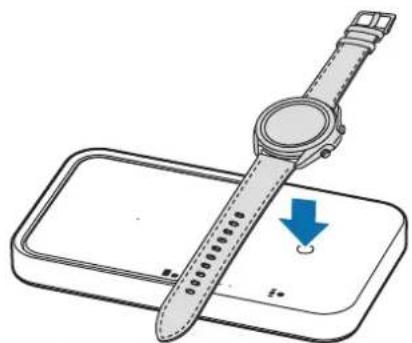

2 Place the centre of supported mobile device or Galaxy Buds on the charging coil centre (a) to charge it (A). You can also charge the Galaxy Watch or Buds on the watch or buds charging coil (b) of the wireless charger (B)

• Charging will begin when the charging coil comes into contact with the wireless charging coil of the mobile device, Galaxy Buds or the Watch.
• Check the charging icon displayed on the mobile device's and Galaxy Watch's screen for the charging status. Check the charging status of the earbuds and charging case through the color of the battery status indicator on the Galaxy Buds.

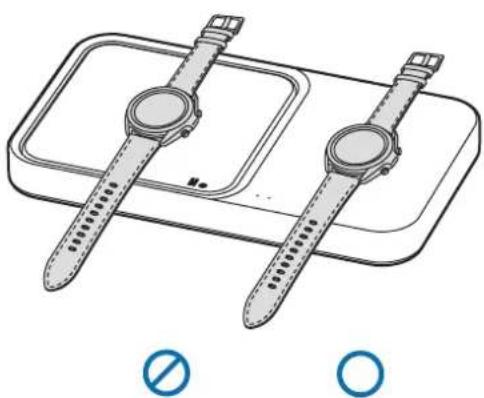

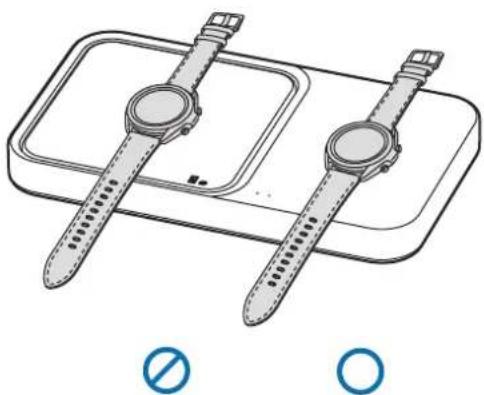

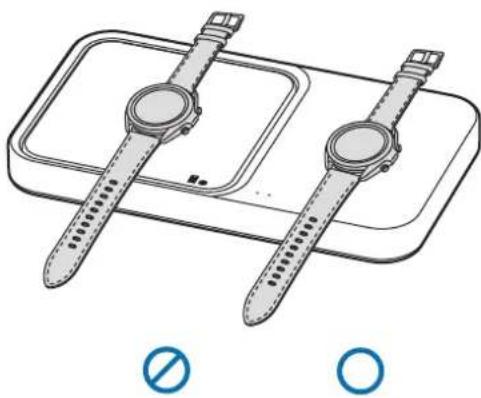

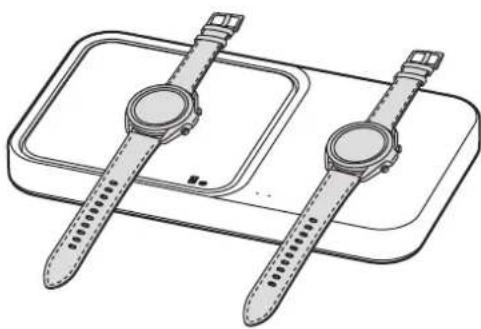

• If you place a Galaxy Watch with both connecting straps together on the wireless charging surface, the Galaxy Watch may not charge because the charging coil is not coming into contact with the wireless charging coil of the Galaxy Watch.
• When conductive materials are placed on the wireless charger, noise may occur from the wireless charger.
• To begin fast wireless charging, place a mobile device that supports fast wireless charging on the wireless charger. For more information, refer to the mobile device's user manual.

▶ EP-P2400:

▶ EP-P5400:

3 When the mobile device, Galaxy Buds or the Watch is fully charged, remove the mobile device, Galaxy Buds or the Watch from the wireless charger.

Precautions for mobile device, Galaxy Buds or the Watch charging

• Do not place the mobile device on the wireless charger with a credit card or radio-frequency identification (RFID) card (such as a transportation card or a key card) placed between the back of the mobile device and the mobile device cover.
• Do not place the mobile device, Galaxy Buds or the Watch on the wireless charger when conductive materials, such as metal objects and magnets, are placed between the mobile device, Galaxy Buds or the Watch and the wireless charger.

The mobile device, Galaxy Buds or the Watch may not charge properly or may overheat, or the mobile device, Galaxy Buds, Galaxy Watch, or the cards may be damaged.

- You may need to purchase a charger separately depending on the wireless charger you bought.

- Place the centre of mobile device or Galaxy Buds on the charging coil centre, and the Galaxy Watch or Buds on the watch or buds charging coil. If you do not place them correctly, the charging speed may decrease or they may not be charged properly.

- Wireless charging may not work properly if you have attached a thick case to your mobile device or Galaxy Buds. If your case is thick, remove it before placing your mobile device on the wireless charger.

- Charging more than one device at the same time may decrease the charging speed.

- If you connect a charger to the mobile device or Galaxy Buds during wireless charging, the wireless charging feature will be unavailable.

- When charging a Galaxy Watch, update the Galaxy Watch to the latest software. If the latest software is not installed, the charging speed may be slow.

- If you use the wireless charger in areas with weak network signals, you may lose network reception.

• During wireless charging, noise may occur from the wireless charger.
• When wirelessly charging the Galaxy Buds or Watch, or charging the mobile device via fast wireless charging, the fan inside the wireless charging pad may produce noise. To reduce the fan noise while charging your mobile device, deactivate the fast wireless charging feature. To see how to deactivate the fast wireless charging feature, refer to the mobile device's user manual.
• To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.

Charging multiple devices at the same time

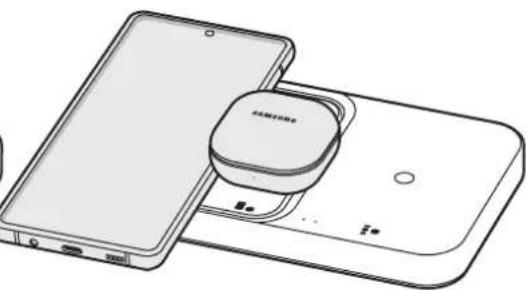

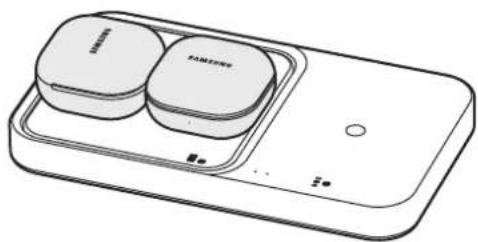

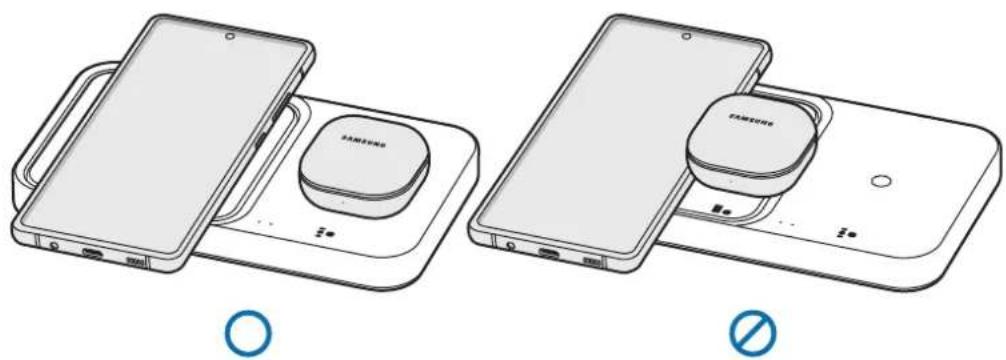

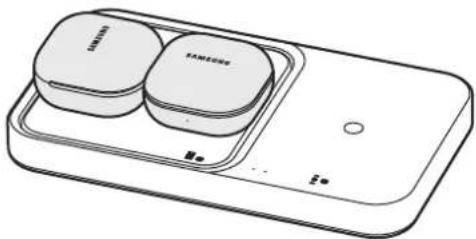

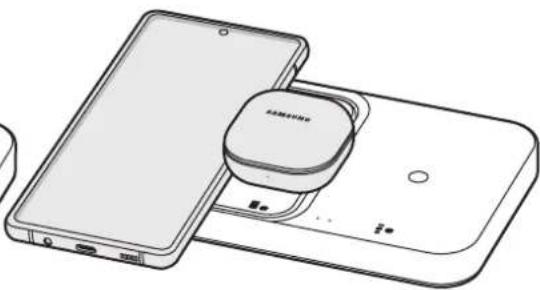

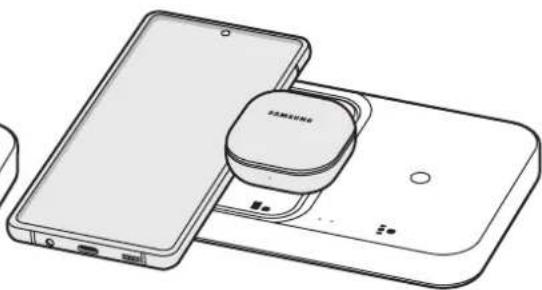

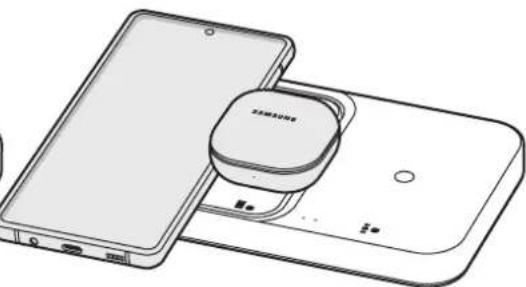

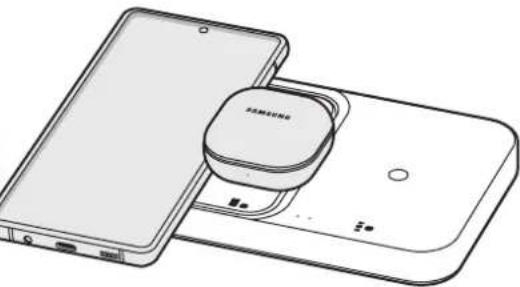

▶ Charging the mobile device and Galaxy Buds

Two line drawings of smartphone charging devices with no visible text or symbols

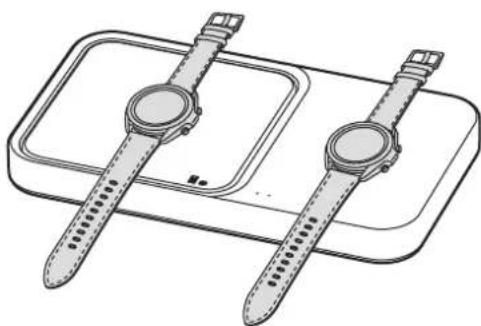

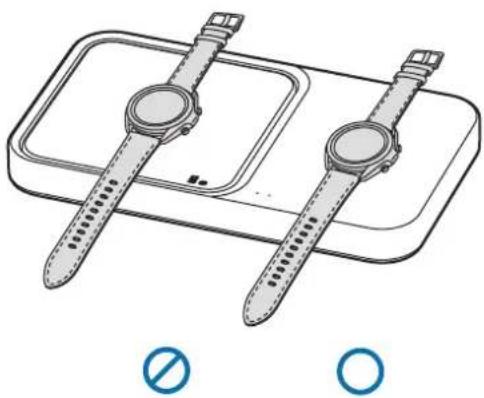

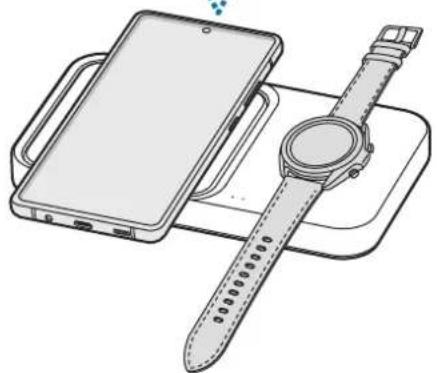

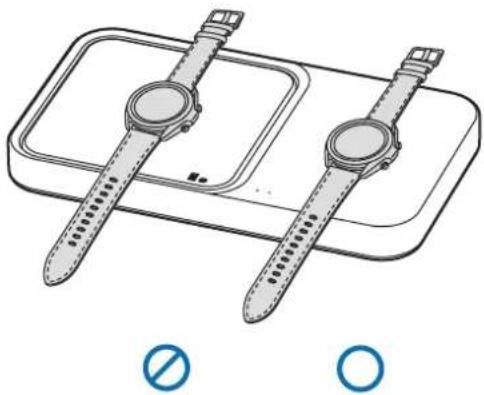

▶ Charging the Galaxy Watches

Illustration of a smartwatch and its dual-band display case with no text or symbols

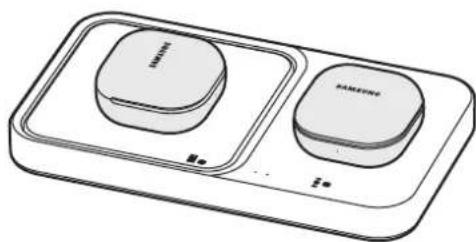

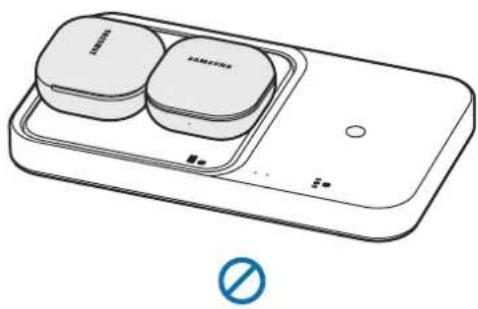

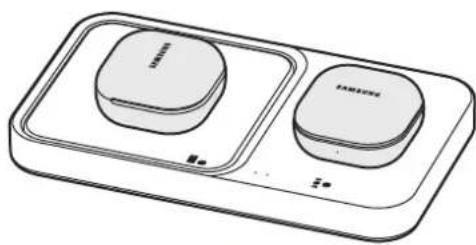

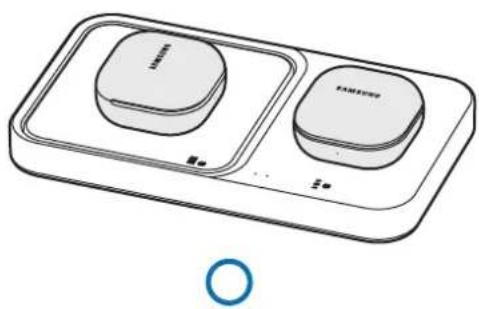

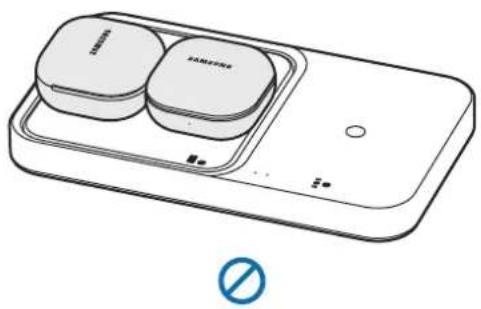

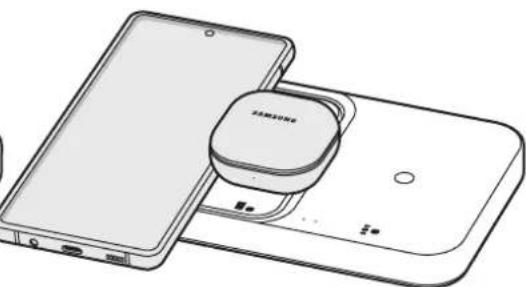

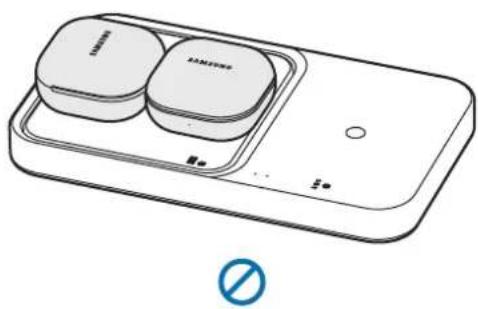

▶ Charging the Galaxy Buds

Line drawing of a two-tiered Samsung washing machine with two buttons and a circular button (no text or symbols)

Line drawing of a smartphone with two Samsung buttons and a battery, no text or symbols present

Indicator light identification

The indicator light alerts you to the wireless charger's status.

Colour Status
Red → Green → Orange	When connected to a power outlet
Red	When charging
Green	When fully charged
Flashing red	When not charging properly due to a general error
Flashing orange	When not charging properly due to a not approved charger
Off	When the mobile device, Galaxy Buds or the Watch is removed from the wireless charger or when the wireless charger is not connected to a power outlet

• If the indicator light does not work as described, disconnect the charger from the wireless charger and reconnect it.
• The indicator light may work differently depending on the mobile device, wireless charging cover, Galaxy Buds, or the Watch.
