USER MANUAL Battery Pack EB-P3400 SAMSUNG

Battery level button Charger port (USB Type-C) Indicator lights

Charging the battery

Charge the battery before using the battery pack for the first time or when the battery pack has been unused for extended periods.

Wired Charging

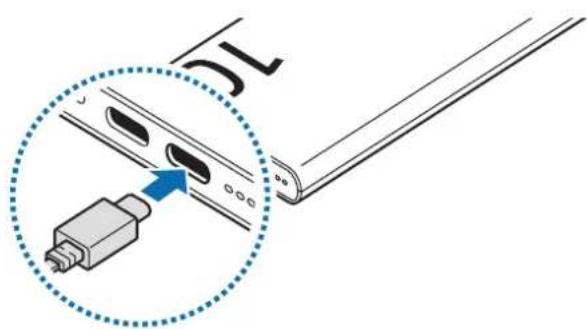

1 Connect the battery pack to a charger.

When the charger is correctly connected to the battery pack, the indicator lights will turn on and flash.

Diagram showing a device with a USB port connected to a cable, highlighting a blue arrow (no text or symbols present)

2 When the battery pack is fully charged, disconnect the battery pack from the charger.

Battery charging tips and precautions

Use only Samsung-approved charger and cable specifically designed for your battery pack. Incompatible charger and cable can cause serious injuries or damage to your battery pack.

• Connecting the charger improperly may cause serious damage to the battery pack. Any damage caused by misuse is not covered by the warranty.
• Use only USB Type-C cable supplied with the battery pack. The battery pack may be damaged if you use Micro USB cable.
• If you charge the battery pack while the charger port is wet, the battery pack may be damaged. Thoroughly dry the charger port before charging the battery pack.

• You can charge the battery pack using the charger (sold separately).
• The battery pack has two charger ports, and you can charge the battery pack and other devices using whichever port you require.
• To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.
• When using a charger, it is recommended to use an approved charger that guarantees the charging performance.
• Using a power source other than the charger, such as a computer, may result in a slower charging speed due to a lower electric current.
• The battery pack can be used while it is charging, but it may take longer to fully charge the battery.
• While charging, the battery pack may heat up. This is normal and should not affect the battery pack's lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.
• The actual capacity (Wh) is measured based on the battery's output current and voltage. It may differ from the capacity (Wh) indicated on the battery pack, depending on the output power condition, the connected device's circuit configuration, and the operation environment.
• If the battery pack is not charging properly, take the battery pack and the charger to a Samsung Service Centre or an authorised service centre.

Checking the remaining battery power

The indicator lights inform you of the remaining battery power.

Check the remaining battery power by pressing the Battery level button. Depending on the remaining battery power, the indicator lights turn on and then turn off.

Remaining battery power Indicator light
70-100 %	Four indicator lights on
40-70 %	Three indicator lights on
20-40 %	Two indicator lights on
5-20 %	One indicator light on
0-5 %	One indicator light blinking

• If the indicator lights do not work as described, disconnect the charger from the battery pack and reconnect it.
• The indicator lights may work differently depending on the connected device on the battery pack.

Using the battery pack

Charging devices

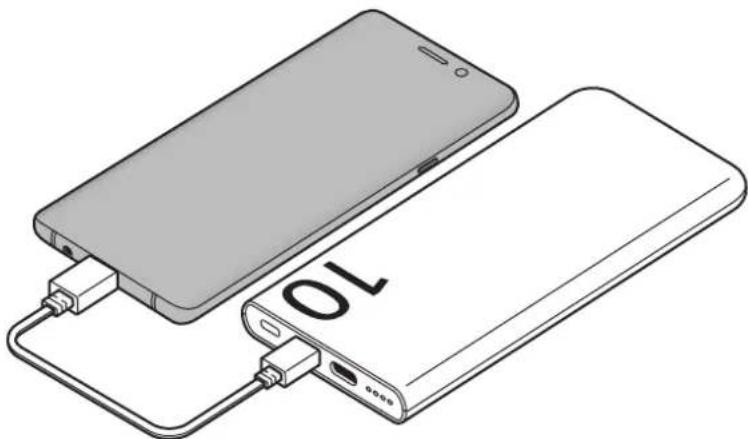

1 Connect one end of the USB cable to the battery pack's charger port. Then, plug the other end of the USB cable into the mobile device's multipurpose jack.

Illustration of two smartphones connected via USB cables, one with a labeled '10' on its side (no text or symbols on the devices themselves)

2 When the mobile device is fully charged, disconnect the USB cable from the battery pack and the mobile device.

- If the multipurpose jack of the charger and the device you want to charge is the micro USB type, use a USB connector that is sold separately.

- Charging time may vary depending on the charging conditions.

- To begin fast charging, connect a device that supports fast charging to the battery pack.

- If the device connected to the battery pack is not charging, disconnect the USB from the battery pack and reconnect it.

- The battery pack is an auxiliary external battery. It may not fully charge some devices.

- If the battery pack is exposed to extremely hot or cold temperatures or an error occurs, the indicator lights will flash. Disconnect the device from the battery pack and reconnect it.

Usage notices

Precautions for using the battery pack

Please read this manual when using the device to ensure safe and proper use.

- Images may differ in appearance from the actual product. Content is subject to change without prior notice.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: notes, usage tips, or additional information

Notes on package contents and accessories

Check the product box for the following items:

• Battery pack
• USB cable
• Quick start guide

• The items supplied with the device and any available accessories may vary depending on the region or service provider.
• The supplied items are designed only for this device and may not be compatible with other devices.
• Appearances and specifications are subject to change without prior notice.
• You can purchase additional accessories from Samsung website. Make sure they are compatible with the device before purchase.
• Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.
• Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

Copyright

Copyright © 2022 Samsung Electronics Co., Ltd.

This manual is protected under international copyright laws.

No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system.

Trademarks

• SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics Co., Ltd.
• All other trademarks and copyrights are the property of their respective owners.
