USER MANUAL FG117320.3 Emerio

brusere eller swimmingpools.

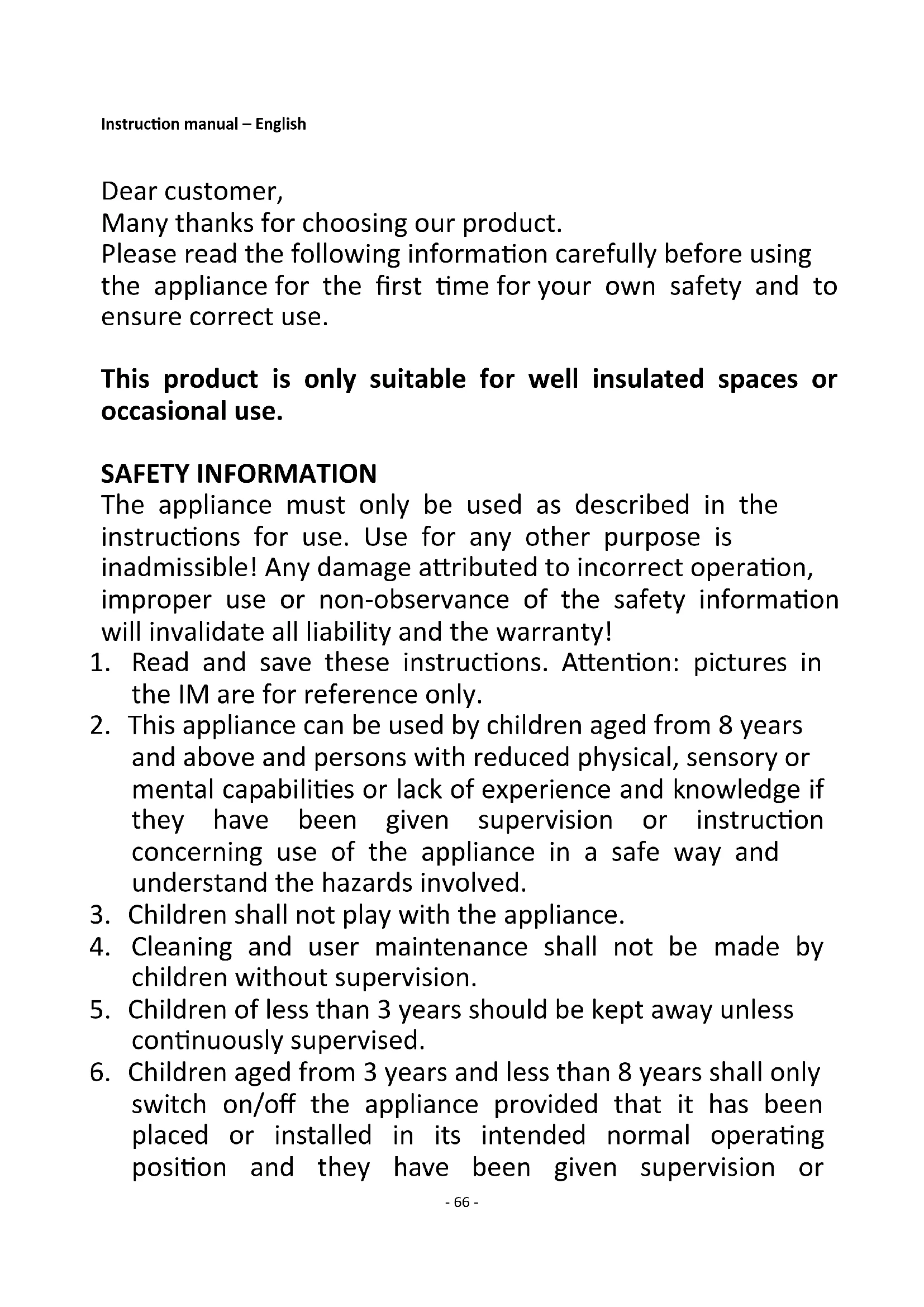

1. Read and save these instructions. Attention: pictures in

the IM are for reference only.

2. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by

children without supervision.

5. Children of less than 3 years should be kept away unless

continuously supervised.

6. Children aged from 3 years and less than 8 years shall only

switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or- 67 - instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can become very

hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

8. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. This appliance is intended to be used in household and

similar applications.

10. WARNING: In order to avoid overheating, do not cover the

11. means “DO NOT COVER”.

12. The heater must not be located immediately below a

13. Do not use this heater in the immediate surroundings of a

bath, a shower or a swimming pool.

14. CAUTION: In order to avoid a hazard due to inadvertent

resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

15. Only connect the appliance to A.C. mains as specified on

the rating plate! Ensure that the plugs and cord allow high power.

16. The frost protector should not be installed in areas with

fire hazards, such as garages, stables, or wooden shed. This also applies to rooms in which highly inflammable gases or dust can develop. Danger of fire!

17. The room to be heated should not contain any easily

inflammable materials (e.g. petrol, solvent, spray canisters- 68 - etc.) or other easily combustible materials (e.g. wood or paper). Keep such materials away from the equipment. Danger of fire!

18. The surface of the heater becomes hot. Do not install

cable is defective. Repairs are only to be carried out by a specialist.

20. Never operate the appliance with wet hands! Danger to

21. The unit is ready for use even when at the lowest setting

level. In order to switch off the frost protector, pull out the power supply plug or turn off the permanently installed disconnecting switch (e.g. automatic cut-out, installation switch etc.)

22. This heater is mainly used as frost guard.

23. The appliance should not be operated by means of an

external timer-switch or by means of a separate system with remote control not originally belonging to this appliance.

24. This heating device is not suitable for assembling in

vehicles and machines.

25. Regarding the information pertaining to the installation,

please refer to the below paragraph of the manual. These instructions for use belong to the appliance and must be kept in a safe place. When changing owners, these instructions must be handed over to the new owner!- 69 - FG-117320.2 & FG-117320.3 GB

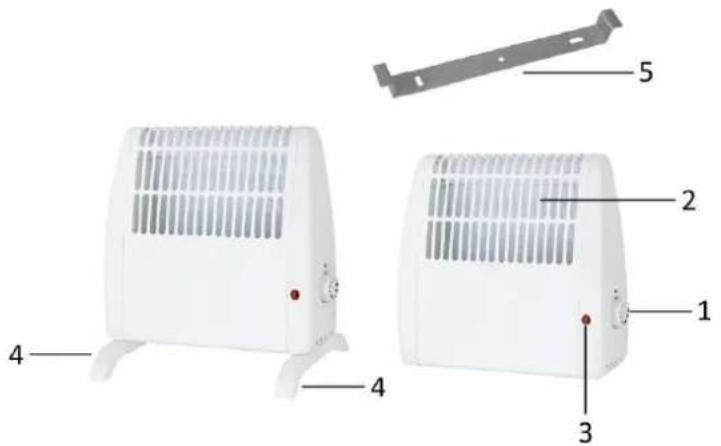

5. Clip for mounting

USAGE The frost protector with thermostat is for keeping small rooms free from frost. It can only be used within the home and for the purposes described. It is not for outdoor use. DESCRIPTION The frost protector is an electrical convector heater. It is fitted with a thermostat for maintaining the desired temperature. A control lamp lights up when the frost protector starts to heat up. The thermostat controls the room temperature and switches the heater on or off as necessary. The built-in temperature-monitor switches the unit off if it is too hot and switches it on again after cooling down. The heater is always ready for use. To switch off the frost protector, pull out the plug at the mains. (In its minimum (fully anti-clockwise) position, the thermostat provides a frost guard position. In this position (depending on the size of the room) the heater will maintain the temperature above freezing. )

ASSEMBLY OF THE HEATER

When the heater is used on wall mounted, please read below instructions carefully:

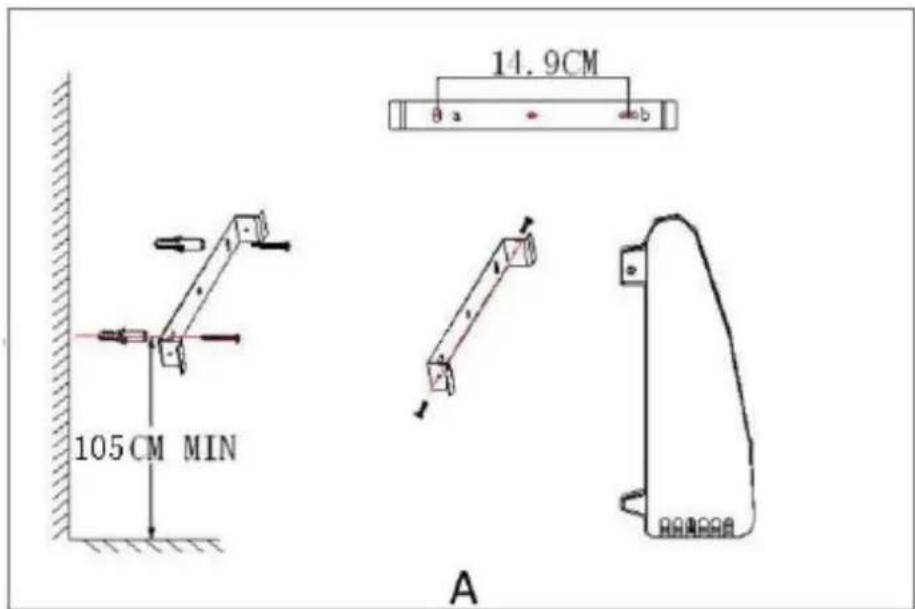

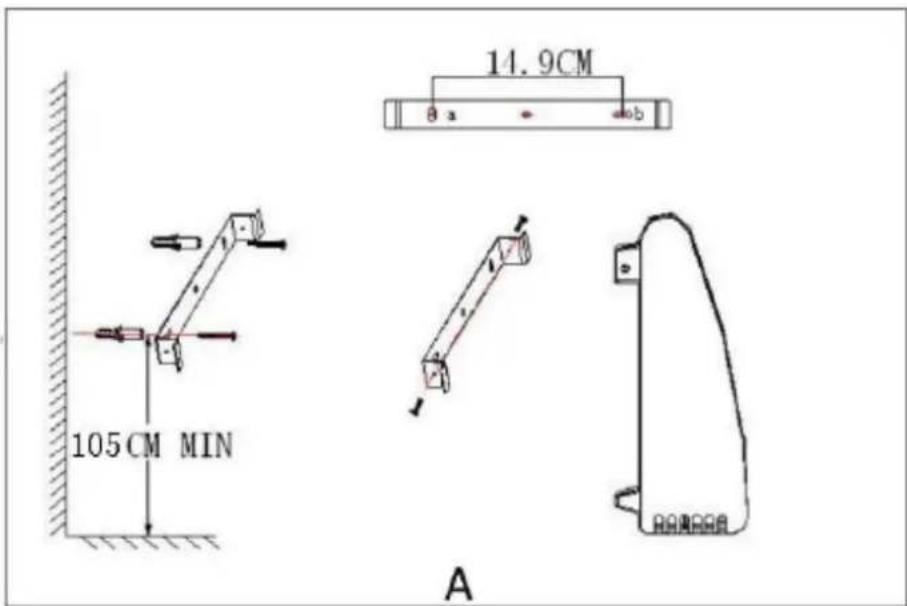

1. Use an Electrical Drill (Size of Head drill Φ8mm) drilling 2 holes (a, b) on the wall, the distance between a

and b is 14.9CM, the depth is about 4cm.

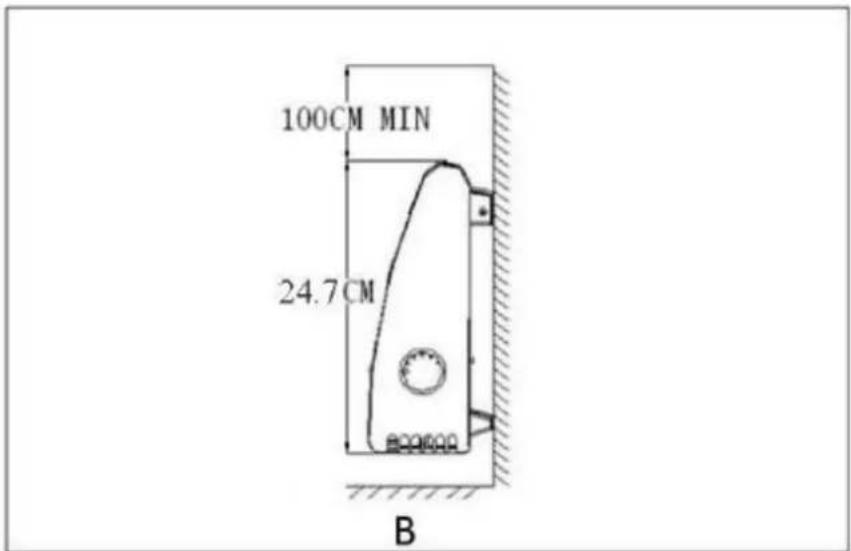

2. Assemble the 2pcs Φ4X30mm screws and clip onto the wall, please pay attention to the minimum distance

above floor and below ceiling after mounting as Picture A & B shows.

3. Then find the correct position to fit the grooves at the back of the heater, let the clip hold the heater. After

that, use 2pcs of Φ3X10mm screws to firm the connection as Picture A shows.- 70 -

When the heater is used not in a wall-mounted way, the feet must be fitted onto the unit.

1. Place the two feet at the bottom of the appliance.

2. Match the bulge and groove at each side to fit the two feet.

3. Tighten the two screws provided to fix the two feet at the bottom of the appliance.

OPERATING INSTRUCTIONS The rotary knob and the marking on the casing show the setting of the thermostat. To set the required room temperature: turn the knob to the right fully and wait until the required temperature has been reached. Turn the knob slowly back again until the indicator light goes off. Now the position of the knob corresponds to the required temperature.

TAKING CARE OF YOUR FROST PROTECTOR

Before cleaning the appliance disconnect the plug from the power supply and let it cool down completely. Clean the casing occasionally with a damp cloth. Do not use any strong cleaning materials and do not allow water to penetrate the appliance. TECHNICAL DATA Operating voltage: 220-240V ~ 50-60Hz Power consumption: 450-520W Recycling – European Directive 2012/19/EU This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.- 71 - ERP information (GB) Supplier: BAHAG AG Gutenbergstr. 21 68167 Mannheim GERMANY Declare that the product detailed below: Information requirements for electric local space heaters Model identifier(s): 20328108, 20514651 Item Symbol Value Unit Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one)

manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control Yes

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control No- 72 -

with working time limitation

with black bulb sensor
