USER MANUAL Xsolar SOLO S STEINEL

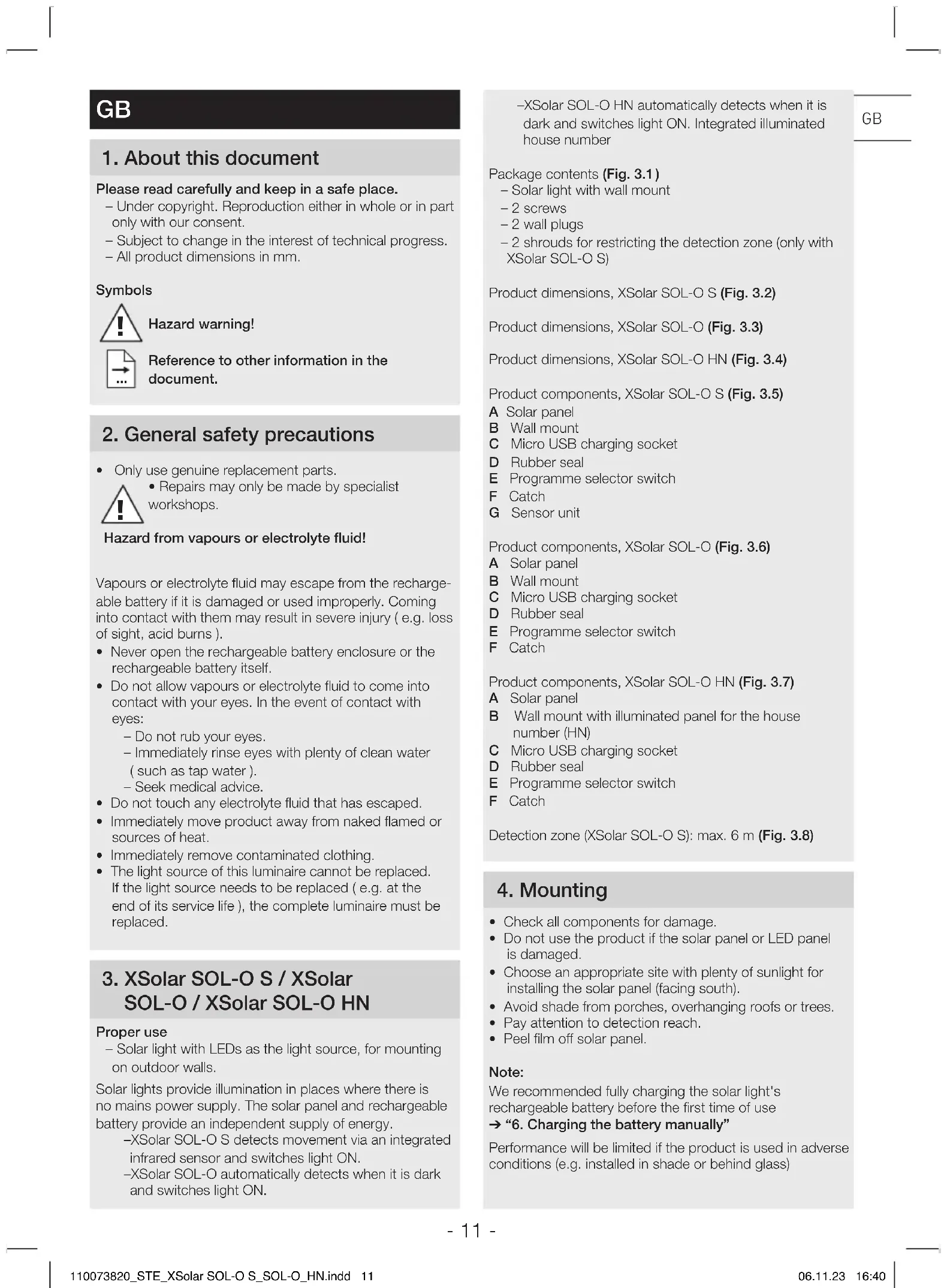

GB . . . . 11 Follow written instructions!
Please read carefully and keep in a safe place.
- Under copyright. Reproduction either in whole or in part only with our consent.
- Subject to change in the interest of technical progress.
- All product dimensions in mm.
Symbols
Hazard warning!
Reference to other information in the document.
2. General safety precautions
- Only use genuine replacement parts.
- Repairs may only be made by specialist workshops.
Hazard from vapours or electrolyte fluid!
Vapours or electrolyte fluid may escape from the rechargeable battery if it is damaged or used improperly. Coming into contact with them may result in severe injury (e.g. loss of sight, acid burns).
3. XSolar SOL-O S / XSolar SOL-O / XSolar SOL-O HN
Proper use
- Solar light with LEDs as the light source, for mounting on outdoor walls.
Solar lights provide illumination in places where there is no mains power supply. The solar panel and rechargeable battery provide an independent supply of energy.
-XSolar SOL-O S detects movement via an integrated infrared sensor and switches light ON.
-XSolar SOL-O automatically detects when it is dark and switches light ON.
-XSolar SOL-O HN automatically detects when it is dark and switches light ON. Integrated illuminated house number
Package contents (Fig. 3.1)
Solar light with wall mount
-2 screws
-2 wall plugs
- 2 shrouds for restricting the detection zone (only with XSolar SOL-O S)
Product dimensions, XSolar SOL-O S (Fig. 3.2)
Product dimensions, XSolar SOL-O (Fig. 3.3)
Product dimensions, XSolar SOL-O HN (Fig. 3.4)
Product components, XSolar SOL-O S (Fig. 3.5)
A Solar panel
B Wall mount
C Micro USB charging socket
D Rubber seal
E Programme selector switch
F Catch
G Sensor unit
Product components, XSolar SOL-O (Fig. 3.6)
A Solar panel
B Wall mount
C Micro USB charging socket
D Rubber seal
EProgramme selector switch
F Catch
Product components, XSolar SOL-O HN (Fig. 3.7)
A Solar panel
B Wall mount with illuminated panel for the house number (HN)
C Micro USB charging socket
D Rubber seal
EProgramme selector switch
F Catch
Detection zone (XSolar SOL-O S): max. 6 m (Fig. 3.8)
4. Mounting
- Check all components for damage.
- Do not use the product if the solar panel or LED panel is damaged.
- Choose an appropriate site with plenty of sunlight for installing the solar panel (facing south).
- Avoid shade from porches, overhanging roofs or trees.
Pay attention to detection reach.
- Peel film off solar panel.
Note:
We recommended fully charging the solar light's rechargeable battery before the first time of use
"6. Charging the battery manually"
Performance will be limited if the product is used in adverse conditions (e.g. installed in shade or behind glass)
- Affix house numbers to illuminated panel. (Fig. 4.1)
- Mark drill holes with the aid of a spirit level. (Fig. 4.2)
- Drill holes and insert wall plugs (Fig. 4.3)
- Tightly screw wall mount in place (Fig. 4.4)
- Settings "5. Operation"
Make settings (Fig. 5.1 + 5.5)
Fit base on wall mount (Fig. 4.5)
5. Operation
Before using for the first time
XSolar SOL-O S:
Activate light by setting the programme selector switch to P3. The light stays in test mode for one minute before it starts to work in programme P3.
XSolar SOL-O:
Activate light by setting the programme selector switch to P2. The light stays in test mode for one minute before it starts to work in programme P2.
Test mode
During the test sequence the light works in daylight mode. On detecting movement, the light switches ON for 1 minute with a stay-ON time of 10 seconds, irrespective of lightlevel setting. The programme is automatically activated after this time elapses. The red LED stays ON all the time in test mode.
XSolar SOL-O S
Setting the chosen operating mode by programme selector switch (Fig. 5.1)
-PO: OFF (factory setting).
The light is deactivated.
-P1: Sensor mode.
The light switches ON after detecting movement.
- P2: Sensor mode with night light.
The light switches ON after detecting movement. Light permanently ON in the morning and evening hours at reduced night light level.
- P3: Illumination of house numbers and sensor mode. At night, house numbers are illuminated at reduced night light level. Light switches ON after receiving a signal from the motion detector. If the battery charge is low, house number illumination has priority over the main light. This means night light is active but the light does not switch ON in response to movement.
Stay-ON time and brightness
- Stay-ON time is determined when the light is used for the first time.
- During the first night, night light is switched OFF in the morning in programme 2.
- Stay-ON time and brightness are automatically matched to ambient conditions, e.g. stay-ON time may be longer in summer than it is in winter.
Night light provides illumination at night of approx. 3% light output. Light is switched to maximum output when movement is identified in the detection zone.
The light then switches back to night light (approx. 3% ).
Using night light reduces light availability. If it is not needed, we recommend switching it OFF (P1) to ensure lighting availability in less sunny periods.
Adjusting the detection zone (Fig. 5.2, Fig. 5.3, Fig. 5.4)
The detection zone can be limited to suit requirements. The shrouds supplied with the unit can be used to mask out as many lens segments as you wish. This prevents the light from being activated unintentionally, e.g. by cars, passersby etc., and allows you to target danger spots. The shrouds can be cut along the grooved vertical divisions. Then you simply clip them onto the lens.
XSolar SOL-O / XSolar SOL-O HN
Setting the chosen operating mode via programme selector switch (Fig. 5.5)
OFF: (factory setting).
The power consumers (LEDs) are deactivated.
The luminaire activates constant illumination when ambient light falls below the light level threshold (2 lux) and automatically switches it OFF again after approx. 4 h. Light is adjusted to optimum brightness for the level of battery charge.
The luminaire activates reduced constant illumination when ambient light falls below the light level threshold (2 lux) and automatically switches it OFF again at dawn. Light is adjusted to optimum brightness for the level of battery charge.
6. Charging the battery manually
The red LED in the motion detector or light flashes if battery capacity is too low (e.g. in poor weather).
The battery can be recharged with a standard micro USB charging adapter, e.g. a mobile phone charging cable ( not included). The battery can take up to 6 hours to recharge.
- Separate base from wall mount with the twist of a screwdriver. (Fig. 6.1)
- Detach USB protection. Connect micro USB
charging adapter (Fig. 6.2)
Red LED flashing: charging in progress.
- The LED may take up to 10 minutes to start flashing if the battery has run down to very low level.
Red LED on: battery is fully charged.
- Remove micro USB charging adapter.
Red LED goes out.
- Fit base on wall mount (Fig. 4.5)
7. Maintenance / care
The product requires no maintenance.
Regularly checking the product for damage can prolong its lifespan. Removing dirt can prolong the product's lifespan.
If the solar panel is dirty or weather has left deposits on it:
8. Disposal
Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.
Do not dispose of electrical and electronic equipment as domestic waste.
EU countries only
Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.
t throw devices, rechargeable
batteries / batteries into household waste, fire or water at the end of their useful life.
Rechargeable batteries / batteries should be collected, recycled or disposed of in an environmentally friendly manner.
EU countries only
In accordance with Directive 2006/66/EC, defective or spent rechargeable batteries / batteries must be recycled. Waste rechargeable / non-rechargeable batteries can be returned to the point of purchase or to a collection facility for hazardous substances.
9. Manufacturer's warranty
Manufacturer's warranty of STEINEL GmbH,
Diesel strasse 80-84, DE-33442 Herzebrock-Clarholz, Germany
All STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to provide you, the customer, with a warranty under the following terms and conditions:
The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall cover all STEINEL Professional products sold and used in Germany.
Our warranty cover for consumers
The provisions below apply to consumers. A consumer is any natural person who, on entering into the purchase transaction, neither acts in exercising their commercial nor their self-employed activity.
You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.
In the case of sensors, floodlights, outdoor and indoor lights, the warranty period for the STEINEL Professional product you have purchased is 5 years in each case from the date on which the product was purchased.
We shall bear the shipping costs but not the transport risks involved in return shipment.
Our warranty cover for entrepreneurs
The provisions below apply to entrepreneurs. Entrepreneur is a natural or legal person or partnership with legal personality who or which, on entering into the purchase transaction, acts in exercising their or its commercial or self-employed activity.
We have the option of providing warranty cover by rectifying deficiencies free of charge, replacing a product free of charge (if applicable, in the form of a successor model of the same or higher quality) or by issuing a credit note. In the case of sensors, floodlights, outdoor and indoor lights, the warranty period for the STEINEL Professional product you have purchased is 5 years in each case from the date on which the product was purchased.
Within the scope of warranty cover, we shall not bear your expenses accruing from subsequent fulfillment nor shall we bear your expenses for removing the defective product and installing a replacement product.
Statutory rights accruing from defects, gratuitousness
The warranty cover described here shall be applicable in addition to the statutory rights of warranty - including special consumer protection provisions - and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.
Exemptions from the warranty
All replaceable lamps are expressly excluded from this warranty.
In addition to this, the warranty shall not cover:
any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL Professional product that are attributable to wear caused by use or other natural wear,
-any improper or non-intended use of the product or any failure to observe the operating instructions,
any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory.
-supplementary or replacement parts which are not genuine STEINEL parts,
-any maintenance or care of products that is not carried out in accordance with the operating instructions,
-any attachment or installation that is not in accordance with STEINEL's installation instructions,
-any damage or loss occurring in transit.
Application of German law
The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).
Making claims
If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. - 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom. For this reason, we recommend that you keep your receipt of purchase in a safe place
until the warranty period expires.
YEAR
MANUFACTURER'S
WARRANTY
11. Technical specifications
| Technical specifications for solar light | XSolar SOL-O S | XSolar SOL-O | XSolar SOL-O HN |
| Dimensions: (W × H × D (in mm) | 242 × 53 × 91 | 242 × 38 × 91 | 242 × 183 × 91 |
| Output max. 3.3 W max. 0.1 W max. | max. 0.1 W | | |
| Angle of coverage 360° - - | | | |
| Detection reach | max. 6 m | - - | |
| Twilight setting | 2 lux |
| Time setting | 10-30 s automatically | - | - |
| Night light | 3 % - - | | |
| Luminous flux | max. 273 lm | max. 7.5 lm | max. 7.5 lm |
| Efficiency | 83 lm / W | 75 lm / W | 75 lm / W |
| Colour temperature | 3,000 K |
| LED life expectancy | 50,000 h |
| IP rating | IP 44 |
| Protection class | III |
| Temperature range | -20 °C to +40 °C |
| Technical specifications for rechargeable battery | XSolar SOL-O S XSolar SOL-O | XSolar SOL-O HN |
| Type | Lithium iron phosphate (LiFePO 4) |
| Capacity | 2 × 2,000 mAH 2,000 mAH | 2,000 mAH | |
| max. life expectancy | 20 days at 20 switching operations a night. |
| Micro USB charging socket | 5 V, max. 1 A |
10. Troubleshooting
| Malfunction Cause Remedy |
| Red LED flashing in motion detector / light | ■ Battery capacity too low | ■ Charge battery with micro USB charging adapter |
| Light does not switch ON | ■ Battery capacity too low | ■ Charge battery with micro USB charging adapter |
| ■ Detection zone not correctly adjusted | ■ Check detection zone |
| Light does not switch OFF | ■ Continued movement within the detection zone | ■ Check detection zone |
| Light switches ON when it should not | ■ Uncontrolled movement in the detection zone: Wind is moving trees and bushes. Cars in the street being detected. Sudden temperature changes due to weather (wind, rain, snow) or air expelled from fans, open windows.
■ Light is swaying (moving) due to gusts of wind or heavy rain | ■ Check detection zone |
| ■ Mount light on a firm surface |
| Battery not charging | ■ Solar panel dirty | ■ Clean solar panel with a soft cloth and mild detergent |
| ■ Solar panel not installed in the best place. | ■ Check site of installation (as much direct sunlight as possible) |
| Risk of damage to property when light is not in use | ■ If the light is not used for a prolonged period. The battery may be permanently damaged from exhaustive discharge (e.g. during storage) | ■ Set programme selector switch to P0 or OFF
■ The battery must be on full charge before taking the light out of service.
■ Regularly charge the battery while the light is not in use |
