Product Type	Laser Distance Meter
Brand	Laserliner
Model	LaserRangeMaster i5
Dimensions (L x H x D)	50 x 122 x 27 mm
Weight (batteries included)	140 g
Power Supply	2 LR6 (AA) 1.5 V batteries
Typical Accuracy	± 1.5 mm (up to 10 m)
Measuring Range (indoor)	0.05 m - 50 m
Laser Wavelength	635 nm
Laser Class	2 (< 1 mW)
Auto-Off	Laser: 30 s, Device: 3 min
Operating Conditions	-10 °C to 40 °C, 20 - 85% RH, max 2,000 m
Storage Conditions	-20 °C to 70 °C, max 80% RH
Main Functions	Length, area, volume measurement, continuous min/max measurement, 1/2/3 angle function, digital bubble, inclination sensor calibration, 50 memory slots
Measurement Units	meters, inches, feet
Measurement Reference	Front / Edge of housing
Cleaning	Soft, slightly damp cloth, no chemicals
Maintenance	Remove batteries before long-term storage; store in a dry place
Calibration	Recommended every 1 to 2 years (contact customer service)
Main Error Codes	Err10 (low battery), Err14 (calculation), Err15 (out of range), Err16 (weak signal), Err18 (tilt calibration)
Safety	Laser class 2, do not stare into beam or use optics
Repairability	Contact UMAREX-LASERLINER customer service

Frequently Asked Questions - LaserRangeMaster i5 Laserliner

How to measure a distance with the LaserRangeMaster i5?

Turn on the device using the ON/measure button. Aim the laser at the target and press the button again to take the measurement. The result will be displayed on the screen.

How to change the measurement unit?

Press the Change unit button to switch between meters (m), inches (in), and feet (ft). The selected unit will be displayed on the screen.

What does error code Err15 mean?

The code Err15 indicates that the measurement is outside the measuring range (0.05 m to 50 m). Move closer to the target or use the device within the specified limits.

How to calibrate the inclination sensor?

Select the Inclination sensor calibration function via the keypad. Follow the on-screen instructions: place the device on a flat, stable surface, then confirm the calibration.

What is the accuracy of the device?

The typical accuracy is ± 1.5 mm up to 10 m on a highly reflective surface. Beyond that or in less favorable conditions, the deviation can reach ± 0.2 mm/m.

How to use the continuous measurement function?

Select the Continuous min./max. measurement mode using the function button. The device displays the current value, minimum (min.) and maximum (max.) values in real time. Press the measure button to stop.

How to replace the batteries?

Open the battery compartment, insert 2 LR6 (AA) 1.5 V batteries observing polarity. Use alkaline batteries. Remove batteries before long-term storage.

Can I use this device outdoors?

Yes, but outdoor use is limited. Avoid strong sunlight, rain, fog, or snow which can distort measurements. The measuring range is reduced to a maximum of 5000 lux.

How to clean the device?

Use a soft, slightly damp cloth. Do not use cleaning agents, solvents, or water that could penetrate the housing. Gently wipe the screen and housing.

What to do in case of error Err18?

Err18 corresponds to an inclination sensor calibration error. Restart the calibration procedure following the on-screen instructions. If the error persists, contact UMAREX-LASERLINER customer service.

USER MANUAL LaserRangeMaster i5 Laserliner

https://packd.li/ll/aow/in

Laserliner

！

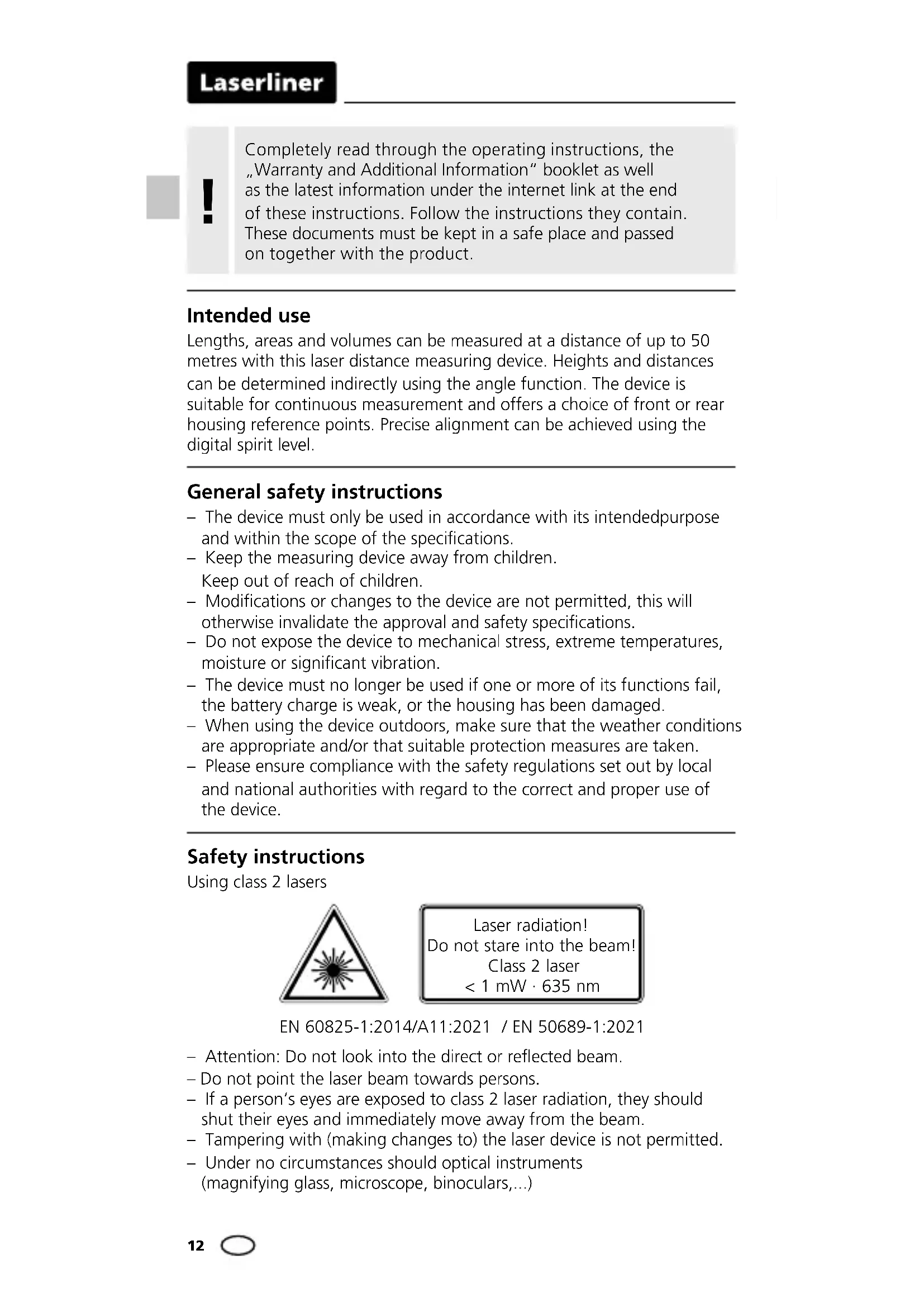

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. These documents must be kept in a safe place and passed on together with the product.

Intended use

Lengths, areas and volumes can be measured at a distance of up to 50 metres with this laser distance measuring device. Heights and distances can be determined indirectly using the angle function. The device is suitable for continuous measurement and offers a choice of front or rear housing reference points. Precise alignment can be achieved using the digital spirit level.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Keep the measuring device away from children.

Keep out of reach of children.

• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail, the battery charge is weak, or the housing has been damaged.
• When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

Safety instructions

Using class 2 lasers

EN 60825-1:2014/A11:2021 / EN 50689-1:2021

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Tampering with (making changes to) the laser device is not permitted.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars,...)

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

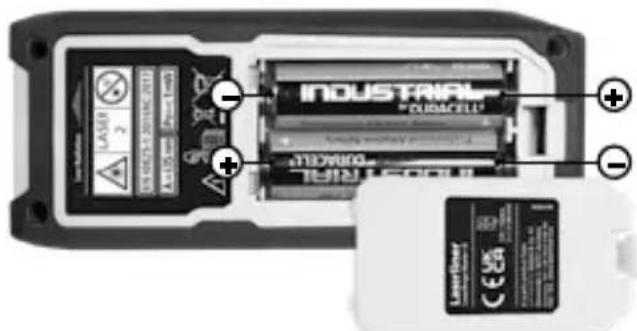

Inserting batteries

Open the battery compartment and insert batteries (2 x 1,5V LR6 (AA)) according to the symbols. Be sure to pay attention to polarity.

KEYPAD:

1. ON / measure
2. Delete last measurement values / OFF
3. Measurement point (reference) rear / front / unit m / inch / ft
4. Length / min/max continuous measurement / area / volume / angle function 1 + 2 + 3/ digital bubble level / tilt sensor calibration / memory

Laserliner

a

DISPLAY:

a Function display
b Measurement point (reference) rear / front
c Display min./max. continuous measurement / area / volume / angle function 1 + 2 + 3
d Min/max continuous measurement
e Measurement values / measurement results / malfunction / service required
f Slope angle device
g Battery symbol
h Intermediate values / min/max values
i Unit m/inch/ft
j Length measurement
k Min/max continuous measurement
Area measurement
m Volume measurement
n Angle function 1
Angle function 2
p Angle function 3
q Digital bubble level
Tilt sensor calibration
s Memory

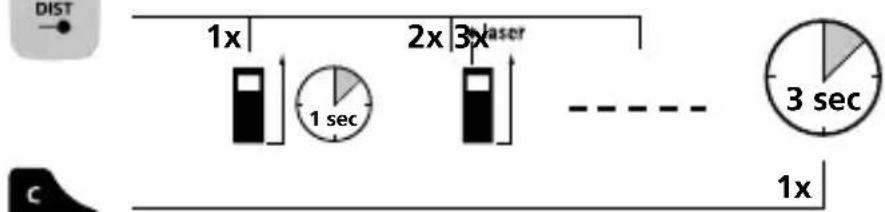

Switch on, measure and switch off:

Device on Laser on Measure Device off

Change unit of measure: m / inch / ft

Delete the last measured value:

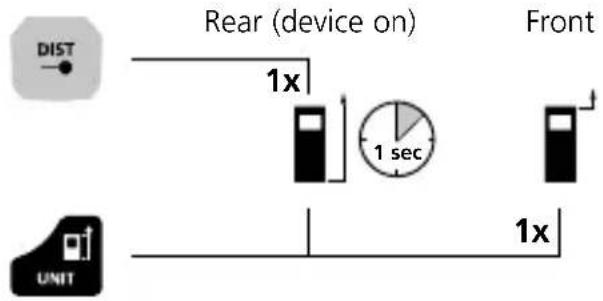

Change measurement point (reference):

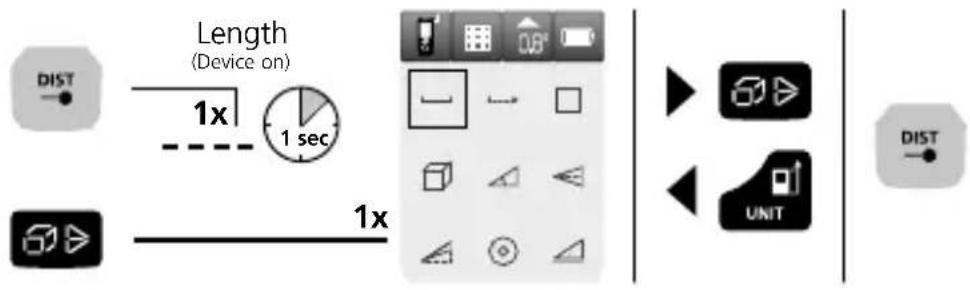

To select functions:

Length / min/max continuous measurement / area / volume / angle function 1 + 2 + 3 / digital bubble level / tilt sensor calibration / memory

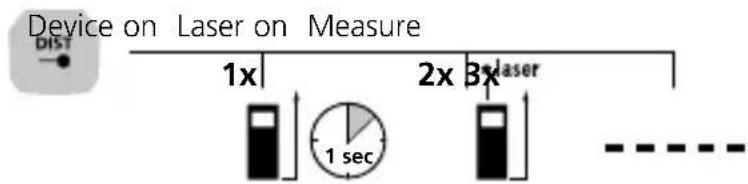

Length measurement:

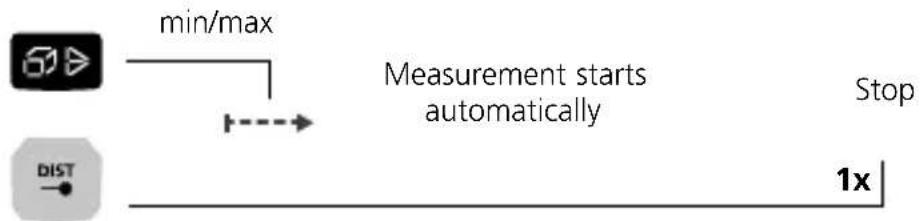

Min/max continuous measurement:

The LC display shows the max value, the min value and the current value.

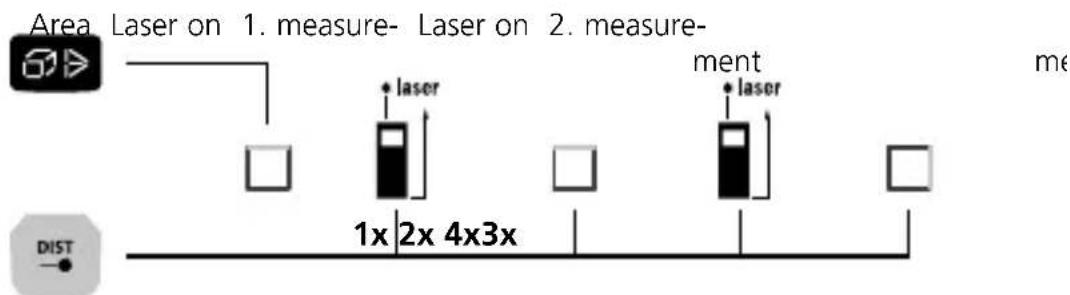

Area measurement:

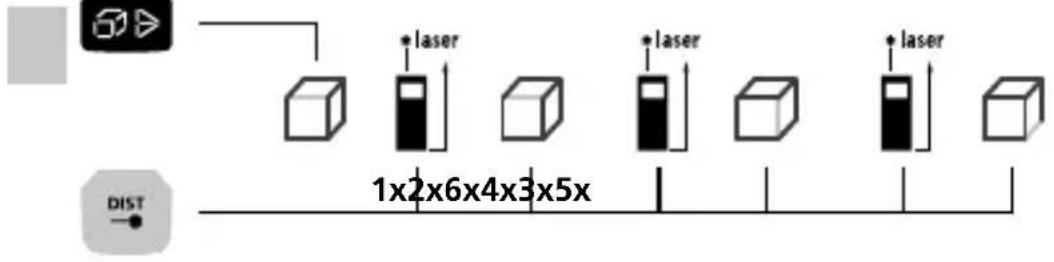

Volume measurement:

Volume 1.measurement 2.measurement 3.measurement

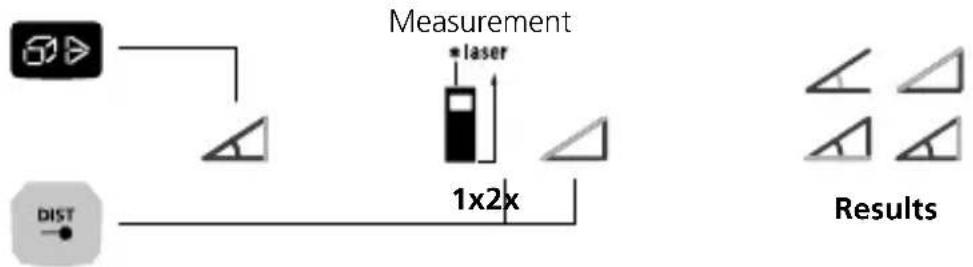

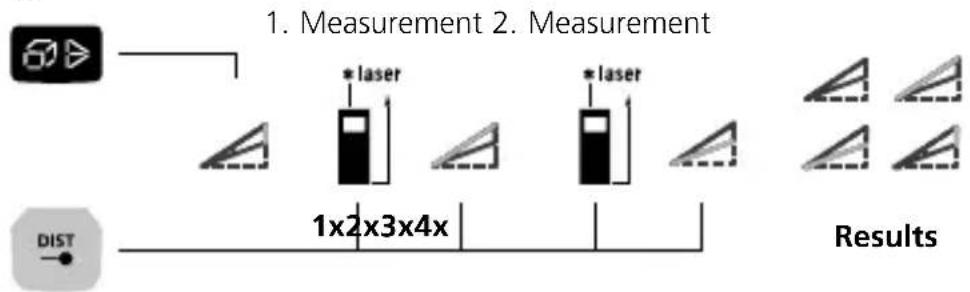

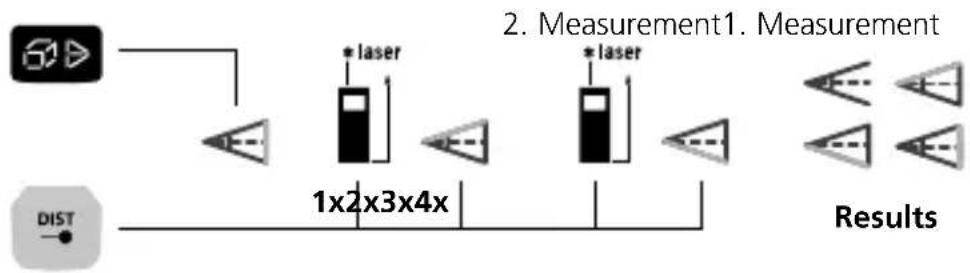

Angle function 1 / 2 / 3:

The measurement results are determined automatically by the 360^ inclination sensor.

The back of the device can be used as a reference surface for measuring angles.

1:

2:

3:

Digital bubble level:

The digital bubble level is used to horizontally align the measuring device.

Tilt sensor calibration:

To calibrate the tilt sensor follow the instructions on the display.

Speicher-Funktion:

• The laser points to the location that will be measured.
  No objects may get into the laser's line of measurement.
• The device compensates the measurement for different room temperatures. Therefore allow the device a brief adaptation period when changing locations with large temperature differences.
• The device is only conditionally useable in outdoor areas and cannot be used in strong sunlight.
• The measurement results of outdoor measurements may be influenced or falsified by rain, fog and snow.
• In unfavourable conditions, e.g. with poorly reflecting surfaces, the maximum deviation may be greater than 3mm .
• Carpenting, upholstery or curtains will not reflect the laser optimally. Measure to flat surfaces.
• Measurements made through glass (window panes) can falsify measurement results.
• An energy-saving function switches the device off automatically.
• Clean with a soft cloth. Water may not be allowed to penetrate the housing.

Laserliner

Error codes:

Err10: Replace the battery
Err11: Data transfer error
Err14: Calculation error
Err15: Outside the measuring range
Err16: Received signal too weak
Err18: Tilt sensor calibration error

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Calibration

The measuring device should be calibrated and tested on a regular basis to ensure it is accurate and working properly. We recommend the measuring device is calibrated every 1 - 2 years. If necessary, contact your distributor or the UMAREX-LASERLINER service department.

Technical Data (Subject to technical changes without notice. 24W07)

Precision (typical)* ± 1,5 mm
Measurement range (inside)**	0,05 m - 50 m
Laser class	2 / < 1 mW (EN 60825-1:2014/ A11:2021 / EN 50689-1:2021)
Laser wavelength 635 nm
Automatic switch-off 30 sec laser / 3 min device
Power supply 2 x 1,5V LR6 (A)
Operating conditions	-10°C ... 40°C, max. humidity 20 ... 85% rH, no condensation, max. working altitude 2000 m above sea level
Storage conditions	-20°C ... 70°C, max. humidity 80% rH
Dimensions (W x H x D) 50 x Weight 140 g (incl. batteries)	122 x 27 mm

• measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces.

** at max. 5000 lux

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials. Electrical devices, batteries and packaging do not belong in household waste. Users are obliged by law to surrender used batteries or battery packs to a public collection point, to sales outlets, or to technical customer services, free of charge. Remove the battery from the device without damaging it using standard commercial tools: arrange separate collection before returning the device for disposal. Please do not hesitate to contact the UMAREX-LASERLINER service department if you have any queries regarding removing the battery. Look for information on local disposal facilities and note the relevant disposal and safety information at the collection points.

Further safety and supplementary notices at: https://packd.li/ll/aow/in
