USER MANUAL HCPS310N KONIG

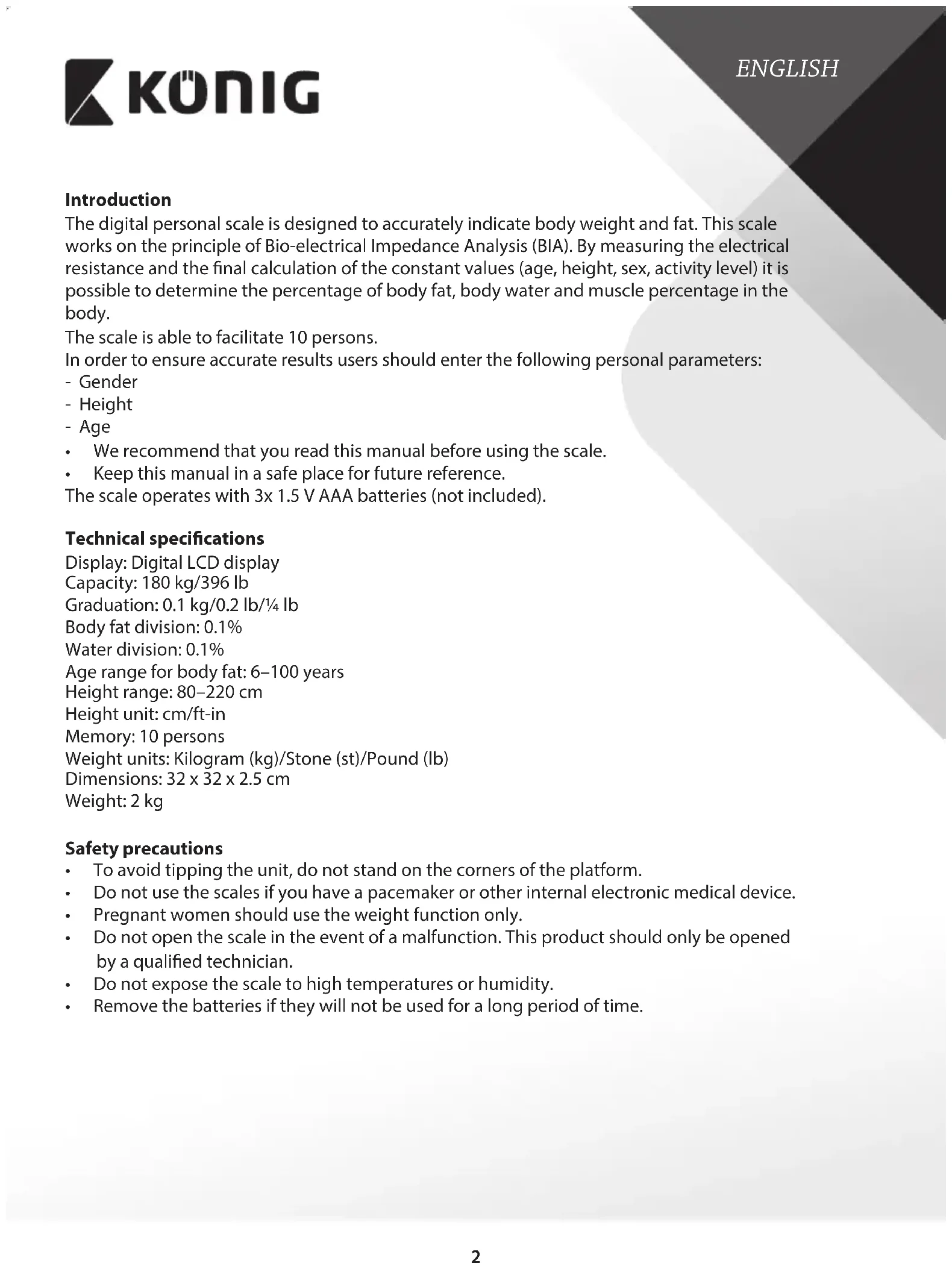

• We recommend that you read this manual before using the scale.

• Keep this manual in a safe place for future reference. The scale operates with 3x 1.5 V AAA batteries (not included). Technical specications Display: Digital LCD display Capacity: 180 kg/396 lb Graduation: 0.1 kg/0.2 lb/¼ lb Body fat division: 0.1% Water division: 0.1% Age range for body fat: 6–100 years Height range: 80–220 cm Height unit: cm/ft-in Memory: 10 persons Weight units: Kilogram (kg)/Stone (st)/Pound (lb) Dimensions: 32 x 32 x 2.5 cm Weight: 2 kg Safety precautions

• To avoid tipping the unit, do not stand on the corners of the platform.

• Do not use the scales if you have a pacemaker or other internal electronic medical device.

• Pregnant women should use the weight function only.

• Do not open the scale in the event of a malfunction. This product should only be opened by a qualied technician.

• Do not expose the scale to high temperatures or humidity.

• Remove the batteries if they will not be used for a long period of time.3 ENGLISH Installation instructions

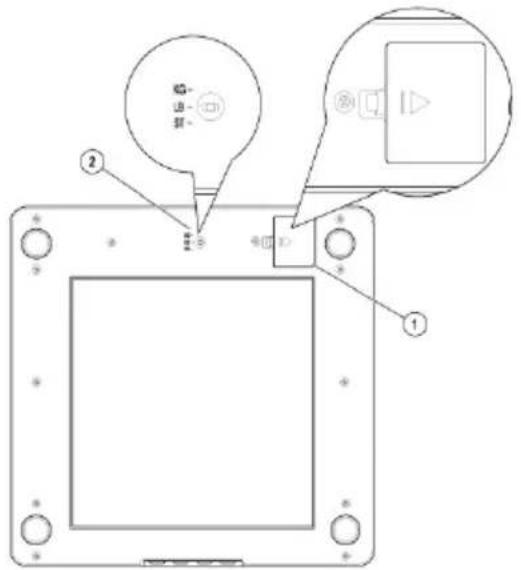

1. Battery compartment cover

2. Weight units selection button

Install the batteries

1. Open the battery cover (on the underside of the scale) by releasing the clip and lifting the

Be sure the polarity of the batteries is set properly.

Select weighing mode Switch the scale on (ON/OFF button). Use the Weight units selection button (underside of scale) to select the weight units (kg/lb/ st). Place the scale Place the scale on a rm, at and even surface to ensure accuracy.4 ENGLISH User instructions User instructions

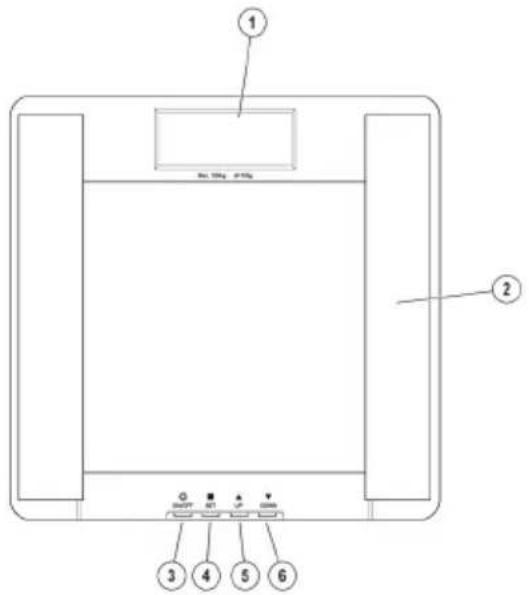

Setting and storing personal data The scale can store personal data for up to 10 persons.

1. Press the ON/OFF button.

The personal key number ashes.

The gender symbols ash.

4. Press the UP/DOWN buttons to select user gender and condition:

• Male ( User instructions

• Female ( User instructions

• Male Athlete ( User instructions

• Female Athlete ( User instructions

The display shows the height.

The display shows the age (user age range may be between 6 and 100 years).

The personal data is now set and stored. Weighing

1. Press the ON/OFF button.

2. Use the UP/DOWN button to select your personal key number.

3. Step on the scale with bare feet and wait while the scale analyses your weight.

4. On completion, the following screens will be displayed alternately:5

2. MUS percentage (muscle)

3. BON (bone weight)

To lose weight, you must consume fewer calories than this. Result guidelines – female Body fat ratio chart (%) Age Normal and athlete mode Underweight Healthy Overweight Obese 6–15 3.0–16.0 16.1–21.0 21.1–29.6 29.7–50.0 16–30 3.0–16.4 16.5–22.0 22.1–30.4 30.5–50.0 31–60 3.0–17.0 17.1–22.4 22.5–31.4 31.5–50.0 61–80 3.0–17.6 17.7–23.0 23.1–32.0 32.1–50.0 Water ratio chart and muscle ratio chart (%) Age Normal and athlete mode Low Healthy High Body Muscle 6–15 < 54.0 54.0–59.0 > 59.0 Normal: > 44 Athlete: > 46 16–30 < 53.0 53.0–58.0 > 58.0 31–60 < 52.0 52.0–57.0 > 57.0 61–80 < 51.0 51.0–56.0 > 56.0 Bone weight chart (kg) Weight < 45 45–60 > 60 Ref. bone weight ≈ 3.0 ≈ 4.2 ≈ 6.5 KCAL Chart Age Weight (kg) KCAL (normal mode) KCAL (athlete mode) 6–17 50 1265 1445 18–29 55 1298 1498 30–49 60 1302 14906 ENGLISH Age Weight (kg) KCAL (normal mode) KCAL (athlete mode) 50–69 60 1242 1332 70–80 50 1125 Result guidelines – male Body fat ratio chart (%) Age Normal and athlete mode Underweight Healthy Overweight Obese 6–15 3.0–13.0 13.1–17.4 17.5–25.6 25.7–50.0 16–30 3.0–13.6 13.7–18.0 18.1–26.4 26.5–50.0 31–60 3.0–14.0 14.1–18.6 18.7–27.0 27.1–50.0 61–80 3.0–14.4 14.5–19.0 19.1–28.0 28.1–50.0 Water ratio chart and muscle ratio chart (%) Age Normal and athlete mode Low Healthy High Body Muscle 6–15 < 57.0 57.0–62.0 > 62.0 Normal: > 46 Athlete: > 48 16–30 < 56.0 56.0–61.0 > 61.0 31–60 < 55.0 55.0–60.0 > 60.0 61–80 < 54.0 54.0–59.0 > 59.0 Bone weight chart (kg) Weight < 60 60–75 > 75 Ref. bone weight ≈ 4.5 ≈ 6.0 ≈ 7.5 KCAL chart Age Female Male Weight (kg) KCAL Weight (kg) KCAL 6–17 50 1445 60 2030 18–29 55 1498 65 1810 30–49 65 1411 80 1784 50–69 65 1346 80 1720 Replace batteries Open the battery cover (on the underside of the scale) by releasing the clip and lifting the cover.7 ENGLISH Replace the batteries.

Be sure the polarity of the batteries is set properly. Always replace all the batteries at the same time. Close the cover. Troubleshooting Carry out the following checks if the scale is not working properly:

• Make sure that the scale is not damaged.

• Make sure that all display settings are set properly. LCD screen displays: “LO” Install new batteries. “Err” of “OL” Maximum weight has been exceeded. “Err 2%” Indicates the error margin in the body fat percentage. Maintenance: Clean the scale with a lightly moistened cloth. Do not use cleaning solvents or abrasives. Warranty: Any changes and/or modications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of this product. Disclaimer: Designs and specications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such. Disposal:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.

• Mann ( User instructions

• Frau ( User instructions

• Mann Athlet ( User instructions

• Frau Athlet ( User instructions

• Man ( User instructions

• Donna ( User instructions

• Homem ( User instructions

• Fér ( User instructions

(TBW=Total Body Water)
