Product Type	Kitchen Scale
Brand	Konig
Model	HCKS32N
Power Supply	9V Battery
Display	LCD Screen
Measurement Units	kg, g, lb, oz
Tare Function	Yes
Zero Function	Yes
Timer with Alarm	Yes, max interval 99:59
Temperature Sensor	Yes, range 0-40 °C
Temperature Graduation	0.5 °C
Automatic Shut-off	After 2 minutes of inactivity
Maintenance	Slightly damp cloth; do not immerse
Safety	Do not open; unplug in case of problem; do not expose to water
Warranty	Void if modified or used incorrectly
Manufacturer	NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, The Netherlands

Frequently Asked Questions - HCKS32N KONIG

How to turn the scale on and off?

Press the ON/OFF button to turn it on. To turn it off, press ON/OFF again. The automatic shut-off activates after 2 minutes of inactivity.

How to use the tare function?

Place your empty container, then press the Z/T button to reset the display to zero. Add ingredients; the net weight is displayed. The TARE icon appears on the screen.

How to change the weight unit?

During weighing, press the UNIT button to switch between metric (kg, g) and imperial (lb, oz) systems.

How to set the timer with alarm?

Turn on the scale, press T-SET. Use ▲ and ▼ to set the time (max 99:59). Press T-SET again to start the countdown. The alarm sounds 60 times at zero.

What to do if the screen displays 'Lo' or 'Err'?

Lo means the battery is low: replace it with a 9V battery. Err indicates overload: remove ingredients to avoid exceeding the maximum capacity.

Which battery to use?

Use a 9V battery respecting polarity. Open the battery compartment under the scale to install it.

How to clean the scale?

Clean with a slightly damp cloth. Never immerse the scale in water and do not use chemicals or abrasives.

What to do if the scale does not turn on?

Check the battery: make sure it is correctly installed and not discharged. Replace it if necessary.

What is the maximum weighing capacity?

The maximum capacity is indicated on the scale itself. Do not exceed this limit to avoid damaging the device.

How does the automatic shut-off work?

The scale automatically turns off after 2 minutes if the display remains at zero or if the weight does not change. This saves battery.

USER MANUAL HCKS32N KONIG

MANUALE (p. 22) KASUTUSJUHEND (Ik. 87)

MANUAL DE USO (p. 27) NÁVOD (s. 92)

MANUAL (p. 32) ROKASGRĀMATA (Ipp. 97)

HASZNÁLATI ÚTMUTATÓ (o. 37) NAUDOJIMO VADOVAS (102 p.)

Close-up of a stainless steel kitchen scale with digital display showing temperature reading (no text or symbols on the bowl itself)

Kitchen Scale

KÖNIG

ENGLISH

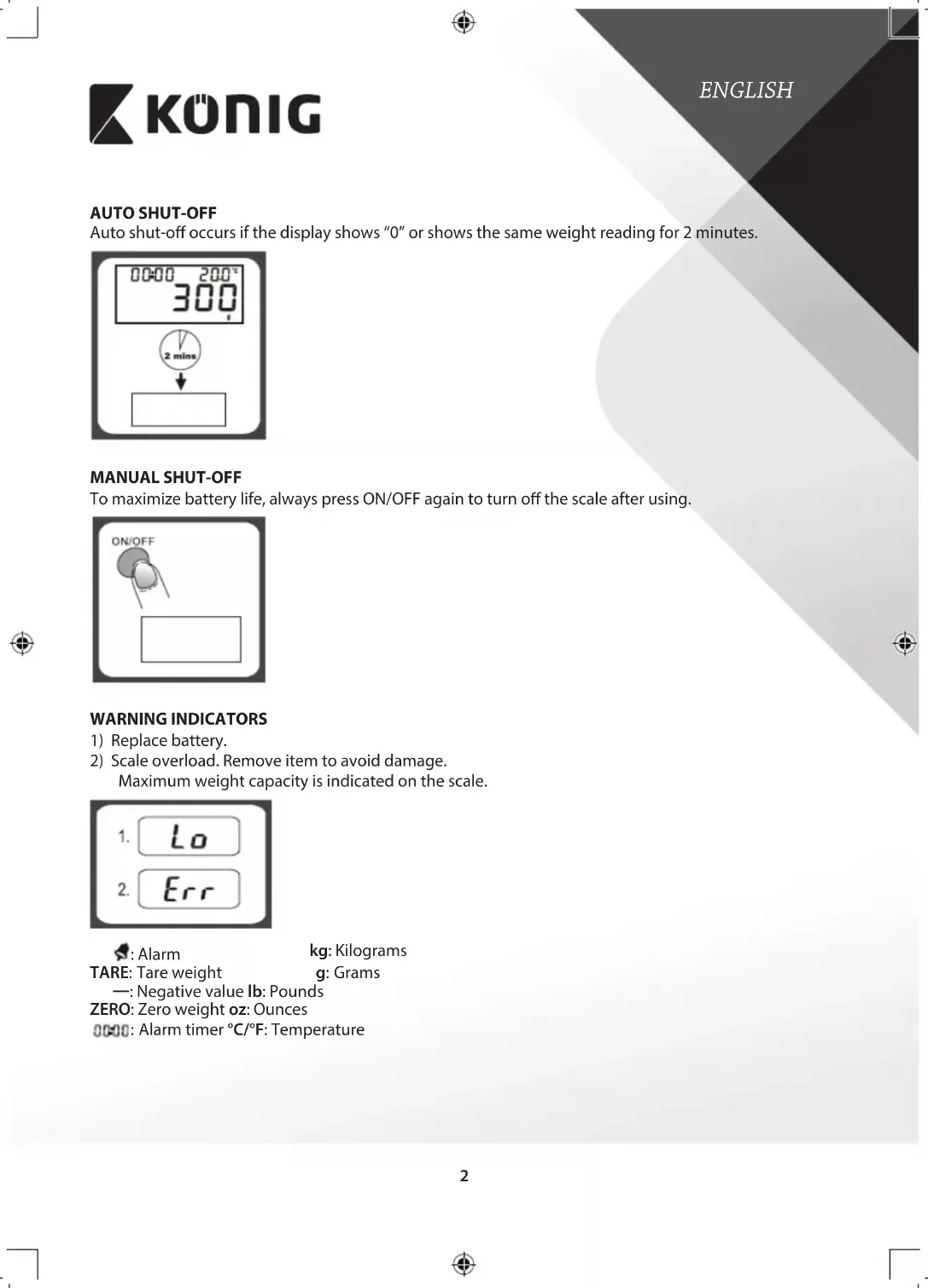

AUTO SHUT-OFF

Auto shut-off occurs if the display shows "0" or shows the same weight reading for 2 minutes.

00:00 200° 300 2 mins

MANUAL SHUT-OFF

To maximize battery life, always press ON/OFF again to turn off the scale after using.

ON/OFF

WARNING INDICATORS

1) Replace battery.
2) Scale overload. Remove item to avoid damage.
Maximum weight capacity is indicated on the scale.

1. Lo 2. Err

: Alarm

kg: Kilograms

TARE: Tare weight

g: Grams

—: Negative value lb: Pounds

ZERO: Zero weight oz: Ounces

0000: Alarm timer °C/°F: Temperature

KÖNIG

TARE ZERO 88:88 888.8 °C 18:88.8 kg lb oz g

ENGLISH

CLEANING AND CARE

1. Clean the scale with a slightly damp cloth. DO NOT immerse the scale in water or use chemical/abrasive cleaning agents.
2. All plastic parts should be cleaned immediately after contact with fats, spices, vinegar and strongly flavored/colored foods. Avoid contact with acids and citrus juices.
3. Always use the scale on a hard, flat surface. DO NOT use on carpets.

BATTERY

1x 9 V (not included)

- + 9V BATTERY

TO REPLACE THE BATTERY

Remove the battery compartment cover and attach a new battery onto the 9-volt battery snaps. Please observe the polarity.

Simple line drawing of a box with a coiled cable and a gear-like object on top (no text or symbols)

TO OPERATE THE SCALE

1. Please put the scale on a hard and flat surface.
2. Place the bowl (if used) on the scale before turning on the unit.
3. Press and release the ON/OFF button to turn on the unit.
4. Wait until the LCD shows all information.

KÖNIG

00:00 200°C ZERO 0 00:00 200°C ZERO 0.0 ON/OFF

ENGLISH

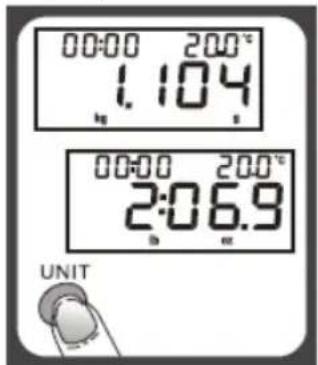

TO CONVERT THE WEIGHT UNIT

If the scale has both Metric (kilograms, grams) and Imperial (pounds, ounces) measuring systems, you can press UNIT to convert between the two systems during the course of weighing.

00:00 200° 1.104 00:00 200° 2:06.9 UNIT

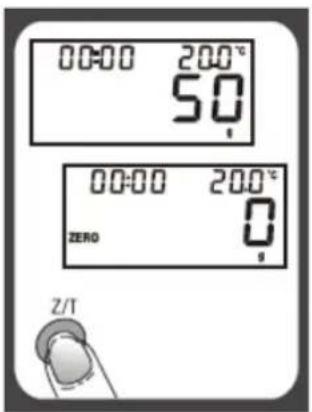

"ZERO" OR "TARE" FUNCTION

To weigh different loads consecutively without removing loads from the scale, put the first load on the scale and get the weight reading. Press the Z/T button to reset the LCD reading to "0" before adding the next load. You can repeat this operation.

The LCD will show “----” or “0g” each time Z/T is pressed. “----” means not stable, please wait for a moment. “0g” and a “ZERO” icon on the lower left corner of the LCD means the “ZERO” function is active. Maximum capacity remains unchanged.

KÖNIG

00:00 200°C 50 00:00 200°C ZERO Z/T

ENGLISH

The LCD will show “----” or “0g” each time Z/T is pressed. “----” means not stable, please wait for a moment. “0g” and a “TARE” icon on the upper left corner of the LCD means the “TARE” function is active. Maximum capacity is reduced by the total weight of all loads.

00:00 200°C 250 TARE 0 Z/T

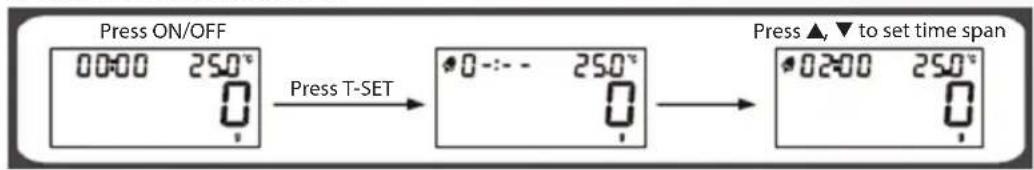

TO SET THE ALARM TIMER

1. Press T-SET to confirm and go to the next digit.
2. After setting the time span, press T-SET to start counting down.
3. Press any key to stop counting down.
4. Press T-SET to clear the time span.
5. When the timer counts down to "00:00", the alarm will start beeping 60 times and the scale will automatically shut off.
6. Maximum time span: 99:59.

Press ON/OFF 00:00 250° Press T-SET *0-:- - 250° Press ▲, ▼ to set time span *02:00 250°

KÖNIG

ENGLISH

TEMPERATURE SENSOR

1. Current temperature is shown on the upper right corner of the LCD.
2. Temperature range: 0–40 °C.
3. Division: 0.5 °C.

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required.

Disconnect the product from mains and other equipment if a problem should occur.

Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth.

Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

This manual was produced with care. However, no rights can be derived. König Electronic can not accept liability for any errors in this manual or their consequences.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies to all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS
