USER MANUAL HCPS100 KONIG

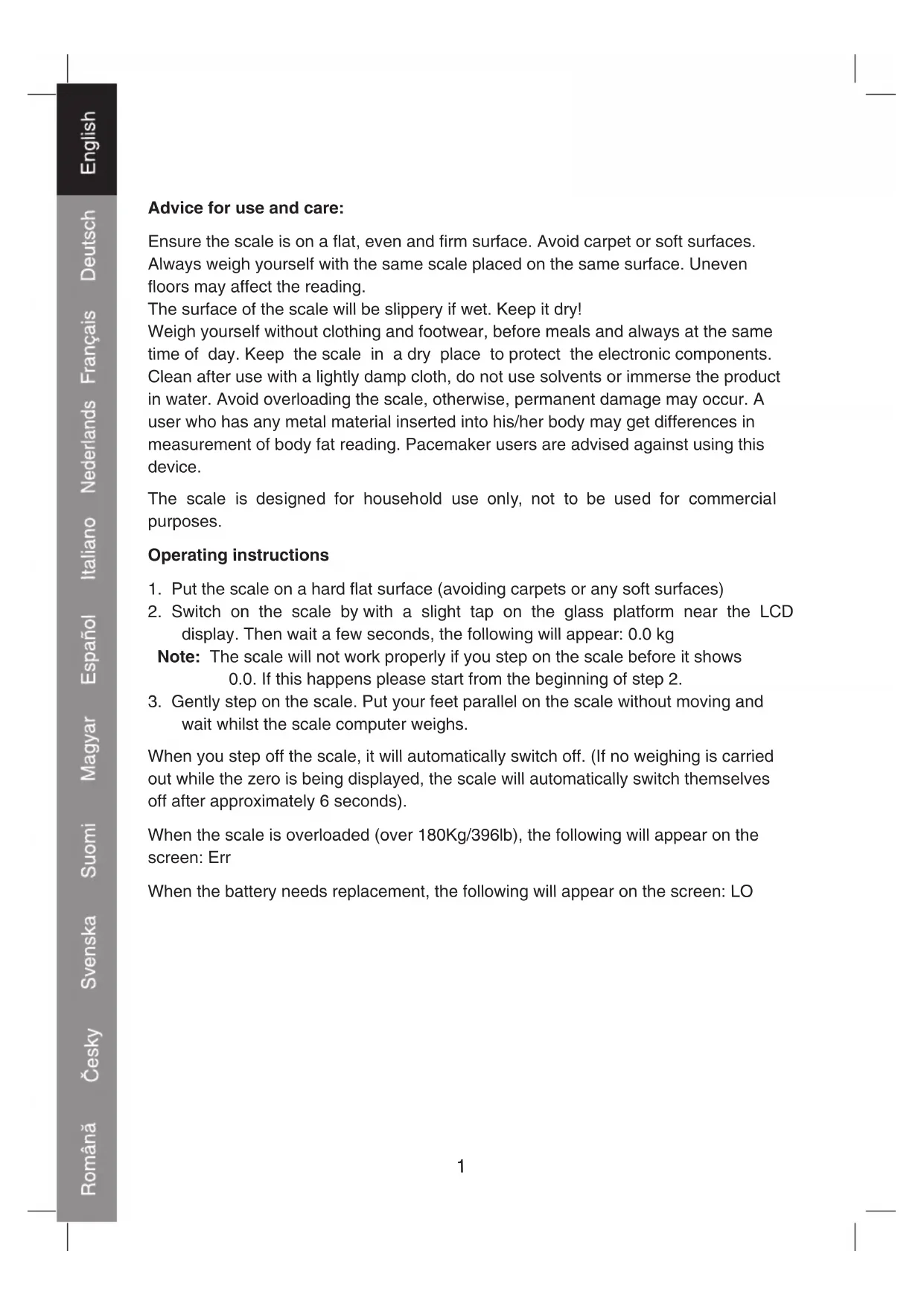

Advice for use and care:

Ensure the scale is on a flat, even and firm surface. Avoid carpet or soft surfaces. Always weigh yourself with the same scale placed on the same surface. Uneven floors may affect the reading.

The surface of the scale will be slippery if wet. Keep it dry!

Weigh yourself without clothing and footwear, before meals and always at the same time of day. Keep the scale in a dry place to protect the electronic components. Clean after use with a lightly damp cloth, do not use solvents or immerse the product in water. Avoid overloading the scale, otherwise, permanent damage may occur. A user who has any metal material inserted into his/her body may get differences in measurement of body fat reading. Pacemaker users are advised against using this device.

The scale is designed for household use only, not to be used for commercial purposes.

Operating instructions

1. Put the scale on a hard flat surface (avoiding carpets or any soft surfaces)
2. Switch on the scale by with a slight tap on the glass platform near the LCD display. Then wait a few seconds, the following will appear: 0.0kg

Note: The scale will not work properly if you step on the scale before it shows 0.0. If this happens please start from the beginning of step 2.

1. Gently step on the scale. Put your feet parallel on the scale without moving and wait whilst the scale computer weighs.

When you step off the scale, it will automatically switch off. (If no weighing is carried out while the zero is being displayed, the scale will automatically switch themselves off after approximately 6 seconds).

When the scale is overloaded (over 180Kg/396lb), the following will appear on the screen: Err

When the battery needs replacement, the following will appear on the screen: LO

Specifications:

Equipped with a high precision „strain-gauge“ sensor.

Capacity 180Kg/396lb

Division 100g/0.2lb/1/4lb

LCD display

Foot-tap switch

Automatic zero resetting

Automatic switch off

Over load indicator

Low battery indicator

Lithium battery is included (CR2032). Please remove the insulation sheet from the battery contacts before using.

Declaration of conformity

We,

Nedis B.V.

De Tweeling 28

Declare that product:

Name: KONIG

Model: HC-PS100

Description: Electronic personal scales

Is in conformity with the following standards

Following the provisions of the 2004/108/EC directive.

s-Hertogenbosch, 2007, November 16

Mrs. J. Gilad

Purchase Director

Safety precautions:

This product should ONLY be opened by an authorized technician when service is required. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

Copyright ©

KONIG

HEALTH CARE

HC-PS100

Personenwaage

MANUAL

MODE D'EMPLOI

MANUALE

HASZNÁLATI UTMUTATO

BRUKSANVISNING

MANUAL DE UTILIZARE

ANLEITUNG

GEBRUKSAANWIJZING

MANUAL DE USO

KAYTTOOHJE

NAVOD KPOUZITI

s-Hertogenbosch, 16. November 2007

J. Gilad

Einkaufsleiterin

's-Hertogenbosch, 16 November 2007

Mme. J. Gilad
