HCPS310 - Scale KONIG - Free user manual and instructions

Product type	Digital impedance scale
Brand	Konig
Model	HCPS310
Dimensions	32 x 32 x 2.5 cm
Weight	2 kg
Power supply	3 AAA 1.5 V batteries (included)
Weight units	kg, lb, st
User memory	10 persons
Functions	Weight, % body fat, % total body water (TBW), % muscle, bone mass, daily caloric needs (KCAL)
Age range	6 to 100 years
Height range	80 to 220 cm
Display	LCD screen
Electrodes	Yes (for impedance measurement)
Maintenance	Clean with a damp cloth; do not use solvents
Safety	Do not use with a pacemaker; pregnant women: weight function only
Troubleshooting	LO: replace batteries; Err/OL: maximum weight exceeded; Err2%: fat measurement error

Frequently Asked Questions - HCPS310 KONIG

How to set up the scale for a new user?

Press ON/OFF, then use UP/DOWN buttons to select a memory number (P0 to P9). Press SET, select your gender and condition (normal or athlete) with UP/DOWN, then SET. Enter your height (80-220 cm) with UP/DOWN, SET, then your age (6-100 years), and finally SET to confirm.

What does the LO display mean?

LO means the batteries are low. Replace the three AAA batteries with new ones observing polarity.

Can I use the scale if I am pregnant?

Yes, but only the weight measurement function. The other functions (fat, water, etc.) are not recommended during pregnancy.

How to change the weight unit?

On the back, use the unit selection button to switch between kg, lb and st.

What to do if the scale displays Err or OL?

Err or OL indicates that the maximum weight (probably 180 kg) has been exceeded. Step off the scale and check the weight.

How many people can be saved?

The scale can store data for 10 different people (memories P0 to P9).

How to clean the scale?

Use a damp cloth to clean the surface. Never use solvents or abrasive products that could damage the device.

What is the maximum weight capacity?

The scale supports a maximum weight of 180 kg (about 396 lb or 28 st).

How to interpret the body fat percentage?

Refer to the charts provided in the manual. For example, for a woman aged 16 to 30, a rate of 16.5 to 22.0% is considered healthy.

Can I use the scale with shoes?

No, for accurate measurements, step on the scale barefoot so that the electrodes correctly detect the impedance.

USER MANUAL HCPS310 KONIG

Installation and user manual

Digital Personal Scale
Type HC-PS310

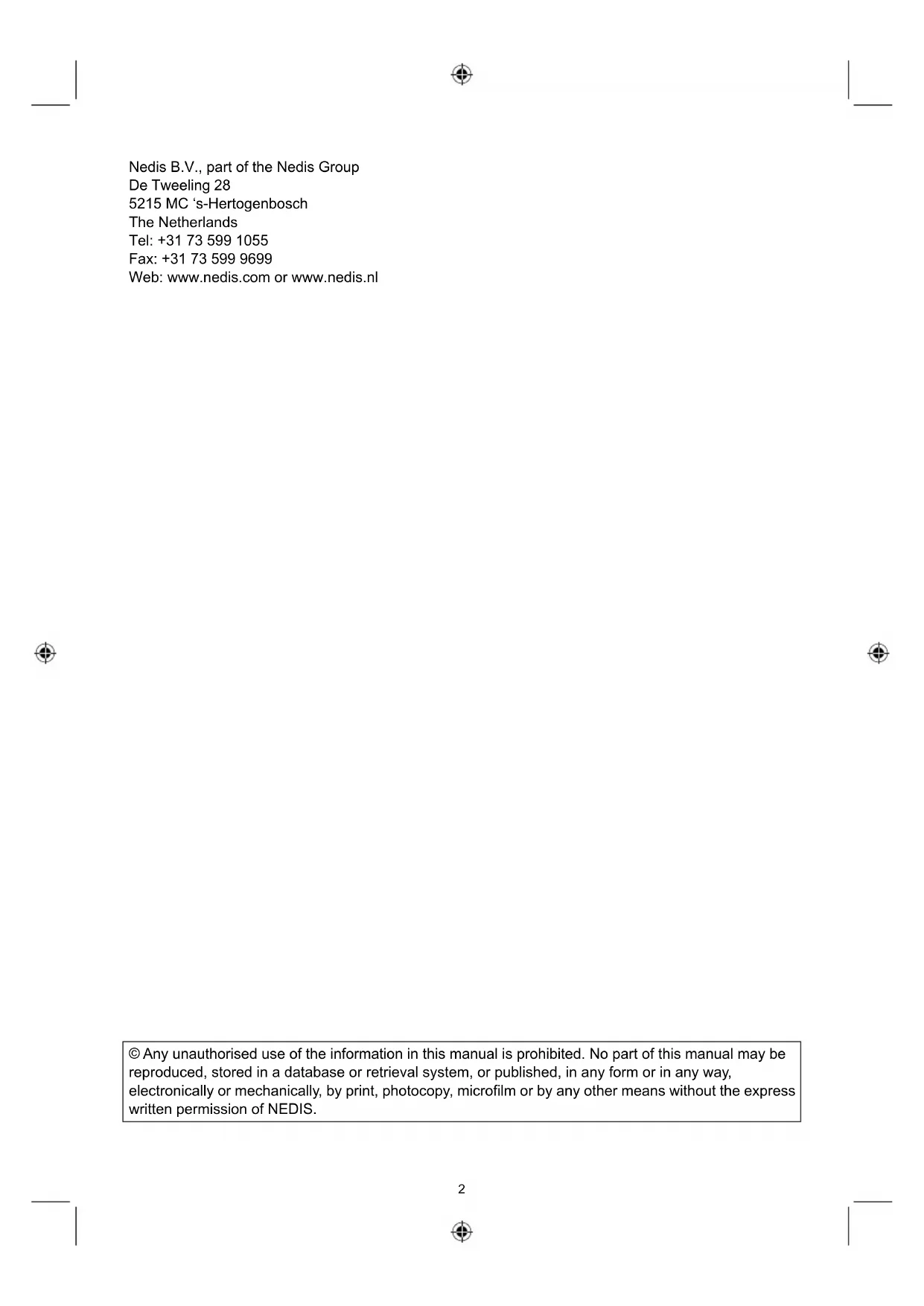

Nedis B.V., part of the Nedis Group

De Tweeling 28

5215 MC 's-Hertogenbosch

The Netherlands

Tel: [phone]

Fax: [phone]

Web: www.nedis.com or www.nedis.nl

© Any unauthorised use of the information in this manual is prohibited. No part of this manual may be reproduced, stored in a database or retrieval system, or published, in any form or in any way, electronically or mechanically, by print, photocopy, microfilm or by any other means without the express written permission of NEDIS.

Introduction

The digital personal scale is designed to accurately indicate body weight and fat. This scale works on the principle of Bio-electrical Impedance Analysis (BIA). By measuring the electrical resistance and the final calculation of the constant values (age, height, sex, activity level) it is possible to determine the percentage of body fat, body water and muscle percentage in the body.

The scale is able to facilitate 10 persons.

In order to ensure accurate results users should enter the following personal parameters:

• Gender;

• Height;
  Age.

• We recommend that you read this manual before using the scale.

• Keep this manual in a safe place for future reference.

The scale operates with 3 × 1.5V AAA batteries (included).

Technical specifications

Display: Digital LCD display

Capacity: 180Kg/396lb

Graduation: 0.1 ~Kg / 0.2 lb / 1 / 4 lb

Body fat division: 0.1%

Water division: 0.1%

Age range for body fat: 6 - 100 years

Height range: 80 - 220cm

Height unit: cm/ft-in

Memory: 10

Weight units: Kilogram (Kg) / Stone (st) / Pound (lb)

Dimensions: 32 × 32 × 2.5mm

Weight: 2Kg

persons

Safety precautions

• To avoid tipping the unit, do not stand on the corners of the platform.
• Do not use the scales if you have a pacemaker or other internal electronic medical device.
• Pregnant women should use the weight function only.
• Do not open the scale in the event of a malfunction. This product should only be opened by a qualified technician.
• Do not expose the scale to high temperatures or humidity.
• Remove the batteries if they will not be used for a long period of time.

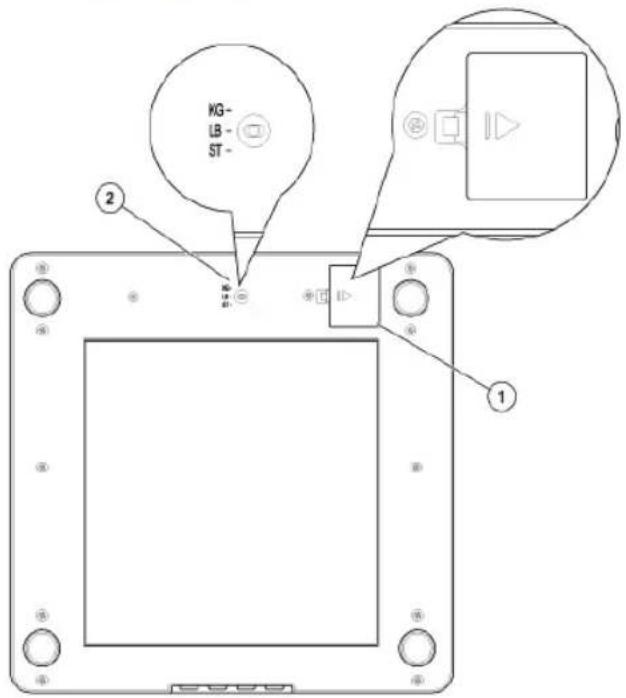

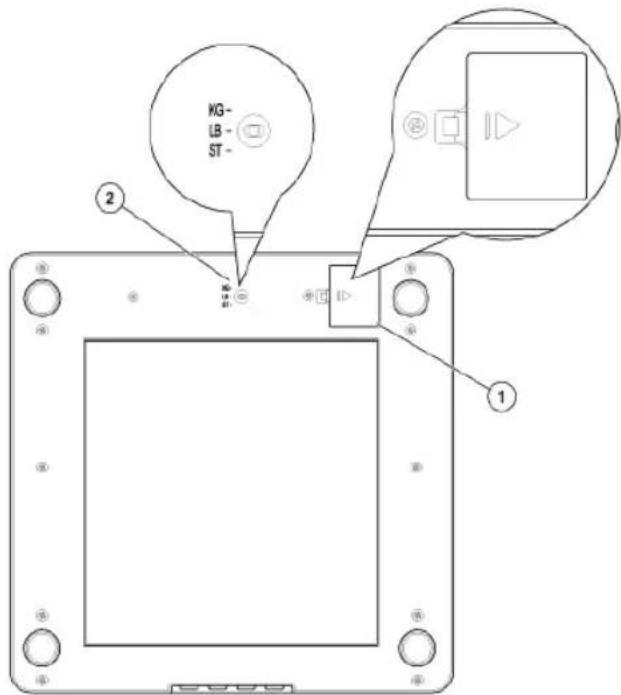

Installation instructions

1. Battery compartment cover
2. Weight units selection button

Install the batteries

1. Open the battery cover (on the underside of the scale) by releasing the clip and lifting the cover.
2. Insert the batteries.

Be sure the polarity of the batteries is set properly.

1. Close the cover.

Select weighing mode

Switch the scale on (ON/OFF button).

Use the Weight units selection button (underside of scale) to select the weight units (KG/LB/ST).

Place the scale

Place the scale on a firm, flat and even surface to ensure accuracy.

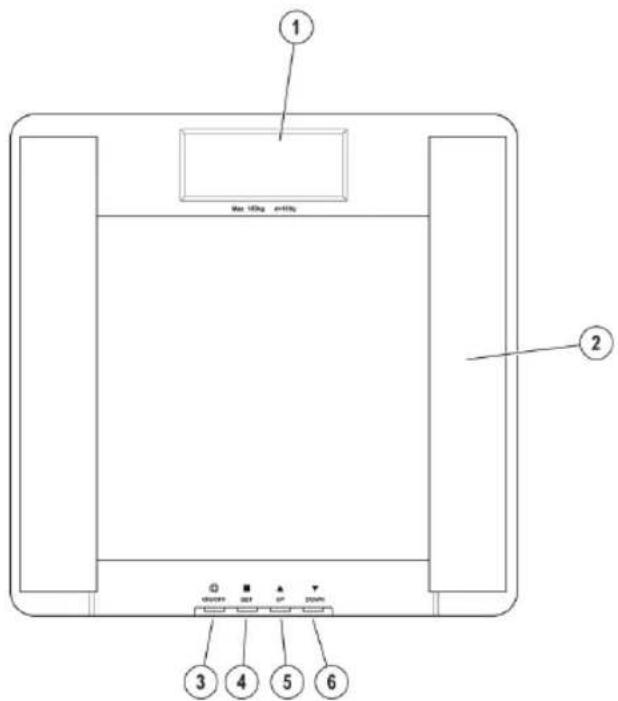

User instructions

1. Display screen
2. Electrodes
3. ON/OFF button
4. SET button
5. UP button
6. DOWN button

Setting and storing personal data

The scale can store personal data for up to 10 persons.

1. Press the ON/OFF button.
   The personal key number flashes.
2. Press the UP/DOWN buttons to select a personal key (P0 to P9).
3. Press the SET button.

The gender symbols flash.

1. Press the UP/DOWN buttons to select user gender and condition:

Male
Female
Male Athlete
Female Athlete

1. Press the SET button

The display shows the height.

1. Use the UP/DOWN buttons to specify user height (user height range may be between 80cm - 220cm or 2' 7.5" - 7' 2.5").
2. Press the SET button.

The display shows the age (user age range may be between 6 and 100 years).

1. Use the UP/DOWN button to specify user age.
2. Press the SET button.

The personal data is now set and stored.

Weighing

1. Press the ON/OFF button.
2. Use the UP/DOWN button to select your personal key number.
3. Step on the scale with bare feet and wait while the scale analyses your weight.

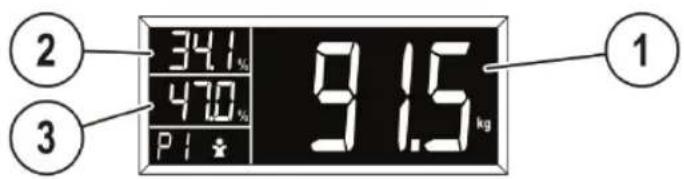

4. On completion, the following screens will be displayed alternately:

1. Weight
2. Fat percentage
3. TBW percentage (Total Body Water)

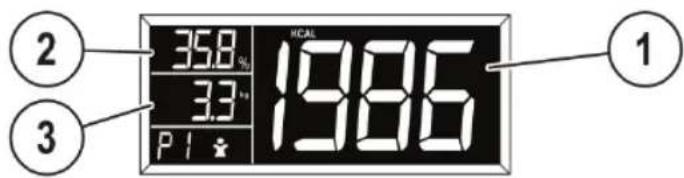

1. KCAL (daily caloric reference)
2. MUS percentage (muscle)
3. BON (bone weight)

Result guidelines - Female

Body fat ratio chart (%)

	Normal and athlete mode Age
	Underweight	Healthy	Overweight	Obese
6-15 3.0 - 16.0 16.1 - 21.0 21.1 - 29	6 29.7 - 50.0
16-30 3.0 - 16.4 16.5 - 22.0 22.1 - 30.4 30.5 - 50.0
31-60 3.0 - 17.0 17.1 - 22.4 22.5 - 31	1.4 31.5 - 50.0
61-80 3.0 - 17.6 17.7 - 23.0 23.1 - 32	2.0 32.1 - 50.0

Water ratio chart and Muscle ratio chart (%)

	Normal and athlete mode Age
	Low	Healthy	High	Body
6-15 < 54.0 54.0 -	59.0	> 59.0		Normal: > 44Athlete: > 46
16-30	< 53.0 53.0 - 58.0	> 58.0
31-60	< 52.0 52.0 - 57.0	> 57.0
61-80	< 51.0 51.0 - 56.0	> 56.0

Bone weight Chart (kg)

Weight	< 45	45 – 60	> 60
Ref. bone weight	≈ 3.0	≈ 4.2	≈ 6.5

KCAL Chart

Age	Weight (kg)	KCAL (normal mode) KCAL (athlete mode)
6-17	50 1265	1445
18-29	55 1298	1498
30-49	60 1302	1490
50-69	60 1242	1332
70-80	50	1125

Result guidelines - Male

Body fat ratio chart (%)

Age	Normal and athlete mode
	Underweight	Healthy	Overweight	Obese
6-15	3.0 – 13.0	13.1 – 17.4	17.5 – 25.6	25.7 – 50.0
16-30	3.0 – 13.6	13.7 – 18.0	18.1 – 26.4	26.5 – 50.0
31-60	3.0 – 14.0	14.1 – 18.6	18.7 – 27.0	27.1 – 50.0
61-80	3.0 – 14.4	14.5 – 19.0	19.1 – 28.0	28.1 – 50.0

Water ratio chart and Muscle ratio chart (%)

	Normal and athlete mode Age
	Low	Healthy	High
6-15 < 57.0 57.0 - 62.0 > 62.0				Normal: > 46Athlete: > 48
16-30 < 56.0 56.0 - 61.0 > 61.0
31-60 < 55.0 55.0 - 60.0 > 60.0
61-80 < 54.0 54.0 - 59.0 > 59.0

Body

Bone Weight Chart (kg)

Weight < 60 60-75	>75
Ref. bone weight	≈4.5	≈6.0	≈7.5

KCAL Chart

AGE	FEMALE		MALE
	WEIGHT(KG)	KCAL WEIGHT(KG)	KCAL
6-17	50	1445	60	2030
18-29	55	1498	65	1810
30-49	65	1411	80	1784
50-69	65	1346	80	1720

Maintenance

Clean the scale with a lightly moistened cloth.

Do not use cleaning solvents or abrasives.

Replace batteries

Open the battery cover (on the underside of the scale) by releasing the clip and lifting the cover.

Replace the batteries.

Be sure the polarity of the batteries is set properly.

Always replace all the batteries at the same time.

Close the cover.

Troubleshooting

Carry out the following checks if the scale is not working properly:

Make sure that the scale is not damaged.
- Make sure that all display settings are set properly.

LCD screen displays:

"LO"

Install new batteries.

"Err" of "OL"

Maximum weight has been exceeded.

"Err 2 %

Indicates the error margin in the body fat percentage.

Warranty

Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of this product.

Disclaimer

Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognised as such.

Disposal

This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.
- For more information, contact the retailer or the local authority responsible for waste management.

Einführung

	Modus normal und athletisch Alter
	niedrig	gesund	hoch	Körpermuskelantei
6-15 < 57,0 57,0 - 62,0 > 62,0				Normal: > 46Athlet: > 48
16-30 < 56,0 56,0 - 61,0 > 61,0
31-60 < 55,0 55,0 - 60,0 > 60,0
61-80 < 54,0 54,0 - 59,0 > 59,0

Knochengewicht (kg)

Specifications techniques

Afficheur:

Afficheur

Capacité: 180 Kg / 396 Ib

Precislon: 0,1kg / 0,2lb / 1 / 4lb

Precision de graisse corporelle: 0,1%

Precision de quantite d'eau: 0,1%

	Modalità normale e atleta Età
	Basso	Sano	Alto	Massa muscolare
6-15	< 54,0	54,0 - 59,0	< 59,0	Normale: > 44Atletà: > 46
16-30	< 53,0	53,0 - 58,0	> 58,0
31-60	< 52,0	52.0 - 57.0	> 57,0
61-80	< 51,0	51,0 - 56,0	> 56,0

Età	Modalità normale e atleta
	Basso	Sano	Alto	Massa muscolare
6-15 < 57,0 57,0 - 62,0 > 62,0			Normal: > 46 Atleta: > 48
16-30 < 56,0 56,0 - 61,0 > 61,0
31-60 < 55,0 55,0 - 60,0 > 60,0
61-80 < 54,0 54,0 - 59,0 > 59,0

	Modo normal y atleta	Edad
	Bajo	Saludable	Alto	Músculo corporal
6-15	< 54,0	54,0 – 59,0	> 59,0	Normal: > 44 Atleta: > 46
16-30	< 53,0	53,0 – 58,0	> 58,0
31-60	< 52,0	52,0 – 57,0	> 57,0
61-80	< 51,0	51,0 – 56,0	> 56,0

	Modo normal y atleta Edad
	Bajo	Saludable	Alto	Músculo corporal
6-15 < 57,0 57,0 - 62,0 > 62,0				Normal: > 46 Atleta: > 48
16-30 < 56,0 56,0 - 61,0 > 61,0
31-60 < 55,0 55,0 - 60,0 > 60,0
61-80 < 54,0 54,0 - 59,0 > 59,0

	Normaali ja urheilijatila Ikä
	Matala	Terve	Korkea
6-15 < 57,0 57,0 - 62,0 > 62,0				Normaali: > 46 Urheilija: > 48
16-30 < 56,0 56,0 - 61,0 > 61,0
31-60 < 55,0 55,0 - 60,0 > 60,0
61-80 < 54,0 54,0 - 59,0 > 59,0

Kroppsfeld ratio diagram (%)

	Normal och atletiskt Älder
	Underviktig	Hälsosam	Överviktrig	Mycket
6-15 3.0 -	16.0 16.1 - 21.0 21.1 - 29	6 29.7 - 50.0
16-30 3.0 -	16.4 16.5 - 22.0 22.1 -	30.4 30.5 - 50.0
31-60 3.0 -	17.0 17.1 - 22.4 22.5 - 31	1.4 31.5 - 50.0
61-80 3.0 -	17.6 17.7 - 23.0 23.1 - 32	2.0 32.1 - 50.0

Kroppsfeld ratio diagram (%)

Vaegethened: Kilogram (Kg)

Dimensioner: 32 × 32 × 2.5 ~mm

Vaegt: 2

Kg

	Normal og atletisk Alder
	Lav	Sund	Høj	Kropsmuskler
6-15 < 54,0 54,0-	59,0	> 59,0		Normal: > 44 Atletisk: > 46
16-30	< 53,0 53,0-58,0	> 58,0
31-60	< 52,0 52,0-57,0	> 57,0
61-80	< 51,0 51,0-56,0	> 56,0

	Normal og atletisk Alder
	Lav	Sund	Høj
6-15 < 57,0 57,0 - 62,0 > 62,0				Normal: > 46 Atletisk: > 48
16-30 < 56,0 56,0 - 61,0 > 61,0
31-60 < 55,0 55,0 - 60,0 > 60,0
61-80 < 54,0 54,0 - 59,0 > 59,0

Vektdiagram for bein (i kg):

Vekt	< 45	45 - 60	> 60
Beinvekt	≈ 3.0	≈ 4.2	≈ 6.5

KCAL-diagram:

Alder	Vekt (kg)		KCAL (normalmodus)	KCAL (atletmodus)
6-17	50	1265	1445
18-29	55	1298	1498
30-49	60	1302	1490
50-69	60	1242	1332
70-80	50		1125

Resultatveiledninger - Mann

Forholdsdiagram for kroppsfett (i %

Alder	Normal- og atletmodus
	Undervektig	Sunn	Overvektig	Svær overvektig
6-15	3.0 – 13.0	13.1 – 17.4	17.5 – 25.6	25.7 – 50.0
16-30	3.0 – 13.6	13.7 – 18.0	18.1 – 26.4	26.5 – 50.0
31-60	3.0 – 14.0	14.1 – 18.6	18.7 – 27.0	27.1 – 50.0
61-80	3.0 – 14.4	14.5 – 19.0	19.1 – 28.0	28.1 – 50.0

Forholdsdiagram for vaeske og muskelasse (i %):

	Normal- og atletmodus Alder
	Lav	Sunn	Høy
6-15 < 57.0 57.0 - 62.0 > 62.0				Normal: > 46 Atlet: > 48
16-30 < 56.0 56.0 - 61.0 > 61.0
31-60 < 55.0 55.0 - 60.0 > 60.0
61-80 < 54.0 54.0 - 59.0 > 59.0

Muskelm

Vektdiagram for bein (i kg):

Vekt < 60 60-75	>75
Beinvekt	≈4.5	≈6.0	≈7.5

KCAL-diagram:

Alder	Kvinne		Mann
	Vekt (KG)	KQAL Vekt (KG)	KCAL
6-17	50	1445	60	2030
18-29	55	1498	65	1810
30-49	65	1411	80	1784
50-69	65	1346	80	1720

Vedlikehold

△αστασεις: 32×32×2.5mm

Bapoc: 2Kg

Ppoulaeic aovaaeia

Mny otkeote otic akpe ts tatafoppa, kaohc evdoexetai va avanoboyupoei nuyapiia.
Mynxnojnoioite tn yuyapi av exete nuatoobotn n aaln eootepikn nektpovikn iatpikn ouakeun.
- OI EYkuouoec θa πeTTειν αχροιμIoIOuov μóvo τλειουργia μεTpɒnσ βápouc
Mny avoiyETn Cuyapia OE TepiTTWOn duoAeIToupyiaC. Auto To TPOIOv 0a TpETTEI va avoiyetai mvo aTO EEEIDIKUeUeVTo xviKO.
Mny EkTeTe Tn Cuyapiia o UynAe Oepokpaoies uypaia..
ApaipoeTicmuatapiecavEvokotuee va xpnoiopoioeTe novadayiaevalo xpoviko diaoTma.

O8nyieεs EykaTασtaoηs

CE Declaration of Conformity

Declaration of conformity / Konformitätserklung / Déclaration de conformité / Conformiteitsverklaring / Dichiarazione di conformità / Declaración de conformidad / Megfelelosegi nyilatkozat / Yhdenmukaisuusvakuutus / Överensstammelseförklaring / Prohláseni o shode / Declaratie de conformitate / Δηλωση συμφωviας / Overensstemmelse erklärung / Overensstemmelse forskrlaring

We, / Wir, / Nous, / Wij, / Questa société, / La entreprise infrascrita, / Mi, / Me, / Vi, / Společnost, / Noi, / Eúείς
Nedis B.V., De Tweeling 28, 5215MC, 's-Hertogenbosch
The Netherlands / Niederlande / Pays Bas / Nederland / Paesi Bassi / Paises Bajos / Hollandia / Alankomaat / Holland / Nizozemí / Olanda / Oλλανδία
Tel. / Tél / Puh / Tŋλ. : 0031 73 5991055
Email / Couriel / Sānköposti / e-post: [e-mail]

Declare that product: / erklären, dass das Produkt: / Déclarons que le produit: / verklaren dat het product: / Dichiara che il produit: / Declara que el produit: / Kijelentjuk, hogy a termek, amelynek: / Vakuutamme, etta: / Intygär att Produkten: / prohlasüje, ze vyrobek: / Declaram cã acest produs: / 0T to προίν: / Erklaerer at produit: / Forsikrer at produit:

Brand: / Marke: / Marque : / Merknaam: / Marca: / Márkaja: / Merkki: / Márke: / Znacka: / Márke: / Merke: KONIG ELECTRONIC Model: / Modell: / Modèle : / Modello: / Modelo: / Tipusa: / Malli: / Movréλo: HC-PS310

Description: Digital Personal Scale Kuvaus: Digaalinen henkilovaaka Beschreibung: Digitale Personenwaage Beskrivning: Digital personvag Description: Balancenummerique personnelle Beskrivelse: Digital personvegt
