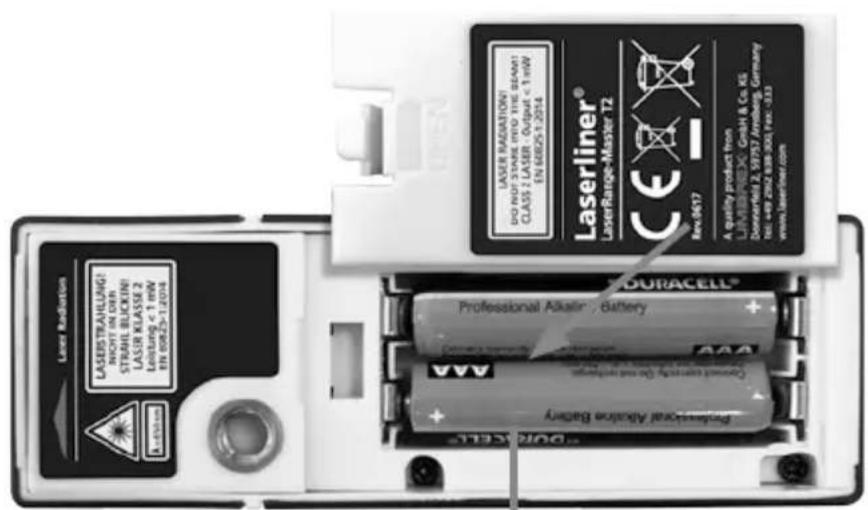

2 x Typ AAA / LR03

1,5V / Alkaline

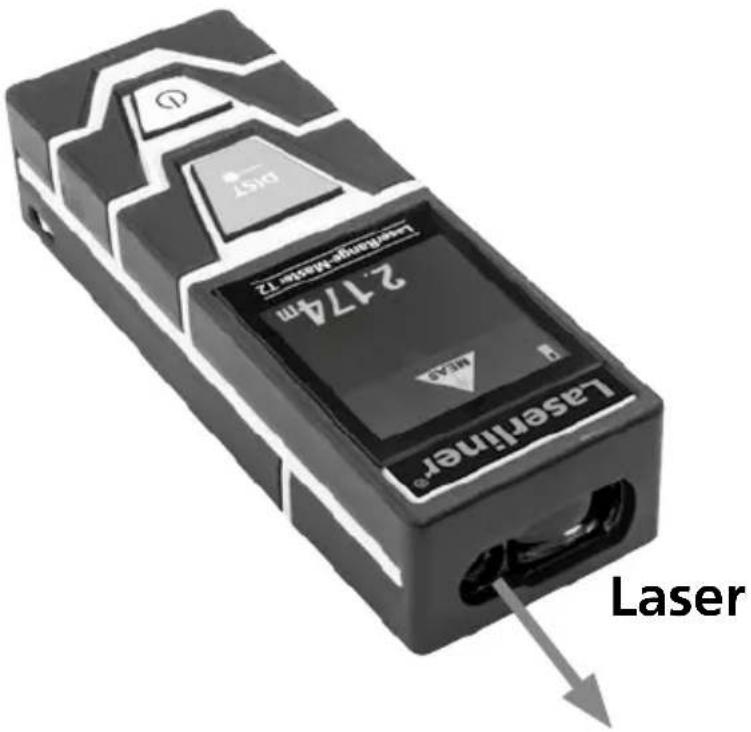

LaserRange-Master T2

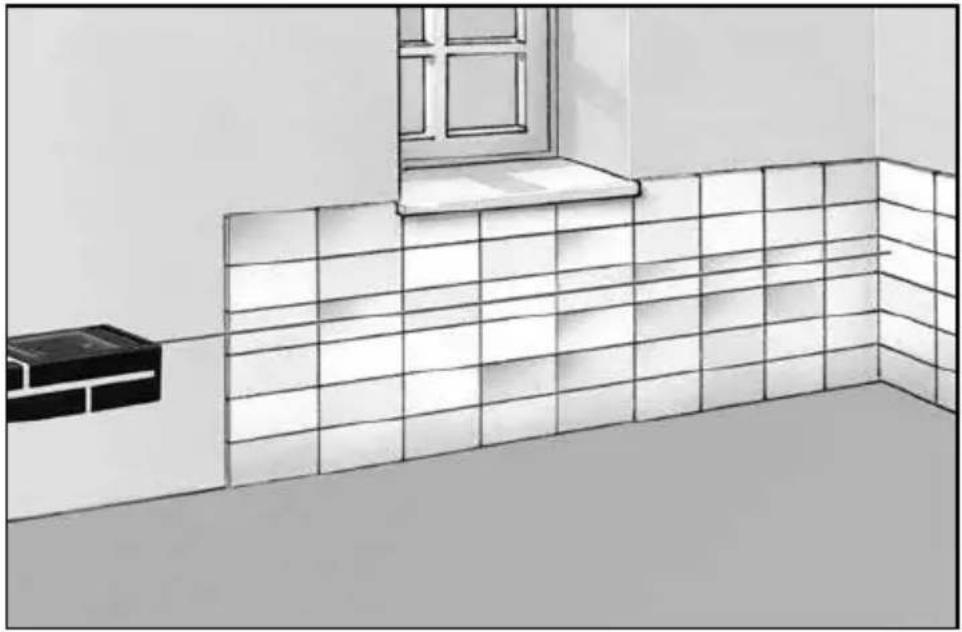

Interior view of a tiled room with a window and wall-mounted fixture (no text or symbols)

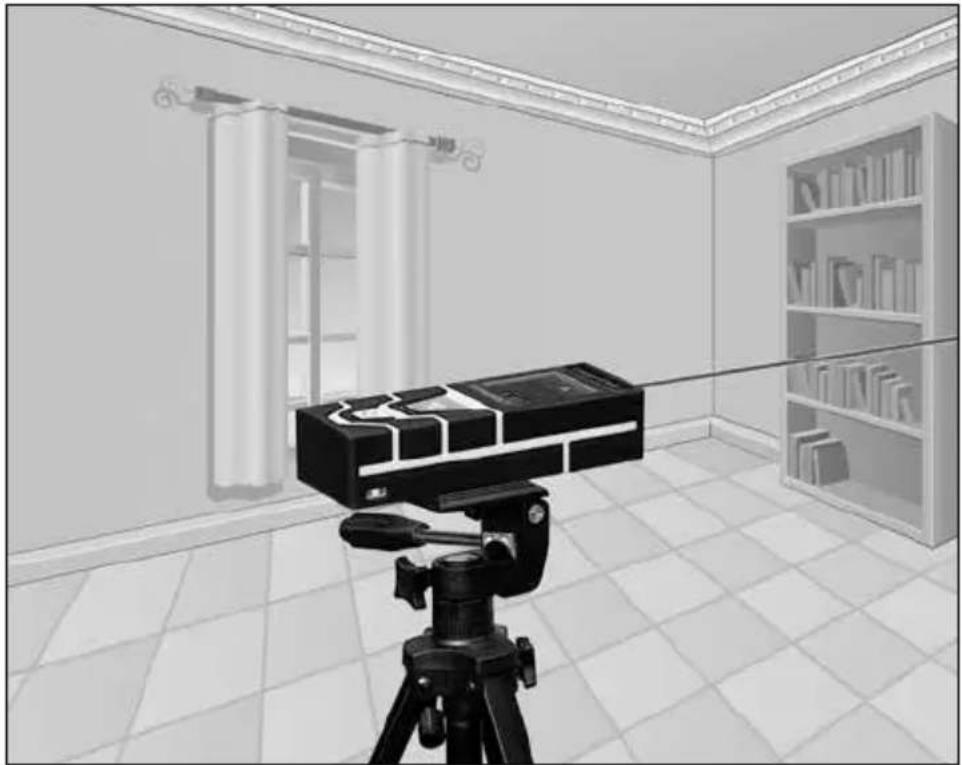

Interior scene of a room with a camera on a tripod, bookshelves in background (no visible text or symbols)

Laserliner®

!

Warning sign with black triangular triangle and central explosion symbol

LaserRange-Master T2

Read the operating instructions and the enclosed brochure „Guarantee and additional notices“ completely. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Compact laser distance meter for measuring length

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

Safety instructions

Using class 2 lasers

Warning sign with black triangular triangle and central explosion symbol

Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 650 nm EN 60825-1:2014

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Tampering with (making changes to) the laser device is not permitted.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars)

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. There is a possibility of a dangerous impact on – or interference with – electronic devices.

LaserRange-Master T2

- The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

a MEAS 2.934 m 3.515 m 10.313 m b c d

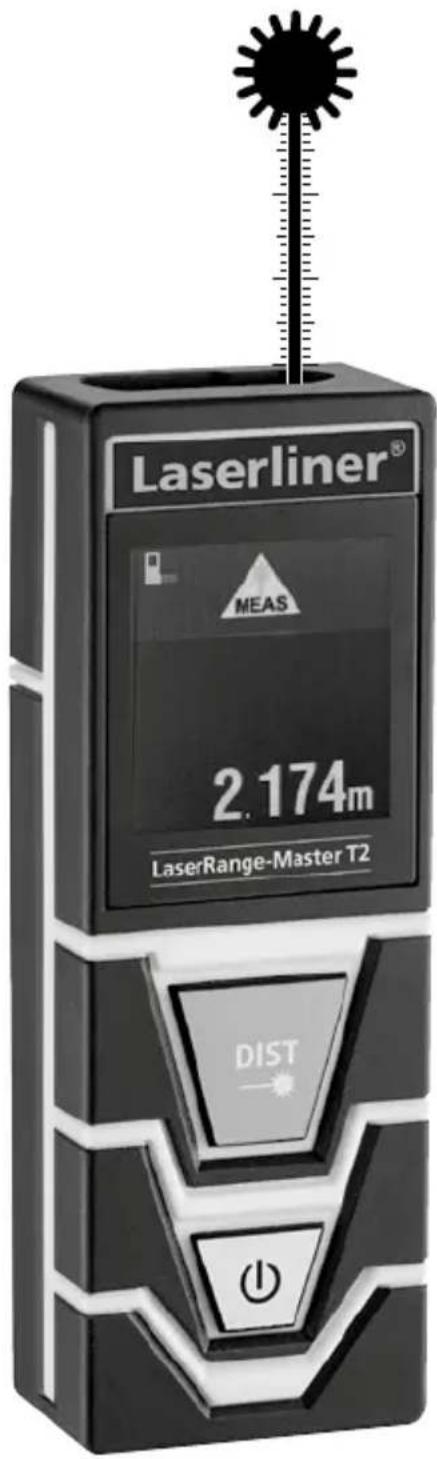

DISPLAY:

a Measurement point (reference) rear / front / thread
b Continuous measurement / Length measurement
c Intermediate values
d Measurement values / Measurement results Unit m / ft / inch / _ ' _ "

1.

KEYPAD:

1. Measure
2. ON / OFF Measurement point (reference) rear / front / thread

2.

1. • 2. Unit m / ft / inch / _' _"

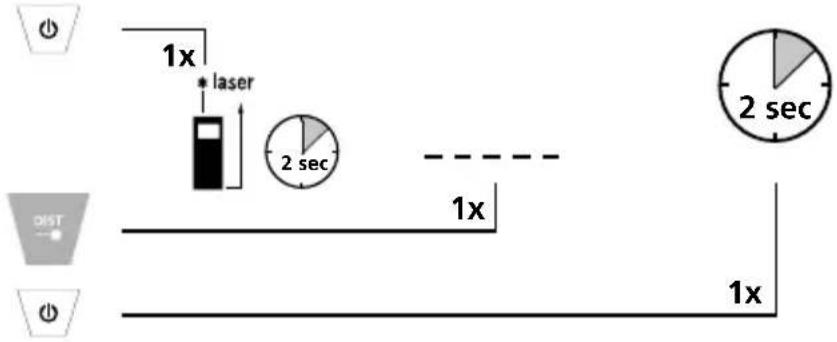

Switch on, measure and switch off:

device on measure device off

1x * laser 2 sec 1x 2 sec DIST 1x

After switching on, the device starts with continuous measurement.

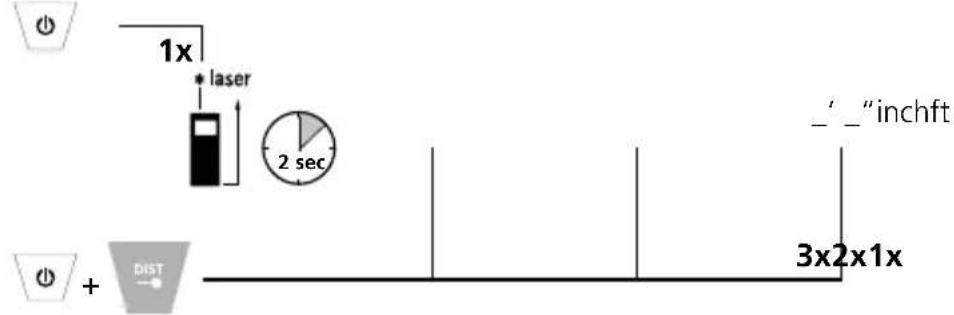

Change unit of measure:

device on (m)

1x laser 2 sec ''inchft 3x2x1x + DIST

Laserliner®

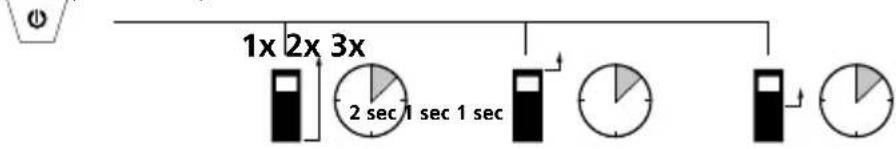

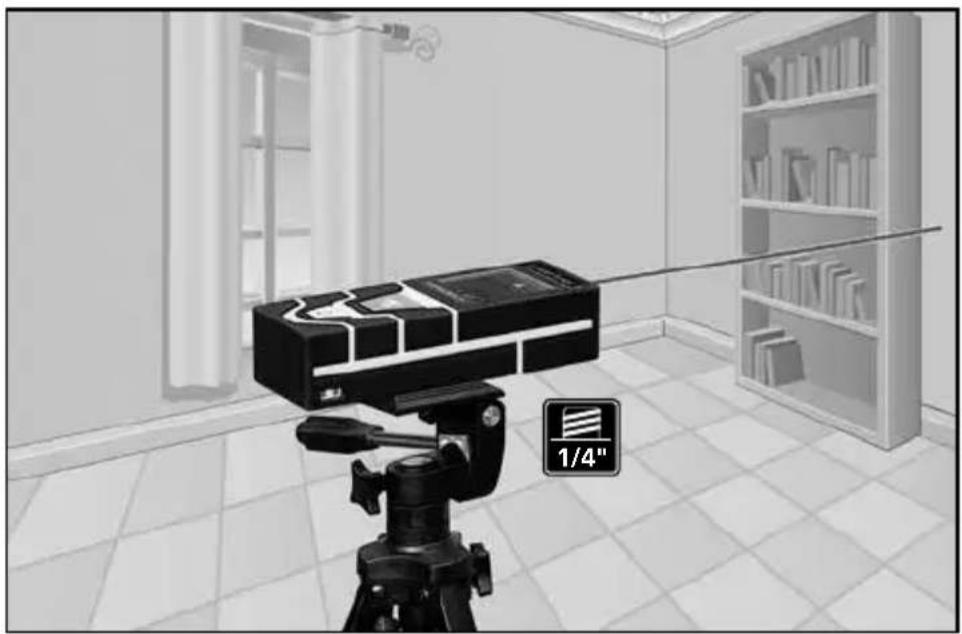

Change measurement point (reference):

rear (device on) front thread

1x 2x 3x 2 sec 1 sec 1 sec

Length measurement:

device on measure / hold

1x * laser 2 sec 1x DIST

After switching on, the device starts with continuous measurement.

Important notices

• The laser points to the location that will be measured. No objects may get into the laser's line of measurement.
• The device compensates the measurement for different room temperatures. Therefore allow the device a brief adaptation period when changing locations with large temperature differences.
• The device is only conditionally useable in outdoor areas and cannot be used in strong sunlight.
• The measurement results of outdoor measurements may be influenced or falsified by rain, fog and snow.
• In unfavourable conditions, e.g. with poorly reflecting surfaces, the maximum deviation may be greater than 3 mm.
• Carpeting, upholstery or curtains will not reflect the laser optimally. Measure to flat surfaces.
• Measurements made through glass (window panes) can falsify measurement results.
• An energy-saving function switches the device off automatically.
• Clean with a soft cloth. Water may not be allowed to penetrate the housing.

Error codes:

Err204: Calculation error

Err208: Internal fault

Err220: Replace the battery

Err252: Temperature is too high: >40°C

Err253: Temperature is too low: < 0°C

Err255: Received signal too weak or measuring time too long

Err256: Received signal too strong

Err261: Outside the measuring range

Err500: Hardware fault

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Calibration

The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year.

Technical Data (Subject to technical changes without notice. 06.17)

Inside measurement range 0,2 m - 20 m
Precision (typical)* ± 0,2 mm / m
Laser class 2 < 1 mW
Laser wavelength 650 nm
Beam divergence < 1,5 mrad
Operating conditions	-10°C ... 40°C, Max. humidity20 ... 85% rH, no condensation, Max.working altitude 2000 m above sea level
Storage conditions -20°C ...	70°C, Max. humidity 80% rH
Automatic switch-off	Dynamic depending on measuring mode:Laser: 30 s - 5 minDevice: 3 min - 8 min
Power supply 2 x AAA 1.5 Volt Batterien
Dimensions (W x H x D) 100	x 23 x 35 mm
Weight (incl. batteries) 82 g

* measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces.

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.
