USER MANUAL OCR 100 OK

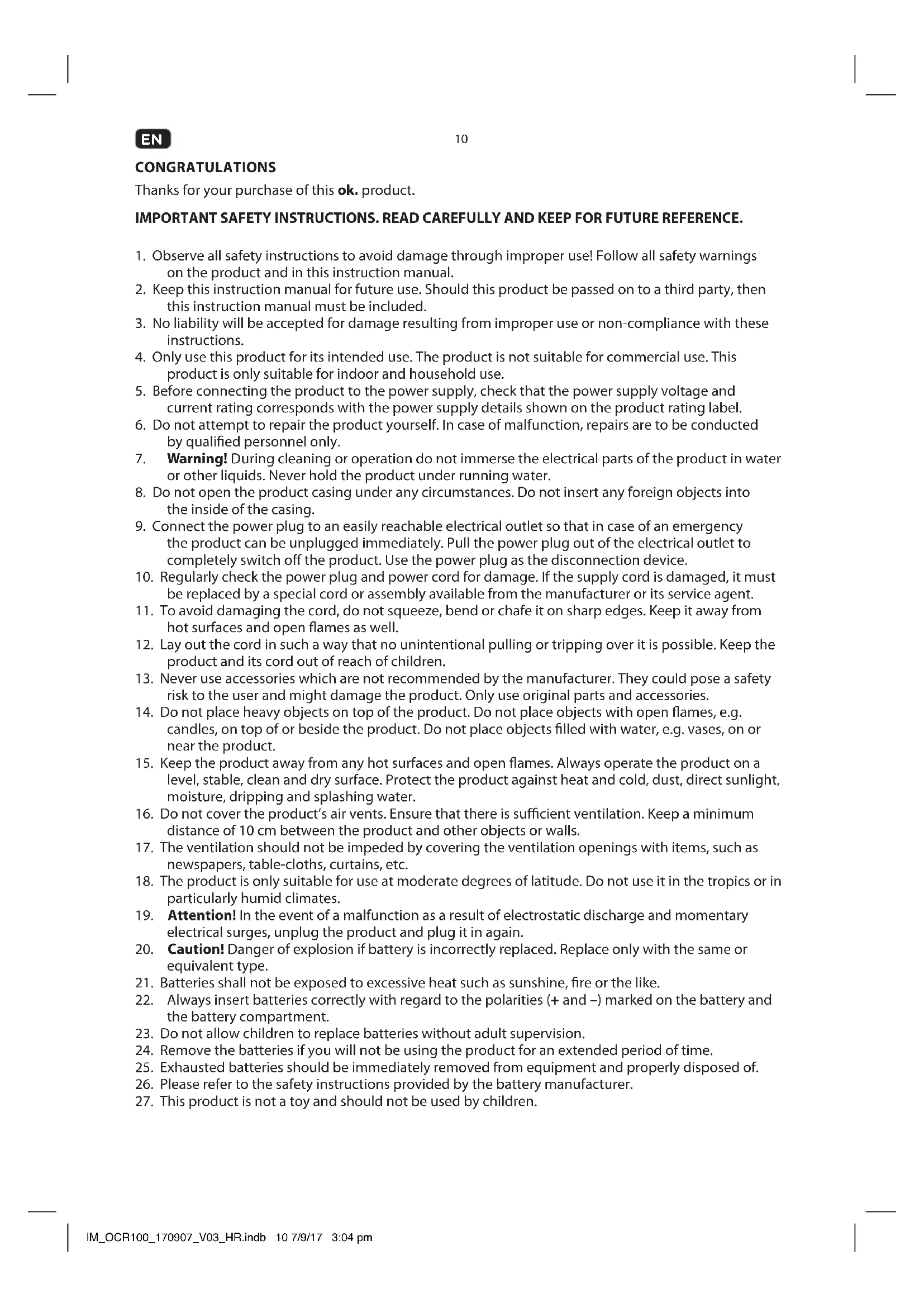

CONGRATULATIONS Thanks for your purchase of this ok. product. IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. Observe all safety instructions to avoid damage through improper use! Follow all safety warnings

on the product and in this instruction manual.

2. Keep this instruction manual for future use. Should this product be passed on to a third party, then

this instruction manual must be included.

3. No liability will be accepted for damage resulting from improper use or non-compliance with these

4. Only use this product for its intended use. The product is not suitable for commercial use. This

product is only suitable for indoor and household use.

5. Before connecting the product to the power supply, check that the power supply voltage and

current rating corresponds with the power supply details shown on the product rating label.

6. Do not attempt to repair the product yourself. In case of malfunction, repairs are to be conducted

by qualied personnel only.

7. Warning! During cleaning or operation do not immerse the electrical parts of the product in water

or other liquids. Never hold the product under running water.

8. Do not open the product casing under any circumstances. Do not insert any foreign objects into

the inside of the casing.

9. Connect the power plug to an easily reachable electrical outlet so that in case of an emergency

the product can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch o the product. Use the power plug as the disconnection device.

10. Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must

be replaced by a special cord or assembly available from the manufacturer or its service agent.

11. To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from

hot surfaces and open ames as well.

12. Lay out the cord in such a way that no unintentional pulling or tripping over it is possible. Keep the

product and its cord out of reach of children.

13. Never use accessories which are not recommended by the manufacturer. They could pose a safety

risk to the user and might damage the product. Only use original parts and accessories.

14. Do not place heavy objects on top of the product. Do not place objects with open ames, e.g.

candles, on top of or beside the product. Do not place objects lled with water, e.g. vases, on or near the product.

15. Keep the product away from any hot surfaces and open ames. Always operate the product on a

level, stable, clean and dry surface. Protect the product against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.

16. Do not cover the product’s air vents. Ensure that there is sucient ventilation. Keep a minimum

distance of 10 cm between the product and other objects or walls.

17. The ventilation should not be impeded by covering the ventilation openings with items, such as

newspapers, table-cloths, curtains, etc.

18. The product is only suitable for use at moderate degrees of latitude. Do not use it in the tropics or in

particularly humid climates.

19. Attention! In the event of a malfunction as a result of electrostatic discharge and momentary

electrical surges, unplug the product and plug it in again.

20. Caution! Danger of explosion if battery is incorrectly replaced. Replace only with the same or

21. Batteries shall not be exposed to excessive heat such as sunshine, re or the like.

22. Always insert batteries correctly with regard to the polarities (+ and –) marked on the battery and

the battery compartment.

23. Do not allow children to replace batteries without adult supervision.

24. Remove the batteries if you will not be using the product for an extended period of time.

25. Exhausted batteries should be immediately removed from equipment and properly disposed of.

26. Please refer to the safety instructions provided by the battery manufacturer.

27. This product is not a toy and should not be used by children.

28. The information on the compact disc is read by a laser through an optical lens (do not touch). If

you take the product from a cold to a warm room, moisture may condense on the lens, and the playback may be hampered. In this case leave the product for one hour at room temperature before use. Take the disc out of the product. Should the problem persist, have the product checked by qualied personnel. CLASS I LASER PRODUCT This label on the product informs the user that this is a class 1 laser product containing a laser component. Do not touch the lens inside the disc compartment. CAUTION! Use of controls or adjustments of procedures other than those specied herein may result in hazardous radiation exposure. DANGER! Invisible laser radiation when open and safety interlock failed or defeated. Avoid direct exposure to the beam. Do not touch the lens. CAUTION

AVIS: RISQUE DE CHOC éLECTRIQUE-NE PAS OUVRIR The lightning ash with arrowhead within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” inside the enclosure of this product, which may be of sucient magnitude to constitute a risk of electric shock to persons and animals. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this product. IM_OCR100_170907_V03_HR.indb 11 7/9/17 3:04 pm12

INTENDED USE This product is intended for audio playback via CD, FM-Radio USB storage and audio input (AUX IN). Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer’s specied purpose. COMPONENTS A. CD player lid

J. REPEAT/RANDOM button K. XBASS button L. AUX IN jack M. ST/MONO button N. SCAN/AMS button O. Speakers (both sides) P. Display Q. Cover opening recess R. Battery compartment S. Wire aerial T. Power cord with plug

BEFORE FIRST TIME USE

• Remove all packaging materials.

• Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.

• Clean the product ( Cleaning and care).

• Important! Before rst use, remove the protective sheet from the disc compartment. IM_OCR100_170907_V03_HR.indb 12 7/9/17 3:04 pm13

Place the product on an even, horizontal and steady surface.

If desired, two batteries can be inserted so that in the event of a power failure, settings are maintained. Open the battery compartment by removing the cover. Insert 2 batteries type AAA/ LR03 (not included). Pay attention to the correct polarity (+/-) according to the imprint in the battery compartment. Close the battery compartment cover.

Put the end of wire aerial up to receive at best signal strength. Connect the power plug to the mains. CLOCK SETUP Clock setting is only possible in Standby/ OFF mode.

1. When product is connected with mains the rst time, 0:00 will be shown on the display in standby

2. If needed turn o the radio by pushing power button

for approx. 2 seconds. Press and hold CLOCK for 2 seconds.

3. Use the VOL/TUNE volume control to set the 12H or 24H hour format and press CLOCK to conrm.

4. Now set the hours with the volume control VOL/TUNE and conrm with CLOCK.

5. Now set the minutes with the volume control VOL/TUNE and conrm with CLOCK.

6. The setting has now been completed.

Press power button to switch on. For switching o, press power button for at least 2 seconds. Mode selection

Press the SOURCE button to select mode in order FM radio, AUX (Audio in), CD and USB (USb). Volume control

The loudspeaker volume can be easily controlled by turning the volume control VOL/TUNE. The volume is shown in display for a moment. XBASS function Press the XBASS button to raise the bass. Press again to stop the function.

• This function is only available when the radio is switched o.

• Press the NAP button. The default time is 10 minutes. If necessary, use the volume control to set the time in minutes. Conrm the set time and activate the timer by pressing the NAP button again. When the set time has elapsed, an alarm sound turns on. Press the NAP or power button to stop the alarm. IM_OCR100_170907_V03_HR.indb 13 7/9/17 3:04 pm14

This function is only available during playback or listening radio. Press the SLEEP button until 90 minutes shows on display. Move to step 7. If necessary press the SLEEP key several times to set the desired shutdown time 90, 60, 45, 30 or 15 minutes. Press again to deactivate the function (OFF). If the preset time has elapsed, the product turns o. Radio mode Tuning

Select FM radio mode. Press the VOL/TUNE volume control, then adjust the desired frequency by turning it. Memory preset 20 radio stations can be preset to a program list.

1. Set a station by tuning according to chapter Tuning.

2. Press the MEMORY button for 2 seconds. In display P-01 or P-XX ashes. Select a program

memory location from P-01 to P-20 by turning the VOL/TUNE volume control. Conrm the program memory by pressing the MEMORY button again.

3. Once all the stations were preset, you can select any preset station from P-01 to P-20 by pressing

the MEMORY button and turning the VOL/TUNE volume control. Auto scan and preset This product is equipped with automatic station search and saving function.

1. Press the SCAN/AMS button for 2 seconds. The FM-radio will auto search and save all available

2. Once all the stations are preset, select your desired station by following steps as given in

previous chapter. CD Player mode

Open the CD-player lid by pulling it up.

Insert a CD. Make sure it ts correctly on the arbor. Close the CD-player lid by pushing down.

Press REPEAT/RANDOM button to select the following repeat modes:

• REP 1 repeat current track

• REP ALL repeat all tracks

• RAND Playback of all songs in random order

Connect a USB drive to the USB socket.

1. Select USB mode (USb).

2. The system is scanning the USB drive and starts playing the rst song automatically.

3. The playback can be controlled in the same way as for CD player. All basic functions as play/

pause , skipping songs forward or are available. Note: All songs to be played shall be in one folder on USB drive. Music which is saved in subfolders cannot be played. The order of playing is given by the order of songs in folder. Note: Connect the USB device directly to the USB port of the unit. Using an extension cable is not recommended and may cause interference and failure of data transfer. This product supports USB

Connect your music player and the product by audio cable with 3.5 mm-stereo jacks.

1. Once both devices are connected you can start playback at your music player.

2. Use the controls of your external audio device to control the playback.

3. The volume can be controlled by VOL/TUNE on the product.

ALARM SET AND ACTIVATE

The alarm can only be activated when the product is switched o, i. e. standby mode: Alarms 1 and 2

1. Press the ALARM button for approx. 2 seconds and select Alarm 1 (AL 1) or Alarm 2 (AL 2).

2. Press ALARM again, adjust the hours with the VOL/TUNE volume control and press ALARM to

conrm. Set the minutes as well and conrm by pressing the ALARM button. Select the Alarm signal , CD or Radio with the VOL/TUNE volume control and conrm again by pressing the ALARM button. This completes the setting.

3. The setting of Alarm 1 (AL 1) or Alarm 2 (AL 2) is done in the same way.

4. The alarm times Alarm 1 (AL 1) or Alarm 2 (AL 2) can be activated and deactivated by pressing

the ALARM key several times no matter the device is switched on or o.

• Disconnect the product from the power supply before cleaning it. Clean the product with a soft, damp cloth and a mild cleaning agent. Finish by wiping it with a dry cloth. Do not use alcohol, acetone, benzene, scouring cleansers etc. to clean the product. Do not use hard brushes or metal objects.

• Warning! Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s). IM_OCR100_170907_V03_HR.indb 15 7/9/17 3:04 pm16

SPECIFICATION POWER SUPPLY Input : 110 - 240 V~, 50/60 Hz Operation power consumption : 9W Standby power consumption : <1.0 W Radio Frequency range : 88 - 108 MHz CD Playback Frequency response : 20 Hz - 20 KHz Compatibility : CD/CDR/CDRW/MP3/WMA USB : USB 1.1 and 2.0 AUX : 3.5 mm Speaker Output power (RMS) : 2 x 1.5 W Sound Enhancement : Amplier IC: CS4863 Sound System : 2 x 2.5" speaker Dimension Main unit (W x H x D) : 150 x 123 x 195 mm Weight (Main unit and two speakers) : 1.1 kg DISPOSAL Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product. IM_OCR100_170907_V03_HR.indb 16 7/9/17 3:04 pm17
