Product type	Projection alarm clock radio
Brand	OK
Model	OCR 160PR
Mains power supply	230-240 V~, 50 Hz
Power consumption in operation	4 W
Power consumption in standby	≤ 1 W
Backup batteries	2 x 1.5 V (type AAA, not included)
Radio frequency range	FM 87.5 - 108 MHz
Tuning step	0.1 MHz
Time projection	Yes, with focus and 180° rotation
Alarm	Dual alarm with beep or radio
Snooze function	Yes, duration 5 minutes
Sleep timer	Yes, adjustable from 10 to 90 minutes
Station memory	10 presets (F01-F10)
Brightness adjustment	3 levels
Daylight saving time (DST)	Yes, via dedicated button
Cleaning	Soft damp cloth, mild detergent
Safety	Double insulation, do not expose to water
Repairability	Contact an authorized repairer

Frequently Asked Questions - OCR 160PR OK

How to set the time on the OCR 160PR alarm clock radio?

Make sure the radio is off (standby mode). Press and hold the TIME/PRO button for at least 2 seconds until the time flashes. Use HOUR for hours and MIN for minutes. Confirm by pressing TIME/PRO again.

How to set alarm 1?

In standby mode, press and hold the AL1/VOL- button for about 2 seconds until the alarm time flashes. Set the hours with HOUR and minutes with MIN. Confirm with AL1/VOL-. To choose the alarm type (beep or radio), press AL1/VOL- repeatedly until the desired icon appears (▲ for beep, music note for radio).

How to use the snooze function?

When the alarm sounds, press the SLEEP/SNOOZE button to stop the signal. The alarm will sound again after 5 minutes. The alarm mode will flash during the waiting period.

How to tune to a radio station?

Press FM/OFF to turn on the radio. For automatic search, press and hold TU+ or TU- for about 2 seconds. For fine tuning, press these buttons briefly (step of 0.1 MHz).

How to store a radio station?

First tune to the desired station. Press TIME/PRO: the location number (F01 to F10) is displayed. Press TIME/PRO again to confirm the location. The station is stored.

How to activate the time projection?

Press the PROJECTOR button to turn on the projection. A second press rotates the image by 180°. Use the focus ring for sharpness. Adjust the angle by turning the lens.

How to switch between summer and winter time (DST)?

Turn off the radio. Press DIMMER/DST for about 4 seconds: the time advances by one hour. Another press goes back one hour. The DST icon lights up in summer mode.

What happens during a power outage?

If backup batteries (2× AAA, not supplied) are installed, the clock continues to run. The display, radio and alarm do not work during the outage. Once power is restored, the correct time is displayed.

How to clean the alarm clock radio?

Unplug the device. Use a soft, slightly damp cloth with a mild detergent. Wipe with a dry cloth. Do not use alcohol, acetone, abrasive products or metal objects. Never immerse the device in water.

What to do if the radio does not turn on?

Check that the power cord is properly plugged in and the mains socket is live. If the problem persists, the device may be faulty. Contact an authorized repairer. Do not attempt to repair it yourself.

USER MANUAL OCR 160PR OK

m = 311

NL GEBRIKSAANWUZING 94

INSTRUKCIA OBSUĞI 104

MANUAL POLITIZADOR 132

1. MANUEL DO TELEDAIR 120

K L M s 88:88 ok. N O P Q

R S T

W_OCR180PR_1/0810_V04_HDinch 2

10647 258pm

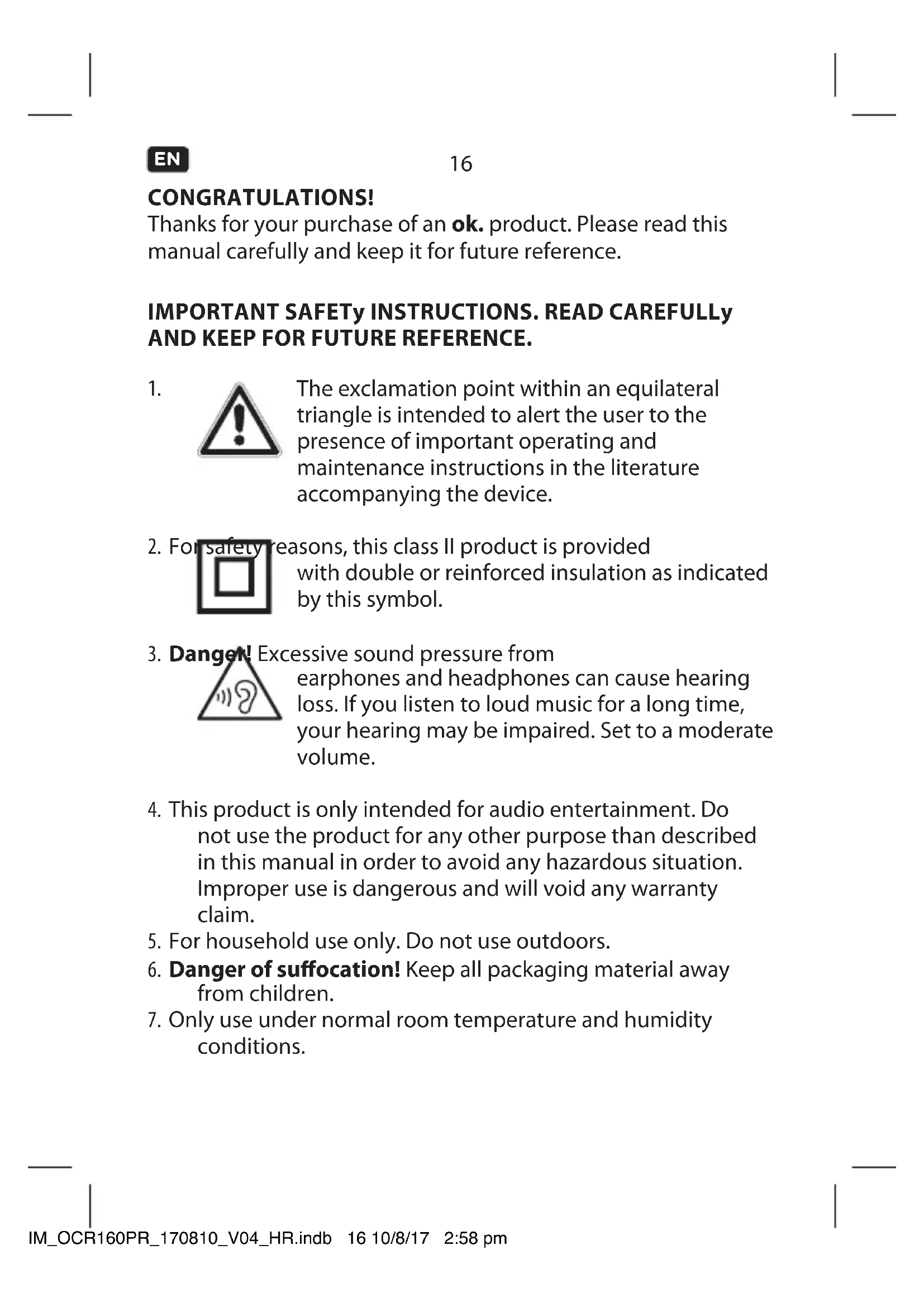

HERZLICHEN GLÜCKWUNSCH!

Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the device.

1. For safety reasons, this class II product is provided with double or reinforced insulation as indicated by this symbol.
2. Danger! Excessive sound pressure from earphones and headphones can cause hearing loss. If you listen to loud music for a long time, your hearing may be impaired. Set to a moderate volume.
3. This product is only intended for audio entertainment. Do not use the product for any other purpose than described in this manual in order to avoid any hazardous situation. Improper use is dangerous and will void any warranty claim.
4. For household use only. Do not use outdoors.
5. Danger of suffocation! Keep all packaging material away from children.

6. Only use under normal room temperature and humidity conditions.

7. The product is only suitable for use at moderate degrees of latitude. Do not use in the tropics or in particularly humid climates.

8. Do not move the product from cold into warm places and vice versa. Condensation can cause damage to the product and electrical parts.

9. Do not use attachments or accessories other than recommended by the manufacturer or sold with this product. Install in accordance with this user manual.

10. Do not install near any heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.

11. Do not shift or move the product when powered on.

12. Do not touch, push or rub the surface of the product with any sharp or hard objects.

13. Danger! To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

14. The product shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product.

15. Care should be taken so that no objects or liquids enter the enclosure through openings.

16. No naked flame sources, such as lighted candles, should be placed on the product.

EN

1. Refer all servicing to authorised service agent. Do not attempt to repair the product yourself. Servicing is required when the product has been damaged in any way, such as the supply cord or plug are damaged, liquid has been spilled, objects have fallen into the product, the enclosure is damaged, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

2. Before connecting the product to a socket outlet, make sure the voltage indicated on the product corresponds to your local mains.

3. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid hazard.

4. Regularly check if the supply cord, product or extension cable is defective. If found defective, do not put the product into operation. Immediately pull the plug.

5. Place the supply cord and, if necessary, an appropriate extension cable in such away that pulling or tripping over it is impossible. Do not allow the supply cord to hang down within easy reach.

6. Do not jam, bend or pull the supply cord over sharp edges.

7. The power plug is used as the disconnect device; the disconnect device shall remain readily operable. To completely disconnect the power input, disconnect the mains plug.

8. The product may not function properly or not react to the operation of any control due to electrostatic discharge. Switch off and disconnect the product; reconnect after a few seconds.

9. Protect the supply cord from being walked on or pinched particularly at the plug, convenience receptacles and the point where it exits from the product.

10. Never pull the plug by the supply cord or with wet hands.
11. Disconnect the power plug in case of faults during use, during lightening storms, before cleaning and when not using the product for a longer period of time.
12. Danger! Before cleaning, switch the product off and disconnect the power plug from the socket.
13. When the product has reached the end of its service life, make it defective by disconnecting the plug from the socket and cutting the cord in two.
14. Caution! There is danger of explosion from improper replacement of the batteries. Replace batteries only with the same or equivalent type of battery.
15. Always change the entire battery pack. Do not mix old and new batteries, or batteries with different charge state.
16. Make sure the batteries are correctly inserted. Observe the polarity (+) plus / (-) negative on the battery and the housing. Improperly inserted batteries can lead to leakage or, in extreme cases, a fire or an explosion.
17. Remove used batteries. Remove the batteries if you know that the product will not be used for a longer period of time. Otherwise, the batteries could leak and cause damage.
18. Non-rechargeable batteries must not be recharged.
19. The connections must not be short-circuited.
20. Remove the batteries from the product before disposal.

EN

20

1. Never expose batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The batteries could explode.

2. Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.

3. If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery acid from coming into contact with skin and eyes. If you do get battery acid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery acid comes into contact with your skin, wash the affected area with lots of water and soap.

4. When installing the device, leave sufficient space for ventilation. Do not install in bookcases, built-in cabinets or the like.

5. Do not impede ventilation by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Do not insert any objects.

6. Attention! Please do not look directly into the light emanating from the LED. Do not point the LED light directly into the eyes.

INTENDED USE

This product is intended for audio playback of radio programs. Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use. Do not use the product if damage is seen. Imtron GmbH accepts no liability whatever for any injuries or damages caused to careless, improper or incorrect use of the product or use of the product for purposes not recommended by the manufacturer.

COMPONENTS

A. Button TIME/PRO
B. Button HOUR/TU-
C. Button MIN/TU+
D. Button DIMMER/DST
E. Button SLEEP/SNOOZE
F. Button AL1/VOL-
G. Button AL/VOL+
H. Radio/Time switch button
I. PROJECTOR-button
J. Projection with focus ring
K. DST-Indicator
L. Alarm 1 Buzzer indicator
M. Alarm 1 Radio sound indicator
N. Display
O. FM-indicator
P. Alarm 2 Buzzer indicator
Q. Alarm 2 Radio sound indicator
R. Battery compartment
S. Wire antenna
T. Power cord with plug

EN

22

BEFORE FIRST TIME USE

Remove the product and accessories carefully from the original packaging. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

INSTALLATION AND POWER SUPPLY Installation

1 For optimal reception, extend the antenna fully and adjust it. Connect the power plug to the mains.

Back up battery

Insert batteries to enable the clock continues operating during a possible power failure. After the mains power remains, the correct time will appear on the display.

1. Open the battery compartment.
2. Insert 2 x 1.5 V battery type AAA (not included in delivery). Make sure the polarity is correct as indicated.
3. Close the battery compartment.

Note:

Display, radio and alarm will not function during back up operation.

GENERAL SETTINGS

Time setting

2 The time can be set only if the radio is in off mode (Standby):

1. Press the TIME/PRO button for at least 2 seconds. The time is flashing on the display.
2. Set the hours with HOUR button and minutes with MIN button. Confirm the time with TIME/PRO.

Alarm setting

The alarm can be set only if the FM radio is in off mode (Standby):

3

ALARM 1

1. Press the AL1/VOL- button for apprx. 2 seconds and the alarm time will be flashing on the display.

Note: If no settings done within 5 seconds the display will turn off into standby.

1. Set the hours with HOUR button and minutes with MIN button.
2. Confirm the time with AL1/VOL-.
3. To select one of the below alarm functions, press and hold the button AL1/VOL- until the alarm time is flashing on the display. Press the AL1/VOL- button again to select one function.

Below alarm functions are available:

Press AL1/VOL- On display
1 x Alarm time 1 +	《▲》
2 x Alarm 1 +	♪
3 x Alarm function de-activated

ALARM 2

1. Press the AL 2/VOL+ button and the alarm time 2 will be flashing on the display.
2. For setup, switching on/off of ALARM 2 follow the instructions as given for setup of ALARM 1. But instead of pushing AL1/VOL- button push AL 2/VOL+ button.

Stop alarm

1. Snooze function: Press SNOOZE button to suspend alarm sound for a few minutes. The alarm will start again after approx. 9 minutes. The set alarm mode will remain flashing on the display.
2. Press FM/OFF to stop/cancel alarm.

EN

24

4 OPERATION

Display backlight setting

With the radio switched off press the DIMMER/DST button to adjust (3 brightness level) the display brightness.

• high
• medium
• low

Switching on and off

Press the FM/OFF button to turn on the radio. To turn off, press FM/OFF button again.

Volume control

The volume can be easily controlled by pressing the buttons AL1/VOL- or AL2/VOL+. The volume will be shown on display for a moment.

Sleep function

With the radio switched on press the SLEEP/SNOOZE button shortly to adjust the sleep timer in 10 minutes steps from 90 minutes to OFF.

RADIO

Tuning

5 1. Turn on the radio. Press the buttons TU+/- for approx. 2 seconds to search the station with next higher/lower frequency.
2. For fine tuning, press the TU+/- button shortly to change the frequency in steps of ± 0.1 MHz.

Memory preset

10 radio stations can be preset to a program list.

1. Select FM radio mode. Set a station by tuning according to chapter Tuning.
2. Press the button TIME/PRO. The preset number appears on the display. Press the button again to select a preset number from F01 - F10.
3. Once the stations are preset, press the TIME/PRO button to select your desired stations.

SUMMER/WINTER TIME - DST

This function makes it possible to switch between summer and winter time, without having to set the time again.

1. Ensure the radio function is switched off.
2. Press the DIMMER/DST button for about 4 seconds to switch between summer and winter time. One hour will be added to the displayed time. If the button is pressed again, one hour will be subtracted.

EN

PROJECTOR FUNCTION

WARNING! Do not look directly into the projection beam.

6 This function makes it possible to project the set time onto a wall or ceiling.

1. Press the button PROJECTION MODE, to switch the projector function on or off.
2. Press again the button PROJECTION MODE, to rotate the projected time by 180 degree.
3. Rotate the adjustment ring clockwise or anti-clockwise, to focus the projected time.
4. Move the projector lens, to adjust the position of the projected time on the wall / ceiling.

Note: The projector function works best in darkened rooms. The used wall / ceiling can be between 90 cm and 275 cm away.

CLEANING AND CARE

• Disconnect the product from the power supply before cleaning it. Clean the product with a soft, damp cloth and a mild cleaning agent. Finish by wiping it with a dry cloth. Do not use alcohol, acetone, benzene, scouring cleansers etc. to clean the product. Do not use hard brushes or metal objects.
• Warning! Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not function	• Interrupted power supply	• Check the power supply
No Sound • Volume is very low • Adjust the volume
No radio reception	• Poor radio reception	• Place the product to another place and adjust the antenna again.

EN

28

SPECIFICATION

Power supply : 230 - 240 V\~, 50 Hz

Operation power consumption : 4 W

Standby-power consumption : ≤1 W

Backup-Batteries operation : 2 x 1.5 V

Tuning-range : 87.5 - 108 MHz

Tuning grid : 0.1 MHz

Protection class : II

= - = (Typ LR03/AAA)

DISPOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product.

ENHORABUENA

Consumo in Standby : ≤1 W

Funzionamento con batterie : 2 x 1,5 V = (Typ LR03/AAA) tampone
