USER MANUAL Hobby 1200 GLORIA

Disposal & Legislation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 1 General information about this user manual This user manual is part of the GLORIA device and must be kept available at all times with or close to the device. The user manual provides you with important safety instructions and information required to operate the device properly! The user manual must be read in full by every person who is authorized to operate/use/maintain the device. Keep the user manual safe and pass on to the next owner! All safety instructions are always intended for your own safety!

1.2 Symbols on the device >>

Never point the spray jet at people or animals. Do NOT dispose of old devices as normal domestic waste. Environmentally appropriate dis posal! Recyclable packaging materials! The user manual must be read in full by every person who is authorized to operate / use / maintain the device. Do not eat, drink or smoke until you have removed your protec- tive clothing, carefully cleaned your hands and face, and rinsed out your mouth. Wear suitable protective cloth- ing according to the spraying agents in use. Never use solvent-based or oily substances. Do NOT spray any explosive, highly flammable or com- bustible liquids with a flash point below +40°C, or any oxidising or toxic substances. Protect the device against long exposure to the sun and frost. Solvents Gasoline Oil RZ_KRSG_EN.qxp_Text_EN 01.10.18 15:53 Seite 1920 GBGB

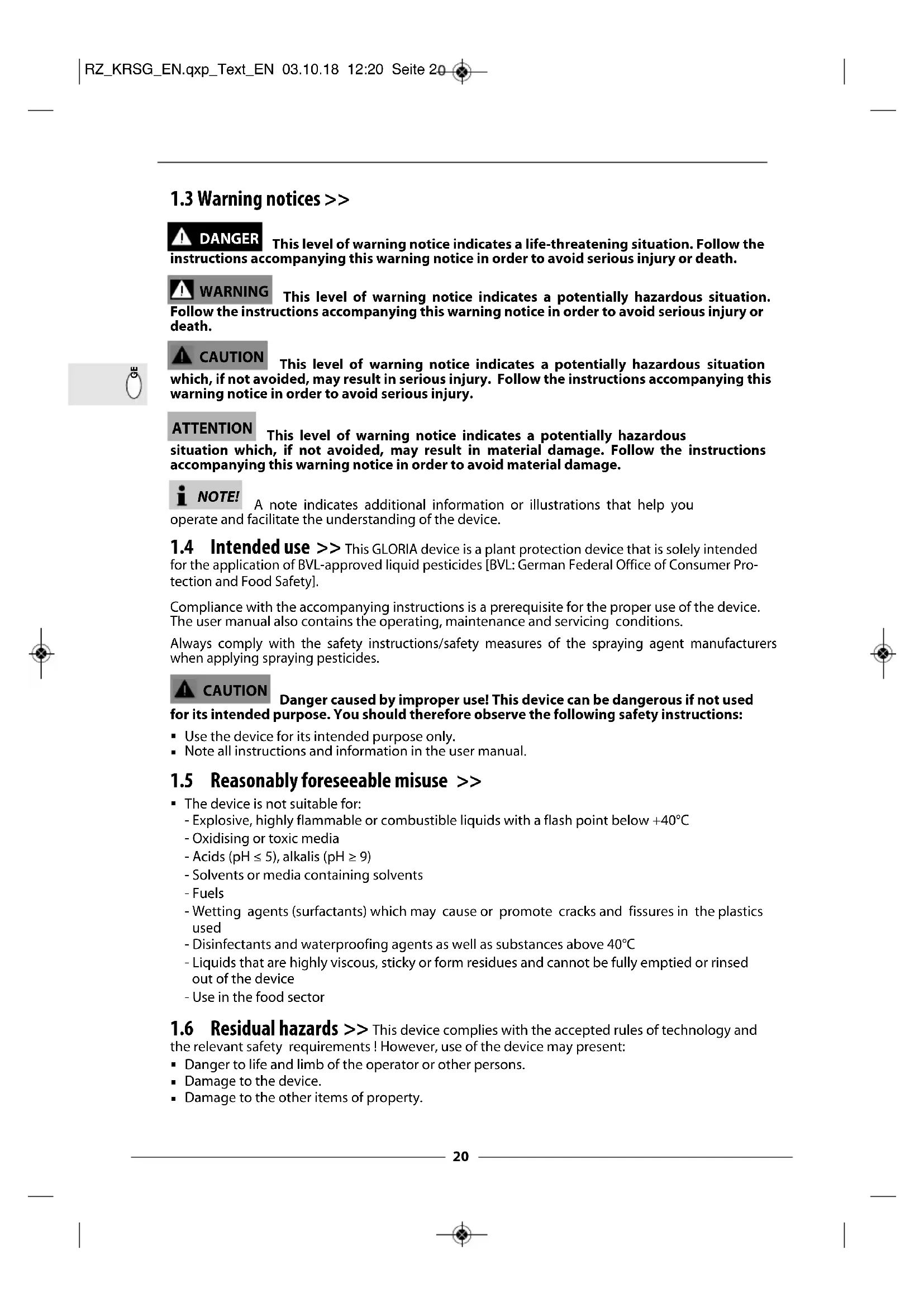

1.3 Warning notices >>

This level of warning notice indicates a life-threatening situation. Follow the instructions accompanying this warning notice in order to avoid serious injury or death. This level of warning notice indicates a potentially hazardous situation. Follow the instructions accompanying this warning notice in order to avoid serious injury or death. This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in serious injury. Follow the instructions accompanying this warning notice in order to avoid serious injury. This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in material damage. Follow the instructions accompanying this warning notice in order to avoid material damage. A note indicates additional information or illustrations that help you operate and facilitate the understanding of the device.

Intended use >> This GLORIA device is a plant protection device that is solely intended for the application of BVL-approved liquid pesticides [BVL: German Federal Office of Consumer Pro- tection and Food Safety]. Compliance with the accompanying instructions is a prerequisite for the proper use of the device. The user manual also contains the operating, maintenance and servicing conditions. Always comply with the safety instructions/safety measures of the spraying agent manufacturers when applying spraying pesticides. Danger caused by improper use! This device can be dangerous if not used for its intended purpose. You should therefore observe the following safety instructions:

Use the device for its intended purpose only.

Note all instructions and information in the user manual.

Reasonably foreseeable misuse

The device is not suitable for: - Explosive, highly flammable or combustible liquids with a flash point below +40°C - Oxidising or toxic media - Acids (pH ≤ 5), alkalis (pH ≥ 9) - Solvents or media containing solvents - Fuels - Wetting agents (surfactants) which may cause or promote cracks and fissures in the plastics used - Disinfectants and waterproofing agents as well as substances above 40°C - Liquids that are highly viscous, sticky or form residues and cannot be fully emptied or rinsed out of the device - Use in the food sector

This device complies with the accepted rules of technology and the relevant safety requirements ! However, use of the device may present:

Danger to life and limb of the operator or other persons.

Damage to the device.

Limitation of liability

We expressly point out that according to product liability law we do not accept li ability for damage caused by our device, insofar as this has been caused by non-compliance with the operating instructions, improper use, improper repair or replacement of parts with non-genuine parts, or if repairs have not been carried out by the customer service team or an authorised expert. This also applies to accessories.

For your safety This chapter contains important warning and safety instructions which must be observed when hand ling and using the device.

Basic safety instructions

Observe the following basic safety instructions to ensure the safe hand ling and use of the device: Repairs to these devices must be performed exclusively by the service centres. Spare parts should be ordered from your dealer. If the parts are not in stock, the dealer will procure them as soon as possible. This device complies with the accepted rules of technology and the relevant safety require- ments! This device may be used by child ren from 16 years and above and by persons with diminished phys ical, sensorial or mental capacities or lack of experience and know ledge if supervised or if they have been instructed with respect to safe use of the device and understand the risks that result from using it. Children must not play with the device. Cleaning and user maintenance must not be performed by children without supervision. This device must not be used if the operator is tired, ill or under the influence of alcohol or other drugs or medicines. Use the device as intended! Keep spraying equipment and media away from children and young persons under 16. In order to prevent damage and hazards resulting from improper use , you must observe the user manual and store it in a safe place! If the device is passed on to other persons, they must also be given the user manual! Always place the device on an even, flat surface.

Secure the device during transport to prevent the spray liquid escaping.

Never mix more spray solution than is required. Do not dispose of residues in the drains, but dilute 1:10 and spread over vegetation.

Each time before the sprayer is put into operation, regularly check to ensure the fault-free condi- tion and function of the pressurised/liquid-conducting operating elements and the safety valves. Pay particular attention to the tightness of the screw connection and screw joints. Check the mate- rial for the formation of cracks, brittleness and corrosion. If damage is suspected, take the unit out of operation immediately.

Do not leave the device unattended while it is in operation. Protect the device against long exposure to the sun and frost.

As a precautionary measure, we recommend that a particularly extensive inspection be per- formed – ideally by the manufacturer – after the sprayers have been in use for 2 years. It is for- bidden to perform repairs on the container. Only use GLORIA original spares and accessories for the device. Never use worn, modified or defective replacement parts / accessories!

2.2 Health hazards >>

Danger of death due to fire and/or explosion! Danger of death due to improper use of the device! For this reason, observe the following safety instructions:

When handling hazardous substances always wear appropriate protective clothing, including protective gloves and breathing protection. Avoid ignition sources in the surrounding area, provide good ventilation in the workplace.

Inflammable media may not be applied with this device. You may be exposed to hazards that could injure you when handling the device and the spraying pesticides. Always comply with the safety information/safety mea- sures of the spray product manufacturer and the following safety instructions:

Do not blow out blocked nozzles using the mouth.

Do not point the end of the spraying lance at yourself when unscrewing it.

Changes or improvements to the device are not permitted without the agreement of the manufacturer! Never bypass, modify or remove the safety equipment. Danger to health through contact with the spraying pesticides! Spraying pesticides can cause damage to health if inhaled, swallowed or absorbed by the skin. Consult a doctor if you develop symptoms or are unsure. You should therefore observe the following safety instructions:

Note safety instructions on the labels of the spraying pesticides used. Pay attention to the stat- ed max. concentration. Certain liquids require the use of protective glasses, gloves or other safe- ty measures.

Always request a safety data sheet from the spraying agent manufacturer.

2.3 Danger due to damage to equipment >>

Improper use can cause damage to the device! For this reason, observe the following safety instructions:

Protect the device against long exposure to the sun and frost.

The device must not be pressurised for extended periods.

Do not store the device in livestock buildings due to the ammonia vapours (danger of brass cracking), do not fill with solutions containing nitrogen or phosphates.

Do not store spraying pesticides in the device. Solvents Gasoline

The device is shipped as standard as follows: - Plastic quick closure valve with integrated pressure gauge and manometer - Brass spraying lance with hollow cone nozzle - Extension tube 0.5 m (Type Hobby 1800, Pro 1300/1800) - Two adjustable carrying straps with pads for pump lever which can be operated left or right-handed (Type Hobby 1200) - Two adjustable carrying straps with pads, and a lap belt, for pump lever which can be operated left or right-handed (Type Hobby 1800) - Padded carrier system for pump lever which can be operated left or right-handed, and mounta- ble handle (Type Pro 1300/1800) - Pump lever with spraying lance seat - Container with transparent viewing stripes (fill level checking) - 1 x user manual and product information Any accessories will be included individually packed. 4 Technical data Piston knapsack sprayer Type Hobby 1200/1800 Type Pro 1300/1800 Max. filling capacity in litres: 12/18 13/18 Permissible operating pressure: + 40°C + 40°C Empty weight: 3,45 kg / 4,30 kg 4,00 kg / 4,90 kg Hollow cone nozzle, spraying angle: 55° 55° Delivery volume at

5.1 Shoulder strap/carrier system >>

Figures 1 - 8 Depending on the model, your device is equipped with a padded shoulder strap or a carrying frame. Depending on the required operating position of the pump lever (right or left-hand side), the shoulder straps can be mounted for right or left-handed persons on all model types. The pump lever should be on the left for right-handed persons.

RZ_KRSG_EN.qxp_Text_EN 01.10.18 15:53 Seite 2324 GBGB Type Hobby 1200/1800: Padded shoulder strap Pass upper loop through the middle slot. Insert the mounting element into the loop. Pull the strap back until it is caught in place. Pass the two lower strap ends as shown through the metal strap buckles. Type Hobby 1800: Additional lap belt Mount the lower holding points as shown for the lap belt. Pass the upper straps through the left and right slots and then pull through the strap buckles as shown. Type Pro 1300/1800: Carrier system with chest strap (model Pro 1800 includes a lap belt) Pass the upper middle strap through the middle slot and pull through the strap buckle as shown. Then mount the lower 4 holding points (2 outside / 2 inside) for the carrier system as shown. Pass the upper outer straps respectively through the left and right slots and then pull through the strap buckles as shown.

Figure 9 The device types Pro 1300/1800 are equipped with an ergonomic handle which must be moun- ted appropriately for left or right-hand use. Mount the handle facing the left or right-hand side on the pump lever. Insert the handle sections on the pump lever as shown.

You can choose between 2 insert positions which will shorten or extend the lever arm of the pump lever according to the mounted handle position.

Insert the holding clip for the spraying lance as shown. Then attach the second handle section and screw both handle sections to the pump lever as shown.

5.3 Quick closure valve/hose/spraying lance >>

Figures 10 - 13 Insert the seal into the connecting nozzle and then screw this on to the screw threaded coupling on the pump housing. Push the hose up to the stop on the connection sleeve of the pump housing and screw down tight with the coupling nut. Screw the pressure control valve onto the quick closure valve. Push the hose up to the stop on the connection sleeve of the quick closure valve and screw down with the coupling nut. Screw the spraying lance onto the quick closure valve. Mount an extension if required (except type Hobby 1200).

Commissioning Before putting into operation, observe Chapter 2 “For your safety”. Danger to health due to escaping spraying pesticides! A leaking device or leaking components may result in draining or spouting of spraying pesticides. You should therefore observe the following safety instructions:

Prior to each use, check the device to ensure fault-free condition and leak-tightness. To perform the leak test, fill the container with water!

Inspect all screw joints for tight fitting.

6.1 Filling the device >>

Remove the container cap and fill the device through the filling strainer. Close the container with the container cap.

Note maximum fill level (see technical data), safety instructions and permissible materials.

Check fill quantity.

Comply with the data of the spray product manufacturer!

6.2 Correctly fitting the shoulder strap / carrier system to the body >>

Figures 16 - 25 You can adjust your shoulder strap/carrier system (type-dependent) accurately to ensure optimal load distribution and fatigue-free working. The device must be worn as close to the body as possible and parallel to the spine. Type Hobby 1200/1800: Padded shoulder strap Fasten the shoulder straps as shown to the lower left and right outer strap buttons and position the device on your back. Tighten the carrying straps over the shoulders by pulling the lower strap ends. The carrying straps can be lengthened or shortened by adjusting the strap buckles. Type Hobby 1800: includes lap belt Before the strap lengths are adjusted, it is first necessary to clip on and tighten the lap belt of this device. Then tighten the carrying straps of the shoulder straps. Type Pro 1300/1800: Carrier system with chest strap (Pro 1800 includes a lap belt) Place the device on your back. Clip on the chest strap and adjust height and width as shown. Tighten the shoulder straps by pulling the lower strap ends as shown. Adjust the carrying straps of the shoulder straps by pulling the upper strap buckles as shown until the device lies parallel on the back. Adjustment is only possible when the device is off the shoulders. Type Pro 1800: includes lap belt The lap belt must be clipped in and tightened on this device before the lower straps ends are pulled to tighten the straps. Tighten the shoulder straps by pulling the lower strap ends as shown.

Figures 26 - 32 You may be exposed to hazards that could injure you when handling the device and the spraying pesticides. You must therefore always comply with the safety instruc- tions/safety measures in this user manual, as well as the following instructions:

The device must only be operated when suspended in a vertical or steep upright position. Move the pump lever from the top to the bottom. This will fill the air vessel and spray line with spray.

Pressing the actuation lever down on the quick closure valve initiates the spraying process. Only now can the pressure be set on the pressure control valve and read on the pressure gauge. Clockwise rotation increases the pressure, counter-clockwise rotation reduces the pressure. The optimal spraying pressure is always dependent on the nozzle used. It lies between 1.5 and 2.5 bar for the hollow cone nozzle mounted at the factory. If the pressure in the hose line and air vessel drops below the pressure set on the pressure regulator, the pressure regulator closes and no spray is released to the nozzle. The pump frequency must be increased in this case. The spray jet is interrupted immediately by releasing the actuation lever on the quick closure valve. Note the wind direction! Do not spray into the wind. Ensure uniform wetting of the object when spraying. The distance from the nozzle to the object to be sprayed should be 40-50 cm.

Clip the spray lance to the pump lever during work interruptions and breaks.

If the pressure control valve interrupts the spray jet, there is still pressure in the hose line and pump. 7 Shutting down

7.1 Emptying & Cleaning >>

Figures 33 - 37 Danger to health due to escaping spraying agents! Pay attention to the safety instructions in this manual. Observe applicable laws and the spec- ifications of the agent manufacturers when disposing of residual quantities. Remove the pressure regulator and release the residual pressure in the tank.

Clean the device and hose system thoroughly with water after each use (rinse several times), actuating the pump and actuation lever on the quick closure valve several times whilst doing so. Collect the discharge and apply as described above diluted 1:10 onto vegetation. Leave the device to dry opened, hanging it up if possible with the opening facing downwards.

Figure 38 - 44 You may be exposed to hazards that could injure you during maintenance work. Wear safety gloves and protective clothing, if necessary.

Completely depressurise the hose line by pulling the actuation lever on the quick closure valve, even if the device is empty, and dispose of any remaining liquid in the system onto vegetation.

The sealing ring in the container cap and all other moving parts must be regularly greased with resin- and acid-free grease.

Observe the national regulations concerning occupational safety which apply to the place of operation as well as the applicable national regulations for operations. An expert inspection must be performed – ideally by the maintenance service of the manufacturer – to establish whether hazard-free operation remains possible. This should be performed in the event of defects that may impair safety in particular, and must be performed at least every 5 years in any case.

Only use original GLORIA spare parts for repairs. (see GLORIA spare parts shop https://shop.gloriagarten.de).

Repairs must only be carried out by a GLORIA service point.

It is forbidden to perform repair work on the container (such as welding and soldering).

Further accessories can be found at www.gloriagarten.de

Figures 45 - 46 You may be exposed to hazards that could injure you when handling the device and the spraying pesticides. You must therefore store the device and the spraying agents out of the reach of children. Empty and clean the device as in Chapter 7.1.

Loosen the container cap – Clip spraying lance onto the spraying lance holder – Store the device without pressure and frost-free. 8 Problems with the device

NOTE! Fault Cause Remedy Device is leaking at the screw connection Hose loose Tighten coupling nut and carry out pressure test with water Spray pattern of nozzle not

Nozzle partially blocked Filter in the quick closure valve contaminated Clean filter or nozzle (see Fig. 36 - 37) Pump lever stiff O-ring on the pump piston degreased Remove the piston from the pump and regrease the O-ring (see Fig. 38 - 44) Replace the O-ring in the case of wear. Item no.: see accessories/spare parts RZ_KRSG_EN.qxp_Text_EN 01.10.18 15:53 Seite 2728

10 Disposal & Legislation

10.1 Environmental protection & disposal of the device >>

The device must be disposed off at a recycling collection point. The materials can be recycled according to their designations. Please check with your local government to find the appropriate disposal point. Empty the device before disposal and render it unusable.

10.2 Disposal of packaging >>

The packaging materials have been selected according to environmentally-suitable and disposal-related aspects and are therefore recyclable. Returning the packaging to the material circulation saves raw materials and reduces the level of waste. Please dispose of unwanted packaging materials according to applicable local regulations. RZ_KRSG_EN.qxp_Text_EN 01.10.18 15:53 Seite 2829

SolventsGasoline Oil
