USER MANUAL MultiJet 18V GLORIA

7.6 Working with plant protection products / cleaning agents (accessory). . . . 29

12.2 Environmentally friendly handling of

1 General information about this user manual This user manual is an integral part of the GLORIA device and must be continually avail- able on or near the device. This user manual contains important instructions and infor- mation required for ensuring the safe use of the device! This user manual must be read in full by any person assigned with operating / using / maintaining the unit. This user manual must be kept safe and passed on to any new owner! All warning notices are there to protect your personal safety!

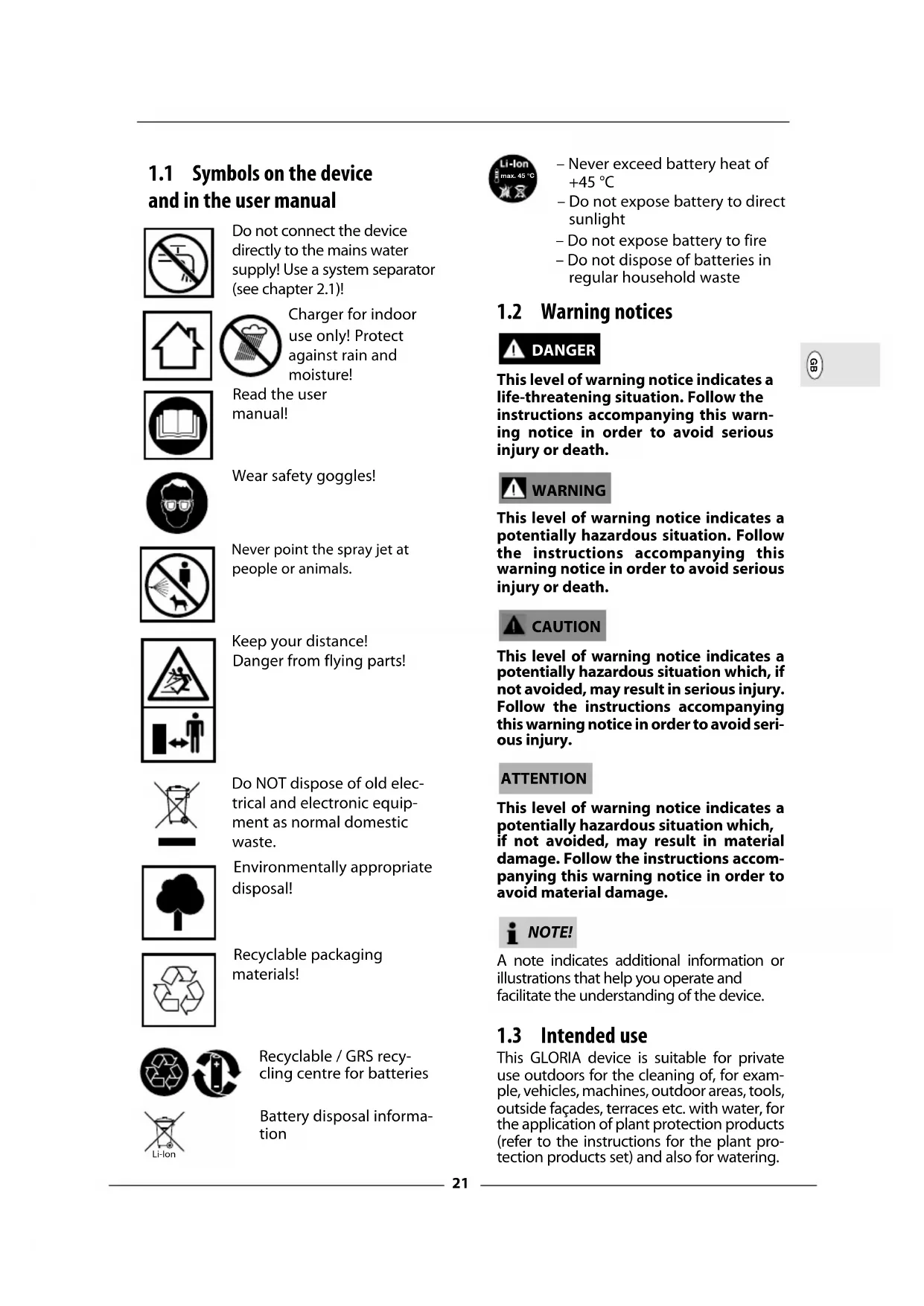

1.1 Symbols on the device

and in the user manual Do not connect the device directly to the mains water supply! Use a system separator (see chapter 2.1)! Charger for indoor use only! Protect against rain and moisture! Read the user manual! Wear safety goggles! Never point the spray jet at people or animals.

Keep your distance! Danger from flying parts!

Do NOT dispose of old elec- trical and electronic equip- ment as normal domestic waste. Environmentally appropriate dis posal! Recyclable packaging materials!

Recyclable / GRS recy- cling centre for batteries Battery disposal informa- tion – Never exceed battery heat of +45 °C – Do not expose battery to direct sunlight – Do not expose battery to fire – Do not dispose of batteries in regular household waste

DANGER This level of warning notice indicates a life-threatening situation. Follow the instructions accompanying this warn- ing notice in order to avoid serious injury or death.

WARNING This level of warning notice indicates a potentially hazardous situation. Follow the instructions accompanying this warning notice in order to avoid serious injury or death. CAUTION This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in serious injury. Follow the instructions accompanying this warning notice in order to avoid seri- ous injury. ATTENTION This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in material damage. Follow the instructions accom- panying this warning notice in order to avoid material damage. NOTE! A note indicates additional information or illustrations that help you operate and facilitate the understanding of the device.

This GLORIA device is suitable for private use outdoors for the cleaning of, for exam- ple, vehicles, machines, outdoor areas, tools, outside façades, terraces etc. with water, for the application of plant protection products (refer to the instructions for the plant pro- tection products set) and also for watering. Li-Ion max. 45 °C

MULTIJET.qxp_Text_GB 06.01.20 15:50 Seite 2122 Compliance with the accompanying instructions is a prerequisite for the prop- er use of the device. The user manual also contains the operating, maintenance and servicing conditions. CAUTION DANGER CAUSED BY IMPROPER USE! This device can be dangerous if not used for its intended purpose. You should therefore observe the following safety instructions:

Use the device for its intended purpose only.

1.4 Reasonably foreseeable misuse

The device is not suitable for the cleaning of objects that are not moisture-resistant or which cannot withstand a water pressure of 2-25 bar or for use in other areas of application than those specified here. Never direct the jet of water at electrical units / installations / devices. The device must not be used in wet weather conditions, rain and in/under water. The manufacturer does not accept liability for any damage or injury resulting from unauthorised modifications to the device or its improper use.

1.5 Residual hazards

This device complies with the accepted rules of technology and the relevant safety requirements ! However, use of the device may present:

Danger to life and limb of the operator or other persons.

Damage to the device.

Damage to the other items of property.

1.6 Limitation of liability

We expressly point out that according to product liability law we do not accept li ability for damage caused by our device, insofar as this has been caused by non- compliance with the operating instruc- tions, improper use, improper repair or replacement of parts with non-genuine parts, or if repairs have not been carried out by the customer service team or an authorised expert. This also applies to accessories. 2 For your safety This chapter contains important warning and safety instructions which must be observed when hand - ling and using the device.

2.1 Basic safety instructions

Observe the following basic safety instructions to ensure the safe hand ling and use of the device:

Repairs to devices for the home and garden must only to be carried out by the service centres. Spare parts should be ordered from your dealer. If the parts are not in stock, the dealer will procure them as soon as possible.

This device complies with the accept- ed rules of technology and the rele- vant safety requirements!

This device may be used by child ren from 16 years and above and by persons with diminished phys ical, sensorial or mental capacities or lack of experience and know ledge if supervised or if they have been instructed with respect to safe use of the device and understand the risks that result from using it. Children must not play with the device. Cleaning and user maintenance must not be performed by children without supervision.

This device must not be used if the operator is tired, ill or under the influence of alcohol or other drugs or medicines.

The device is not to be connected to the mains supply. Use a system sepa- rator in accordance with the legal requirements in accordance with EN 12729 type BA.

Water that has passed through a sys- tem separator may not be used any longer as drinking water.

Do not leave the device unatten ded while it is in operation.

Protect the device against long expo- sure to the sun and frost.

In order to prevent damage and hazards resulting from improper use , you must observe the user manual and store it in a safe place!

Wear suitable work clothing such as safety goggles, long trousers and, if necessary, gloves during cleaning. Do not work barefoot or in light sandals.

If the device is passed on to other persons, they must also be given the user manual!

Only use GLORIA original spares and accessories for the device. Never use worn, modified or defec- tive replacement parts / accessories!

2.2 Safety instructions for

handling charger and battery

DANGER DANGER OF ELECTRIC SHOCK! Contact with energised cables/wires or components may result in serious injury or death! You should therefore observe the following safety instructions:

Mains voltage must be in compliance with voltage specification (V~) on type plate of charger!

All components carrying an electrical current in the working area must be protected against sprayed water.

Compatible with all BOSCH 18 V Home and Garden Batteries. Possible capacities: 1.5 Ah / 2.5 Ah / 4.0 Ah / 6.0 Ah. The battery voltage must match the battery charging voltage of the battery charger. Do not try to charge up any batteries that are not of a rechargeable type. In such a case, there is a risk of fire and explosion.

Children and persons with reduced physical, mental or sensory capabilities or who are lacking the requisite knowl- edge and experience are not allowed to use the charger or its battery.

If the power cord of the charging sta- tion is damaged, it must only be replaced by a repair shop designated by the manufacturer in order to pre- vent a hazard! Please contact the manufacturer or the customer ser- vice department.

ensure that charger, charging plug and mains plug are in proper work- ing condition before use.

the contacts must never be touched.

do not cover the ventilation slots of the charger. Otherwise, the charger can overheat and will not function properly.

protect charger as well as battery against heat and humidity exposure.

do not immerse charger or battery in fluid.

operate mower only with corre- sponding original Li-Ion batteries.

use charger only to charge original Li-Ion batteries.

keep charger as well as battery sealed.

never operate charger on a flammable surface.

never perform charging near easily inflammable substances.

protect battery against heat, perma- nent sunlight and fire exposure. Store battery only at a temperature range between 0 °C to max. +45 °C. Never place battery on a radiator.

the supply terminals are not be short- circuited.

should the device be operated using a residual-current-operated protective device (RCD) with a trigger current of max. 30 mA. Ask your electrician! CAUTION

! Insert battery only when mower is switched off. Connect- ing battery to an activated mower can result in accidents. max. 45 °C

UIDS OR VAPOURS! Never expose bat- tery to extreme conditions, such as heat and impact. There is a risk of injury from discharged electrolyte solution or caustic vapours! If battery acid gets in contact with skin or eyes, rinse the affected area thoroughly with water and consult a doctor. Ensure ade- quate fresh air and consult a doctor if you experience irritation of respiratory tracts, skin or eyes.

2.3 Safety instructions for

operating the device

ATTENTION Improper use of the device poses a risk of damage to property! You should therefore observe the following safety instructions:

Do not use the device with wet hands.

Do not immerse the device in water or spray or clean it with water. The device must be protec ted against moisture.

DO NOT operate the device in dry running for longer than 2 minutes.

Your MULTIJET has protection against excessively high temperatures of the rechargeable battery. The battery cells can overheat if you use the unit constant- ly over a longer period of time or if it is exposed to high ambient temperatures. Discharge is no longer possible above 70 °C. In such a case, the device switches itself off automatically (all 4 displays flash, see also section 7.5.1). Allow the rechargeable battery (C) to cool down again before switching on again. LOW VOLTAGE CUTOFF DEVICE!

Your MULTIJET has a low voltage cutoff device for the rechargeable battery. This functions switches the unit off immedi- ately if the voltage falls below a specified value (all 4 displays flash, see also sec- tion 7.5.1). In such a case you should recharge the battery (C) or else put a fully charged battery into the unit. Observe the following safety precautions to prevent injuries and material damage due to misuse and unsafe handling of the product. Misuse can result in INJURIES.

Use the device as intended! Work only within the specified perform - ance range.

Before each use, make sure that the device is in perfect condition; opera- tion is prohibited if: -the safety devices (start switch) are damaged or worn. - the device shows visible signs of damage. - the device may have been dropped before.

Never direct the jet of water at devices or equipment containing electrical components.

Never try to clean any objects containing hazardous substances or materials.

Never draw in liquids containing sol- vents, alkalis or acids such as petrol or paint thinners, etc. The high pres- sure produces a sprayed mist that is explosive and toxic. Never disable any safety devices.

Check area to be cleaned beforehand to avoid damage to device / objects or injuries to living beings. Stones, pieces of wood, wires or the like, as well as other foreign objects must be removed. Objects that are caught by the water jet can be flung around uncontrollably. Keep bystanders away from the danger zone. In order to prevent injuries, pay attention to safety in the work area.

Ensure that the ventilation slots are free of dirt.

Do not start or operate the device if bystanders are in the danger zone.

Start or operate the device as described in the operating instruc- tions.

The start switch must never be fixed or short-circuited.

Only clean during daylight or with adequate artificial lighting.

Never use the device during rain.

Never clean if others, in particular children or animals, are in the area!

During cleaning, pay attention to safe and solid position. CAUTION

RISK OF INJURY FROM UNINTENTION-

AL SWITCH ON! Accidental activation can cause injuries. To prevent this, remove battery when: – leaving device unsupervised. – maintaining, checking or cleaning device. – device shows signs of malfunction.

Before using the device

This chapter contains information about the delivery status.

The device is shipped as standard as follows:

18,0 V battery with charger (only item no. 000301.0000)

Connection for PET bottle

Protective covering for (2.5Ah / 4.0 Ah [4.0Ah battery not included in Set])

1 x user manual and product inform a tion Any accessory parts are individually packed.

3.2 Elements of the device

A Two-stage On/Off switch B Ergonomic handle C Battery 18.0 V / 2.5 Ah (Item 000301.0000) D Protective covering for 18.0 V / 2.5 Ah batt. E Union ring to secure the "4 in 1 noz- zle" and/or the extension F 40 cm extension G Charger (Item 000301.0000) H Union ring to secure the "4 in 1 nozzle" I “4 in 1 nozzle" (needle/ flat jet nozzle, turbo mill, sprinkler) J Battery charge indicator K Operating mode button with display (spray, eco, clean) L Coupling for water connection M Connection for PET bottle N Intake filter for suction from open containers O Intake hose (3/8”; 5.0 m) with connect- ing coupling

L M N MULTIJET.qxp_Text_GB 06.01.20 15:50 Seite 2526 5 Unpacking Figures 1 - 2 - Your device is supplied pre- assembled. The loose parts that are included must be installed accordingly, depend- ing on the application. 6 Prior to initial commissioning

YOUR SAFETY”. You should aslo note the following safety instructions: The mains voltage must be in compli- ance with the voltage specification (V~) on the type plate of the charger.

4 Technical data MULTIJET Set – Item number(s): 000300.0000 Set incl. battery with charger – Item number(s): 000301.0000 Battery Type: Lithium-ion Nominal voltage: 18.0 V Rating: 4.0 Ah Charging station AL 1810 CV) Input voltage: 220-240 V~ / 50/60 Hz Output voltage: 14.4-18.0 V / DC / 3.0 A Battery charging time: 154 Min. Per. charging temp. range: 0 – + 45 °C Protection class: II MULTIJET Pressure: 2.5 bar - max. 25.0 bar Water connection: ½“ watrerhose / coupling max. inlet temperature: 30 °C max. inlet pressure: 5 bar max. water flow rate (throughput): 210 l/h max. suction head : 2.0 m, suction duration when using ½“" hose approx. 22 seconds max. suction head : 2.0 m, suction duration when using 3/8" hose approx. 11.0 seconds max. length suction hose: 5.0 m Device weight with lance and "4 in 1 nozzle": 1.85 kg without battery / 2.20 kg with battery Operating time when fully charged - Operating mode "spray" + "plant protection products set (accessory)": approx. 80 Min. Operating time when fully charged - Operating mode “clean + flat jet / needle jet / Turbo mill“: approx 11 Min. Hand-Arm vibration value: < 1.6 m/s

Measured pressure level L

Use only the supplied charger with corresponding original Li-Ion bat- tery (only item no. 000301.0000). Operate charger only in dry rooms. NOTE!

The battery (C) is only partially charged. Before initial use, fully charge battery. Please ensure that the charging proce- dure is performed at room tempera- ture. This is the only way to ensure a long battery life.

A significantly decreased runtime in spite of charging indicates that the bat- tery is dead and must be replaced. Use only original Li-Ion batteries, which you can purchase from manufacturer’s customer service.

Charger and battery can heat up during charging. This is normal and not a sign of a technical defect.

The Lithium-Ion battery can be charged at any time, regardless of charge state. Premature interruption of charging does not cause damage to the battery. A protective circuit on the battery pre- vents depth discharge of battery.

The battery is equipped with tempera- ture monitoring that only permits charg- ing over a temperature range between 0 °C and 45 °C. This ensures a long bat- tery life.

Do not press the On/Off switch again if the device has switched itself off auto- matically. The battery can be damaged. Note the details concerning disposal of the battery.

6.1 Charging procedure

Figures 3 - 4 Remove battery (C) from pack- aging (only item no. 000301.0000)

The charging process starts as soon as the plug has been plugged into the power outlet and the battery (C) has been placed in the charger (G). Due to the intelligent charging method, the charging condi- tion of the battery is automatically detected and the battery is charged with the optimum charging cur- rent, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage. NOTE!

The battery can also be charged while it is in the protective covering. Indicator statuses: The charging process is indicated by the flashing of the battery charge indi- cator.

A solid light on the battery charge indicator signals that the battery is fully charged or that the temperature of the battery is not within the permitted charg- ing temperature range, and can therefore not be charged. The battery is charged as soon as the allowable charging tempera- ture range is reached. When the battery is not inserted, a solid light on the battery charge indicator signals that the mains plug is inserted in the plug socket and that the charger is ready for operation. Following a successful charging proce- dure, first remove the battery from the charger. Then disconnect the charger plug from the power outlet. 7 Commissioning Figures 5 - 17

7.1 Inserting the battery and

attaching the add-on parts

ATTENTION The battery that is supplied is not water- proof! Use the protective covering (D) to prevent damage to the battery. Pull the protective covering (D) over the battery. When doing this, ensure that the protective covering is not dam- aged and fits correctly.

MULTIJET.qxp_Text_GB 06.01.20 15:50 Seite 2728 When inserting the battery, ensure that the contacts at the device and the bat- tery itself are dry. Insert the charged battery into the device as shown into place. When doing this, ensure that the protective covering is not dam- aged and seals off the battery all round. Install the "4 in 1 nozzle" (I) as shown in the illustration. Do up the connection with the union ring (H) finger-tight.

If using the extension (F) , install this part first. Then install the "4 in 1 nozzle" (I) as shown in the illus- tration. Do up the connections with the union ring (E) and the union ring (H) finger-tight.

Make sure that the surface to be cleaned is free from debris such as stones, screws etc., which could be flung up.

7.2 Water supply from a water tap

Connect to the water supply as described in

section 4 "Technical data". Observe the basic

safety instructions in chapter 2.1. Connect the coupling of the supplied intake hose (O) to the device.

Now connect a hose to the water supply and turn the tap on fully.

7.3 Water supply from open

containers Instead connecting to a tap, the device can also be supplied with water from open con- tainers such as rainwater barrels, buckets, ponds, etc. Note the maximum suction head stated in

section 4 "Technical data". The suction time

increases as the suction head increases. Connect the coupling of the supplied intake hose (O) to the device. Install at the other end of the hose the inlet filter (N) to the coupling. ATTENTION Damage to the device due to dry running If the device does not produce any pres- sure within max. 2 minutes, this may cause damage to the device. Switch the device off immediately and follow the instructions given in section 10 "Problems with the device

7.4 Water supply from PET

You can also operate the device from a PET bottle filled with water. This enables you to be completely flexible in the use of the device and inde- pendent of fixed water supplies. CAUTION PET bottle not use for plant protection products!

CAUTION Ensure that you are standing firmly since the water jet can produce a greater or less- er degree of recoil force at the device (depending on the operating mode that was selected). Always hold the device firm- ly with both hands. Switch the device on and set the optimum spray pressure for the application at the operating mode button (K)

At the "4 in 1 nozzle" (I) , set the water spray form that is optimal for your appli- cation.

= Needle jet We recommend the following settings, for example: = plant protection products set (accessory, not included as standard)

Combine the set pressure with the "4 in 1 nozzle". We recommend the following settings, for example: + = watering plants + = cleaning of larger areas that are moderately dirty

+ = cleaning of larger areas that are very dirty + = spot cleaning that are very dirty

ATTENTION The high pressure can cause damage! If the water pressure is too high, it can damage the surfaces. Maintain a distance of at least 30 cm from painted surfaces. Do not clean delicate surface with the turbo mill (e.g. wood, tires, painted surfaces, etc.).

Turn on the device with the 2-stage On/Off switch (A) in the handle and start with the cleaning. Release the On/Off switch (A) if the work is interrupted. The pump and water feed are stopped. If there is a brief interrup- tion, the device will start up again in the last operating mode that had been selected. If the interruption lasts longer than 5 minutes, the device returns to the "spray" operating mode. After another 5 minutes, the display turns off.

The device is equipped with a battery charge indicator (J) that displays the charging status of the battery. The dis- plays only light up when the device is switched on. Battery capacity: Reserve ≤ 30% ≤ 60% 100% Temperature protection / low voltage cutoff:

The battery runtime depends mainly on the load of the device. Cleaning work in "max." results in shorter battery runtimes. Another factor is overly frequent starting and stopping during cleaning, which can also reduce battery operating time. Handle the battery and the device as described in the instructions.

7.6 Working with plant protection

products / cleaning agents (accessory) GLORIA offers various accessories for the MULTIJET for plant protection and more intensive care. Information on these is given in section 11 "Accessories / spare parts". 8 Decommissioning & Storage Figure 19

Take the device out of operation by releasing the On/Off switch (A) in the han- dle. CAUTION

RISK OF INJURY FROM RESIDUAL

PRESSURE IN THE WATER HOSE! If you operate the device by supplying the water from a mains water tap, there is still pressure in the water hose after the device has been switched off. For that reason, only disconnect the hose from the device once you have turned

batt. batt. batt. batt. batt. MULTIJET.qxp_Text_GB 06.01.20 15:50 Seite 2930 off the water tap in question, and then operate the device by means of the On/Off switch (A) until no more water comes out of the nozzle.

8.1.1 Removing the rechargeable

ATTENTION Improper use of the device poses a risk of damage to property! You should therefore observe the following safety instruction:

To prevent battery discharge, remove the battery from the device when not in use for a prolonged time. To do so, proceed as follows:

1. Tilt the device forward to weld

2. Dry surfaces on the battery hold-

er all around with a clean and dry cloth.

3. Remove now the battery and

again dry off the contact areas of the battery and the device.

CAUTION You may be exposed to hazards that could injure you when handling the device. You must therefore store the device away from children.

Drain the complete system and depressurise it.

Store the device hung up, dry and protected from frost.

8.2.1 Correct battery and charger

storage It is essential that you also follow the “Safety instructions for handling charger and battery” in chapter “Important safety instructions”.

ATTENTION Improper use of the device poses a risk of damage to property. The battery should not be stored uncharged. Though self discharge is minimal, an empty battery can be destroyed if stored for an extended period. Thus, observe the following instruc- tions if not in use for an extended peri- od (e.g. during winter):

store battery at a charge status of approx. 40 - 60 %.

store battery in a dry, elevated, closed, frost-protected space at a temperature between 0 °C and + 45 °C. When storage temperature is +15 °C, self-discharge and chemical ageing is at its lowest. Avoid direct sunlight.

if the battery is not used for more than 6 months, use the status indicator to check the charging status in the charg- er. Recharge the battery to approx. 40- 60% capacity if required. 9 Cleaning

ATTENTION Improper use of the device poses a risk of damage to property! You should therefore observe the following safety instruction:

Remove the battery each time before cleaning the device.

Clean the inlet filter (N) and the filter behind the coupling of the water connection if it is dirty.

Do not immerse the device in water or spray or clean it with water. The device must be protected against moisture.

Clean the outside of the device with a damp cloth or soft brush. Do not use abrasives or harsh cleaning agents.

Ensure that the ventilation slots are free of dirt.

Repairs must be carried out by a GLORIA service point.

10.1 Troubleshooting the MULTJET and the Al 1810 CV battery charger

Faults usually occur if the device has not been handled, cared for or maintained properly. The following table contains the most common faults and remedies to eliminate these faults. If you have any other problems, please contact your nearest service centre authorised by the manufacturer, or your nearest authorised specialist dealer.

Fault Cause Remedy Device does not start Battery not inserted properly Battery capacity too low Faulty battery Battery overheating, battery status indicator lights up red

Insert the battery into the holder until it clicks into place Charge the battery Battery defective or at the end of its life. Replace the battery! Allow the battery to cool down No pressure is built up, or the pressure varies Water supply interrupted or filter blocked Nozzle or extension blocked Inlet hose is leaking at the con- nection, air is being drawn in Ensure a correct water supply Clean the filter and the nozzle. Remove any dirt in the extension. Replace the connector if necessary The device is leaking Slight leaks with droplets at the con- nections arise due to the design and are not a defect Check the connections and any screw fittings and tighten them up as required Status display batt.; 4 displays flash Overload cutout / temperature protection Allow the device and the battery to cool down for around 5 minutes and do not use them in that time Status display batt.; 4 displays flash Low voltage cutoff Charge the battery Water in the device Used during rain

Fell into water Housing damaged Hold the device vertically so that the water can run out of the dis-charge openings (see Fig. ) Allow the device to dry out for 24 h Contact the customer service section

Battery charging display continu- ously lit, charging is not possible Battery not inserted properly Battery contacts dirty Faulty battery Insert the batt. correctly into the charger Clean the battery contacts, e.g. by plugging in and unplugging the bat- tery several times, if necessary Replace the battery Battery charging display does not light up Mains plug for the charger has not been plugged in (properly) Mains outlet, power cable or char- ger defective Insert the mains plug (fully) into the mains outlet Check the mains voltage. If necessa- ry, have the charger checked over by an authorized repair shop for GLORIA electrical power tools MULTIJET.qxp_Text_GB 06.01.20 15:50 Seite 3132 11 Accessories / Spare parts Battery: 18.0 V / nominal rated capacity 2.5 Ah Part No. 729101.0000 Battery: 18.0 V / nominal rated capacity 4.0 Ah Part No. 729102.0000 Inlet filter Part No. 729127.0000 Foam set / attachment to apply cleaning foam No. 729120.0000 Brush set / attachment for the care and cleaning of various surfaces Part No. 729122.0000 Plant protection set / attachment to apply plant protection products Part No. 729119.0000 Further accessories can be found at www.gloriagarten.de 12 Environmental protection

12.1 Disposal of the device

This symbol on the product, user man- ual or packaging indicates that this product must not be disposed of in regular household waste at the end of its service life.

Do not dispose of electrical appli- ances through household waste! In accordance with European Directive 2012/19 / EU on old electrical and elec- tronic appliances and its implementa- tion in national law, electrical tools that are no longer suitable for use must be separately collected and sent for envi- ronmentally responsible recy- cling. Recycling alternative for the return request: Alternatively, the owner of an electric or electronic appliance is obligated to cooperate in proper recycling in the event of a property task instead of returning. Old equipment can also be handed over to a collection facility car- rying out disposal as defined on the national recycling and waste manage- ment laws. This does not apply to the accessories and auxiliaries included in old equip- ment, which do not contain electrical compo- nents.

The Lithium-Ion battery must be dis- posed of separately from the rest of the device.

12.2 Environmentally friendly

handling of wastewater and the spraying agents

The cleaning of products where the waste water will contain oil, for exam- ple when washing vehicles, the under- sides of vehicles or engines may only be done on washing areas with an oil sep- arator.

Foaming agents that are hazardous for the environment should be applied as close as possible to the object in ques- tion (specific dosing), any unavoidable residues are to be collected in suitable containers for temporary storage and disposed of as designated special waste. Only clean on work surfaces that are watertight. Comply with local laws regarding water contamination when using liquids that are a hazard to the groundwater (in Germany, the Water Resources Law, or WHG). Comply with local regulations concerning the stor- age of liquids that are a hazard to the groundwater (in Germany, the VLwF). - the German Working Materials Regula- tion - Technical Instruction Air (TA-Luft). NOTE!

Please check with your local govern- ment to find the appropriate disposal point.

As consumer you are required by law to dispose of used batteries and charger as hazardous waste.

Li-Ion MULTIJET.qxp_Text_GB 06.01.20 15:50 Seite 3233 CAUTION RISK OF INJURY FROM DEFECTIVE, LEAKING BATTERY! The applied battery contains substances that can result in injuries when getting in contact with skin or when inhaled. Should your device have a drained bat- tery, you must use rubber gloves to remove it from the device and properly dispose of it in a closed container.

According to the European Directive 2013/56/EU, faulty batteries must be col- lected separately and reused or recycled in an environmentally friendly manner. Disposal possibilities are as follows: – by dealer – at a GRS recycling centre – in special waste containers provided by the communities Obtain additional disposal information from your community or city.

12.4 Battery transport

The contained lithium-ion batteries are subject to the Dan- gerous Goods Legis- lation requirements. The batteries are suitable for road-transport by the user without further re- strictions. When shipping by third parties (e.g.: by air transport or for- warding agency), special requirements on packaging and la- belling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is re- quired. Dispatch battery packs only when the housing is undam- aged. Tape or mask off open contacts and pack up the bat- tery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more de- tailed national reg- ulations.

12.5 Disposal of packaging

The packaging materials have been selected according to environment ally- suitable and disposal-related aspects and are therefore recyclable. Returning the packaging to the material circulation saves raw materials and reduces the level of waste.

Please dispose of unwanted pack aging materials according to applicable local regulations. 13 Warranty & Guarantee GLORIA gives a 24 month guarantee as per of the terms and conditions of the warranty (www.gloriagarten.de). This does not affect your legal rights to claims under warranty with regard to the seller. Technical changes reserved!

ATTENTION Improper use of the device poses a risk of damage to property! You should the- refore observe the following safety ins- truction:

The contained lithium-ion batteries are subject to the Dangerous Goods Legis- lation requirements. The batteries are suitable for road-transport by the user without further re- strictions. When shipping by third parties (e.g.: by air transport or for- warding agency), spe- cial requirements on packaging and la- belling must be observed. For prepara- tion of the item being shipped, consul- ting an expert for hazardous material is required. Dispatch battery packs only when the housing is undam- aged. Tape or mask off open contacts and pack up the bat- tery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more de- tailed national regulations.

EKSPLOSIONSFARE! For at undgå livs- farlige situationer:
