USER MANUAL PM1800D SCHEPPACH

Double paint and mortar stirrerTranslation of original instruction manual

Explanation of the symbols on the product Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures. Read the operating instructions to reduce the risk of inquiry Wear safety goggles! Wear ear-mu󰀨s! Wear a breathing mask! Protection class II The product complies with the applicable European directives. The product complies with the applicable Serbian directives.www.scheppach.com

The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with. In addition to the safety notices contained in this op- erating manual and the particular instructions for your country, the generally recognised technical regula- tions for the operation of identical devices must be complied with. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

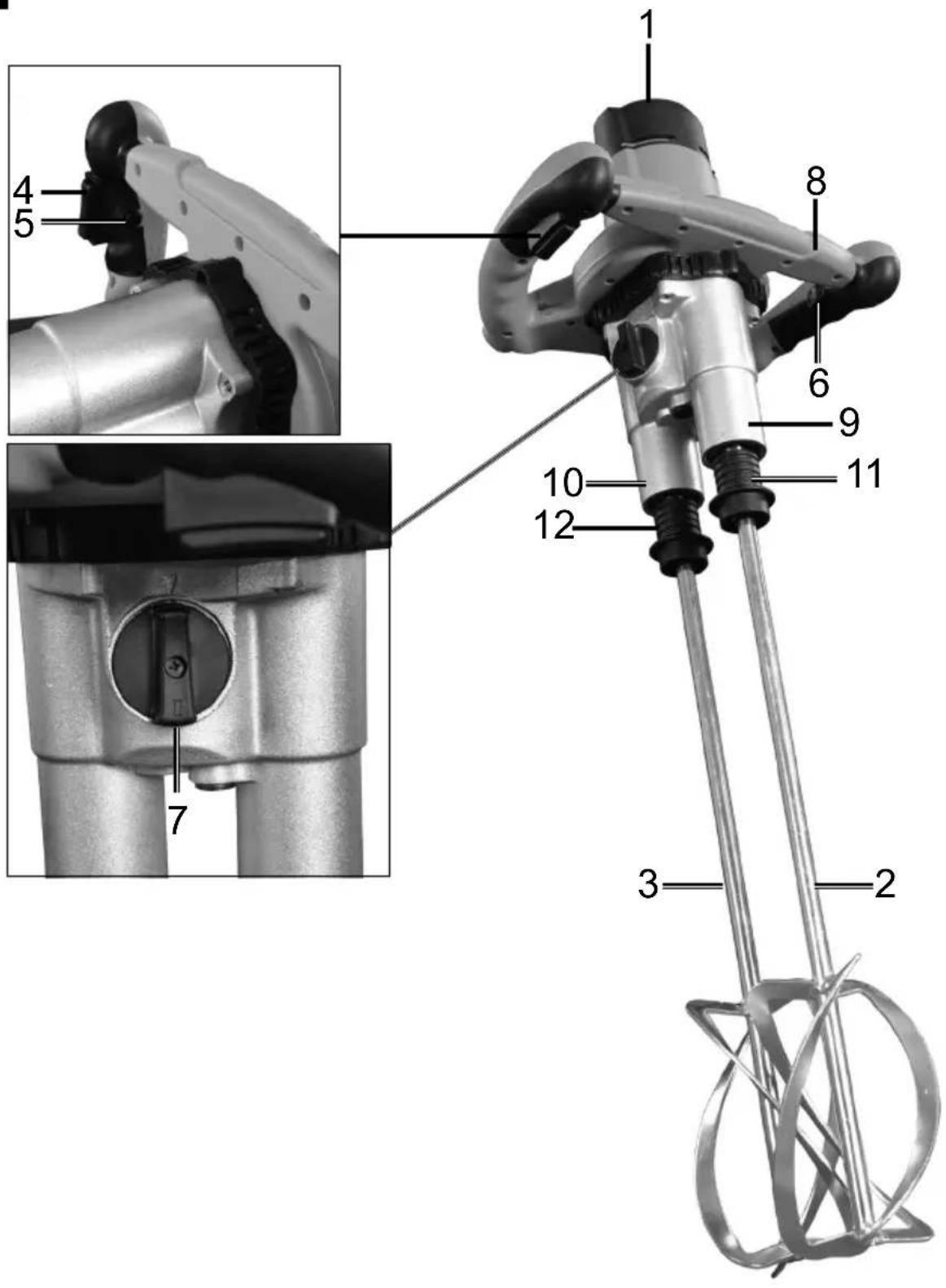

3. Scope of delivery

This machine is designed to mix liquid and powdery materials such as paint, mortar, adhesive, plaster and similar substances evenly and homogeneously. De- pending on the material consistency and mixing quan- tity, the appropriate stirrer with the appropriate mixing e󰀨ect should be used. The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

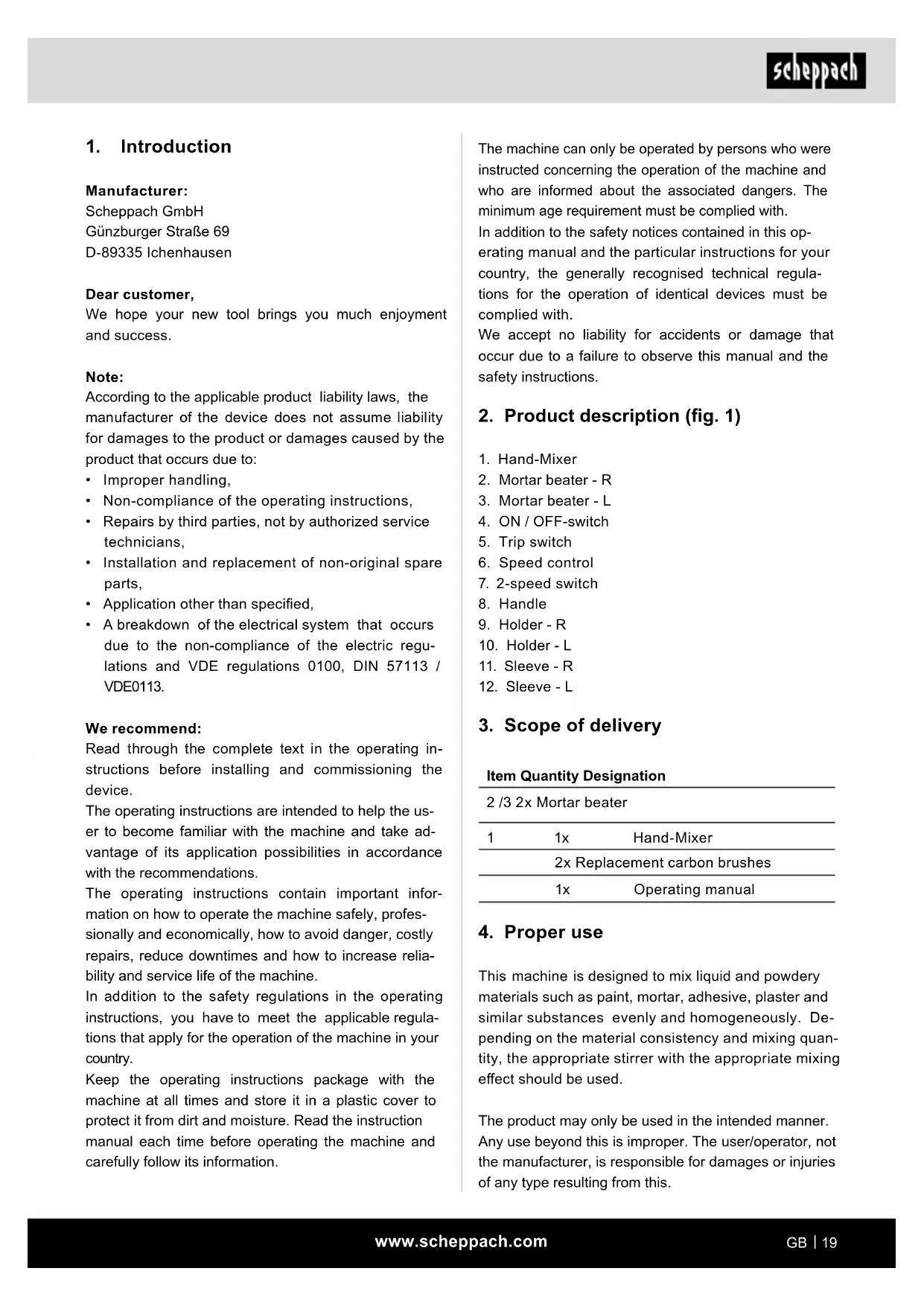

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear customer, We hope your new tool brings you much enjoyment and success. Note: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Non-compliance of the operating instructions,

• Repairs by third parties, not by authorized service technicians,

• Installation and replacement of non-original spare parts,

• Application other than specied,

• A breakdown of the electrical system that occurs due to the non-compliance of the electric regu- lations and VDE regulations 0100, DIN 57113 / VDE0113. We recommend: Read through the complete text in the operating in- structions before installing and commissioning the device. The operating instructions are intended to help the us- er to become familiar with the machine and take ad- vantage of its application possibilities in accordance with the recommendations. The operating instructions contain important infor- mation on how to operate the machine safely, profes- sionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase relia- bility and service life of the machine. In addition to the safety regulations in the operating instructions, you have to meet the applicable regula- tions that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information.www.scheppach.com

2. Electrical safety

a) Power tool plugs must match the outlet. Nev- er modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet con- ditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords in- crease the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or med- ication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. An element of the intended use is also the observance of the safety instructions, as well as the assembly instruc- tions and operating information in the operating manual. Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers. The liability of the manufacturer and resulting damages are excluded in the event of modications of the product. The product may only be operated with original parts and original accessories from the manufacturer. The safety, operating and maintenance specications of the manufacturer, as well as the dimensions specied in the technical data, must be observed. Please note that our products were not designed with the intention of use for commercial or industrial purpo- ses. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

5. General safety information

General power tool safety warnings m WARNING! Read all safety warnings, instructions, illustra- tions and specications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future ref- erence. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operat- ed (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive at- mospheres, such as in the presence of am- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while op- erating a power tool. Distractions can cause you to lose control.www.scheppach.com

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations di󰀨erent from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

a) Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. m ATTENTION! This power tool generates an electromagnetic eld dur- ing operation. This eld can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recom- mend that persons with medical implants consult with their physician and the manufacturer of the medical im- plant prior to operating the machine. Mixer safety instructions a) Always hold the power tool with both hands on the intended handles. Loss of control can cause personal injury. b) Ensure su󰀩cient ventilation when mixing ammable materials to avoid a hazardous at- mosphere. Developing vapour may be inhaled or be ignited by the sparks the power tool produces. c) Do not mix food. Power tools and their accesso- ries are not designed for processing food. d) Keep the cord away from the working area. The cord may be entangled by the stirrer. e) Ensure that the mixing container is placed in a rm and secure position. A container that is not properly secured may move unexpectedly. f) Ensure that no liquid splashes against the housing of the power tool. Liquid that has pene- trated the power tool can cause damage and lead to electric shock. g) Follow the instructions and warnings for the material to be mixed. Material to be mixed may be harmful. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, en- sure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a sec- ond.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjust- ments, changing accessories, or storing pow- er tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may a󰀨ect the power tool’s operation. If dam- aged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.www.scheppach.com

Wear ear-mu󰀨s. The impact of noise can cause damage to hearing. Total vibration values (vector sum of three directions) determined in accordance with IEC 62841. Vibration emission value a

Additional information for electric power tools Warning! The specied vibration value was established in ac- cordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specied value in excep- tional circumstances. The specied vibration value can be used to compare the equipment with other electric power tools. The specied vibration value can be used for initial assessment of a harmful e󰀨ect. Keep the noise emissions and vibrations to a min- imum.

• Only use appliances which are in perfect working order.

• Service and clean the appliance regularly.

• Adapt your working style to suit the appliance.

• Do not overload the appliance.

• Have the appliance serviced whenever necessary.

• Switch the appliance o󰀨 when it is not in use.

• Open the packaging and carefully remove the prod- uct.

• Remove the packaging material, as well as the pack- aging and transport safety devices (if present).

• Check whether the scope of delivery is complete.

• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.

• If possible, keep the packaging until the expiry of the warranty period.

• Familiarise yourself with the product by means of the operating manual before using for the rst time.

• With accessories as well as wearing parts and re- placement parts use only original parts. Spare parts can be obtained from your specialist dealer. h) If the power tool falls into the material to be mixed, unplug the power tool immediately and have the power tool checked by a qualied re- pair person. Reaching into the mixing container with the power tool still plugged in can lead to elec- tric shock.

i) Do not reach into the mixing container with

your hands or insert any other objects into it while mixing. Contact with the stirrer may lead to serious personal injury. j) Start up and run down the power tool in the mixing container only. The stirrer may bend or spin in an uncontrolled manner. Residual risks Even if you use this electric power tool in accord- ance with instructions, certain residual risks can- not be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

• Lung damage if no suitable protective dust mask is used.

• Damage to hearing if no suitable ear protection is used.

• Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

Protection class II Weight 7.2 kg Subject to technical modications! Sound and vibration Sound and vibration values were measured in accord- ance with IEC 62841. Sound pressure level L

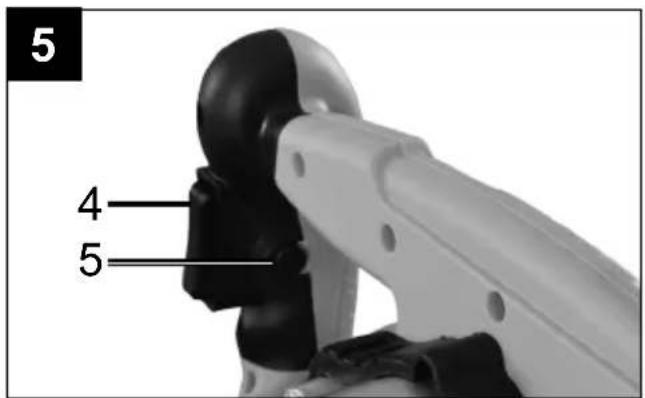

Start the machine at the lowest rotational speed (Level 1). Switching o󰀨

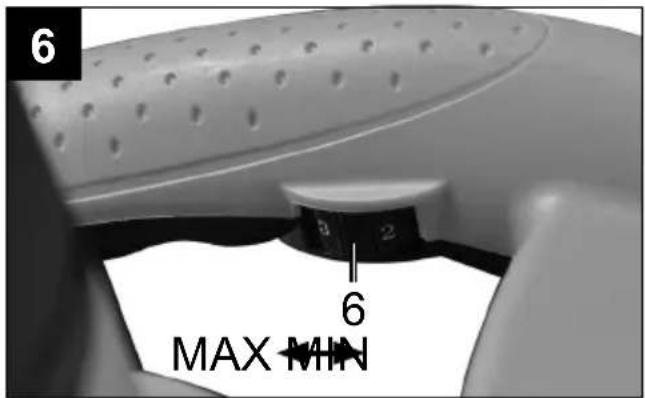

• Release the ON/OFF handle button (4). This machine is not suited for continuous operation. Speed control (Fig. 6) With this type, the motor‘s speed and thus the agitator performance can be adjusted. (Level 1 - 6).

• You can continuously adjust the speed with the speed control (6).

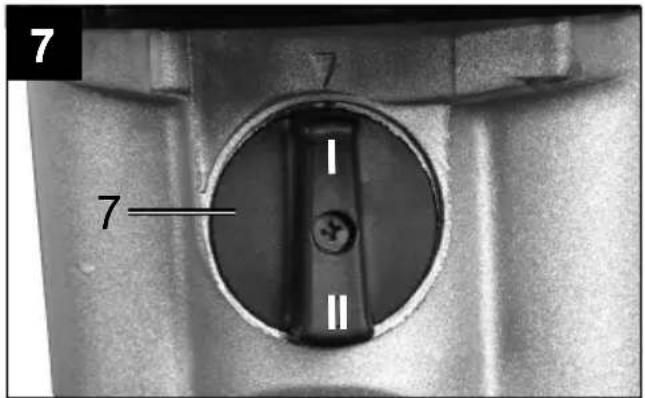

2- speed gear (Fig. 7)

The device is equipped with a 2-speed gear. If the gear selection switch cannot be locked, turn the stir- ring sta󰀨 a little.

• For the speed selection turn the switch (7) by 180°.

Only operate this switch at standstill. Working with the paint and mortar mixing tool Before changing the mixing tool you must pull the pow- er plug. Reduce the working speed when you immerse the mix- ing tool into the material you want to mix and when you take it out again. When the mixing tool is fully im- mersed, raise the speed to maximum in order to en- sure adequate cooling of the motor. Move the mixing tool through the mixing container during the mixing operation. Continue mixing until all the material has been thoroughly processed. When you are nished with your mixing work, clean the mixing tool.

10. Maintenance and care

m Warning! Pull out the mains plug before carrying out any setting, servicing or repair work! General maintenance measures

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure.

• We recommend that you clean the equipment im- mediately after you use it.

• When ordering please provide our article number as well as type and year of manufacture for the product. m WARNING! The product and the packaging material are not children‘s toys! Do not let children play with plas- tic bags, lms or small parts! There is a danger of choking or su󰀨ocating!

8. Assembling (Fig. 2-4)

m Attention! Always make sure the product is fully assembled before commissioning!

8.1 Chucking the beaters

Risk of injury! Wear protective gloves.

• The beater holders (9/10) and the beaters them- selves are identied by the letters R and L.

• Push the sleeve (11/12) down and connect the beaters (2/3) to the appropriately identied hold- ers (9/10). Make sure that the pin (a) is in the groove (b) on each beater.

• Release the sleeve. The beater is locked. m Check the safe seating of the beaters by pulling on them.

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identi- cal to the mains data. Always pull the power plug before making adjustments to the equipment. Switching on/o󰀨 Do not use any device where the switch can not be switched on and o󰀨. Damaged switches must be repaired or replaced immediately by the cus- tomer service. Switching on (Fig.5)

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

12. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer‘s mains connection as well as the extension cable used must also comply with these regulations.

• The product meets the requirements of EN 61000- 3-11 and is subject to special connection conditions. This means that use of the product at any freely se- lectable connection point is not allowed.

• Given unfavorable conditions in the power supply the product can cause the voltage to uctuate tem- porarily.

• The product is intended solely for use at connec- tion points that

• a) do not exceed a maximum permitted supply im- pedance “Z” (Zmax = 0,355 Ω) or b) have a continuous current-carrying capacity of the mains of at least 100 A per phase.

• As the user, you are required to ensure, in consulta- tion with your electric power company if necessary, that the connection point at which you wish to oper- ate the product meets one of the two requirements, a) or b), named above. Damaged electrical connection cable The insulation on electrical connection cables is of- ten damaged. This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.

• Kinks where the connection cable has been improp- erly fastened or routed.

• Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

• Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no water can get into the interior of the equipment.

• In order to extend the service life of the tool, oil the rotary parts once monthly. Do not oil the motor. Brush inspection In case of excessive sparking, have the carbon brush- es checked only by a qualied electrician. Important. The carbon brushes should not be replaced by anyone but a qualied electrician.

11. Repair & ordering spare parts

After any repair or maintenance work, make sure that all safety-related parts are in place and in perfect con- dition. All parts which may cause injury must be kept where they are inaccessible to children or others. Attention: According to the German Product Liability Act, no liability is accepted for damage caused by im- proper repairs or by not using original spare parts. Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts. Connections and repairs Connections and repair work on the electrical equip- ment may only be carried out by electricians.

With this product, it is necessary to note that the fol- lowing parts are subject to natural or usage-related wear, or that the following parts are required as con- sumables. Wearing parts*: Carbon brushes, Mixing rod

• may not be included in the scope of delivery!www.scheppach.com

Notes on the electrical and electronic equipment act [ElektroG] Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of sepa- rately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their per- sonal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places: - Public disposal or collection points (e.g. municipal works yards) - Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or o󰀨er to do so voluntarily. - Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity. - Further supplementary take-back conditions of the manufacturers and distributors can be ob- tained from the respective customer service.

• If the manufacturer delivers a new electrical appli- ance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer’s customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Un- ion, di󰀨erent regulations may apply to the disposal of waste electrical and electronic equipment. Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection. Electrical connection cables must comply with the ap- plicable VDE and DIN provisions. Only use connection cables with the marking „H05VV-F“. The printing of the type designation on the connection cable is mandatory. Connection type X If the mains connection cable of this device is dam- aged, it must be replaced by a special connection ca- ble which can be obtained from the manufacturer or its service department. AC motor

• The mains voltage must be 220 - 240 V~

• Extension cables up to 25 m long must have a cross-section of 1.5 mm

Connections and repairs of electrical equipment may only be carried out by an electrician. Please provide the following information in the event of any enquiries:

• Type of current for the motor

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30˚C. Store the electrical tool in its original packaging. Cover the electrical tool in order to protect it from dust and moisture. Store the operating manual with the electrical tool.

14. Disposal and recycling

Notes for packaging The packaging materials are recy- clable. Please dispose of packag- ing in an environmentally friendly manner.www.scheppach.com

Problem Possible cause Remedy Motor does not start. No power supply (power failure) Check fuses Mains cable defective. Exchange defect cable, respectively check extension cable, (by electrician) Never use defect lead Motor or switch defect To correct the problem, refer to the manufacturer or other approved ser- vice centre. Unusual vibrations Beater defective. Replace the beater. Chuck defective. To correct the problem, refer to the manufacturer or other approved ser- vice centre. Non-intended material to be mixed. Incorrect processing. Follow the pro- cessing instructions from the supplier. Device starts but blocks under slight load and cuts o󰀨 automatically. Extension cable too long, or crosssec- tion too small. Extension cable at least 1,5 mm

maximum 25 m long. Socket too far away from main connec- tion, and cross-section of connection lead too small. Cross- section of at least 2,5 mm

= xx dB; guaranteed L

16. Declaration of conformity

hereby declares the following conformity under the EU Direc- tive and standards for the following article

tive and standards for the following article

Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical
