Please read carefully and keep in a safe place.

—Under copyright. Reproduction either in whole or in part only with our consent.

-Subject to change in the interest of technical progress.

2. General safety precautions

Failure to observe these operating instructions presents hazards!

These instructions contain important information on the safe use of this product. Particular attention is drawn to potential hazards. Failure to observe this information may lead to death or serious injuries.

• Read instructions carefully.
• Follow safety advice.
• Keep instructions within easy reach.

- Working with electrical current may produce hazardous situations. Touching live parts can result in electrical shock, burns or death.

-Work on mains voltage must only be performed by qualified, skilled personnel.

-National wiring regulations and electrical operating conditions must be observed (e.g. DE: VDE 0100, AT: ÖVE-ÖNORM E8001-1, CH: SEV 1000).

-Only use genuine replacement parts.

- Repairs must be made by specialist workshops.

3. IS 180 digi HD

Proper use

-Sensor suitable for wall mounting indoors and outdoors.
-Sensor can be used on its own or interconnected using Connect Bluetooth Mesh.

Features

-Operation via Steinel Connect App.

Operating principle

-The integrated infrared sensor detects the heat radiated from moving objects (e.g. people, animals).
- The heat detected in this way is converted electronically into a signal that automatically switches ON a connected load (e.g. a light).
-The most reliable way of detecting motion is to install the unit with the sensor aimed across the direction in which a person would walk.

-Reach is slightly restricted when the unit is approached head on.
-Obstacles (e.g. trees, walls etc.) interrupt the line of sensor vision.
- Heat radiation is not detected through obstacles (e.g. walls or panes of glass), the sensor is not triggered.
–Sudden fluctuations in the temperature from changes in weather are not distinguished sources of heat.

Package contents (Fig. 3.1)

Product dimensions (Fig. 3.2)

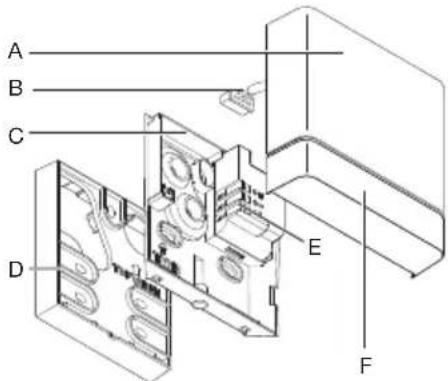

Product components (Fig. 3.3)

A Sensor unit
B Sensor connection plug
C Wall mount
D Surface-mounted wall base
E Connecting terminal
F LED

Technical specifications

-Dimensions (H × W × D): 116 × 116 × 42 mm
-Power supply: 220-240 V, 50/60 Hz
-Stand-by power consumption: < 0.6 W
-Time setting: 5 s - 60 min

– Twilight setting: 2-2,000 lux, daytime mode

-Reach: 9 m tangentially, 6 m radially, mounted at a height of 2.0 m
-Mounting height: 1.8-2.5 m

• Sensor system: passive infrared
• Angle of coverage: 180°
• Temperature range: -20^ to +40^
• Bluetooth frequency: 2.4 to 2.48 GHz
• Bluetooth transmission power 5 dBm/3 mW
• IP rating IP 54

Switching capacity:

• Incandescent / halogen lamp load: 2,000 W *
• Low-voltage halogen lamps: 2,000 VA
• Fluorescent lamps, uncorrected: 1,000 VA
• Fluorescent lamps, series-corrected: 400 VA
• Fluorescent lamps, parallel-corrected: 400 VA
• Fluorescent lamps, electronic ballast: 1,500 W
• LED lamps < 2 W: 100 W
• 2 W < LED lamps < 8 W: 300 W
• LED lamps > 8 W: 600 W
• Capacitive load: 176 μF

-LED in compliance with

IEC 60669-2-1:2002/AMD2: 2015: 400 W *

* VDE tested

4. Electrical installation

Hazard from electrical power.

Touching live parts can result in electrical shock, burns or death.

• Switch OFF power and interrupt power supply.
• Using a voltage tester, check to make sure the the power supply is disconnected.
• Make sure power supply remains interrupted.

Risk of damage to property!

Mixing up connection leads may produce a short circuit.

• Identify connection leads.
  • Re-connect connection leads.

Connecting the mains power supply lead

The supply lead is a 4-core cable:

L = phase conductor (usually black, brown or grey)

= Switched phase conductor (usually black, brown or grey)

N = neutral conductor (usually blue)

PE = protective-earth conductor (green/yellow)

Note:

The sealing plugs provided are intended for a mains supply lead with an outer diameter of 5-10 mm.

Note:

The protective-earth conductor need not be connected for this product.

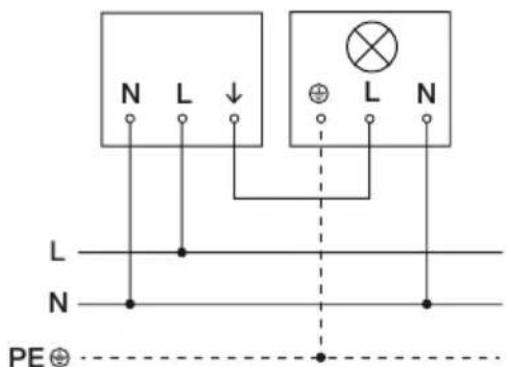

Wiring diagram (Fig. 4.1)

5. Installation

Preparing for installation

• Check all components for damage. Do not use the product if it is damaged.
• Select an appropriate site to install the product.

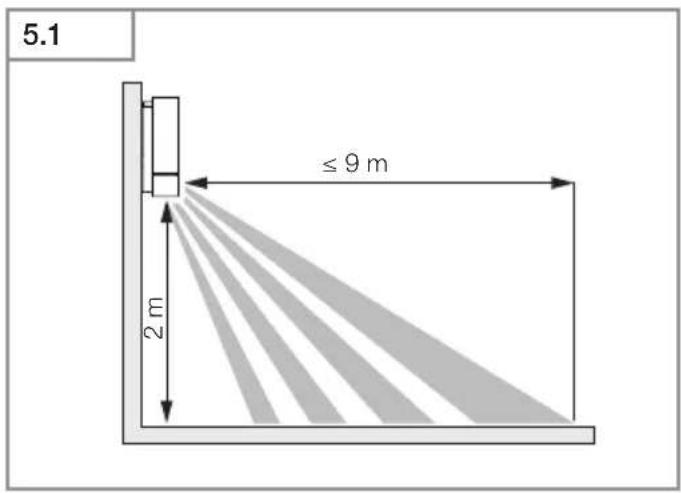

  -Take reach into consideration. (Fig. 5.1)

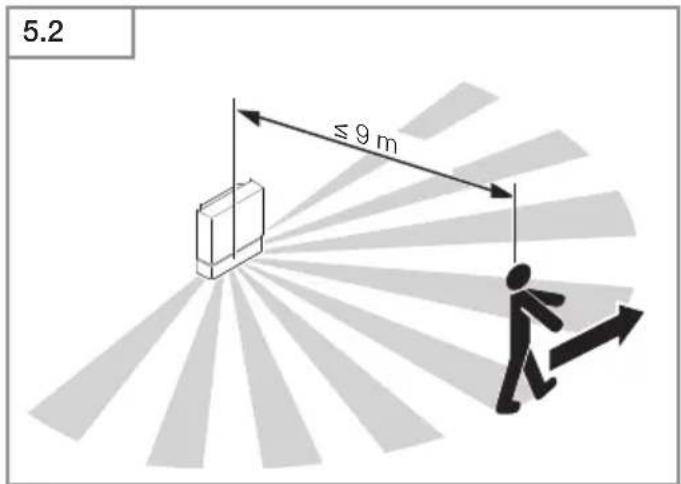

  -Take reach and motion detection into consideration. (Fig. 5.2/5.3)
  -Vibration-free.
  -No obstacles in detection zone.
  -Not in explosive atmospheres.
  -Not on normally flammable surfaces.

Mounting procedure

• Check to make sure the power supply is switched OFF. (Fig. 4.1)

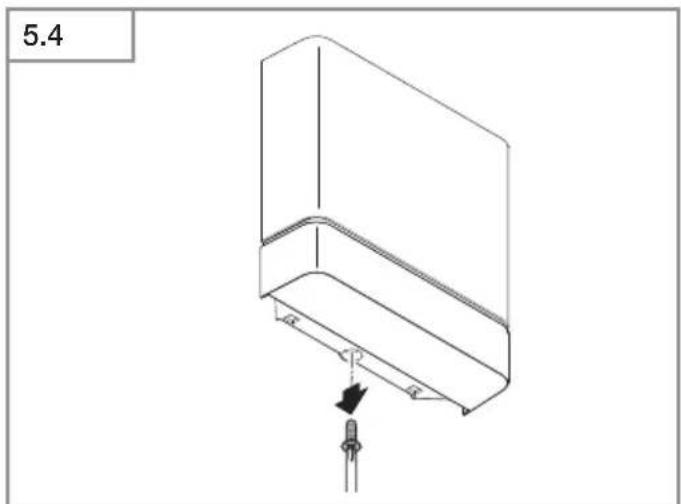

• Unscrew retaining screw. (Fig. 5.4)

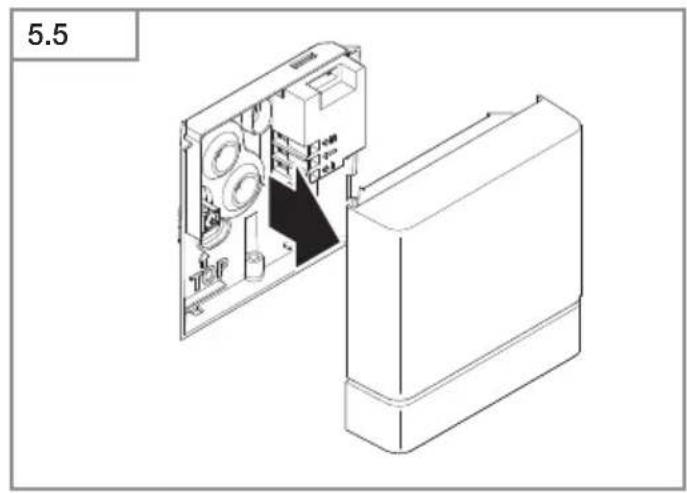

• Detach sensor switch from wall mount. (Fig. 5.5)

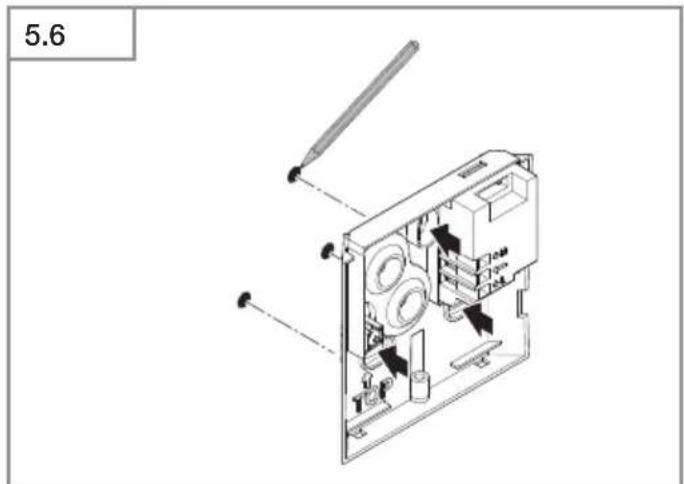

  • Mark drill holes. (Fig. 5.6)

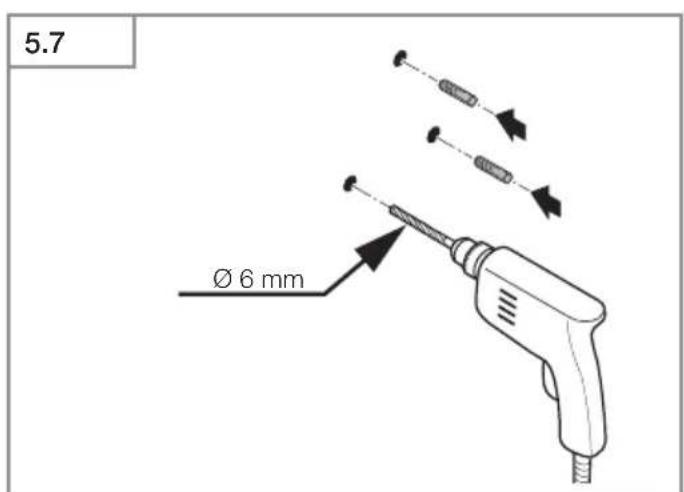

• Drill holes (∅ 6 mm) and fit wall plugs. (Fig. 5.7)
• Firmly screw wall mount into place.

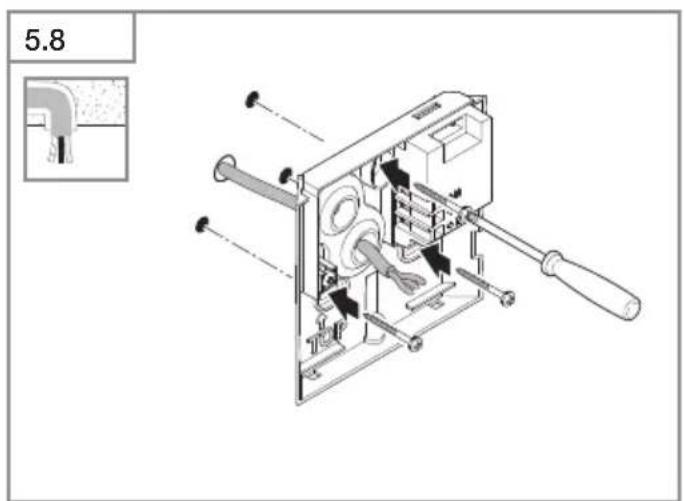

  -Concealed version (Fig. 5.8)
  -Surface-mounted version with surface-mounted wall base (Fig. 5.9)

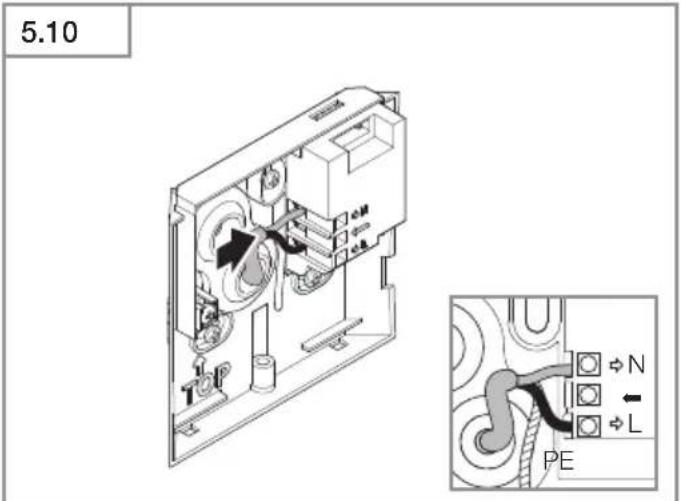

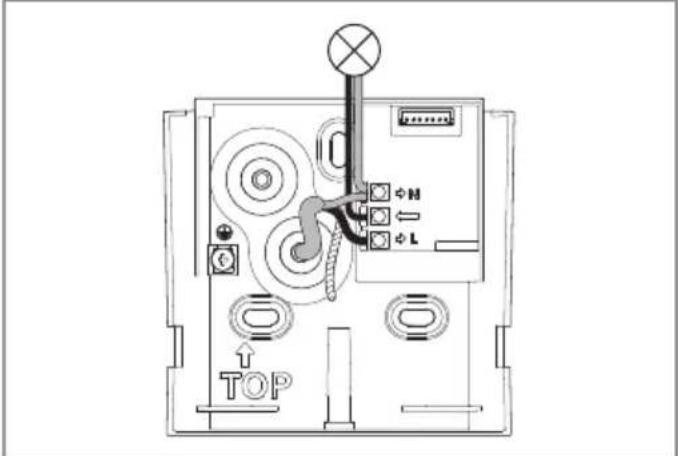

• Connect mains power supply lead according to terminal labelling. An additional external load can be connected to N and =. (Fig. 5.10)

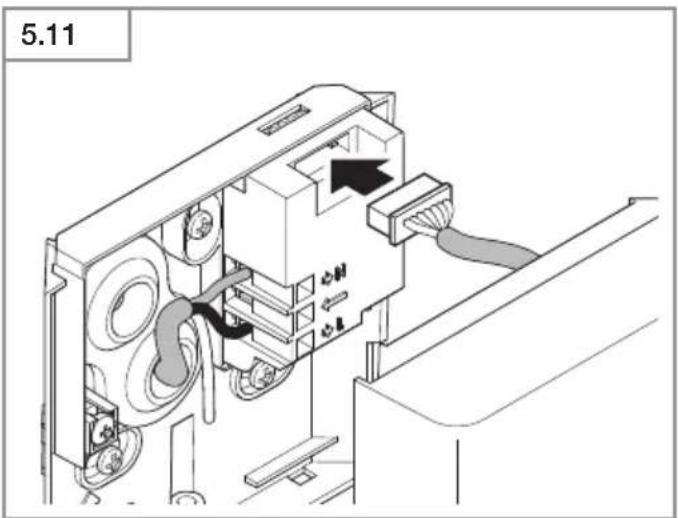

• Plug in sensor connection plug. (Fig. 5.11)

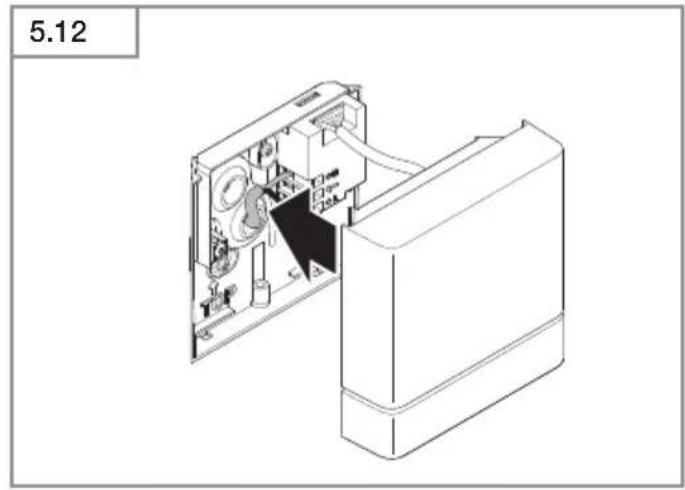

  • Fit sensor switch on wall mount. (Fig. 5.12)

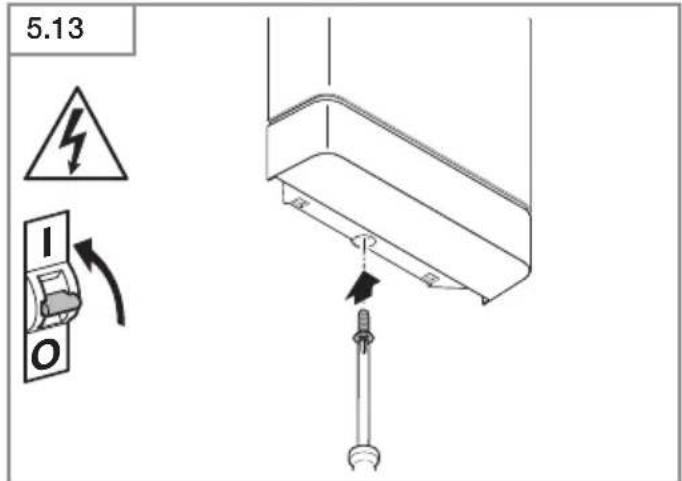

• Tighten retaining screw. (Fig. 5.13)
• Switch ON power supply. (Fig. 5.13)
• Make settings → "6. Function"

6. Function

Factory settings

Time setting: 5 seconds

Twilight setting: (daytime mode)

Reach: 100%

Steinel Connect app

To configure the sensor via smartphone or tablet, you must download the STEINEL Connect app from your app store. You will need a Bluetooth-capable smartphone or tablet.

Android iOS

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Following functions can be set via the Steinel Connect app:

-Time setting 5 s - 60 min
–Twilight setting 2-2,000 lux, daytime mode, lux teach, time teach
-Reach adjustment
-Bluetooth interconnection

LED function

-Initialisation: LED flashes green.
-Bluetooth identification: LED slowly flashes blue.
-Normal mode: LED is OFF.

Time setting

The time you want the sensor switch controlled light to stay ON for can be set to any period from approx. 5 seconds to a maximum of 60 minutes. Any movement detected before this time elapses will restart the timer.

Note:

After the load switches OFF, it takes approx. 1 second before movement can be detected again. The load will only switch light ON again in response to movement once this period has elapsed.

Twilight setting

The chosen sensor response threshold is infinitely adjustable from approx. 2 to 2,000 lux.

Setting detection zone

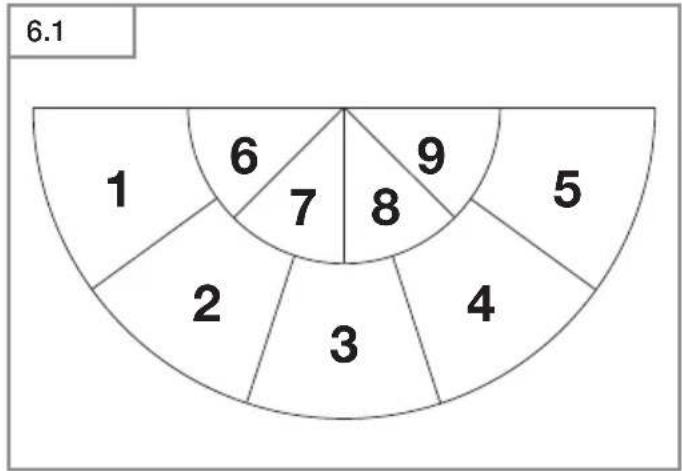

The area covered by the sensor can be divided into nine zones (Fig. 6.1):

-Four zones for close-up detection (6-9).
-Five zones for long-distance detection (1-5).

Each zone can be activated or deactivated separately.

The boundary between close-up and long-distance detection is at a distance of approx. 4.5 m, when mounted at a height of 2.0 m.

The zones for close-up detection (6-9) can only be deactivated if the neighbouring zone for long-distance detection (1-5) is deactivated at the same time.

The sensitivity of the 5 pyros can also be adjusted individually. The pyros are assigned in line with the various zones. It is only recommended to adjust sensitivity if the chosen detection zone cannot be suitably covered by activating/deactivating individual zones.

Note:

If one or more of the outer zones (1 to 5) are deactivated and several persons are present in these zones at the same time, the sensor may still switch ON.

Note:

When setting the time, it is recommended to select the shortest period.

Note:

The twilight setting control must be set to daylight mode when adjusting the detection zone and performing the functional test in daylight.

Bluetooth interconnection (Connect Bluetooth Mesh)

The sensor is configured via the Steinel Connect app. Appropriate network keys are saved on a smartphone or tablet the first time a connection is made between the sensor and Steinel Connect app. The key rules out any unauthorised access to the sensor.

The network key must be shared for access via another smartphone or tablet.

7. Cleaning and Maintenance

Hazard from electrical power.

Contact between water and live parts can result in electrical shock, burns or death.

- Only clean tool in a dry state.

Risk of damage to property!

Using the wrong detergent can damage the light.

- Clean sensor switch with a moist cloth without detergent.

8. Troubleshooting

Unit without power.

-Fuse not switched ON or faulty.

• Switch ON fuse.
• Change faulty fuse.

-Break in wiring.

• Switch ON mains switch.
• Check wiring with voltage tester.

-Short circuit in mains power supply lead.

- Check connections.

Unit does not switch ON.

–Wrong twilight setting selected.

• Re-set brightness response threshold

-Mains switch OFF.

- Switch ON mains switch.

-Fuse not switched ON or faulty.

• Switch ON fuse.
• Change faulty fuse.

–Detection zone too small or incorrect.

- Check and adjust detection zone.

Unit does not switch OFF.

-Continued movement within the detection zone.

• Check detection zone.
• If necessary, limit or change detection zone.

Unit switches ON when it should not

–Movement within the detection zone, e.g. from animals, trees or cars.

• Check detection zone.
• If necessary, limit or change detection zone.

-Unit is moving as a result of gusts of wind or precipitation.

- Mount floodlight on a firm surface.

No connection being set up to sensor switch from smartphone or tablet.

–Smartphone too close to sensor switch.

• Distance from sensor at least 1.5 m.
–The app is not compatible with the smartphone or tablet.
- Use different smartphone or tablet.
-App version not up to date.
- Update Steinel Connect app in the app store.

No connection with the app.

- No network key on the smartphone or tablet that is being used.

- Share network key via app.

9. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

10. Declaration of Conformity

STEINEL Vertrieb GmbH hereby declares that the IS 180 digi HD sensor conforms to Directive 2014/53/EU. The full wording of the EU Declaration of Conformity is available for downloading from the following Internet address: www.steinel.de

11. Manufacturer's warranty

As purchaser, you are entitled to your statutory rights against the vendor. If these rights exist in your country, they are neither curtailed nor restricted by our Warranty Declaration. We guarantee that your STEINEL Professional sensor product will remain in perfect condition and proper working order for a period of 5 years. We guarantee that this product is free from material-, manufacturing- and design flaws. In addition, we guarantee that all electronic components and cables function in the proper manner and that all materials used and their surfaces are without defects.

Making Claims

If you wish to make a claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or contact us at STEINEL (UK) Limited, 25 Manasty Road, Axis Park, Orton Southgate, Peterborough, PE2 6UP, for a returns number. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires. STEINEL shall assume no liability for the costs or risks involved in returning a product.

For information on making claims under the terms of the warranty, please go to www.steinel-professional.de/garantie

If you have a warranty claim or would like to ask any question regarding your product, you are welcome to call us at any time on our Service Hotline [phone].

5 YEAR MANUFACTURER'S WARRANTY

FR

- Dimensions (H × I × P) : 116 × 116 × 42 mm

-Tubes fluorescents ballasts

-2 W < Lampes LED < 8 W : 300 W

-Lampes LED > 8 W : 600 W

-Charge capacitive : 176 μF

-LED conforme à

IEC 60669-2-1:2002/AMD2: 2015: 400 W *

* homologuées VDE

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

-2 W < lampade LED < 8 W: 300 W

-Lampade LED > 8 W: 600 W

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Collegamento in rete Bluetooth (Connect Bluetooth Mesh)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

-2 W < lâmpadas LED < 8 W: 300 W

-Lâmpadas LED > 8 W: 600 W

-Carga capacitiva: 176 μF

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Bluetooth-tilkobling (Connect Bluetooth Mesh)

Sensoren konfigureres via Steinel Connect-appen. Ved første gangs forbindelse mellom sensoren og Steinel Connect-appen blir det lagret en tilhørende nettverksnøkkel på smarttelefonen eller nettbrettet. Med denne nøkkelen er uvedkommende tilgang til sensoren utelukket. Nettverksnøkkelen må deles for tilgang via en ytterligere smarttelefon eller et videre nettbrett.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

-LED, IEC 60669-2-1:2002/AMD2:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcije, nastavljive v aplikaciji Steinel Connect:

-LED prema IEC 60669-2-1:2002/AMD2: 2015: 400 W *

* Ispitao VDE (Savez njemačkih elektrotehničara)

4. Električna instalacija

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcije koje se mogu podesiti pomoću aplikacije Steinel Connect:

-Podešavanje vremena: 5 s - 60 min
-Podešavanje svjetlosnog praga 2-2.000 luksa, dnevni režim rada, učenje luksa, učenje vremena
-Podešavanje dometa
-Bluetooth umreženje

LED funkcija

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

-LED lampas < 2 W: 100 W

-2 W < LED lampas < 8 W: 300 W

-LED lampas < 8 W: 600 W

-Kapacitativa slodze: 176 μF

-LED saskaṇā ar IEC 60669-2-1:2002/AMD2: 2015: 400 W *

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Rm. 25A Huadu Mansion, No. 828-838 Zhangyang Road, 200122 Shanghai, PR China.

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact

QR code image containing encoded data, no visible human-readable text
