MS15042 - Lawn mower SCHEPPACH - Free user manual and instructions

Product type	Gas lawn mower
Brand	Scheppach
Model	MS15042
Engine	4-stroke, air-cooled, 150 cc, 2.6 kW / 3.5 HP
Engine speed	2800 rpm
Fuel	Unleaded petrol (max 10% bioethanol)
Fuel tank capacity	1.0 L
Engine oil	SAE 10W-30 or SAE 10W-40, 0.4 L
Cutting width	42 cm
Cutting height	25 - 75 mm, 7 levels
Grass bag capacity	45 L
Weight	23.2 kg (assembled, empty tank)
Sound pressure level	81.6 dB
Guaranteed sound power level	96 dB
Vibrations (hand-arm)	5.7 m/s²
Drive type	Rear-wheel drive
Functions	Mowing, mulching, bagging, height adjustment
Routine maintenance	Cleaning after use, oil change, blade replacement, air filter, spark plug
Safety	Engine brake with blade stop in 7 s, guards
Spare parts (example)	Blade ref. 7911200636, Engine oil ref. 7850000025

Frequently Asked Questions - MS15042 SCHEPPACH

How to start the MS15042 lawn mower?

Check oil and fuel levels. Make sure the spark plug connector is connected. In cold weather, press the fuel primer bulb 3 times. Hold the engine brake lever against the handlebar and pull the starter cord sharply.

Which engine oil to use and how to check the level?

Use SAE 10W-30 or SAE 10W-40 oil. Unscrew the dipstick, wipe it, reinsert without screwing, remove and read the level between min and max marks. Capacity is 0.4 L.

How to adjust the cutting height?

Stop the engine and disconnect the spark plug. Push the adjustment lever outward, move it to the desired position among the 7 levels (25 to 75 mm), then release to engage.

How to perform mulching?

Raise the ejection flap, remove the grass bag, then install the supplied mulching plug. Set an appropriate cutting height (cut max 2 cm on grass of 4-6 cm). The shredded grass will serve as fertilizer.

When and how to change the blade?

Drain the fuel tank. Wear gloves. Hold the blade and unscrew the bolt (counterclockwise) with a 17 mm wrench. Install the new blade, tighten to 45 Nm. Also replace the blade bolt.

What to do in case of strong vibrations or abnormal noise?

Stop the engine immediately. Check that all screws are tight, that the blade is not damaged or unbalanced. Replace the blade if necessary.

How to clean the lawn mower?

Use a low-pressure garden hose (no pressure washer). For deep cleaning, tilt the mower after draining the tank. Clean the underside with a spatula and brush. The water connection allows cleaning with the engine running.

How to prepare the lawn mower for winter?

Drain the fuel tank and oil. Disconnect the spark plug. Pour 0.2 L of oil into the cylinder and pull the starter slowly. Clean the cooling fins. Fold the handlebar and store in a dry, frost-free place.

What are the important safety instructions?

Wear sturdy shoes and long trousers. Keep children and pets away. Do not mow on slopes >15°. Stop the engine before any cleaning. Never refuel when the engine is hot. Use only outdoors.

Where to find spare parts?

Original parts are available from Scheppach after-sales service. To order, specify the model MS15042 and the part number. Examples: blade ref. 7911200636, engine oil ref. 7850000025.

USER MANUAL MS15042 SCHEPPACH

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

https://www.scheppach.com/de/service scheppach

Made in P.R.C.

MS150-42

GB Petrol lawnmower | Translation of the original operating instructions .... 24

Labeled diagram of a lawn mower with numbered parts for identification

16 15 14 13 10 29 8

2 1 2 3 3a 2a 2b 14a 15

3 3 2a 2b 2 3b 4 1 2a 2b 2

5 16 16a 16 16a 6 3a

7 13

8 4a 4 6 18

9 1a 1b 16

10 12 11

11 15 14

14 14a

13 10

14 17a 17b 17d 17 17c

15 OHV 5 5a

16 8 OHV

17 0.75 mm (0.030") 8a

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

MS150-42 (59112509958)

1 x 0,6 | Motoröl

1. 1 x Ersatzmesser

14 Transport (Abb. 1)

WARNUNG

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Garantiebedingungen

Revisionsdatum 26.11.2021

https://www.scheppach.com/de/service scheppach

1 Introduction 25
2 Product description (Fig. 1-17).... 25
3 Scope of delivery (Fig. 1-2).... 25
4 Proper use.... 25
5 Improper use....26
6 Safety instructions.... 26
7 Technical data.... 28
8 Unpacking 29
9 Assembly.... 29
10 Before commissioning.... 30
11 Operation 31
12 Working instructions.... 33
13 Cleaning and maintenance 33
14 Transport (Fig. 1) 36
15 Storage.... 36
16 Repair and ordering spare parts 36
17 Disposal and recycling 37
18 Troubleshooting 37
19 EU Declaration of Conformity.... 38
20 Exploded view.... 392

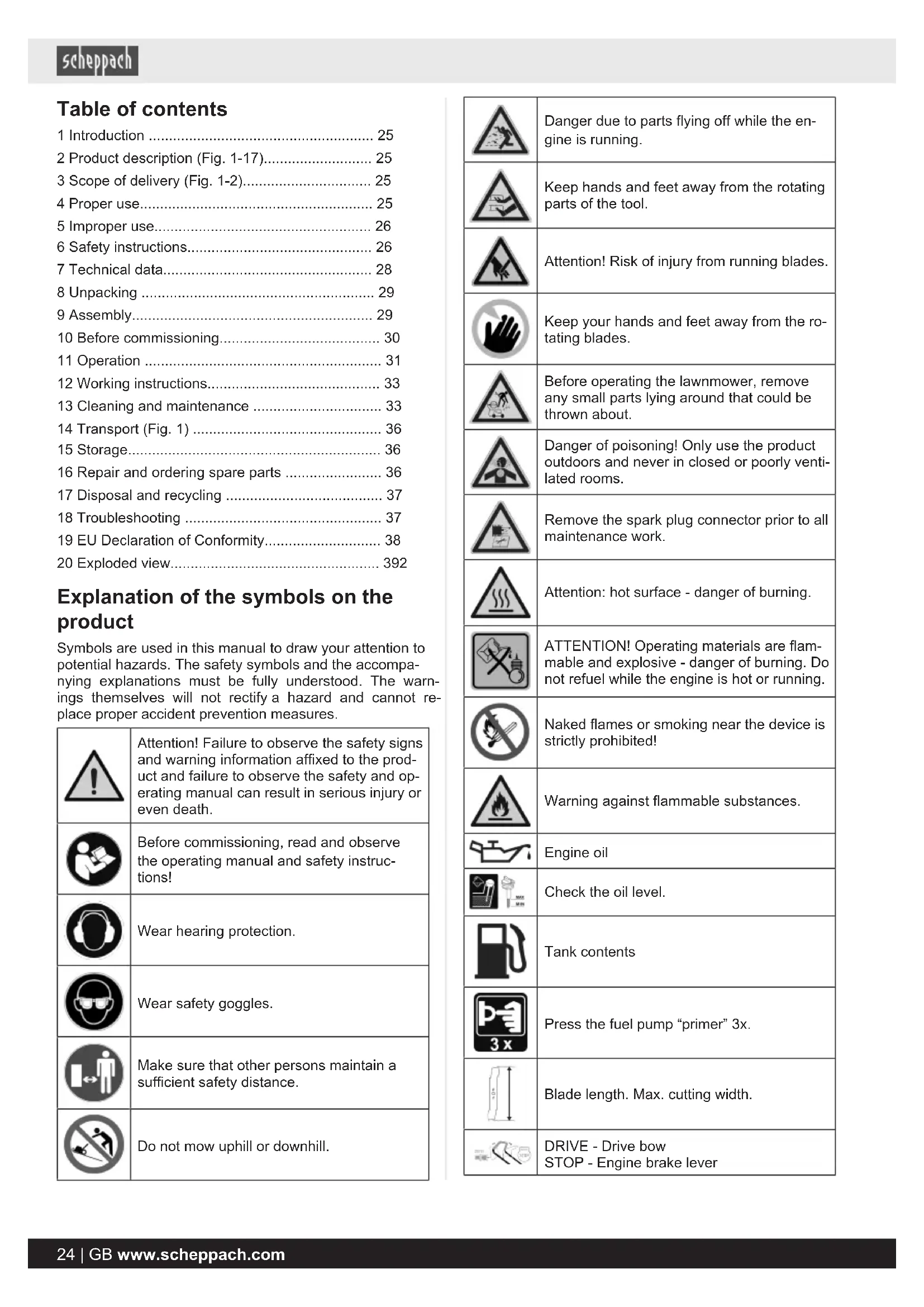

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death.
	Before commissioning, read and observe the operating manual and safety instructions!
	Wear hearing protection.
	Wear safety goggles.
	Make sure that other persons maintain a sufficient safety distance.
	Do not mow uphill or downhill.

	Danger due to parts flying off while the engine is running.
	Keep hands and feet away from the rotating parts of the tool.
	Attention! Risk of injury from running blades.
	Keep your hands and feet away from the rotating blades.
	Before operating the lawnmower, remove any small parts lying around that could be thrown about.
	Danger of poisoning! Only use the product outdoors and never in closed or poorly ventilated rooms.
	Remove the spark plug connector prior to all maintenance work.
	Attention: hot surface - danger of burning.
	ATTENTION! Operating materials are flammable and explosive - danger of burning. Do not refuel while the engine is hot or running.
	Naked flames or smoking near the device is strictly prohibited!
	Warning against flammable substances.
	Engine oil
	Check the oil level.
	Tank contents
	Press the fuel pump “primer” 3x.
	Blade length. Max. cutting width.
	DRIVE - Drive bowSTOP - Engine brake lever
	Guaranteed sound power level of the product.
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

1 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

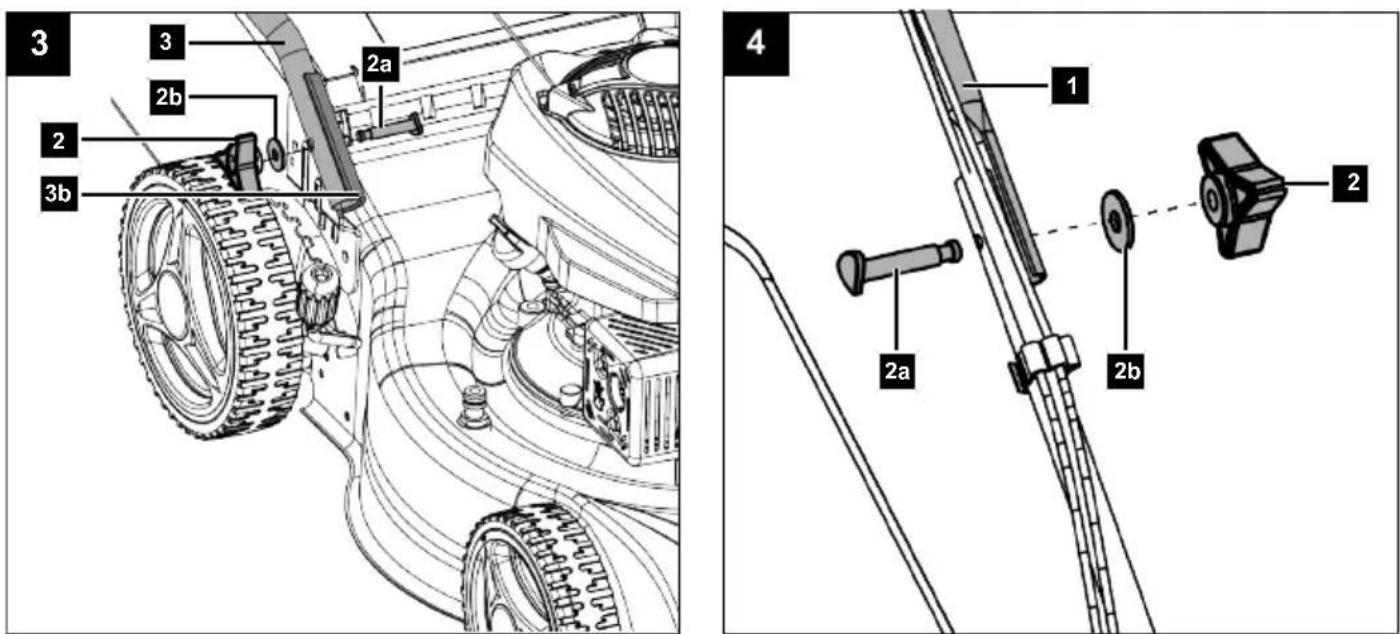

2 Product description (Fig. 1-17)

1. Upper push bar
   1a. Drive bow
   1b. Engine brake lever
2. Star grip nut
   2a. Screw (M8)
   2b. Washer
3. Lower push bar
   3a. Cable clip
   3b. Guide plate
4. Fuel tank
   4a. Fuel filler cap

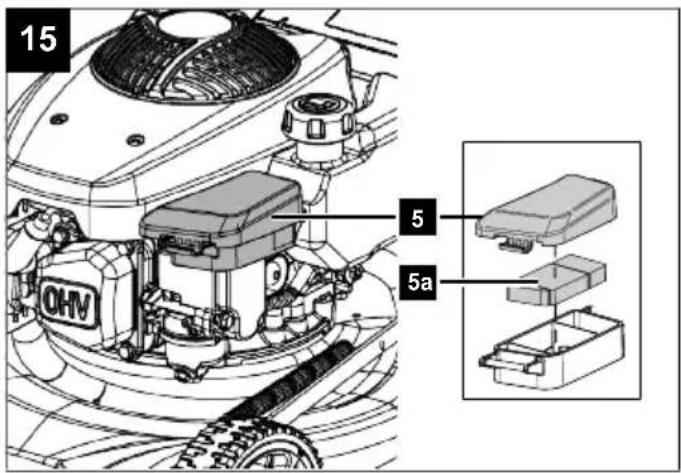

5. Air filter cover

5a. Air filter
6. Primer
7. Wheel

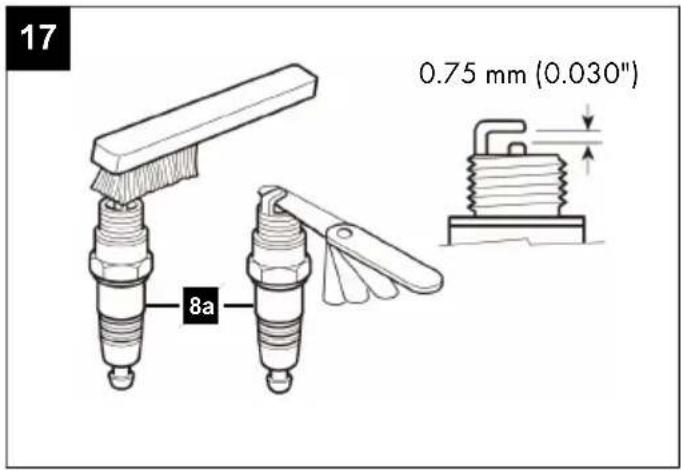

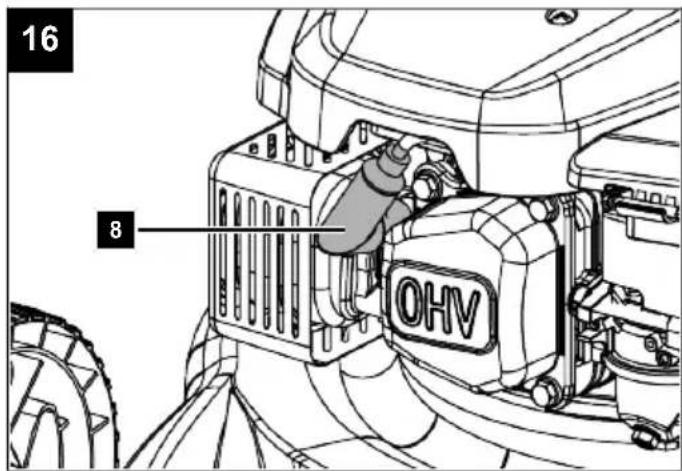

8. Spark plug connector
8a. Spark plug
9. Exhaust pipe
10. Water connection
11. Cutting height adjustment
12. Drive wheel

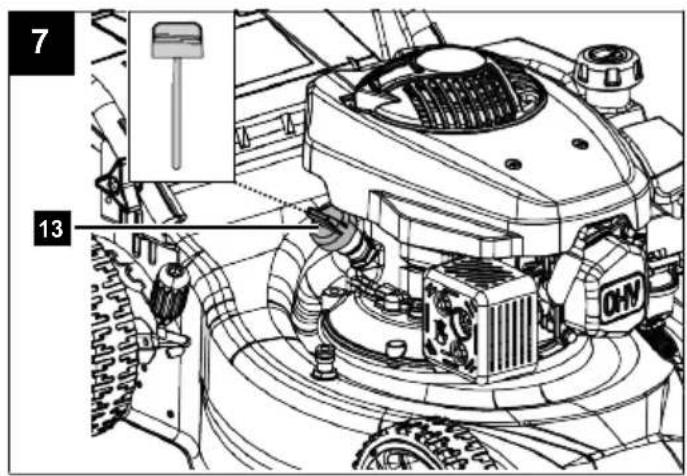

13. Oil dipstick
14. Discharge flap
14a. Mulching insert
15. Grass collection basket
16. Pull starter
16a. Rope hook

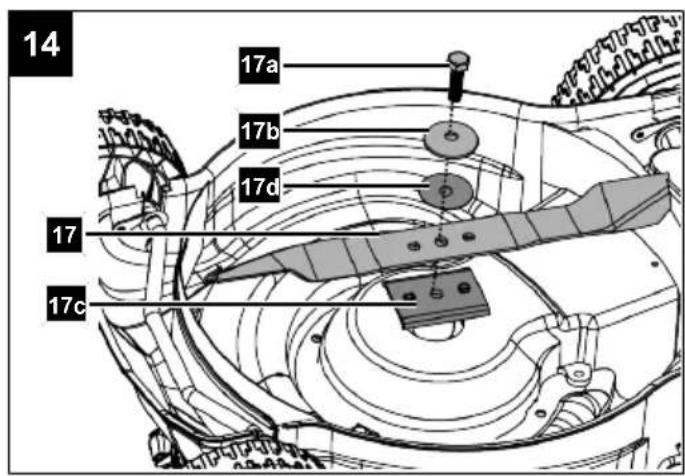

17. Blade
17a. Blade screw
17b. Washer (metal)
17c. Engine spindle
17d. Washer (plastic)
18. Carburettor screw

3 Scope of delivery (Fig. 1-2)

Item Quantity Designation

1. 1 x Upper push bar
2. 4 x Star grip nut
   2a. 4 x Screw (M8)
   2b. 4 x Washer
3. 2 x Lower push bar
   3a. 1 x Cable clip
   14a. 1 x Mulching insert
4. 1 x Grass collection basket
   1 x Petrol lawnmower
   1 x Operating manual
   MS150-42 (59112499969)
   1x 0,6 l Engine oil
   MS150-42 (59112509958)
   1 x 0,6 l Engine oil
5. 1 x Spare blade

4 Proper use

The petrol lawnmower is intended for private use i.e. for use in home and gardening environments. Private use of the lawnmower refers an annual operating time generally not exceeding that of 50 hours, during which time the machine is primarily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applications are excluded.

The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

WARNING

For your own safety, please thoroughly read this manual and the general safety instructions before turning the product on. If you give the product to third parties, always include these operating instructions.

5 Improper use

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

WARNING

Due to physical danger to the user, the lawnmower must not be used for the following work (incomplete list):

– for trimming bushes, hedges and shrubs,
- for cutting climbing plants,
- for lawn care on roof plantings and in balcony boxes,
- for chipping and shredding tree and hedge cuttings,
- for cleaning pavements (vacuuming, blowing away),
– for levelling ground elevations, such as molehills,
- for transporting cuttings, except in the grass collection basket provided.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

6 Safety instructions

Keep all safety information and instructions for future reference!

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this product.

Failure to observe the following instructions can result in serious injuries.

WARNING

Before you start working with the product, familiarise yourself well with all the control parts.

– Practice using the product and have an experienced user or specialist explain its function, how it works and the techniques involved.
- Ensure that the product can be stopped immediately in the event of an emergency.
- Improper use may cause severe injuries.
- In the event of an accident or a fault during operation, switch the product off immediately. Treat injuries properly or consult a doctor.

Who is not permitted to use the product:

• Children and other people who do are not familiar with the usage instructions (local stipulations may specify a minimum age for users).
  • People under the influence of alcohol, drugs and medication, as well as those who are tired or ill.

6.1 Safety instructions for hand-operated lawnmowers

• Read the usage instructions with due care. Familiarise yourself with the settings and proper operation of the product.
• Never allow children or other persons who are unfamiliar with the usage instructions to use the lawnmower. Contact your local governmental agency for information regarding minimum age requirements for operating the lawnmower.
• Never mow while people, especially children or animals are nearby. Always keep in mind that the operator is responsible for accidents involving other persons and/or their property.
• Only mow when visibility is good. It is necessary to keep third parties away.
• If you hand the product over to another person, please hand over this operating manual as well.
  • Always wear sturdy, non-slip footwear and long trousers when mowing. Never mow barefoot or in sandals.
• Check the terrain on which the product will be used and remove all objects that could be caught up and violently flung out of the chute (like stones, toys, sticks and wires etc.).
• Switch off the engine, wait for it to stop and disconnect the spark plug connector if
• you are leaving the product.
• You are removing blockages or obstructions.

– the product has been in contact with foreign objects.
– malfunctions and unusual vibrations occur on the product.

WARNING

Fuel is highly flammable:

• Only store fuel in containers (canisters) designed for this purpose.
• Refuel outdoors only and do not smoke while refuelling.
• Fuel must be filled before starting the engine. While the engine is running or immediately after switching off the product, do not open the fuel filler cap or add fuel.
• If fuel overflows, no attempts should be made to start the engine. Instead, the product must be removed from the area contaminated with fuel. Do not try to start the engine until the fuel vapours have evaporated.
• For safety reasons, the fuel tanks and other fuel caps must be replaced if damaged.
• Never store fuel near a source of sparks. Always use a tested canister. Keep fuel away from children.
• Replace defective silencers.
• Prior to use, always perform a visual inspection to check whether the blade and fastening bolts are worn out or damaged. To prevent an imbalance, worn out or damaged blades and bolts may only be replaced in sets.

6.2 Handling

Handling:

• Make sure that all nuts, bolts and screws are securely tightened so that the product is kept in a safe working condition.
• Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.
• Allow the engine to cool down before parking the product in enclosed spaces.
• In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).
• Regularly check the catch basket for signs of wear and loss of functionality.
• For safety reasons, replace worn or damaged parts.
• If the fuel tank has to be drained, you must do this outdoors.
• Do not run the combustion engine in closed rooms in which hazardous carbon monoxide can collect.
• Only mow in daylight or with good artificial lighting.
• Avoid using the product on wet grass as far as possible.
• Do not use the product in a thunderstorm - Danger of lightning strike!
  • Always maintain good footing on inclines.

• Only guide the product at walking pace.

• The following applies to wheeled products: Always mow across hills i.e. never straight up or straight down. Take particular care when changing direction on a slope.

• Do not mow on excessively steep slopes and nearby rubbish tips, ditches and dykes. Take particular care when reversing the product or pulling it towards you.

WARNING

Special care must be taken when working and changing direction on embankments and slopes:

• Ensure you have a secure footing.
• Wear shoes with non-slip, grippy soles and appropriate clothing.
• Always mow across slopes.
• For safety reasons, slopes with an inclination of more than 15 degrees must not be driven over with the product.
• Exercise particular caution when moving backwards and pulling the product. Risk of tripping!

- Stop the blade when the lawnmower has to be tilted, when transporting over areas other than grass and when moving the lawnmower to and from the area to be mowed.

CAUTION

The lawnmower must not be used without either the full grass catcher or the self-closing separating guard for the ejection opening in place.

• Never use the lawnmower if the blade or safety grilles are damaged, or without the attached guards, e.g. deflectors and/or grass catching devices.
• Do not adjust and overclock the engine speed settings.
• Release the engine brake and disengage all cutting tools and drives before starting the engine.
• Start the engine with care, in accordance with the manufacturers instructions. Ensure that your feet are far enough away from the blade.
• Do not tip the lawnmower when you start the engine unless the lawnmower must be raised off of the ground a little in order to start it. In this case, only tilt as far as absolutely required and only lift the side away from the operator.
• Do not start the engine if you are standing in front of the ejector chute.
• Never put hands and feet on or under rotating parts. Always keep clear of the ejection opening.
• Never lift or carry a lawnmower while the engine is running.
• Stop the engine and make sure that all moving parts have come to a standstill and that the ignition key, if present, is removed:

– Before you dislodge any blockages or clogs in the ejector chute.
- Before checking or cleaning the product, or performing work on it.

• If it came into contact with a foreign object. Inspect the product for damage and perform the required repairs before starting again and working with the product. If the product begins to experience exceptionally strong vibrations, switch it off immediately and check it.
  – Any time you leave the product.

• Before you refuel.

• When the engine runs out, close the throttle valve. If the engine has a petrol shut-off valve, close it after use.

• Operating the product at excessive speed can increase the risk of accidents.
• Be careful when adjusting the product and avoid trapping fingers between the moving blade and rigid parts of the device.
• Be particularly careful when mowing on yielding ground, nearby rubbish tips, ditches and dykes.
• Avoid mowing in places where the wheels have trouble gripping or mowing is unsafe in any other way.
• Watch out for traffic near a road.

DANGER

Risk of tripping!

Exercise particular caution when moving backwards and pulling the product.

Before reversing, make sure there are no small children behind you.

• The user must be adequately trained in the use, adjustment and operation of the machine (including prohibited operations).
• Check the product regularly and make sure that all start locks and push buttons are working properly before each use.
• Please note that improper maintenance, the use of non-compliant spare parts, or the removal or modification of safety devices can result in damage to the product and serious injury to the person working with it.
• Please note that the product's safety systems or equipment must not be tampered with or deactivated. Never remove any safety-related parts.
• Please note that the user must not change or manipulate any sealed engine speed control settings.
• Use only blades and accessories recommended by the manufacturer. Use of other insert tools and accessories may result in injury to the user.
  • Always keep the product in good operating condition.
• It is necessary to take enough breaks to reduce noise and vibration exposure.

6.3 Residual risks and protective measures

Neglect of ergonomic principles

Negligent use of personal protective equipment (PPE)

Careless use or omission of personal protective equipment may result in serious injury.

- Wear prescribed protective equipment.

Human behaviour, misconduct

• Always concentrate fully on all work.

Residual danger

- Can never be ruled out

Danger from noise

Hearing damage

Prolonged unprotected work with the product may cause hearing damage.

• Always wear hearing protection as a matter of principle.

Behaviour in an emergency

In the event of an accident, initiate the necessary first aid measures and seek medical assistance as quickly as possible.

Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules.

However, individual residual risks can arise during operation.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
- Prevent the product being unintentionally started up.
- Keep your hands away from the working area when the product is in operation.
- Unintentional starting up of the product.
- Comply with the stipulated maintenance and safety instructions in the operating instructions.

WARNING

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

7 Technical data

Type of engine 4-stroke engine/air-cooled
Displacement 150 cm3
Rotation speed 2800 rpm
Max. speed 2800 rpm
Engine output	2,6 kW/3,5 PS (2800 rpm)
Fuel	Regular grade petrol/lead-free max. 10% bioethanol
Tank contents	1.0 l
Engine oilOil tank capacity 0.4 l	SAE 10W-30/SAE 10W-40
CO2 output 1033 g/kWh
Cutting height adjustment 25-75 mm/7 stages
Cut heights 25 (1) / 33 (2) / 41 (3) / 50(4) / 59 (5) / 67 (6) / 75 (7)(+ / - approx.8) mm
Grass collection basket capacity	45 l
Cutting width 42 cm
Weight (with empty tank and fully assembled)	23.2 kg

Subject to technical changes!

Noise and vibration

WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.

Noise data

The noise levels have been determined in accordance with ISO 5395-1:2013 Annex F.

Sound pressure level L_pA	81.6 dB
Measurement uncertainty K_pA	1.85 dB
Measured sound power level L_wA	94.1 dB
Guaranteed sound power level L_wA	96 dB
Measurement uncertainty K_wA	1.85 dB

If necessary, adhere to rest periods and limit the duration of work to the bare minimum.

Vibration parameters (hand/arm vibration)

The vibration values have been determined in accordance with ISO 5395-1:2013.

Vibration ahv	5.7 m/s2
Measurement uncertainty Kh	2.3 m/s2

Keep the noise level and vibration to a minimum!

• Only use faultless products.
• Maintain and clean the product at regular intervals.
• Adapt your working methods to the product.
• Do not overload the product.
• Have the product checked if necessary.
• Switch the product off if it is not in use.
• Wear gloves.

Observe the following information to reduce hazards:

• Keep your body and especially your hands warm in cold weather.
  • Take regular breaks and move your hands to promote circulation.
• Ensure as little vibration as possible of the product via regular maintenance and stable parts on the product.

8 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

9 Assembly

CAUTION

Danger of injury due to rotating blade. Only work on the product when the blade is switched off and stationary!

ATTENTION

Ensure that the throttle cable is not squeezed when mounting the push bars.

Note:

Place the product on a level, even surface.

9.1 Installing the lower push bar (3) (Fig. 3)

1. Attach the lower push bar (3) to the guide plates (3b) on the left and right.
2. Make sure that the components are arranged as shown in Fig. 3.
3. Fasten each lower push bar (3) with one M8 screw (2a), one washer (2b) and one star grip nut (2).
4. Make sure that the cable pull starter (16) and the cable pulls are not impaired.

9.2 Installing the upper push bar (1) (Fig. 4, 6)

1. Firmly screw each upper push bar (1) to the lower push bar (3) with one M8 screw (2a), washer (2b) and star grip nut (2) on both sides.

2. Make sure that the components are arranged as shown in Fig. 4.

3. Fix the cable pulls with the cable clip (3a) to the lower push bar (3).

9.3 Installing the pull starter (16) (Fig. 5)

1. Hook the handle for the pull starter (16) into the cable hook (16a). Loosen the wing nut (16b) if necessary.

10 Before commissioning

ATTENTION

Always make sure the product is fully assembled before commissioning!

WARNING

Health hazard!

Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe fuel / lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

ATTENTION

Product damage!

Using the product without or with too little engine and gear oil can result in engine damage.

- Fill with fuel and oil before commissioning. The product is supplied without engine and gearbox oil.

ATTENTION

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

• Fill/empty oil only on level, paved surfaces.
• Use a filling nozzle or funnel.
  – Collect drained oil in a suitable container.
• Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
  – Dispose of oil as per local regulations.

ATTENTION

Risk of damage!

If incorrectly stored or undrained fuel is used, the carburettor may become clogged or engine operation may be affected.

- Put unused fuel in an airtight vessel and store it in a dark, cool room.

ATTENTION

Some noise pollution from this product is unavoidable. Postpone noisy work to approved and designated times. If necessary, adhere to rest periods and limit the duration of work to the bare minimum.

For your personal protection and the protection of nearby persons, wear suitable hearing protection.

Place the product on a level, even surface.

Tool required:

• 1 litre measuring beaker (oil / petrol-proof)*
• Funnel*
• Rag/cloth*

* = may not be included in the scope of delivery!

10.1 Filling up with engine oil (Fig. 7)

ATTENTION

The product is delivered without engine oil. Therefore, ensure that you add oil before starting it up. Use multigrade oil (SAE 10W-30 or 10W-40) for this.

Check the oil level regularly before commissioning. An oil level that is too low can damage the motor.

1. Unscrew the oil dipstick (13) by turning it anticlockwise.
2. Fill the tank with engine oil using a funnel. Note the max. filling capacity of 0.4 l. Fill the oil up to the lower edge of the filling nozzle carefully.
3. Wipe the oil dipstick (13) with a clean, lint-free cloth.
4. Reinsert the oil dipstick (13) without screwing the oil dipstick (13) back in.
5. Pull out the oil dipstick (13) and read off the oil level in a horizontal position. The oil level must be between the max. and min. level on the oil dipstick (13).
6. If the oil level is too low, add the recommended amount of oil (see Technical Data).
7. Then screw the oil dipstick (13) in again.

10.2 Filling up with fuel (Fig. 8)

DANGER

Risk of fire and explosion!

When filling, fuel may ignite and even explode. This can lead to severe burns or death.

• Switch off the engine and let it cool down.
• Keep heat, flames and sparks away.
• Only fill up with fuel outdoors.
• Wear protective gloves.
• Avoid contact with skin and eyes.
• Start the product at a distance of at least 3 m from the fuel filling point.
• Watch out for leaks. If fuel is leaking, do not start the engine.

ATTENTION

The product is delivered without fuel. It is therefore essential to fill with fuel before commissioning. Use Super E10 petrol for this.

1. Clean the area surrounding the filling area. Impurities in the fuel tank (4) lead to operational faults.
2. Carefully open the tank cover (4a) so that any possible overpressure can be relieved.
3. Fill the fuel tank (4) with petrol using a funnel. Do not exceed the maximum filling level (see Technical Data). Carefully fill the fuel up to the lower edge of the filling port.
4. Close the fuel filler cap (4a) again. Ensure that the fuel cap is tightly sealed.
5. Clean the tank cover (4a) and the surroundings.

10.3 Setting the cutting height (Fig. 10)

ATTENTION

Adjust the cutting height only when the engine is switched off and the plug boot has been pulled.

• In dense, tall grass, set the highest cutting level and mow more slowly. A high cutting height should be selected for the first cut of the season. Adjust the cutting height so that the product is not overloaded.
• Set the cutting height depending on the actual length of the lawn.
• Carry out several passes so that a maximum of 4 cm of lawn is removed at a time.
• The correct cutting height for
• ornamental grass is about 30 ~mm - 45 ~mm - utility turf about 40 ~mm - 65 ~mm .

The cutting height is adjusted via the cutting height adjustment lever (11). Different cutting heights can be set.

1. Pull the cutting height adjustment lever (11) outwards.
2. Move the cutting height adjustment lever (11) to the desired position.
3. Release the cutting height adjustment lever (11) again. It locks into the desired position.

10.4 Blade-stop device (Fig. 1, 14)

Before each use, you must check the blade stop device. Start the engine as described in.

1. Release the engine brake lever (1b). The engine switches off and the blade (17) is braked.
2. The blade (17) must stop within 7 seconds.

10.5 Preparing the area to be mowed

1. Before mowing, carefully examine the area.
2. Remove stones, sticks, bones, wires, toys and other objects that may be ejected by the product.
3. Ensure that no other people are present on the surface to be mowed.

11 Operation

The lawn mower is powered by a powerful, air-cooled 4-stroke engine.

The product is equipped with a 7-position cutting height adjustment, a grass collection basket and a foldable push bar.

Please refer to the following descriptions for the function of the control elements.

Check before operation

• Check all sides of the engine for oil or fuel leaks.
• Check the engine oil level.
• Check the fuel level – the fuel tank should be at least half-full.
• Check the condition of the air filter.
• Check the condition of the fuel lines.
• Make sure that the spark plug connector is attached to the spark plug.
• Look for signs of damage.
• Check that all protective covers are in place and all screws, nuts and bolts are tightened.

11.1 Mowing with the grass collection basket

ATTENTION

Do not operate the product without the grass collection basket fully attached.

ATTENTION

Only remove or attach the grass collection basket when the engine is switched off and the blade is stationary.

11.1.1 Inserting the grass collection basket (15) (Fig. 11)

1. Lift the rear discharge flap (14).
2. Remove the mulching insert (14a)
3. Hold the grass collection basket (15) by the carrying handle.
4. Hang the grass collection basket (15) in the grass collection basket suspension located at the rear of the product.
5. Put down the rear discharge flap (14), it holds the grass collection basket (15) in position.

11.1.2 Emptying the grass collection basket (15) (Fig. 11)

WARNING

Before removing the grass collection basket, switch off the engine and wait for the blade to stop.

ATTENTION

Danger of injury!

Remove the grass collection basket only when the engine is switched off and the blade is stationary.

The grass collection basket must be emptied as soon as grass cuttings are left lying behind on the ground during mowing.

1. To remove the grass collection basket (15), lift the rear discharge flap (14).
2. Take out the grass collection basket (15) by the carrying handle. In accordance with the safety regulations, the discharge flap (14) closes when the grass collection basket (15) is unhooked and closes the rear ejection opening.

If grass cuttings remain in the opening, it is advisable to pull the lawnmower back about one metre to make it easier to start the engine.

ATTENTION

Do not remove cuttings in the mower housing and on the working tool by hand or with your feet, but with suitable aids, e.g. brush or hand brush.

To ensure good collection, the grass collection basket (15) and in particular the air filter (5a) must be cleaned from the inside after use.

11.2 Mowing with the mulching insert

When mulching, the cuttings are shredded in the closed lawn mower housing and distributed over the lawn through the mulch insert. This eliminates the need for grass collection and disposal. The fine green waste falls back into the grass root as a natural fertiliser, adds moisture to the lawn and supplies it with important nutrients.

ATTENTION

Mulching is only possible on relatively short lawns.

11.2.1 Inserting the mulching insert (14a) (Fig. 12)

1. Lift the discharge flap (14).
2. Remove the grass collection basket (15) (if used) by the carrying handle.
3. Lift the discharge flap (14) and insert the mulching insert (14a).
4. Adjust the cut height (see. 10.3).

Note:

Cut the grass back by 2 cm if the grass is 4-6 cm high.

11.3 Starting the engine

NOTE

The blade rotates when the engine is started.

Do not start the product if the ejector chute is covered by one of the following parts:

• Grass collection basket
• Mulching insert

11.3.1 Starting the engine (Fig. 1, 9, 16)

1. Check the fuel and engine oil level before each start (see sections 10.1) and 10.2). Make sure that the spark plug connector (8) is connected to the spark plug (8a).

2. In colder temperatures, press the fuel pump "primer" (6) three times. This makes it easier to start the product.

3. Stand behind the lawnmower. One hand pushes the engine brake lever (1b) to the steering, the other pulls the pull starter (16).

4. Start the engine with the pull starter (16). To do this, pull the handle out approx. 10-15 cm (until resistance is felt). And then pull hard with a jerk. If the engine does not start, pull on the pull starter (16) again.
5. Due to protective coating on the engine, a small amount of smoke may be present during the initial use of the product and should be considered normal. This is a normal process.

NOTE

Only use the fuel pump "primer" when the engine is cold!

ATTENTION

• Do not let the pull starter whip back in. This can result in damage.
  – In case of cool weather, it may be necessary to repeat the starting process numerous times.

11.4 Shut off engine

WARNING

Danger of injury!

After switching the engine off, the blade continues to run for a few seconds. If you touch the rotating parts, you may cut yourself.

• Wait until the blade comes to a standstill.
• Do not stop the blade with your hand.
• Wear protective gloves.

• Keep the blade away from your feet.

• To switch off the engine, release the engine brake lever (1b). Wait until the blade (17) stops.

• The engine does not have a fuel valve. The fuel supply is stopped automatically when the engine stops.
• Remove the spark plug connector (8) from the spark plug (8a) if the product will not be used for a long period of time.

11.5 Driving mode (Fig. 1)

The lawnmower is equipped with a rear-wheel drive.

11.5.1 Switching the drive on

1. Start the lawnmower (see 11.3.1).
2. Pull and hold the drive bow (1a) to the steering.
3. The drive is switched on (the drive wheel (12) moves) and the lawnmower starts to move forwards.

ATTENTION

Avoid damage to the product! Avoid damage to the product! Always operate the drive bow completely (until it reaches the stop) to avoid consequential damage to the transmission.

11.5.2 Switching the drive off

1. Release the drive bow (1a). The drive is switched off and the lawnmower stops.

2. The engine continues to run.

12 Working instructions

• Only cut with sharp, flawless mowing blades so that the blades of grass do not fray and the lawn does not turn yellow.
• To achieve a clean cut, guide the lawnmower in the straightest possible paths. These strips should always overlap by a few centimetres so that no patches remain.
• Keep the underside of the mower housing clean and be sure to remove grass debris. Deposits make the starting process more difficult, impair cutting quality and grass discharge.
• On slopes, the cutting path should be made perpendicular to the slope. It is possible to prevent the lawnmower from slipping by lifting it upwards at an angle.

WARNING

It is necessary to keep third parties away.

12.1 After mowing

• Allow the engine to cool down before parking the product in enclosed spaces.
• Check all screws and nuts before the next use. Tighten up loose screws.
• Empty the grass collection basket before the next use.
• Please also observe the chapter "Storage".

13 Cleaning and maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

WARNING

Improper maintenance or cleaning work can cause injuries!

WARNING

The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.

• Switch the product off.
• Remove the spark plug connector from the spark plug.
• Allow the product to cool.

WARNING

Carry out a visual and functional check/maintenance regularly/daily and before commissioning to ensure that the product is in good operating condition.

• Incorrect maintenance, use of non-conforming replacement parts, or removal or modification of safety equipment may lead to severe property or personal damages.
• If this work cannot be carried out by the user themselves, see a specialist dealer.

13.1 Cleaning

WARNING

Health hazard!

Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe fuel / lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

Tool required:

• Spatula*
• Hand brush*
• Compressed air*

* = may not be included in the scope of delivery!

13.1.1 Cleaning the lawnmower (Fig. 14-16)

• Cleaning with a garden hose is only recommended at low pressure. A high-pressure cleaner is not suitable for cleaning the product.
• Unhook the grass collection basket and brush it out with a hand brush. You can also roughly clean the housing of the lawnmower with the sweeper.
• For larger soiling, you can wipe the product with a damp Cloths.

ATTENTION

Before tilting the lawnmower, empty the fuel tank fully using a fuel extraction pump (not included in the scope of delivery).

Do not tilt the lawnmower beyond 90 degrees.

1. It is best to tilt the lawnmower backwards. Make sure that the spark plug (8a) is pointing upwards. If the spark plug (8a) points downwards, oil can leak out and cause major damage to the engine and carburet-tor.
2. Alternatively, you can tilt the product on its side, but you must make sure that the air filter cover (5) is on the upper side.

3. Clean the underside of the lawnmower with a spatula and hand brush. The spatula helps to remove coarse and larger plant debris from the area of the blade (17). Cleaning the underbody is easier and more thorough immediately after use. Then dirt and plant residues are still fresh and can be loosened more easily.

4. If necessary and if the dirt is difficult to remove, you can also use a special cleaner. Do not use aggressive cleaning products such as cold cleaners or white spirit.

5. Check that the grass ejection is clear of grass residues and remove these if necessary.

13.1.2 Cleaning the lawnmower via the water connection (10) (Fig. 1, 11, 13, 14, 16)

NOTE

Push the spark plug connector onto the spark plug properly again.

1. First remove the grass collection basket (15).
2. For cleaning, connect a garden hose to the water connection (10) via the built-in plug-in coupling.
3. Turn on the water and start the lawnmower (see).
4. The rotating blade (17) swirls the water.
5. After a few minutes, the lawnmower is free of all adhering dirt and grass residues.
6. Allow the lawnmower to run for a short time without water to remove most of the moisture through the circulating air of the blade (17).

13.2 Maintenance

• Regular, careful servicing is required to guarantee the safety level and performance of the product.
• Ensure that all nuts, pins and screws are securely tightened so that the product is in a safe working condition.
• Check the grass collection basket regularly for signs of wear and loss of functionality.
• For safety reasons, replace worn or damaged parts.
• Check that the front and rear wheels are secured.
• To ensure smooth running of the wheels, we recommend cleaning the wheel axles and wheel hubs at least once per season.
• Any work not described in this operating manual must be performed by an authorised specialist workshop only.
• Place the product on a level, even surface.

Tool required:

• Fuel extraction pump*
• Rag/cloth*
• Open-ended spanner/socket spanner, size 17 mm*
• Open-ended spanner/socket spanner, size 10 mm*
• Oil pump*
• Oil collecting tray, flat (for oil change)*
• Collection bucket*
  • Copper wire brush*
• Installation spanner*
• Feeler gauge*

* = may not be included in the scope of delivery!

13.2.1 Changing the blade (17) (Fig. 8, 14)

WARNING

There is a risk of injury if you work with a damaged blade.

• Wear protective gloves!
• For safety reasons you should only ever have your blade sharpened and balanced by an authorised specialist workshop. For optimum results it is recommended that the blade should be inspected once a year.

• When changing the blade, only use original spare parts.

• Empty the fuel tank (4) with a fuel extraction pump before removing the cutting edge. Never tilt the lawn mower to the side or forward with a full fuel or oil tank! This will damage the engine and void the warranty.

• Hold the blade (17) tightly with one hand.
• Using an open-end spanner AF17, turn the blade screw (17a) anticlockwise from the engine spindle (17c). Remove the washer (17d) and washer (17b).
• Re-install the new blade (17) in reverse order. Fasten the blade screw (17a) properly. Make sure that the blade (17) is correctly positioned and flush against the engine spindle (17c).
• The tightening torque of the blade screw (17a) is 45 Nm. Also replace the blade screw (17a) when replacing the blade (17).

13.2.1.1 Damaged blades (17)

Should the blade (17) come into contact with an obstruction, shut down the engine immediately and remove the spark plug connector (8).

• Check the blade (17) for damage.
• Damaged or bent blades (17) must be replaced.
• Never attempt to bend a bent blade (17) back to straight again.
• Never mow the lawn with a bent or heavily worn blade (17) as this will cause vibrations and can lead to further damage to the lawnmower.

13.2.2 Checking the oil level (Fig. 7)

WARNING

Health hazard!

Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe fuel / lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

ATTENTION

Product damage!

Using the product without or with too little engine and gear oil can result in engine damage.

• Fill with fuel and oil before commissioning. The product is supplied without engine and gearbox oil.
• Only use SAE 10W-30 or SAE 10W-40 engine oil.

ATTENTION

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

• Fill/empty oil only on level, paved surfaces.
• Use a filling nozzle or funnel.
  – Collect drained oil in a suitable container.

• Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
  – Dispose of oil as per local regulations.

• Turn the oil dipstick (13) anticlockwise to unscrew it and wipe it with a clean, lint-free cloth.

• Reinsert the oil dipstick (13) and check the oil level without screwing the oil dipstick (13) tight again.
• Pull the oil dipstick (13) out and read the oil level in the horizontal position. The oil level must be within the marking on the oil dipstick (13).
• Then screw the oil dipstick (13) in again.

13.2.3 Oil change

The engine oil change should be completed annually before the start of the season while the engine is at operating temperature and shut off.

Only use engine oil (SAE 10W-30/SAE 10W-40).

1. Unscrew the oil dipstick (13) by turning it anticlockwise.
2. Suck out the engine oil through the filler neck using an oil pump (with hose).
3. Fill up with fresh engine oil and check the oil level (see 10.1).

13.2.4 Drain fuel with a fuel extraction pump (Fig. 8)

1. Hold a collection bucket under the hose on the fuel extraction pump.
2. Unscrew and remove the fuel filler cap (4a).
3. Push the hose of the fuel extraction pump into the fuel tank (4) and drain out the fuel tank completely using the fuel extraction pump.
4. Retighten the fuel filler cap (4a).
5. To ensure that no fuel remains in the carburettor, the remaining fuel must be drained out of the carburettor. To do this, place a collection bucket under the carburettor and open the carburettor screw (18) with the aid of an open-end wrench AF10.

13.2.5 Maintenance of the air filter (5a) (Fig. 15)

DANGER

Risk of fire and explosion!

If not cleaned correctly, fuel may ignite and even explode. This can lead to severe burns or death.

• Only clean the air filter by knocking it out.
• Never clean the air filter with petrol or flammable solvents.

ATTENTION

Risk of damage!

Operating the engine without a filter element or with a damaged filter element can cause engine damage.

- Never run the engine without the air filter element or with a damaged filter element. This would allow dirt into the engine, which would result in severe damage to the engine.

Fouled air filters (5a) diminish the engine output due to reduced air supply to the carburettor. Regular inspection is therefore essential.

The air filter (5a) should be checked every 25 operating hours and cleaned as required. The air filter (5a) must be checked more often in case of very dusty air.

1. Take off the air filter cover (5) and remove the air filter (5a).
2. Clean the air filter (5a) only by knocking it out.
3. Replace a defective air filter (5a) with a new one.
4. Put the air filter (5a) back in place and replace the air filter cover (5).

13.2.6 Maintaining the spark plug (8a) (Fig. 16, 17)

Check the spark plug (8a) for contamination for the first time after 10 operating hours and clean it with a copper wire brush if necessary. Then maintain the spark plug (8a) every 50 operating hours.

1. Pull off the spark plug connector (8) with a twisting motion.
2. Remove the spark plug (8a) with a spark plug wrench.
3. Use a feeler gauge to set the gap to 0.75 mm(0.030"). Refit the spark plug (8a) and take care not to overtighten it.

13.2.7 Engine brake lever (1b) (Fig. 1, 9)

The engine is equipped with a mechanical brake which has to be checked regularly. When releasing the engine brake lever (1b), the blade (17) must come to a standstill within 7 seconds.

A running blade (17) produces clearly perceptible wind noises. The running of the blade (17) is signalled by the wind noise generated and can thus be controlled.

NOTE

If you notice that the blade stopping device is not working correctly, please contact the customer service or a specialist workshop.

Ensure that the product is in perfect condition for the entire duration of its service life. Improper maintenance may cause life-threatening injuries.

14 Transport (Fig. 1)

WARNING

Danger of injury and burning!

The product can start unexpectedly and cause injuries.

• Switch off the motor before carrying out any cleaning or maintenance work.
• Allow the motor to cool down.
• Disconnect the spark plug connector from the spark plug.
• Remove the battery.

NOTE

For transport, the cutting height must always be set in the highest position.

1. Empty the fuel tank using a petrol extraction pump into an approved container.
2. Drain the motor oil of the warm motor.
3. Clean the cooling fins of the cylinder and the housing.
4. Fold in the upper push bar (1) (see 15.2).
5. Wedge a few layers of corrugated cardboard between the upper (1) and lower push bars (3), and the engine to prevent any chafing.
6. The product must be secured against tipping and slipping during transport in vehicles in order to prevent damage and injuries.

15 Storage

ATTENTION

Clean and maintain the product before storage.

ATTENTION

Do not store the product with the grass collection basket full. In hot weather, the grass begins to ferment under heat. There is a risk of fire!

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5°C and 30°C.

Store the product in its original packaging.

Cover the product to protect it from dust or moisture.

Store the operating manual with the product.

• Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.
• Allow the engine to cool down before parking the product in enclosed spaces.
• In the event of prolonged storage, empty the fuel tank with a fuel extraction pump (not included in the scope of delivery).
• In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).

15.1 Preparing the lawnmower for long-term storage

WARNING

Do not remove the fuel in enclosed spaces, near fire or when smoking. Petrol fumes can cause explosions and fire.

1. Empty the fuel tank (4) (see 13.2.4).
2. Perform an oil change. (See 13.2.3).
3. Remove the spark plug connector (8) from the spark plug (8a). Remove the spark plug (8a) with a spark plug wrench. (See 13.2.6).
4. Fill the cylinder with approx. 0.2 l of oil from an oil can.
5. Pull the pull starter (16) slowly so that the oil protects the inside of the cylinder.
6. Screw the spark plug (8a) back in.
7. Clean the cooling fins of the cylinder and the housing (see 13.1.1).
8. Be sure to clean the entire product to protect the paint.
9. Store the product in a well-ventilated place.

15.2 Folding the upper push bar (1) together (Fig. 1, 5)

WARNING

Risk of jamming!

Always hold the push bar with one hand at the highest point.

- Never place fingers between the upper push bar and the lower push bar.

For space-saving storage, the upper push bar (1) is foldable.

1. Remove the grass collection basket (15).
2. Unhook the pull starter (16) from the cable hook (16a).
3. Loosen the star grip nuts (2) on the upper push bar (1) slightly (do not open completely!).
4. Move the upper push bar (1) down. The cables must not be pinched in the process.

16 Repair and ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

ATTENTION

Important note in the case of repairs

When returning the product for repair, for safety reasons, ensure that it is free of oil and fuel when it is sent to the service centre.

16.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Blade - Article no.: 7911200636

Engine oil - Article no.: 7850000025

16.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Spark plug, air filter, blade, V-belt

* = not included in the scope of delivery!

17 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

You can find out how to dispose of the disused device from your local authority or city administration.

Fuels and oils

• Before disposing of the product, the fuel tank and the engine oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

18 Troubleshooting

Fault Possible cause Remedy
Product runs unsteadily and vibrates heavily.	Screws are loose. Check screws.
	Blade fasteners are loose. Check blade	fasteners.
	Blade is unbalanced. Replace blade.
Engine does not run. Engine brake lever	not pressed. Press engine brake lever.
	Throttle in wrong position.	Check setting.
	Spark plug defective.	Replace spark plug.
	Fuel tank is empty.	Fill with fuel.
	Contaminated fuel.	Empty the fuel tank and fill with clean fuel.
	Motor defective.	Contact authorised customer service.
Engine runs unsteadily.	Air filter dirty.	Clean the air filter.
	Spark plug dirty. Clean the spark plug.
Lawn turns yellow, uneven mowing results.	Air filter dirty.	Clean the air filter.
	Spark plug dirty. Clean the spark plug.
The discharge of grass clippings is un-clean.	Cutting height is too low.	Adjusting the cutting height
	Blade is worn.	Replace blades.
	Grass collection basket blocked.	Empty the grass collection basket or remove the blockage.

19 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand: SCHEPPACH

Art. designation: Petrol lawnmower - MS150-42

Item no. 59112499969, 59112509958,

5911249906

EU directives:

2014/30/EU, 2006/42/EG, 2000/14/EG_2005/88/EG, 2016/1628/EU, 2011/65/EU*,

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN ISO 5395-1:2013/A1:2018;

EN 5395-2:2013/A2:2017;

EN 14982:2009

Conformity assessment procedure:

2000/14/EG_2005/88/EC - Appendix: VI

Guaranteed 96 dB

sound power level ( L_WA ):

Measured 94.1 dB

sound power level ( L_WA ):

Notified body: TÜV SÜD

Industrie Service GmbH,

Westendstrasse 199,

80686 Munich,

Germany

Number: 0036

2016/1628/EU

Emission. No: e24*2016/1628*2018/989SRA1/P*0408*00

Documentation authorised representative:

Stefan Hartinger

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sommaire

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

3 Fournitures (fig. 1-2)

MS150-42 (59112509958)

(fig. 1, 11, 13, 14, 16)

REMARQUE

14 Transport (fig. 1)

! AVERTISSEMENT

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Indice

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

MS150-42 (59112509958)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Inhoudsopgave

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

3 Meegeleverd (afb. 1-2)

MS150-42 (59112509958)

1 x 0,6 | Motorolie

1. 1 x Reservemessen

4 Beoogd gebruik

14 Transport (afb. 1)

WAARSCHUWING

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Índice

Günzburger Straße 69

MS150-42 (59112509958)

1 0,6 | Aceite de motor

1. 1 Cuchilla de recambio

4 Uso previsto

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Índice

Günzburger Straße 69

MS150-42 (59112509958)

1 x 0,6 | Óleo de motor

(fig. 1, 11, 13, 14, 16)

NOTA

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

r

Head of Project Management

Obsah

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

MS150-42 (59112509958)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Obsah

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

MS150-42 (59112509958)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

V. Andron Pud

Andreas Pecher

Head of Project Management

Tartalomjegyzék

1 Bevezetés 150

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt Ügyfelünk!

MS150-42 (59112509958)

1 db 0,6 l Motorolaj

1. 1 db Pótkés

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Spis treści

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie

MS150-42 (59112509958)

14 Transport (rys. 1)

OSTRZEŻENIE

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Popis sadržaja

1 Uvod.... 181
2 Opis proizvoda (sl. 1-17).... 181
3 Opseg isporuke (sl. 1-2).... 181
4 Namjenska uporaba.... 181
5 Nenamjenska uporaba.... 182
6 Sigurnosne napomene.... 182
7 Tehnički podatci 184
8 Raspakiravanje 185
9 Montaža 185
10 Prije stavljanja u pogon.... 186
11 Rad.... 187
12 Napomene za rad.... 189
13 Čišćenje i održavanje.... 189
14 Transport (sl. 1).... 192
15 Skladištenje.... 192
16 Popravak i naručivanje rezervnih dijelova..... 193
17 Zbrinjavanje i recikliranje.... 193
18 Otklanjanje neispravnosti.... 193
19 EU izjava o sukladnosti.... 194
20 Povećani crtež.... 392

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Želimo vam mnogo zadovoljstva i uspjeha prilikom rada s novim proizvodom.

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

MS150-42 (59112509958)

1 x 0,6 l Motorno ulje

14 Transport (sl. 1)

UPOZORENJE

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Kazalo

1 Uvod.... 196

2 Opis izdelka (sl. 1–17).... 196

3 Obseg dostave (sl. 1–2).... 196

4 Namenska uporaba.... 196

5 Nenamenska uporaba.... 197

14 Transport (sl. 1)....206

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

MS150-42 (59112509958)

1 x 0,6 | Motorno olje

1. 1 x Nadomestna rezila

4 Namenska uporaba

14 Transport (sl. 1)

OPOZORILO

Nevarnost poškodb in opeklin!

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sisukord

1 Sissejuhatus.... 210

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

MS150-42 (59112509958)

1 x 0,6 | Mootoriõli

1. 1 x Asendusnuga

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Turinys

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

MS150-42 (59112509958)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Satura rādītājs

1 levads.... 240

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

D-89335 Ichenhausen

Bästa Kund!

MS150-42 (59112509958)

1 x 0,6 | Motorolja

1. 1 x Reservkniv

4 Avsedd användning

Günzburger Straße 69

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sisällysluettelo

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas

MS150-42 (59112509958)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Indholdsfortegnelse

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde

MS150-42 (59112509958)

1 x 0,6 | Motorolie

1. 1 x Reservekniv

4 Tilsigtet brug

14 Transport (fig. 1)

ADVARSEL

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Division Manager Product Center

Andreas Pecher

Head of Project Management

Innholdsfortegnelse

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde

MS150-42 (59112509958)

1 x 0,6 l Motorolje

1. 1 x Reservekniv

4 Tiltenkt bruk

14 Transport (fig. 1)

ADVARSEL

Günzburger Straße 69

D-89335 Ichenhausen

Prosedyrer for samsvarsvurdering:

2000/14/EF_2005/88/EF - Vedlegg: VI

Garantert 96 dB

lydeffektnivå (LWA):

Målt 94,1 dB

lydeffektnivå (LWA):

Oppnevnt instans: TÜV SÜD

Industrie Service GmbH,

Westendstrasse 199,

80686 München,

Tyskland

Nummer: 0036

2016/1628/EU

Utslipp. No: e24*2016/1628*2018/989SRA1/P*0408*00

Division Manager Product Center

Andreas Pecher

Head of Project Management

Съдържание

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

MS150-42 (59112509958)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη

MS150-42 (59112509958)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Cuprins

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client

MS150-42 (59112509958)

1 x 0,6 | Ulei de motor

14 Transport (fig. 1)

AVERTIZARE

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sadržaj

1 Uvod.... 363
2 Opis proizvoda (sl. 1-17).... 363
3 Opseg isporuke (sl. 1-2).... 363
4 Namenska upotreba.... 363
5 Nenamenska upotreba.... 364
6 Sigurnosne napomene 364
7 Tehnički podaci 367
8 Raspakivanje.... 367
9 Montaža 368
10 Pre stavljanja u pogon.... 368
11 Rad.... 369
12 Radna uputstva.... 371
13 Čišćenje i održavanje.... 371
14 Transport (sl. 1).... 374
15 Skladištenje.... 374
16 Popravka i naručivanje rezervnih delova ..... 375
17 Odlaganje na otpad i reciklaža.... 375
18 Pomoć za otklanjanje smetnji.... 375
19 EU izjava o usaglašenosti.... 376
20 Znak eksplozije 392

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

MS150-42 (59112509958)

1 x 0,6 l Ulje za motor

1. 1 x Rezervnim noževima

4 Namenska upotreba

Benzinska kosilica je pogodna za privatnu upotrebu u kućnim i hobi baštama. Kao kosilica za kućne i hobi bašte smatra se ona čija godišnja upotreba obično ne prelazi 50 sati i koja se uglavnom koristi za negu trave ili travnjaka, ali ne i u javnim objektima, parkovima, sportskim objekti-ma, kao ni u poljoprivredi i šumarstvu.

Proizvod sme da se koristi samo u svrhu za koju je namenjen. Svaka drugačija upotreba koja izlazi iz ovih okvira smatra se nenamenskom. Za oštećenja ili povrede svih vrsta koje nastanu usled toga, odgovara korisnik, a ne proizvođač.

U namensku upotrebu spada i poštovanje sigurnosnih napomena, kao i uputstva za montažu i instrukcija za upotrebu navedenih u priručniku za upotrebu.

14 Transport (sl. 1)

UPOZORENJE

Opasnost od povreda i opekotina!

Proizvod se može neočekivano pokrenuti i time dovesti do povreda.

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

İçindekiler

1 Giriş.... 378

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

MS150-42 (59112509958)

1 x 0,6 | Motor yağı

1. 1 x Biçak yedeği

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Technical diagram of a mechanical assembly with numbered parts, likely an engine or motor assembly.

Exploded view diagram of a mechanical assembly with numbered parts for identification

Garantie DE

Obvious defects must be reported within 8 days after receipt of the goods, otherwise the purchaser loses all claims due to such defects. We guarantee our machines, if handled correctly, for the duration of the statutory warranty period from handover in such a way that we will replace free of charge any machine part that demonstrably becomes unusable within this period as a result of material or manufacturing defects. For parts that we do not manufacture ourselves, we only provide a warranty to the extent that we are entitled to warranty claims against the upstream suppliers. The purchaser shall bear the costs of fitting the new parts. Claims for conversion and reduction and other claims for damages are excluded.

Garantie FR
