Product type	Vibratory plate
Brand	Lescha (Altrad Belle)
Model	BELLE PCX 1750A
Working width	500 mm
Length (in operation)	960 mm
Height (in operation)	975 mm
Length (in storage)	1025 mm
Height (in storage)	685 mm
Weight (with watering kit and wheels, GX120 version)	89 kg
Weight (with watering kit and wheels, GX160 version)	90 kg
Engine	Honda GX120 (3.0 kW / 4.0 hp) or Honda GX160 (4.4 kW / 5.5 hp)
Centrifugal force	15 kN
Vibration frequency	85 Hz
Max. travel speed	24 m/min
Compaction force	485 kg/m²
Sound power level	105 dB(A)
Transmitted vibration (3 axes)	2.7 m/s²
Fuel tank capacity (GX120)	2.5 L
Fuel tank capacity (GX160)	3.6 L
Engine oil type	SAE 10W30
Engine oil quantity	0.6 L
Vibrator oil type	SAE 10W40
Vibrator oil quantity	0.3 L
Spark plug	BM6ES or BPR6ES (gap 0.7-0.8 mm)
Fuel type	Unleaded gasoline
Routine maintenance	Check levels, clean air filter, adjust belt
Safety	Wear PPE, stop engine before maintenance, do not use indoors
Available spare parts	Belt, air filter, spark plug, clutch

Frequently Asked Questions - BELLE PCX 1750A Lescha

What is the engine power of the BELLE PCX 1750A?

The vibratory plate is available with two Honda engines: GX120 (3.0 kW / 4.0 hp) or GX160 (4.4 kW / 5.5 hp).

How to start the vibratory plate?

Open the fuel valve, apply the choke if the engine is cold, turn the on/off switch to 'I', set the throttle to idle, then pull the recoil starter until the engine runs. Then gradually push the choke back.

What oil to use for the engine and vibrator?

For the engine: SAE 10W30 (0.6 L). For the vibrator: SAE 10W40 (0.3 L).

How often should the vibrator oil be changed?

The first change occurs after 100 hours of operation, then every 500 hours.

What to do if the engine does not start?

Check for fuel, that the valve is open, that the ignition is on, that the spark plug is not fouled. If the engine is flooded, open the choke and pull the starter at full throttle.

How to adjust the belt tension?

The belt tension should be checked every 4 hours. Refer to the 'Maintenance' section of the manual for the procedure, or contact an authorized technician.

What PPE is mandatory for using this vibratory plate?

It is mandatory to wear safety shoes, hearing protection, safety glasses, and gloves.

Can the vibratory plate be used indoors?

No, exhaust fumes are toxic. Always use outdoors or in a very well-ventilated area.

How to transport the vibratory plate?

Use the transport wheel kit by locking the handle. For lifting, attach slings only to the designated lifting point. Never leave the engine running during transport.

What to do if asphalt adheres to the plate?

Use the water sprinkling system to lubricate the plate and prevent adhesion.

USER MANUAL BELLE PCX 1750A Lescha

Line drawing of a mechanical pump or lawn mower assembly (no text or symbols)

• Spare Parts Book
  • Pièces Détachées
• Libro Despiece
• Lista de Peças
  • Onderdelen Boekje
• Reservedele Skrift
  • Ersatzteilhandbuch
  • Manuale dei Ricambi
  • Bruksanvisning
  • Bruksanvisning
• Varaosaluettelo
  • Lista Części Zamiennych
  • Запасные Части Книга
  • Varuosade Nimekiri
• Rezerves Dalu Saraksts
• Atsarginiu Daliu Sarašas
  · Уаст Списък
• Cást Barevný Pruh
  • Lista Pieselor De Schimb
  • Részek Oldalra Dől
• Rezervni Djelovi Knjiga

182

GB Operators Manual
US Operators Manual
F Manuel De L'Opérateur
E Manual del Operador
P Manual de Operação
NL Handleiding
DK Betjeningsvejledning
D Bedienungshandbuch
① Manuale Dell'Operatore
s Bruksanvisning
NO Betjene Håndbok
SF Käyttöohje
PL Instrukcja Obstugi
RUS Руководство для оператора
EST Kasutusjuhend
LV Lietotāja rokasgrāmata
LT Naudojimo Instrukcija
BG Оператор Ръчен
cz Na'vod K Obzluze
RO Manual de Utilizare
HUN Kezelők Kézi
HR Uputstvo za rukovatelja

6
14
22
30
38
46
54
62
70
78
86
94
102
110
118
126
134
142
150
158
166
174

BELLE

LIGHT

CONSTRUCTION

EQUIPMENT

EC DECLARATION OF CONFORMITY / DECLARATION CE DE CONFORMITE / DECLARACIÓN DE CONFORMIDAD CE / DECLARAÇÃO CE DE CONFORMIDADE / EG-VERKLARING VAN OVEREENSTEMMING / EF OVERENSSTEMMELSESERKLAERING

We, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, hereby certify that if the product described within this certificate is bought from an authorised Belle Group dealer within the EEC, it conforms to the following EEC directives: 2006/42/CE (This directive replaces directive 98/37/EC), Electromagnetic Compatibility Directive 2004/108/CE (as amended by 89/336/EEC, 92/31/EEC & 93/68 EEC). The Waste Electrical and Electronic Equipment (WEEE) 2002/96/CE, the low voltage directive 2006/95/CE, BS EN ISO 12100-1:2003 Safety of machinery and associated harmonised standards, where applicable. Noise emissions conform to directives 2000/14/EC Annex VI & 2005/68/EC, for machines under article 12 the notified body is AVT Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington, Cheshire, WA5 7ZB, GB. Noise Technical files are held by Ray Neilson at the Belle group Head Office address which is stated above.

PRODUCT TYPE .... TYPE DE PRODUIT.... TIPO DE PRODUCTO....

MODEL......

MODELE......

MODELO

SERIAL No......

N° DE SERIE

[EMPTY]

N° DE SERIE.

Managing Director - On behalf of BELLE GROUP (SHEEN) UK.

Place of Declaration - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK

Lieu de déclaration - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK

Sted i erklæring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK

Date of Declaration - 2017.

Empty white rectangle with dashed border (no text or symbols)

Подпись

Alla kirjutanud:

Paraksts:

Pasiraše:

Подпис:

Υπογραφή:

O.Nah

Ray Neilson

Empty white rectangle with dashed border (no text or symbols)

Podepsal:

Semnat de:

Aláírás:

Potpisao:

Imzalayan:

Podpísal:

O.Nah

Ray Neilson

Director General - in numele BELLE GROUP (SHEEN), UK

This manual has been written to help you operate and service the 'PCX 17/50A' Plate compactor safely. This manual is intended for dealers and operators of the 'PCX 17/50A' Plate compactor.

Foreword

The ‘Machine Description’ section helps you to familiarise yourself with the machine's layout and controls.

The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.

The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public.

The ‘Operating Instructions’ section helps you with the setting up and use of the machine.

The ‘Trouble Shooting Guide’ helps you if you have a problem with your machine.

The 'Service & Maintenance' section is to help you with the general maintenance and servicing of your machine.

The 'Warranty' Section details the nature of the warranty cover and the claims procedure.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

CAUTION

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way.

WARNING

The life of the operator can be at risk.

WARNING

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

KNOW how to safely use the unit's controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the machine off before you switch on, in case you get into difficulty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): [phone]

Contents

How to use this manual....6

Warning 6

Machine Description....7

Technical Data....7

Decals....8

Environment 9

Reasons For compaction 9

Safety Instructions....9

Health and Safety....10

Pre-Start Checks 10

Operating Instructions 10 - 11

Trouble Shooting Guide 11

Service & Maintenance 12

Fitting Instructions 13

Warranty 13

Declaration of Conformity....2

Machine Description

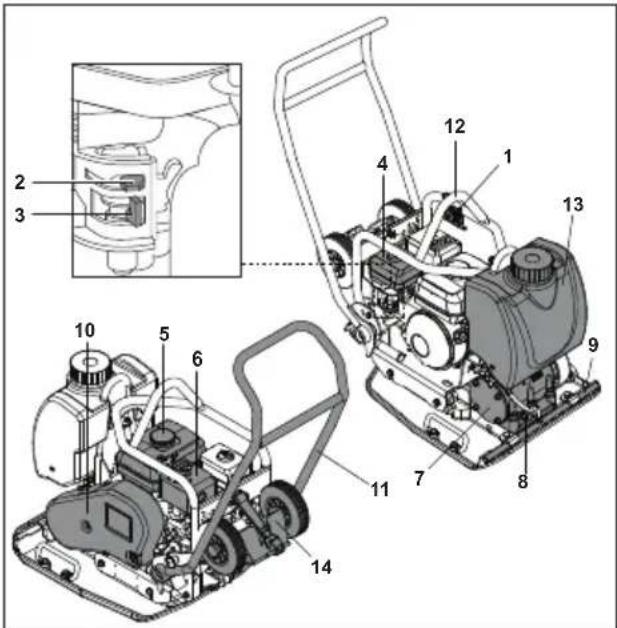

Technical diagram of a lawn mower with numbered parts and an inset view of the engine compartment

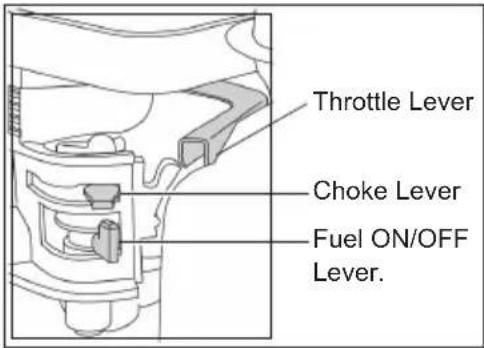

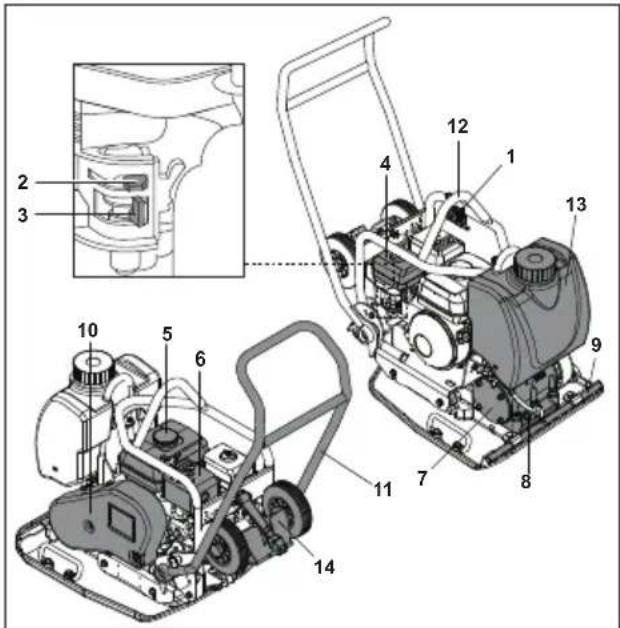

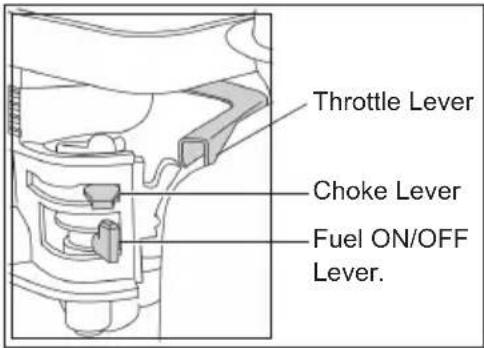

1. Throttle Lever,
2. Choke Lever,
3. Fuel ON/OFF Lever,
4. Air Filter Housing,
5. Fuel Tank,
6. Exhaust,
7. Vibrator Unit,

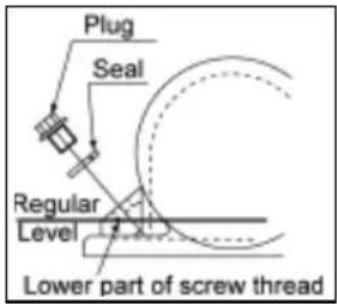

8. Vibrator Oil Check Plug,
9. Attach Point For Water Spray Bar,
10. Belt Guard,
11. Control Handle,
12. Lifting Frame,
13. Water Tank,
14. Transporter Attachment

Technical Data

Model Honda GX120 Honda GX160

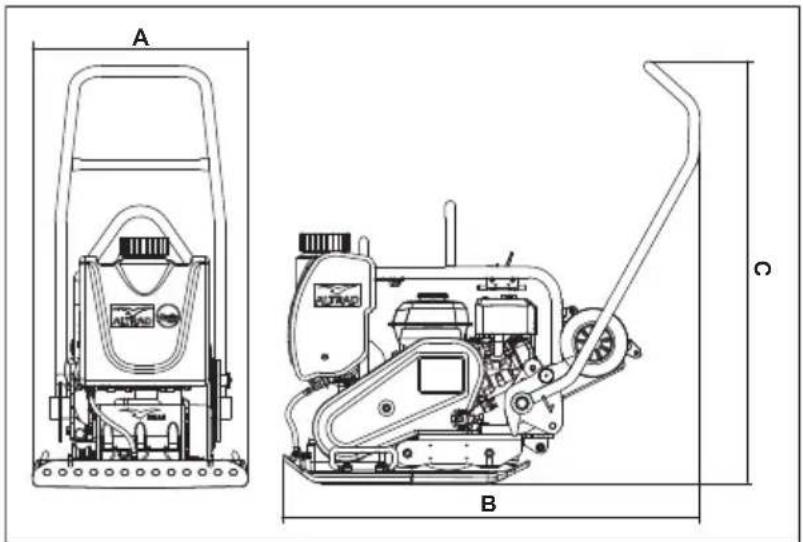

A - Width (mm) 500 500
B - Length - Operation (mm) 960 960
C - Height - Operation (mm) 975 975
Length - Storage (mm) 1025 1025
Height - Storage (mm)	685 685
Engine Model	Honda GX120	Honda GX160
Engine Power (Hp/kW)	4.0/3.0 @ 3800rpm	5.5/4.4 @ 3800rpm
* Weight (kg)	89	90
Vibrator Force (kN)	15	15
Frequency (Hz)	85	85
Maximum Travel Speed (m/min)	24	24
Compaction Force (kg/m2)	485 485
** 3 Axis Vibration (m/sec2)	2.7	2.7
Sound Power Level (dB(A))	105 105

* Weight includes Water Kit and Transporter Attachment. (Items 13 and 14 of Machine Description)
** Minimum level to EN500 Part 4.

A B C

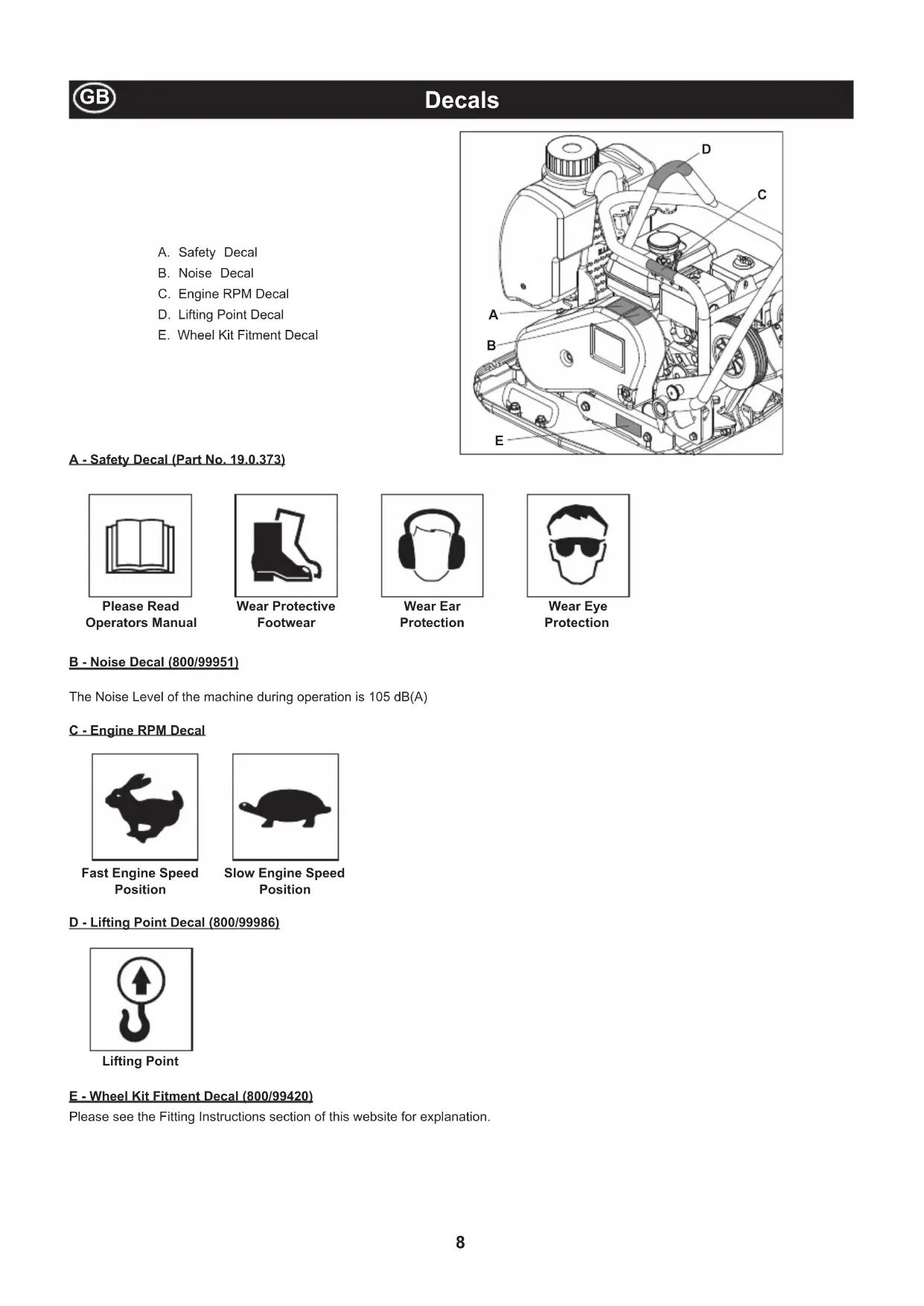

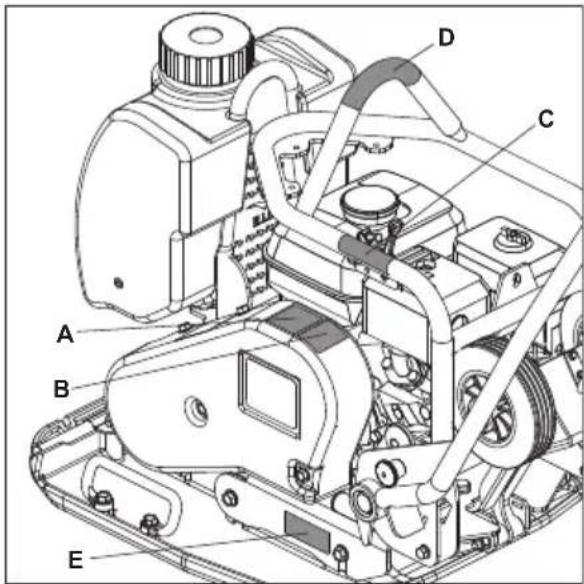

A. Safety Decal
B. Noise Decal
C. Engine RPM Decal
D. Lifting Point Decal
E. Wheel Kit Fitment Decal

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

A - Safety Decal (Part No. 19.0.373)

Please Read Operators Manual

Wear Protective Footwear

Wear Ear Protection

Wear Eye Protection

B - Noise Decal (800/99951)

The Noise Level of the machine during operation is 105 dB(A)

C - Engine RPM Decal

Silhouette of a rabbit in motion, no text or symbols present

Fast Engine Speed Position

Silhouette of a turtle (no text or symbols)

Slow Engine Speed Position

D - Lifting Point Decal (800/99986)

Lifting Point

E - Wheel Kit Fitment Decal (800/99420)

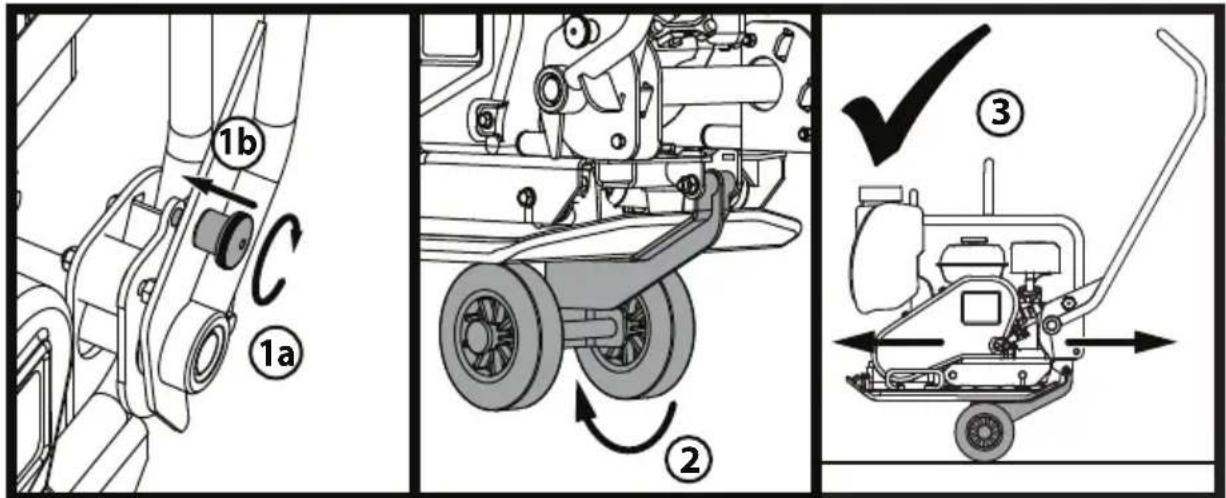

Please see the Fitting Instructions section of this website for explanation.

Environment

Safe Disposal.

Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities.

Component Material
Operator Handle Steel
Baseplate Steel
Eccentric Weights Steel
Vibrator Housing Aluminium
Petrol Engine Housing Aluminium
Petrol Engine Covers Synthetic Material
Various Parts Steel & Aluminium

Reasons For Compaction

Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will lead to one or more problems occurring.

1. As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface as the material fills the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and contraction, due to ingress of water.

Safety Instructions

For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the 'PCX 17/50A' Plate compactor, consult your supervisor or Altrad Belle.

CAUTION

Improper maintenance can be hazardous. Read and Understand this section before you perform any maintenance, service or repairs.

• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorized personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
- During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and unattended.
- Never remove or tamper with any guards fitted, they are there for your protection. Always check guards for condition and security, if any are damaged or missing, DO NOT USE THE MACHINE until the guard has been replaced or repaired.
• DO NOT USE THE MACHINE when you are ill, feeling tired, or when under the influence of alcohol or drugs.

CAUTION

Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel.

Fuel Safety.

• Before refuelling, switch off the engine and allow it to cool.
• When refuelling, DO NOT smoke or allow naked flames in the area.
• Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
• Store fuel in an approved, purpose made container away from heat and ignition sources.

Vibration

Some vibration from the trowelling operation is transmitted through the handle to the operator's hands. Refer to specifications & technical data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.

PPE (Personal Protective Equipment).

Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped footwear (with anti-slip soles for added protection). Wear clothing suitable for the work you are doing. Always protect skin from contact with concrete.

Dust.

The compaction process can produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of dust being produced.

Fuel.

Do not ingest fuel or inhale fuel vapors and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes, irrigate with copious amounts of water and seek medical attention as soon as possible.

Exhaust Fumes.

Do not operate your 'PCX 17/50A' indoors or in a confined space, make sure the work area is adequately ventilated.

WARNING

The exhaust fumes produced by this equipment are highly toxic and can kill!

Pre-start Checks

Pre start-up inspection.

The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the 'PCX 17/50A' must not be used until the fault is rectified.

1. Thoroughly inspect the 'PCX 17/50A' for signs of damage. Make sure that the belt guard is secure before using the machine.
2. Check hoses, filler openings, drain plugs and any other areas for signs of leakage. Fix any leaks before operating.
3. Check the engine oil level and top up as necessary.
4. Check the engine fuel level and top up as necessary.
5. Check for fuel and oil leaks.

Operating Instructions

• Take the compactor to where it is required.

Where it is necessary to use lifting equipment to position the 'PCX 17/50A', make sure the lifting equipment has a WLL (Working Load Limit) suitable for the 'PCX 17/50A's weight (see Technical Data section or machine serial plate). Attach suitable chains or slings ONLY to the lifting point on the top of the 'PCX 17/50A'.

• NEVER leave the engine running whilst transporting or moving the 'PCX 17/50A', even if it is only a short distance.
• Having carried out the checks listed in the 'pre start' section, you may start the engine.

The Altrad Belle 'PCX 17/50A' range of compactors are fitted with a centrifugal clutch, this allows the engine to run at idle without driving the vibrator. As the engine speed is increased the clutch will engage and will drive the vibrator. For correct operation, the engine speed should be set to maximum.

- Set the throttle to maximum and use the control handle to steer or turn the 'PCX 17/50A'.

The vibrator will not only cause the baseplate to vibrate but will also cause it to travel forward. During normal operation you should not have to push the 'PCX 17/50A' but allow it to travel at its own pace. The speed of travel will be determined by the condition of the surface being compacted. If the surface to be compacted is on a slope, great care must be taken when controlling the 'PCX 17/50A's direction of travel. If necessary, use a suitable rope attached to the 'PCX 17/50A' at a low point on the chassis, to allow a helper to take part of the 'PCX 17/50A's weight. Work up and down a slope not across.

• Work the 'PCX 17/50A' over the surface in an organized pattern until the required compaction has been achieved.

Where there are a number of different layers to be compacted on top of each other, compact each layer individually.

Operating Instructions

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

Honda GX120 & GX160

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.
2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the left. If restarting a warm engine, the choke is usually not required, however, if the engine has cooled to a degree, partial choke may be required.
3. Turn the engine ON / OFF switch clockwise to the '1' position.
4. Set the throttle to the idle position by moving the throttle lever fully to the right. Do not start the engine on full throttle, as the compactor will vibrate as soon as the engine starts.

5. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return.

6. Taking care not to pull the starter's rope fully out, pull the starter handle briskly.

7. Repeat until the engine fi res.

8. Once the engine fires gradually set the choke lever to the OFF position by moving it to the right.

9. If the engine fails to fire after several attempts, follow the Troubleshooting Guide.

10. To stop the engine, set the throttle to idle and turn the engine ON / OFF switch anticlockwise to the '0' position.

11. Turn the fuel off.

Throttle Lever Choke Lever Fuel ON/OFF Lever.

Troubleshooting Guide

Problem Cause Remedy
Engine will not start.	No fuel.	Open fuel tap.
		Fill fuel tank.
	Engine switched off. Switch engine on.
	Spark plug fouled. Clean and reset plug	gap.
	Engine cold. Close choke.
	Engine fl ooded.	Honda, open choke, fully open throttle, pull recoil starter until engine fi res.
Engine still will not start. Major Fault Contact Agent or Altrad Belle.
Unit will not vibrate.	Engine speed too slow. Set engine speed control to fast.
	Drive belt tension loose. Adjust belt tension.
	Air filter blocked	Clean or renew air filter.
	Drive failure.	Contact Agent or Altrad Belle.
	Vibrator failure.	Contact Agent or Altrad Belle.
Asphalt adhering to plate.	Lack of lubrication.	Use a water spray system.
Bituminous surface flaking (laminating).	Over compaction.	Remove and relay.
Low travel speed (plate sinking).	Layer thickness too deep.	Remove some of the material.
	Moisture content too high or too low.	Remove material and adjust.

Maintenance

The Altrad Belle 'PCX 17/50A' range is designed to give many years of trouble free operation. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty.

Before any maintenance is carried out on the machine, switch off the engine and disconnect the HT lead from the sparkplug.

Always set the 'PCX 17/50A' on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart below).

Running In Period

When the 'PCX 17/50A' is first used from new, the engine oil must be changed after the initial running in period (see engine manual for full detail). The vibrator shaft case oil must be replaced after the first 100 hours use, then after every 500 working hours. For detail on vibrator shaft case oil replacement, see 'Vibrator unit'.

The belt tension should be checked after 4 hours use.

Routine Maintenance		First 4 Hours	First Month / 20 Hours	3 Months / 50 Hours	6 Months / 100 Hours
Engine Oil	Check Level	√
	Change		√		√
Air Filter	Check Condition / Clean		√		√
	Replace when necessary / Every 12 months
Spark Plug Change					√
Drive Belt Tension		√ √	√

Oil / Fuel Type & Quantity - Spark Plug Type

	Oil Type	Quantity (Litre)	Fuel Type	Capacity (Litre)	Spark Plug Type	Electrode Gap (mm)
Petrol Honda GX120 S.A.E. 10	W 30 0.6 Unleaded	2.5			BM6ES or BPR6ES	0.7 - 0.8
Petrol Honda GX160 S.A.E. 10	W 30 0.6 Unleaded	3.6			BM6ES or BPR6ES	0.6 - 0.7
Vibrator	S.A.E. 10W 40	0.3 N/A	N/A	N/A	N/A

Plug Seal Regular Level Lower part of screw thread

Vibrator Unit.

Remove the plug complete with seal, check that the oil level reaches the bottom thread on the oil plug hole. Top up as necessary with the correct oil (see chart).

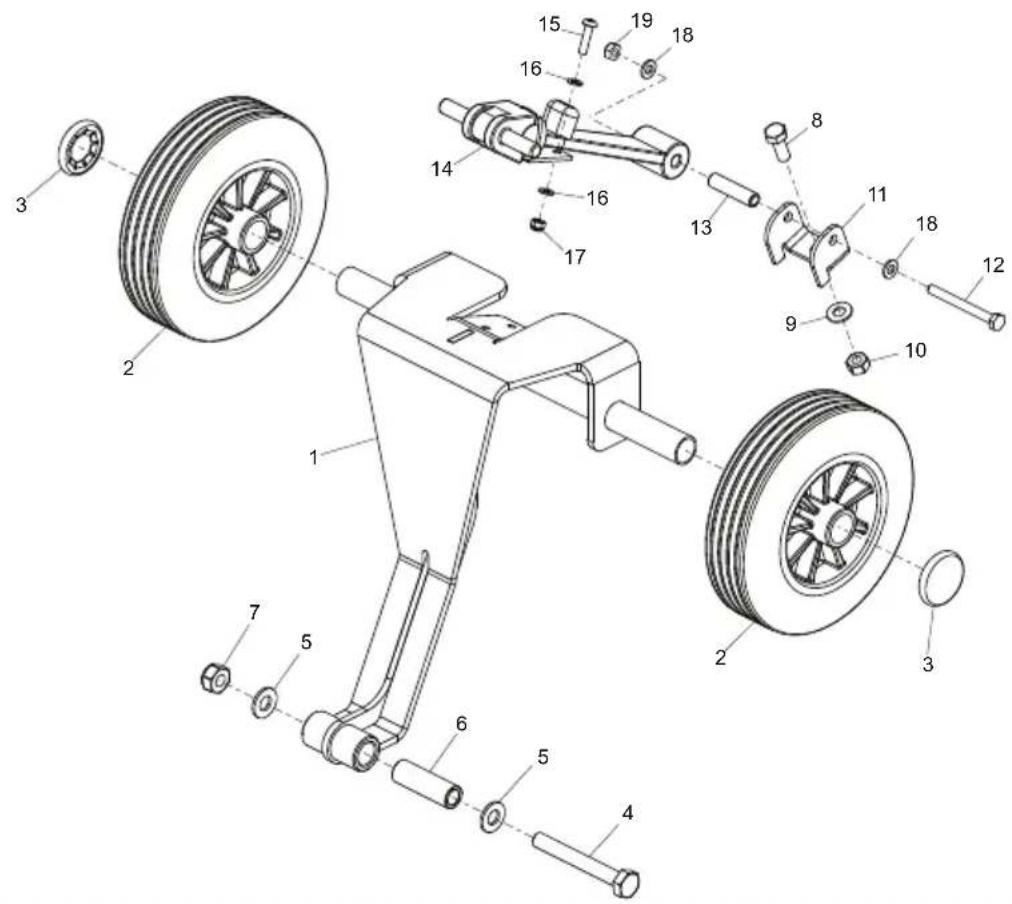

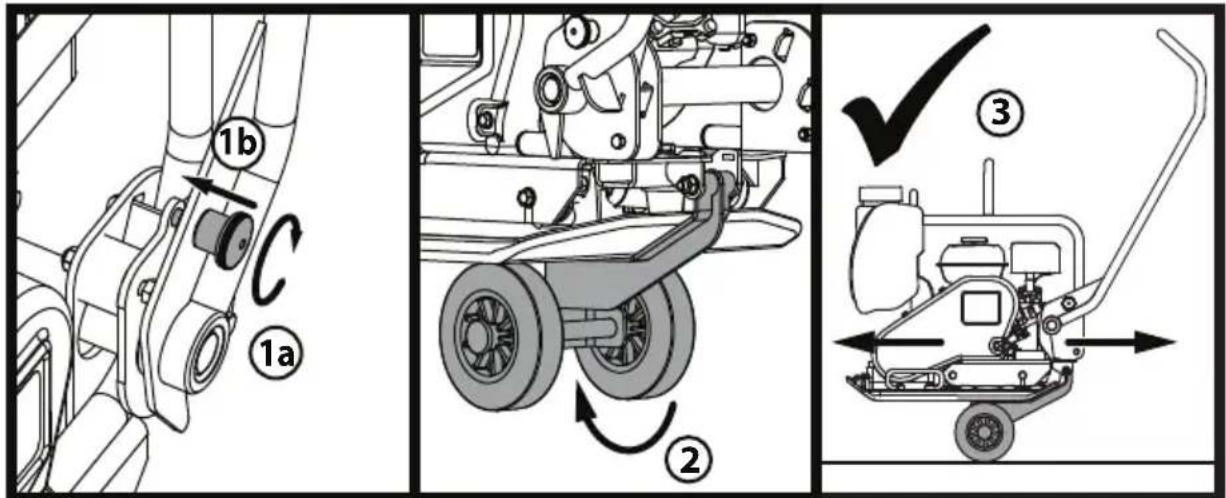

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

1. Twist the Handle Latch Knob to engage the Handle Latch and lock the Handle.
2. Once the Handle is locked into place, release the Wheel Kit and slide underneath the Baseplate.
3. With the Handle still locked into place, the machine is now ready to be transported using the Wheel kit.

Warranty

Your new Altrad Belle 'PCX 17/50A' Single Direction Plate Compactor is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The Altrad Belle warranty is against defects in design, materials and workmanship.

The following are not covered under the Altrad Belle warranty:

1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

The following components are not covered by warranty.

• Drivebelt/s
  • Engine air filter
  • Engine spark plug

Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.

Warranty Claims

All warranty claims should firstly be directed to Altrad Belle, either by telephone, by Fax, by Email, or in writing.

For warranty claims:

Tel: [phone] Fax: [phone] Email : [e-mail]

Write to:

Altrad Belle Warranty Department,

Sheen, Nr. Buxton,

Derbyshire,

SK17 0EU

England.

Warranty Registration:

In the bid for ALTRAD Belle to become greener and more eco friendly, we have now introduced online Warranty registration. To access the registration page of our website, please use the following address:-

http://www.bellegroup.com/index.php?p=warranty\_registration

Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the registration page.

QR code image containing encoded data, no visible human-readable text

This manual has been written to help you operate and service the 'PCX 17/50A' Plate compactor safely. This manual is intended for dealers and operators of the 'PCX 17/50A' Plate compactor.

Foreword

The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls.

The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way. The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public.

The ‘Operating Instructions’ section helps you with the setting up and use of the machine.

The ‘Trouble Shooting Guide’ helps you if you have a problem with your machine.

The ‘Service & Maintenance’ section is to help you with the general maintenance and servicing of your machine.

The 'Warranty' Section details the nature of the warranty cover and the claims procedure.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

CAUTION

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way.

WARNING

The life of the operator can be at risk.

WARNING

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

KNOW how to safely use the unit's controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the machine off before you switch on, in case you get into difficulty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): [phone]

Contents

How to use this manual....14

Warning 14

Machine Description....15

Technical Data....15

Decals....16

Environment 17

Reasons For compaction 17

Safety Instructions....17

Health and Safety....18

Pre-Start Checks 18

Operating Instructions 18 - 19

Trouble Shooting Guide 19

Service & Maintenance 20

Fitting Instructions 21

Warranty 21

Technical diagram of a lawn mower with numbered components and an inset view of the engine compartment

1. Throttle Lever,
2. Choke Lever,
3. Fuel ON/OFF Lever,
4. Air Filter Housing,
5. Fuel Tank,
6. Exhaust,
7. Vibrator Unit,
8. Vibrator Oil Check Plug,
9. Attach Point For Water Spray Bar,
10. Belt Guard,
11. Control Handle,
12. Lifting Frame,
13. Water Tank,
14. Transporter Attachment

Technical Data

Model Honda GX120 Honda GX160
A - Width (in) 19.7 19.7
B - Length - Operation (in) 37.8 37.8
C - Height - Operation (in) 38.4 38.4
Length - Storage (in) 40.4 40.4
Height - Storage (in) 27 27
Engine Model	Honda GX120	Honda GX160
Engine Power (Hp/kW)	4.0/3.0 @ 3800rpm	5.5/4.4 @ 3800rpm
* Weight (lbs)	196.2	198.4
Vibrator Force (lbf) 3372 3372
Frequency (Hz)	85	85
Maximum Travel Speed (ft/min)	78.7 78.7
Compaction Force (lbs/ft ^2 )	99.3 99.3
** 3 Axis Vibration (m/sec ^2 )	2.7	2.7
Sound Power Level (dB(A))	105	105

* Weight includes Water Kit and Transporter Attachment. (Items 13 and 14 of Machine Description)
** Minimum level to EN500 Part 4.

A B C

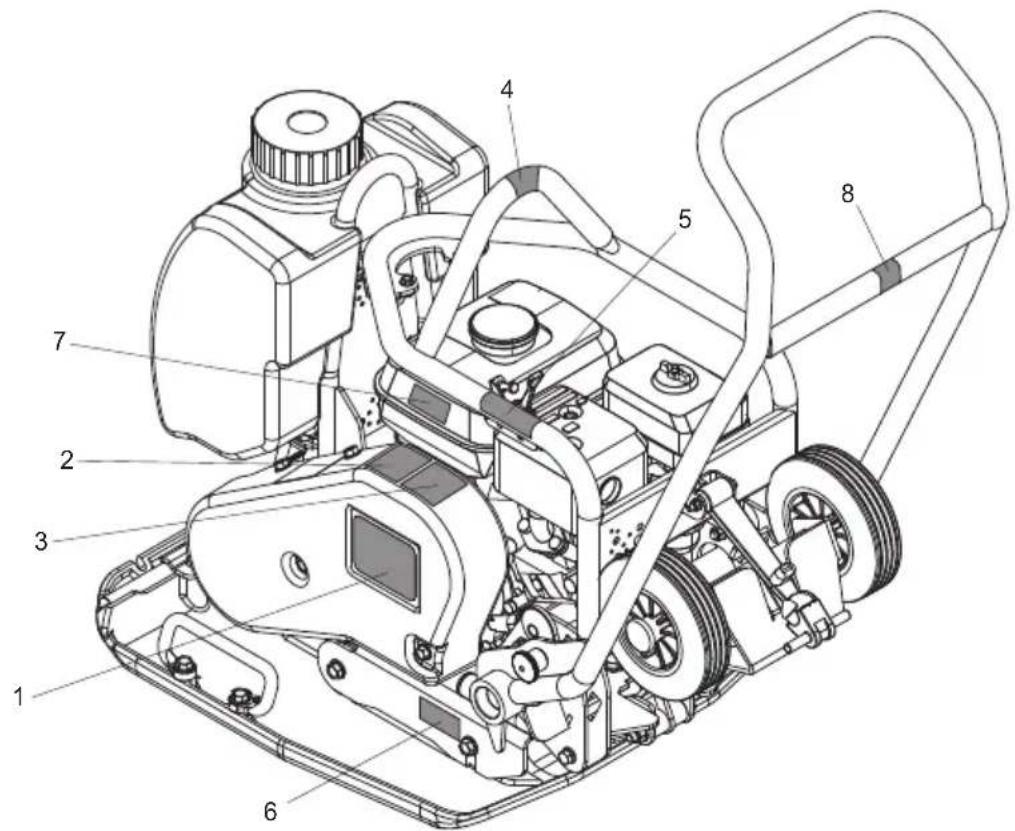

A. Safety Decal
B. Noise Decal
C. Engine RPM Decal
D. Lifting Point Decal
E. Wheel Kit Fitment Decal

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

A - Safety Decal (Part No. 19.0.373)

Please Read Operators Manual

Wear Protective Footwear

Wear Ear Protection

Wear Eye Protection

B - Noise Decal (800/99951)

The Noise Level of the machine during operation is 105 dB(A)

C - Engine RPM Decal

Silhouette of a rabbit in motion, no text or symbols present

Fast Engine Speed Position

Silhouette of a turtle (no text or symbols)

Slow Engine Speed Position

D - Lifting Point Decal (800/99986)

Lifting Point

E - Wheel Kit Fitment Decal (800/99420)

Please see the Fitting Instructions section of this website for explanation.

Environment

Safe Disposal.

Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities.

Component Material
Operator Handle Steel
Baseplate Steel
Eccentric Weights Steel
Vibrator Housing Aluminium
Petrol Engine Housing Aluminium
Petrol Engine Covers Synthetic Material
Various Parts Steel	& Aluminium

Reasons For Compaction

Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will lead to one or more problems occurring.

1. As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface as the material fills the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and contraction, due to ingress of water.

Safety Instructions

For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the 'PCX 17/50A' Plate compactor, consult your supervisor or Altrad Belle.

CAUTION

Improper maintenance can be hazardous. Read and Understand this section before you perform any maintenance, service or repairs.

• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorized personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
- During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and unattended.
- Never remove or tamper with any guards fitted, they are there for your protection. Always check guards for condition and security, if any are damaged or missing, DO NOT USE THE MACHINE until the guard has been replaced or repaired.
• DO NOT USE THE MACHINE when you are ill, feeling tired, or when under the influence of alcohol or drugs.

CAUTION

Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel.

Fuel Safety.

• Before refuelling, switch off the engine and allow it to cool.
- When refuelling, DO NOT smoke or allow naked flames in the area.
- Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
- Store fuel in an approved, purpose made container away from heat and ignition sources.

Vibration

Some vibration from the trowelling operation is transmitted through the handle to the operator's hands. Refer to specifications & technical data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.

PPE (Personal Protective Equipment).

Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped footwear (with anti-slip soles for added protection). Wear clothing suitable for the work you are doing. Always protect skin from contact with concrete.

Dust.

The compaction process can produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of dust being produced.

Fuel.

Do not ingest fuel or inhale fuel vapors and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes, irrigate with copious amounts of water and seek medical attention as soon as possible.

Exhaust Fumes.

Do not operate your 'PCX 17/50A' indoors or in a confined space, make sure the work area is adequately ventilated.

WARNING

The exhaust fumes produced by this equipment are highly toxic and can kill!

Pre-start Checks

Pre start-up inspection.

The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the 'PCX 17/50A' must not be used until the fault is rectified.

1. Thoroughly inspect the 'PCX 17/50A' for signs of damage. Make sure that the belt guard is secure before using the machine.
2. Check hoses, filler openings, drain plugs and any other areas for signs of leakage. Fix any leaks before operating.
3. Check the engine oil level and top up as necessary.
4. Check the engine fuel level and top up as necessary.
5. Check for fuel and oil leaks.

Operating Instructions

• Take the compactor to where it is required.

Where it is necessary to use lifting equipment to position the 'PCX 17/50A', make sure the lifting equipment has a WLL (Working Load Limit) suitable for the 'PCX 17/50A's weight (see Technical Data section or machine serial plate). Attach suitable chains or slings ONLY to the lifting point on the top of the 'PCX 17/50A'.

• NEVER leave the engine running whilst transporting or moving the 'PCX 17/50A', even if it is only a short distance.
• Having carried out the checks listed in the 'pre start' section, you may start the engine.

The Altrad Belle 'PCX 17/50A' range of compactors are fitted with a centrifugal clutch, this allows the engine to run at idle without driving the vibrator. As the engine speed is increased the clutch will engage and will drive the vibrator. For correct operation, the engine speed should be set to maximum.

- Set the throttle to maximum and use the control handle to steer or turn the 'PCX 17/50A'.

The vibrator will not only cause the baseplate to vibrate but will also cause it to travel forward. During normal operation you should not have to push the 'PCX 17/50A' but allow it to travel at its own pace. The speed of travel will be determined by the condition of the surface being compacted. If the surface to be compacted is on a slope, great care must be taken when controlling the 'PCX 17/50A's direction of travel. If necessary, use a suitable rope attached to the 'PCX 17/50A' at a low point on the chassis, to allow a helper to take part of the 'PCX 17/50A's weight. Work up and down a slope not across.

• Work the 'PCX 17/50A' over the surface in an organized pattern until the required compaction has been achieved.

Where there are a number of different layers to be compacted on top of each other, compact each layer individually.

Operating Instructions

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

Honda GX120 & GX160

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.
2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the left. If restarting a warm engine, the choke is usually not required, however, if the engine has cooled to a degree, partial choke may be required.
3. Turn the engine ON / OFF switch clockwise to the 'I' position.
4. Set the throttle to the idle position by moving the throttle lever fully to the right. Do not start the engine on full throttle, as the compactor will vibrate as soon as the engine starts.

5. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return.

6. Taking care not to pull the starter's rope fully out, pull the starter handle briskly.

7. Repeat until the engine fi res.

8. Once the engine fires gradually set the choke lever to the OFF position by moving it to the right.

9. If the engine fails to fire after several attempts, follow the Troubleshooting Guide.

10. To stop the engine, set the throttle to idle and turn the engine ON / OFF switch anticlockwise to the '0' position.

11. Turn the fuel off.

Throttle Lever Choke Lever Fuel ON/OFF Lever.

Troubleshooting Guide

Problem Cause Remedy
Engine will not start.	No fuel.	Open fuel tap.
		Fill fuel tank.
	Engine switched off. Switch engine on.
	Spark plug fouled. Clean and reset plug	gap.
	Engine cold. Close choke.
	Engine fl ooded.	Honda, open choke, fully open throttle, pull recoil starter until engine fi res.
Engine still will not start. Major Fault Contact Agent or Altrad Belle.
Unit will not vibrate.	Engine speed too slow. Set engine speed control to fast.
	Drive belt tension loose.	Adjust belt tension.
	Air filter blocked	Clean or renew air filter.
	Drive failure.	Contact Agent or Altrad Belle.
	Vibrator failure.	Contact Agent or Altrad Belle.
Asphalt adhering to plate.	Lack of lubrication.	Use a water spray system.
Bituminous surface flaking (laminating).	Over compaction.	Remove and relay.
Low travel speed (plate sinking).	Layer thickness too deep.	Remove some of the material.
	Moisture content too high or too low.	Remove material and adjust.

Maintenance

The Altrad Belle 'PCX 17/50A' range is designed to give many years of trouble free operation. It is recommended that an approved Al-trad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty.

Before any maintenance is carried out on the machine, switch off the engine and disconnect the HT lead from the sparkplug.

Always set the 'PCX 17/50A' on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart below).

Running In Period

When the 'PCX 17/50A' is first used from new, the engine oil must be changed after the initial running in period (see engine manual for full detail). The vibrator shaft case oil must be replaced after the first 100 hours use, then after every 500 working hours. For detail on vibrator shaft case oil replacement, see 'Vibrator unit'.

The belt tension should be checked after 4 hours use.

Routine Maintenance		First 4 Hours	First Month / 20 Hours	3 Months / 50 Hours	6 Months / 100 Hours
Engine Oil	Check Level	√
	Change		√		√
Air Filter	Check Condition / Clean		√		√
	Replace when necessary / Every 12 months
Spark Plug Change					√
Drive Belt Tension		√ √	√

Oil / Fuel Type & Quantity - Spark Plug Type

	Oil Type	Quantity (Gals)	Fuel Type	Capacity (Gals)	Spark Plug Type	Electrode Gap (mm)
Gasoline Honda GX120 S.A.E.	10W 30 0.15 Unleaded 0.66				BM6ES or BPR6ES	0.7 - 0.8
Gasoline Honda GX160 S.A.E.	10W 30 0.15 Unleaded 0.95				BM6ES or BPR6ES	0.6 - 0.7
Vibrator	S.A.E. 10W 40 0.08 N/A	N/A	N/A	N/A	N/A

Plug Seal Regular Level Lower part of screw thread

Vibrator Unit.

Remove the plug complete with seal, check that the oil level reaches the bottom thread on the oil plug hole. Top up as necessary with the correct oil (see chart).

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

1. Twist the Handle Latch Knob to engage the Handle Latch and lock the Handle.
2. Once the Handle is locked into place, release the Wheel Kit and slide underneath the Baseplate.
3. With the Handle still locked into place, the machine is now ready to be transported using the Wheel kit.

Warranty

Your new Altrad Belle 'PCX 17/50A' Single Direction Plate Compactor is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The Altrad Belle warranty is against defects in design, materials and workmanship.

The following are not covered under the Altrad Belle warranty:

1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

The following components are not covered by warranty.

• Drivebelt/s
  • Engine air fi Iter
  • Engine spark plug

Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.

Warranty Claims

All warranty claims should firstly be directed to Altrad Belle, either by telephone, by Fax, by Email, or in writing.

For warranty claims:

Tel: [phone] Fax: [phone] Email : [e-mail]

Write to:

Altrad Belle Inc,

3959 Electric Road,

Roanoke, Suite 360,

VA, 24018,

USA

Warranty Registration:

In the bid for ALTRAD Belle to become greener and more eco friendly, we have now introduced online Warranty registration. To access the registration page of our website, please use the following address:-

http://www.bellegroup.com/index.php?p=warranty\_registration

Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the registration page.

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.

Technical diagram of a tracked vehicle with labeled components A, B, C, D, and E

Silhouette of a rabbit in motion, no text or symbols present

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England.

Angleterre

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Silhouette of a rabbit in motion, no text or symbols present

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

Inglaterra

Registro de Garantia :

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered components and an inset view of the device's front view.

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

A - Autocolante de Segurança (Peca N.º 19.0.373)

Por Favor Leia o Manual do Operador.

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the engine compartment

1. Gashendel,
2. Choke,
3. Brandstof ON/OFF hendel,
4. Luchtfi Iter Woning,
5. Brandstoftank,
6. Uitlaat,
7. Trilelement,
8. Vibreren Petroleum Sortie Tampon,
9. Verknochtheid Top Voor Water Vaporisator Zandbank
10. Beschermingsmechanisme,
11. Zeggenschap Steel,
12. Opheffing Raamwindow,
13. Waterreservoir,
14. Oplegger Verknochtheid

Technische gegevens

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered components and an inset view of the device's internal structure.

Technical diagram of a tracked vehicle with labeled components A, B, C, D, and E

Silhouette of a rabbit in motion, no text or symbols present

Hurtig Motorhas- tighed Etiket.

Silhouette of a turtle on a plain background (no text or symbols)

Langsom Motorhas- tighed Etiket.

D - Løftepunkt Etiket (800/99986)

Løftepunkt

E - Hjul Kit Montering Etiket (800/99420)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

Garantiregistrering:

http://www.bellegroup.com/index.php?p=warranty\_registration

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered components and an inset view of the engine compartment

Technical diagram of a tracked vehicle with labeled components A, B, C, D, and E

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle on a plain background (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Gewährleistung

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

QR code image containing encoded data, no visible human-readable text

I

Technical diagram of a lawn mower with numbered parts and an inset view of the engine compartment

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle standing upright (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

Inghilterra

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

A - Säkerhetsdekal (Del nr. 19.0.373)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

Garantiregistrering:

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.

1. Gasshåndtak,
2. Choke-håndtak,
3. Drivstoffets AV-/PÅ-håndtak,
4. Luftfi Iterhylse,
5. Drivstofftank,
6. Eksos,
7. Vibrator,
8. Vibratorens oljekontrollplugg,
9. Vannoverrislingsventilens festepunkt System,
10. Reimvern,
11. Betjeningshåndtak,
12. Løftepunk,
13. Vannbeholder,
14. Transportfeste

Tekniske data

Technical diagram of a mechanical assembly with labeled parts A, B, C, D, and E

A - Sikkerhetsmerke (Del nr. 19.0.373)

Les driftshåndboka

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Tel: [phone] Fax: [phone] E-post: [e-mail]

Postadresse:

Garantiavdelingen i Altrad Belle

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

Garantiregistrering:

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

A - Turvatarra (Osa nro 19.0.373)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Silhouette of a rabbit in motion (no text or symbols)

Silhouette of a turtle (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department

Sheen, Nr. Buxton,

Derbyshire,

SK17 0EU

England.

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered components and an inset view of the device's internal structure.

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Silhouette of a rabbit in motion, no text or symbols present

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.

1. Drosseli kang,
2. Ōhuklapi kang,
3. Kütuse etteande avamise/sulgemise (ON/OFF) kang
4. Ōhufi ltri korpus,
5. Kütusepaak,
6. Summuti,
7. Vibroseade,
8. Vibraatori ölitaseme kontrollkork,
9. Veepihusti toru ühenduskoht,
10. Rihmakaitse,
11. Juhtimislook,
12. Tõstmislooka,
13. Veepaak,
14. Teisaldamiskäru

Masina kirjeldus

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

A - Ohutuskleeps (varuosa nr 19.0.373)

Lugege kasutusjuhendit

Kandke turvajalatseid

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

Garantii Registreerimine

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.

Technical diagram of a mechanical assembly with labeled parts A, B, C, D, and E

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

E-pasts: [e-mail]

Rakstiski

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

http://www.bellegroup.com/index.php?p=warranty\_registration

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered components and an inset view of the engine compartment

Technical diagram of a mechanical assembly with labeled parts A, B, C, D, and E

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

el. paštas: [e-mail]

Rašykite:

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England.

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.

Technical diagram of a mechanical device with labeled components A, B, C, D, and E

A - Знак за безопасност (Част No. 19.0.373)

Silhouette of a rabbit in motion, no text or symbols present

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Email : [e-mail]

Пишете на адрес:

Altrad Belle Warranty Department,

Sheen, Nr. Buxton,

Derbyshire,

SK17 0EU

England.

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton,

Derbyshire,

SK17 0EU

England

Registrace Záruky:

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered components and an inset view of the device's internal structure.

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England.

http://www.bellegroup.com/index.php?p=warranty\_registration

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered components and an inset view of the engine compartment

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle on a plain background (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England.

http://www.bellegroup.com/index.php?p=warranty\_registration

QR code image containing encoded data, no visible human-readable text

Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

A - Natpis za sigurnost (Dio broj 19.0.373)

Molimo pročitajte priručnik za rukovatelja

Silhouette of a turtle on a plain background (no text or symbols)

Gas Čok Gorivo ON/OFF

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton,

Derbyshire,

SK17 0EU

England.

Registracija Jamstva:

U nastojanju da ALTRAD Belle postane zeleniji i ekološki osvješteniji, uveli smo registraciju jamstva putem interenta. Kako biste pristupili našoj internetskoj stranici za registraciju, koristite sljedeću poveznicu:

http://www.bellegroup.com/index.php?p=warranty_registration.

QR code image containing encoded data, no visible human-readable text

1-01 6 1 3 7 2 4 5

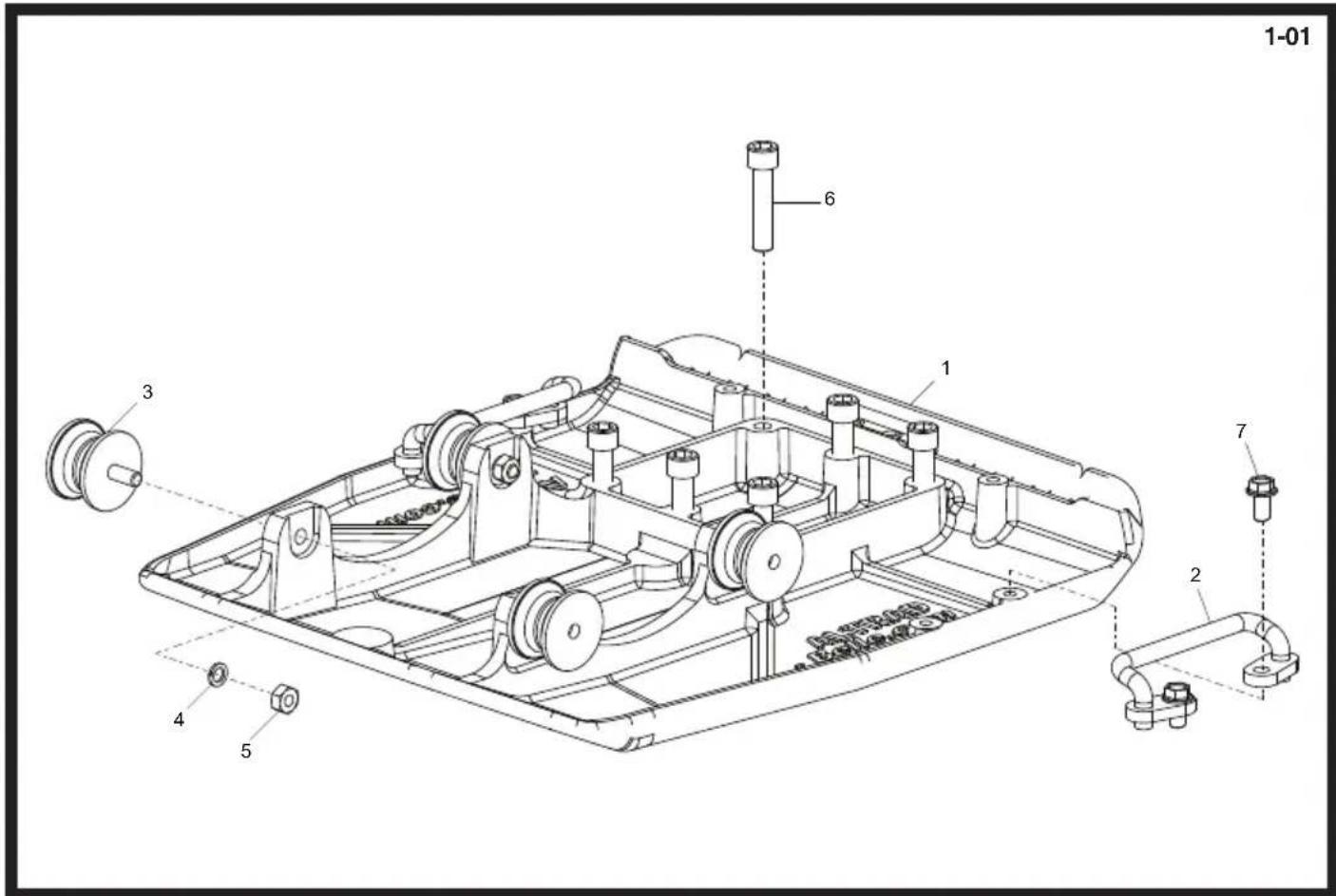

Baseplate Assembly, Plaque d'embase, Cto. Placa de Base, Conj. Place de Base

1	960/99915	Baseplate	Plaque d'embase	Placa de Base	Placa de Base	1
2	151/04800	Handle	Guidon	Manillar	Punho	2
3	21.0.298	Anti-Vibration Mount	Tampon Antivibratoire	Montura Antivibratoria	Bloco Anti-Vibração	4
4	4/1003	Washer	Rondelle	Arandela	Anilha	M10
5	8/10003	Nut	Ecrou	Tuerca	Porca	M10
6	7/14024	Screw	Vis	Tornillo	Parafuse	M14 x 60
7	7/10039	Screw	Vis	Tornillo	Parafuse	M10 x 20

1-01 6 1 3 7 2 4 5

Vloerplaat, Ruttelplatten -Zsb., Bundplade, Gruppo Piastra di Base

1	960/99915	Vloerplaat	Rüttelplatten	Bundplade	Piastra di Base	1
2	151/04800	Hendel	Griff	Händtag	Impugnatura	2
3	21.0.298	Anti-trilbevestiging	Schwingungsdämpfer	Antivibrationsophæng	Supporto antivibrazioni	4
4	4/1003	Afdichtring	Scheibe	Spændeskive	Rondella	M10
5	8/10003	Moer	Mutter	Møtrik	Dado	M10
6	7/14024	Schroef	Schraube	Skrue	Vite	M14 x 60
7	7/10039	Schroef	Schraube	Skrue	Vite	M10 x 20

Exploded view diagram of a mechanical device with numbered components for identification

2-01

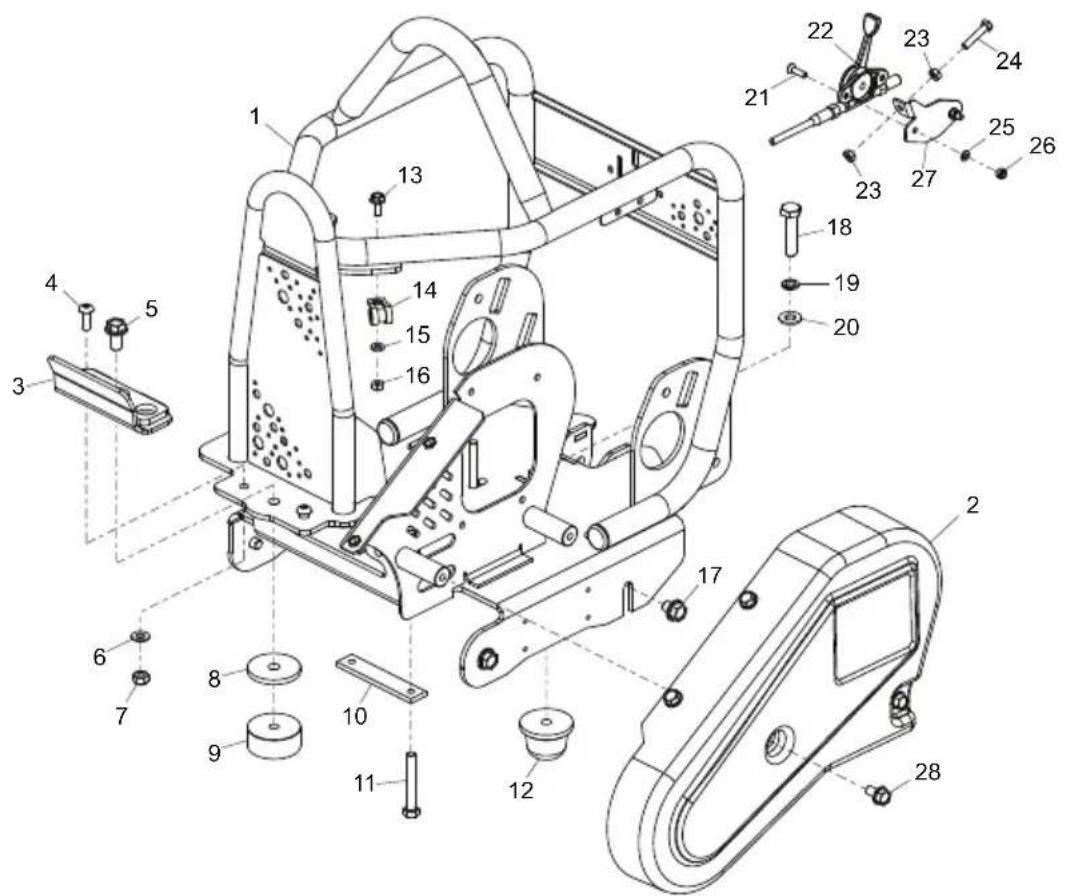

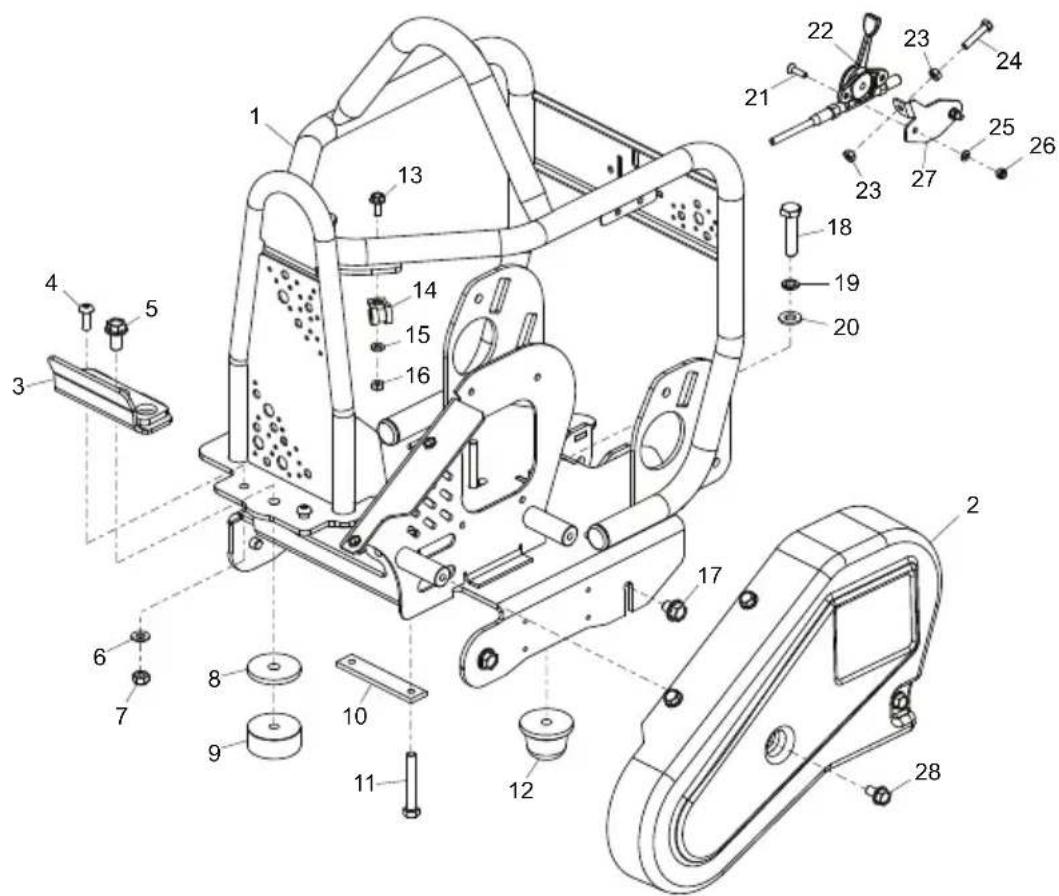

Bedplate Assembly, Ensemble Socle, Conjunto de Bancada, Conjunto da Placa de Apoio

1	960/01900	Bedplate	Plaque d'assise	Bancada	Placa de Apoio	1
2	960/99918S	Belt Guard - Orange	Capot de courroie - Orange	Protector de la correa - Naranja	Guarda da Cinta - Laranja	1
2	960/99918S	Belt Guard - Blue	Capot de courroie - Bleu	Protector de la correa - Azúl	Guarda da Cinta - Azul	1
2	960/99918S	Belt Guard - Green	Capot de courroie - Vert	Protector de la correa - Verde	Guarda da Cinta - Verde	1
2	960/99918S	Belt Guard - Red	Capot de courroie - Rouge	Protector de la correa - Roja	Guarda da Cinta - Vermelho	1
2	960/99918S	Belt Guard - Yellow	Capot de courroie - Jaune	Protector de la correa - Amarillo	Guarda da Cinta - Amarelo	1
2	960/99918S	Belt Guard - White	Capot de courroie - Blanc	Protector de la correa - Blanco	Guarda da Cinta - Branco	1
3	960/02000	Bracket	Patte de Montage	Escuadra	Suporte	1
4	7/8043	Screw	Vis	Tornillo	Parafuse	M8 x 25
5	7/10039	Screw	Vis	Tornillo	Parafuse	M10 x 20
6	4/8006	Washer	Rondelle	Arandela	Anilha	M8
7	8/8008	Nut	Ecrou	Tuerca	Porca	M8
8	960/99921	Spacer	Espaciador	Espaçador	Afstandsstuk	1
9	21/0415	Buffer	Butoir	Parachoques	Amortecedor	1
10	151.0.161	Clamp Plate	Plaque de bridge	Placa de sujeción	Placa de Aperto	2
11	9/8065	Screw	Vis	Tornillo	Parafuse	M8 x 55
12	21.0.333	Buffer	Butoir	Parachoques	Amortecedor	1
13	7/6034	Screw	Vis	Tornillo	Parafuse	M6 x
14	900/01200	P-Clip	Collier en "P"	Abrazadera "P"	Gancho "P"	1
15	4/6001	Washer	Rondelle	Arandela	Anilha	M6
16	8/6007	Nut	Ecrou	Tuerca	Porca	M6
17	7/10025	Screw	Vis	Tornillo	Parafuse	M10
18	9/10005	Bolt	Boulon	Perno	Perno	M10 x 45
19	4/1003	Washer	Rondelle	Arandela	Anilha	M10
20	4/1005	Washer	Rondelle	Arandela	Anilha	M10
21	7/5018	Screw	Vis	Tornillo	Parafuse	M5
22	21/0413	Throttle Assembly	Accélérateur	Acelerador	Montagem do Acelerador	1
23	8/6001	Nut	Ecrou	Tuerca	Porca	M6
24	7/6039	Screw	Vis	Tornillo	Parafuse	M6 x 30
25	4/5002	Washer	Rondelle	Arandela	Anilha	M5
26	8/5003	Nut	Ecrou	Tuerca	Porca	M5
27	21/0390	Bracket	Patte de Montage	Escuadra	Suporte	1
28	7/8053	Screw	Vis	Tornillo	Parafuse	M8 x 16

Exploded view diagram of a mechanical device with numbered components for identification

2-01

Exploded view diagram of a mechanical assembly with numbered parts for identification

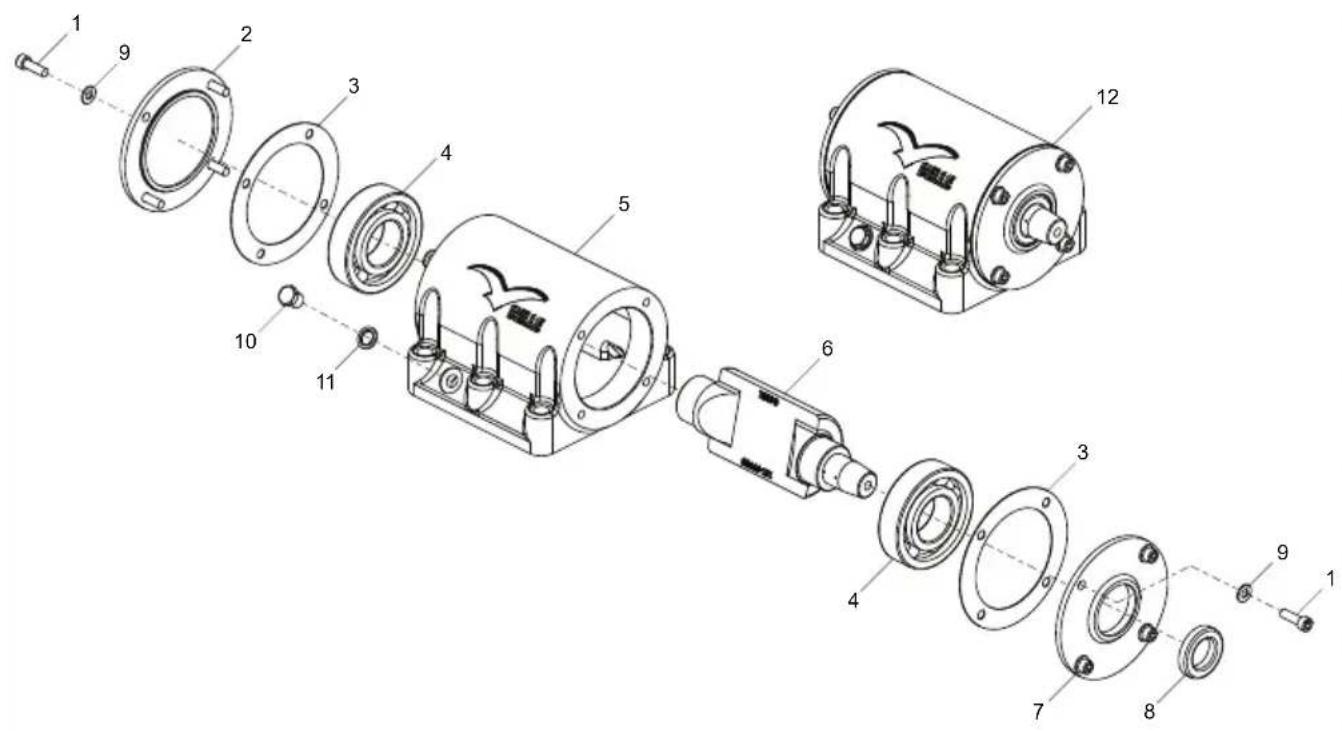

Vibrator Unit, Unité de Vibration, Unidade Vibradora, Unidade do Vibrador

1	7/8010	Screw	Vis	Tornillo	Parafuse	M8	8
2	151/99986	End Cover	Carter d'extrémité	Tapa de fondo	Tampa de extremidade		1
3	5/0069	Gasket	Joint	Junta	Gaxeta		2
4	53/0072	Bearing	Roulement	Cojinete	Rolamanto		2
5	960/99919	Housing	Carter	Alojamiento	Cárter		1
6	960/99920	Vibrator Shaft	Axe	Eje	Veio		1
7	151/99987	End Cover	Carter d'extrémité	Tapa de fondo	Tampa de extremidade		1
8	15.0.196	Oil Seal	Joint d'étanchéité à l'huile	Obturador aceite	Vedação de Óleo		1
9	4/8006	Washer	Rondelle	Arandela	Anilha	M8	8
10	MS12	Bung	Obturateur	Tapón	Tampão		1
11	5/0011	Seal	Joint d'étanchéité	Obturador	Vedação		1
12	PCX/VIB-06SP	Vibrator Unit	Unité de Vibration	Unidade Vibradora	Unidade do Vibrador		1

4-01

Exploded view diagram of a mechanical assembly with numbered parts for identification

Trilelement, Rüttlerteil, Vibratorenhed, Gruppo Vibratore

1	7/8010	Schroef	Schraube	Skrue	Vite	M8	8
2	151/99986	Einddeksel	Endschild	Endedæksel	Coperchio Estremità		1
3	5/0069	Tætningsring	Flachdichtung	Pakking	Gaurnizione		2
4	53/0072	Lager	Lager	Leje	Rolamanto		2
5	960/99919	Huis	Gehäuse	Hus	Alloggiamento		1
6	960/99920	As	Welle	Aksel	Albero		1
7	151/99987	Einddeksel	Endschild	Endedæksel	Coperchio Estremità		1
8	15.0.196	Olieafdichtring	Oldichtung	Oliepakning	Paraolio		1
9	4/8006	Afdichtring	Scheibe	Spændeskive	Cuscinetto	M8	8
10	MS12	Plug	Verschlusschraube	Prop	Candela		1
11	5/0011	Afdichtring	Dichtung	Tætning	Tenuta		1
12	PCX/VIB-06SP	Trilelement	Rüttlertiel	Vibratorenhed	Gruppo Vibratore		1

Technical diagram of a mechanical assembly with numbered components for identification

5-01

Technical diagram of a mechanical assembly with numbered components for identification

5-01

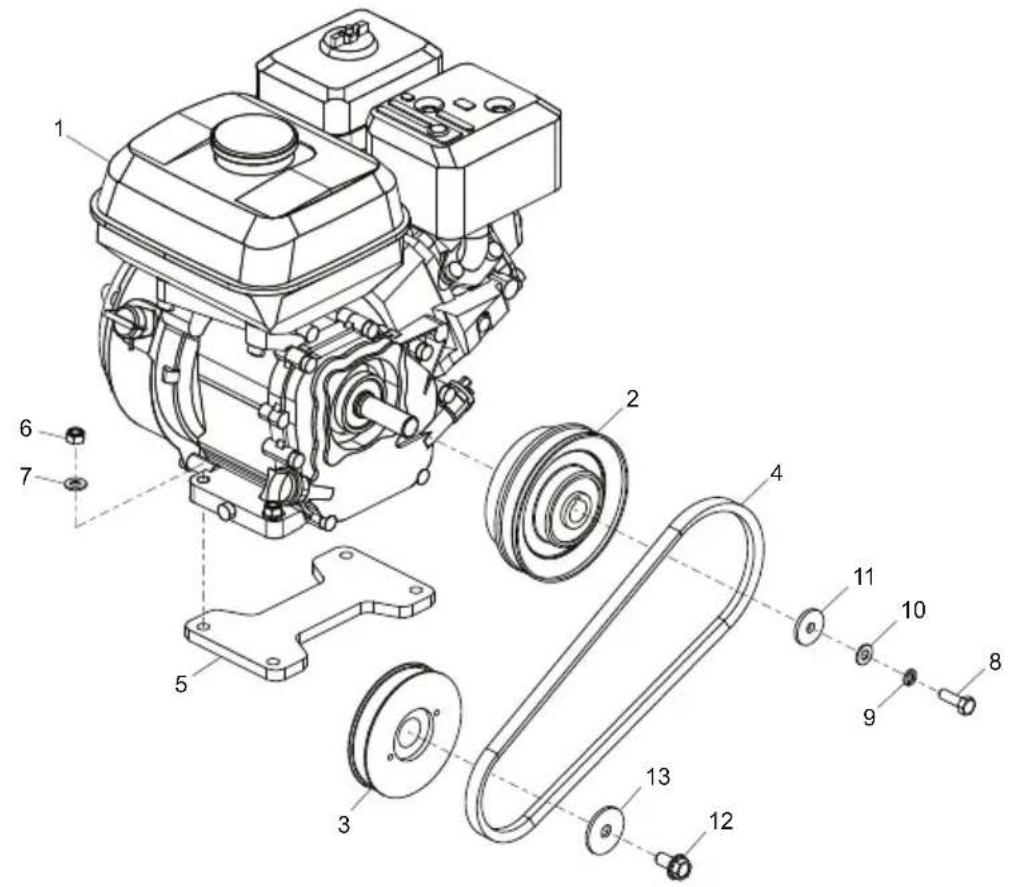

Motor en Aandrijfset, Motor und antriebsbausatz, Motor og Gearkit, Motore e Kit trasmissione

1	20/0038	Motor	Motor	Motor	Motore	Honda GX120	1
1	20/0039	Motor	Motor	Motor	Motore	Honda GX160	1
2	10.7.255	Koppeling	Kupplung	Kobling	Frizione		1
3	151/99988	Poelie	Riemenscheibe	Remskive	Puleggia		1
4	21/0352	Riem	Riemen	Remmen	Cinghia		1
5	151/99956	Afstandsstuk	Distanzstück	Afstandsstykke	Distanziale		1
6	8/8008	Moer	Mutter	Motrik	Dado	M8	4
7	4/8006	Afdichtring	Scheibe	Spændeskive	Cuscinetto	M8	4
8	02.3.020	Schroef	Schraube	Skrue	Vite		1
9	4/8003	Afdichtring	Scheibe	Spændeskive	Cuscinetto	M8	1
10	4/8006	Afdichtring	Scheibe	Spændeskive	Cuscinetto	M8	1
11	05.3.062	Afdichtring	Scheibe	Spændeskive	Cuscinetto		1
12	7/10039	Schroef	Schraube	Skrue	Vite	M10	1
13	4/1009	Afdichtring	Scheibe	Spændeskive	Cuscinetto	M10	1

6-01

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

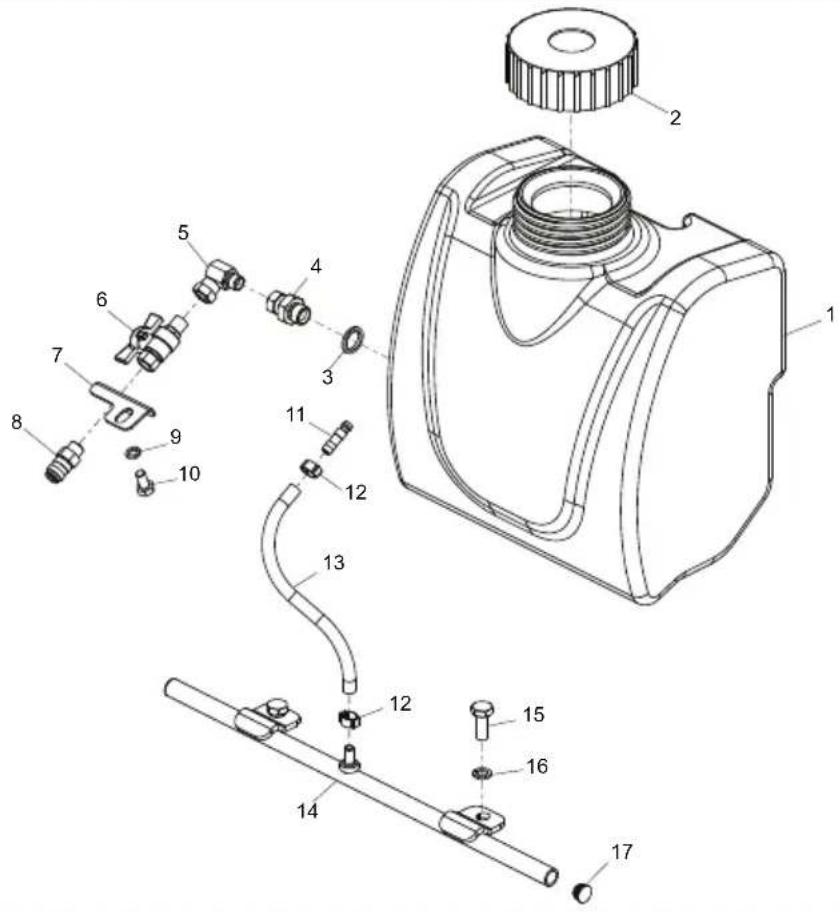

Water Bottle Assembly, Ensemble Bouteille d'eau, Conjunto Botella Agua, Conjunto da Garrafa de Água

1	943/99946S	Bottle - Orange	Bouteille - Orange	Botella - Naranja	Garrafa - Laranja	1
1	943/99946B	Bottle - Blue	Bouteille - Bleu	Botella - Azúl	Garrafa - Azul	1
1	943/99946G	Bottle - Green	Bouteille - Vert	Botella - Verde	Garrafa - Verde	1
1	943/99946R	Bottle - Red	Bouteille - Rouge	Botella - Roja	Garrafa - Vermelho	1
1	943/99946Y	Bottle - Yellow	Bouteille - Jaune	Botella - Amarillo	Garrafa - Amarelo	1
1	943/99946W	Bottle - White	Bouteille - Blanc	Botella - Blanco	Garrafa - Branco	1
2	72/0028	Cap	Capuchon	Casquete	Tampa	1
3	5/0007	Seal	Joint d'étanchéité	Obturador	Vedação	1
4	6/0146	Adapter	Adapteur	Adapter	Adaptador	1
5	6/0193	Elbow	Coude	Codo	Canto	1
6	6/0222	Ball Valve	Robinet	Válvula esférica	Válvula de Esferas	1
7	960/99909	Bracket	Patte de Montage	Escuadra	Suporte	1
8	6/0268	Coupling	Couplage	Acoplamento	Acoplamento	1
9	4/8003	Washer	Rondelle	Arandela	Anilha	M8
10	7/8008	Screw	Vis	Tornillo	Parafuso	M8
11	6/0225	Hosetail	Extrémité de tuyau	Extremo manguera	Parte Final da Tubagem	1
12	15.0.063	Clip	Collier	Presilla	Grampo	2
13	960/99910	Hose	Tuyau	Manguera	Tubagem	1
14	960/02500	Water Spray Bar	Barre d'arrosage	Barra rociado agua	Barra de Aspersão de Água	1
15	7/10005	Screw	Vis	Tornillo	Parafuso	M10
16	4/1003	Washer	Rondelle	Arandela	Anilha	M10
17	3/4040	Plug	Bougie	Tapón	Bujão	2

Exploded view diagram of a mechanical device with numbered parts for identification

6-01

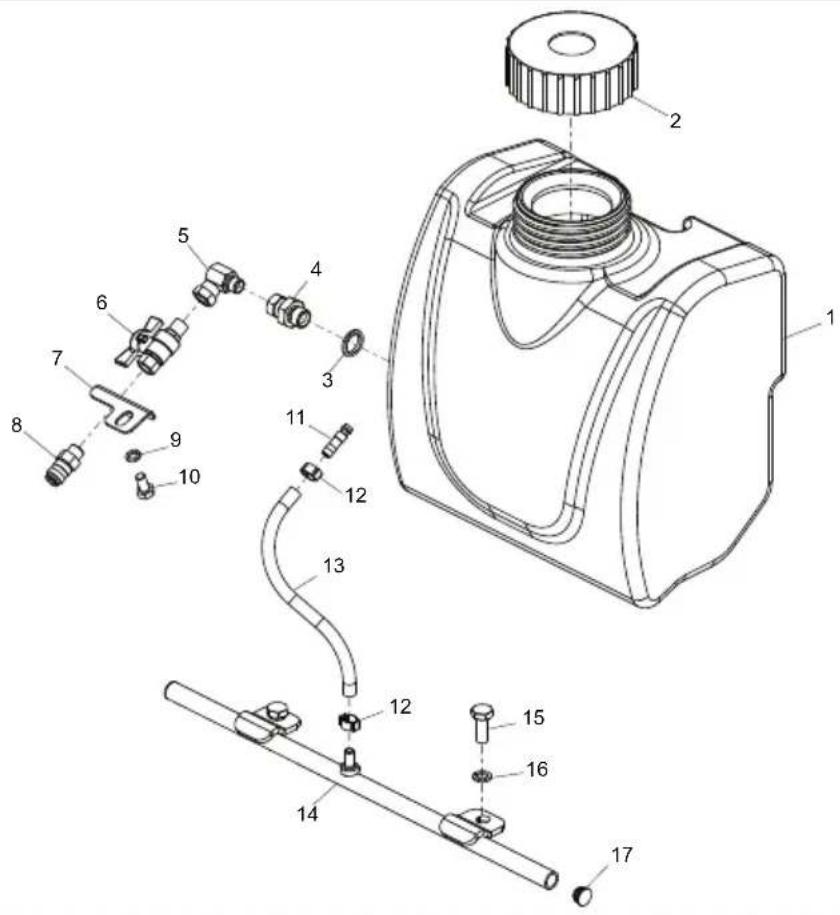

Waterreservoir, Wasserfl aschen-Zsb., Vandfl askeenhed, Gruppo Flacone Acqua

1	943/99946S	Reservoir - Orange	Flasche - Orange	Flaske - Naranja	Serbatoio - Laranja	1
1	943/99946B	Reservoir - Blue	Flasche - Bleu	Flaske - Azúl	Serbatoio - Azul	1
1	943/99946G	Reservoir - Green	Flasche - Vert	Flaske - Verde	Serbatoio - Verde	1
1	943/99946R	Reservoir - Red	Flasche - Rouge	Flaske - Roja	Serbatoio - Vermelho	1
1	943/99946Y	Reservoir - Yellow	Flasche - Jaune	Flaske - Amarillo	Serbatoio - Amarelo	1
1	943/99946W	Reservoir - White	Flasche - Blanc	Flaske - Blanco	Serbatoio - Branco	1
2	72/0028	Kap	Kappe	Hætte	Cappuccio	1
3	5/0007	Afdichtring	Dichtung	Tætning	Tenuta	1
4	6/0146	Adapter	Adapter	Adapter	Adattatore	1
5	6/0193	Elleboogstuk	Krümmer	Vinkelstykke	Gomito	1
6	6/0222	Kogelklep	Kugelventil	Kugleventil	Valvola a sfera	1
7	960/99909	Steuun	Halterung	Beslag	Staffa	1
8	6/0268	Koppeling	Kupplungsstück	Muffe	Manicotto di giunzione	1
9	4/8003	Afdichtring	Scheibe	Spændeskive	Rondella M8	1
10	7/8008	Schroef	Schraube	Skrue	Vite M8	1
11	6/0225	Slangeindstuk	Schlauchende	Extremo manguera	Raccordo per flessibile	1
12	15.0.063	Klem	Clip	Klemme	Fermaglio	2
13	960/99910	Slang	Schlauchstück	Slange	Flessibile	1
14	960/02500	Watersproeier Gelast	Sprühwasser Schweißvorrichtung	Sprinkler, Svejset Enhed	Diffusore Acqua	1
15	7/10005	Schroef	Schraube	Skrue	Vite M10	2
16	4/1003	Afdichtring	Scheibe	Spændeskive	Rondella M10	2
17	3/4040	Plug	Verschlussschraube	Prop	Candela	2

Technical diagram of a vehicle chassis with numbered components for identification

7-01

Transporter Attachment, Fixation de transporteur, Conexión para transportador, Acessório do Transportado

1	960/02400	Transporter Weldment	Assemblage soudé	Cjto. Transportador soldado	Soldadura do Transportador
			de transporteur			1
2	19.0.603	Wheel	Roue	Rueda	Roda	2
3	00011	Cap	Capuchon	Casquete	Tampa	2
4	9/10011	Bolt	Boulon	Perno	Perno	1
5	4/1005	Washer	Rondelle	Arandela	Anilha	M10
6	960/99924	Boss	Bossage	Resalte	Cubo	1
7	8/10006	Nut	Ecrou	Tuerca	Porca	1
8	7/8011	Screw	Vis	Tornillo	Parafuso	M8 x 20
9	4/8006	Washer	Rondelle	Arandela	Anilha	M8
10	8/8008	Nut	Ecrou	Tuerca	Porca	M8
11	960/99923	Bracket	Patte de Montage	Escuadra	Suporte	1
12	9/6031	Bolt	Boulon	Perno	Perno	M6 x 55
13	96099925	Boss	Bossage	Resalte	Cubo	1
14	960/99926	Latch	Verrou	Cerrojo	Trinco	1
15	7/5002	Screw	Vis	Tornillo	Parafuso	2
16	4/5002	Washer	Rondelle	Arandela	Anilha	4
17	8/5003	Nut	Ecrou	Tuerca	Porca	M5
18	4/6001	Washer	Rondelle	Arandela	Anilha	M6
19	8/6007	Nut	Ecrou	Tuerca	Porca	M6

Technical diagram of a vehicle chassis with numbered components for identification

7-01

Transporthulpstuk, Transportvorrichtung, Transportørudstyr, Trasportatore

1	960/02400	Transportframe	Transportvorrichtung	Transportørsvejsning	Saldatura del Trasportatore	1
2	19.0.603	Wiel	Rad	Hjul	Ruota	2
3	00011	Kap	Kappe	Hætte	Cappuccio	2
4	9/10011	Bouten	Bolzen	Skruebolt	Bullone	1
5	4/1005	Afdichtring	Scheibe	Spændeskive	Cuscinetto	M10
6	960/99924	Naaf	Knauf	Studs	Borchia	1
7	8/10006	Moer	Mutter	Møtrik	Dado	1
8	7/8011	Schroef	Schraube	Skrue	Vite	M8 x 20
9	4/8006	Afdichtring	Scheibe	Spændeskive	Cuscinetto	M8
10	8/8008	Moer	Mutter	Møtrik	Dado	M8
11	960/99923	Steun	Halterung	Beslag	Staffa	1
12	9/6031	Bouten	Bolzen	Skruebolt	Bullone	M6 x 55
13	96099925	Naaf	Knauf	Studs	Borchia	1
14	960/99926	Grendel	Riegel	Grendel	Dispositivo di bloccaggio	1
15	7/5002	Afdichtring	Scheibe	Spændeskive	Cuscinetto	2
16	4/5002	Afdichtring	Scheibe	Spændeskive	Cuscinetto	4
17	8/5003	Moer	Mutter	Møtrik	Dado	M5
18	4/6001	Afdichtring	Scheibe	Spændeskive	Cuscinetto	M6
19	8/6007	Moer	Mutter	Møtrik	Dado	M6

8-01

Technical diagram of a lawn mower with numbered parts for identification

Decals, Autocollant, Rótulo, Decalque

1	800/99548	Decal	Autocollant	Rótulo	Decalque	PCX 17/50A	1
2	800/99951	Decal - Noise	Autocollant - Bruits	Rótulo - Ruidos	Decalque - Ruído	105 dB(A)	1
3	19.0.373	Decal - Warning	Autocollant - Avertissement	Rótulo - Aviso	Decalque - Aviso		1
4	800/99986	Decal	Autocollant	Rótulo	Decalque	Lifting Point	1
5	800/99649	Decal	Autocollant	Rótulo	Decalque	Throttle Lever	1
6	800/99420	Decal	Autocollant	Rótulo	Decalque	Wheel Kit Fitment	1
7	800/99743	Decal	Autocollant	Rótulo	Decalque	Engine On/Off	1
8	800/99533	Decal	Autocollant	Rótulo	Decalque	No Lifting	1

8-01

Technical diagram of a lawn mower with numbered parts for identification

Label, Abziehbild, Skilt, Decalcomania

1	800/99548	Label	Abziehbild	Skilt	Decalcomania	PCX 17/50A	1
2	800/99951	Label - Guluid	Abziehbild - Geräuschpegelschild	Skilt - Skilt Stoj	Decalcomania - Sulla rumorosità	105 dB(A)	1
3	19.0.373	Label - Waarschuwing	Abziehbild - Warnung	Skilt - Advarsel	Decalcomania - Avvertenza		1
4	800/99986	Label	Abziehbild	Skilt	Decalcomania	Lifting Point	1
5	800/99649	Label	Abziehbild	Skilt	Decalcomania	Throttle Lever	1
6	800/99420	Label	Abziehbild	Skilt	Decalcomania	Wheel Kit Fitment	1
7	800/99743	Label	Abziehbild	Skilt	Decalcomania	Engine On/Off	1
8	800/99533	Label	Abziehbild	Skilt	Decalcomania	No Lifting	1

Abstract gray curved shape on white background (no text or symbols)
