BELLE PCLX 320 - Vibratory plate Lescha - Free user manual and instructions

Product type	Vibratory plate
Brand	Lescha
Model	BELLE PCLX 320
Dimensions (L x W x H) in operation	990 x 320 x 927 mm
Weight	62 kg
Engine	Honda GXR120
Power	3.1 Hp / 2.3 kW
Engine speed	3850 rpm
Fuel type	Unleaded gasoline
Fuel tank capacity	2.0 L
Engine oil type	SAE 10W30
Engine oil capacity	0.6 L
Vibrator oil type	Turbine oil 32
Vibrator oil capacity	0.22 L
Vibratory force	13 kN
Vibration frequency	101 Hz
Max travel speed	20 m/min
Sound level (LWA)	105 dB(A)
Vibrations (HAV) on 3 axes	2.42 m/s²
Max daily usage time	10.7 hours
Base plate	Dual Force (compliant with NRSWA/HAUC)
Applications	Cohesive soils, granular soils, bituminous materials
Safety	Mandatory PPE: helmet, shoes, gloves, goggles, mask
Warranty	12 months (parts and labor)
Spare parts	Original Belle only

Frequently Asked Questions - BELLE PCLX 320 Lescha

How to start the BELLE PCLX 320 vibratory plate?

Open the fuel valve (lever on the right). If engine is cold, engage the choke (lever on the right). Turn the on/off switch to 'I'. Set the throttle to idle (lever on the left). Pull the recoil starter until resistance, then pull sharply. Once started, gradually return the choke to 'off'. The centrifugal clutch engages the plate as the engine speed increases.

How to stop the vibratory plate?

Set the throttle to idle and let it run for 2 minutes. Turn the on/off switch to '0'. Close the fuel valve. Wait for cooling before storing.

What oil to use for the engine and vibrator?

For the Honda GXR120 engine: SAE 10W30 oil, capacity 0.6 L. For the vibrator: turbine oil 32, capacity 0.22 L. Check levels regularly.

What fuel to use and what is the runtime?

Use unleaded gasoline. The tank has a capacity of 2.0 L, allowing approximately 10.7 hours of continuous operation.

What regular maintenance is required?

Check engine oil level every 4h. Change engine oil after 20h, then every 100h. Clean air filter every 50h. Check spark plug every 100h. Check belt tension every 4h. Use original parts.

What protective equipment to wear?

Always wear steel-toe shoes, ear protection, safety glasses, gloves, dust mask, and fitted clothing. Tie back long hair and do not wear jewelry.

What to do if the plate does not vibrate?

Check that the engine speed is at maximum. If the belt is loose, adjust its tension. Check the air filter and clean it. If the problem persists, contact an authorized Altrad Belle dealer.

What is the 'Dual Force' plate?

The Dual Force base plate is patented. It offers two stages of compaction: first over the entire surface, then by lifting the base to increase pressure by 3 to 4 times, reaching 1400-1800 kg/m², compliant with NRSWA/HAUC standard.

How to transport the vibratory plate?

Never lift alone (weight 62 kg). Use appropriate lifting equipment attached to the upper lifting point. Attach slings only to designated points. Always turn off the engine before moving.

How to adjust the drive belt tension?

Turn off the engine and remove the cover. Tension should be checked every 4h. If too loose, loosen the engine bolts, slide the engine to tighten the belt, then retighten. Consult the manual for precise values.

USER MANUAL BELLE PCLX 320 Lescha

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

2

UKCA Declaration of Conformity

3 - 22

EC Declaration of Conformity

GB Operators Manual
US Operators Manual
F Manuel De L'Opérateur
E Manual del Operador
P Manual de Operação
NL Handleiding
DK Betjeningsvejledning
D Bedienungshandbuch
① Manuale Dell'Operatore
s Bruksanvisning
NO Betjene Håndbok
SF Käyttöohje
PL Instrukcja Obstugi
RUS Руководство для оператора
EST Kasutusjuhend
LV Lietotāja rokasgrāmata
LT Naudojimo Instrukcija
BG Оператор Ръчен
cz Na'vod K Obzluze
RO Manual de Utilizare
HUN Kezelők Kézi
HR Uputstvo za rukovatelja
24
33
42
51
60
69
78
87
96
105
114
123
132
141
150
159
168
177
186
195
204
213

BELLE

LIGHT

CONSTRUCTION

EQUIPMENT

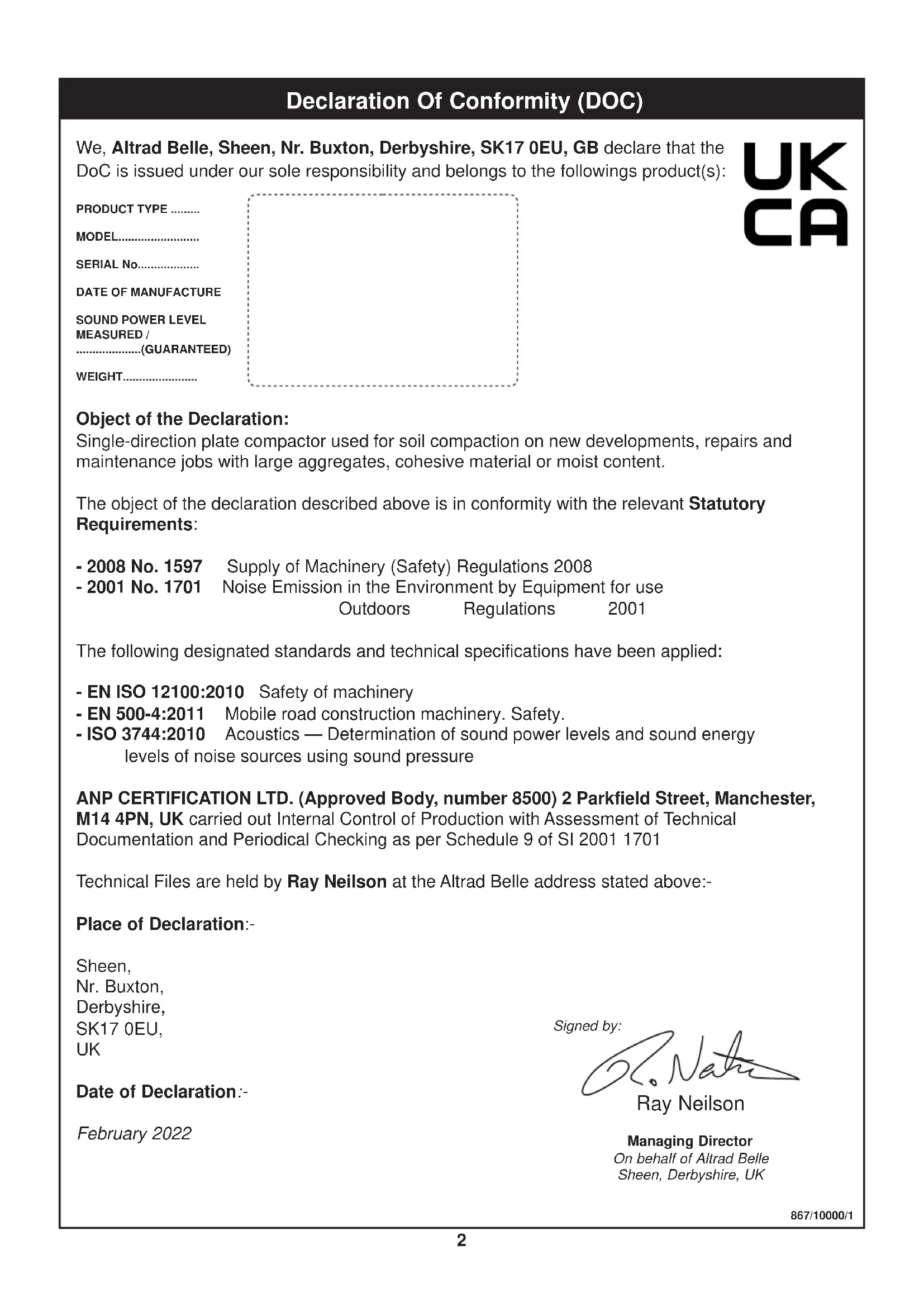

Declaration Of Conformity (DOC)

We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s):

UK CA

PRODUCT TYPE ......

MODEL......

SERIAL No......

DATE OF MANUFACTURE

SOUND POWER LEVEL MEASURED / ........(GUARANTEED)

WEIGHT......

Object of the Declaration:

Single-direction plate compactor used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.

The object of the declaration described above is in conformity with the relevant Statutory Requirements:

- 2008 No. 1597 Supply of Machinery (Safety) Regulations 2008

- 2001 No. 1701 Noise Emission in the Environment by Equipment for use

Outdoors

Regulations

2001

The following designated standards and technical specifications have been applied:

- EN ISO 12100:2010 Safety of machinery

- EN 500-4:2011 Mobile road construction machinery. Safety.

- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure

ANP CERTIFICATION LTD. (Approved Body, number 8500) 2 Parkfield Street, Manchester, M14 4PN, UK carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Schedule 9 of SI 2001 1701

Technical Files are held by Ray Neilson at the Altrad Belle address stated above:-

Place of Declaration:-

Sheen,

Nr. Buxton,

Derbyshire,

SK17 0EU,

UK

Date of Declaration:-

February 2022

Signed by:

Ray Neilson

Managing Director

On behalf of Altrad Belle

Sheen, Derbyshire, UK

We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s):

CE

PRODUCT TYPE ......

MODEL......

SERIAL No......

DATE OF MANUFACTURE.....

SOUND POWER LEVEL MEASURED / ......(GUARANTEED)

WEIGHT......

Object of the Declaration:

Single-direction plate compactor used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.

The object of the declaration described above is in conformity with the relevant Union Harmonisation Legislation:

- 2006/42/EC New machinery directive

- 2000/14/EC Noise - equipment for use outdoors

The following harmonised standards and technical specifications have been applied:

- EN ISO 12100:2010 Safety of machinery

- EN 500-4:2011 Mobile road construction machinery. Safety.

- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure

VINÇOTTE nv/sa (NB0026) carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Annex VI of 2000/14/EC

Technical Files are held by Hugues Menager at the following address:-

Altrad (Group Holding), 125 Rue du Mas Carbonnier, 34000, Montpellier, France.

Place of Declaration:-

Sheen,

Nr. Buxton,

Derbyshire,

SK17 0EU,

UK

Date of Declaration:-

April 2021

Signed by:

Ray Neilson

Managing Director

On behalf of Altrad Belle

Sheen, Derbyshire, UK

Single-direction plate compactor used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.

- 2006/42/EC Directive relative aux machines

Sheen, Derbyshire, R.-U.

Ray Neilson

Director General

Por Altrad Belle

Sheen, Derbyshire, Reino Unido

O.Nathi Ray Neilson

Directeur

Namens Altrad Belle

Sheen, Derbyshire, VK

PRODUKTIONSDATO......

LYDNIVEAU VED DRIFT MÄLT /......(GARANTERET)

VÆGT......

Se side 3 for denne information

Dr. Nath Ray Neilson

O. Nath Ray Neilson

O. Nath Ray Neilson

Dr. Nath Ray Neilson

Sheen, Derbyshire, UK

Dr. Nath Ray Neilson

VALMISTUSPÄIVÄ......

ÄÄNITEHOTASO MITATTU / ....(TAATTU)

PAINO ....

Sheen, Derbyshire, UK

Ray Neilson

Sheen, Derbyshire, UK"

866/10000/0_PL

Deklareeritav toode:

Ray Neilson

Tegevdirektor

Altrad Belle, Sheen, Derbyshire, Suurbritannia, nimel

Mês, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, Great Britain, apliecinâm, ka DoC ir izsniegta tikai par mūsu atbildību un attiecas uz šādiem produktiem:

CE

PRODUKTA VEIDS......

MODELIS

SĒRIJAS Nr.

RAŽOŠANAS DATUMS......

TROKŠNA LİMENIS ...... MĚRĪTS /......(GARANTĒTS)

SVARS

Dr. Nath Ray Neilson

Rikotajdirektors

Dr. Nath Ray Neilson

Generalinis direktorius

„Altrad Belle“,

Sheen, Derbyshire, UK

866/10000/0_CZ

Subsemnații, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU,

Dr. Nath Ray Neilson

Ügyvezető igazgató

Az Altrad Belle

Dr. Nath Ray Neilson

Generalni direktor

U ime društva Altrad Belle

Sheen, Derbyshire, Ujedinjena Kraljevina

THIS PAGE HAS BEEN LEFT INTENTIONALLY BLANK

This manual has been written to help you operate and service the 'PCLX' Plate compactor safely. This manual is intended for dealers and operators of the 'PCLX' Plate compactor.

Foreword

The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls.

The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.

The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public.

The ‘Operating Instructions’ section helps you with the setting up and use of the machine.

The ‘Trouble Shooting Guide’ helps you if you have a problem with your machine.

The 'Service & Maintenance' section is to help you with the general maintenance and servicing of your machine.

The 'Warranty' Section details the nature of the warranty cover and the claims procedure.

The 'Dual Force' section shows the compaction specification the machine can achieve.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

CAUTION

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way.

WARNING

The life of the operator can be at risk.

WARNING

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

KNOW how to safely use the unit's controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the machine off before you switch on, in case you get into difficulty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): [phone]

Contents

How to use this manual....24

Warning 24

Machine Description....25

Technical Data....25

Decals....26

Environment 27

Reasons For compaction 27

Compaction Specification....27

Applications 28

Safety Instructions....28

Health and Safety....29

Pre-Start Checks....29

Operating Instructions 29 - 30

Trouble Shooting Guide ....30

Service & Maintenance ....31

'Dual Force' / HAUC / NRSWA Certificate 32

Warranty 32

Replacement Parts....32

UKCA Declaration Of Conformity (DOC)....2

EC Declaration Of Conformity (DOC)....3

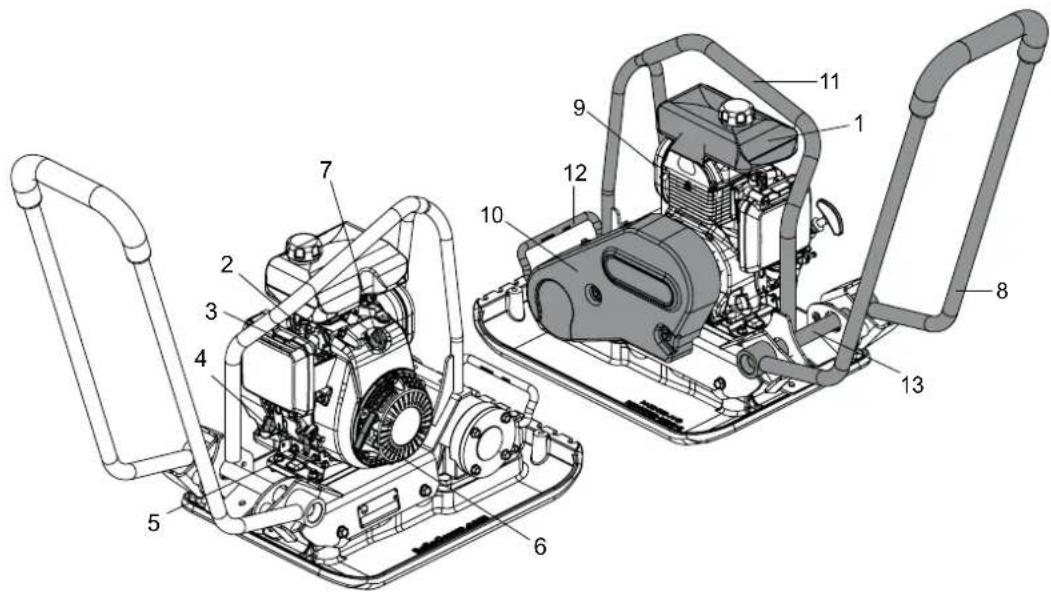

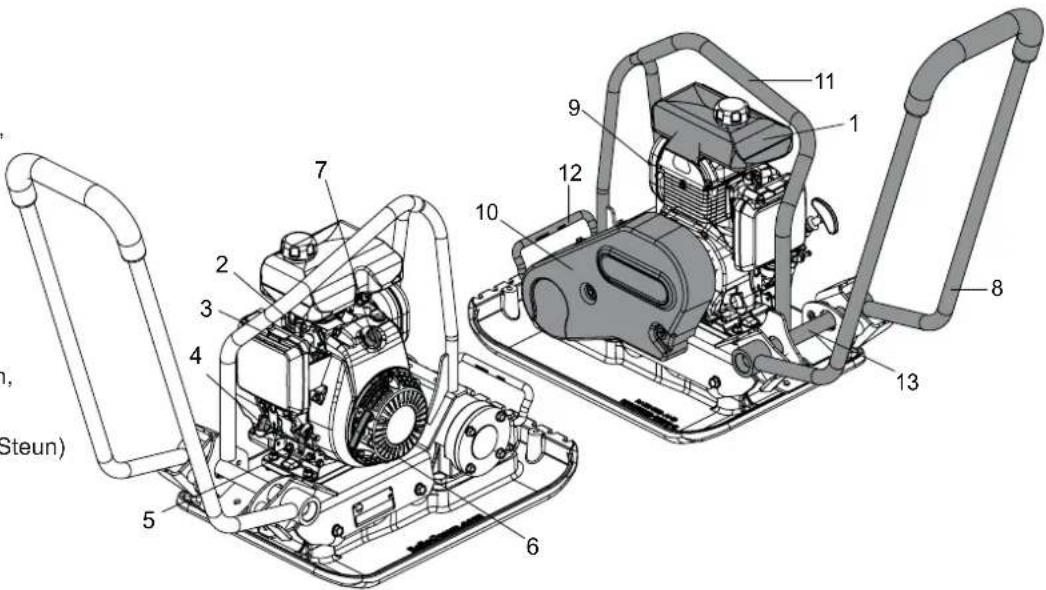

Machine Description

1. =Fuel Tank,
2. =Choke Lever,
3. =Fuel ON/OFF Lever,
4. =Engine Oil Filler / Dipstick,
5. =Throttle Lever,
6. =Recoil Starter Handle,
7. =Engine ON/OFF Switch
8. =Operating Handle,
9. =Exhaust,
10. Belt Guard,
11. Mechanical Hoist Lifting Point,
12. Hand Lifting Point
13. Hand Lifting Point (Strut)

DO NOT use a Mechanical Hoist on the Hand Lifting Points (No's 12 & 13)

Technical diagram of a mechanical device with numbered components for identification

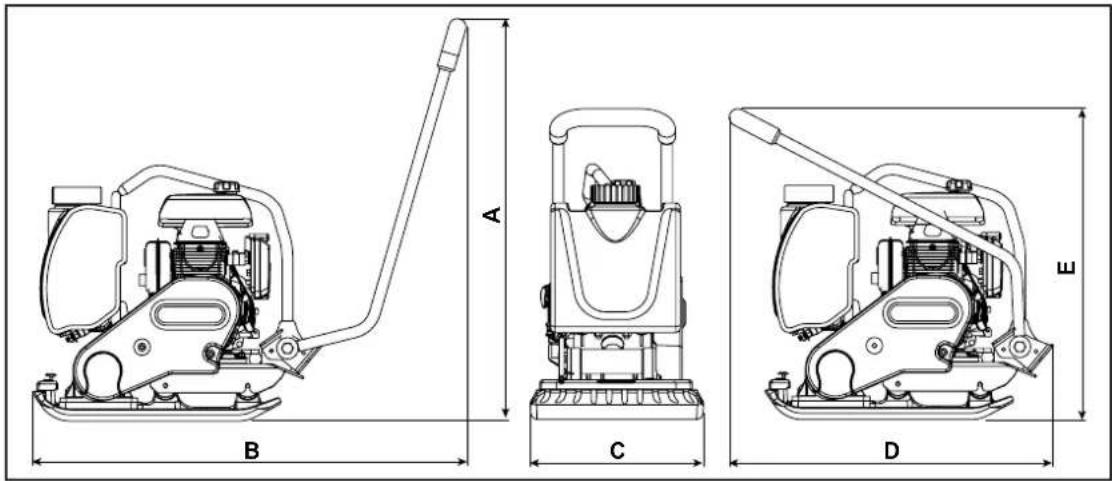

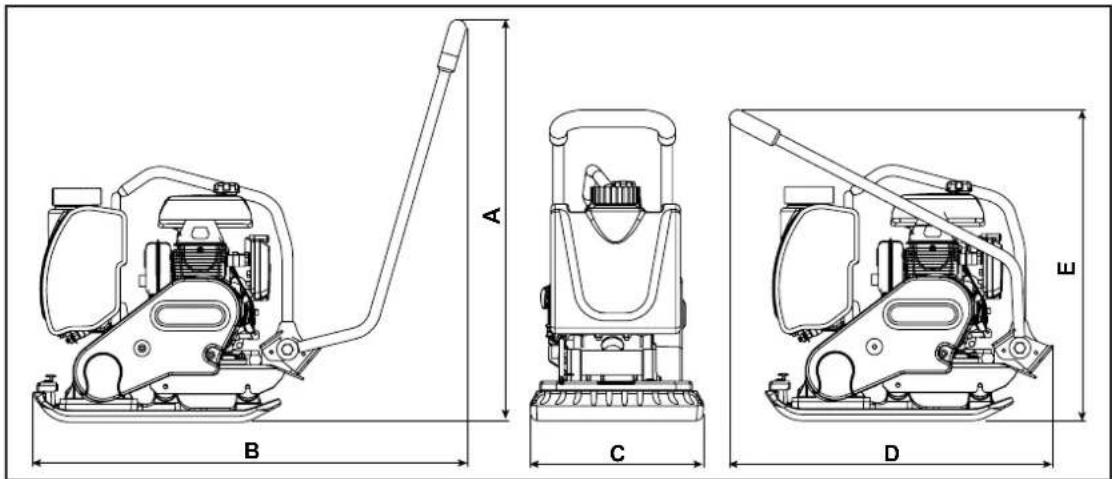

Technical Data

A B C D E

Model	PCLX320
A - Height - Operation (mm) =927 =928 =927
B - Length - Operation (mm) =990 =875 =990
C - Width (mm) =320 =320 =400
D - Length - Storage (mm) =790 =775 =790
E - Height - Storage (mm) =570 =590.5 570
Engine Power (Hp / kW)	3.1 / 2.3
Engine RPM	3850rpm
* Weight (kg)	62	65	66.5
Vibrator Force (kN)	13	13	13
Frequency (Hz)	101 =101 =101
Maximum Travel Speed (m/min)	20	18	20
Compaction Force (kg/m2)	398	1611	336
** 3 Axis Vibration (m/sec2)	2.42	2.14	2.48
Usage Time (Hrs)	10.7	11.4	10.2
Sound Power Level (LWA)	105dB(A)	105dB(A)	105dB(A)

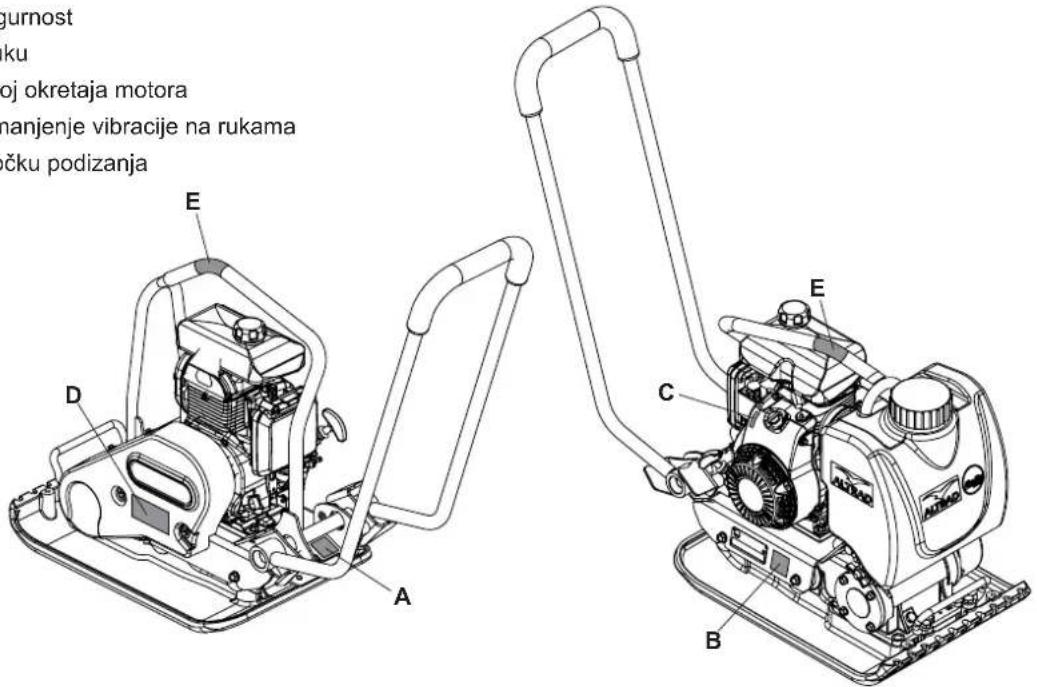

A. Safety Decal
B. Noise Decal
C. Engine RPM Decal
D. Low HAV Decal
E. Lifting Point Decal

M Decal Decal Decal A B C D E

A - Safety Decal (Part No. 19.0.373)

Simple line drawing of an open book with no text or symbols visible

Please Read Operators Manual

Silhouette of a boot with a curved handle, no text or symbols present

Wear Protective Footwear

Simple line drawing of a person wearing headphones (no text or symbols)

Wear Ear Protection

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Wear Eye Protection

B - Noise Decal (800-99942)

The Noise Level of the machine during operation is 105 dB(A)

C - Engine RPM Decal

Silhouette of a rabbit in motion, no text or symbols present

Fast Engine Speed Position

Silhouette of a turtle (no text or symbols)

Slow Engine Speed Position

D - Low HAV Decal (800-99954)

The machine has a UK design which reduces HAV levels allowing a greater Usage Time.

E - Lifting Point Decal

Symbol of a hook with an upward arrow inside a circle (no text or numbers present)

Lifting Point

Environment

Safe Disposal.

Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities.

Component	Material
Operator Handle Steel
Hand Grip Rubber
Base Plate Steel
Eccentric weights Steel
Petrol engine housing Aluminium
Petrol engine covers Synthetic material
Various parts Steel & Aluminium

Reasons For Compaction

Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will lead to one or more problems occurring.

1. As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface as the material fills the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and contraction, due to ingress of water.

Compaction Specification

Various methods have been employed in the past to specify the compaction required for various applications. The factors to consider are, material properties, layer thickness, pressure applied, vibration and number of passess. Greater understanding of how compaction works has lead to new compaction specifications being introduced. The most up to date specification is part of the U.K.'s NRSWA (New Roads & Street Works Act). Civil Engineers are now adopting these specifications to ensure good compaction for all site work.

NRSWA (HAUC specification).

The specification was compiled by HAUC (Highways Authorities & Utilities Committee). The 'New Roads and Street Works Act 1991, set a new standard for road repairs and reinstatements in the UK. It covers materials, methods, equipment and safety when carrying out reinstatements on roads and footways. The reason for the act is to ensure repairs and reinstatements are carried out to a higher standard and ultimately last longer. This in turn will reduce the need for costly remedial work and reduce traffic delays.

There are two categories specified for plate compactors.

1. 1400 to 1800kg/m² 2. Over 1800kg/m²

These figures relate to the static pressure applied by the machine

NOTE: No standard single direction plate compactors comply with this minimum specification. For highways work always use a 'Dual Force' plate compactor.

DUAL FORCE

Altrad Belle studied the act then developed equipment to enable contractors to comply with the act's requirements. The NRSWA legislation requires that compaction equipment meets the minimum specification. By purchasing an Altrad Belle 'Dual Force' plate, you are immediately complying with this part of the act. To comply with the specification and maintain surface tolerance, Altrad Belle 'Dual Force' base plates are divided into two areas providing two stages of compaction.

Stage 1 Stage 2

Stage 1: The full base area compacts the material like a standard machine.

Stage 2: The base rises onto the 'Dual Force' section to give 3 to 4 times the compaction force of standard plates.

Applications/materials fall into three categories:

1. Cohesive materials (less than 20% granular) e.g clay, silt & heavy soils.
2. Granular materials (more than 20% granular) e.g hard core, sand & light soils.
3. Bituminous materials e.g asphalt (tarmac), cold lay (bitumin emulsion products).

The chart shows the HAUC specifications for layer depth and number of passes for Dual Force' plates. If standard machines are used, optimum compaction can not be guaranteed, however, if layer depths are reduced and number of passes increased, results can be improved.

Moisture content of cohesive & granular materials is critical to effective compaction. If granular material is too dry it will flow around the plate instead of compacting. If the moisture content is too high the material may dry out after compaction and shrinkage will occur.

1400 -1800 kg/m2	COMPACTION PASSESS REQUIRED PER LAYER OF COMPACTED THICKNESS UP TO.
40MM 60MM 80MM 100MM		150MM	200MM
Cohesive Materials**		-*	-*	-*	NP	NP	NP
Granular Materials		-*	-*	-*	5	NP	NP
Bituminous		6	NP	NP	NP	NP	-

* Usually placed in 100mm minimum layer so not specified by HAUC.
** The nature of cohesive materials makes plate compaction difficult. Optimum compaction is not guaranteed and not recommended by HAUC.

Safety Instructions

For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the 'PCLX' Plate compactor, consult your supervisor or Altrad Belle.

CAUTION

Improper maintenance can be hazardous. Read and Understand this section before you perform any maintenance, service or repairs.

• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorized personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
- During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and unattended.
- Never remove or tamper with any guards fitted, they are there for your protection. Always check guards for condition and security, if any are damaged or missing, DO NOT USE THE MACHINE until the guard has been replaced or repaired.
• Do not operate the MACHINE when you are ill, feeling tired, or when under the influence of alcohol or drugs.

CAUTION

Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel.

Fuel Safety.

• Before refuelling, switch off the engine and allow it to cool.
- When refuelling, DO NOT smoke or allow naked flames in the area.
- Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
- Store fuel in an approved, purpose made container away from heat and ignition sources.

Health & Safety

Vibration

Some vibration from the trowelling operation is transmitted through the handle to the operator's hands. Refer to specifications & technical data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.

PPE (Personal Protective Equipment).

Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped footwear (with anti-slip soles for added protection). Wear clothing suitable for the work you are doing. Always protect skin from contact with concrete.

Dust.

The compaction process can produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of dust being produced.

Fuel.

Do not ingest fuel or inhale fuel vapors and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes, irrigate with copious amounts of water and seek medical attention as soon as possible.

Exhaust Fumes.

Do not operate your 'PCLX' indoors or in a confined space, make sure the work area is adequately ventilated.

WARNING

The exhaust fumes produced by this equipment are highly toxic and can kill!

Pre-start Checks

Pre start-up inspection.

The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the 'PCLX' must not be used until the fault is rectified.

1. Thoroughly inspect the 'PCLX' for signs of damage. Make sure that the belt guard is secure before using the machine.
2. Check hoses, filler openings, drain plugs and any other areas for signs of leakage. Fix any leaks before operating.
3. Check the engine oil level and top up as necessary.
4. Check the engine fuel level and top up as necessary.
5. Check for fuel and oil leaks.

Operating Instructions

• Take the compactor to where it is required.

Where it is necessary to use lifting equipment to position the 'PCLX', make sure the lifting equipment has a WLL (Working Load Limit) suitable for the 'PCLX's weight (see Technical Data section or machine serial plate). Attach suitable chains or slings ONLY to the lifting point on the top of the 'PCLX'.

• NEVER leave the engine running whilst transporting or moving the 'PCLX', even if it is only a short distance.
• Having carried out the checks listed in the 'pre start' section, you may start the engine.

The Altrad Belle 'PCLX' range of compactors are fitted with a centrifugal clutch, this allows the engine to run at idle without driving the vibrator. As the engine speed is increased the clutch will engage and will drive the vibrator. For correct operation, the engine speed should be set to maximum.

- Set the throttle to maximum and use the control handle to steer or turn the 'PCLX'.

The vibrator will not only cause the baseplate to vibrate but will also cause it to travel forward. During normal operation you should not have to push the 'PCLX' but allow it to travel at its own pace. The speed of travel will be determined by the condition of the surface being compacted. If the surface to be compacted is on a slope, great care must be taken when controlling the 'PCLX's direction of travel. If necessary, use a suitable rope attached to the 'PCLX' at a low point on the chassis, to allow a helper to take part of the 'PCLX's weight. Work up and down a slope not across.

• Work the 'PCLX' over the surface in an organized pattern until the required compaction has been achieved.

Where there are a number of different layers to be compacted on top of each other, compact each layer individually.

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

1. Fuel Tank,
2. Choke Lever,
3. Fuel ON/OFF Lever,
4. Engine Oil Filler / Dipstick,
5. Throttle Lever,
6. Recoil Starter Handle,
7. Engine ON/OFF Switch

Stopping the engine

1. To stop the engine, set the throttle to idle. Allow the engine to idle for at least 2 minutes
2. Turn the engine ON / OFF switch anti-clockwise to the '0' position.
3. Turn the fuel off.

Starting the engine

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.
2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the right. If restarting a warm engine, the choke is usually not required, however, if the engine has cooled to a degree, partial choke may be required.
3. Turn the engine ON / OFF switch clockwise to the 'I' position.
4. Set the throttle to the idle position by moving the throttle lever fully to the bottom.
5. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return.
6. Taking care not to pull the starter's rope fully out and pull the starter handle briskly.
7. Repeat until the engine fires.
8. Once the engine fires gradually set the choke lever to the OFF position by moving it to the left.
9. If the engine fails to fire after several attempts, follow the trouble-shooting guide.
10. Due to the centrifugal clutch, the plate will not vibrate until the engine speed is increased.

Troubleshooting Guide

Problem Cause Remedy
Engine will not start. No fuel. Fill fuel tank.	Open fuel tap.
Engine switched off. Switch engine on.
Spark plug fouled. Clean and reset plug gap.
Engine cold. Close choke.
engine fires.	Engine flooded.	Open choke, fully open throttle, pull recoil starter until
Engine still will not start Unit will not vibrate.	Major Fault	Contact Agent or Altrad Belle.
	Engine speed too slow.	Set engine speed control to fast.
Drive belt tension loose.	Adjust belt tension
Air filter blocked.	Clean or renew air filter.
Drive failure.	Contact Agent or Altrad Belle.
Vibrator failure.	Contact Agent or Altrad Belle.
Asphalt adhering to plate.	Lack of lubrication.	Use water
Bituminous surface flaking (laminating).	Over compaction.	Remove and relay.
Low travel speed (plate sinking).	Layer thickness too deep.	Remove some of the material.
	Moisture content too high or too low.	Remove material and adjust.

Maintenance

The Altrad Belle 'PCLX' range is designed to give many years of trouble free operation. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty.

Before any maintenance is carried out on the machine, switch off the engine and disconnect the HT lead from the sparkplug.

Always set the 'PCLX' on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart on following page).

Running In Period

When the 'PCLX' is first used from new, the engine oil must be changed after the initial running in period (see engine manual for full detail). The vibrator shaft case oil must be replaced after the first 100 hours use, then after every 500 working hours. For detail on vibrator shaft case oil replacement, see 'Vibrator unit'.

The belt tension should be checked after 4 hours use.

Routine Maintenance After First First month / 3 Months 6 months4 hours 20Hours 50 Hours 100 Hours
Engine Oil Check Level	√
	Change		√		√
Air Filter	Check Condition		√		√
	Clean / Replace			√
Spark Plug	Check / Clean				√
Drive Belt	Tension	√	√	√

Oil / Fuel Type & Quantity - Spark Plug Type

	Oil type	Quantity (Litre)	Fuel Type	Capacity (Litre)	Spark Plug Type	Electrode Gap (mm)
Petrol Honda GXR120	S.A.E. 10W 30	0.6	Unleaded	2.0	BM4a or BmR4a	0.6 - 0.7
Vibrator	Turbine Oil 32	0.22	N/A	N/A	N/A	N/A

Plug Seal Regular Level Lower part of screw thread

Vibrator Unit.

Remove the plug complete with seal, check that the oil level reaches the bottom thread on the oil plug hole. Top up as necessary with the correct oil (see chart).

This machine is fitted with a 'Dual Force' base plate.

This machine is not fitted with a 'Dual Force' base plate.

When fitted with a 'Dual Force' base plate the Static Weight per Unit Area of this machine is over 1400 kg/m^2 and so complies with the NRSWA (HAUC specification) for plate compactors in the category 1400 - 1800 kg/m^2 .

R. Neilson - Managing Director

‘Dual Force’ allows Altrad Belle plate compactors to be used for Highways reinstatements in accordance with the specifications stated in the NRSWA (New Roads and Streetworks Act 1991) Appendix A8.

Standard Altrad Belle plate compactors can be retro fitted with 'Dual Force', contact Altrad Belle for details.

Warranty

Your new Altrad Belle 'PCLX' single direction plate compactor is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The Altrad Belle warranty is against defects in design, materials and workmanship.

The following are not covered under the Altrad Belle warranty:

1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

The following components are not covered by warranty.

- Drivebet(s) • Engine air filter • Engine spark plug

Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.

Warranty Claims

All warranty claims should firstly be directed to Altrad Belle, either by telephone, by Fax, by Email, or in writing.

For warranty claims:

Tel : [phone], Fax : [phone], Email : [e-mail]

or Write to:

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

Warranty Registration:

In the bid for ALTRAD Belle to become greener and more eco friendly, we have now introduced online Warranty registration. To access the registration page of our website, please use the following address:-

http://www.bellegroup.com/index.php?p=warranty_registration

Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the registration page.

Replacement Parts

When maintaining this product only the manufacturers original, genuine replacement parts may be used.

The user will lose any possible claims if replacement parts used are other than the makers original replacement parts.

Replacement parts for this product can be ordered online 24 hours a day, 7 days a week at www.Altrad-Belle247.com

For more information regarding the availability of replacement parts for this product, please contact Altrad Belle using the following contact details:-

Tel:- [phone]

Fax:- [phone]

Email:- [e-mail]

Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the Altrad Belle online parts portal.

How To Use This Manual

This manual has been written to help you operate and service the 'PCLX' Plate compactor safely. This manual is intended for dealers and operators of the 'PCLX' Plate compactor.

Foreword

The ‘Machine Description’ section helps you to familiarise yourself with the machine's layout and controls.

The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.

The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public.

The ‘Operating Instructions’ section helps you with the setting up and use of the machine.

The 'Trouble Shooting' guide helps you if you have a problem with your machine.

The 'Service & Maintenance' section is to help you with the general maintenance and servicing of your machine.

The 'Warranty' Section details the nature of the warranty cover and the claims procedure.

The 'Dual Force' section shows the compaction specification the machine can achieve.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

CAUTION

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way.

WARNING

The life of the operator can be at risk.

WARNING

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

KNOW how to safely use the unit's controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the machine off before you switch on, in case you get into difficulty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): [phone]

Contents

How to use this manual....33

Warning 33

Machine Description....34

Technical Data....34

Decals....35

Environment 36

Reasons For compaction 36

Compaction Specification....36

Applications 37

Safety Instructions....37

Health and Safety....38

Pre-Start Checks....38

Operating Instructions 38 - 39

Trouble Shooting Guide 39

Service & Maintenance 40

'Dual Force' / HAUC / NRSWA Certificate 41

Warranty 41

Replacement Parts 41

1. =Fuel Tank,
2. =Choke Lever,
3. =Fuel ON/OFF Lever,
4. =Engine Oil Filler / Dipstick,
5. =Throttle Lever,
6. =Recoil Starter Handle,
7. =Engine ON/OFF Switch
8. =Operating Handle,
9. =Exhaust,
10. Belt Guard,
11. Mechanical Hoist Lifting Point,
12. Hand Lifting Point
13. Hand Lifting Point (Strut)

DO NOT use a Mechanical Hoist on the Hand Lifting Points (No's 12 & 13)

Technical diagram of a mechanical device with numbered components for identification

Technical Data

A B C D E

Model	PCLX320
A - Height - Operation (in) =36.5 =36.5 =36.5
B - Length - Operation (in) =39 =34.5 =39
C - Width (in) =12.6 =12.6 =15.8
D - Length - Storage (in) =31 =30.5 =31
E - Height - Storage (in)	22.5 =23.3 =22.5
Engine Power (Hp / kW)	=3.1 / 2.3
Engine RPM	=3850rpm
* Weight (lbs)	136.7	143.3	146.6
Vibrator Force (lbf)	2922	2922	2922
Frequency (Hz)	101	101 =101
Maximum Travel Speed (ft/min)	65.6 =59 =65.6
Compaction Force (lbs/ft ^2 )	81.5 =330	68.8
** 3 Axis Vibration (ft/sec ^2 )	7.94 =7.02 =8.23
Usage Time (Hrs)	10.7	11.4	10.2
Sound Power Level (LWA)	105dB(A)	105dB(A)	105dB(A)

A. Safety Decal
B. Noise Decal
C. Engine RPM Decal
D. Low HAV Decal
E. Lifting Point Decal

al M Decal ecal Decal D E A C B E

A - Safety Decal (Part No. 19.0.373)

Simple line drawing of an open book with no text or symbols visible

Please Read Operators Manual

Silhouette of a boot with a curved handle, no text or symbols present

Wear Protective Footwear

Simple line drawing of a person wearing headphones (no text or symbols)

Wear Ear Protection

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Wear Eye Protection

B - Noise Decal (800-99942)

The Noise Level of the machine during operation is 105 dB(A)

C - Engine RPM Decal

Silhouette of a rabbit in motion, no text or symbols present

Fast Engine Speed Position

Silhouette of a turtle (no text or symbols)

Slow Engine Speed Position

D - Low HAV Decal (800-99954)

The machine has a UK Patented Design which reduces HAV levels allowing a greater Usage Time.

E - Lifting Point Decal

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Lifting Point

Safe Disposal.

Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities.

Component	Material
Operator Handle Steel
Hand Grip Rubber
Base Plate Steel
Eccentric weights Steel
Petrol engine housing Aluminium
Petrol engine covers Synthetic material
Various parts Steel & Aluminium

Reasons For Compaction

Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will lead to one or more problems occurring.

1. As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface as the material fills the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and contraction, due to ingress of water.

Compaction Specification

Various methods have been employed in the past to specify the compaction required for various applications. The factors to consider are, material properties, layer thickness, pressure applied, vibration and number of passess. Greater understanding of how compaction works has lead to new compaction specifications being introduced. The most up to date specification is part of the U.K.'s NRSWA (New Roads & Street Works Act). Civil Engineers are now adopting these specifications to ensure good compaction for all site work.

NRSWA (HAUC specification).

The specification was compiled by HAUC (Highways Authorities & Utilities Committee). The 'New Roads and Street Works Act 1991, set a new standard for road repairs and reinstatements in the UK. It covers materials, methods, equipment and safety when carrying out reinstatements on roads and footways. The reason for the act is to ensure repairs and reinstatements are carried out to a higher standard and ultimately last longer. This in turn will reduce the need for costly remedial work and reduce traffic delays.

There are two categories specified for plate compactors.

1. 1400 to 1800kg/m² 2. Over 1800kg/m²

These figures relate to the static pressure applied by the machine

NOTE: No standard single direction plate compactors comply with this minimum specification. For highways work always use a 'Dual Force' plate compactor.

DUAL FORCE

Altrad Belle studied the act then developed and patented equipment to enable contractors to comply with the act's requirements. The NRSWA legislation requires that compaction equipment meets the minimum specification. By purchasing an Altrad Belle 'Dual Force' plate, you are immediately complying with this part of the act. To comply with the specification and maintain surface tolerance, Altrad Belle 'Dual Force' base plates are divided into two areas providing two stages of compaction.

Stage 1 Stage 2

Stage 1: The full base area compacts the material like a standard machine.

Stage 2: The base rises onto the 'Dual Force' section to give 3 to 4 times the compaction force of standard plates.

Applications

Applications/materials fall into three categories:

1. Cohesive materials (less than 20% granular) e.g clay, silt & heavy soils.
2. Granular materials (more than 20% granular) e.g hard core, sand & light soils.
3. Bituminous materials e.g asphalt (tarmac), cold lay (bitumin emulsion products).

The chart shows the HAUC specifications for layer depth and number of passes for Dual Force' plates. If standard machines are used, optimum compaction can not be guaranteed, however, if layer depths are reduced and number of passes increased, results can be improved.

Moisture content of cohesive & granular materials is critical to effective compaction. If granular material is too dry it will flow around the plate instead of compacting. If the moisture content is too high the material may dry out after compaction and shrinkage will occur.

1400 -1800 kg/m2	COMPACTION PASSESS REQUIRED PER LAYER OF COMPACTED THICKNESS UP TO.
40MM 60MM 80MM 100MM 150MM 200MM
Cohesive Materials**	-*	-*	-*	NP	NP	NP
Granular Materials	-*	-*	-*	5	NP	NP
Bituminous	6	NP	NP	NP	NP	-

* Usually placed in 100mm minimum layer so not specified by HAUC.
** The nature of cohesive materials makes plate compaction difficult. Optimum compaction is not guaranteed and not recommended by HAUC.

Safety Instructions

For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the 'PCLX' Plate compactor, consult your supervisor or Altrad Belle.

CAUTION

Improper maintenance can be hazardous. Read and Understand this section before you perform any maintenance, service or repairs.

• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorized personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
- During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and unattended.
- Never remove or tamper with any guards fitted, they are there for your protection. Always check guards for condition and security, if any are damaged or missing, DO NOT USE THE MACHINE until the guard has been replaced or repaired.
- Do not operate the MACHINE when you are ill, feeling tired, or when under the influence of alcohol or drugs.

CAUTION

Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel.

Fuel Safety.

• Before refuelling, switch off the engine and allow it to cool.
- When refuelling, DO NOT smoke or allow naked flames in the area.
- Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
- Store fuel in an approved, purpose made container away from heat and ignition sources.

Vibration

Some vibration from the trowelling operation is transmitted through the handle to the operator's hands. Refer to specifications & technical data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.

PPE (Personal Protective Equipment).

Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped footwear (with anti-slip soles for added protection). Wear clothing suitable for the work you are doing. Always protect skin from contact with concrete.

Dust.

The compaction process can produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of dust being produced.

Fuel.

Do not ingest fuel or inhale fuel vapors and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes, irrigate with copious amounts of water and seek medical attention as soon as possible.

Exhaust Fumes.

Do not operate your 'PCLX' indoors or in a confined space, make sure the work area is adequately ventilated.

WARNING The exhaust fumes produced by this equipment are highly toxic and can kill!

Pre start-up inspection.

The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the 'PCLX' must not be used until the fault is rectified.

1. Thoroughly inspect the 'PCLX' for signs of damage. Make sure that the belt guard is secure before using the machine.
2. Check hoses, filler openings, drain plugs and any other areas for signs of leakage. Fix any leaks before operating.
3. Check the engine oil level and top up as necessary.
4. Check the engine fuel level and top up as necessary.
5. Check for fuel and oil leaks.

• Take the compactor to where it is required.

Where it is necessary to use lifting equipment to position the 'PCLX', make sure the lifting equipment has a WLL (Working Load Limit) suitable for the 'PCLX's weight (see Technical Data section or machine serial plate). Attach suitable chains or slings ONLY to the lifting point on the top of the 'PCLX'.

• NEVER leave the engine running whilst transporting or moving the 'PCLX', even if it is only a short distance.
• Having carried out the checks listed in the 'pre start' section, you may start the engine.

The Altrad Belle 'PCLX' range of compactors are fitted with a centrifugal clutch, this allows the engine to run at idle without driving the vibrator. As the engine speed is increased the clutch will engage and will drive the vibrator. For correct operation, the engine speed should be set to maximum.

- Set the throttle to maximum and use the control handle to steer or turn the 'PCLX'.

The vibrator will not only cause the baseplate to vibrate but will also cause it to travel forward. During normal operation you should not have to push the 'PCLX' but allow it to travel at its own pace. The speed of travel will be determined by the condition of the surface being compacted. If the surface to be compacted is on a slope, great care must be taken when controlling the 'PCLX's direction of travel. If necessary, use a suitable rope attached to the 'PCLX' at a low point on the chassis, to allow a helper to take part of the 'PCLX's weight. Work up and down a slope not across.

• Work the 'PCLX' over the surface in an organized pattern until the required compaction has been achieved.

Where there are a number of different layers to be compacted on top of each other, compact each layer individually.

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

1. Fuel Tank,
2. Choke Lever,
3. Fuel ON/OFF Lever,
4. Engine Oil Filler / Dipstick,
5. Throttle Lever,
6. Recoil Starter Handle,
7. Engine ON/OFF Switch

Stopping the engine

1. To stop the engine, set the throttle to idle. Allow the engine to idle for at least 2 minutes
2. Turn the engine ON / OFF switch anti-clockwise to the '0' position.
3. Turn the fuel off.

Starting the engine

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.
2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the right. If restarting a warm engine, the choke is usually not required, however, if the engine has cooled to a degree, partial choke may be required.
3. Turn the engine ON / OFF switch clockwise to the 'I' position.
4. Set the throttle to the idle position by moving the throttle lever fully to the bottom.

5. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return.

6. Taking care not to pull the starter's rope fully out and pull the starter handle briskly.

7. Repeat until the engine fires.

8. Once the engine fires gradually set the choke lever to the OFF position by moving it to the left.

9. If the engine fails to fire after several attempts, follow the trouble-shooting guide.

10. Due to the centrifugal clutch, the plate will not vibrate until the engine speed is increased.

Troubleshooting Guide

Problem Cause Remedy
Engine will not start. No fuel. Fill fuel tank. Engine switched off. Switch Spark plug fouled. Clean Engine cold. Close choke engine fires.	Open fuel tap.
	itch engine on.
	and reset plug gap.
	Engine flooded.	Open choke, fully open throttle, pull recoil starter until
Engine still will not start Unit will not vibrate. Drive belt tension loose. Air filter blocked. Drive failure. Vibrator failure.	Major Fault	Contact Agent or Altrad Belle.
	Engine speed too slow.	Set engine speed control to fast.
	Adjust belt tension
	Clean or renew air filter.
	Contact Agent or Altrad Belle.
	Contact Agent or Altrad Belle.
Asphalt adhering to plate. Bituminous surface flaking (laminating).	Lack of lubrication.	Use water
	Over compaction.	Remove and relay.
Low travel speed (plate sinking).	Layer thickness too deep.	Remove some of the material.
	Moisture content too high or too low.	Remove material and adjust.

Maintenance

The Altrad Belle 'PCLX' range is designed to give many years of trouble free operation. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty.

Before any maintenance is carried out on the machine, switch off the engine and disconnect the HT lead from the sparkplug.

Always set the 'PCLX' on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart on following page).

Running In Period

When the 'PCLX' is first used from new, the engine oil must be changed after the initial running in period (see engine manual for full detail). The vibrator shaft case oil must be replaced after the first 100 hours use, then after every 500 working hours. For detail on vibrator shaft case oil replacement, see 'Vibrator unit'.

The belt tension should be checked after 4 hours use.

Routine Maintenance After First First month / 3 Months 6 months4 hours 20Hours 50 Hours 100 Hours
Engine Oil Check Level	√
	Change		√		√
Air Filter	Check Condition		√		√
	Clean / Replace			√
Spark Plug	Check / Clean				√
Drive Belt	Tension	√	√	√

Oil / Fuel Type & Quantity - Spark Plug Type

	Oil type	Quantity (Litre)	Fuel Type	Capacity (Litre)	Spark Plug Type	Electrode Gap (mm)
Gasoline Honda GXR120	S.A.E. 10W 30	0.6	Unleaded	2.0	BM4a or BmR4a	0.6 - 0.7
Vibrator	Turbine Oil 32	0.22	N/A	N/A	N/A	N/A

Plug Seal Regular Level Lower part of screw thread

Vibrator Unit.

Remove the plug complete with seal, check that the oil level reaches the bottom thread on the oil plug hole. Top up as necessary with the correct oil (see chart).

This machine is fitted with a 'Dual Force' base plate.

This machine is not fitted with a 'Dual Force' base plate.

When fitted with a 'Dual Force' base plate the Static Weight per Unit Area of this machine is over 1400 kg/m^2 and so complies with the NRSWA (HAUC specification) for plate compactors in the category 1400 - 1800 kg/m^2 .

R. Neilson - Managing Director

‘Dual Force’ allows Altrad Belle plate compactors to be used for Highways reinstatements in accordance with the specifications stated in the NRSWA (New Roads and Streetworks Act 1991) Appendix A8.

Standard Altrad Belle plate compactors can be retro fitted with 'Dual Force', contact Altrad Belle for details.

Warranty

Your new Altrad Belle 'PCLX' single direction plate compactor is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The Altrad Belle warranty is against defects in design, materials and workmanship.

The following are not covered under the Altrad Belle warranty:

1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

The following components are not covered by warranty.

- Drivebet(s) • Engine air filter • Engine spark plug

Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.

Warranty Claims

All warranty claims should firstly be directed to Altrad Belle, either by telephone, by Fax, by Email, or in writing.

For warranty claims:

Tel : [phone], Fax : [phone], Email : [e-mail]

or Write to:

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

Warranty Registration:

In the bid for ALTRAD Belle to become greener and more eco friendly, we have now introduced online Warranty registration. To access the registration page of our website, please use the following address:-

http://www.bellegroup.com/index.php?p=warranty_registration

Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the registration page.

Replacement Parts

When maintaining this product only the manufacturers original, genuine replacement parts may be used.

The user will lose any possible claims if replacement parts used are other than the makers original replacement parts.

A PDF of parts listings for this product can be found in the 'product' section of our website www.Altrad-Belle.com Information on sourcing replacement parts from your local dealer can then be found in the 'contact us' section

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot and a small object, no text or symbols present

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Symbol of a hook with an upward arrow inside, enclosed in a circle (no text or numbers present)

Point de Levage

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU Angleterre

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a handle, no text or symbols present

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Punto de izado.

Stage 1 Stage 2

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

R. Neilson - Director Gerente

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England.

Registro de Garantia :

Simple line drawing of an open book with no text or symbols visible

Por Favor Leia o Manual do Operador.

Silhouette of a boot and a chair (no text or symbols)

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Ponto de Elevação

Ambiente

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

R. Neilson - Director Gerente

DO NOT use a Mechanical Hoist on the Hand Lifting Points (No's 12 & 13)

1, Steun) 5 2 3 4 7 6 10 9 11 1 12 8 13

Technische gegevens

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a curved handle, no text or symbols present

Draag bescher- mend schoeisel.

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Symbol of a hook with an upward arrow inside, enclosed in a circle (no text or numbers present)

Hefpunt

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

1. Brandstoftank,
2. Choke,
3. Brandstof ON/OFF hendel,
4. Vulopening /Peilstok Motorolie,
5. Gashendel,
6. Automatische Starthendel,
7. Motor ON/OFF Schakelaar

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot and shoe (no text or symbols)

Simple line drawing of a person wearing headphones (no text or symbols)

Bær ∅reværn Bær

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

∅jenbeskyttelse

Silhouette of a rabbit in motion, no text or symbols present

Hurtig Motorhas- tighed Etiket.

Silhouette of a turtle (no text or symbols)

Langsom Motorhas- tighed Etiket.

D - Lav Hav Etiket (800-99954)

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Løftepunkt

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

ALTRAD Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

Garantiregistrering:

QR code image containing encoded data, no visible human-readable text

Reservedele

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a curved handle, no text or symbols present

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Symbol of a hook with an upward arrow inside, enclosed in a circle (no text or numbers present)

Aufnahmepunkt

Sichere Entsorgung.

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

QR code image containing encoded data, no visible human-readable text

Ersatzteile

'Dual Force'/ HAUC/ NRSWA certificati....104

Garanzia 104

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot and shoe (no text or symbols)

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Symbol of a hook with an upward arrow inside, enclosed in a square frame (no text or numbers)

Gancio

Ambiente

Smaltimento sicuro.

1. Fuel Tank,
2. Choke Lever,
3. Fuel ON/OFF Lever,
4. Engine Oil Filler / Dipstick,
5. Throttle Lever,
6. Recoil Starter Handle,
7. Engine ON/OFF Switch

Fermare il motore

ALTRAD Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU England

QR code image containing encoded data, no visible human-readable text

I

Parti di Ricambio

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot and boots (no text or symbols)

Använd
skyddsskor.

Simple line drawing of a person wearing headphones (no text or symbols)

Använd
hörselskydd.

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Lyftpunkt

Säkert bortskaffande.

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

Garantiregistrering:

QR code image containing encoded data, no visible human-readable text

Reservdelar

Simple line drawing of an open book with no text or symbols visible

Les driftshåndboka

Silhouette of a boot with a curved handle, no text or symbols present

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Ta på beskyttelsesbriller

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Lav motorturtallsstilling

Symbol of a hook with an upward arrow inside, enclosed in a circle (no text or numbers present)

Løftepunkt

Trygt avfall

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

1. Drivstofftank
2. Choke-håndtak
3. Drivstoffets AV-/PÅ-håndtak
4. Motorens oljepåfyllingsrør/målepinne
5. Gasshåndtak
6. Rekyl-starthåndtak
7. Motorens AV-PÄ-bryter

Tel: [phone] Fax: [phone] E-post: [e-mail]

Postadresse:

Garantiavdelingen i Altrad Belle Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

Garantiregistrering:

QR code image containing encoded data, no visible human-readable text

Reservedeler

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a pair of boots, no text or symbols present

Simple line drawing of a person wearing an ear (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Nostokahva

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

QR code image containing encoded data, no visible human-readable text

Varaosat

Technical diagram of a portable pump system with numbered components for identification

Dane Techniczne

A B C D E

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a flat blade, no text or symbols present

Noś obuwie ochronne

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Punkt podnoszenia

Środowisko

Stage 1 Stage 2

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

Altrad Belle Warranty Department

Sheen, Nr. Buxton, Derbyshire, SK17 0EU England.

QR code image containing encoded data, no visible human-readable text

Części Zamienne

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a single toe, no text or symbols present

Simple line drawing of a person wearing a headset (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Подъемная скоба

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

Altrad Belle Warranty Department Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

QR code image containing encoded data, no visible human-readable text

Запасные Части

Simple line drawing of an open book with no text or symbols visible

Lugege kasutusjuhendit

Silhouette of a boot with a curved handle, no text or symbols present

Kandke turvajalatseid

Simple line drawing of a person wearing an ear (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Symbol of a hook with an upward arrow inside, enclosed in a circle (no text or numbers present)

Töstepunkt

Keskkond

Ohutu käitlemine

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

Altrad Belle Warranty Department, Sheen, Nr. Buxton Derbyshire SK17 0EU England

Garantii Registreerimine

QR code image containing encoded data, no visible human-readable text

Varuosad

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a handle, no text or symbols present

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Pacelšanas punkts

Droša iznīcināšana

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

QR code image containing encoded data, no visible human-readable text

Rezerves Dalas

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a single boot, no text or symbols present

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Symbol of a hook with an upward arrow inside, no text or numbers present

Kélimo taškas

Aplinkosauga

Saugus perdirbimas.

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England.

QR code image containing encoded data, no visible human-readable text

Pakeičiamos Dalys

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a handle, no text or symbols present

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Symbol of a hook with an upward arrow inside, enclosed in a circle (no text or numbers present)

Точка на повдигане

Рециклиране

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England.

QR code image containing encoded data, no visible human-readable text

Резервни Части

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a single toe, no text or symbols present

Použij ochrannou prac. obuv!

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Místo pro zvedání

Životní prostředí

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England

Registrace Záruky:

QR code image containing encoded data, no visible human-readable text

Náhradní Díly

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a single toe, no text or symbols present

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

The Noise Level of the machine during operation is 105 dB(A)

C - afişaj motor RPM

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle on a plain background (no text or symbols)

Simple black hook icon with an upward arrow inside a circle (no text or symbols)

Punct ridicare

Înlăturarea sigură

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

R. Neilson - Managing Director

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England.

QR code image containing encoded data, no visible human-readable text

Piese de Schimb

'Dual Force' / HAUC / NRSWA....212

Garancia....212

Technical diagram of a mechanical device with numbered components for identification

Műszaki adatok

A B C D E

Simple line drawing of an open book with no text or symbols visible

Silhouette of a boot with a curved handle, no text or symbols present

Simple line drawing of a person wearing headphones (no text or symbols)

Viseljen Protection

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle (no text or symbols)

Symbol of a hook with an upward arrow inside, enclosed in a circle (no text or numbers present)

Emelési pont

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England.

QR code image containing encoded data, no visible human-readable text

Cserealkatrészek

Technical diagram of a mechanical device with numbered components, labeled in English and Latin.

Tehnički podaci

A B C D E

Model	PCLX320
A - visina - Operation (mm) =927 =928 =927
B - duljina - Operation (mm) =990 =875 =990
C - širina (mm) =320 =320 =400
D - duljina - Storage (mm) =790 =775 =790
E - visina - Storage (mm) =570 =590.5 =570
Snaga motora (KS/kW) = =3.1 / 2.3
Motor o/min	=3850rpm
* Težina (kg)	62	65	66.5
Snaga vibracije (kN)	13	13	13
Frekvencija (Hz)	101 =101 =101
Najveća brzina kretanja (m/min)	20	18	20
Sila sabijanja (kg/m2)	398	1611	336
** 3 Axis Vibration (m/sec2)	2.42 =2.14 =2.48
Vrijeme uporabe (Sati)	10.7	11.4	10.2
Razina buke (LWA)	105dB(A)	105dB(A)	105dB(A)

A. Natpis za sigurnost
B. Natpis za buku
C. Natpis za broj okretaja motora
D. Natpis za smanjenje vibracije na rukama
E. Natpis za točku podizanja

gurnost ku oj okretaja motora manjenje vibracije na rukama čku podizanja A B C D E

A - Natpis za sigurnost (Dio br. 19.0.373)

Simple line drawing of an open book with no text or symbols visible

Molimo pročitajte priručnik za ruko- vatelja

Silhouette of a boot with a curved handle, no text or symbols present

Simple line drawing of a person wearing headphones (no text or symbols)

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Nosite zaštitu za oči

B - Natpis za buku (800-99942)

Silhouette of a rabbit in motion, no text or symbols present

Silhouette of a turtle on a plain background (no text or symbols)

Symbol of a hook with an upward arrow inside, enclosed in a circle (no text or numbers present)

Točka podizanja

Siguarno odlaganje.

Technical diagram of a mechanical device with numbered parts labeled 1 through 7

Honda GXR120

1. Spremnik goriva,
2. Ručica čoka,
3. Ručica goriva ON/OFF.,
4. Otvor za ulje motora / mjerač,
5. Ručica gasa,
6. Hvataljka poteznog startera,
7. Prekidač motora ON/OFF.

Gašenje motora

1. Smanjite gas i pustite da motor radi u praznom hodu od prilike 1 minutu.
2. Prekidačza zaustavljanje motora stavite u položaj O.
3. Zatvorite ručicu za gorivo (Off).

Startanje motora

R. Neilson - Managing Director

'Dual Force' omogućuje da Altrad Belle vibro ploče budu korištene u radovima obnavljanja autoputeva u skladu sa specifikacijama navedenim u NRSWA (New Roads and Streetworks Act 1991) dodatak A8.

Na standardni Altrad Belle vibro ploče može naknadno biti ugrađen 'Dual Force', nazovite Altrad Belle za detalje.

Garancija

Vaša nova Altrad Belle 'PCLX' vibro ploča ima garanciju prema krajnjem naručitelju za period od jedne godine (12 mjeseci) od pravog datuma isporuke. Altrad Belle garancija odnosi se na pogreške u dizajnu, ugrađenom materijalu, i sastavljanju stroja.

Altrad Belle Warranty Department, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, England.

Registracija Jamstva:

U nastojanju da ALTRAD Belle postane zeleniji i ekološki osvješteniji, uveli smo registraciju jamstva putem interenta. Kako biste pristupili našoj internetskoj stranici za registraciju, koristite sljedeću poveznicu:

http://www.bellegroup.com/index.php?p=warranty_registration.

QR code image containing encoded data, no visible human-readable text

Zamjenski Dijelovi
