Brand Leifheit
Model Air Active M 76145
Product type Ironing board with suction and blowing
Table dimensions (L x W) 118 x 38 cm
Folded dimensions (L x W x H) 165 x 46 x 15 cm
Height adjustment range 75 - 100 cm
Weight 7.8 kg
Power supply 230-240 V ~ 50 Hz
Fan power 10 W
Main functions Suction (holds fabric, removes steam), blowing (air cushion for delicate fabrics), dry ironing
Integrated iron rest Yes, for steam station, with silicone gaskets
Outlet for steam station Yes, integrated on the board
Cord guide Yes, removable and laterally adjustable
Adjustable feet Yes, to compensate for uneven floors
Safety Safety lock in folded position; secure height adjustment lever (must be lifted)
Special cover Air and steam permeable, replaceable with original accessory
Maintenance and cleaning Dust the board once a month; clean the steam recovery container and sponge regularly
Spare parts available Steam recovery container (ref. 89154), sponge (ref. 89153), special cover
Warranty 2 years (subject to the conditions described in the manual)

Frequently Asked Questions - Air Active M 76145 Leifheit

How do I adjust the height of the ironing board?
Slightly lift the board with both hands, then move the height adjustment lever [2] upward. Release the board so it locks into the desired position (range 75 to 100 cm).
What are the advantages of the suction function?
The suction holds the fabric on the board, prevents creases, removes excess steam, and allows faster and more efficient ironing. It must be activated continuously during ironing.
How do I use the blowing function?
Set the selector [4] to the blowing position. This function creates an air cushion that allows you to iron delicate fabrics without flattening them, while cooling them faster.
Can I use a regular iron with this board?
Yes, the board is designed to be used with a regular iron or a steam station. Make sure to place the hot iron only on the designated steam station rest.
How do I maintain the cover and board?
Dust the board once a month. If your model is equipped with a steam recovery container [9], remove it regularly, clean the sponge, and let it dry before putting it back.
What original accessories are available?
You can purchase a replacement special cover, a steam recovery container (ref. 89154), and a sponge (ref. 89153) from Leifheit.
How do I fold and store the board?
Lift the board with both hands and operate lever [2] to fold it. Wind the power cord without bending it. The transport lock automatically locks the frame.
Is the board compatible with all steam stations?
The board accepts steam stations with maximum dimensions 31 x 26 cm and maximum weight 7.5 kg. Make sure the station is placed horizontally on the iron rest.
How do I clean the steam recovery container?
Remove the container [9], empty the water, wash the sponge with clean water and let it dry completely before putting it back. Repeat regularly to prevent germs.
Where can I find the complete user manual?
The complete manual is available for free download in PDF format on notice-facile.com or directly on the Leifheit website.

User questions about Air Active M 76145 Leifheit

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Ironing board in PDF format for free! Find your manual Air Active M 76145 - Leifheit and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Air Active M 76145 by Leifheit.

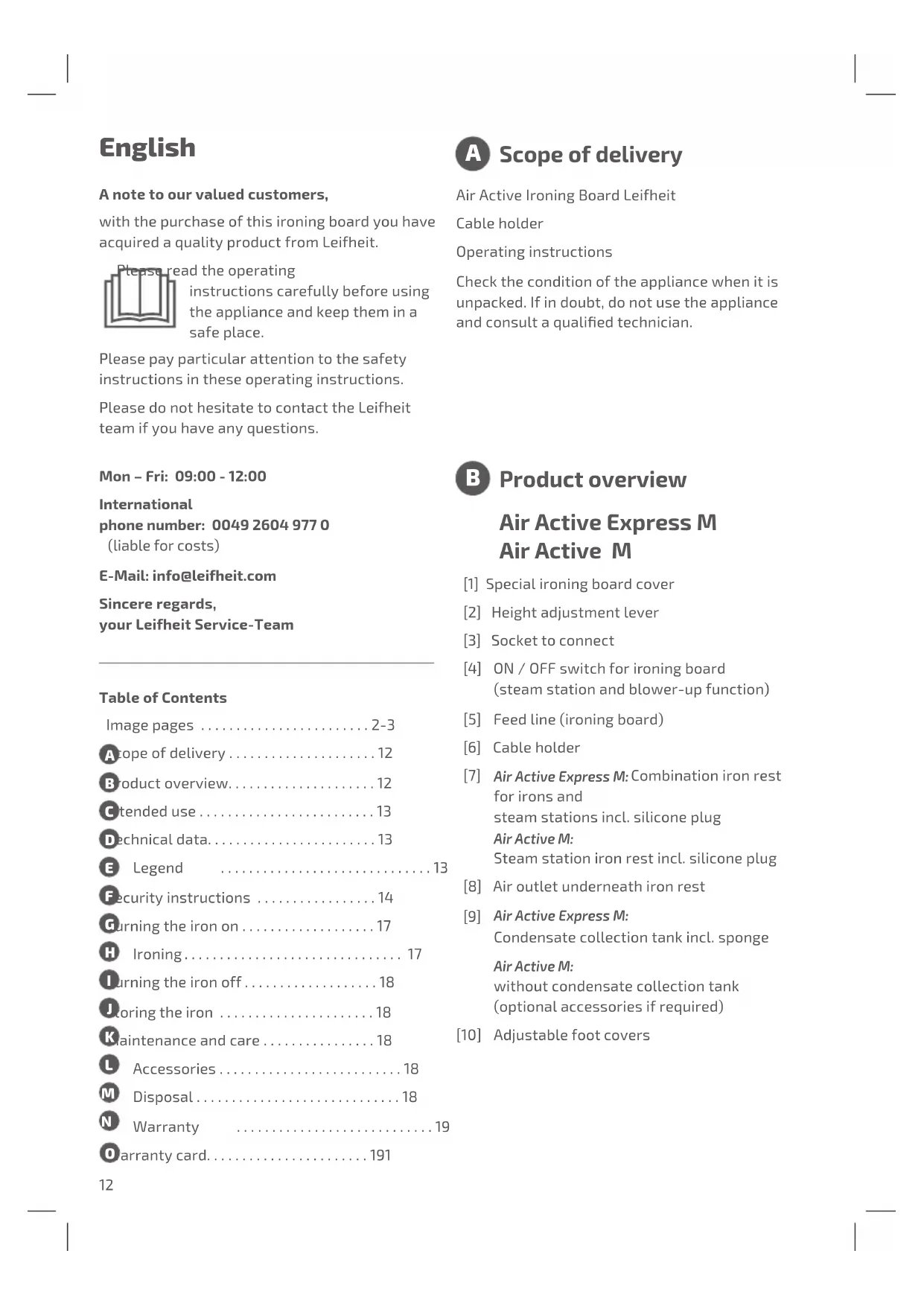

USER MANUAL Air Active M 76145 Leifheit
