Airactive Express M 76141 - Ironing board Leifheit - Free user manual and instructions

Product type	Ironing table
Brand	Leifheit
Model	Airactive Express M 76141
Table dimensions (L x W)	118 x 38 cm
Folded dimensions (L x W x H)	165 x 46 x 15 cm
Height adjustment range	75-100 cm
Weight	7.8 kg
Power supply	230 V - 240 V ~ 50 Hz
Fan power	10 W
Ventilation functions	Suction (fabric fixation) and blowing (air cushion for delicate fabrics)
Steam extraction	Yes, integrated (steam suction)
Max dimensions of steam generator (L x W)	31 x 26 cm
Max weight of steam generator	7.5 kg
Max power of steam generator	3250 W (VDE/NF) / 2250 W (CH)
Included accessories	Special cover, cord guide, iron rest with silicone joints, steam collection container with sponge
Recommended maintenance	Monthly dusting, regular cleaning and drying of the container sponge
Warranty	2 years
Certifications	Certified safety (GS), EU declaration of conformity
Intended use	Domestic ironing only

Frequently Asked Questions - Airactive Express M 76141 Leifheit

How to adjust the height of the ironing table?

To adjust the height, grasp the ironing surface with both hands, lift it slightly and then operate the adjustment lever located under the table. The height locks automatically into position. The adjustment range is 75 to 100 cm.

How to use the suction function?

Set the function selector to the suction symbol. This function holds the fabric on the table, prevents wrinkles and sucks away steam. It improves steam penetration into the fibers and speeds up drying.

Can I use a steam generator with this table?

Yes, the table is designed to be used with a steam generator. Place the generator on the iron rest provided for this purpose (with silicone joints). Check that its dimensions do not exceed 31 x 26 cm and its weight 7.5 kg. Connect the generator to the integrated socket on the table.

How to maintain the table cover?

The special cover should be replaced regularly according to frequency of use. Use only original Leifheit accessories. Clean the cover with a damp cloth if necessary, and avoid spray starch.

What to do if the table does not turn on?

Check that the plug is properly connected to a working power outlet. Ensure the function switch is in the on position (suction or blowing). If the problem persists, contact Leifheit customer service.

How to store the table after use?

First unplug the table and the steam generator. Lift the table slightly and operate the adjustment lever to fold it. Wind the power cord in a large radius without bending it. The table locks in the folded position thanks to a transport lock.

Can I use the ironing table outdoors?

No, the table is intended only for indoor use in dry rooms. Do not use it outdoors or in damp rooms.

What electrical risks should be avoided?

Do not use the table if the power cord or plug are damaged. Do not touch the appliance with wet hands. Never immerse the table in water. Always unplug before cleaning. Use a grounded outlet.

How to clean the steam collection container?

Remove the container [9] and take out the sponge. Rinse the sponge with clean water, squeeze it out and let it dry completely before putting it back. Also clean the container with a damp cloth. Perform this operation regularly to prevent germs.

What to do in case of a fault during the warranty period?

Contact Leifheit customer service by phone or email (details in the manual). Describe the problem. Customer service will carry out a remote diagnosis. The warranty is 2 years from the date of purchase. Keep your receipt.

USER MANUAL Airactive Express M 76141 Leifheit

Operating instructions

Mode d'emploi

Gebruiksaanwijzing

Návod k používání

Návod na obsluhu

Air Active Express M

DE

GB

F

NL

CZ

SK

E

P

1

DK

S

PL

RUS

RO

LT

LV

EST

H

PRC

UKR

SLO

ARAB

BG

Bedienungsanleitung

Air Active M

Air Active Express M

LEIFHEIT

Illustration of a portable water dispenser with attached tubing and a small stand, no text or symbols present.

[6] [4] [1][2] [3] [7] [8] [9] [5] [10] B

Air Active Express M [7] [8] [9] Air Active M [7] [8]

G 1. [5] [1] [2] [6] [10]

F

2.3.4.

[4] [6] [2] [5] [J] [5] [2]

Deutsch

Air Active Express M Air Active M

[9] Air Active Express M:

Air Active Express M Air Active M

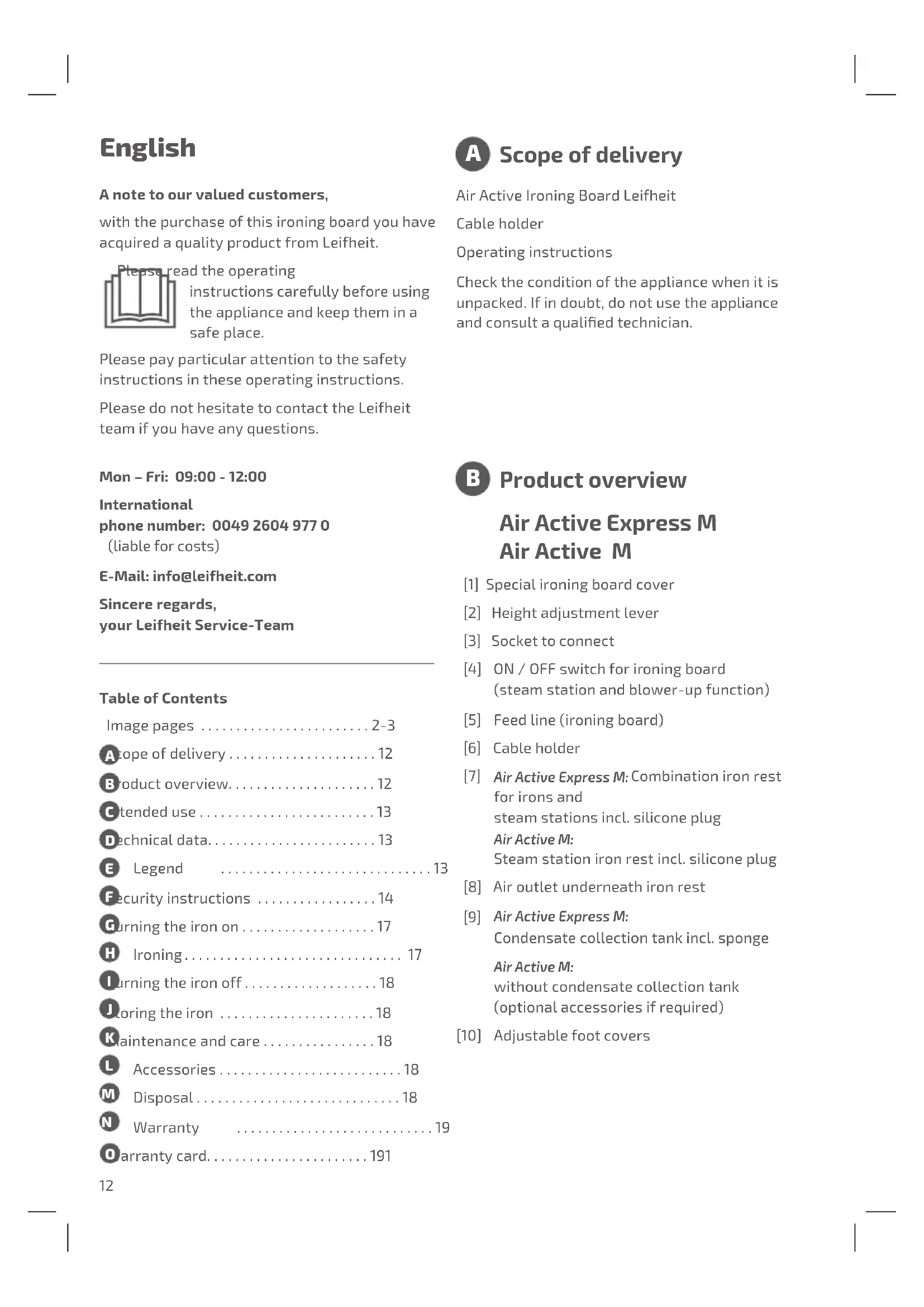

A note to our valued customers,

with the purchase of this ironing board you have acquired a quality product from Leifheit.

read the operating

instructions carefully before using the appliance and keep them in a safe place.

Please pay particular attention to the safety instructions in these operating instructions.

Please do not hesitate to contact the Leifheit team if you have any questions.

Mon - Fri: 09:00 - 12:00

International

phone number: 0049 2604 977 0

(liable for costs)

E-Mail: [e-mail]

Sincere regards,

A scope of delivery 12

B oduct overview....12

C tended use....13

Dechnical data....13

E Legend 13

Fecurity instructions .... 14

Gurning the iron on....17

H Ironing.... 17

Turning the iron off....18

Jtoring the iron 18

K maintenance and care .... 18

L Accessories....18

M Disposal....18

N Warranty 19

O warranty card....191

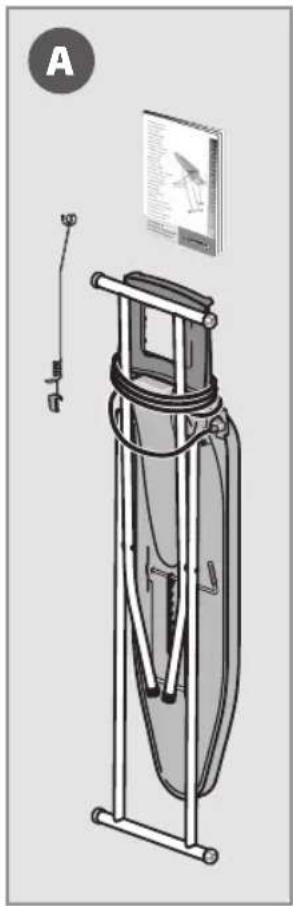

Scope of delivery

Air Active Ironing Board Leifheit

Cable holder

Operating instructions

Check the condition of the appliance when it is unpacked. If in doubt, do not use the appliance and consult a qualified technician.

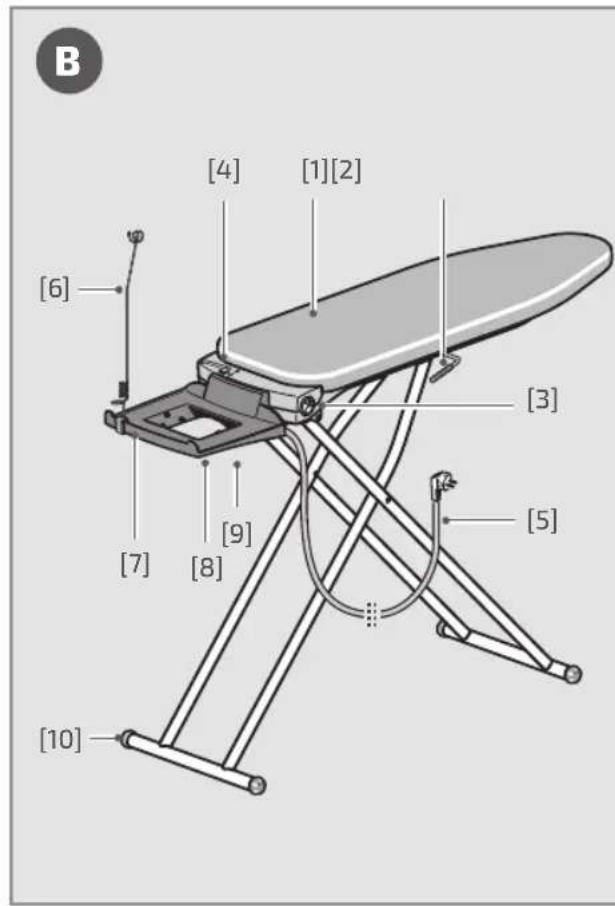

Product overview

Air Active Express M Air Active M

[1] Special ironing board cover
[2] Height adjustment lever
[3] Socket to connect
[4] ON / OFF switch for ironing board (steam station and blower-up function)
[5] Feed line (ironing board)
[6] Cable holder

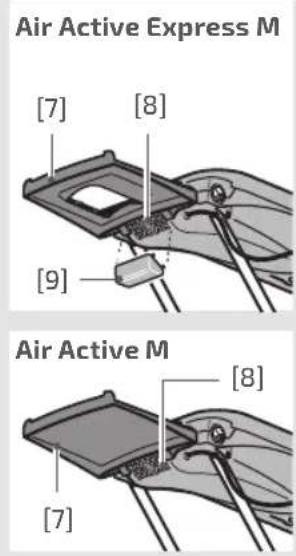

[7] Air Active Express M: Combination iron rest for irons and steam stations incl. silicone plug Air Active M: Steam station iron rest incl. silicone plug
[8] Air outlet underneath iron rest
[9] Air Active Express M: Condensate collection tank incl. sponge Air Active M: without condensate collection tank (optional accessories if required)
[10] Adjustable foot covers

Intended use

Use the ironing board only as described in these operating instructions.

The ironing board may only be used for ironing. It is intended for private use only and is not suitable for commercial use.

Any other use is considered to be improper use and may result in damage to property or even personal injury.

The manufacturer or dealer accepts no liability for damage caused by improper or incorrect use.

Please also observe the information given in chapter N „Warranty“, later in the operating instructions, as well as the general Leifheit warranty conditions at www.leifheit.de.

Technical information

(Please note the type plate on the underside of the active ironing board)

Weight	7,8 kg
Fan output	10 W
Board dimensions	118 x 38 cm
Board dimensions when folded up	165 x 46 x 15 cm
Height adjustment range	75-100 cm
Power supply	230 V - 240 V ≈ 50 Hz

Steam station information

Max. Size (L x B) 31 x 26 cm
Max. Weight 7,5 kg
Max. Power VDE (Typ F) / NF (Typ E) 3250 W
Max. Power CH (Typ J) 2250 W

All figures are approximate values!

Legend

Certified safety: Products marked with the symbol comply with the requirements of the German Product Safety Act (ProdSG).

Declaration of conformity: Products marked with this symbol comply with applicable European directives. he EU Declaration of Conformity can be found under www.leifheit.de.

Devices marked with this symbol must not be disposed of as household waste. (see chapter M „Disposal”).

Safety instructions

Hazard levels Risk of electric shock!

WARNING

Indicating a potentially dangerous situation that could result in serious injury or death.

AUTION

Indicating a potentially dangerous situation that could result in minor injury or death.

OTE

Indicating a potentially dangerous situation that could result in property damage.

WARNING

Electrical safety of this appliance is only assured when it is earthed according to electrical safety regulations. The manufacturer accepts no responsibility for any damage which might result from defective earthing of the appliance. If in doubt, contact a qualified technician.

As far as possible, do not use any adapters, multigang sockets or extension cables. If this is unavoidable, only use an adapter, multigang socket or extension cable which conforms to safety regulations and never exceed the maximum capacity indicated on the adapter.

Do not use the ironing board if it is visibly damaged or if the power cord or plug is defective.

Do not touch the appliance with wet or damp hands.

Do not touch the cord with wet or damp hands or feet.

Do not immerse the ironing board, power cord or mains plug in water or other liquids.

Disconnect the plug from the mains before cleaning.

Do not put any objects into the appliance's apertures.

This device may be used by children as of the age of eight years and persons with reduced physical, sensory or mental capacities or lack of experience and/or knowledge, if they are supervised or have received instructions regarding the safe use of the device, and have understood the resulting risks.

Children may not play with the device.

Supervise children to make sure they are not playing with the appliance.

Keep packaging away from children, there is danger of suffocation!

Use and store the Active Ironing Board outside the reach of children.

Always loop the Active Ironing Board's cord loosely. Avoid kinking the cord and always check for the cord for damage.

When using the iron from a steam station, do not allow any moisture to access electrical components.

Improper repair work could expose the user to considerable risk and will invalidate the warranty.

Repairs to this appliance should only be carried out by Leifheit's Customer Service or by authorised personnel.

Keep the ironing board, mains plug and power cord away from open fires and hot surfaces.

Lay the power cable so that it does not become a trip hazard.

Always disconnect the plug from the mains before leaving the room, before cleaning and maintenance and after use.

AUTION

Risk of injury!

The height adjustment setting of the Active Ironing Board must always be in the locked position.

Only use the Active Ironing Board for the purpose for which it is intended and not as a rest support, stool, etc.

Do not iron wet laundry, only iron-dry or dry laundry.

If the appliance is serviced improperly or not according to the instructions, the manufacturer accepts no responsibility for any damage which might arise.

Risk of damage!

Do not move the Active Ironing Board whilst in use.

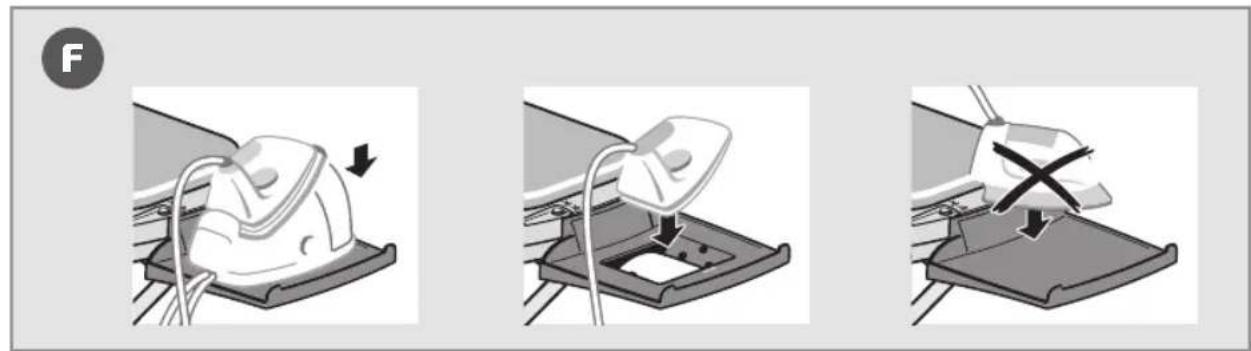

The ironing board is suitable for use with an iron as well as a steam station.

e ironing board is designed for use with a steam station, alternatively it can also be operated with an iron only.

ace the iron on the cover during the ironing process, place it only on the designated steam station rest or the silicone padded rest.

ard Air Active M: Do not place the iron on the rest with a hot base.

The entire system must only be used up to a height of 2,000 meters above sea level.

The Active Ironing Board must always be used in a dry environment and must not be used outdoors. It must always be set up in a safe location on a level surface.

Do not adjust the height adjustment lever whilst ironing. The steam station or the iron might otherwise fall off or the Active Ironing Board might close down.

Always check the washing/ironing instructions which are to be found on the labels of your garments and linens, as well as the advice and regulations in the instructions for use which came with your steam station and iron.

Please do not use spray starch! Damage resulting from this is excluded from the warranty.

Turning the iron on Ironing

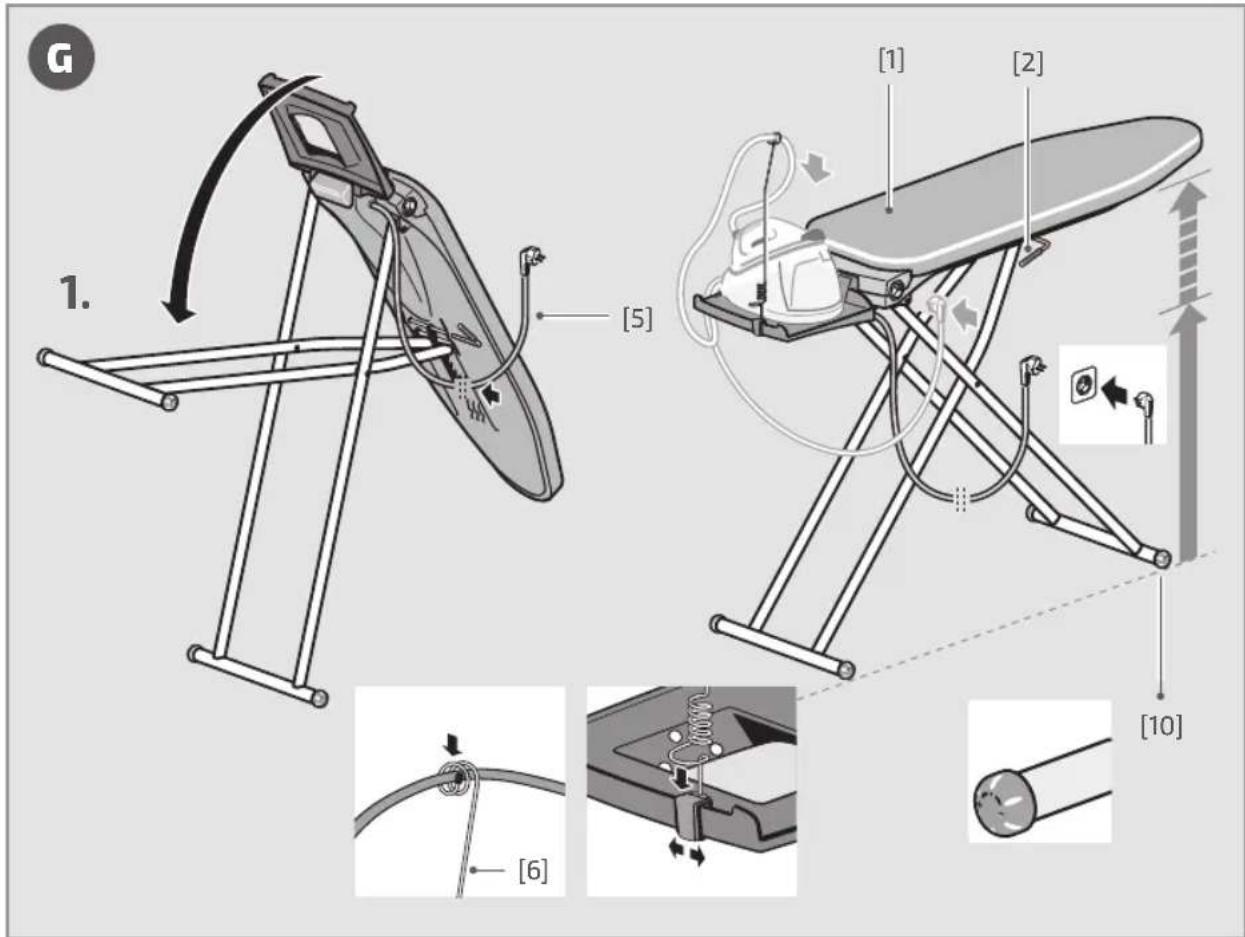

1. Preparation

Stand the Active Ironing Board on a firm, level surface. Unwind the cord on the Ironing Board and carefully move the frame forwards.

The Active Ironing Board folds out and can be set to the required position. It can then be tipped forward to stand on the floor.

The active ironing board is gradually height-adjustable (max. height approx. 75-100 cm) and allows ironing while standing or sitting.

To adjust the height, take hold of the ironing board with both hands. Lift the ironing board up slightly and pull the lever with one hand. (The ironing board has to be slightly raised for safety reasons, i.e. to prevent the lever from being activated accidentally.) Only when you hear the ironing board lock into place is it secure.

Engage the cable holder [6] into the guide of the shelf. The cable holder can be moved sideways to the desired position.

With the help of the adjustable foot caps [10] it is possible to compensate for irregularities in the ground (rotate the adjustable foot caps clockwise or counter-clockwise).

Commercially available steam stations only may be used with the iron rest. To ensure trouble-free ironing, the steam station must be correctly positioned on the iron rest [7] in a horizontal position.

Plug the mains plug of the Active Ironing Board into a wall socket.

Plug the mains plug of the Active Ironing Board into a wall socket. Thus providing a power supply to the steam station.

The Active Ironing Board is ready for use.

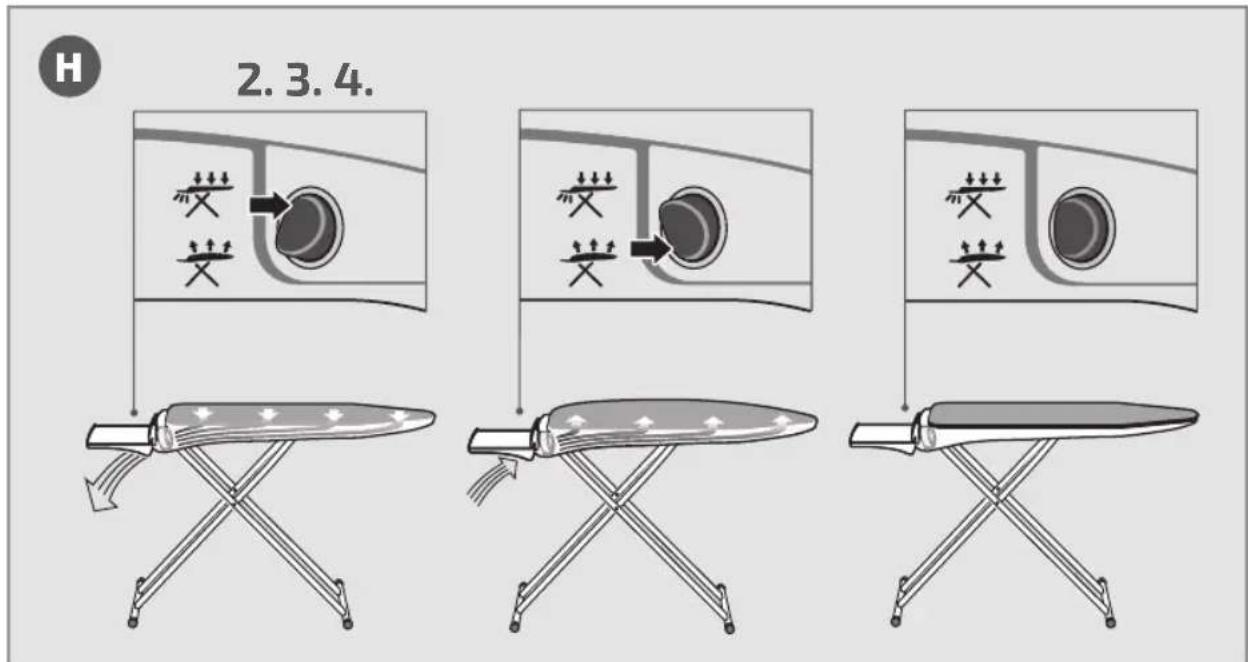

and on function

The suction fixes the fabric on the table and thus counteracts the formation of creases. Set the function switch [4] to the suction and steam extraction function.

The simultaneous steam extraction reduces and prevents condensation and should be switched on at all times to remove excess steam from the active ironing board and the inside of the housing.

The steam extraction enables the steam to penetrate the fi bres better, thus saving time and improving ironing results.

The steam suction an extraction function keeps the Active Ironing Table dry and helps to dry fabrics even whilst they're being ironed.

It cools the laundry faster due to the fresh air flowing inwards, protects the fabric and provides long-term crease protection.

function

The blower function provides ironing results with

delicate fabrics and items of clothing resting on a cushion of air.

It protects the delicate tissue and enables laundry items to cool off faster by the throughput of air, thereby preserving the fabric quality.

/ ironing steam

For dry ironing without steam, the blower functions can remain switched off.

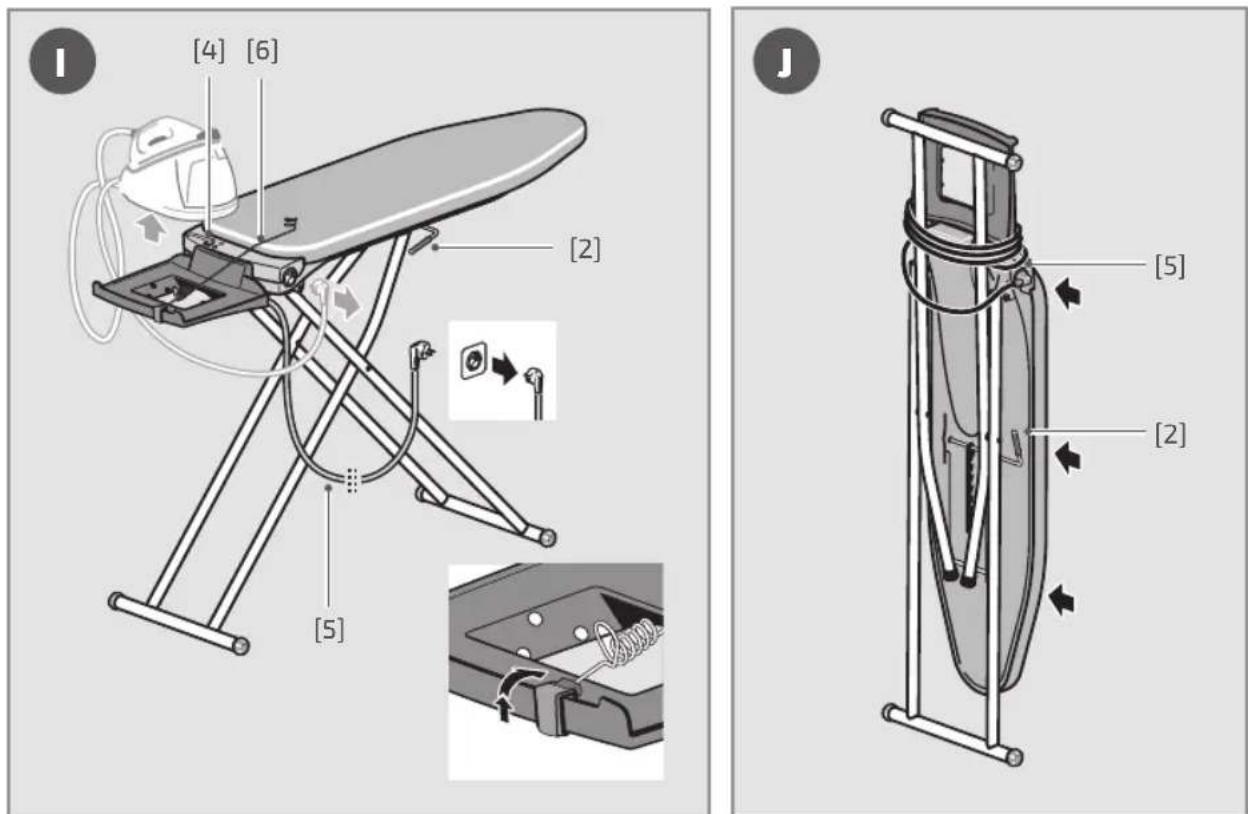

I Turning the iron off

First remove the steam station, first ensuring that you have read the instructions for use which came with your steam station and iron. Switch off the Active Ironing Board (0 setting).

Disconnect the cord for the Active Ironing Board from the mains [5] and take the steam station plug out of the socket.

Then remove the steam st. from the iron rest.

J Storing the iron

Take hold of the Active Ironing Board with both hands, lift it up slightly and fold together using the lever [2].

Wind the cord [5] up loosely in loops, making sure that it is not squashed or kinked.

The Active Ironing Board can be stored away folded up (with the universal iron rest at the top).

Place the Active Ironing Board in a safe position so that it will not fall over.

The transport lock should be engaged to secure the frame whilst the board is folded up.

K Maintenance and care

Maintenance and servicing work must always be carried out when the equipment has cooled down and has been disconnected from the power supply.

Dust should be removed from the ironing board on a monthly basis to guarantee the ventilation function.

Depending on the configuration, to prevent germ formation in the sponge, the condensation collection tank [9] must be regularly removed and the sponge contained therein rinsed out, cleaned and reused after drying.

L Accessories

The ironing pressure and the collection of dust particles and dust reduces the permeability of the special ironing board cover and therefore the performance of the complete pressurised steam ironing system.

The special ironing board cover [1] is particularly permeable to air and steam.

Therefore, only use original accessories.

Air Active Express M Air Active M

Ironing board cover, 118 x 38 cm, cotton

Art. No.: 76012

Condensation collection tank

Art. No.: 89154

Sponge for condensation collection tank

Art. No.: 89153

M Disposal

Please do not dispose of the device in the household waste.

Should you need to dispose of your appliance, it should first be rendered

unusable (e.g. by cutting off the cord and the plug) and then disposed of in accordance with current regulations.

Your local authority will be able to provide you with the necessary information.

Dispose of packaging appropriately.

Warranty

In the event of warranty and service, always contact Leifheit Customer Service.

(Contact details can be found on page 12)

Dear customer,

Our products are subject to the strict Leifheit quality control standards. Please follow the steps below if the Air Active Ironing Board you have purchased does not work perfectly due to unexpected defects or if it gives cause for complaint in any other way:

Call the Leifheit customer service hotline and explain the problems which have arisen. The customer service staff will perform a remote diagnosis and, where applicable, discuss with you what further steps need to be taken.

Leifheit AG, Leifheitstraße, 56377 Nassau/Lahn, Germany supplies its products with a two-year warranty

The warranty period starts on the date on the receipt. Please keep the receipt carefully as proof of purchase.

Claims must be made on the warranty as soon as the defect occurs within the warranty period. Any obvious damage and defects visible on un-packing the product must be reported immediately.

The guarantee relates to the condition of the products, i.e. the warranty is only for defects arising as a result of faults in the material or faulty manufacture.

The following instances are not covered by the warranty:

a) Defects caused by use or by other naturally occurring wear and tear;
b) Damage caused by improper use or handling (e.g. knocks, impact sustained by falls, undueforce);
c) Damage caused by failure to follow the instructions for the use of the product.

It is left to the discretion of the manufacturer to choose whether to replace or to repair the defective parts free of charge during the warranty period.

If a product cannot be repaired or replaced with an identical product because the line has been discontinued, it will be replaced, as far as possible, with a product of the same value. The purchase price cannot be refunded under the warranty.

Claims will not be honoured under the warranty if the product has been repaired or assembled by unauthorised persons or service centres.

The warranty does not cover claims for damages. No liability can be accepted for such damage as may arise if the product is used incorrectly or improperly or for purposes other than intended while it is covered by the manufacturer's warranty.

The warranty does not cover damage in transit.

The term of guarantee will not be extended if a claim is made on the warranty. This also applies to any parts which are replaced or repaired.

Your statutory rights, especially your warranty rights, will not be affected or restricted by the warranty.

This warranty is valid worldwide. You can still use the after-sales repair service after the manufacturer's warranty period has expired (please call customer services first to discuss your requirements).

Please visit our website for more information on warranty conditions: www.leifheit.de.

Français

Chère cliente, cher client,

Air Active Express M Air Active M

Housse de table,

118 x 38 cm, Coton

Ref.: 76012

Air Active Express M Air Active M

Air Active Express M Air Active M

Air Active Express M Air Active M

Air Active Express M Air Active M

Air Active Express M Air Active M

[1] Špeciálny potah na žehliacu dosku
[2] Páka na nastavenie výšky
[3] Zásuvka
[4] Prepínac na výber funkcie ventilátora (Funkcia nasávania, Odsávanie pary)
[5] Prívod
[6] Držiak na kábel (Príslušenstvo)
[7] Air Active Express M:

Air Active Express M Air Active M

Špeciálny potah na žehliacu dosku 118 x 38 cm, bavlna

Art. Nr.: 76012

[7] Air Active Express M:

[9] Air Active Express M:

Air Active Express M Air Active M

Air Active Express M Air Active M

Capa de tábua de engomar

118 x 38 cm, algodão

n.º de art.: 76012

[7] Air Active Express M:

[9] Air Active Express M:

Air Active Express M Air Active M

Telo copriasse,

118 x 38 cm, cotone

Cod. art.: 76012

Air Active Express M Air Active M

Air Active Express M Air Active M

Air Active Express M Air Active M

Air Active Express M Air Active M

Strykbrädsöverdrag,

118 x 38 cm, bomull

Art. Nr.: 76012

Air Active Express M Air Active M

Air Active Express M Air Active M

[7] Air Active Express M:

[9] Air Active Express M:

Air Active Express M Air Active M

Air Active Express M Air Active M

[7] Air Active Express M:

[9] Air Active Express M:

Recipientul de captare a apei de condens, inclusiv burete

Air Active M:

Air Active Express M Air Active M

Air Active Express M Air Active M

Lyginimo lentos užvalkalas, 118 x 38 cm, medvilné

Prekès kodas: 76012

Kondensato vandens rinkiklis

Prekès kodas: 89154

[7] Air Active Express M:

[9] Air Active Express M:

Air Active Express M Air Active M

Air Active Express M Air Active M

Air Active Express M Air Active M

Triikimislaua kate, 118 x 38 cm, puuvill artikli number: 76012

Kondensaadikogur artikli number: 89154

Air Active Express M Air Active M

Vasalódeszka-huzat,

118 x 38 cm, pamut

cikksz.: 76012

Air Active Express M Air Active M

Air Active Express M Air Active M

熨斗桌外罩,118×38cm,棉货号:76012

冷凝

水收

集容器

货号:89154

Air Active Express M Air Active M

Air Active Express M Air Active M

Air Active Express M Air Active M

[1] Posebna prevleka likalne deske
[2] Ročica za nastavitev višine
[3] Vtičnica za priklop
[4] Stikalo za VKLOP/IZKLOP likalne deske (parna likalna postaja in funkcija napihovanja)
[5] Električni kabel (za likalno desko)
[6] Nosilec za kabel
[7] Air Active Express M: Kombinirana odlagalna površina za likal-nike in parne likalne postaje s silikonsko podlago

Air Active M: Odlagalna površina za likalnik s silikonsko podlago

Air Active Express M Air Active M

Prevleka likalne deske,

118 x 38 cm, bombaž

Št. art.: 76012

Air Active Express M Air Active M

:Air Active Express M [7]

مسند مركب للمكواة

:Air Active Express M [9]

179 alClosing from the ال controlling

180 alضمان

191 بطاقة الضمان

A

B

©

D

E

F

G

H

I

J

K

L

M

N

0

Air Active Express MA

غطاء PSAOLTE ALKI,

38/118

من القطن

76012 رقم Chapعة:

Air Active Express M Air Active M

Air Active Express M Air Active M

Warranty card page 191

Enter the following:

1. Surname, First name

2. Postal code, Street, house, no.

3. Phone

4. Error description

To be completed by package collection staff:

1. Product name, date, name, signature

Quality and Design by Leifheit AG

Leifheitstraße 1

56377 Nassau / Germany

www.leifheit.de.
