Notice CAMRY CR 7737 - page 4
4 / 106
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Outdoor heater (patio)
Brand Camry
Model CR 7737
Maximum power 2000 W
Power supply 220-240 V ~ 50 Hz
Heating element type Quartz, lifespan 2000 hours
Number of power levels 2 (1000 W and 2000 W)
Control ON/OFF switch with power selector
Orientation Head swivels 360° and tilts on 3 positions
Tip-over protection Yes, automatic shut-off if tipped over
Electrical insulation class Class II (double insulation, no earth connection required)
Intended use Outdoor only (not suitable for indoor use)
Recommended safety distance At least 1 meter from flammable objects
Assembly Post to assemble (base, lower, middle, upper parts, head)
Cleaning Damp cloth, removable grille for dusting
Replacement of heating element Possible, removal of grille and reflector
Included accessories Mounting screws, fixing knobs

Frequently Asked Questions - CR 7737 CAMRY

How to assemble the support of the CR 7737 heater?
Follow the steps: place the lower part of the post on the round base, screw the large knob. Then slide the middle part onto the lower part and screw. Fix the upper part with the thin adjustable part, insert the screws. Pull the thin part to the desired height and tighten the fixing knob. Finally, place the head on the post and tighten the screw.
What power levels are available?
The device offers two levels: left position = 1000 W, left + right position = 2000 W. The 0 position turns off the device.
Can I use this heater indoors?
No, the CR 7737 is designed exclusively for outdoor use. It is not suitable for indoor use.
How to clean the heater?
Unplug the device and wait for it to cool down. Clean with a damp cloth and a little mild detergent. For the grille, remove it by unscrewing the small screws, then dust with a soft brush. Never use a compressor or abrasive products.
What to do if the heater tips over?
The device is equipped with tip-over protection: it shuts off automatically. Unplug it immediately, check for damage, then set it upright. If no damage is visible, turn it back on and monitor for 15 minutes.
How to replace the heating element?
Set the switch to 0 and unplug. Remove the rear screws of the head, then the grille. Remove the screws of the reflector, disconnect the connectors of the heating tube, slide the tube out of the reflector. Install the new tube in reverse order.
Is the power cord removable?
No, the power cord is fixed. It can be attached to the cable clips on the post to keep it in place.
What safety distances should be observed?
Place the device at least 1 meter from walls and flammable objects. The switch should be 30 cm from the ceiling and 1.80 m above the floor. Do not place directly under an electrical outlet.
Does this heater require a grounded outlet?
No, the device is Class II (double insulation) and does not require a grounded outlet. However, a standard 220-240 V ~ 50 Hz outlet is required.
How to orient the heater head?
The head can rotate 360° on the post and tilt vertically on 3 positions. To adjust the tilt, gently push the head up or down to the desired angle.

User questions about CR 7737 CAMRY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Heating in PDF format for free! Find your manual CR 7737 - CAMRY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CR 7737 by CAMRY.

USER MANUAL CR 7737 CAMRY

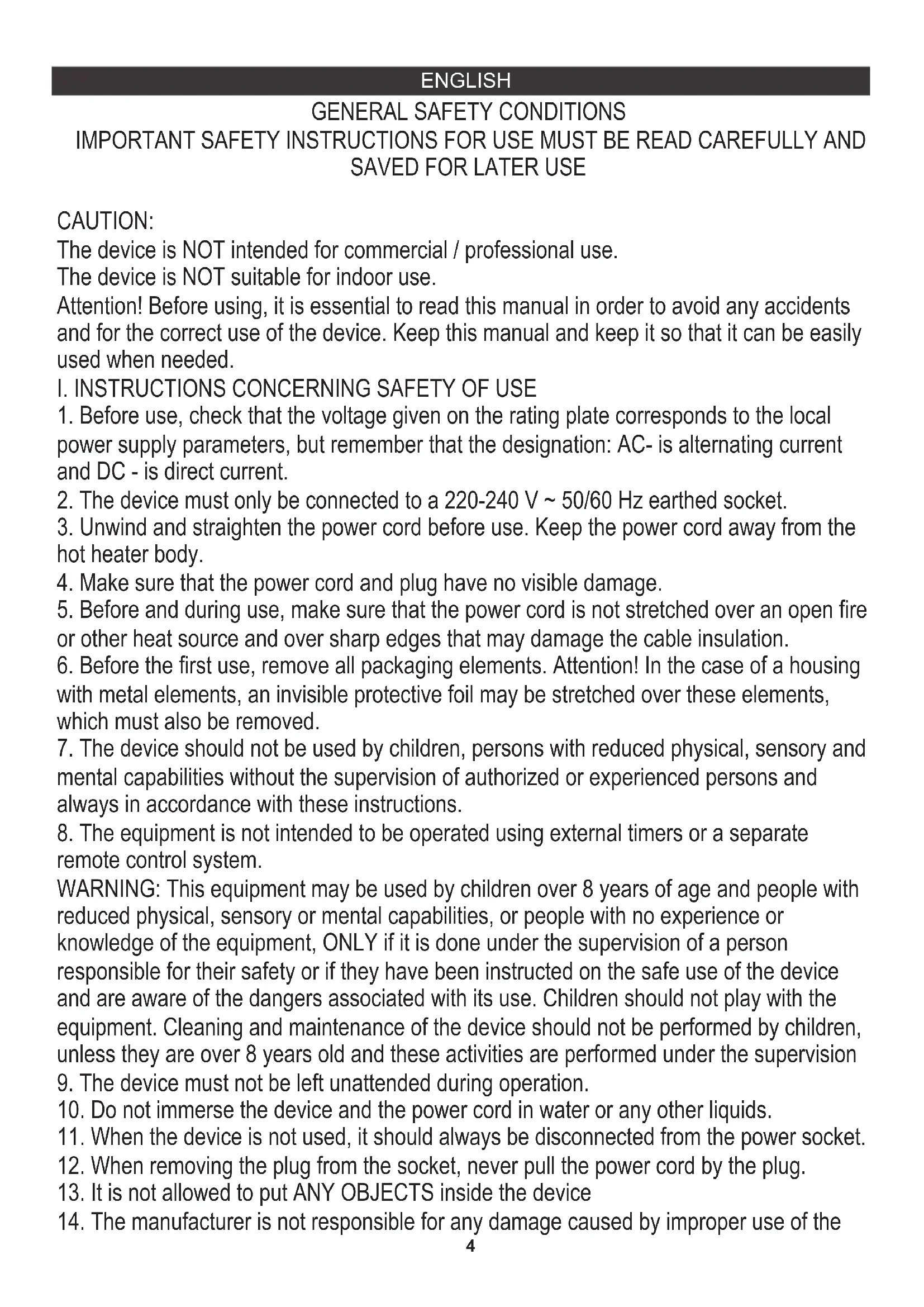

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS FOR USE MUST BE READ CAREFULLY AND SAVED FOR LATER USE

CAUTION:

The device is NOT intended for commercial / professional use.

The device is NOT suitable for indoor use.

Attention! Before using, it is essential to read this manual in order to avoid any accidents and for the correct use of the device. Keep this manual and keep it so that it can be easily used when needed.

I. INSTRUCTIONS CONCERNING SAFETY OF USE

  1. Before use, check that the voltage given on the rating plate corresponds to the local power supply parameters, but remember that the designation: AC- is alternating current and DC - is direct current.
  2. The device must only be connected to a 220 - 240V 50 / 60Hz earthed socket.
  3. Unwind and straighten the power cord before use. Keep the power cord away from the hot heater body.
  4. Make sure that the power cord and plug have no visible damage.
  5. Before and during use, make sure that the power cord is not stretched over an open fire or other heat source and over sharp edges that may damage the cable insulation.
  6. Before the first use, remove all packaging elements. Attention! In the case of a housing with metal elements, an invisible protective foil may be stretched over these elements, which must also be removed.
  7. The device should not be used by children, persons with reduced physical, sensory and mental capabilities without the supervision of authorized or experienced persons and always in accordance with these instructions.
  8. The equipment is not intended to be operated using external timers or a separate remote control system.

WARNING: This equipment may be used by children over 8 years of age and people with reduced physical, sensory or mental capabilities, or people with no experience or knowledge of the equipment, ONLY if it is done under the supervision of a person responsible for their safety or if they have been instructed on the safe use of the device and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the device should not be performed by children, unless they are over 8 years old and these activities are performed under the supervision 9. The device must not be left unattended during operation.
10. Do not immerse the device and the power cord in water or any other liquids.
11. When the device is not used, it should always be disconnected from the power socket.
12. When removing the plug from the socket, never pull the power cord by the plug.
13. It is not allowed to put ANY OBJECTS inside the device
14. The manufacturer is not responsible for any damage caused by improper use of the

device.

  1. Remember that some parts of the device and housing become very hot during operation, so be extremely careful not to touch them, you may get burned.
  2. NEVER cover the appliance while it is in operation or when it is not completely cold
  3. Remember that the appliance's heating elements take time to cool down completely.
  4. When using the device, ensure adequate space above and around the device, during operation, the device must not touch any easily flammable objects such as decorations, paper towels, curtains, clothing, etc.
  5. Keep a distance of at least 1m from other objects.
  6. The device cannot be used with external timer switches or other separate remote control systems
  7. Do not expose the device to direct weather conditions such as rain.
  8. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialist repair shop in order to avoid a hazard
  9. Do not use the device near flammable materials
  10. Do not use this heater in the immediate vicinity of a swimming pool
  11. Do not use if there are visible signs of damage to the heater
  12. The heater must not be placed directly under an electrical socket.
  13. Use the heater on a level and stable surface or attach it to the wall if the manufacturer has provided for it.
    It is recommended that, for increased safety, the electrical installation should be equipped with an automatic residual current device with a starting current of 30mA .
    Note: If the power cord or plug is damaged, it must be replaced or repaired by a specialized repair shop.

II. WARNINGS

  1. Never use the device if it is damaged or not functioning properly.
  2. Never use the device if it has previously been dropped and shows visible signs of damage.
  3. Do not use extension cords or other electrical outlets that do not comply with applicable electrical standards and regulations.
  4. Any repair, disassembly or replacement of any parts should always be performed by a specialized facility.
  5. In the event that the device and components such as electrical contacts, plug or cable get wet, dry the device and its components before use.
  6. Do not use the device with wet hands.
  7. If you are concerned that the device has been damaged, NEVER repair the device yourself.
  8. Never wash the device under running water or in such a way that water drips down to it.
  9. Make sure the device has cooled down before storing.
  10. Do not touch the housing during use. Only the knobs and switches should be used during work. After switching off, wait for the device to cool down.

BEFORE FIRST USE

Check that all connections are completely secure and that the device is securely positioned before using it. The device must be placed at a distance of at least 1 meters from the nearest wall. The box with the switch must be at least 30~cm from a ceiling and 1.80 meters above the ground. The device must be placed firmly on an even and completely horizontal surface.

ASSEMBLING

  1. Place the lower part of the stand (7) on the round base (6) so that the screw holes align. From the bottom of the base, screw in the large knob with a metal washer (11).
  2. Slide the central part of the stand (8) over the lower part (7). Insert the 4 screws through the double holes and tighten them firmly.
  3. Then attach the upper part of the stand (9) to the central part (8). To do this, first insert the thinner adjustable part of the stand (10) into the upper part of the stand (9). Insert the 4 screws through the double holes and tighten them firmly.
  4. Pull out the thinner adjustable part of the stand (10) as far as you want and tighten the fixing knob (5).
  5. Put the head housing (1) on the top of the stand (10) and tighten the head with the screw (13) on the back of the head.
  6. The head has a vertically adjustable tilt angle in 3 positions, press the head down or up to choose the best angle of heat.
  7. The thin part of the stand (10) can rotate 360^ , allowing the head (1) of the device to be directed in any direction. The electric cable can be attached to the cable holders on the stand.

Device description - picture 1

  1. Head housing 2. Grid 3. ON/OFF switch
  2. Stand 5. Fixing knob 6. Round base
  3. Stand, lower part 8. Stand, central part 9. Stand, upper part
  4. Stand, thinner adjustable part 11. Large knob with a metal washer
  5. 8 short screws for mounting the stand 13. Screw for securing the head
  1. Point the head of the device in the correct direction.
  2. Insert the plug into the socket (220-240V / 50Hz).
  3. The device is switched on and off by the ON/OFF switch (3).

You also select the heating power output with the switch:

$$ 0 = 0 \text {W a t t} $$

$$ \text {L e f t :} = \text {l o w p o w e r 1 0 0 0 W} $$

$$ \text {L e f t} + \text {R i g h t} = \text {h i g h p o w e r 2 0 0 0 W} $$

  1. The device does not have a thermostat and continues to give out heat until it is switched off. Always keep a close eye on the device when it is switched on!
  2. Remove the plug from the socket when the device is not in use.

Heating element replacement - see page 3

  1. Set the power switches to position 0. Disconnect the device from power.

  2. Remove the 2 upper and 2 lower screws (B1) on the back of the head (1). Remove the heater cover - the grille (2).

  3. Remove the 2 screws (B2) holding the reflector.
  4. Unscrew the 2 side screws (B3) on the reflector, remove the part of the reflector that supports the heating elements at the front (B4), and then slide the insulating hat (B5) towards the wires.
  5. Squeeze the connector (B6) between your fingers, and then pull the connectors away from the heater tube. Slide the heater tube out of the reflector.
  6. Install the new heater in reverse order.

FALL PROTECTION

The device is equipped a fall safeguard. It will automatically switch off if, despite the precautionary measures you have taken, the device falls over. In this event, unplug the device immediately.

Always check the device carefully for damage, then put it upright again. Never use a damaged device but take it to your dealer or a recognized service point to be checked and/or repaired.

If you cannot find any damage, set the switch (3) on position 0, then plug in and switch on. Monitor the device closely for the first fifteen minutes; if any defects occur, unplug immediately and take it to your dealer/service point to be repaired.

CLEANING

  1. Always switch the device off and unplug before cleaning. Clean using a damp cloth and, if necessary, a little cleaning fluid. Never use corrosive or abrasive cleaning agents!
  2. Dust and debris may gather behind the grille (2). The grille can be removed by unscrewing the four small screws (B1) and gently lifting off. Use a soft brush to carefully remove dust and debris. Never use a compressor as this could damage the lamps or the reflector. Replace the grille and secure.

TECHNICAL DATA

Power: 2000W

Power supply: 220-240 ~ 50Hz

Quartz heating element 2.000 hours lifetime (model GL7734.1)

lp24

CAMRY CR 7737 - CLEANING - 1

"Caution Hot Surface" - The temperature of accessible surfaces may be higher when the equipment is in operation, which t the housing elements become hot during operation during operation, BE CAREFUL !!!

CAMRY CR 7737 - CLEANING - 2

WARNING: In order to avoid overheating - do not cover the heater

CAMRY CR 7737 - CLEANING - 3

WARNING: Do not use this equipment near swimming pools or similar water tanks

CAMRY CR 7737 - CLEANING - 4

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
