| Product type | Wine cellar |
| Brand | Haier |
| Model | HWS79GDG |
| Nominal capacity (bottles) | 79 bottles (0.75 L standard) |
| Energy efficiency class | G |
| Annual energy consumption | 152 kWh/year |
| Storage volume | 190 L |
| Dimensions (W x D x H) | 497 x 585 x 1270 mm |
| Weight (estimated) | Approximately 55 kg |
| Power supply | 220-240 V, 50 Hz |
| Refrigerant | R600a (isobutane) |
| Climate class | SN, N, ST (10 °C to 38 °C) |
| Noise emissions | 37 dB(A) (class C) |
| Installation type | Freestanding (not built-in) |
| Number of temperature zones | 2 independent zones |
| Temperature range | 5 °C to 20 °C |
| Interior lighting | LED (12 V, 8 W max) |
| Activated carbon filter | Yes, yearly replacement recommended |
| Defrosting | Automatic |
| Door reversibility | Yes (right as delivered, convertible to left) |
| Special functions | Door open alarm, low temperature compensation, automatic panel lock, temperature memory |
| Maintenance and cleaning | Interior cleaning with warm water and mild detergent; clean door seals every 3 months |
| Spare parts available | Thermostats, sensors, boards, LEDs (7 years); handles, hinges, shelves (7 years); door seals (10 years) |
| Warranty | 2 years (EU) |
Frequently Asked Questions - HWS79GDG HAIER
User questions about HWS79GDG HAIER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wine cellar in PDF format for free! Find your manual HWS79GDG - HAIER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HWS79GDG by HAIER.
USER MANUAL HWS79GDG HAIER
EN WARNING: Risk of fire/flammable material.
The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.
Legend
Warning-Important Safety information
spit dna noitam rofni lareneG
Environmental information
Disposal
Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
WARNING!
Risk of injury or suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.
Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again.
Cyclopentane, a flammable substance not harmful to ozone, is used as an expander for the insulation foam.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused.
For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product, handled by the professionals.
EN
Content
1-Safety information. 4
2-Safety tips. 7
3-Maintenance 11
4-Accessories. 13
5- Product description 14
6- Installation 15
7-Use 18
8- Energy saving tips 21
9 - Equipment 22
10-Care and cleaning. 23
11-Troubleshooting 24
12-Technical data 27
13- Customer Service 28
14-Wine bottle stacking. 29
his appliance is intended to be used exclusive for the storage of wine. Before switching on the appliance for the rst time read the following safety hints:
WARNING!
Before first use
Make sure there is no transport damage.
Remove all packaging and keep out of children's reach and dispose them in an environmentally friendly manner.
- Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.
Installation
The appliance should be placed in a well-ventilated place. Ensure a space of at least 10cm above and around the appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
- Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc. Your wine cellar was not designed to operate in ambient temperature below 10^ .
- Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
Install and level the appliance in an area suitable for its size and use.
Make sure that the electrical information on the agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
Do not use multi-plug adapters and extension cables.
WARNING!
WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
Do not step on the power cable.
- Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.
- Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
WARNING: Do not damage the refrigerant circuit.
Daily use
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances. - Keep away children under 3 years of age from the appliance unless they are constantly supervised.
- Cleaning and user maintenance shall not be made by children with out supervision.
The appliance must be positioned so that the plug is accessible. - If coal gas or other inflammable gas is leaking into vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the appliance.
- Wait at least 7 minutes to reconnect the power after the power has been disconnected.
Do not lift the appliance by its door handles.
The keys must be kept out of the reach of children and not in the vicinity of the appliance to prevent children from being locked inside the appliance.
WARNING!
- Notice that the appliance is set for operation at the secific ambient range between 10 and 38^ . The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
Do not place unstable articles (heavy objects, containers filled with water) on top of the appliance, to avoid personal caused by falling or electric shock caused by contact with water. - Open and close the door only with the handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these areas to avoid pinching your fingers. Open or close the appliance doors only when there are no children standing within the range of door movement.
- Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
- Do not set unnecessarily low temperature in the wine cabinet compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
- Do not touch the inside surface of the appliance compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
For proper wine cooling, do not overload the appliance. - Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
WARNING: Do not use electrical devices inside the appliance, unless they are of the type recommended by the manufacturer. To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).
To prolong the service life of the appliance, avoid turning it off. - Never place the appliance horizontally on the ground. After tilting the appliance more than 45^ , wait for 24 hours before plugging it in.
WARNING!
Maintenance / cleaning
Make sure children are supervised if they carry out cleaning and maintenance.
- Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
Hold the plug, not the cable, when unplugging the appliance.
- Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator/freezer detergent to avoid damage. Eventually warm water and baking soda solution - about a ta baking soda to a litre/quarter of water. Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
- If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
Safety Tips
EN
Do not spray or flush the appliance during cleaning.
Do not use water spray or steam to clean the appliance.
Do not clean the cold glass door with hot water. Sudden temperature change may cause the glass to break.
If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.
Refrigerant gass information
WARNING!
The appliance contains the flammable refrigerant ISOBUTAN (R600a). Make sure the refrigerant circuit is not damaged, transportation or installation. Leaking refrigerant may cause injuries or ignite. If a damage has occurred, keep away sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. In customer service.
In case of eyes get into contact with the refrigerant, rinse it immediately under running water and call immediately the eye specialist.
WARNING: The refrigeration system is under high pressure. Do not tamper with it. Since the flammable refrigerants are used, please, install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance.
Intended use
This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
To ensure the safe preservation of wine, please comply with this instruction for use.
The details on the most appropriate part in the compartment of the appliance where specific types of food shall be stored, considering the distribution of temperature that can be present in the different compartments of the appliance are in the other part of the manual.
Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.
Disposal
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Since the flammable insulation blowing gases are used, please contact the professional agent or our after-sale service to dispose of the appliance.
WARNING!
Risk of injury of suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals to prevent children and pets to get closed in the appliance.
WARNING: Disconnect the appliance from the power supply before cleaning.
Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
Clean the appliance when only little or no wine is stored. It is only necessary to clean it when it is dirty.

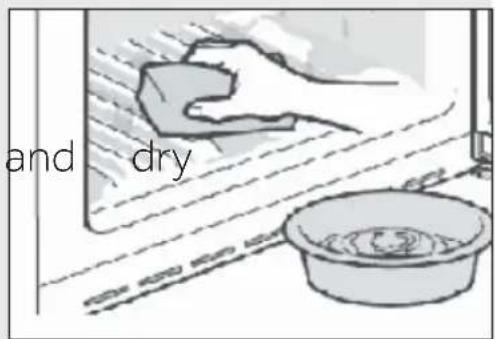

Clean the inside and housing of the appliance with a sponge damped in warm water and neutral detergent
Rinse with clean warm water with soft cloth.
Do not clean any of the parts of the appliance in a dishwasher.
- Allow at least 7 minutes before re-starting the appliance as frequent starting may damage the compressor.

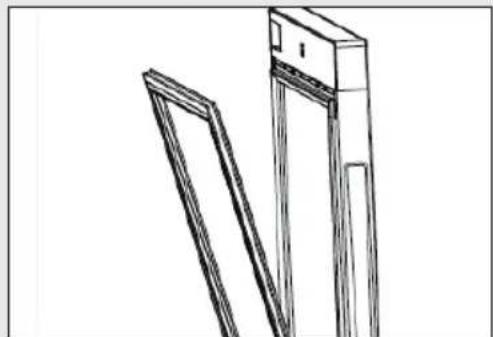

Clean the door gasket:
The door gaskets should be cleaned every 3 months to assure a proper seal. As below : Remove: Grasp the door gasket and pull
it out according to the direction of arrow to remove the whole door gasket in order.
Dip the brush with water or food grade alcohol, clean up the door gasket groove firstly by pulling back and forth the brush. Then wipe door gasket surface with a towel dipped with water or
food grade alcohol. Finally, wash the door gasket clean and wipe it dry with a clean towel.
Installation door gasket after cleaning:
Before installation, make sure that there is no water on the door gasket. Insert the door gasket into the groove, and press the door gasket tightly from the top to the bottom by hand until the whole door gasket is inserted into the groove.
Cleaning the shelves:
All shelves can be taken out for cleaning.
Take out all bottles.
Lift each shelf a little and take it out.
Clean the shelf with a soft towel.
Wait until the shelves are dry before putting them back in.
WARNING:
Wait at least 7 minutes to reconnet the power after the power has been disconnected.
Check the accessories and literature in accordance with this list: without isolation.
| Name | User Manual | Service Card | Shelf | Small shelf | Hinger Cover | Energy Label | Key | Left cam of door |
| HWS77GDAU1 1 | 1611122 | |||||||
| HWS42GDAU1 1 | 1311122 | |||||||
| HWS79GDG 11500100 | ||||||||
| HWS78TGDFH1SW | 11611122 | |||||||
| HWSKTM42GDGIT | 1131 | 1 | 122 | |||||
Notice
Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

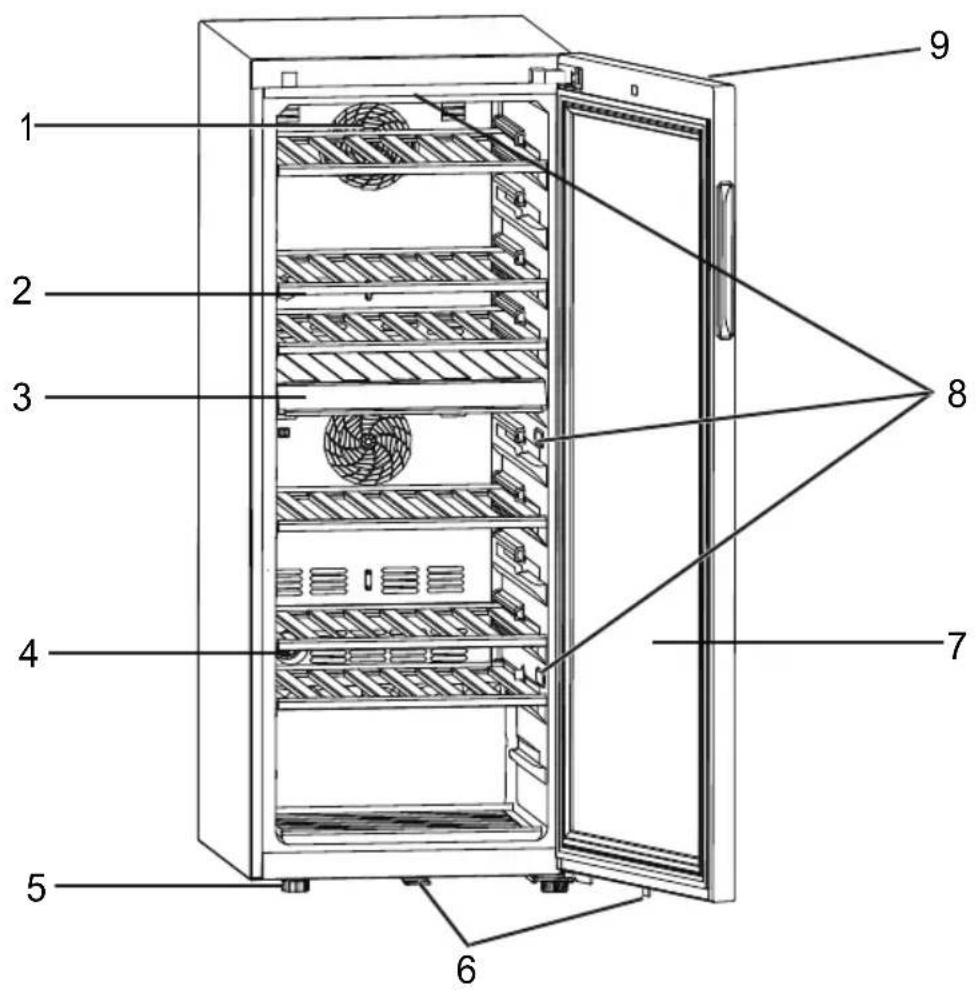

Picture of appliance
1.Fan
2. Shelf
3.Middle partition
4.Active charcoal filter
5. Adjustable feet
- Lock(for HWS77GDAU1/HWS42GDAU1/HWSKTM42GDGIT)
- Door
- LEDlamp

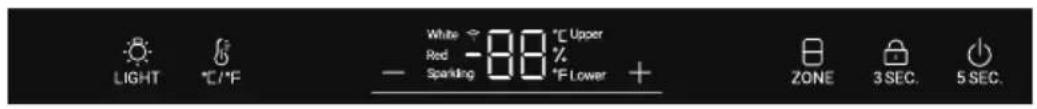

- Display (on front of the door)

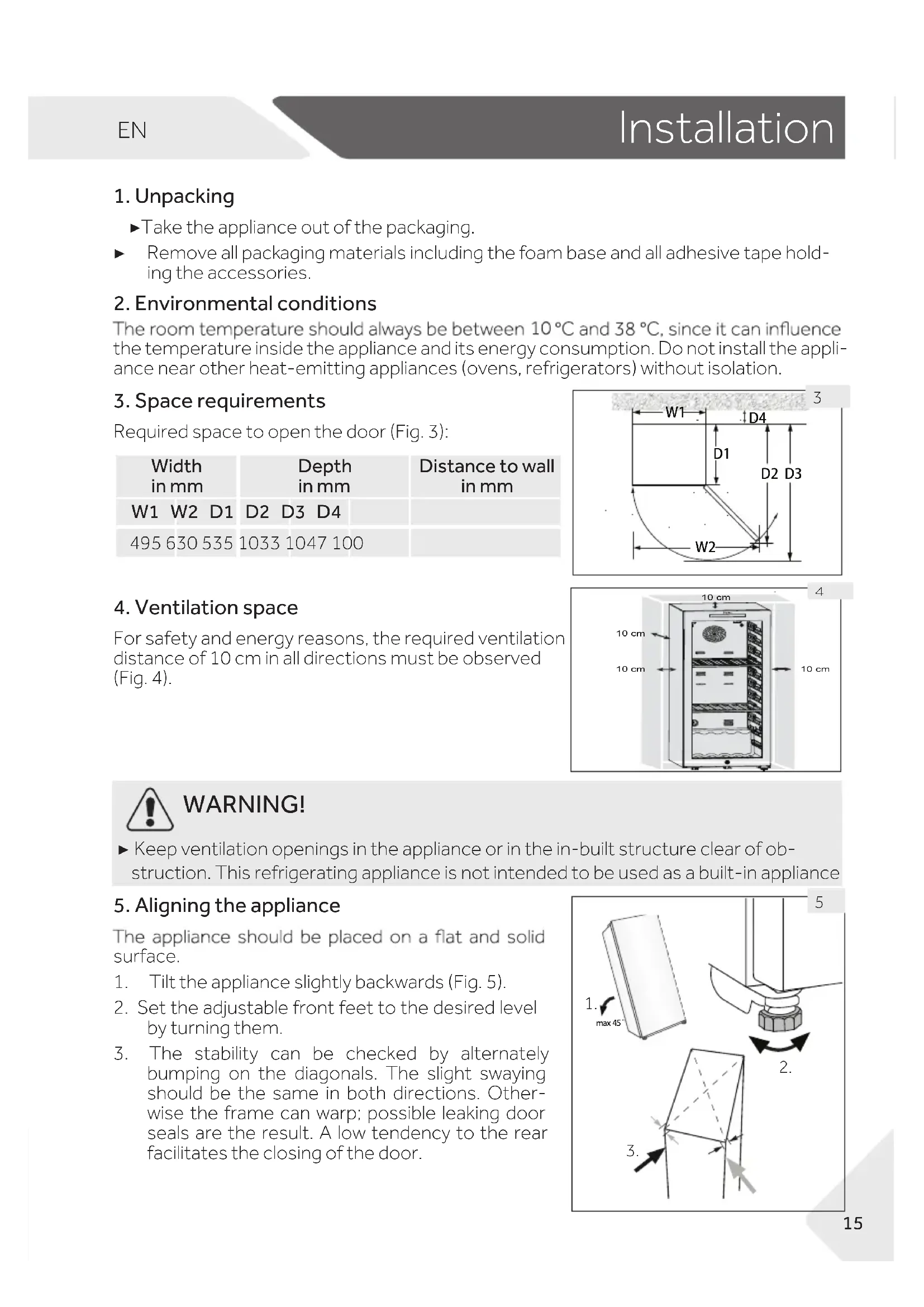

1. Unpacking
Take the appliance out of the packaging.
- Remove all packaging materials including the foam base and all adhesive tape holding the accessories.
2. Environmental conditions
The room temperature should always be between 10^ and 38^ , since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.
3. Space requirements

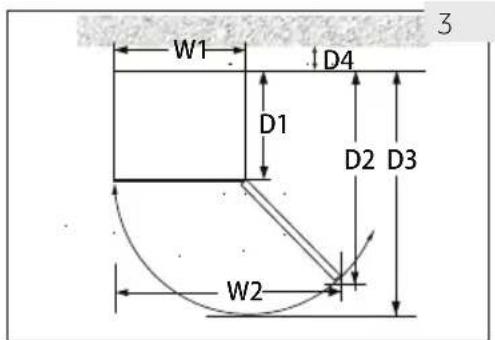

Required space to open the door (Fig. 3):
| Width in mm | Depth in mm | Distance to wall in mm |
| W1 W2 D1 | D2 D3 D4 | |
| 495 630 535 | 1033 1047 100 |
4. Ventilation space

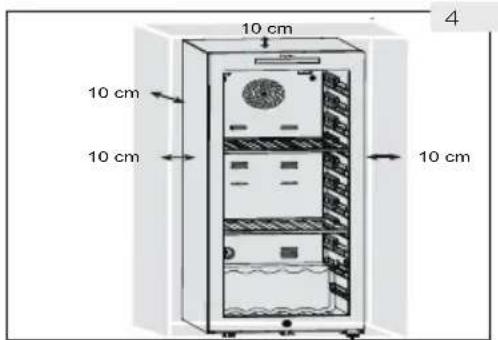

For safety and energy reasons, the required ventilation distance of 10cm in all directions must be observed (Fig. 4).
WARNING!
- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. This refrigerating appliance is not intended to be used as a built-in appliance

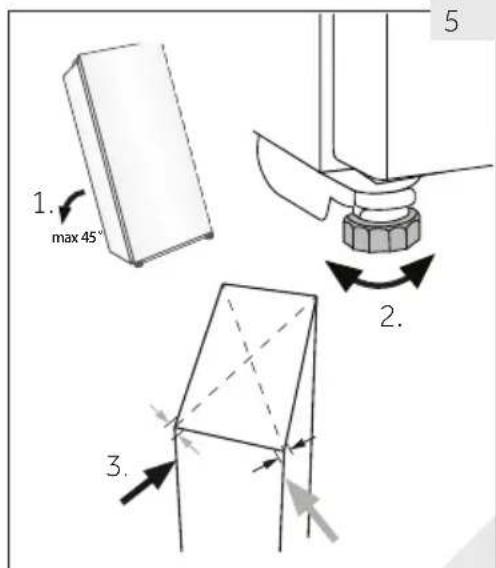

5. Aligning the appliance
The appliance should be placed on a flat and solid surface.
- Tilt the appliance slightly backwards (Fig. 5).
- Set the adjustable front feet to the desired level by turning them.
- The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door.
6
6. Fine tuning of the door
The appliance closes more easily if the levelling feet on the front are used:
Rotate the adjustable feet (Fig. 6) to turn them up or down:
Turning the feet clockwise raises the appliance.
- Turning the feet counterclockwise lower the appliance.

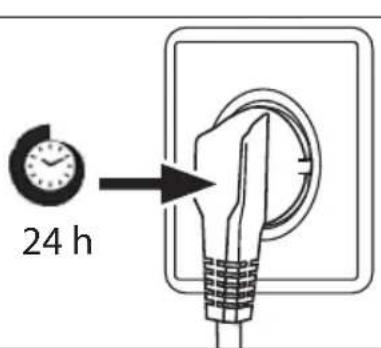

7. Waiting time
The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during transport if the appliance is tilted. Before connecting the appliance to the power supply, wait 24 hours (Fig. 7) so that the oil runs back into the capsule.
8. Electrical connection
Before each connection check if:
power supply, socket and fusing are appropriate to the rating plate.
the power socket is earthed and no multi- plug or extension.
the power plug and socket are fit properly.
Connect the plug to a properly installed household socket.
WARNING!
To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).
9. Door Reversibility
Before connecting the appliance to the power supply you should check, whether the doors swing must changed from right (as delivered) to left, if this is required by the installation location and the usability
WARNING!
The appliance is heavy. You need two persons to carry out the door reversibility.
Before any operation, first unplug the appliance from the mains.
Do not tilt the appliance more than 45^ to prevent damage of the cooling system.

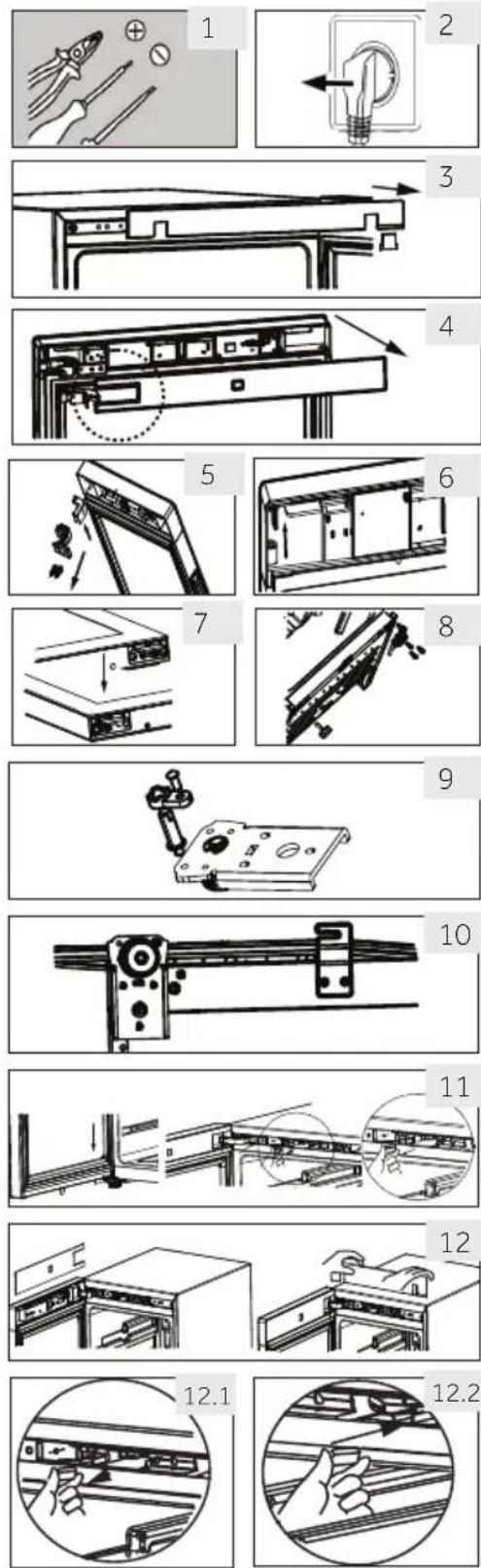

Assembly steps (for HWS77GDAU1/HWS42GDAU1/HWSKTM42GDGIT)
- Provide necessary tool.
- Unplug the appliance.
- Open the door, take down the front strip and find the corresponding strip to remove the left side and placed on the right side of the gap.
- Unplug the connection cable.Pull-out the upper part of the door seal, and take down the door back strip.(Remove from the left side opening)
- Remove 2 screws on the upper hinge.
- Remove cover and hinge, remove axe cover then assemble to the other side, then install the hinge in the axe.
- Remove the cam and door holder, move the door holder to another side of the door. Install the new cam form the gift bag.
- Cabinet tilted (less than 45^ ), remove the bottom hinge (3 screws) for backup.
- Remove the lower hinge cam and hinge shaft. Install the shaft on the right side of the lower hinge. Take out the cam from the instruction bag and install it on the lower hinge shaft.
- Install the lower hinge and the bottom foot on the other side of the cabinet. Lubricate the cam.
- Install the door on the lower hinge shaft, and fix the upper hinge with two screws on the cabinet. Fix the signal wires in the middle of the upper hinge groove, and take the hinge cover in the instruction bag and fasten it on the upper hinge.
- Install the door seal and the door strip on the door. Insert the pair of door signal wires, move the magnetic switch (12.1) to the right mounting slot (12.2) of the upper beam box, and fasten the front trim of the cabinet.
- Make sure the door is able to open and close in a good condition.
1.Before first use
- Remove all packaging materials. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside. Keep them out of children's reach and dispose them in an environmentally friendly manner.
- Clean the inside and outside of the appliance with water and a mild detergent before putting any wine in it.
After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in. See section INSTALLATION. - Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimate it itself before making any adjustments.
The temperature is automatically set to 12^ . If desired, you can change the temperature manually. Please see TEMPERATURE.
2. Touch keys
The buttons on the control panel are touch keys, which respond when lightly touched with the finger.

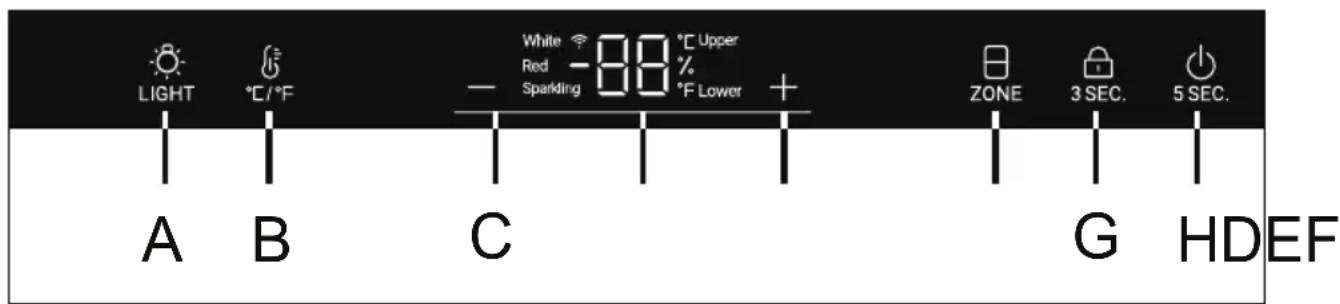

3. Description for control panel
A Interior light/Wi-Fi button
B °C /°Fconversion button
C Temperature adjust button:down
D Display
E Temperature adjust button:up
F Temperature zone selection button
G Lock button
H Power button
4. Automatically locking function
The control panel automatically locks from any key presses after 30 seconds from being enabled, the is light. To activate keylock press the button for 3 seconds, when locked the back lit LED lights will dim. Button A is not locked.
5. Power button function
Press the button H for 5 seconds, the wine cellar cuts off the power. Then press the button H for 5 seconds, the wine cellar power on.
6.Temperature setting
Notice
Presettings
- Once you have plugged the unit into an electrical outlet, let the unit for at least 30 minutes to acclimatize itself before making any adjustments.
-
When the appliance is switched on after disconnection from the main power supply, it may take several hours for the correct temperatures to be reached. The exact time varies depending on the environment and the temperature setting.
-
Temperature zone selection
In the unlocking state, the "0" icon is fully on. if the current display is in the upper temperature zone, the upper icon is on and the lower icon is off. At this time, press the "1" key, the lower icon will be on and the upper icon will be off.
- Temperature setting
In the unlocking state, when the "upper" icon is on, the upper temperature zone temperature can be adjusted;
Press + or — when "Upper"light on, to increase or decrease the temperature. When the desired temperature has reached, press the button. After that the temperature setting is completed and 3 seconds. later, the temperature display area will stop flashing, then the temperature display would show the current temperature.
The temperature range is 5 to 20 degree.
When the "lower" icon is on, the temperature in the lower temperature zone can be adjusted
Recommended temperature settings
The following drinking temperatures are recommended for the different types of wine.
| Red wine +13°C to +20°C (+55°F to + 68°C) | Sparkling wine Prosecco | +5°C to +8°C (+41°F to +47°F) |
| White wine +9°C to +12°C (+48°F to +54°F) |
If you store wine for long periods of time, it should be stored at a temperature between +10^ and +12^ (50°F and +54°F).
7.Standby-mode
The display screen is dimmed automatically 30 seconds.
It lights up automatically when any key is touched or the door is opened.
8. Lighting mode setting
Press the button. When the lights in the cabinet are on, the lights will be lighted up gradually. When pressed the button once again the lights will be off gradually.
Notice Influences on temperatures
The temperature inside the appliance is influenced by the following factors:
Ambient temperature
Frequency of door opening
Amount of stored bottles
The location of the appliance
The default setting is 12^ C
When display stops flashing, it goes back to showing the current temperature inside the wine cellar. It will take some time to reach the set temperature.
9. ^ C / ^ F function
Press the button, switch between Fahrenheit and Celsius.
10. Power-Off Memory function
If a power outage, the cellar will automatically save the set temperature. After power recovery, it will run based on the temperature set before the power outage.
11. Low temperature compensation function
The wine cellar has a low temperature compensation function to ensure the stability of the temperature: When the ambient temperature is lower than the set temperature, the wine cellar automatically starts the low temperature compensation function, heating the application. When the temperature in the application reaches the set temperature, the low temperature compensation function is automatically turned off.
12. Door opening alarm
If the door is kept open for over 1 min, buzzer will be beeping to give an alarm till the door is closed or any key on display panel can be operated and then the buzzer will stop beeping.
13. Humidity display
Hold the " 12 button for 3seconds, the display panel will appear the percentage of humidity. Press the "+" or "-" buttons to turn off humidity display.
Notice
The humidity of cabinet is tested in accordance with the European standard EN 62552, the test resultat of humidity of cabinet is 50% -80% which is in line with EN 62552 and (EU) 2010/1060 requirements.
14. Wi-Fi mode setting(for HWS77GDAU1/HWS42GDAU1)
CONNECTIVITY WIRELESS PARAMETERS
| Technology | Wi-Fi | Bluetooth® Wireless Technology |
| Standard | IEE 802.11 b/g/n | Bluetooth® v4.2, BR/EDR Bluetooth® Low Energy |
| Frequency Band(s) [MHz] | 2401÷2483 | 2402÷2480 |
| Maximum power [mW]Band(s) [MHz] | 100 | 10 |
PRODUCT INFORMATION
How to activate Wi-Fi module:
- Press the light button for 3 seconds to activate the Wi-Fi
- The Wi-Fi module is switched on the Wi-Fi icon starts to blink
- If the wine cellar is enrolled but the Wi-Fi is off the icon will blink
- If the wine cellar is enrolled and connected the Wi-Fi icon is always on
- To reset the Wi-Fi press the light for 3 seconds
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Candy Hoover Group SRL is under license. Other trademarks and trade names are those of their respective owners.

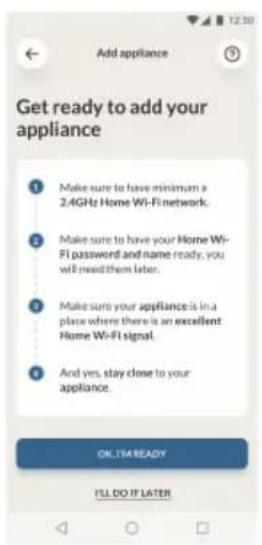

IN APP PAIRING PROCEDURE
Step 1
- Download the hOn app on the stores.
GETITON GooglePlay
Download on the App Store
EXPLORE IT ON AppGallery
Step 2
- Log in or sign up.
Step 3
- Add a new appliance selecting the wine cellar from the list.
Step 4 Step 5

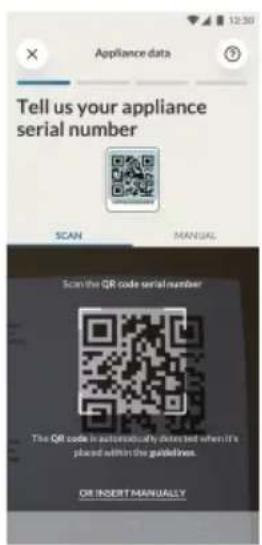

- Scan the QR or insert manually the serial number.
- Press the light button on the product for 3s to activate the Wi-Fi.
Step 6
The wi-fi icon will blink, the pairing process is in progress.
- You will have 5 minutes to complete the pairing process.
- When the process is completed the Wi-Fi icon will stop blinking and it will remain always on.
NOTE
Energy saving tips
Make sure the appliance is properly ventilated (see INSTALLATION).
- Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
Open the appliance door as little and as briefly as possible.
Do not exceed the designed amount of bottles to avoid obstructing the air flow.
- Keep door seals clean so that the door always closes correctly.
The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance on factory-fresh condition, and food to be placed without blocking the air outlet of the duct.
Equipment
EN

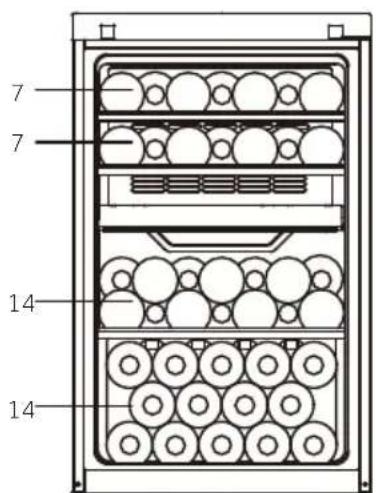

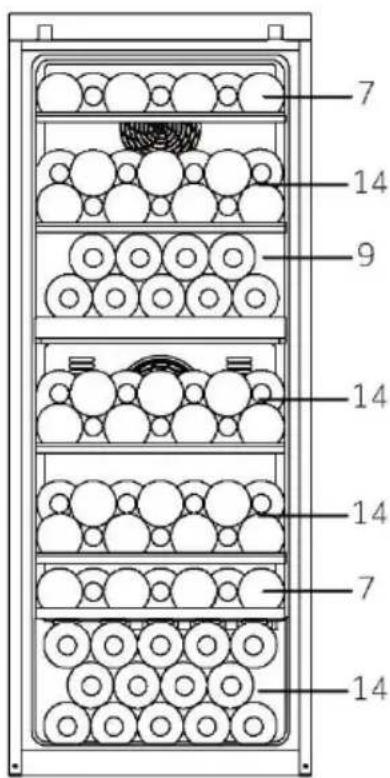

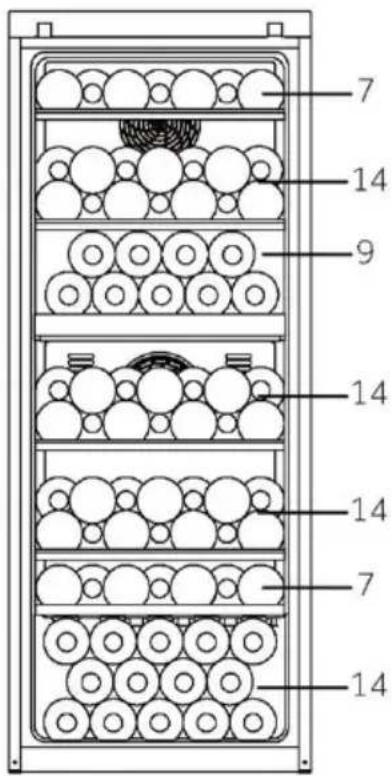

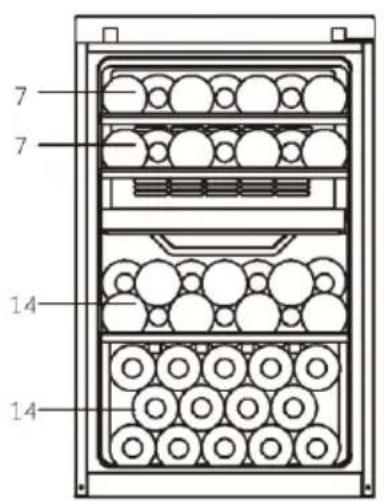

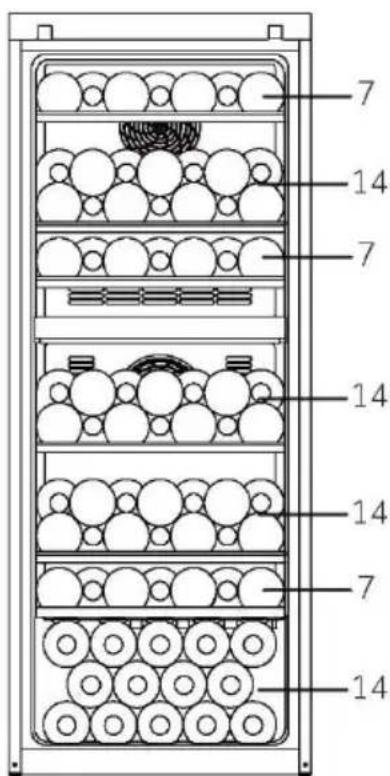

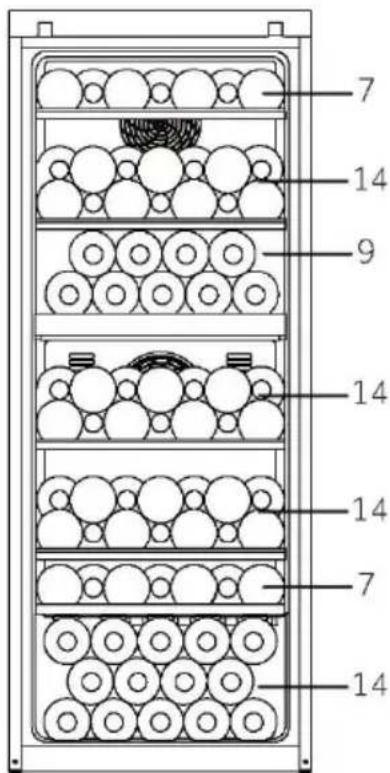

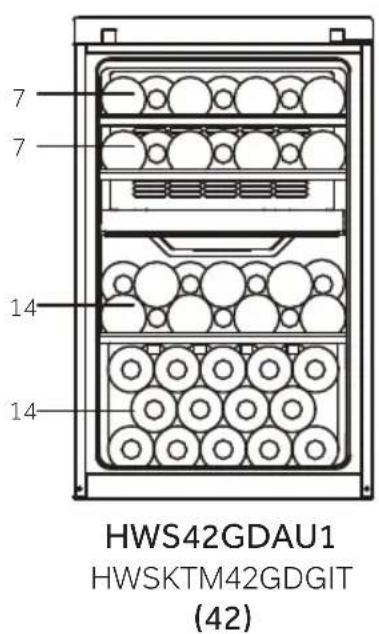

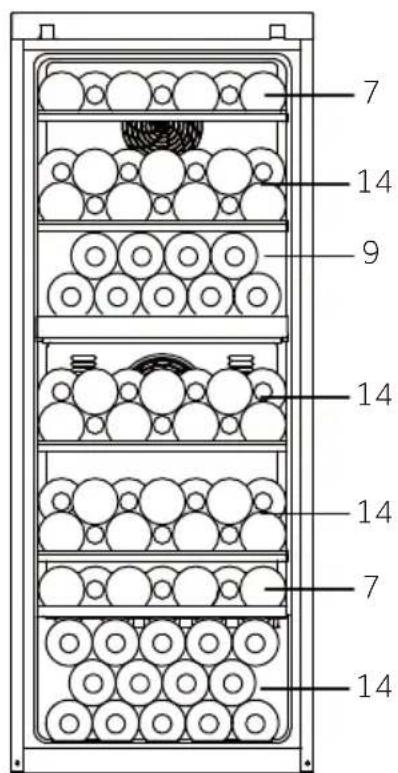

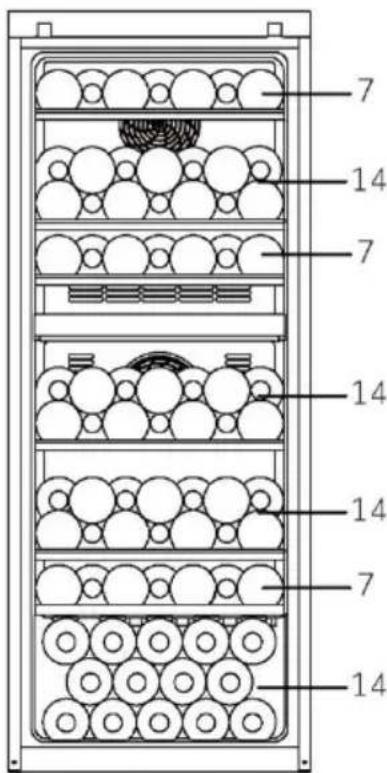

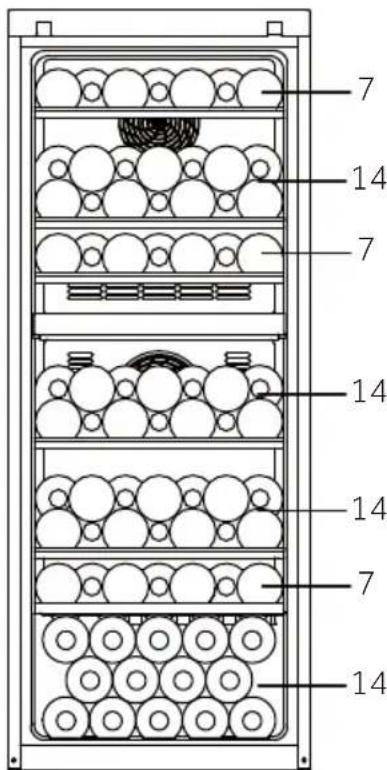

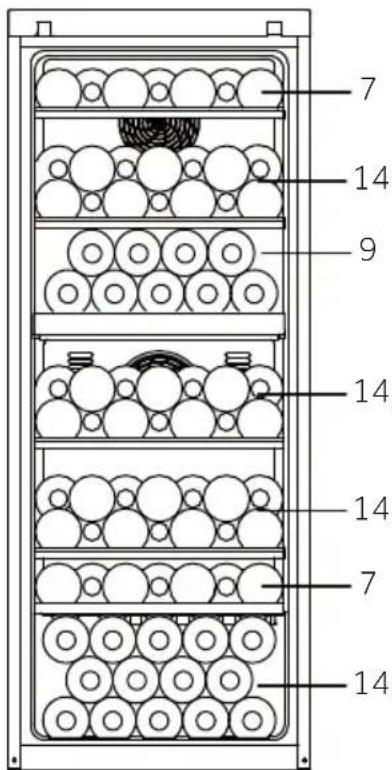

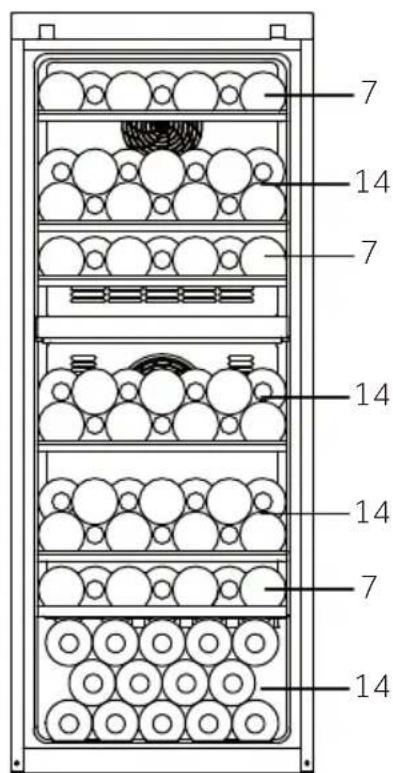

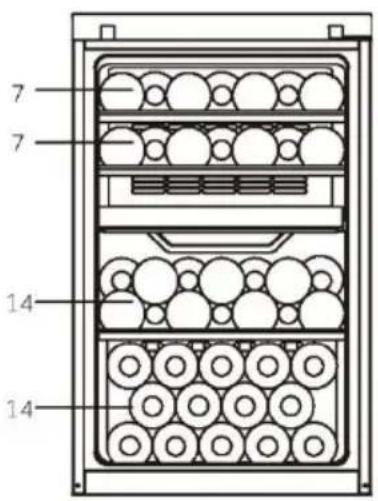

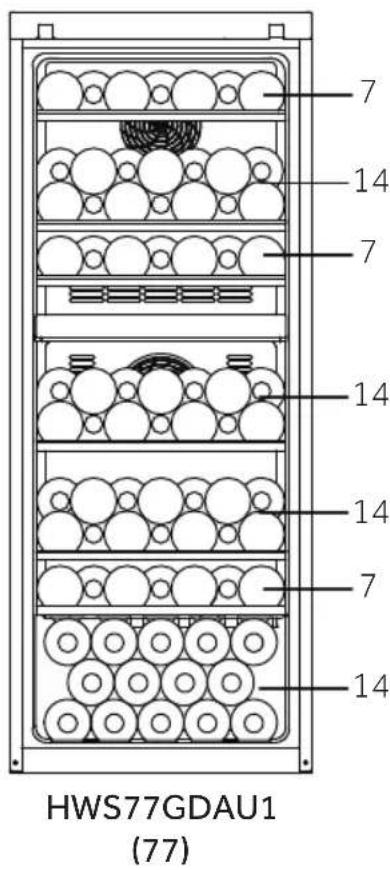

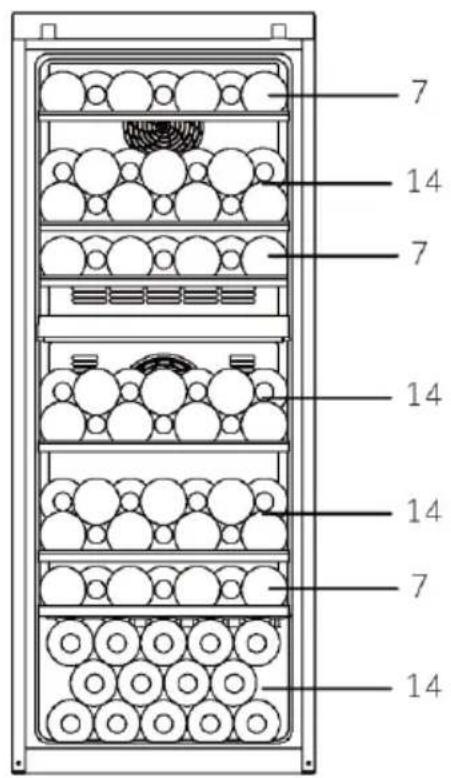

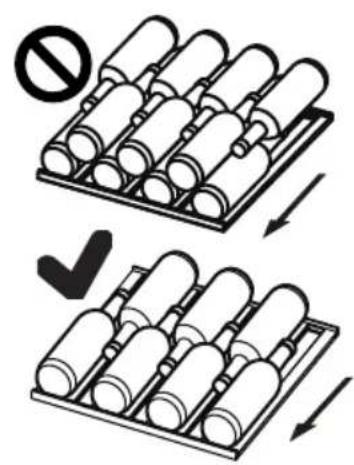

1. Shelf

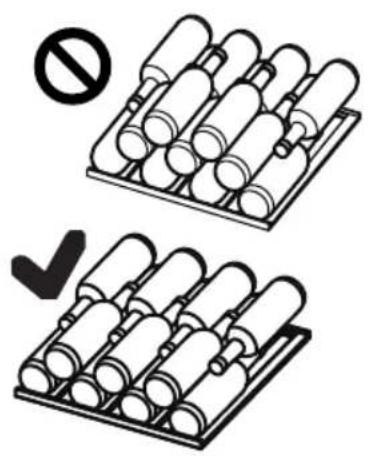

- The shelves are designed for easy storage and easy removal of the wine. They can be cleaned with a soft towel.
- Regualr bottles with diameter of 76mm can be stacked.
- Magnum bottles can be stacked on the bottom shelf.

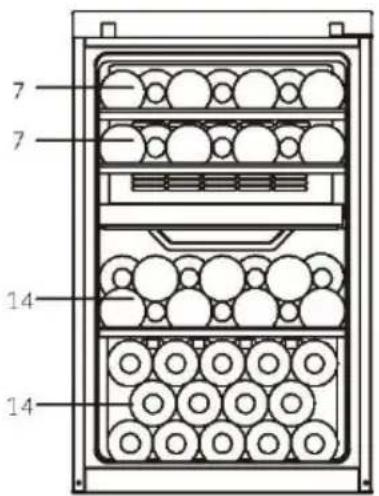

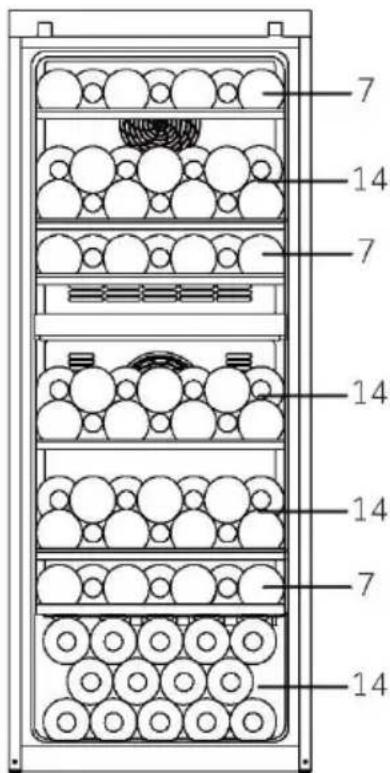

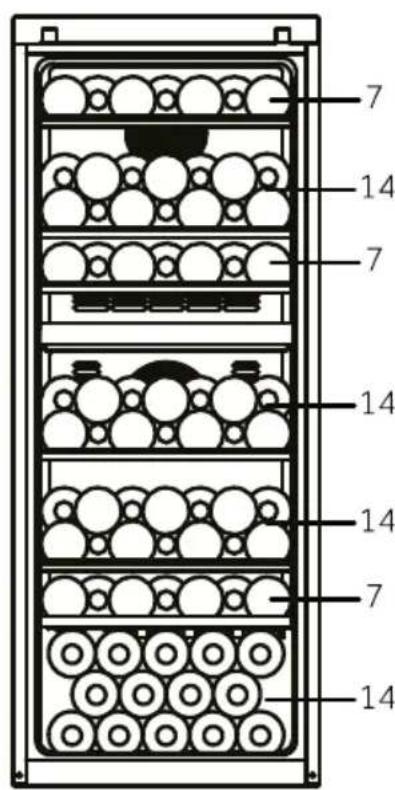

- The quantity can vary from the depicted number or bottles if they are stacked in a different way.

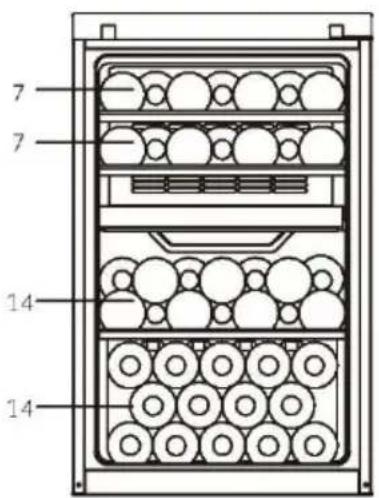

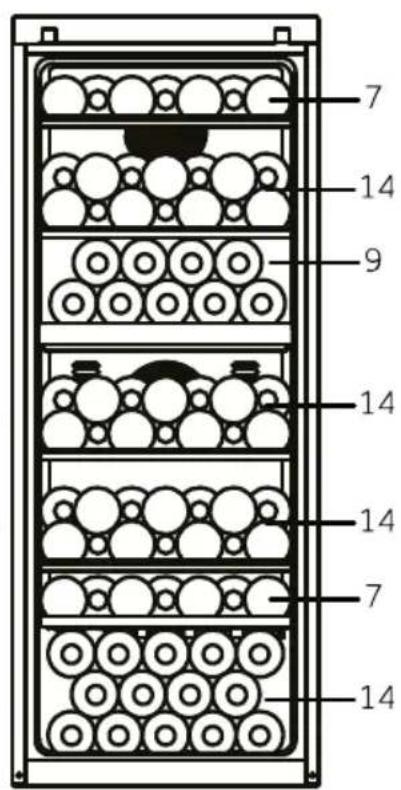

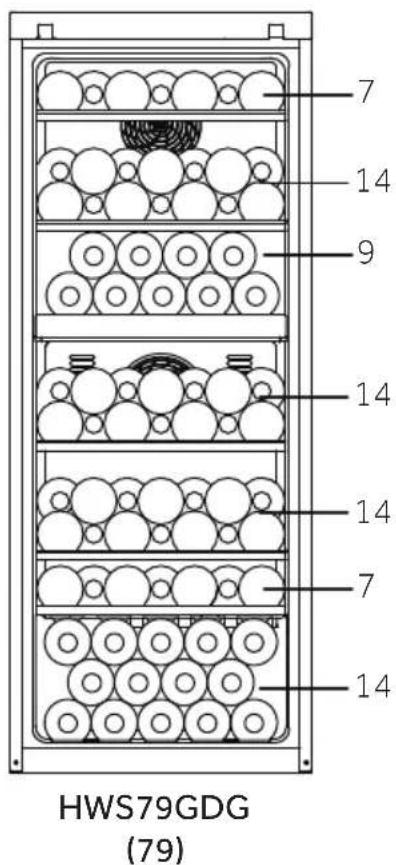

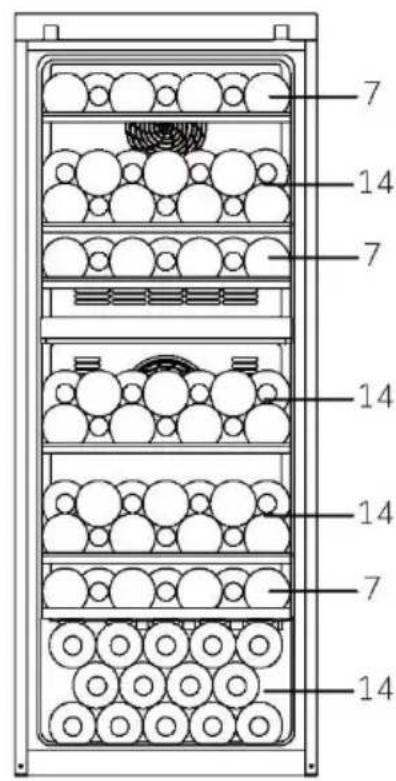

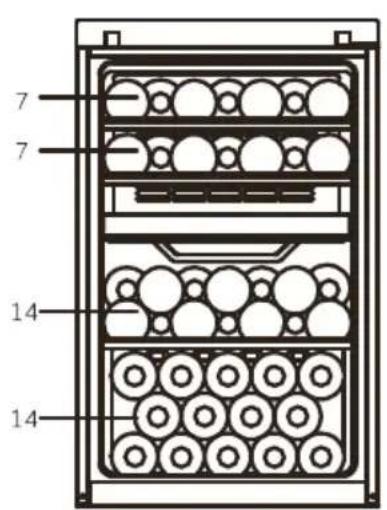

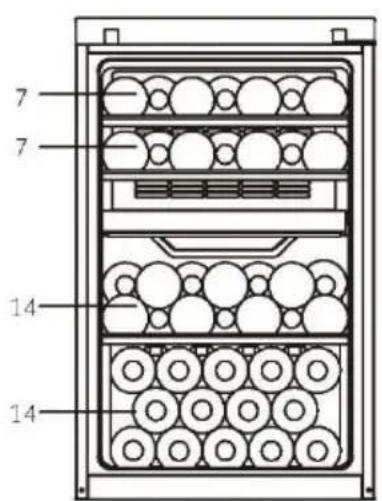

Advice for the layout of your wine cellar
We recommend that the number of wine bottles should not exceed two layers on each shelf, and the bearing capacity of the wine shelves should not exceed 20kg . Before placing the bottles inside the wine cellar, confirm whether or not the wine shelves are completely stable. In addition, confirm whether or not any bottle protrudes from the shelves in order to prevent bottles hitting the glass door upon closing.
2.The light
The LED interior light comes on when the door is opened. To turn on the light while the door is closed, touch the button. To turn the lights off, touch button again. To increase the energy efficiency, the lights should be turned off when the wine cellar is not being viewed.
3.The lock (for HWS77GDAU1/HWS42GDAU1/HWSKTM42GDGIT)
To lock the wine cellar, close the door and put the key in the lock:
Lock the door by turning the key counterclockwise;
Unlock the door by turning the key clockwise.
1. Defrosting
The defrosting of the wine cellar is done automatically; no manual operation is needed.
2.Replacing the LED lamp
The lamp uses LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.
WARNING!
Do not replace the LED lamp yourself. It must only be replaced by either the manufacturer or the authorised service agent.
Parameters of LED lamp:
Voltage12V; Max power:8W(for HWS77GDAU1/HWS79GDG)
Voltage12V; Max power:5W(for HWS42GDAU1/HWSKTM42GDGIT)
3. Non-use for a longer period
Unplug the power cord. Clean the appliance and door gaskets as described above keep the door open to prevent the creation of bad odours inside.
4. Moving the appliance
- Remove all bottles and unplug the appliance.
- Secure shelves and other moveable parts in the wine cellar with adhesive tape.
- Do not tilt the wine cellar more than 45^ to avoid damaging the refrigerating system.
5. Air exchange with activated carbon filter
The way in which wines continue to mature depends on the ambient conditions. The quality of the air is therefore decisive for preserving the wine. An activated carbon filter has been fitted in the lower area of the rear wall of the appliance to through put remains at an optimum quality.
Notice
We recommend that you replace the filter once a year. Filters can be obtained from your dealer.
Changing the filter:
Take the fiter by the handle. Turn it to the left and remove.

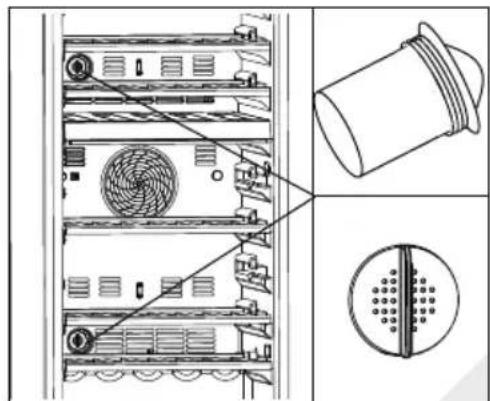

Inserting the filter:
Insert with the handle in a vertical position. Turn it to the right and insert.
Troubleshooting
EN
Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.
WARNING!
Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
| Error Code | Cause Solution | |
| P2 | The opening time of the door is too long. | Please close the door. |
| H1 | The temperature of the upper temperature zone is too high. | Please contact our after-sales service. Please check ambient temperature should be between 10 °C and 38 °C. |
| H2 | The temperature of the lower temperature zone is too high. | |
| L2 | The temperature of the upper temperature zone is too low. | |
| L3 | The temperature of the lower temperature zone is too low. | |
| E6 | The upper fan motor fault. | Please contact our after - class service. |
| E8 | The lower fan motor fault. |
Problem Possible Cause Possible Solution
The compressor does not work.
The appliance runs frequently or runs for a too long period of time.
- Mains plug is not connected in the mains socket.
The outdoor temperature is too high.
The appliance has been off power for a period of time. - A door of the appliance is not tightly closed.
The door has been opened too frequently or for too long. - The door gaskets are dirty, worn, cracked or mismatched.
The required air circulation is not guaranteed. -
The temperature is set too low.
-
Connect the mains plug.
In this case, it is normal for the appliance to run longer.
Normally, it takes a while for the appliance to cool down completely.
- Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door.
- Do not open the door too frequently.
Clean the door gasket or replace them by the customer service.
- Ensure adequate ventilation.
The problem will resolved itself when the desired temperature has been reached.
The inside of the wine cellar is dirty and/or smells..
- The inside of the wine cellar needs cleaning.
Clean the inside of the wine cellar.
It is not cold enough inside the appliance.
The temperature is set too high.
- Bottles have been added recently.
- Reset the temperature.
- Allow time for recently added bottles to reach desired temperature.
- Close the door.
It is too cold inside the appliance.
- The temperature is set too low. - Reset the temperature.
Moisture formation on the inside of the refrigerator compartment.
- The climate is too warm and too-damp.
-
A door of the appliance is not tightly closed.
The door has been opened too frequently or for too long.. -
Increase the temperature.
- Close the door.
- Do not open the door/drawer too frequently.
Troubleshooting
EN
| Problem Possible Cause Possible Solution | ||
| Moisture accumulates on the wine cellar's outside surface. | ·The climate is too warm and too damp ·The door is not closed tightly.The cold air in the appliance and the warm air outside it condensates. | ·This is normal in damp climate and will change when the humidity decreases. ·Ensure that the door is shut tightly and that the gaskets seal properly. |
| The appliance makes abnormal sounds | ·The appliance is not located on level ground. ·The appliance touches some object around it. | ·Ajust the feet to level the appliance. ·Remove objects around the appliance. |
| A slight sound is to be heard similar to that of flowing water. | ·This is normal | - |
| The interior light- ing or cooling system does not work. | ·Mains plug is not connected to the mains socket. ·The power supply is not intact. ·The LED-lamp is out of order. | ·Connect the mains plug. ·Check the electrical supply to-the room.Call the local electricity company. ·Please call the service for changing |
| The sides of the cooler and door strip get warm | ·This is normal. | - |
| The door does not shut properly | ·The appliance is not level. ·The door is blocked. | ·Level the appliance with the leveling feet. ·Check for blockages like bottles or shelves. |
To contact the technical assistance, visit our website:
https://corporate.haier-europe.com/en/
Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.
Product fiche according to regulation EU No. 2019/2016
| Brand Haier Haier | Haier | ||
| Model name / identifier | HWS42GDAU1 HWSKTM42GDGIT | HWS77GDAU1 HWS78TGDFH1SW | HWS79GDG |
| Rated bottle capacity | 42 | 77 | 79 |
| Household refrigeration category 2 2 | 2 | ||
| Energy efficiency class | G | G | G |
| Annual energy consumption (kWh/year) 1) | 142 152 | 152 | |
| Storage volume (L) 106 190 | 190 | ||
| Climate class: This appliance is intended to be used at an ambient temperature between 10 °C and 38 °C. | SNN ST SNN ST SNN ST | ||
| Airborne acoustical noise emissions (db(A) re 1pW) | C(37) C(37) | C(37) | |
| Type of appliance | Freestanding | Freestanding | Freestanding |
| This appliance is intended to be used exclusively for the storage of wine. | Yes | Yes | Yes |
| Dimensions (D/W/H in mm) 585/497/820 | 585/497/1270 | 585/497/1270 | |
Explanations:
1)based on standard test results for 24 hours. The actual power consumption depends on the actual environment, the amount of bottling, the set temperature, the door opening and closing, etc.
2)The nominal power consumption is the value obtained according to the standard test when the wine cabinet does not turn on the internal light.
- extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ ;
- temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 32^ C ;
- subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 38^ C ;
- tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 43^ C' ;
Standards and directives
This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.
Customer Service
EN
We recommend our Haier Customer Service and the use of original spare parts.
If you have a problem with your appliance, please first check section TROUBLESHOOTING.
If you cannot find a solution there, please contact
▶your local dealer or
- the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.
To contact our Service, ensure that you have the following data available.
The information can be found on the rating plate.
Model Serial No.
Also check the Warranty Card supplied with the product in case of warranty.
For general business enquiries please find our addresses in Europe below:
| European Haier addresses | |||
| Country* Postal address Country Postal address | |||
| Italy | Haier Europe Trading SRL Via De Cristoforis, 12 21100 Verese ITALY | France | Haier Europe Trading SRL Via De Cristoforis, 12 21100 Verese ITALY |
| Spain Portugal | Haier Iberia SL Pg. Garcia Faria, 49-51 08019 Barcelona SPAIN | Belgium-FR Belgium-NL Netherlands Luxembourg | Haier Benelux SA Anderlecht Route de Lennik 451 BELGIUM |
| Germany Austria | Haier Deutschland GmbH Hewlett-Packard-Str. 4 D-61352 Bad Homburg GERMANY | Poland Czechia Hungary Greece Romania Russia | Haier Poland Sp. zo.o. Al. Jerozolimskie 181B 02-222 Warszawa POLAND |
| United Kingdom | Haier Appliances UK Co. Ltd. One Crown Square Church Street East Woking, Surrey, GU21 6HR UK | ||
AVAILABILITY OF SPARE PARTS: Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market
Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for
Morocco, 6 months for Algeria, Tunisia no legal warranty required.
For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance.

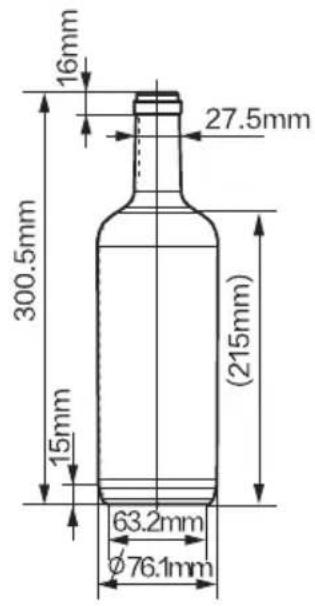

The bottle arrangement is based on a graphic representation of a standard Bordeaux bottle (0.75 l). Due to the different bottle specifications, the actual bottle loading quantity could be different.
Haier
Benutzerhandbuch
Weinklimaschrank
HWS77GDAU1
HWS42GDAU1
HWS79GDG
HWS78TGDFH1SW
HWSKTM42GDGIT
PRODUKTINFORMATIONEN
INFORMATIONS SUR LE PRODUIT
Comment activer le module Wi-Fi:
DECOUVREZ SUR AppGallery
Étape 2
HWS42GDAU1 HWSKTM42GDGIT (42)
HWS77GDAU1 (77)
HWS79GDG (79)
Haier
Manual de usuario
Bodega devinos
HWS77GDAU1
HWS42GDAU1
HWS79GDG
HWS78TGDFH1SW
HWSKTM42GDGIT
Voltaje 12 V; maximizing potencia: 5 W (for HWS42GDAU1/HWSKTM42GDGIT)
(for HWS77GDAU1/HWS42GDAU1)HWSKTM42GDGIT
De standardinstelling is 12^
- Download the hOn app on the stores.
Download in de App Store
EXPLORE IT ON AppGallery
Step 2
- Log in or sign up.
Step 3
- Add a new appliance selecting the wine cellar from the list.
Gebruik
Stap 4
HWS42GDAU1 HWSKTM42GDGIT (42)
HWS77GDAU1 (77)
HWS79GDG (79)
Haier
Navodila za uporabo
Hladilnik za vino
HWS77GDAU1
HWS42GDAU1
HWS79GDG
HWS78TGDFH1SW
HWSKTM42GDGIT
Zahvaljujemo se vam za nakup izdelka Haier.
HWS42GDAU1 HWSKTM42GDGIT (42)
HWS77GDAU1 (77)
HWS79GDG (79)
Haier
FREMGANGSMÄDE VED PARRING I APP
- Download hOn-appen i App-store eller Google Play.
GET IT ON Google Play
Download on the App Store
EXPLORE IT ON AppGallery
Train 2
- Log på eller tilmeld dig.
Train 7
Specificationer for LED-lampe:
Spaending 12V; Maks. effekt:8W(for HWS77GDAU1/HWS79GDG)
Spaending 12V; Maks. effekt:5W(for HWS42GDAU1/HWSKTM42GDGIT)
HWS42GDAU1
HWSKTM42GDGIT
(42)
HWS77GDAU1
(77)
HWS79GDG
(79)
Haier
Käyttoopaas
Viinikaappi
HWS77GDAU1
HWS42GDAU1
HWS79GDG
HWS78TGDFH1SW
HWSKTM42GDGIT
Kiitos
HWS42GDAU1
HWSKTM42GDGIT
(42)
HWS77GDAU1
(77)
HWS79GDG
(79)
Haier
Brukerhandbok
Vinkjeller
HWS77GDAU1
HWS42GDAU1
HWS79GDG
HWS78TGDFH1SW
HWSKTM42GDGIT
Takk skal du ha
NO
Takk for at du kjøpte et Haier-product.
(for HWS77GDAU1/HWS42GDAU1/HWSKTM42GDGIT)
Download on the App Store
EXPLORE IT ON AppGallery
- Logg på eller registrar deg.
- Låsen (for HWS77GDAU1/HWS42GDAU1/HWSKTM42GDGIT)
For a lase vinkjelleren, lukk doren og sett nokkelen i Iasen:
Lås døren ved Å vri nøkkelen mot klokken;
Lås opp døren ved øvri nøkkelen med klokken.
1. Avriming
HWS42GDAU1 HWSKTM42GDGIT
(42)
HWS77GDAU1 (77)
HWS79GDG (79)
Haier
Bruksanvisning
Vinskåp
HWS77GDAU1
HWS42GDAU1
HWS79GDG
HWS78TGDFH1SW
HWSKTM42GDGIT
(for HWS77GDAU1/HWS42GDAU1/HWSKTM42GDGIT)
Download on the App Store
EXPLORE IT ON AppGallery
c + a = 3
- Logga in aller registrera dig.
10 + 2 = 7
HWS42GDAU1
HWSKTM42GDGIT
(42)
HWS77GDAU1
(77)
HWS79GDG
(79)
Haier
HWS42GDAU1
(42)
HWSKTM42GDGIT
HWS77GDAU1
(77)
HWS79GDG
(79)
Haier
Kasutusjuhend
Veinikelder
HWS77GDAU1
HWS42GDAU1
HWS79GDG
HWS78TGDFH1SW
HWSKTM42GDGIT
Aitah, et ostsite Haieri toote.
Download on the App Store
EXPLORE IT ON AppGallery
Download on the App Store
EXPLORE IT ON AppGallery
-
darbiba
-
Piesakieties vairegistrejieties.
Download on the App Store
Krok 2
- Prihlaste sa alebo sa zaregistrujte
Krok 3
HWS42GDAU1 (42)
HWSKTM42GDGIT
HWS77GDAU1 (77)
Download on the App Store
Parametry zhavovsky LED:
Napěti 12 V; max. vykon: 8 W (pro HWS77GDAU1)
Napěti 12 V; max. vykon: 5 W (pro HWS42GDAU1/HWSKTM42GDGIT)
INFORMATII DESPRE PRODUS
Standardesi directive CE
Acest produs indepline ste cerintele tuturor directivelor CE aplicabile cu standardele care prevad marcajul CE armonizate corespunzator.
