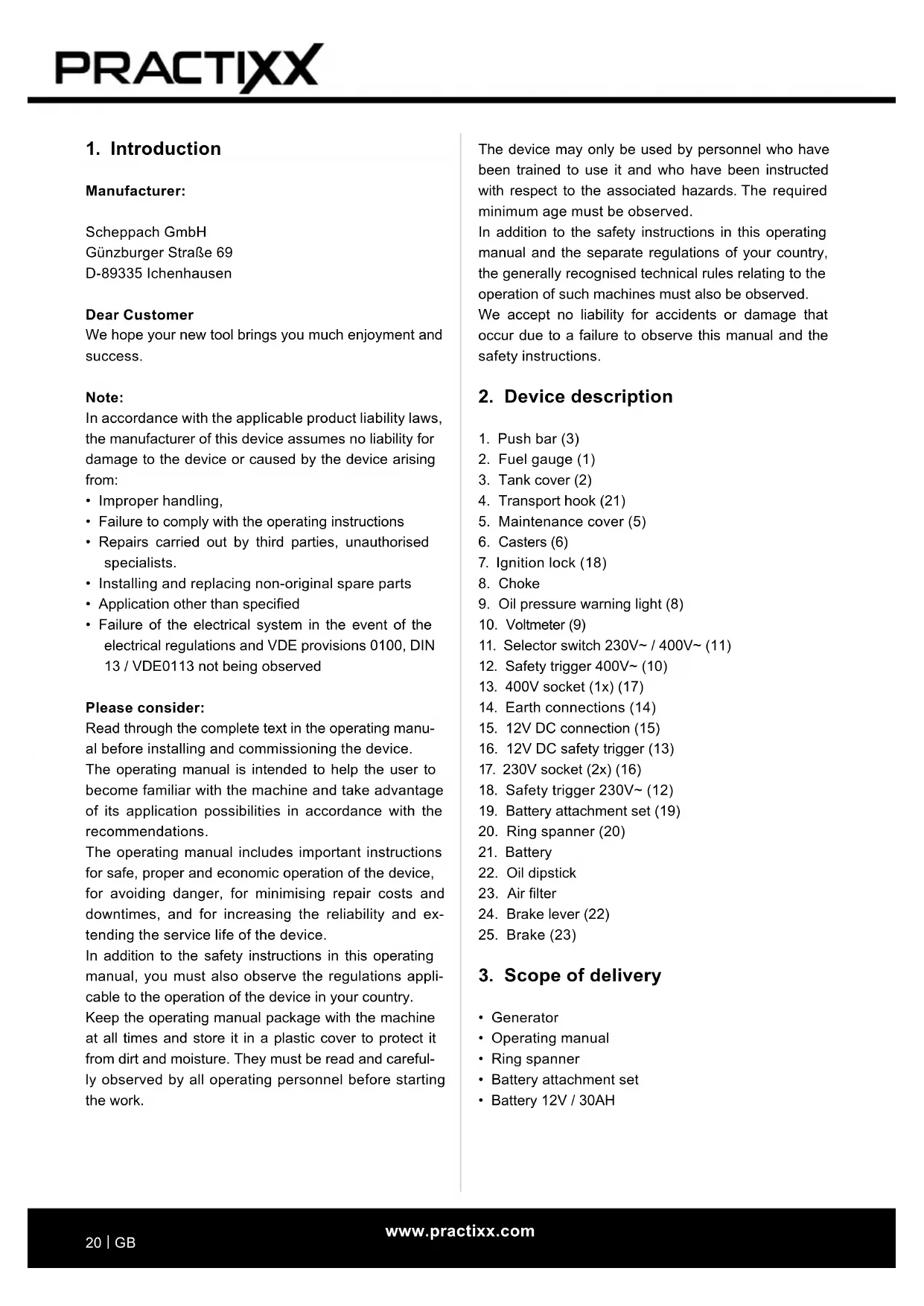

USER MANUAL PXSE5000D SCHEPPACH

Explanation of the symbols on the device Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompa- nying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures. Read the operating manual. Before using the device, always refer to the relevant section in the user manual. Important. Hot part. Keep your distance. Important. Always switch o󰀨 the engine before refuelling. Do not rell during operation. Important. The exhaust gases are toxic. Do not operate the engine in areas that are not ventilated. Wear hearing protection. Excessive noise can result in a loss of hearing. Warning against electrical voltage Be very careful when dealing with fuels and lubricants! Remove the ignition cable before carrying out maintenance work and read the instructions. Do not expose the device to rain. Sparks are produced when the engine is started. These can ignite nearby ammable gases. Naked ames or smoking near the device is strictly prohibited! Do not expose to direct sunlight m Attention! We have marked points in these operating instructions that impact your safety with this symbolw ww.practixx.com

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed. In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

5. Maintenance cover (5)

9. Oil pressure warning light (8)

16. 12V DC safety trigger (13)

19. Battery attachment set (19)

3. Scope of delivery

• Battery attachment set

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer We hope your new tool brings you much enjoyment and success. Note: In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Failure to comply with the operating instructions

• Repairs carried out by third parties, unauthorised specialists.

• Installing and replacing non-original spare parts

• Application other than specied

• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13 / VDE0113 not being observed Please consider: Read through the complete text in the operating manu- al before installing and commissioning the device. The operating manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and ex- tending the service life of the device. In addition to the safety instructions in this operating manual, you must also observe the regulations appli- cable to the operation of the device in your country. Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and careful- ly observed by all operating personnel before starting the work.w ww.practixx.com

• Relevant accident prevention regulations and oth- er generally recognized safety and technical rules must also be observed.

• The generator may only be used, maintained or re- paired by persons who are familiar with it and have been informed of the dangers. The manufacturer shall not be liable for damage resulting from unau- thorised changes to the machine.

• The generator may only be used for the work for which it is built and which described in the oper- ating manual.

• The generator may only be operated with original accessories and original tools from the manufac- turer.

• Any use beyond this is improper use. The manufac- turer is not responsible for the resulting damages; the user solely bears the risk. Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

5. Safety information

This unit conforms to the prescribed safety regu- lations for electrical machines

• Read the usage instructions carefully before start- ing the generator.

• Improper use may lead to personal injury and dam- age to property. Persons who are unfamiliar with the instructions may not operate the unit. Store the user manual carefully.

• Children and young persons may not use this unit.

• The manufacturer does not take any responsibility for damage caused by improper use or changes to the machine.

• Also adhere to the safety information, the assembly and operating instructions, as well as the accident prevention regulations that are generally applicable. Important note: Ensure that persons who work with this unit have read and understood these operating instructions before operating the unit. Never use this unit inside buildings or in an environ- ment that does not have ventilation. The exhaust gases contain carbon monoxide, which is an odourless, poisonous gas.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or inju- ries of any type resulting from this. This power unit can power light bulbs, heaters, drills, water pumps, etc. Do not exceed the load limit speci- ed for the power unit. The power unit may not be used to power devices that have a high power requirement. The power unit cannot be used for precision devices such as computers. These precision devices may be damaged under certain circumstances by distortions caused by the broad wave when the power unit’s pow- er is output. Do not connect the power unit to the elec- trical installation of a building. An element of the intended use is also the observance of the safety instructions, as well as the assembly in- structions and operating information in the operating manual. Persons who operate and maintain the ma- chine must be familiar with it and must be informed about potential dangers. In addition, the applicable accident prevention regula- tions must be strictly observed. Other general occupational health and safety-related rules and regulations must be observed. The liability of the manufacturer and resulting damages are excluded in the event of modications of the machine. The machine may only be operated with original parts and original accessories from the manufacturer. The safety, operating and maintenance specications of the manufacturer, as well as the dimensions speci- ed in the technical data, must be observed.

• Only use the generator when in a technically fault- less condition, appropriately and in compliance with the operating manual and with full knowledge of safety and hazards!

• In particular, rectify malfunctions that could impair safety immediately (or commission rectication works accordingly)!

• The safety, operating and maintenance specica- tions of the manufacturer, as well as the dimensions specied in the technical data, must be observed.w ww.practixx.com

• When raining or in rough weather

• In the event of overheating in connected devices

• In the event of damage to the sockets Check the fuel system regularly for leaks and signs of wear such as rubbed or porous lines, loose or missing clamps and damage to the tank or tank cover. All faults must be remedied before operation. The generator may only be operated, maintained and relled under the following conditions:

• Su󰀩cient ventilation. Avoid environments in which steam can accumulate, e.g. trenches, cellars, ex- cavations and bilges. Observe air ow and temper- ature. An ambient temperature of 40°C should not be exceeded.

• In enclosed spaces, discharge hazardous exhaust gases via pipes. The engine exhaust gases contain carbon monoxide, a toxic, odourless and colourless gas that causes serious damage to health or death when inhaled.

• Only refuel the generator when there is su󰀩cient illumination. Avoid spilling fuel. Never refuel the generator during operation. Allow the engine to cool for approx. two minutes before refuelling.

• Do not carry out fuelling in the vicinity of open ames, control lamps or spark forming electrical devices such as electrical tools, welding machines and grinding machines.

• Check the silencers and air lters for perfect con- dition. These parts are used as ame protection in the event of backres.

• Do not smoke near the generators. Do not wear loose clothing, jewellery or similar objects which can get caught by the starter or other rotating parts. The generator has been built according to the state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation. Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

• Residual risks can be minimised if the “Safety in- structions” and the “Proper use” are observed along with the whole of the operating instructions. Dangers and protective measures Exhaust gases: Inhaling of exhaust gases Only use the device outdoors Attention! The voltage of the generator uctuates; this may cause damage to the following devices:

• Television sets, audio-video devices,

• products or devices with electronic control Safety information Read this manual carefully – familiarise yourself with this device. Observe the instructions for use, restric- tions and possible dangers that apply to this device.

• Only set up the device on a rm surface.

• The load must not exceed the power specied on the type plate of the generator. Overloading causes damage to the device or shortens the service life.

• The engine may not be operated at an excessive speed. Operating the engine at an excessive speed increases the danger of injury. Parts that inuence the standard speed must not be changed.

• Devices with faulty or missing parts or without a protective housing or cover may not be operated. Information about spare parts can be obtained from your customer service.

• Do not operate or store the device in a wet or damp environment or on highly conductive surfaces such as metal coating or steel structures. When oper- ating the device under conditions such as those mentioned above, always wear rubber gloves and boots as well as an earth circuit breaker.

• Keep the generator clean and free of oil, dirt and other foreign bodies.

• Ensure that extension cables, power cables and all electrical components are in perfect condition. Never operate electrical devices with damaged or defective cables.

• To prevent burns, do not touch the exhaust pipe and other engine and generator parts that heat up during operation.

• Do not connect the device to household sockets.

• Do not connect to other power sources. Do not operate the generator under the following con- ditions:

• When changing the engine speed

• When decreasing the electrical power

• In the event of spark formation

• In the event of excessive vibration

• When ames or smoke occur

• When raining or in rough weather

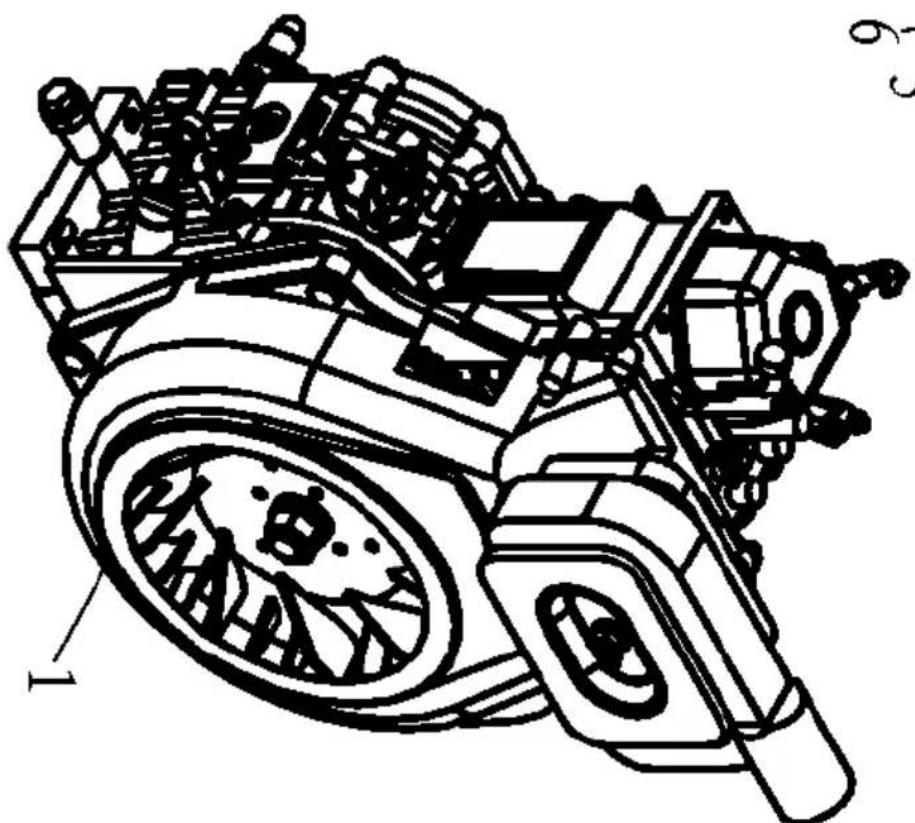

Drive motor type 4-stroke air-cooled Displacement 418 cm³ Max. power (engine) 5.7 kW Fuel Diesel Tank contents 16 l Engine oil 1.65 l Engine oil type 15W40 Consumption at ⅔ load approx. 1.43 l/h Weight 145.9 kg Performance class G1 Quality class B Max. altitude (above mean sea level) 1000 m Technical changes reserved! Operating mode S1 (continuous operation) The machine may be operated continuously with the specied power. Operating mode S2 (short-term operation) The machine may only be operated at maximum power for a brief time. Then, the machine must be brought to a standstill for a period of time so that it is not allowed to heat up. Noise & vibration m Warning: Noise can have serious e󰀨ects on your health. If the machine noise exceeds 85 dB (A), please wear suitable hearing protection. Noise data Sound power level L

Sound pressure level L

Open the packaging and carefully remove the device. Remove the packaging material, as well as the packag- ing and transport safety devices (if present). Check whether the scope of delivery is complete. Check the device and accessory parts for transport damage. In the event of complaints the carrier must be in- formed immediately. Later claims will not be recognised. Burns: Touching the exhaust pipe Leave the device to cool down Fire - explosion: Diesel is ammable Smoking is prohibited when refuelling and working Warning! This power tool generates an electromag- netic eld during operation. This eld can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool. Residual risks The machine has been built according to the state-of- the-art and the recognised technical safety require- ments. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still re- main.

• Residual risks can be minimised if the “Safety infor- mation” and the “Proper use” together with the oper- ating manual as a whole are observed.

• Keep your hands away from the work area, when the machine is in operation.

Check the oil level (g. 6 + 8) Remove the maintenance cover (5). Remove the oil ller cap (22) and wipe the dipstick clean. Check the oil level by inserting the dipstick into the lling nozzle without screwing the cap on. If the oil level is too low, rell with the recommended oil up to the lower rim of the oil lling nozzle. Fill with fuel

• In order to refuel the device, open the tank cover (3) by turning it anti-clockwise.

• Fill storage tank with fuel

• Close the tank by turning the tank cover (3) clock- wise. Recommended fuel This engine only requires diesel. m Only use fresh, clean fuel. Water or impurities in the diesel damage the fuel sys- tem. Tank volume: 16 litres m Refuel in a well-ventilated area with the engine stopped. If the engine was in operation immedi- ately before, allow it to cool rst. Never refuel the engine in a building where the diesel vapour may come into contact with ames or sparks. Diesel vapour is highly ammable and explosive. When handling fuels, you may su󰀨er burns or oth- er severe injuries.

• Switch o󰀨 the engine and keep it away from heat, sparks and ames.

• Only refuel outdoors.

• Mop up spilled diesel immediately. Electrical safety Electrical supply lines and connected devices must be in perfect condition. Only devices whose voltage information matches with the output voltage of the power generator may be con- nected. Never connect the power generator to the mains (socket). The power lines to the consumer must be kept as short as possible. Environmental protection Take any contaminated maintenance material and op- erating materials to a collection point designated for this purpose. Recycle packaging material, metal and plastic. If possible, keep the packaging until the expiry of the warranty period. Familiarise yourself with the product by means of the operating instructions before using for the rst time. With accessories as well as wearing parts and replace- ment parts use only original parts. Replacement parts can be obtained from your dealer. When ordering please provide our article number as well as type and year of manufacture for your equip- ment. m ATTENTION! The device and the packaging material are not children’s toys! Do not let children play with plas- tic bags, lms or small parts! There is a danger of choking or su󰀨ocating!

8. Assembly / Before commissioning

The device is preassembled at the factory! Before commissioning Connect the battery (g. 5) Prepare battery and connect. Fit the battery (21) in the device using the battery at- tachment set (19). Now connect the red cable (+) and then the black cable (-) to the battery. m ATTENTION! Check before starting the engine:

• Check the fuel level, rell if necessary - the tank should be at least half-full

• Ensure the device has su󰀩cient ventilation

• Disconnect any connected electrical devices from the power generator

• The condition of the air lter,

• The condition of the fuel lines,

• The rm seating of the external screw connections, Attention! Fill the oil before rst use. Before each use, check the oil level with the engine switched o󰀨 and on a level surface. Use the highest quality four-stroke oil or an HD oil with the same level of quality. SAE 15W-40 is recommended for general use at all temperatures.w ww.practixx.com

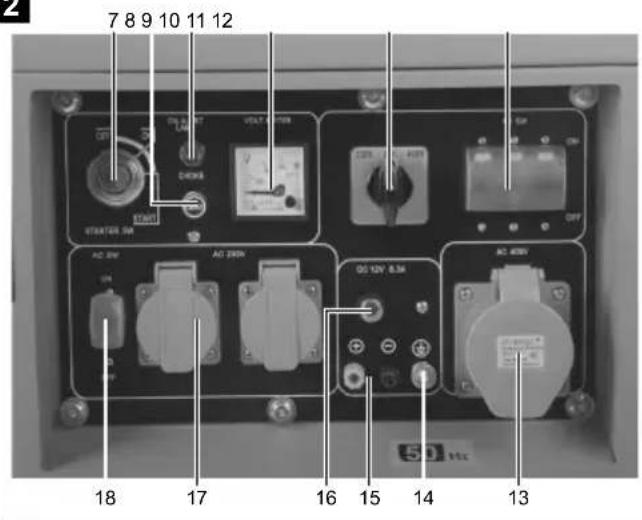

230V~ sockets: The 230V~ sockets (17) are switch o󰀨 in the event on an overload. The 230V~ sockets can be reactivated by pressing the overload switch (18). 400V 3~ socket: The 400V 3~ socket (13) is switch o󰀨 in the event on an overload. The 400V 3~ socket can be reactivated by switching the overload switch (12) on.

• If the selector switch (11) is on the left, the 230V~ sockets can be used.

• If the selector switch (11) is on the right, the 400V 3~ socket is active.

• The power generator is suitable for 230 V~ and 400 V 3~ AC voltage devices.

• A 12V battery can be charged at the 12V DC con- nection (15). Use an adapter cable for this.

• Attention! The power generator is not suitable for being connected to a house mains as an emergency power supply. It can cause damage to the generator or other electrical devices. Shutting the engine o󰀨

• Allow the power generator to run for a short time without load before switching it o󰀨 so that the unit can “cool down”.

• Set the on/o󰀨 switch (7) to the “OFF” position using the key. Oil warning indicator (9) The indicator activates itself when the oil level is low and switches the engine o󰀨. As soon as the oil level is su󰀩cient, the engine can be restarted. Winter operation As the generator is driven by a diesel engine, special measures must be taken for winter operation. The use of “winter diesel” is required if operating the diesel gen- erator in outside temperatures of -3° to -10° Celsius. The switchover of the diesel fuel to “winter diesel” takes place mainly at the end of October, di󰀨ering from coun- try to country. Ask your lling station about the time to switchover to “winter diesel”.

• If the diesel generator is operated regularly, meas- ures do not need to be taken as the switchover to “winter diesel” takes place automatically.

• If the generator is not used for a long time in the autumn, but you want to reuse it in the winter, it is recommended to keep the tank almost empty. Earthing Earthing the housing is necessary to discharge stat- ic charging. To do this, connect a cable to the earth connection of the generator (14) on one side and to an external earth (e.g. earthing rod) on the other side.

• Check whether the mechanical power selection switch: (a) is engaged in the correct position.

• Important! The power selection switch is set at the factory and may not be changed.

• Set the on/o󰀨 switch (7) to the “ON” position using the key.

• Pull the choke (8) and turn the on/o󰀨 switch to “Start” using the key. Release the choke after approx. 5 seconds and the engine starts to run.

• When the engine is running, turn the on/o󰀨 switch back to the “ON” position.

• If the engine does not start up immediately (espe- cially after the tank was previously empty or after changing the diesel lter), repeat the start process by pulling the choke again. Note: Some electrical devices (motorised jigsaws, drills, etc.) can have high power consumption if they are used under di󰀩cult conditions. Some electric devices (e.g. TV devices, computers, etc.) may not be operated with a generator. In case of doubt, check with the man- ufacturer of your device. Overload protection The power generator is equipped with overload pro- tection. This deactivates the respective sockets in the event of an overload. Attention! If this situation occurs, reduce the electric power that you are drawing from the power generator or remove defective devices that are connected. Attention! Defective overload switches may only be replaced with identical overload switches with the same power data. Contact customer service for this. 12V DC connection: The 12V DC connection (15) is switch o󰀨 in the event on an overload. The 12V DC connection can be reacti- vated by pressing the overload switch (16).w ww.practixx.com

• Open the oil drain screw (c) and drain the warm engine oil into the collection container beneath the outlet drain.

• Fill engine oil up to the top marking on the oil dipstick

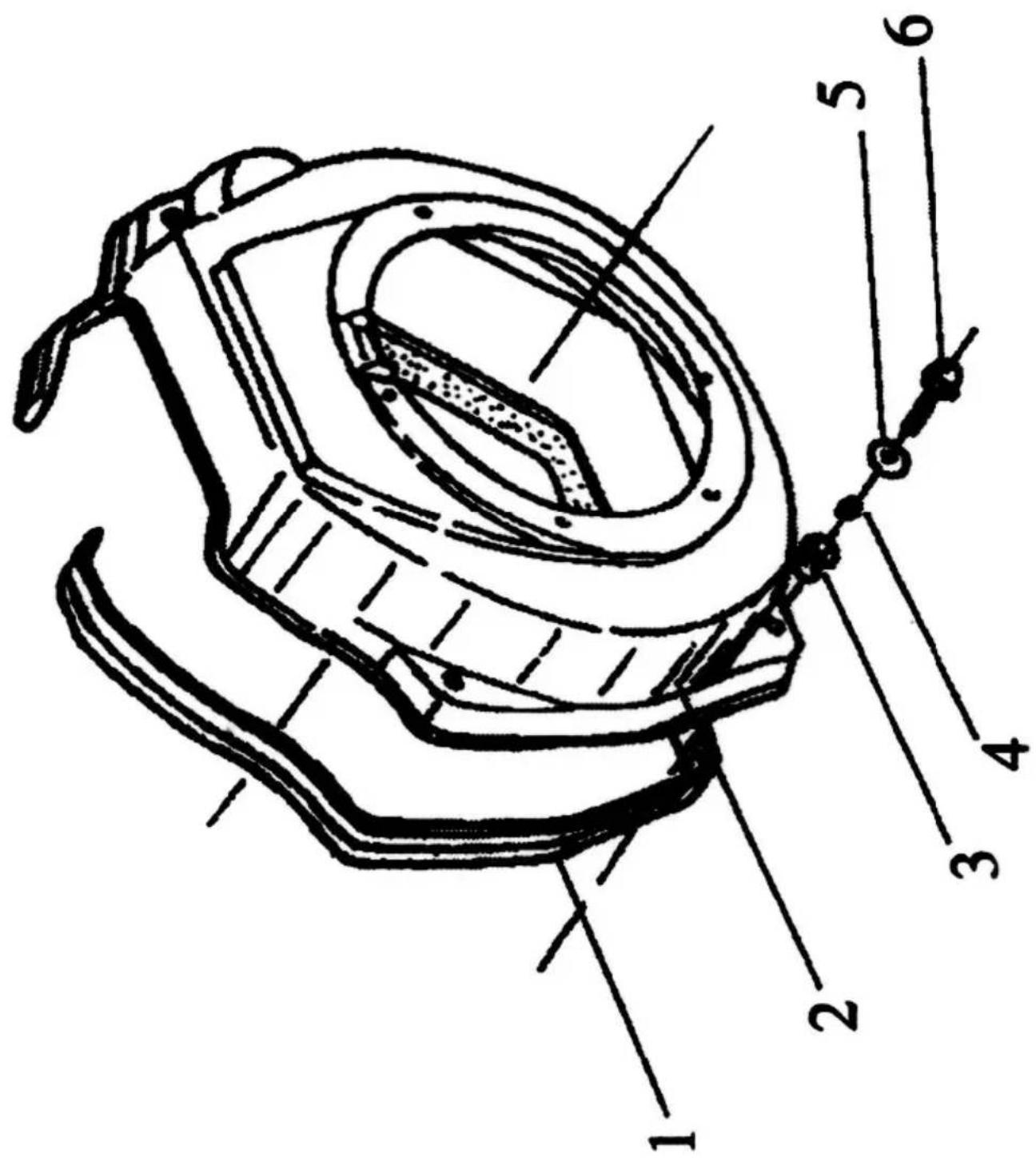

• Dispose of the used oil properly. Hand over your used oil at a collection point. Most lling stations, repair workshops or recycling centres take used oil back free of charge. Air lter Frequent cleaning of the air lter prevents carburettor malfunctions. Clean the air lter and change the air lter inserts

• The air lter must be cleaned every 30 operating hours.

• Remove the engine cover (g)

• Remove the air lter cover (h)

• Remove the lter element (23)

• Clean the lter element with soapy water, then rinse it with clean water and allow it to dry well before re- installation.

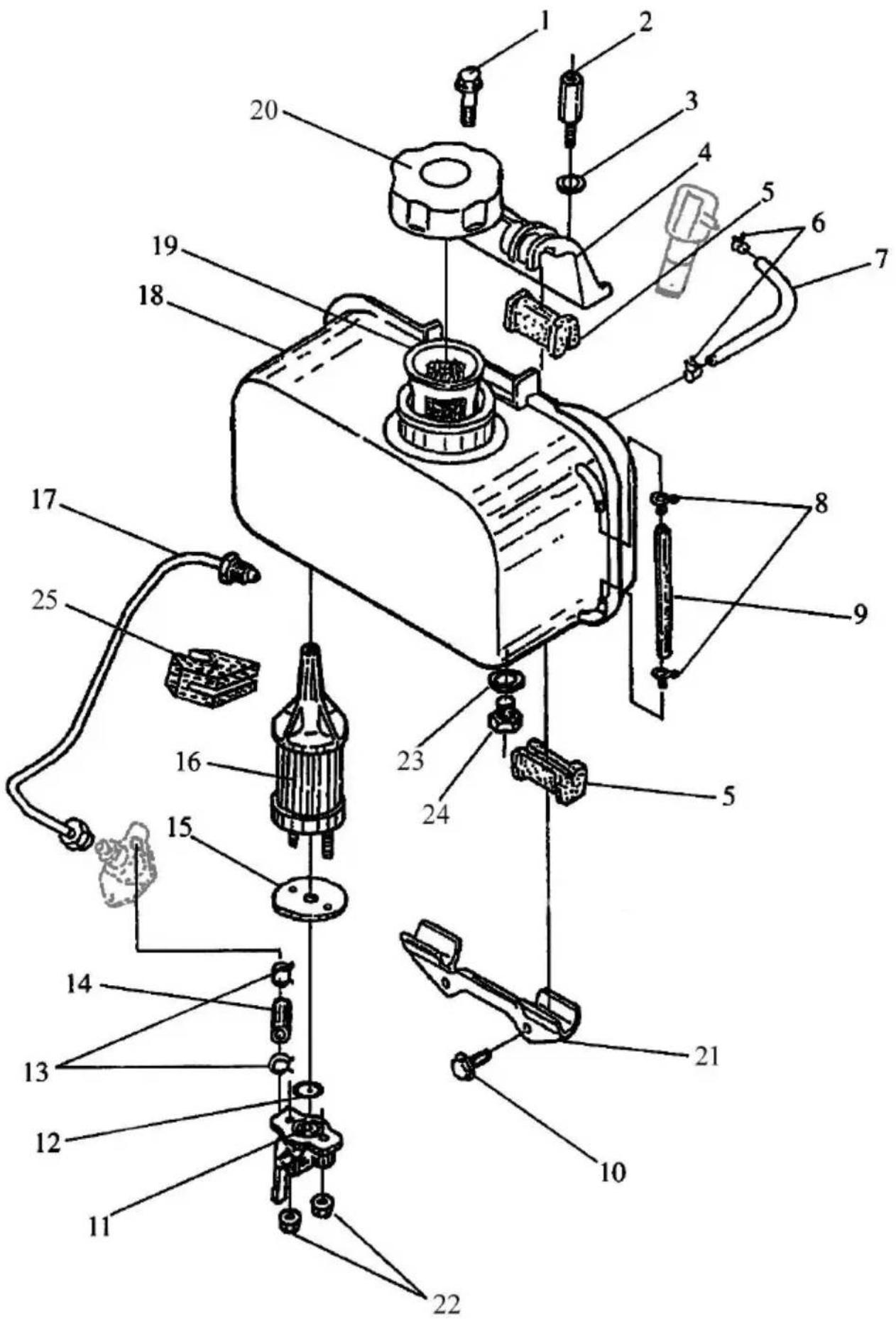

• The re-assembly takes place in reverse order m WARNING Do NOT use petrol or cleaning solvents with a low ash point to clean the air lter element. This could result in re or explosion. NOTE Never run the engine without an air lter or with a dam- aged air lter. This would allow dirt into the engine, which would result in severe damage to the engine. In this case, the seller and the manufacturer disassociate themselves from any warranty claims. Changing the diesel lter (g. 7) The diesel lter must be changed when the inside of the lter is contaminated or impurities can be seen. In order to change the lter and collect diesel in the tank, a funnel and an empty diesel container are required. Undo the metal bracket on both sides of the lter. Im- mediately insert the fuel hose through the funnel into the diesel canister and observe the diesel ow until no diesel drains. Remove the lter with impurities and throw it away. Install a new lter. Emptying the tank

• In order to empty the tank, rst proceed as you would when “Changing the diesel lter”. Ask your lling station about the time to switch over to “winter diesel” and ll the tank with “winter diesel” before use in outdoor temperatures from -3° to -10° Celsius.

• If, however, the diesel fuel “congeals”, the diesel generator must be brought into a room with temper- atures of approx. +10° Celsius for approx. 12 hours.

• If the tank is half full or full with normal diesel, then it must be emptied

• The tank must then be lled with “winter diesel”. If almost empty or up to half empty, it is su󰀩cient to ll up with “winter diesel”.

We recommend that you clean the device directly after every use. Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.

m WARNING Before transport or parking indoors, allow the ma- chine’s engine to cool down to avoid burns and risk of re. If you want to transport the device, empty the tank be- forehand. Clean coarse dirt from the device using a brush or a hand brush.

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The op- timum storage temperature lies between 5 and 30 ˚C. Store the power tool in its original packaging. Cover the power tool to protect it from dust or moisture. Store the operating manual with the power tool.

Oil change The engine oil change should be carried out while the motor is at operating temperature.

• Have a suitable container that will not leak ready for the oil change.

• Remove the engine cover (5)w ww.practixx.com

Old devices must not be disposed of with house- hold waste! This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be handed over at the intended collection point. This can be done, for example, by returning it when purchasing a similar product or delivering it to an au- thorised collection point for the recycling of old electri- cal and electronic devices. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially haz- ardous substances that are often contained in electri- cal and electronic equipment. By properly disposing of this product, you are also contributing to the e󰀨ective use of natural resources. You can obtain information on collection points for waste equipment from your munic- ipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company. Do not throw primary batteries or rechargeable batteries away with household waste As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful sub- stances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner. *marked with: Cd = cadmium, Hg = mercury, Pb = lead

• After removing the diesel lter, lead the diesel fuel from the tank via the funnel into the diesel canis- ter. (ATTENTION: Ensure that the diesel canister is large enough to collect the remaining fuel in the tank!).

• After draining is complete, carry out assembly as de- scribed under “Changing the diesel lter”. Please provide the following information in the event of any enquiries:

• Data of machine type plate

• Data of motor type plate Important note in the case of repairs: When returning the device for repair, please ensure for safety reasons that it is free of oil and fuel when it is sent to the service centre. Service information With this product, it is necessary to note that the follow- ing parts are subject to natural or usage-related wear, or that the following parts are required as consuma- bles. Wearing parts*: Air lter, diesel lter, battery, injection nozzle

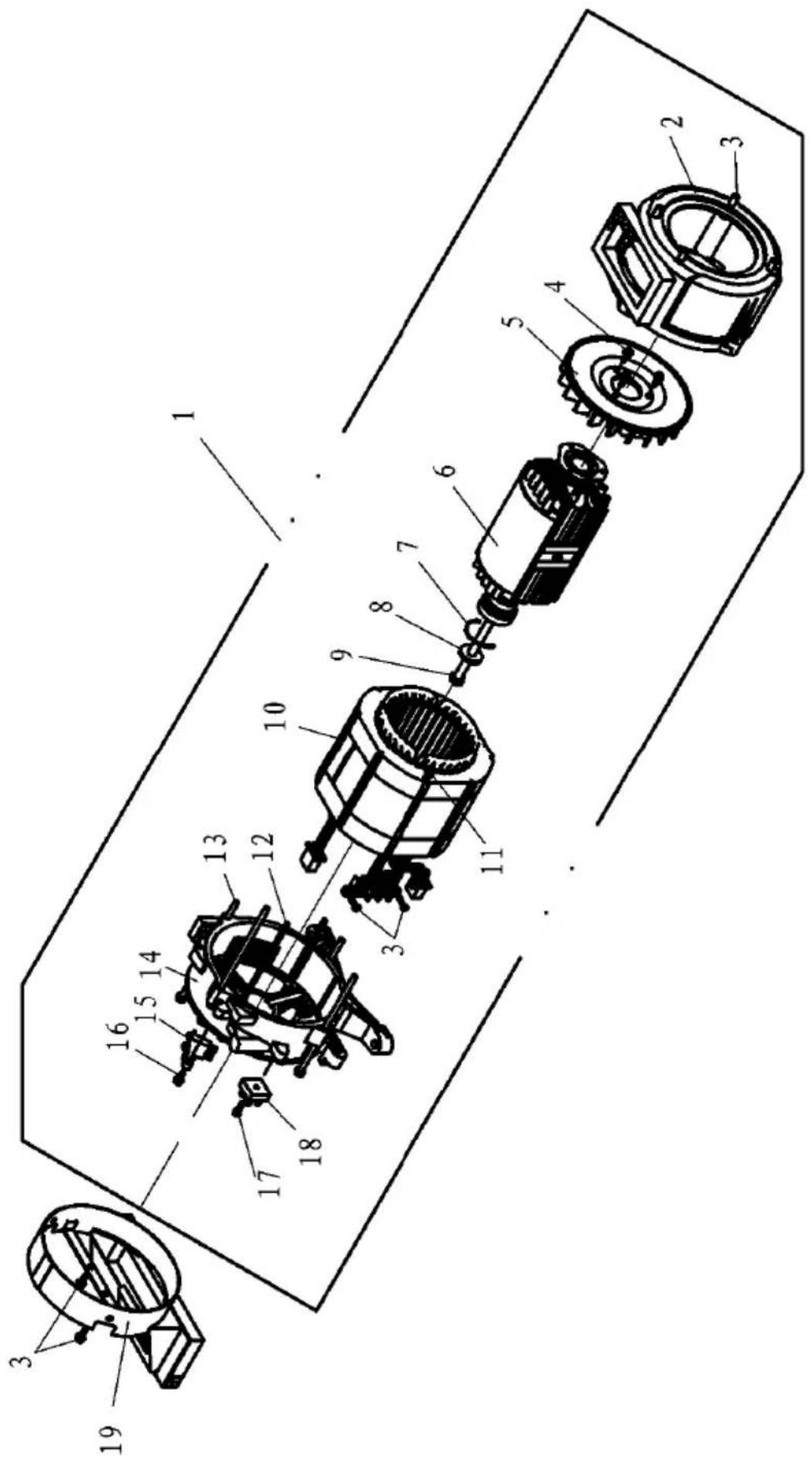

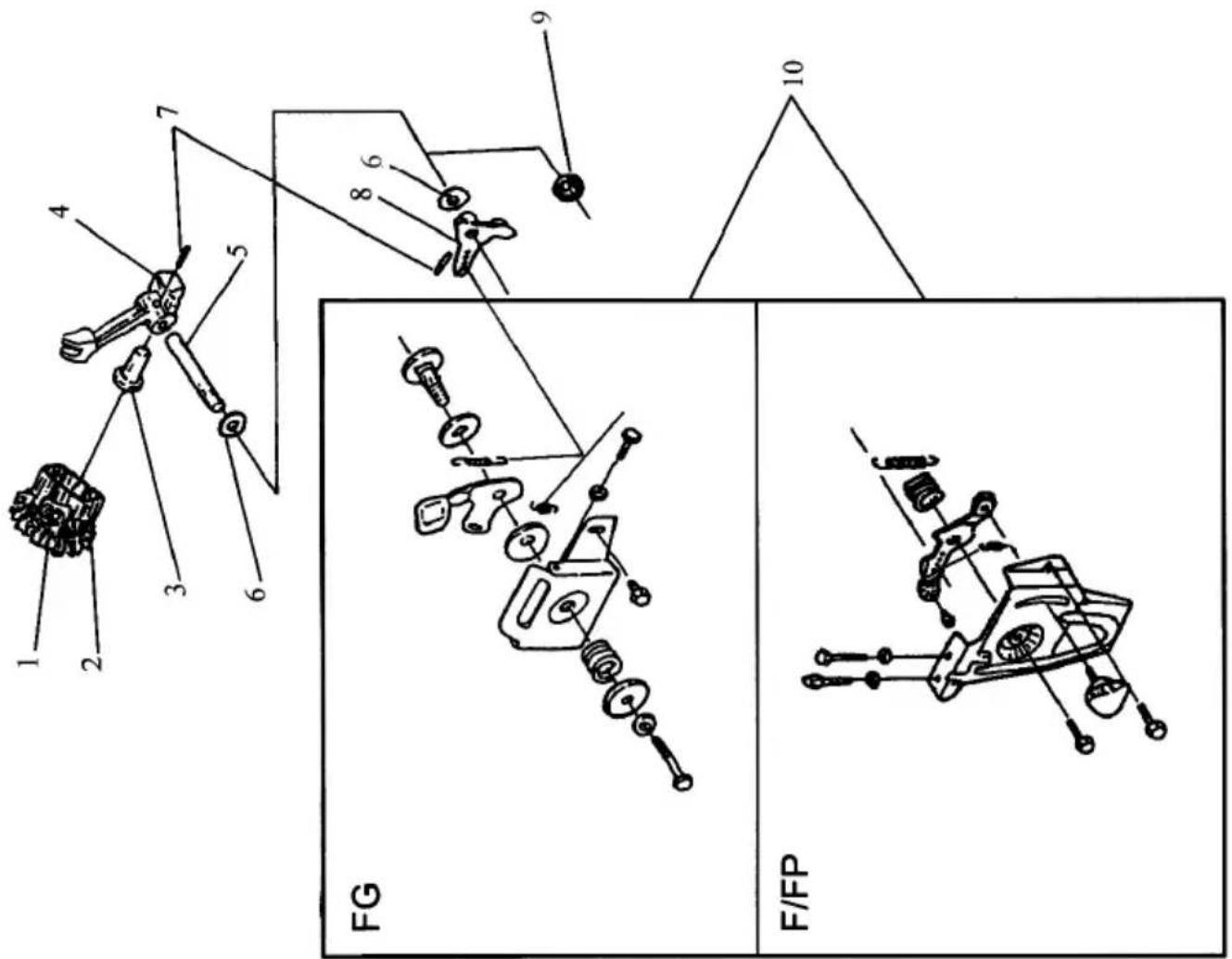

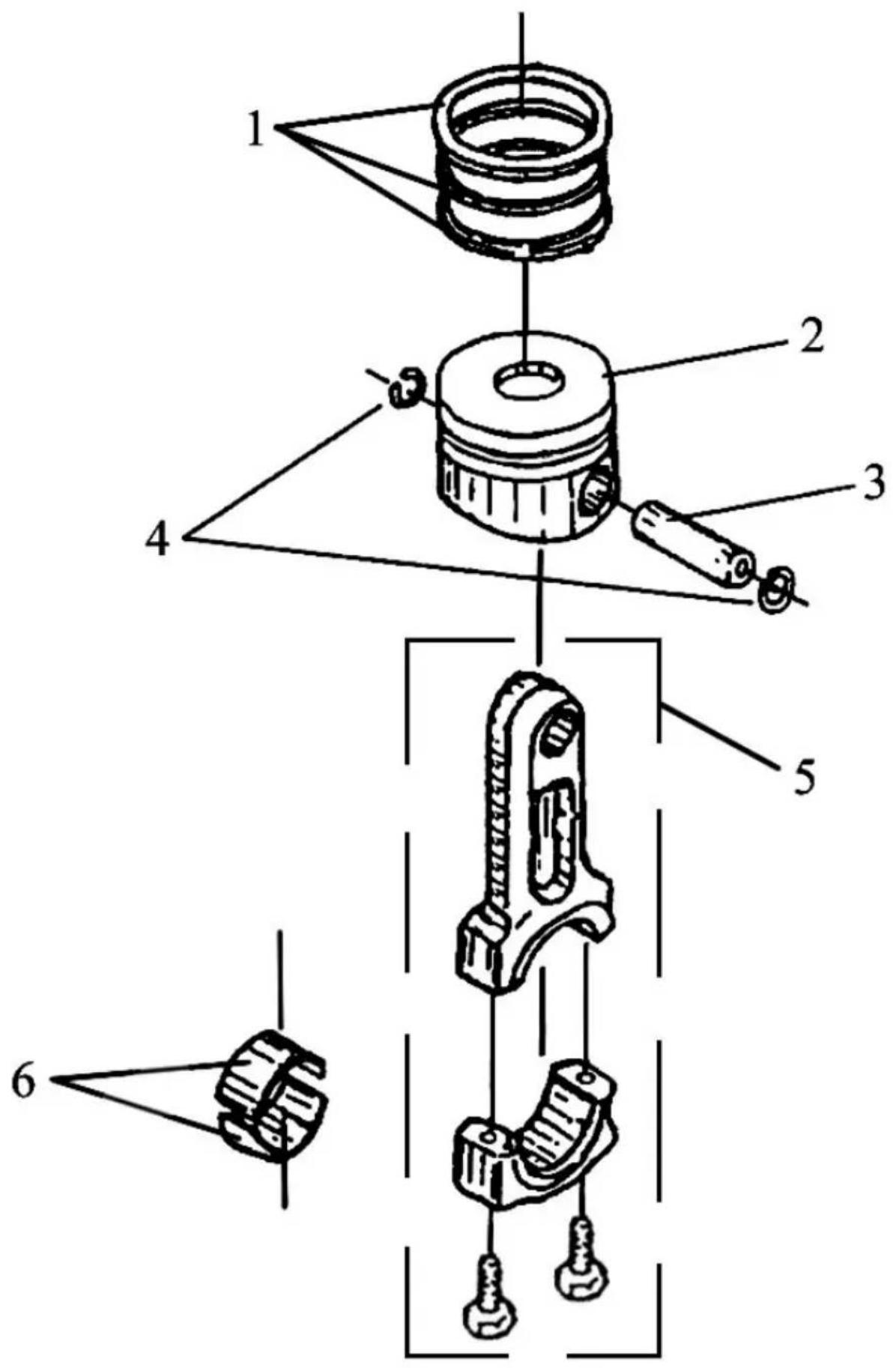

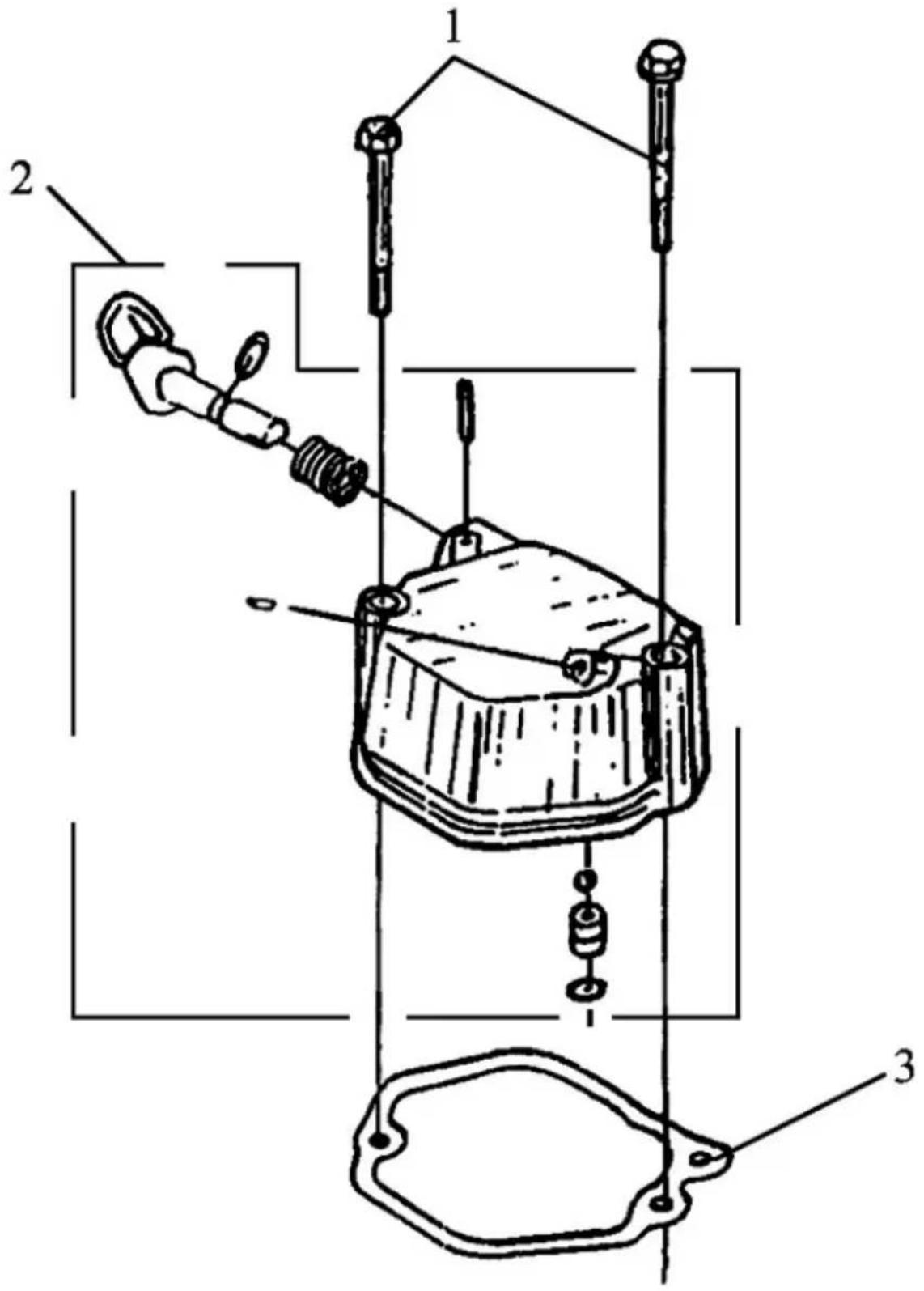

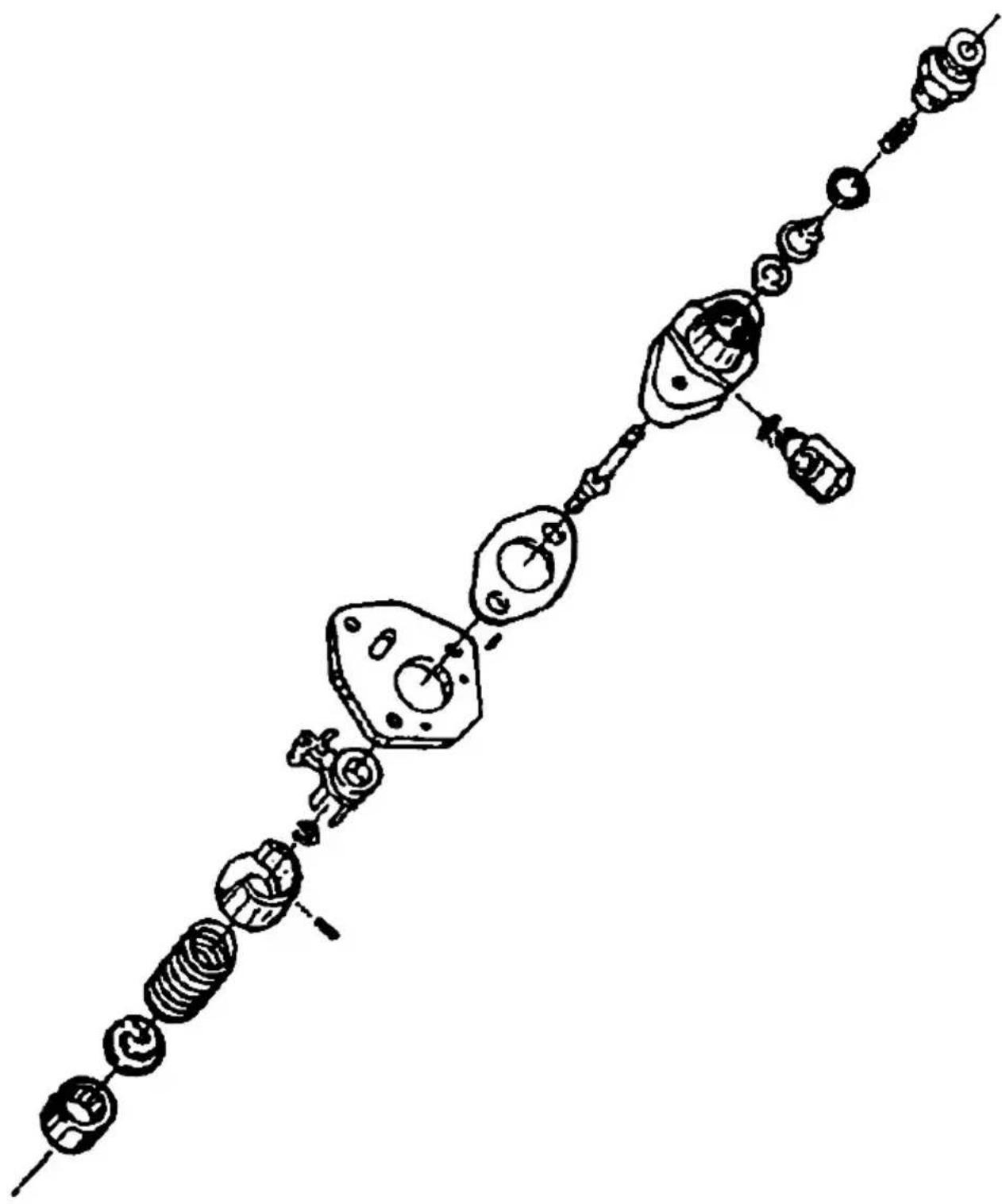

• may not be included in the scope of supply! Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

14. Disposal and recycling

The device is supplied in packaging to avoid transport damages. This packaging is raw ma- terial and can thus be used again or can be reintegrated into the raw material cycle. The device and its accessories are made of di󰀨erent materials, such as metals and plas- tics. Take defective components to special waste dis- posal sites. Check with your specialist dealer or munic- ipal administration!w ww.practixx.com

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop. Fault Possible cause Remedy Engine cannot be started Automatic oil shut-o󰀨 reacts (red LED Check oil level, ll with engine oil No diesel fuel Top up diesel fuel Mechanical circuit breaker unlocked Slide mechanical circuit breaker to the right Diesel lter blocked Clean or replace diesel lter Air lter blocked Clean or replace the air lter Diesel fuel “congealed” due to low outdoor temperature Proceed as described under “Win- ter operation” section Fuse defective Change defective fuse Generator has insu󰀩cient or no voltage Controller or capacitor defective Contact the specialist dealer Overload protection switch triggered Reduce consumption Air lter dirty. Clean or replace lter Battery is not charged Fuse defective Change defective fusew ww.practixx.com

Annex VI Noise: measured L
