| Brand | Powerfix |
| Model | IAN 64584 |
| Product type | Compressed air hose reel |
| Hose length | 20 m |
| Hose diameter | 6/12 mm |
| Maximum pressure | 15 bar (burst pressure) |
| Operating temperature | -20 °C to +60 °C |
| Hose material | Soft PVC with textile reinforcement |
| Connections | Plug and quick coupling brass |
| Mount | Galvanized steel tube with hose guide |
| Chassis | Plastic reel |
| Dimensions (L x W x H) | 35,5 x 19 x 28.5 cm |
| Weight | Approximately 2.5 kg |
| Warranty | 36 months |
| Maintenance and cleaning | Clean with a slightly damp cloth; avoid harsh chemicals |
| Safety | Do not exceed max pressure, check hose condition, avoid oil/acids |
| Repairability | Contact customer service for any repairs |
| Intended use | Workshop, garden, renovation, automotive (pneumatic tools) |
Frequently Asked Questions - IAN 64584 POWERFIX
User questions about IAN 64584 POWERFIX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Garden hose in PDF format for free! Find your manual IAN 64584 - POWERFIX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 64584 by POWERFIX.
USER MANUAL IAN 64584 POWERFIX


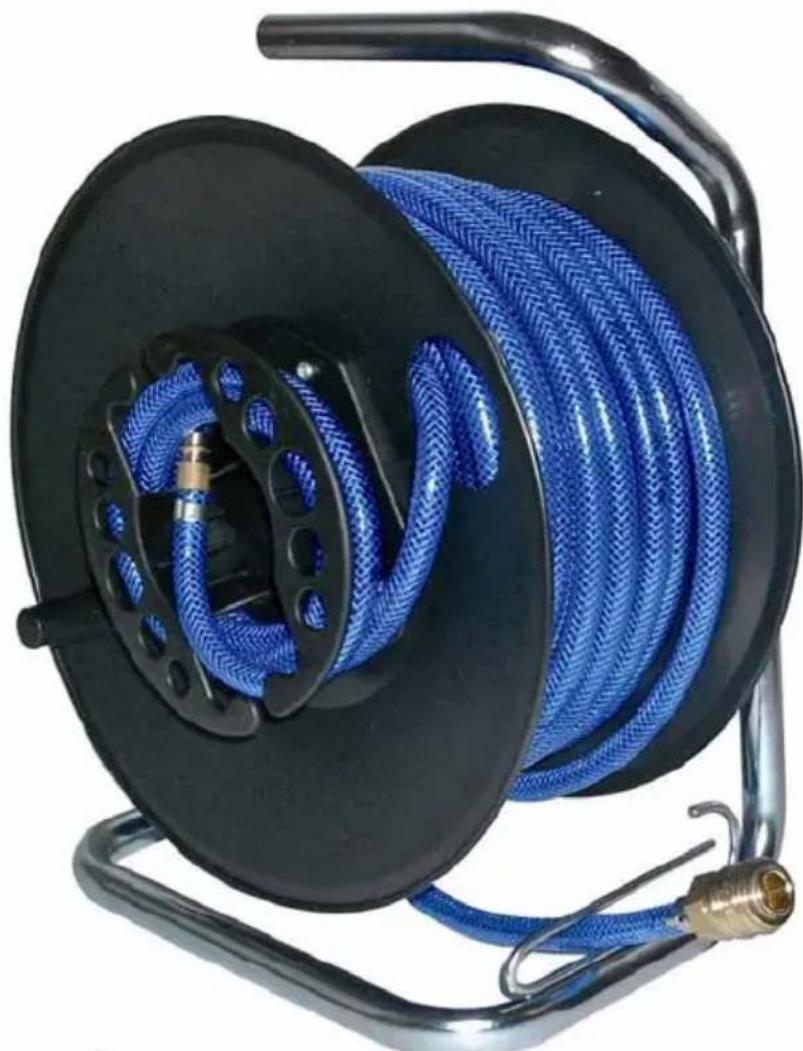

Compressed air hose drum
Operating Instructions
IMPORTANT:
Read through these Operating Instructions carefully and keep them handy. Note and observe the safety instructions.
Contents
1 Introduction Page 10
2 Use in accordance with these instructions Page 10
3 Safety instructions Page 10
4 Scope of supply Page 11
5 Technical data Page 11
6 Product overview Page 11
7 Commissioning and operation Page 12
7.1 Commissioning Page 12
8 Defect list Page 12
9 Cleaning Page 12
10 Maintenance Page 12
11 Disposal Page 12
12 Guarantee and Service Page 12
13 Certificate and Manufacturer Page 13
1 Introduction
Everybody who uses, cleans or disposes of this product must be familiar with the contents of these Operating Instructions.
These Operating Instructions form part of this product.
Always observe all safety instructions.
If you have questions please contact your local agent or the Service Department (for address see Chapter 12).
2 Use in accordance with these instructions
This compressed air hose drum is intended for universal use in the workshop, in the garden, for renovation work or in automotive work. It is compatible with all current compressed air devices.
It is not permissible to use the product for any other purpose than those described in these Operating Instructions. This may lead to damage to the product.
3 Safety Instructions
IMPORTANT: When using the compressed air hose drum, please note the following instructions. This will minimise personal danger or damage to property.
If there is any damage which is caused by the non-observance of these Operating Instructions the guarantee will become invalid.
No liability will be accepted for any damage to property, injuries to people, or consequential damage.
The key words and symbols used in these Operating Instructions have the following meanings.
| Symbol | Key word / meaning |
 | DANGER:Non-observance causes considerable risk of injury to people and danger to life |
 | WARNING:Non-observance causes medium risk of injury to people |
 | TAKE CARE:Low risk of injury to people and danger of damage to goods or to the product |
 | IMPORTANT:What you need to pay attention to |
 | INFORMATION:Detailed explanations |
Tab.1: Symbol table
Danger: Danger to life and injury if disregarded.
- Keep these Operating Instructions carefully and if necessary pass them onto third parties Keep the instruction manual and pass it on to the subsequent owner with the compressed air hose drum.
- Do not open/tamper with the compressed air hose drum. Never open, tamper with or modify the compressed air hose drum.
- Check for leak-tightness. Compare the information on the type plate that on the compressor.
Make sure that the maximum air pressure does not exceed the
information on the type plate.
If you fail to observe these instructions, there is a risk of the compressed air hose bursting or of a defect in the connections.
- If a defect is discovered, put the unit out of service.
Put the compressed air hose drum out of service if malfunctions, defects or damage are discovered. Defects could occur, for example, if cuts and bruises are received from the hose.
Have the compressed air hose drum inspected, and if necessary repaired, before putting it back into service.
Take Care: Avoid damage to perty.
- Protect the compressed air hose.
Protect the compressed air hose from oil, acids, sharp edges and high temperatures. If you fail to observe this, there is the possibility of a defect occurring.
4 Scope of supply
Immediately after unpacking check the goods supplied to see that they are complete and in a satisfactory condition.
1 x Compressed air hose drum
5 Technical Data
| Product: | Compressed | |
| hose drum | ||
| Article number: | 10049 | |
| Classification: | Soft | PVC |
| compressed air hose, transparent blue with fabric lining | ||
| Working temperature: | -20°C to +60°C | |
| Hose length: | Approx. 20m | |
| Diameter: | 6/12mm | |
| Burst pressure: | Max. 15 bar | |
Connections: Brass connection nipple and one-hand quick release coupling
Frame: Galvanised
tubing with hose guide
Housing: Plastic
Dimensions (HxDxW):
35,5 × 19 × 28,5 cm
reel
6 Product overview
This Chapter gives an overview of the operating devices and indicators of the product and a short functional description. In the following Chapter (Chapter 7) the operation will be described in more detail.


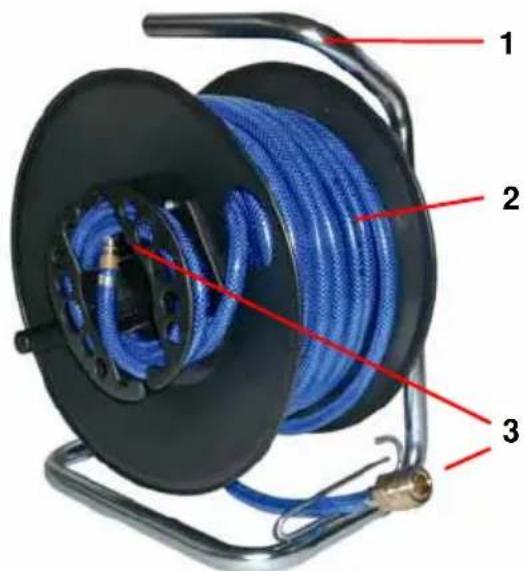

1 2 3Figure 1: Equipment overview – Compressed air hose – drum
| Item | Designation | Function |
| 1 | Frame with air hose guide | Facilitates the winding and unwinding of the compressed air hose |
| 2 | Compressed air hose | Connecting the tool with the compressor |
| 3 | Connections | One-hand operation |
Tab.2: The parts of the compressed air hose drum
7 Commissioning and Operation
IMPORTANT: This Chapter describes the basic functions of the compressed air hose drum.
Read through the Chapter carefully, in order to understand and be able to use the opportunities and functions.
Note the following information and especially the safety instructions in order to avoid incorrect operation and possible defects. If there are problems look in the defect list (Chapter 8) or contact our Service Department (Contact: see Chapter 12).
Observe the safety instructions (see Chapter 3).
7.1. Commissioning
| 1 | Connection to the compressed air tool |
| Connect the end of the compressed air hose to the compressed air tool via the quick release coupling. | |
| 2 | Connection to the compressor |
| Connect the other end of the compressed air hose to the compressor via the connection nipple. |
Tab.3: Commissioning
8 Defect list
| Problem/ defect | Possible cause(s) | Remedy |
| Com-pressed air hose drum not working properly | - Com-pressed air hose defective- Com-pressed air hose coupling is not properly connected | - Check the com-pressed air hose for damage- Check the proper fit of the connections |
| to the compressor or compressed air device |
Tab.4: Defect list
9 Cleaning
DANGER: For safety reasons, the product must be disconnected from the compressor before cleaning! Only use a slightly damp cloth for cleaning tasks.
IMPORTANT: Do not use an abrasive cleaning material or chemicals.
10 Maintenance
IMPORTANT: Inspect the product for damage, each time before it is used. Before any maintenance or repair work, the compressed air hose drum must be disconnected from the compressor.
11 Disposal
INFORMATION: The packaging and the packaging material consist of environmentally friendly materials and are 100% recyclable.
12 Guarantee and Service
INFORMATION: With this product you get a 36 month guarantee from date of purchase. The product was carefully produced and conscientiously tested before delivery.
If in spite of this there are material and production defects during the guarantee period contact your dealer immediately.
Damage due to unsuitable handling, non-observance of the Operating Instructions or work done by unauthorised people are not covered by the guarantee.
Most functional defects are caused by faulty operation.
INFORMATION: If a functional defect appears look in the Operating Instructions first.
Contact us before sending the product back. Only after speaking to us can the product be accepted. Goods returned to us with delivery unpaid will not be accepted.
In the event of a guarantee claim being made the guarantee time of 36 months will be neither extended nor renewed.
Article number: 10049
(It is essential to quote this number)
Service address:
Uni-Elektra GmbH
Steinbeisstr. 7
D-72501 Gammertingen
service@uni-elektra.de
Tel: +49 7574 9343-0
13 Certificate and Manufacturer
The product complies with the requirements of the German equipment and product safety act
(§7 Para. 1 Art. 2 GPSG) with respect to ensuring health and safety.
In line with this, the GS symbol has been attached to it:
The certificate is held by the manufacturer.
Manufacturer:
Uni-Elektra
GmbH
Steinbeisstr.
7
D-72501
Gammerting
www.uni-elektra.de
