USER MANUAL HG03868 POWERFIX

G0 E N

HOLLOW WALL ANCHOR SET / HOLLOW WALL METAL ANCHORS

Operation and safety notes

DE AI CH

MONTAGE-SET HOHLRAUM-METALLDÜBEL / HOHLRAUM-METALLDÜBEL

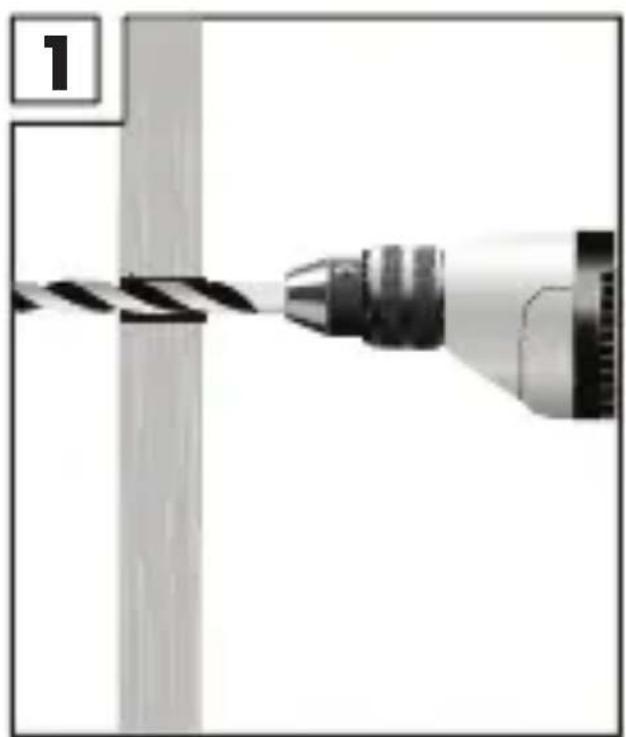

Close-up of a drill bit with a screw and drill bit, showing mechanical components and directional arrows (no text or symbols)

bøl h d t a
	M4 x 32 mm 8	32 ≥3	7 3-1	3 ≤17	39
	M4 x 38 mm 8	38 ≥4	3 9-1	5 ≤17	45
	M5 x 37 mm 10	37 ≥4	0 7-	15 ≤17	44
	M5 x 52 mm 10	52 ≥5	3 8-	21 ≤25	59
	M5 x 65 mm 10	65 ≥6	6 20-	34 ≤28	71

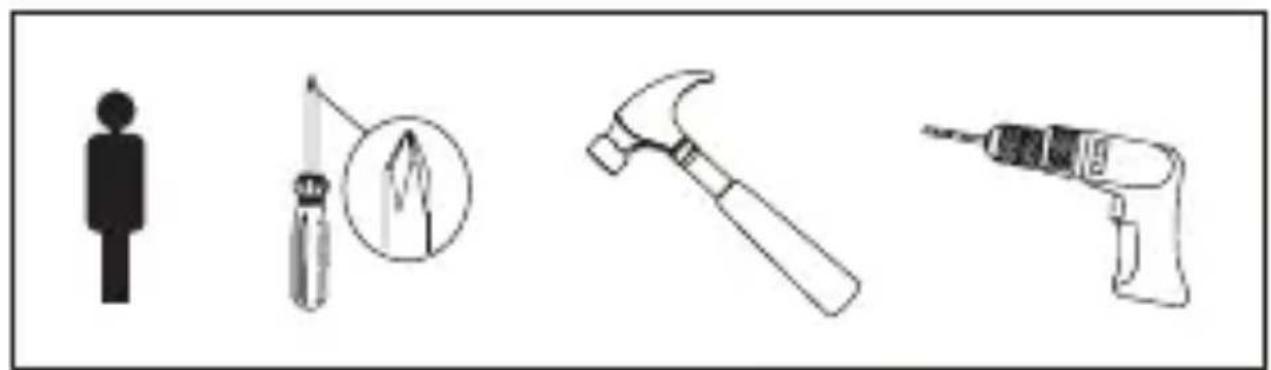

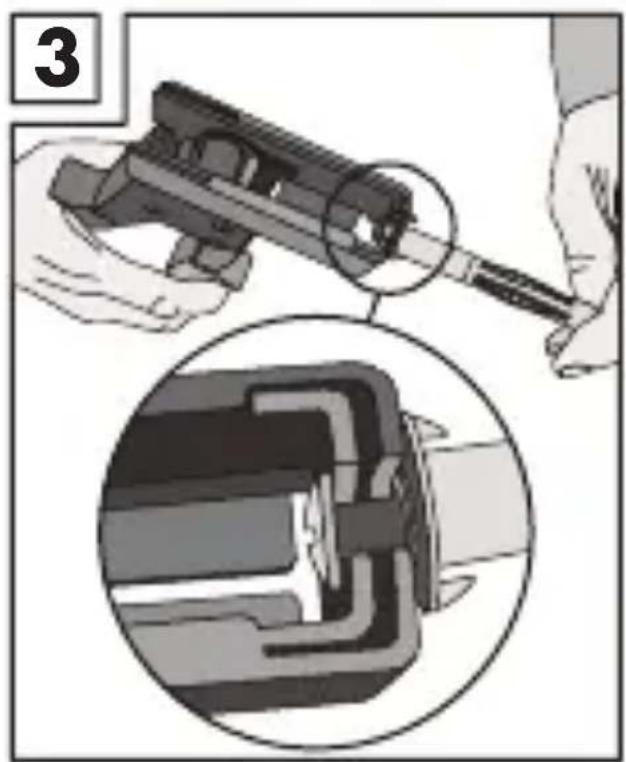

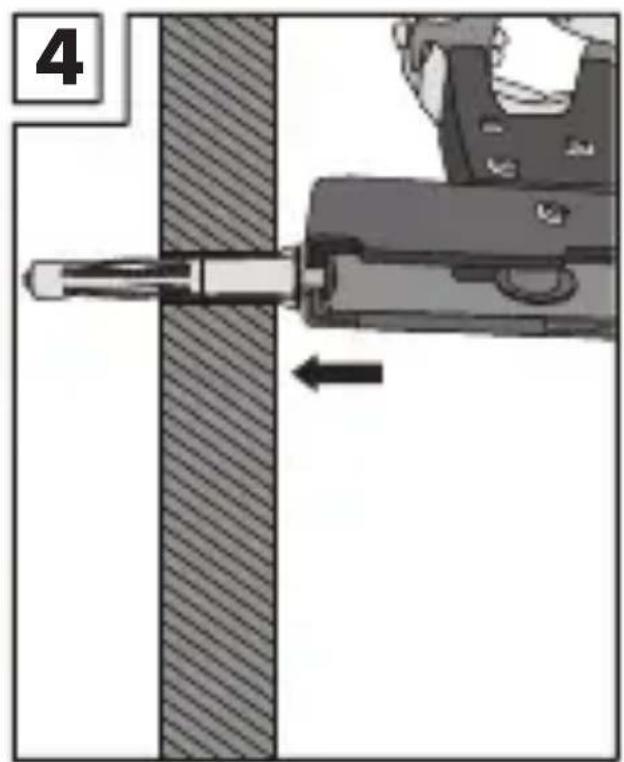

Four technical illustrations: a human figure, screwdriver, hammer, and power tool (no text or symbols)

Close-up of a mechanical tool tip interacting with a textured surface, no visible text or symbols

Illustration of a cable or wire connector with a numbered label '9' on the left (no text or symbols on the diagram itself)

Diagram showing a mechanical or fluidic process with an arrow indicating direction, no text or symbols present

HOLLOW WALL ANCHOR SET / HOLLOW WALL METAL ANCHORS

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

For fastening to drywall, gypsum fibre board, void ceilings and chipboard. For private use only. The product is not intended for commercial use. The manufacturer is not liable for damage caused by improper use.

Safety instructions

PLEASE READ THE INSTRUCTIONS FOR USE PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS FOR USE IN A SAFE PLACE! PLEASE INCLUDE ALL DOCUMENTATION WHEN PASSING THIS PRODUCT ON TO OTHERS.

This product is not a toy. Keep out of the reach of children.

• Check the product for damage before use. Never use a damaged product.
• Anchor size, borehole diameter and wall thickness must be matched correctly. Please refer to the sizing chart on the fold-out pages!
  An anchor's load capacity also depends on the load capacity of the wall material. Please contact the manufacturer of the wall material to be sure. Do not overload the anchor to prevent injuries and damage.
• Maintain a minimum spacing of 10–15 cm between mounting points to prevent the wall material from tearing.
  ■ Wear protective glasses!
• Be sure to secure the mounted object without tolerance.

- Checking the wall thickness

You may check the thickness of the wall by bending the end of a thin wire about 2–4 mm and inserting the bent wire into the borehole. Hook the wire to the back of the wall and use a pen to mark the borehole. By determining the wall thickness you will now be able to select a suitable anchor.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

MONTAGE-SET HOHLRAUM-METALLDÜBEL / HOHLRAUM-METALLDÜBEL

Einleitung

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Sicherheitshinweise

Model No.: HG03867 / HG03868

Version: 04/2018

IAN 302306
