USER MANUAL AB 20 Ec Kärcher

• Kabellänge (EU) m 7,5 Chairman of the Board of Management Director Regulatory Affairs & Certification6English Contents General notes Read the original operating manual before using the device for the first time and act in accordance with it. Keep the original operating manual for future reference or for future owners. If the operating manual and safety in- structions are not observed, the device can be damaged and dangers could arise for users and other persons. Notify the dealer immediately in the case of shipping damage. Check the package contents when un- packing for missing accessories or for damage. Intended use This blower is intended for drying floors, walls and ceilings and wet-cleaned rugs /carpets. This device is exclusively suitable for commercial use. Any other use is considered improper use. The manufacturer is not responsible for any resultant damage. The risk is borne by the user alone. Environmental protection The packing materials can be recy- cled. Please dispose of packaging in accordance with the environmental regula- tions. Electrical and electronic appliances contain valuable, recyclable materials and often components such as batter- ies, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environment. However, these compo- nents are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.com/ REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Symbols on the device Hazard levels DANGER Indication of an imminent threat of danger that will lead to severe injuries or even death. 몇 WARNING Indication of a potentially dangerous situa- tion that may lead to severe injuries or even death. 몇 CAUTION Indication of a potentially dangerous situa- tion that may lead to minor injuries. ATTENTION Indication of a potentially dangerous situa- tion that may lead to damage to property. General notes p. 6
• Intended use p. 6
• Environmental protection p. 6
• Accessories and spare parts p. 6
• Symbols on the device p. 6
• Hazard levels p. 6
• Safety instructions p. 7

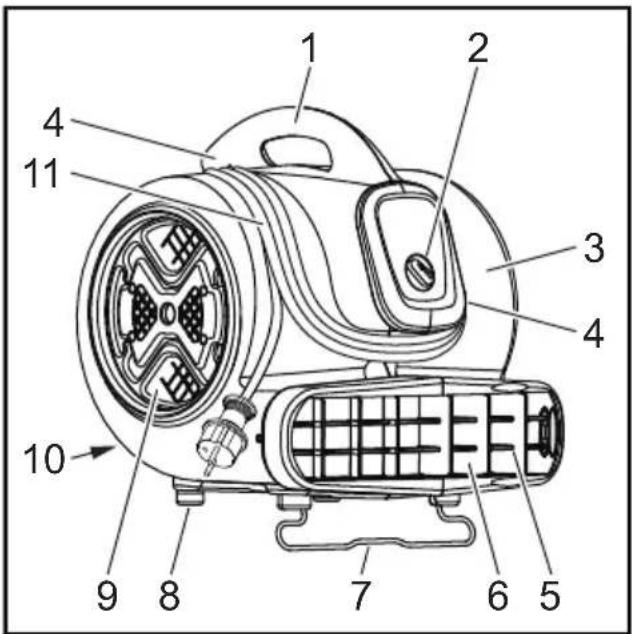

• Description of the unit p. 7
• Operation p. 7
• Transport p. 8
• Storage p. 8
• Care and service p. 8
• Troubleshooting guide p. 8
• Warranty p. 9
• Technical data p. 9
• EU Declaration of Conformity Risk of injury! Dangerous electri- cal voltage warning.English 7 Safety instructions DANGER Never touch the mains plug or the device with wet hands. Check the mains cable regularly for damage such as for cracks forming or signs of ageing. Replace the mains cable if it is damaged before continued use. No changes may be made to the device. 몇 WARNING Only use the device for its proper use. Take into account the local con- ditions and beware of third parties, in par- ticular children, when working with the device. Only people who have been in- structed on how to use the device, or have proven their ability to operate it, and have been explicitly instructed to use it, must use the device. The device is not intended for use by persons with restricted physical, sensory or mental abilities or those lacking in experience and / or lacking in knowledge. l Children must be supervised to prevent them from playing with the appliance. Children must not operate the device. 몇 CAUTION Never leave the device un- attended when it is not switched and with the mains plug still connected. Check the device with the equipment prior to each use to make sure it is safe and working cor- rectly. Only use the device when it is in a correct condition. Only have repairs and installation of spare parts performed by the approved Customer Service in order to pre- vent any hazards. ATTENTION The device must not be op- erated or left outdoors. Description of the unit 1 Carrying handle 2 Power switch 3 Device housing 4 Cable storage 5 Fan grille at air exit grid 6 Air exit 7 Folding leg 8 Rubber foot 9 Air inlet 10 Type plate 11 Mains cable Operation DANGER Turbulence of gasses and dusts Risk of fire and explosion Do not operate the device near combus- tible gasses and explosive dusts. DANGER Poisoning by exhaust gas Sucked-in exhaust gas contaminates the environment. Do not operate the device near open flames. Prevent exhaust emissions near the air in- let. 몇 WARNING Injuries due to strong suction The device creates strong suction at the air inlet, meaning that objects, items of cloth- ing or hair could be sucked in. Keep a safe distance from the air inlet. p. 9

118English 몇 WARNING Injuries due to strong air streaming The device creates strong air streaming at the air exit, meaning that sucked-in objects could be ejected at high speed. Keep a safe distance from the air exit. Note Take suitable measures to avoid the device moving around on smooth floors. Note When setting up the device, ensure that the fan grilles are not blocked.

1. Open doors and windows as wide as

possible to improve ventilation. Set up and align device

1. Set up and align device stably on level

2. Fold out the folding leg if needed.

Power switch Switching on the device

1. Connect the mains plug.

2. Switch on the device.

1. Carry out drying.

Switching off the device

1. Switch off the device.

2. Pull out the mains plug.

Transport 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transportation.

1. Wind the mains cable around the cable

2. Carry the device by the carrying handle.

3. When transporting the device in vehi-

cles, secure it to prevent it from slipping or overturning in accordance with the re- spective valid guidelines. Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. The device may only be operated indoors. Care and service DANGER Danger of electric shock Injuries due to touching live parts Switch off the device. Remove the mains plug. 몇 CAUTION Device continues to run after switch-off Risk of injury from blower continuing to run Wait until the blower has come to a com- plete standstill before performing mainte- nance or repair work.

2. Regularly clean the device surface with

a moist cloth. Troubleshooting guide DANGER Danger of electric shock Injuries due to touching live parts Switch off the device. Remove the mains plug. 몇 CAUTION Device continues to run after switch-off Risk of injury from blower continuing to run Wait until the blower has come to a com- plete standstill before performing mainte- nance or repair work. Blower does not run

1. Check the socket and the power supply

3. Switch on the device.

Customer Service department If the malfunction cannot be corrected, the device must be checked by the Customer Service department. OFF Off 3 Maximum power 2 Medium power 1 Minimum powerEnglish 9 Warranty The warranty conditions issued by our rele- vant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a war- ranty case, please contact your dealer (with the purchase receipt) or the next author- ised customer service site. (See overleaf for the address) Technical data Subject to technical modifications. EU Declaration of Conformity We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: Air Blower Type: AB 20 Ec Currently applicable EU Directives 2006/42/EC 2014/30/EU Harmonised standards used EN 55014–1: 2006+A1: 2009+A2: 2011 EN 55014-2: 2015 EN 60335–1 EN 60335-2-80 EN 61000–3–2: 2014 EN 61000–3-3: 2013 EN 62233: 2008 EN ISO 12100: 2010 National standards used

The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Ph.: [phone] Fax: [phone] Winnenden, 2018/08/01 Electrical connection Voltage V 220-

Frequency Hz 50 Phase ~ 1 Dimensions and weights Typical operating weight kg 7,1 Length mm 376 Width mm 353 Height mm 370 Device performance data Power W 120 Air quantity (max.) m

Dužina kabla (EU) m 7,5 Chairman of the Board of Management Director Regulatory Affairs & CertificationБългарски 93
